Page 10 of 386
1. Engine hood (P. 3-24)
2. Windshield (P. 8-19)
3. Wiper and washer switch (P. 2-22)
4. Power windows (if so equipped)(P. 2-31)
5. Door locks, NISSAN Intelligent Key®
(if so equipped) , key fob (if so
equipped) , keys (P. 3-5, 3-11, 3-7, 3-2)
6. Mirrors (P. 3-31)
7. Tire pressure (P. 8-33)
8. Flat tire (P. 6-3)
9. Tire chains (P. 8-33)
10. Headlight and turn signal switch
(P. 2-24)
11. Replacing bulbs (P. 8-27)
12. Fog light switch (if so equipped)
(P. 2-24)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2304
EXTERIOR FRONT
Illustrated table of contents0-3
Page 340 of 386

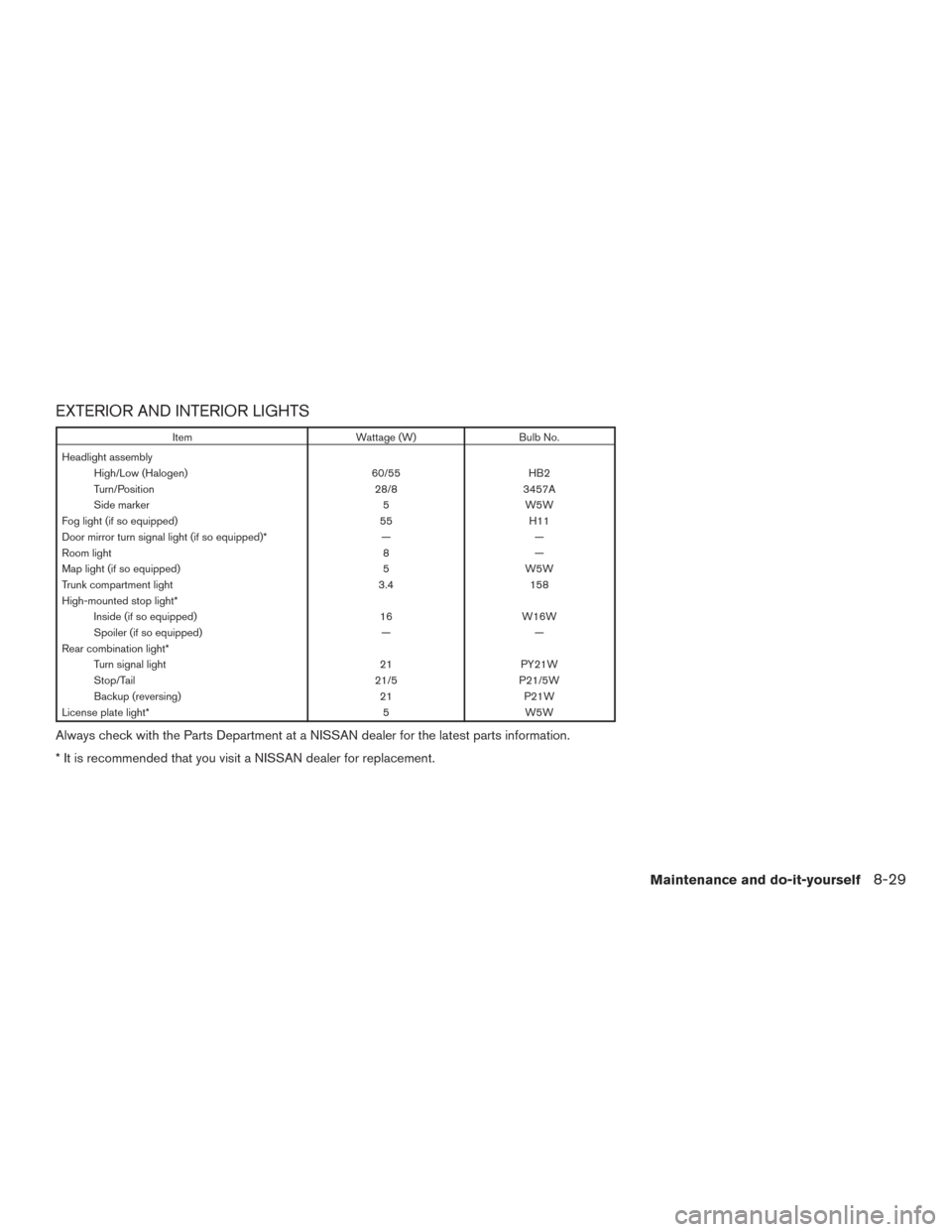

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly High/Low (Halogen) 60/55HB2
Turn/Position 28/83457A
Side marker 5W5W
Fog light (if so equipped) 55H11
Door mirror turn signal light (if so equipped)* ——
Room light 8—
Map light (if so equipped) 5W5W
Trunk compartment light 3.4158
High-mounted stop light* Inside (if so equipped) 16W16W
Spoiler (if so equipped) ——
Rear combination light* Turn signal light 21PY21W
Stop/Tail 21/5P21/5W
Backup (reversing) 21P21W
License plate light* 5W5W
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
* It is recommended that you visit a NISSAN dealer for replacement.
Maintenance and do-it-yourself8-29
Page 343 of 386
To change the stop/tail, turn signal or backup
(reversing) light bulbs, perform the following:1. Disconnect the negative battery cable.
2. Remove the two clips
Aand carefully pull
the carpet back. 3. Remove the two nuts
Band the rear com-
bination light from the vehicle.
License plate light
JVC0014X
Rear combination light
LDI2807
8-32Maintenance and do-it-yourself
Page 381 of 386
Interiorlight................2-34,2-35
Interiortrunklidrelease.............3-26
iPod®Player ...............4-57,4-59
ISOFIX child restraints.............1-21
J
Jump starting ................6-8,8-16
K
Key.........................3-2
Key fob battery replacement .......8-24,8-24
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-18
Without Intelligent Key system
(See remote keyless entry system) . . .3-7, 3-8
Keys NISSAN Intelligent Key® .......3-3,3-11
NISSAN Vehicle Immobilizer System keys . .3-4
L
Labels Air conditioner specification label .....9-12
Emissioncontrolinformationlabel.....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-55LATCH (Lower Anchors and Tethers for CHildren)
System
......................1-21
License plate Installing the license plate ..........9-12
Light Air bag warning light .........1-56,2-17
Brake light (See stop light) .........8-29
Bulb check/instrument panel ........2-13
Bulbreplacement..............8-29
Charge warning light ............2-14
Exterior and Interior lights ..........8-29
Foglights...................8-28
Foglightswitch ...............2-27
Headlight and turn signal switch ......2-24
Headlight control switch ..........2-24
Headlights..................8-27
Interiorlight..............2-34,2-35
Lightbulbs..................8-27
Low tire pressure warning light .......2-15
Passenger air bag and status light .....1-48
Security indicator light ............2-19
Warning/indicator lights and audible
reminders ............2-12,2-13,2-18
Lights.......................8-27
Lock Child safety rear door lock ..........3-7
Door locks ...................3-5
Fuel-filler door lock opener lever ......3-27
Power door locks ...............3-6
Trunk lid lock opener lever ..........3-26
Loose fuel cap warning ..............2-6
Lowfuelwarninglight..............2-15
Low tire pressure warning light .........2-15
Luggage (See vehicle loading information) . .9-13 M
Maintenance General maintenance .............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-16
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-18
Manual front seat adjustment ...........1-3
Manual windows .................2-34
Mappocket....................2-29
Meters and gauges ................2-3
Instrument brightness control ........2-26
Mirror Outside mirrorcontrol ............
3-32
Outside mirrors ............3-31,3-32
Rearview ...................3-31
Vanity mirror .................3-31
Mirrors ......................3-31
Mobileapps ...................4-66
N
NissanConnect
SM................4-66
NISSAN Intelligent Key® .........3-3,3-11
NISSAN Intelligent Key® battery discharge
indicator .....................5-13
NISSAN Vehicle Immobilizer
System ...............2-21,5-11,5-14
NISSAN voice recognition system ......4-101
10-4
