If any electrical equipment does not oper-
ate, check for an open fuse.
Fuses are used in the passenger compart-
ment. Spare fuses are provided and can be
found in the passenger compartment fuse
box.
When installing a fuse make sure the fuse is
installed in the fuse box securely.ENGINE COMPARTMENT
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

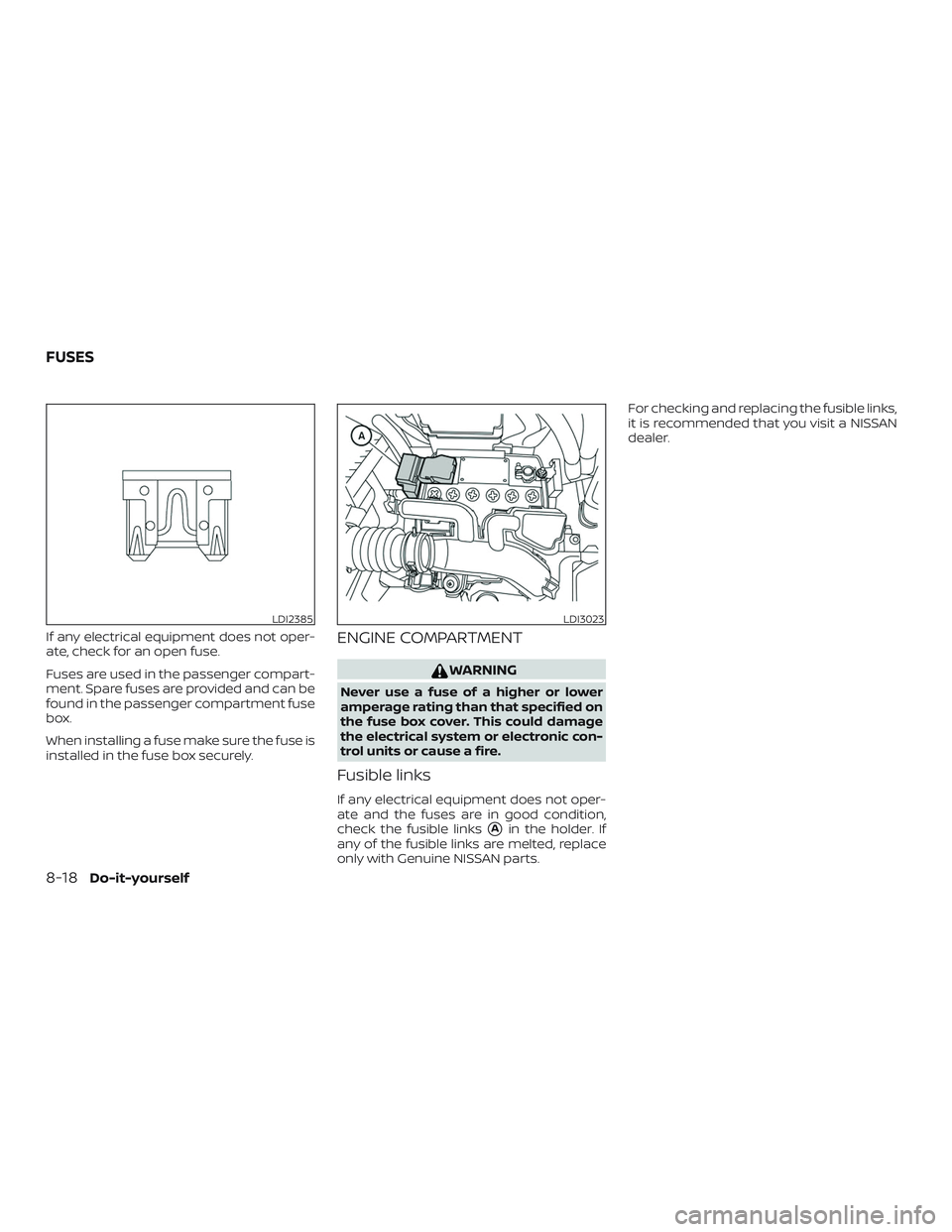

Fusible links
If any electrical equipment does not oper-
ate and the fuses are in good condition,
check the fusible links
Ain the holder. If
any of the fusible links are melted, replace
only with Genuine NISSAN parts.For checking and replacing the fusible links,
it is recommended that you visit a NISSAN
dealer.
LDI2385LDI3023
FUSES
8-18Do-it-yourself

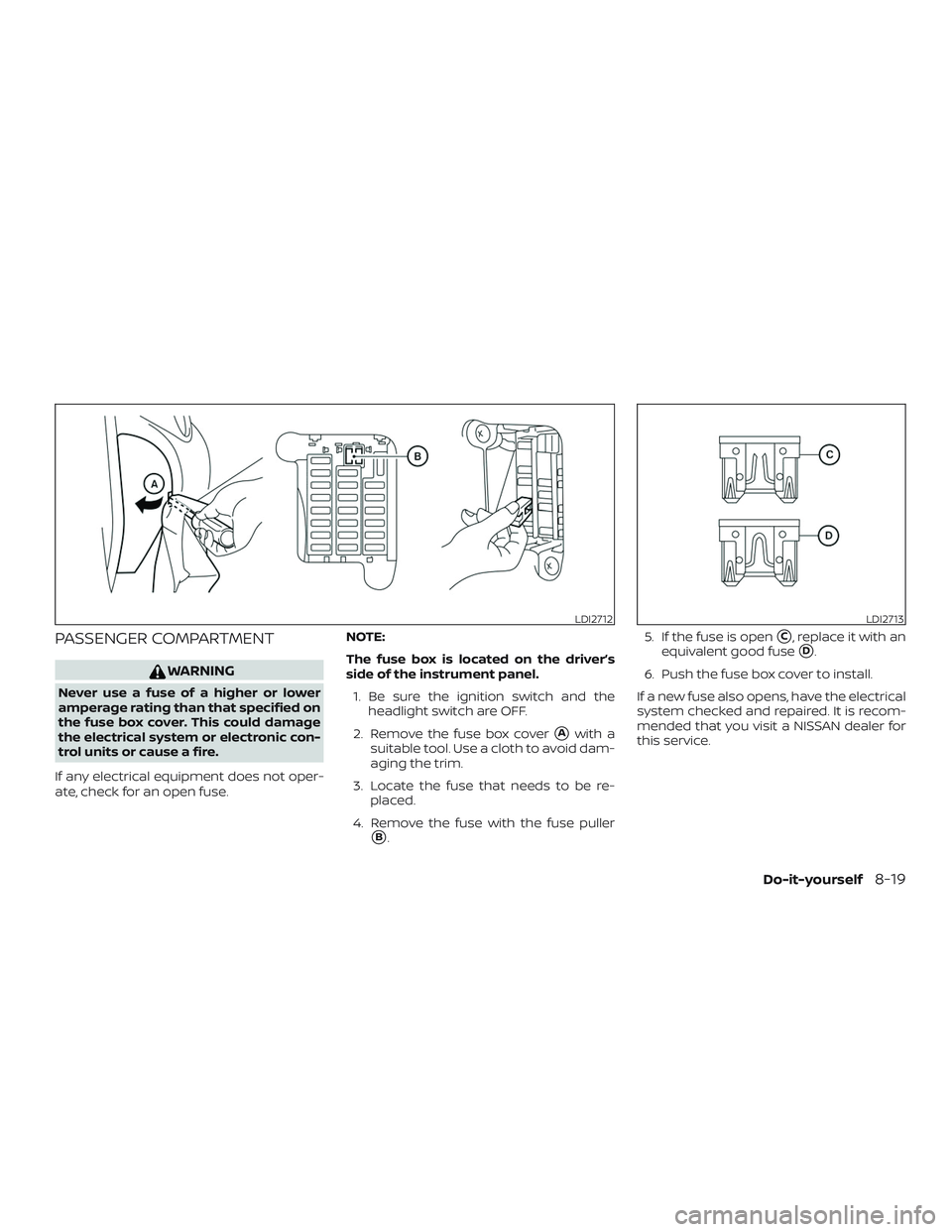

PASSENGER COMPARTMENT
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not oper-
ate, check for an open fuse.NOTE:
The fuse box is located on the driver’s
side of the instrument panel.
1. Be sure the ignition switch and the
headlight switch are OFF.
2. Remove the fuse box cover
Awith a
suitable tool. Use a cloth to avoid dam-
aging the trim.
3. Locate the fuse that needs to be re-
placed.
4. Remove the fuse with the fuse puller
B.5. If the fuse is open
C, replace it with an
equivalent good fuse
D.
6. Push the fuse box cover to install.
If a new fuse also opens, have the electrical
system checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.
LDI2712LDI2713
Do-it-yourself8-19

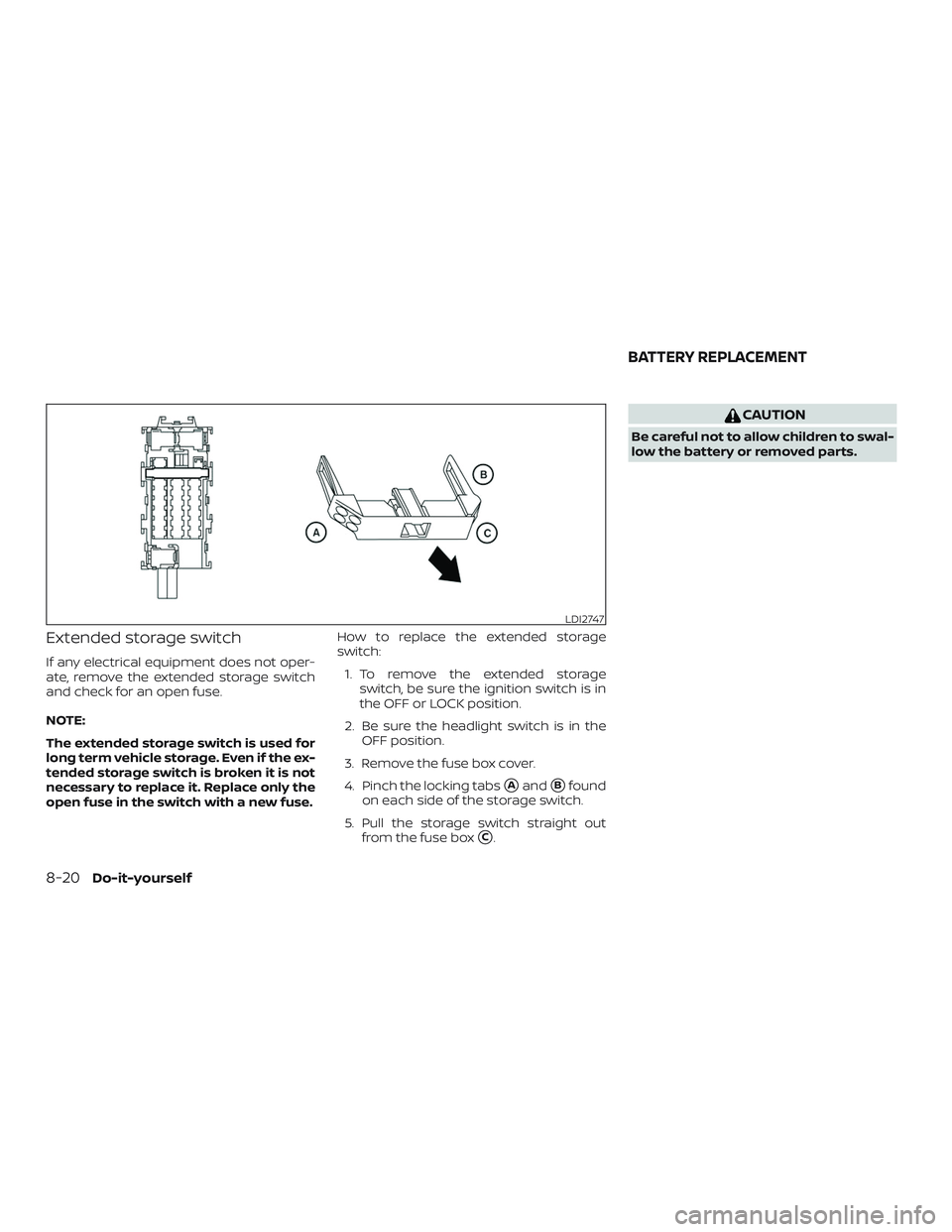

Extended storage switch
If any electrical equipment does not oper-
ate, remove the extended storage switch
and check for an open fuse.
NOTE:
The extended storage switch is used for
long term vehicle storage. Even if the ex-
tended storage switch is broken it is not
necessary to replace it. Replace only the
open fuse in the switch with a new fuse.How to replace the extended storage
switch:
1. To remove the extended storage
switch, be sure the ignition switch is in
the OFF or LOCK position.
2. Be sure the headlight switch is in the
OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
AandBfound
on each side of the storage switch.
5. Pull the storage switch straight out
from the fuse box
C.
CAUTION
Be careful not to allow children to swal-
low the battery or removed parts.
LDI2747
BATTERY REPLACEMENT
8-20Do-it-yourself

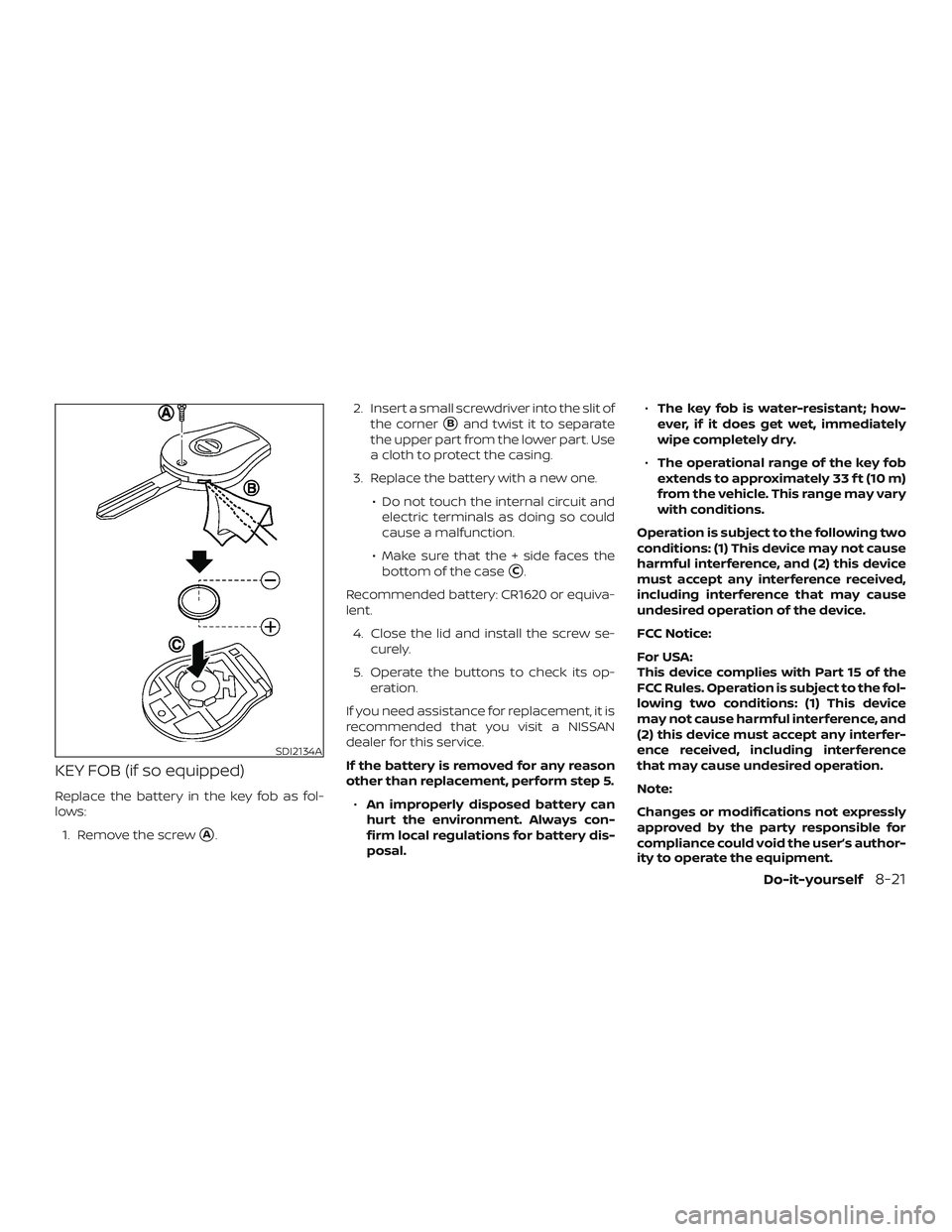

KEY FOB (if so equipped)
Replace the battery in the key fob as fol-
lows:
1. Remove the screw
A.2. Insert a small screwdriver into the slit of
the corner
Band twist it to separate
the upper part from the lower part. Use
a cloth to protect the casing.
3. Replace the battery with a new one.
∙ Do not touch the internal circuit and
electric terminals as doing so could
cause a malfunction.
∙ Make sure that the + side faces the
bottom of the case
C.
Recommended battery: CR1620 or equiva-
lent.
4. Close the lid and install the screw se-
curely.
5. Operate the buttons to check its op-
eration.
If you need assistance for replacement, it is
recommended that you visit a NISSAN
dealer for this service.
If the battery is removed for any reason
other than replacement, perform step 5.
∙An improperly disposed battery can
hurt the environment. Always con-
firm local regulations for battery dis-
posal.∙The key fob is water-resistant; how-
ever, if it does get wet, immediately
wipe completely dry.
∙The operational range of the key fob
extends to approximately 33 f t (10 m)
from the vehicle. This range may vary
with conditions.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received,
including interference that may cause
undesired operation of the device.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
Note:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.
SDI2134A
Do-it-yourself8-21

For Canada:
This device complies with Industry
Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.HEADLIGHTS
For additional information on headlight
bulb replacement, refer to the instructions
outlined in this section.

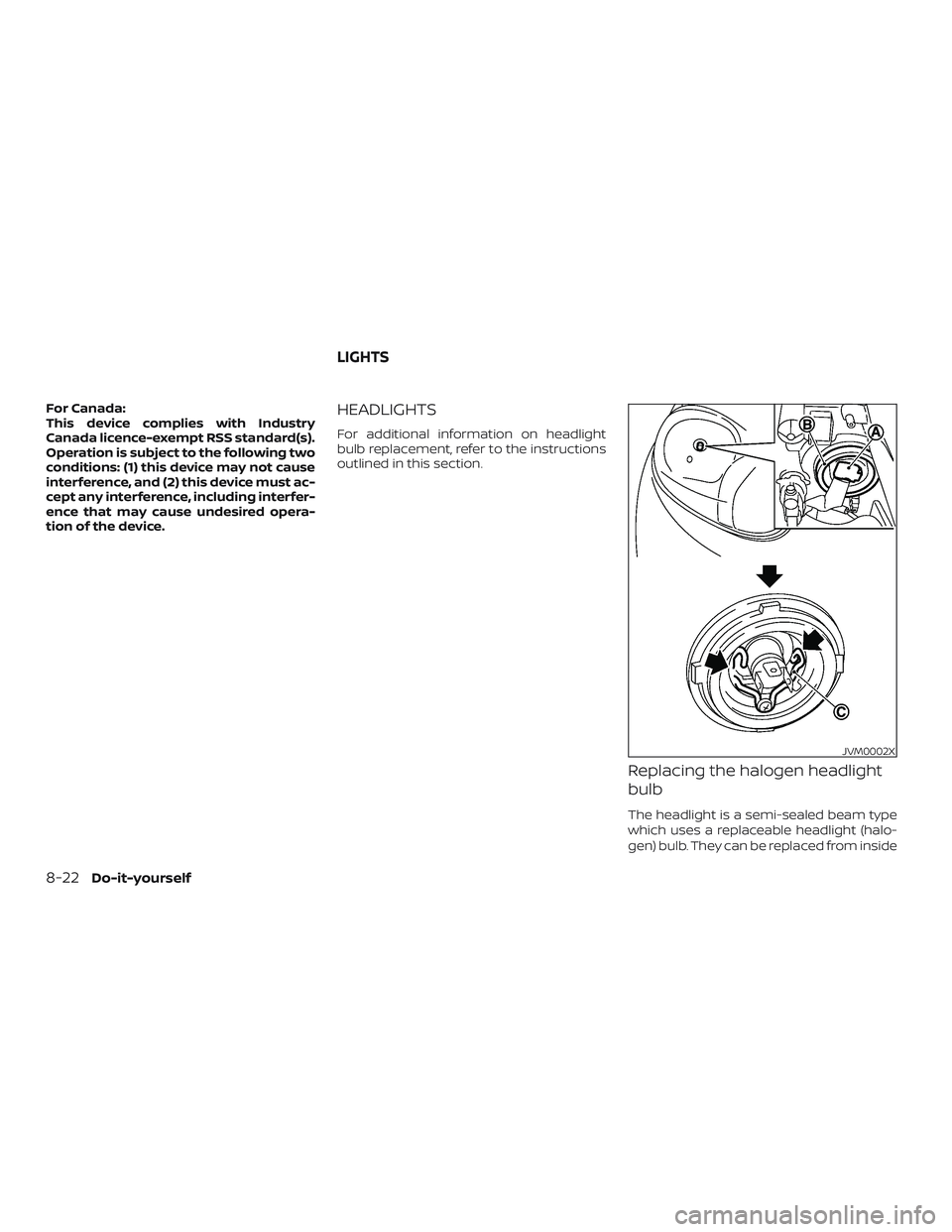

Replacing the halogen headlight
bulb

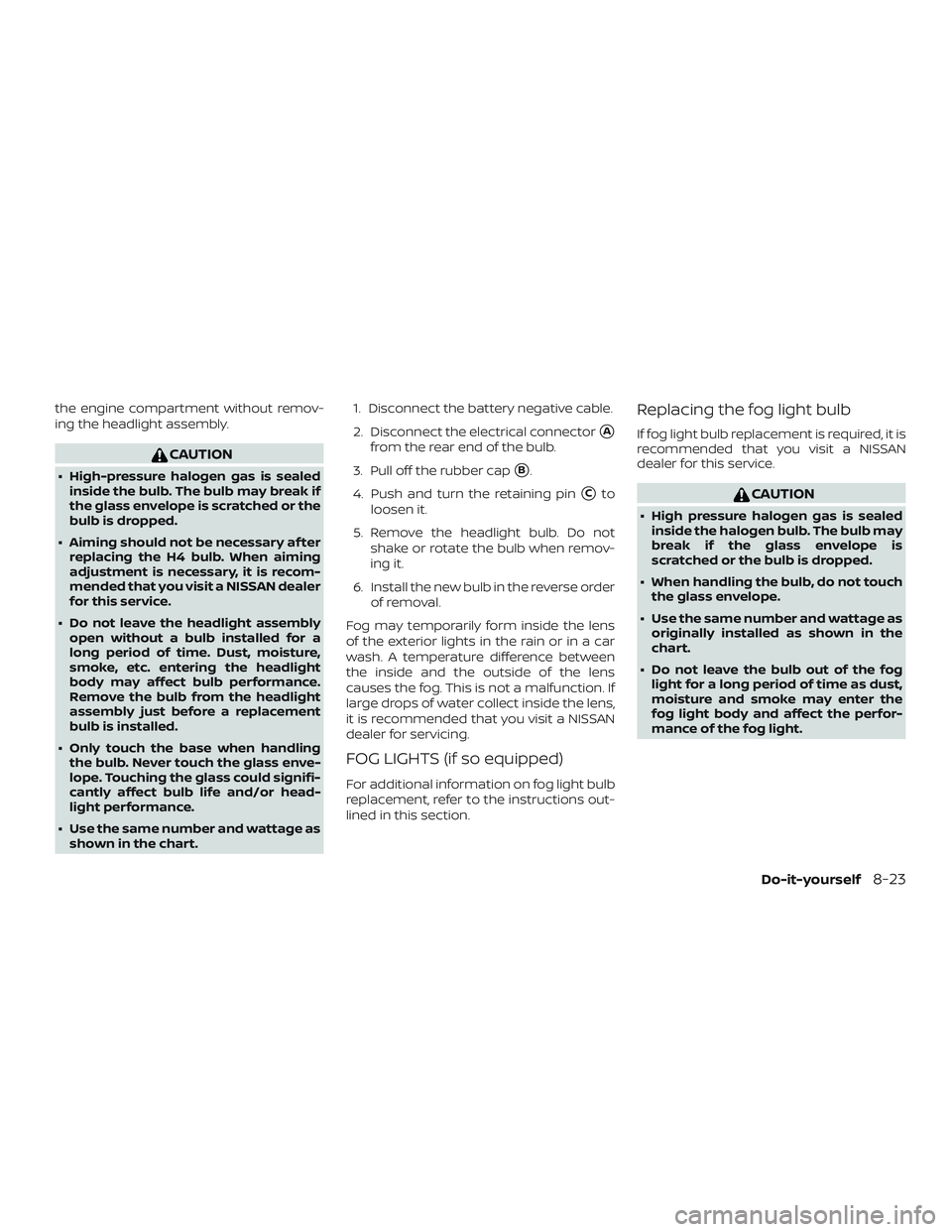

The headlight is a semi-sealed beam type
which uses a replaceable headlight (halo-
gen) bulb. They can be replaced from inside
JVM0002X
LIGHTS
8-22Do-it-yourself

the engine compartment without remov-
ing the headlight assembly.
CAUTION
∙ High-pressure halogen gas is sealed
inside the bulb. The bulb may break if
the glass envelope is scratched or the
bulb is dropped.
∙ Aiming should not be necessary af ter
replacing the H4 bulb. When aiming
adjustment is necessary, it is recom-
mended that you visit a NISSAN dealer
for this service.
∙ Do not leave the headlight assembly
open without a bulb installed for a
long period of time. Dust, moisture,
smoke, etc. entering the headlight
body may affect bulb performance.
Remove the bulb from the headlight
assembly just before a replacement
bulb is installed.
∙ Only touch the base when handling
the bulb. Never touch the glass enve-
lope. Touching the glass could signifi-
cantly affect bulb life and/or head-
light performance.
∙ Use the same number and wattage as
shown in the chart.1. Disconnect the battery negative cable.
2. Disconnect the electrical connector
A
from the rear end of the bulb.
3. Pull off the rubber cap
B.
4. Push and turn the retaining pin
Cto
loosen it.
5. Remove the headlight bulb. Do not
shake or rotate the bulb when remov-
ing it.
6. Install the new bulb in the reverse order
of removal.
Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
it is recommended that you visit a NISSAN
dealer for servicing.
FOG LIGHTS (if so equipped)
For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.
Replacing the fog light bulb
If fog light bulb replacement is required, it is
recommended that you visit a NISSAN
dealer for this service.
CAUTION
∙ High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is
scratched or the bulb is dropped.
∙ When handling the bulb, do not touch
the glass envelope.
∙ Use the same number and wattage as
originally installed as shown in the
chart.
∙ Do not leave the bulb out of the fog
light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.
Do-it-yourself8-23

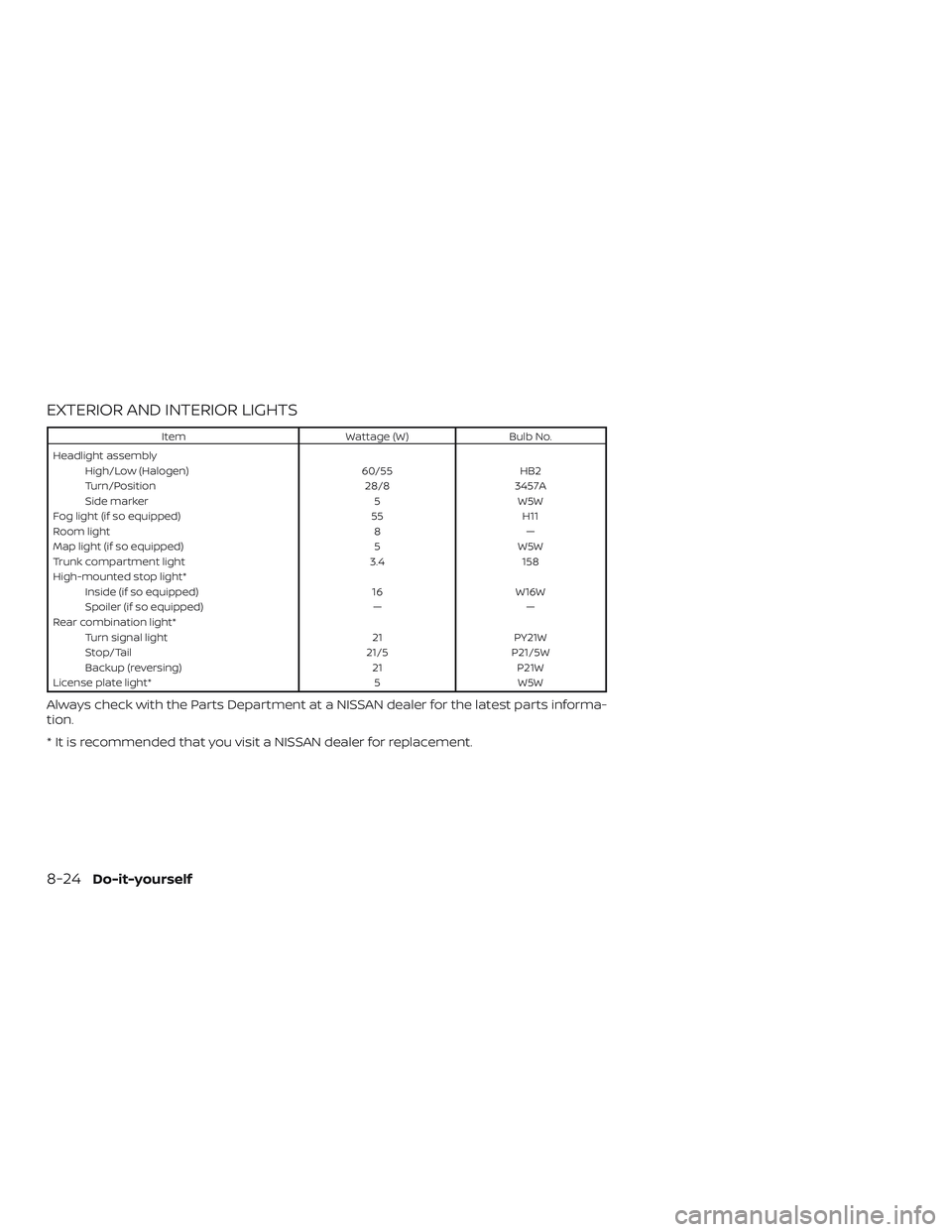

EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W) Bulb No.
Headlight assembly
High/Low (Halogen) 60/55 HB2
Turn/Position 28/8 3457A
Side marker 5 W5W
Fog light (if so equipped) 55 H11
Room light 8 —
Map light (if so equipped) 5 W5W
Trunk compartment light 3.4 158
High-mounted stop light*
Inside (if so equipped) 16 W16W
Spoiler (if so equipped) — —
Rear combination light*
Turn signal light 21 PY21W
Stop/Tail 21/5 P21/5W
Backup (reversing) 21 P21W
License plate light* 5 W5W
Always check with the Parts Department at a NISSAN dealer for the latest parts informa-
tion.
* It is recommended that you visit a NISSAN dealer for replacement.
8-24Do-it-yourself

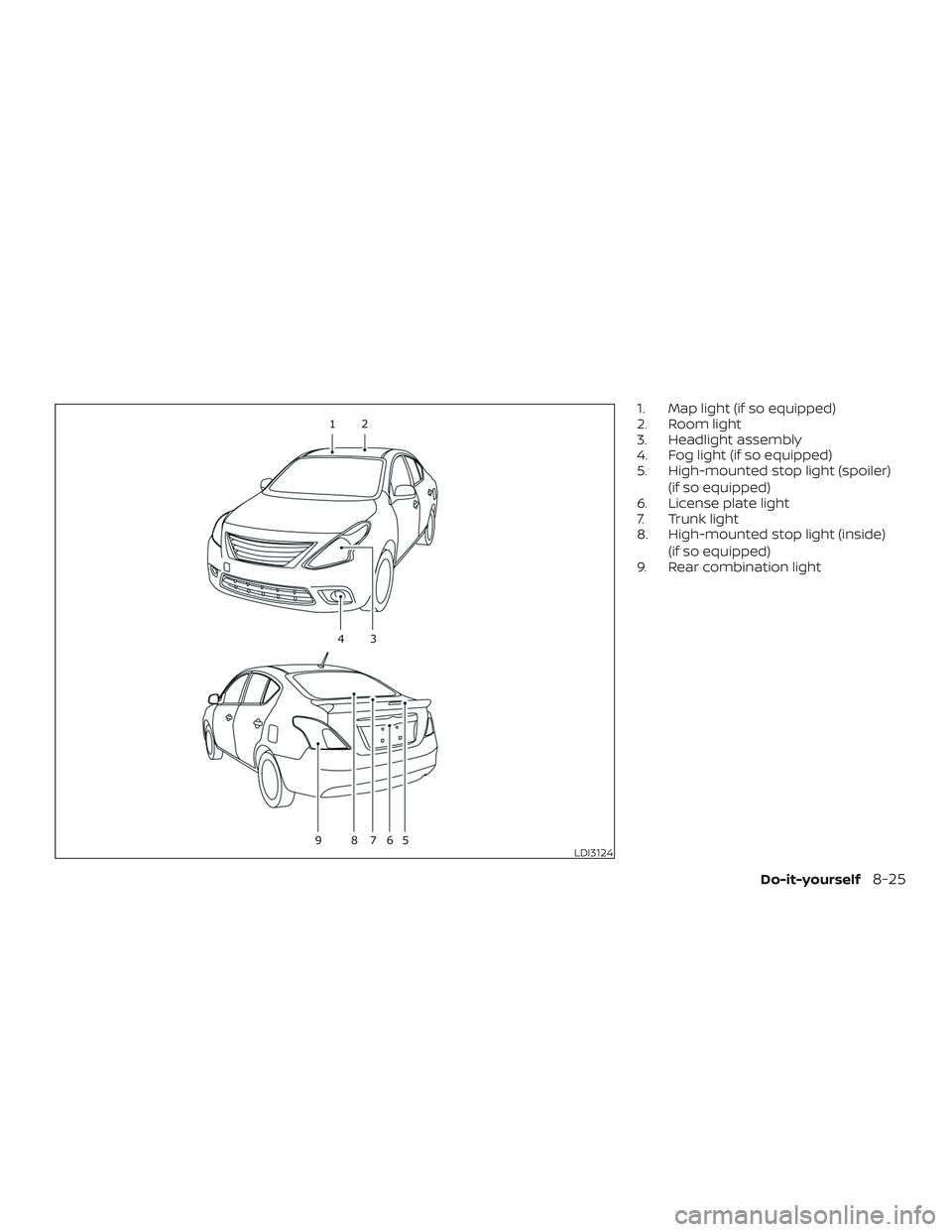

1. Map light (if so equipped)
2. Room light
3. Headlight assembly
4. Fog light (if so equipped)
5. High-mounted stop light (spoiler)
(if so equipped)
6. License plate light
7. Trunk light
8. High-mounted stop light (inside)
(if so equipped)
9. Rear combination light
LDI3124
Do-it-yourself8-25

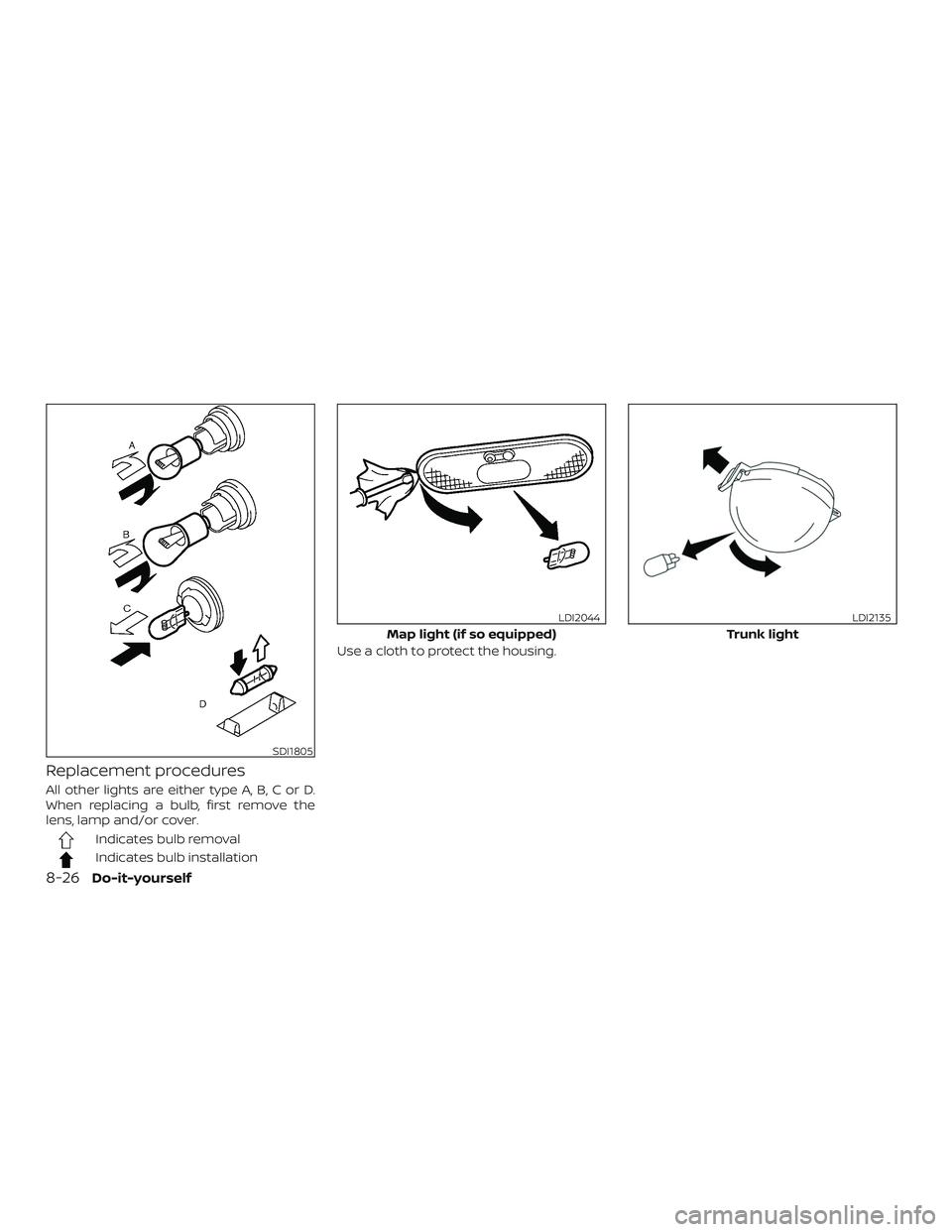

Replacement procedures
All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth to protect the housing.
SDI1805
Map light (if so equipped)
LDI2044
Trunk light
LDI2135
8-26Do-it-yourself

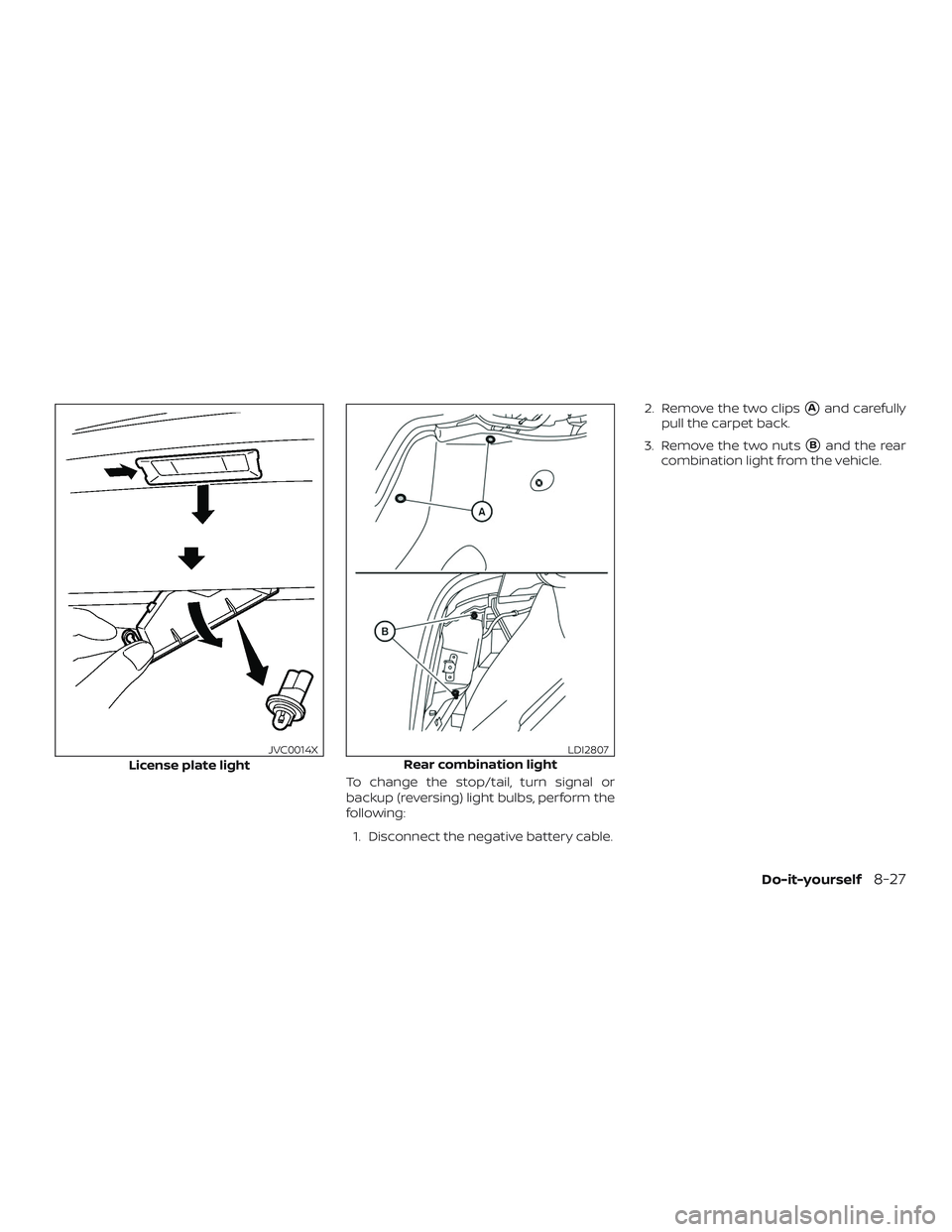

To change the stop/tail, turn signal or
backup (reversing) light bulbs, perform the
following:
1. Disconnect the negative battery cable.2. Remove the two clips
Aand carefully
pull the carpet back.
3. Remove the two nuts
Band the rear
combination light from the vehicle.
License plate light
JVC0014XRear combination lightLDI2807
