Page 281 of 372

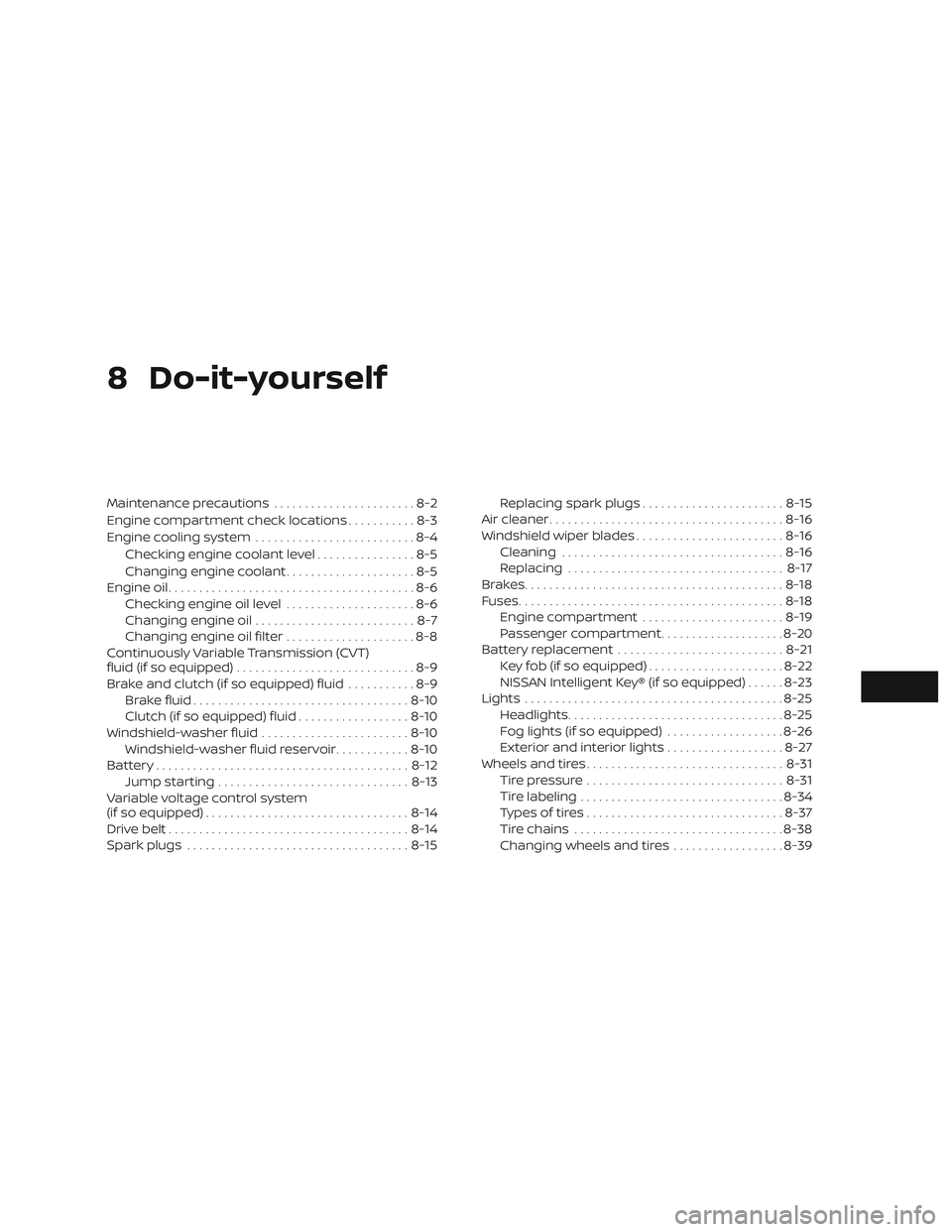

NISSAN VERSA SEDAN 2019  Owner´s Manual 8 Do-it-yourself
Maintenance precautions.......................8-2
Engine compartment check locations ...........8-3
Engine cooling system ..........................8-4
Checking engine coolant level .

Page 282 of 372

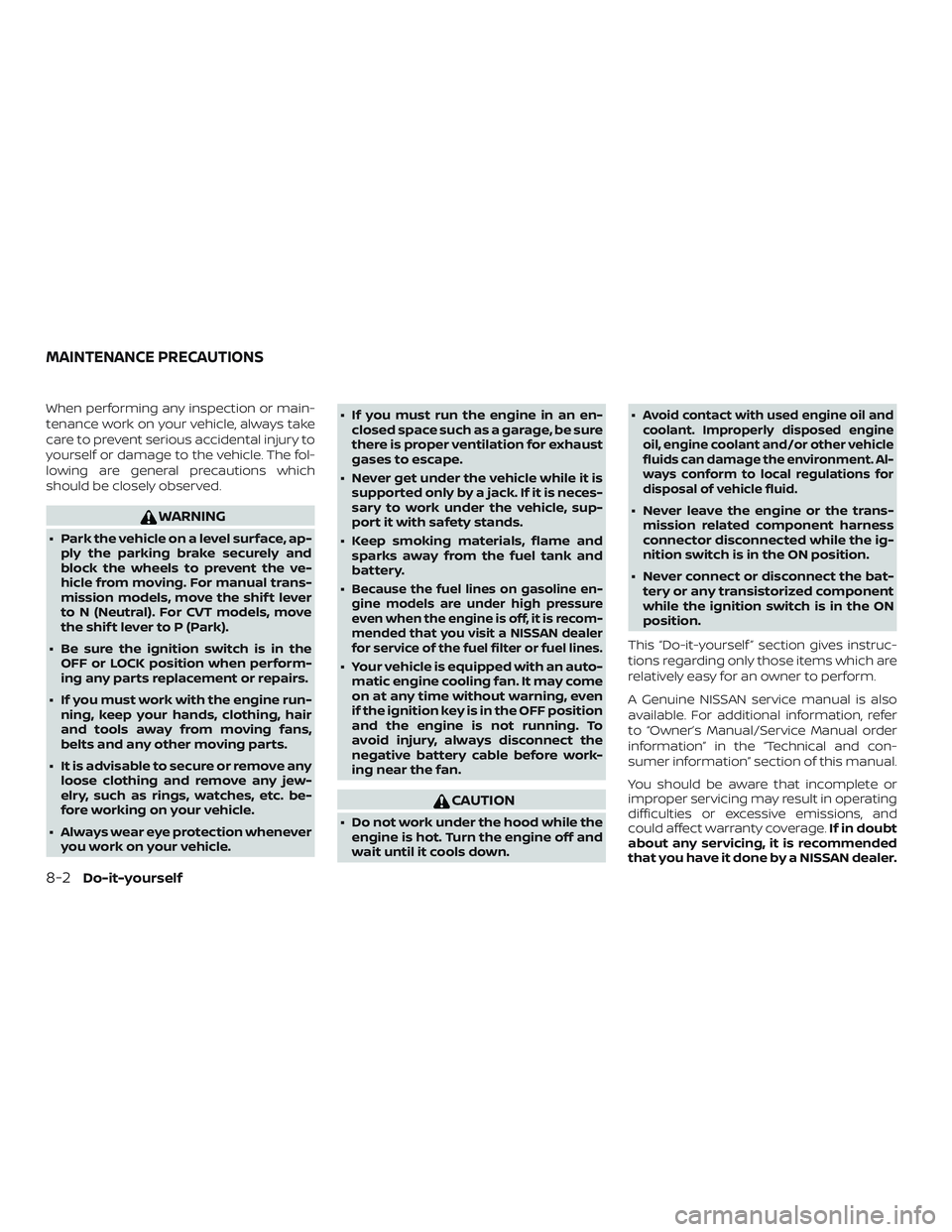

NISSAN VERSA SEDAN 2019  Owner´s Manual When performing any inspection or main-
tenance work on your vehicle, always take
care to prevent serious accidental injury to
yourself or damage to the vehicle. The fol-
lowing are general precaution

Page 283 of 372

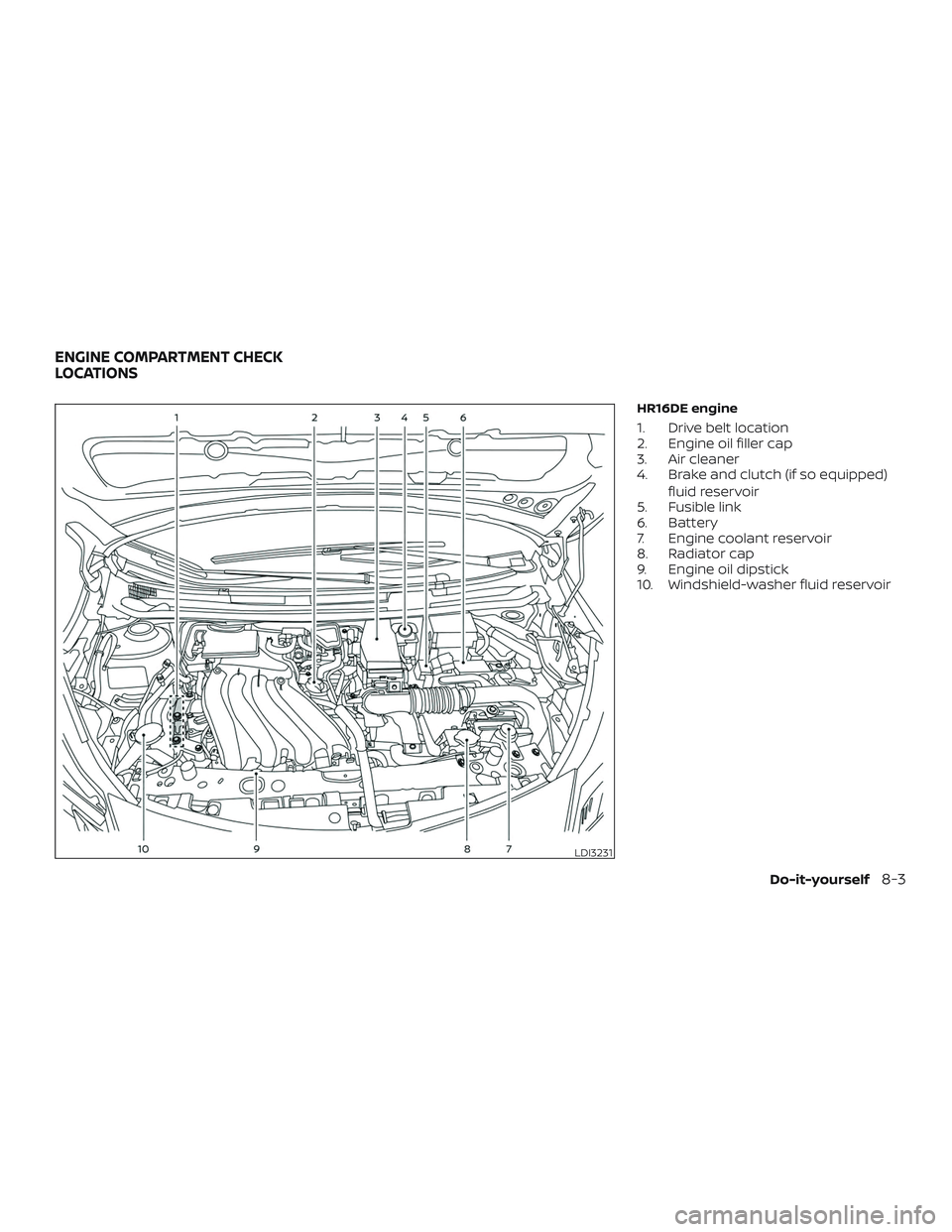

NISSAN VERSA SEDAN 2019  Owner´s Manual HR16DE engine
1. Drive belt location
2. Engine oil filler cap
3. Air cleaner
4. Brake and clutch (if so equipped)fluid reservoir
5. Fusible link
6. Battery
7. Engine coolant reservoir
8. Radiator cap

Page 284 of 372

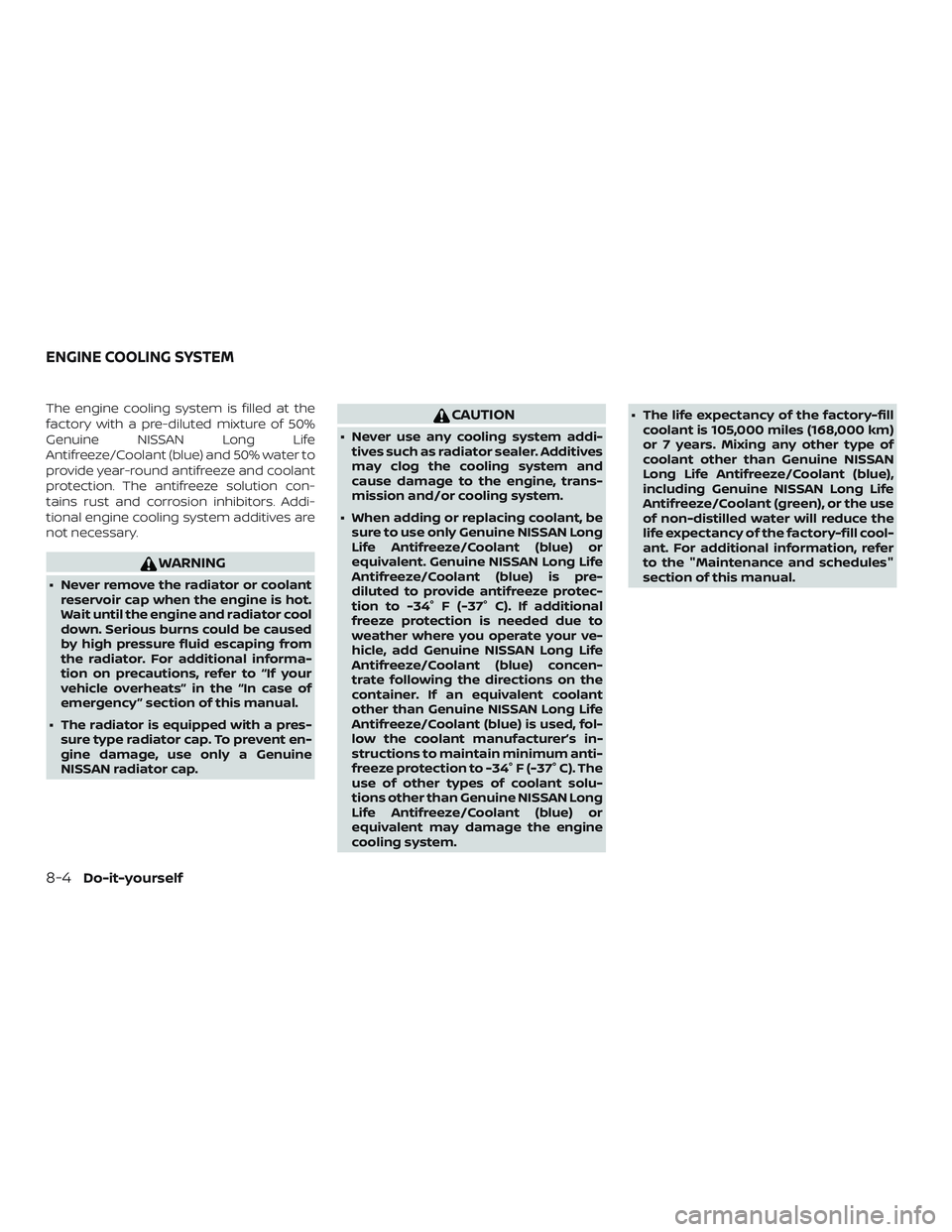

NISSAN VERSA SEDAN 2019  Owner´s Manual The engine cooling system is filled at the
factory with a pre-diluted mixture of 50%
Genuine NISSAN Long Life
Antifreeze/Coolant (blue) and 50% water to
provide year-round antifreeze and coolant
prote

Page 285 of 372

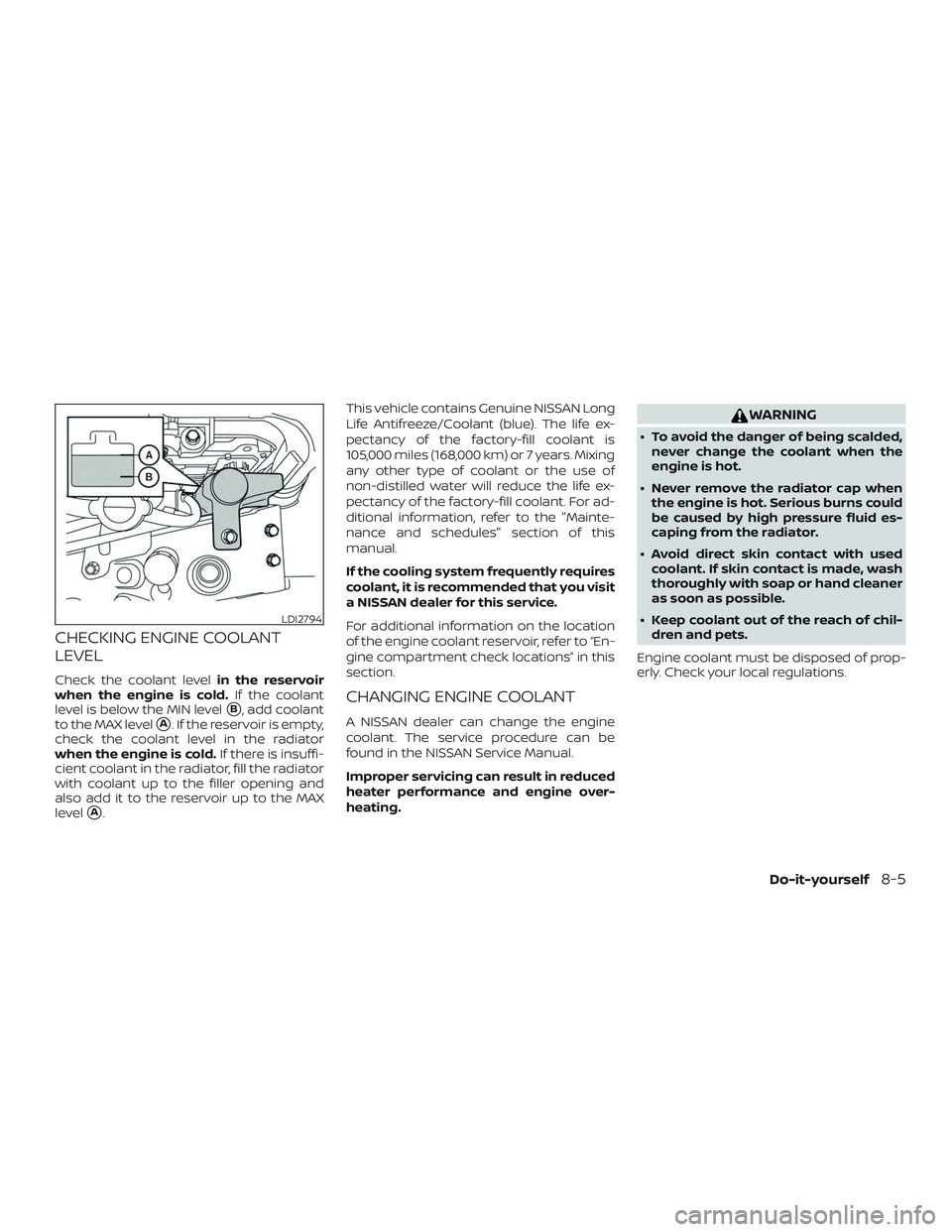

NISSAN VERSA SEDAN 2019  Owner´s Manual CHECKING ENGINE COOLANT
LEVEL
Check the coolant levelin the reservoir
when the engine is cold. If the coolant
level is below the MIN level
B, add coolant
to the MAX level
A. If the reservoir is empt

Page 286 of 372

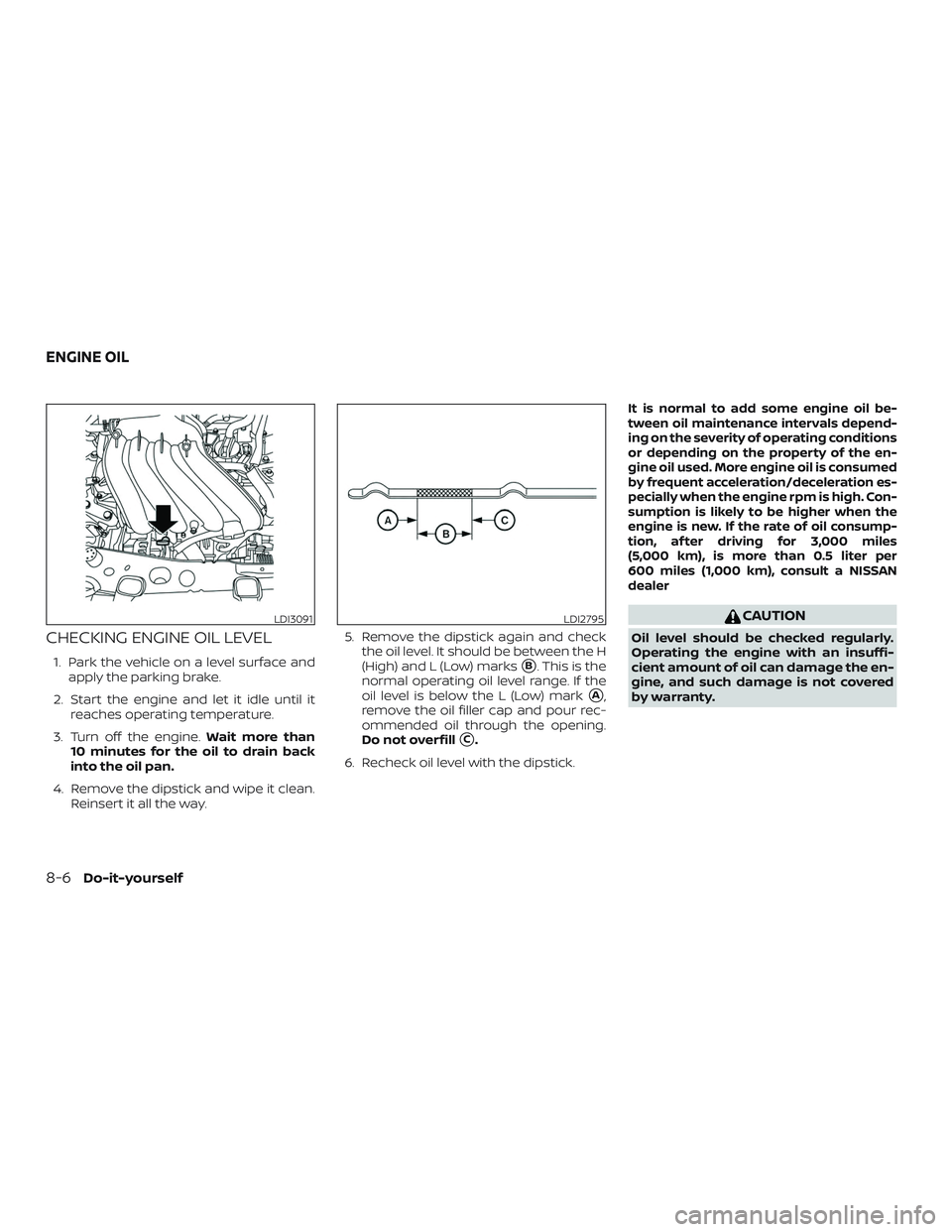

NISSAN VERSA SEDAN 2019  Owner´s Manual CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface andapply the parking brake.
2. Start the engine and let it idle until it reaches operating temperature.
3. Turn off the engine. Wait mo

Page 287 of 372

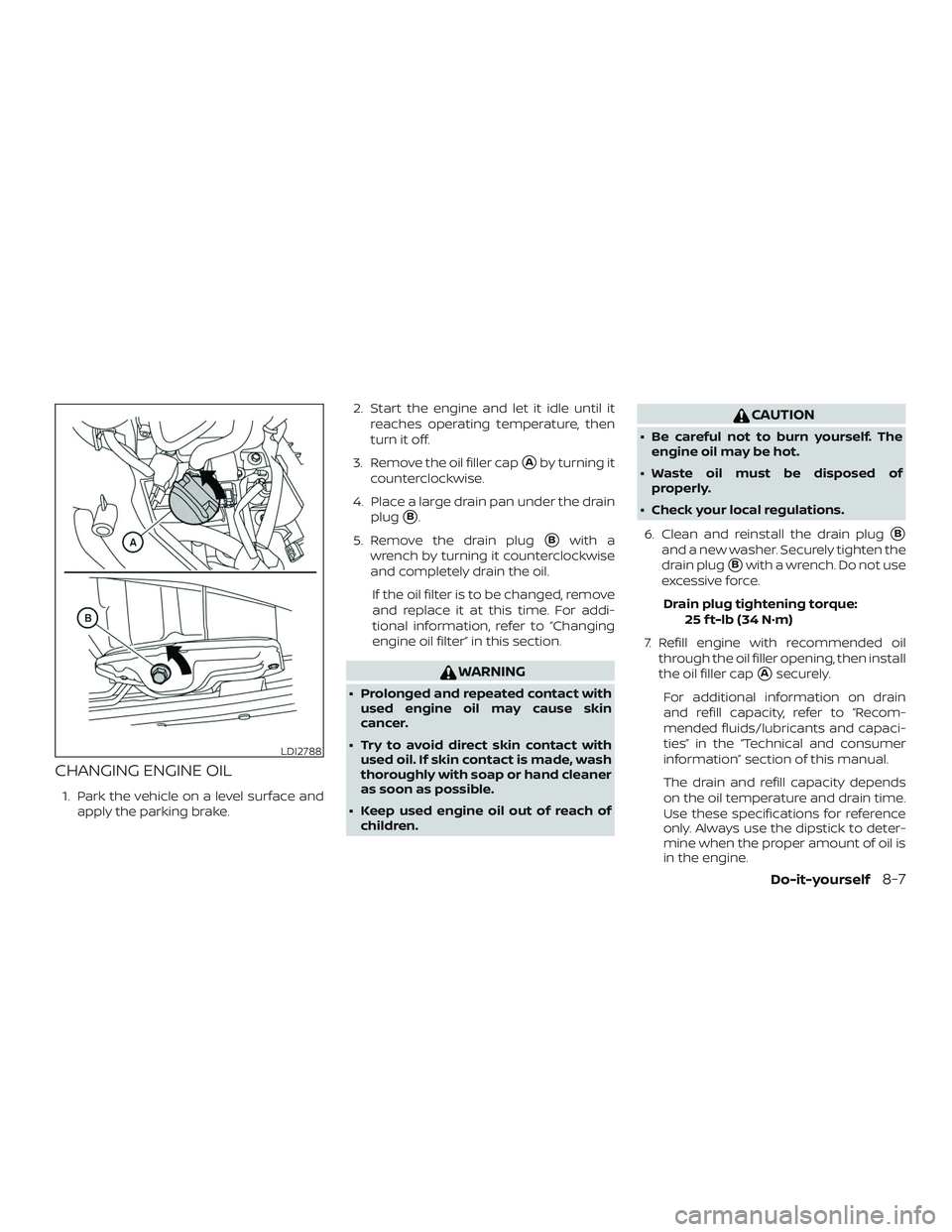

NISSAN VERSA SEDAN 2019  Owner´s Manual CHANGING ENGINE OIL
1. Park the vehicle on a level surface andapply the parking brake. 2. Start the engine and let it idle until it
reaches operating temperature, then
turn it off.
3. Remove the oil f

Page 288 of 372

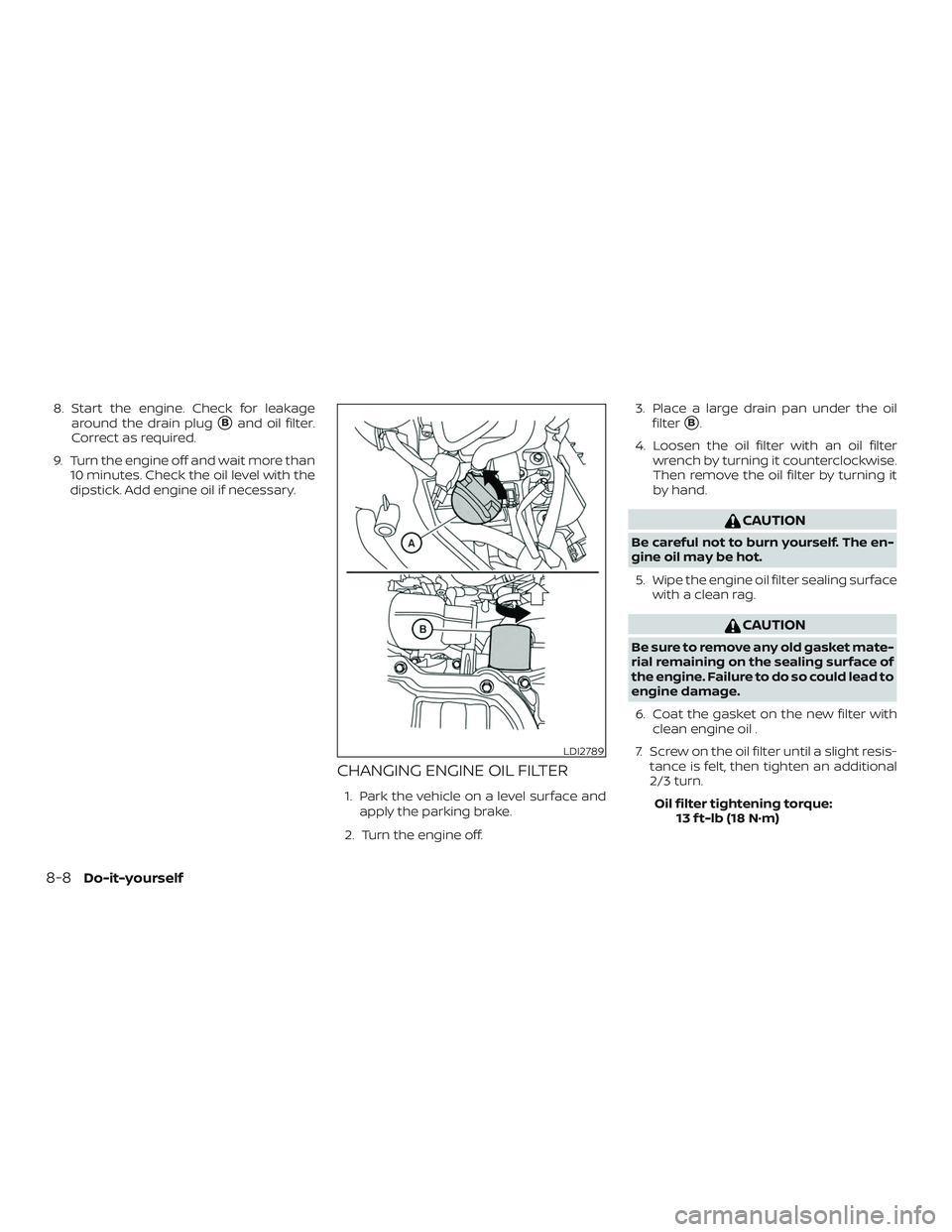

NISSAN VERSA SEDAN 2019  Owner´s Manual 8. Start the engine. Check for leakagearound the drain plug
Band oil filter.
Correct as required.
9. Turn the engine off and wait more than 10 minutes. Check the oil level with the
dipstick. Add engi

Page 289 of 372

NISSAN VERSA SEDAN 2019  Owner´s Manual 8. Start the engine and check for leakagearound the oil filter. Correct as required.
9. Turn the engine off and wait more than 10 minutes. Check the oil level. Add en-
gine oil by removing the oil fil

Page 290 of 372

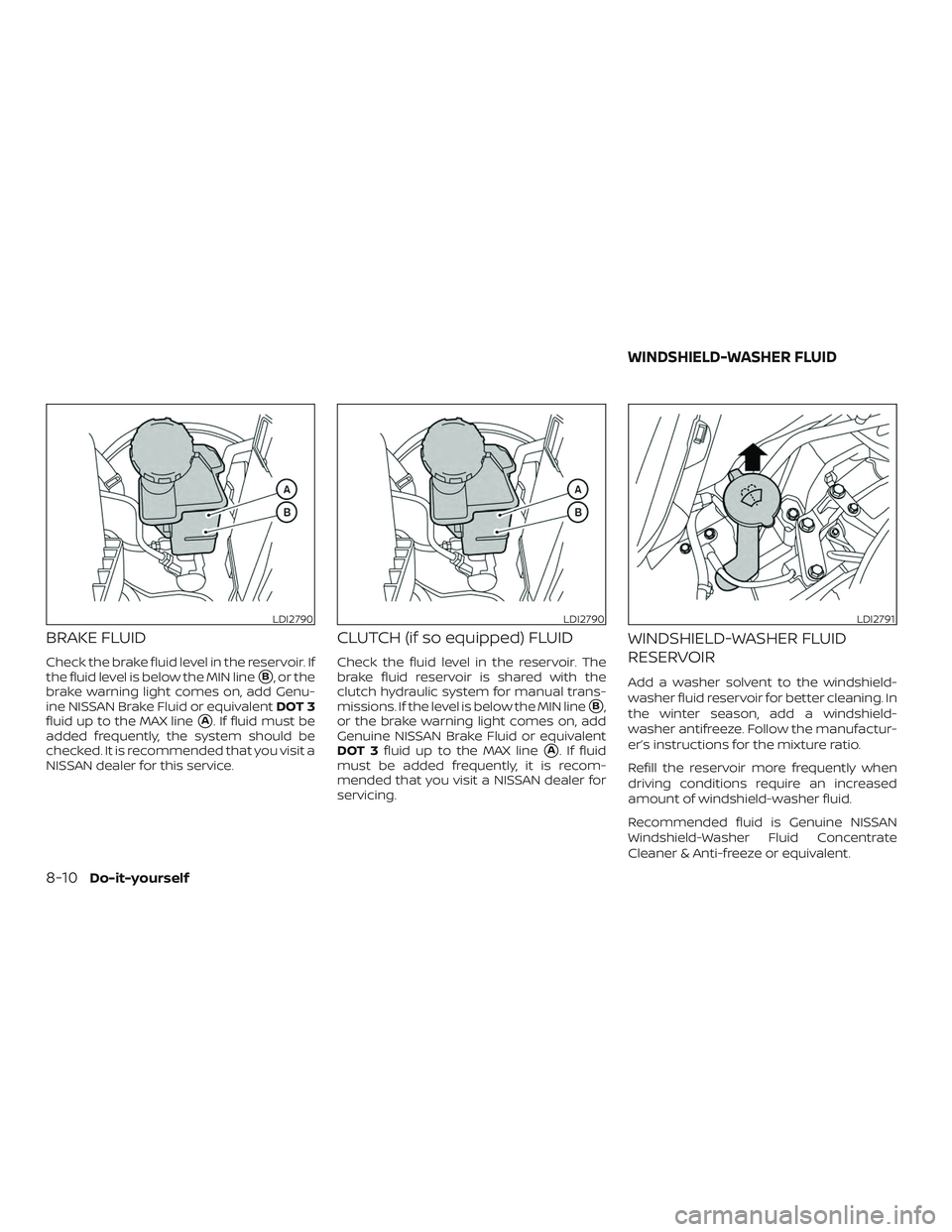

NISSAN VERSA SEDAN 2019  Owner´s Manual BRAKE FLUID
Check the brake fluid level in the reservoir. If
the fluid level is below the MIN line
B, or the
brake warning light comes on, add Genu-
ine NISSAN Brake Fluid or equivalent DOT 3
fluid u
