NISSAN X-TRAIL 2001 Service Repair Manual

TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-83
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Cruise Test — Part 3
1.CHECK SHIFT DOWN (D4 TO D3 )
1. Confirm overdrive control switch is in “ON” position.
2. Confirm selector lever is in “D” position.
3. Accelerate vehicle using half-throttle to D
4 .
4. Release accelerator pedal.
5. Set overdrive control switch to “OFF” position while driving in D
4
.
6. Does A/T shift from D
4 to D3 (O/D OFF)?
Read gear position and vehicle speed.
Ye s o r N o
Ye s > > G O T O 2
No >> Mark the box of “A/T Does Not Shift: D
4→ D3 , When Overdrive Control Switch “ON” → “OFF” on
the DIAGNOSTIC WORKSHEET. Continue Road Test.
SAT812A
SAT813A
SAT776BA

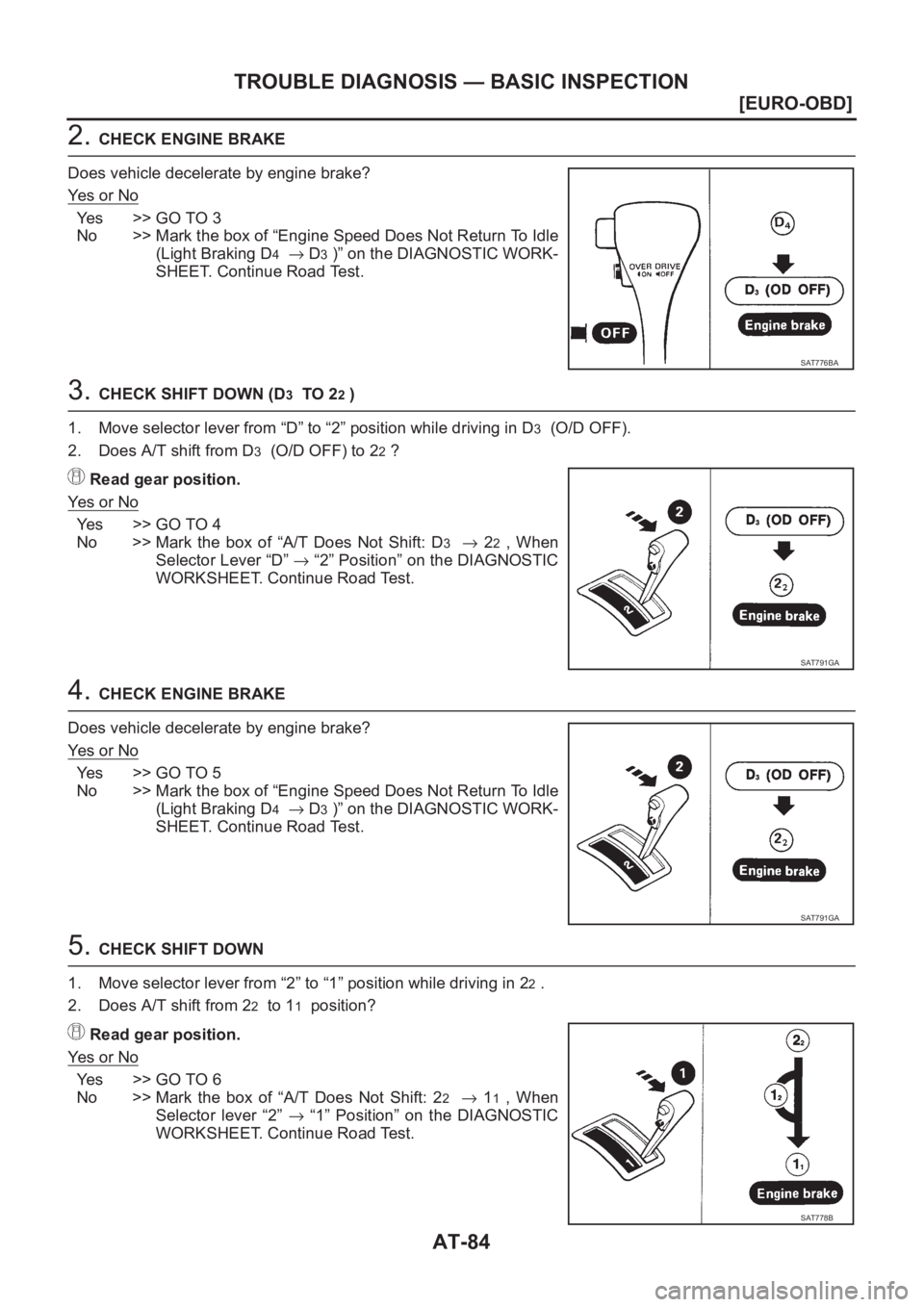

AT-84
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION
2. CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
Ye s o r N o
Yes >> GO TO 3
No >> Mark the box of “Engine Speed Does Not Return To Idle
(Light Braking D
4→ D3 )” on the DIAGNOSTIC WORK-
SHEET. Continue Road Test.
3. CHECK SHIFT DOWN (D3 TO 22 )
1. Move selector lever from “D” to “2” position while driving in D
3 (O/D OFF).
2. Does A/T shift from D
3 (O/D OFF) to 22 ?
Read gear position.
Ye s o r N o
Yes >> GO TO 4
No >> Mark the box of “A/T Does Not Shift: D
3→ 22 , When
Selector Lever “D” → “2” Position” on the DIAGNOSTIC
WORKSHEET. Continue Road Test.
4. CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
Ye s o r N o
Yes >> GO TO 5
No >> Mark the box of “Engine Speed Does Not Return To Idle
(Light Braking D
4→ D3 )” on the DIAGNOSTIC WORK-
SHEET. Continue Road Test.
5. CHECK SHIFT DOWN
1. Move selector lever from “2” to “1” position while driving in 2
2 .
2. Does A/T shift from 2
2 to 11 position?
Read gear position.
Ye s o r N o
Yes >> GO TO 6
No >> Mark the box of “A/T Does Not Shift: 2
2→ 11 , When
Selector lever “2” → “1” Position” on the DIAGNOSTIC
WORKSHEET. Continue Road Test.
SAT776BA
SAT791GA
SAT791GA
SAT778B

TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-85
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
6.CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
Ye s o r N o
Yes >> 1. Stop vehicle.
2. Perform self-diagnosis.
EURO-OBD: Refer to AT- 5 1 , "
TCM SELF-DIAGNOS-
TIC PROCEDURE (NO TOOLS)" .
No >> Mark the box of “Vehicle Does Not Decelerate By
Engine Brake” on the DIAGNOSTIC WORKSHEET.
Stop Road Test.
SAT778B

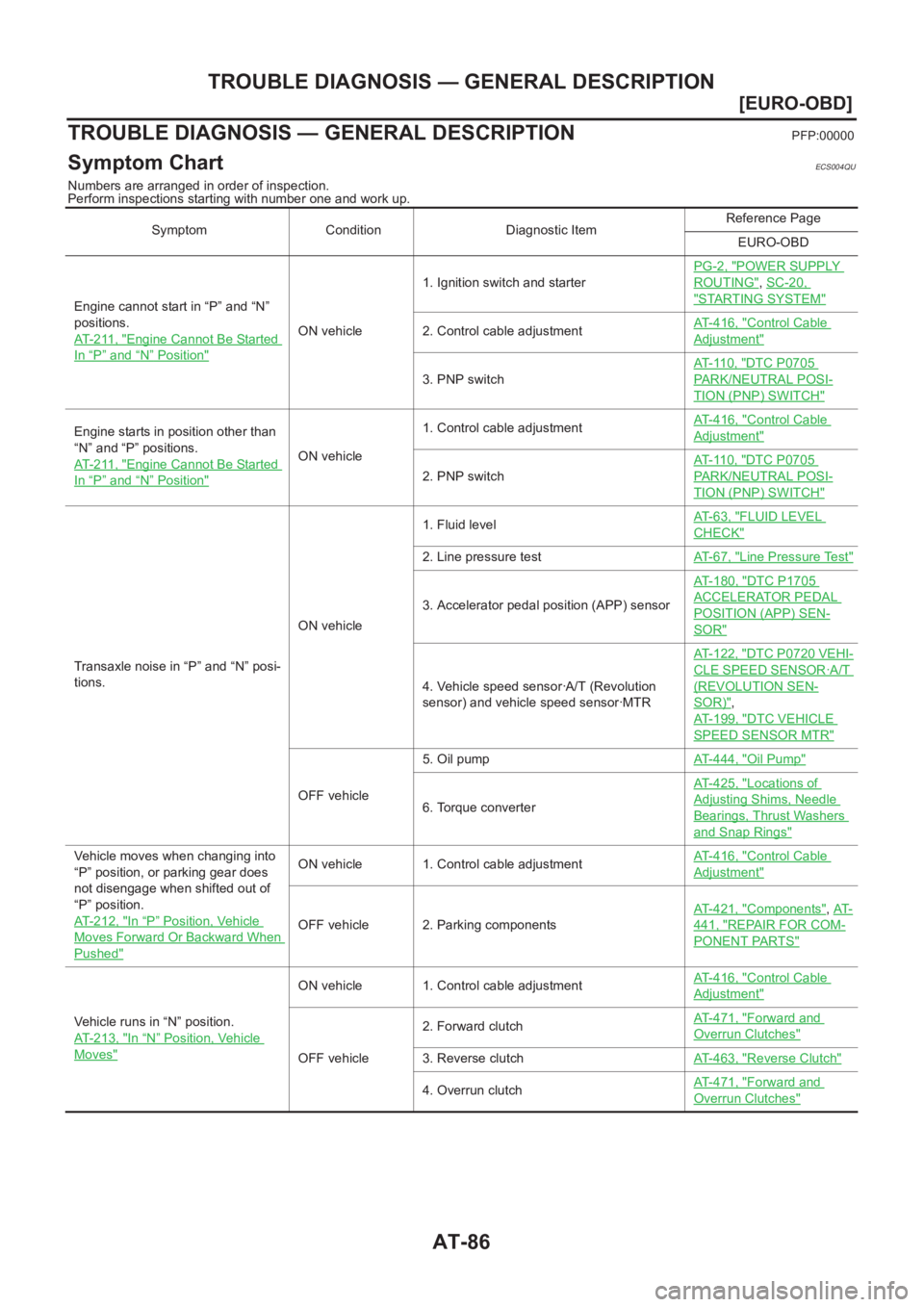

AT-86
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
PFP:00000
Symptom ChartECS004QU
Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
Symptom Condition Diagnostic ItemReference Page
EURO-OBD
Engine cannot start in “P” and “N”
positions.
AT- 2 11 , "
Engine Cannot Be Started
In “P” and “N” Position"
ON vehicle1. Ignition switch and starterPG-2, "
POWER SUPPLY
ROUTING",SC-20,
"STARTING SYSTEM"
2. Control cable adjustmentAT-416, "Control Cable
Adjustment"
3. PNP switchAT- 11 0 , "
DTC P0705
PARK/NEUTRAL POSI-
TION (PNP) SWITCH"
Engine starts in position other than
“N” and “P” positions.
AT- 2 11 , "
Engine Cannot Be Started
In “P” and “N” Position"
ON vehicle1. Control cable adjustmentAT-416, "
Control Cable
Adjustment"
2. PNP switchAT- 11 0 , "
DTC P0705
PARK/NEUTRAL POSI-
TION (PNP) SWITCH"
Transaxle noise in “P” and “N” posi-
tions.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Line pressure testAT- 6 7 , "Line Pressure Test"
3. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",
AT-199, "
DTC VEHICLE
SPEED SENSOR MTR"
OFF vehicle5. Oil pumpAT-444, "
Oil Pump"
6. Torque converterAT-425, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Vehicle moves when changing into
“P” position, or parking gear does
not disengage when shifted out of
“P” position.
AT- 2 1 2 , "
In “P” Position, Vehicle
Moves Forward Or Backward When
Pushed"
ON vehicle 1. Control cable adjustmentAT-416, "Control Cable
Adjustment"
OFF vehicle 2. Parking componentsAT-421, "
Components",AT-
441, "REPAIR FOR COM-
PONENT PARTS"
Vehicle runs in “N” position.
AT- 2 1 3 , "
In “N” Position, Vehicle
Moves"
ON vehicle 1. Control cable adjustmentAT-416, "Control Cable
Adjustment"
OFF vehicle2. Forward clutchAT-471, "
Forward and
Overrun Clutches"
3. Reverse clutchAT-463, "Reverse Clutch"
4. Overrun clutchAT-471, "Forward and
Overrun Clutches"

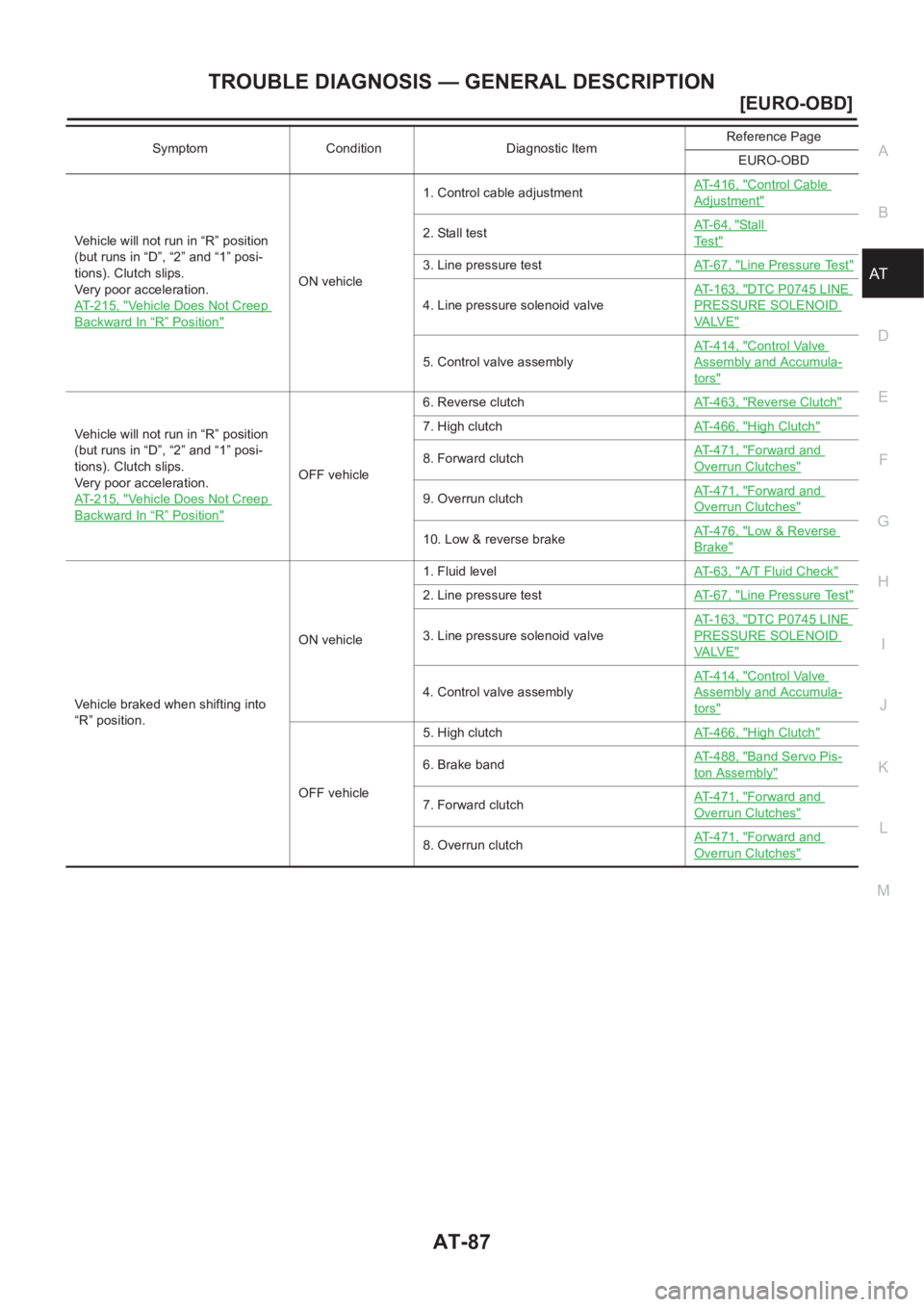

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-87
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Vehicle will not run in “R” position
(but runs in “D”, “2” and “1” posi-
tions). Clutch slips.
Very poor acceleration.
AT-215, "
Vehicle Does Not Creep
Backward In “R” Position"
ON vehicle1. Control cable adjustmentAT-416, "
Control Cable
Adjustment"
2. Stall testAT-64, "Stall
Te s t"
3. Line pressure testAT-67, "Line Pressure Test"
4. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
5. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
Vehicle will not run in “R” position
(but runs in “D”, “2” and “1” posi-
tions). Clutch slips.
Very poor acceleration.
AT-215, "
Vehicle Does Not Creep
Backward In “R” Position"
OFF vehicle6. Reverse clutchAT-463, "
Reverse Clutch"
7. High clutchAT-466, "High Clutch"
8. Forward clutchAT-471, "Forward and
Overrun Clutches"
9. Overrun clutchAT-471, "Forward and
Overrun Clutches"
10. Low & reverse brakeAT-476, "Low & Reverse
Brake"
Vehicle braked when shifting into
“R” position.ON vehicle1. Fluid levelAT-63, "
A/T Fluid Check"
2. Line pressure testAT-67, "Line Pressure Test"
3. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
4. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle5. High clutchAT-466, "
High Clutch"
6. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
7. Forward clutchAT-471, "Forward and
Overrun Clutches"
8. Overrun clutchAT-471, "Forward and
Overrun Clutches"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

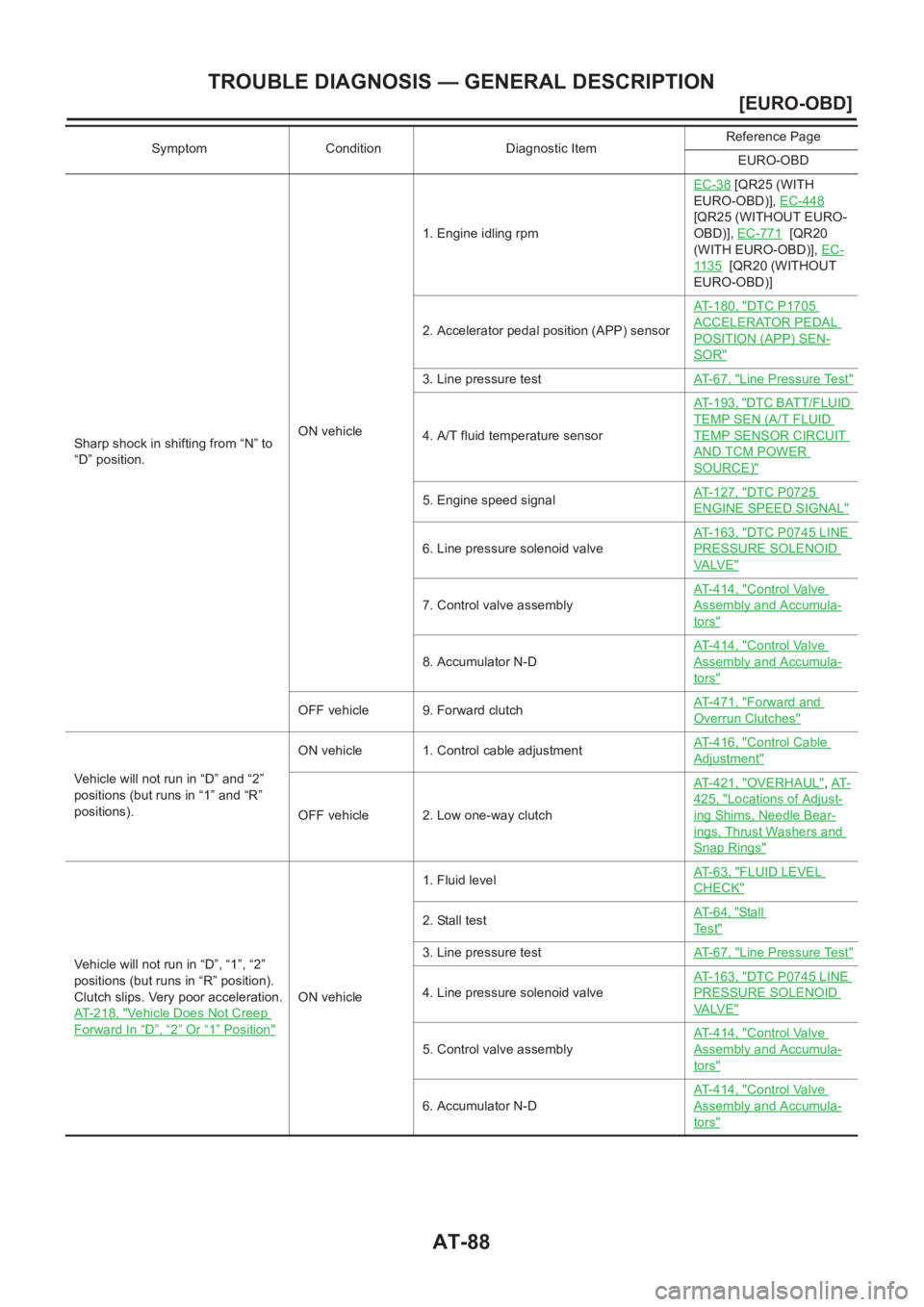

AT-88
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Sharp shock in shifting from “N” to
“D” position.ON vehicle1. Engine idling rpmEC-38
[QR25 (WITH
EURO-OBD)], EC-448
[QR25 (WITHOUT EURO-
OBD)], EC-771
[QR20
(WITH EURO-OBD)], EC-
1135 [QR20 (WITHOUT
EURO-OBD)]
2. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT- 6 7 , "Line Pressure Test"
4. A/T fluid temperature sensorAT-193, "
DTC BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT
AND TCM POWER
SOURCE)"
5. Engine speed signalAT-127, "DTC P0725
ENGINE SPEED SIGNAL"
6. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
7. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
8. Accumulator N-DAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 9. Forward clutchAT-471, "Forward and
Overrun Clutches"
Vehicle will not run in “D” and “2”
positions (but runs in “1” and “R”
positions).ON vehicle 1. Control cable adjustmentAT-416, "
Control Cable
Adjustment"
OFF vehicle 2. Low one-way clutchAT-421, "
OVERHAUL",AT-
425, "Locations of Adjust-
ing Shims, Needle Bear-
ings, Thrust Washers and
Snap Rings"
Vehicle will not run in “D”, “1”, “2”
positions (but runs in “R” position).
Clutch slips. Very poor acceleration.
AT- 2 1 8 , "
Vehicle Does Not Creep
Forward In “D”,“2” Or “1” Position"
ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Stall testAT- 6 4 , "Stall
Te s t"
3. Line pressure testAT- 6 7 , "Line Pressure Test"
4. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
5. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
6. Accumulator N-DAT-414, "
Control Valve
Assembly and Accumula-
tors"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

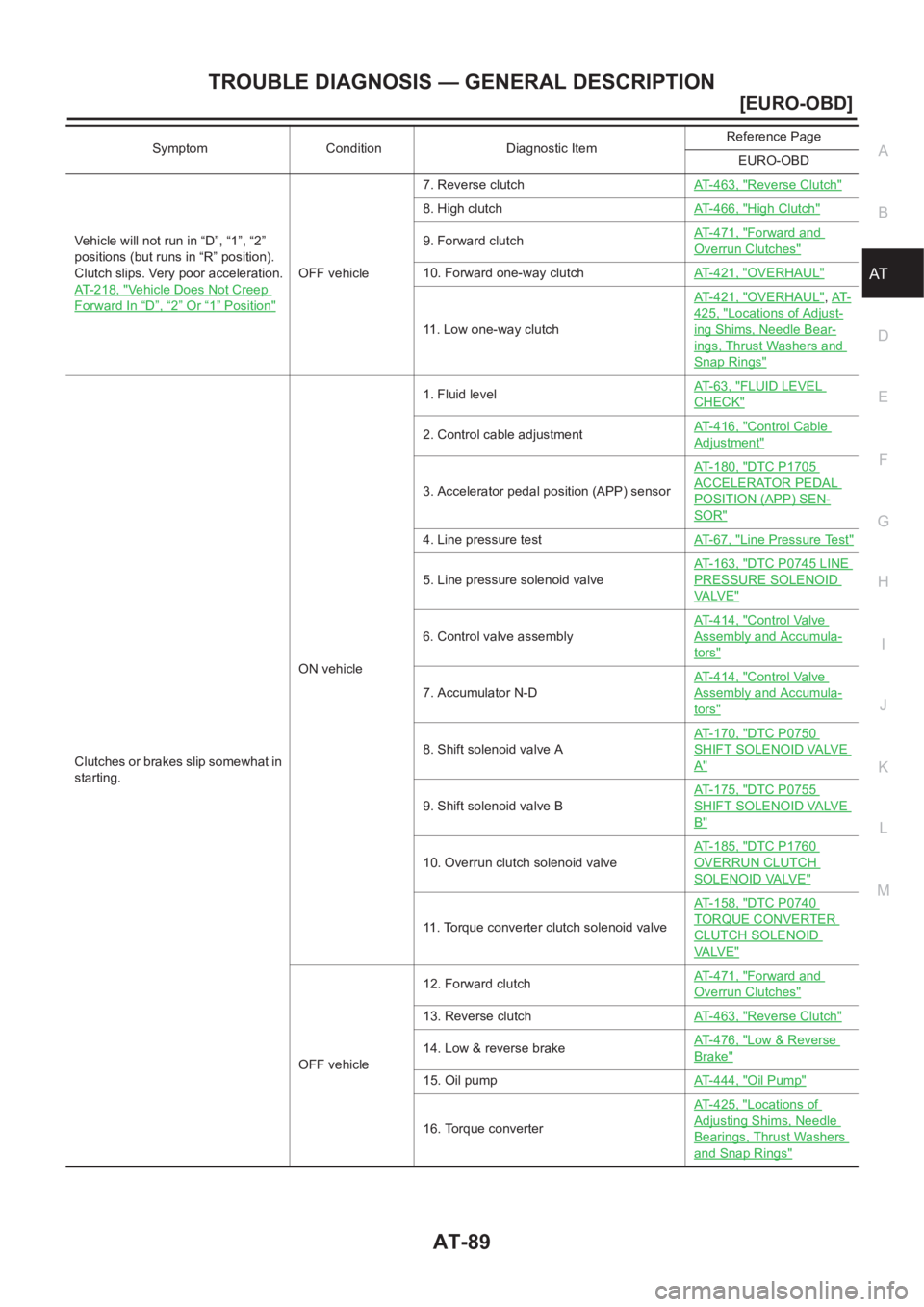

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-89
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Vehicle will not run in “D”, “1”, “2”
positions (but runs in “R” position).
Clutch slips. Very poor acceleration.
AT-218, "
Vehicle Does Not Creep
Forward In “D”,“2” Or “1” Position"
OFF vehicle7. Reverse clutchAT-463, "
Reverse Clutch"
8. High clutchAT-466, "High Clutch"
9. Forward clutchAT-471, "Forward and
Overrun Clutches"
10. Forward one-way clutchAT-421, "OVERHAUL"
11. Low one-way clutchAT-421, "
OVERHAUL",AT-
425, "Locations of Adjust-
ing Shims, Needle Bear-
ings, Thrust Washers and
Snap Rings"
Clutches or brakes slip somewhat in
starting.ON vehicle1. Fluid levelAT-63, "
FLUID LEVEL
CHECK"
2. Control cable adjustmentAT-416, "Control Cable
Adjustment"
3. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
4. Line pressure testAT-67, "Line Pressure Test"
5. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
6. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
7. Accumulator N-DAT-414, "
Control Valve
Assembly and Accumula-
tors"
8. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
9. Shift solenoid valve BAT-175, "
DTC P0755
SHIFT SOLENOID VALVE
B"
10. Overrun clutch solenoid valveAT-185, "
DTC P1760
OVERRUN CLUTCH
SOLENOID VALVE"
11. Torque converter clutch solenoid valveAT-158, "
DTC P0740
TORQUE CONVERTER
CLUTCH SOLENOID
VA LV E"
OFF vehicle12. Forward clutchAT-471, "
Forward and
Overrun Clutches"
13. Reverse clutchAT-463, "Reverse Clutch"
14. Low & reverse brakeAT-476, "Low & Reverse
Brake"
15. Oil pumpAT-444, "Oil Pump"
16. Torque converterAT-425, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

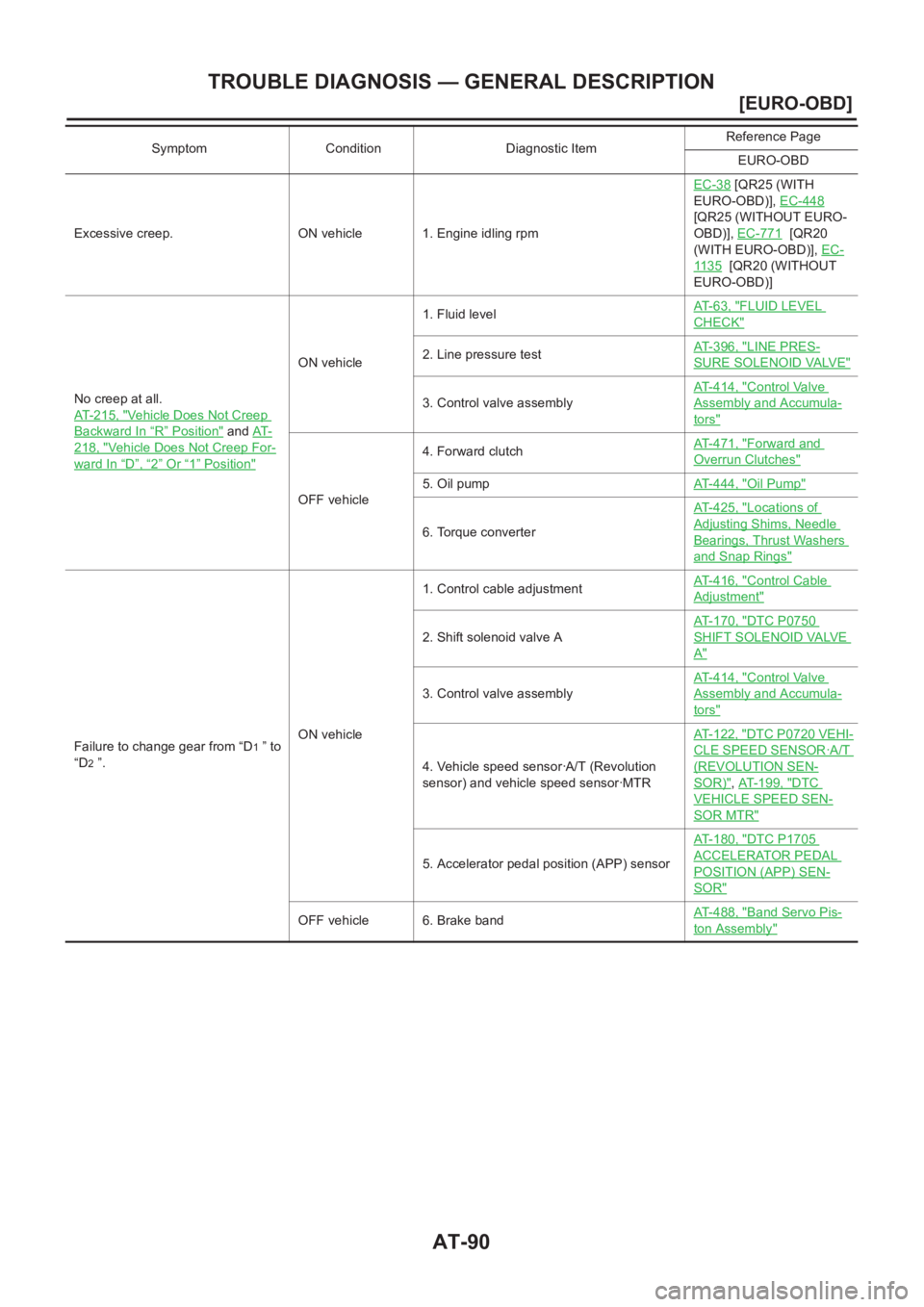

AT-90
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Excessive creep. ON vehicle 1. Engine idling rpmEC-38
[QR25 (WITH
EURO-OBD)], EC-448
[QR25 (WITHOUT EURO-
OBD)], EC-771
[QR20
(WITH EURO-OBD)], EC-
1135 [QR20 (WITHOUT
EURO-OBD)]
No creep at all.
AT- 2 1 5 , "
Vehicle Does Not Creep
Backward In “R” Position" and AT-
218, "Vehicle Does Not Creep For-
ward In “D”,“2” Or “1” Position"
ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Line pressure testAT-396, "LINE PRES-
SURE SOLENOID VALVE"
3. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle4. Forward clutchAT-471, "
Forward and
Overrun Clutches"
5. Oil pumpAT-444, "Oil Pump"
6. Torque converterAT-425, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Failure to change gear from “D1 ” to
“D
2 ”.ON vehicle1. Control cable adjustmentAT-416, "
Control Cable
Adjustment"
2. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
3. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT- 1 9 9 , "DTC
VEHICLE SPEED SEN-
SOR MTR"
5. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
OFF vehicle 6. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

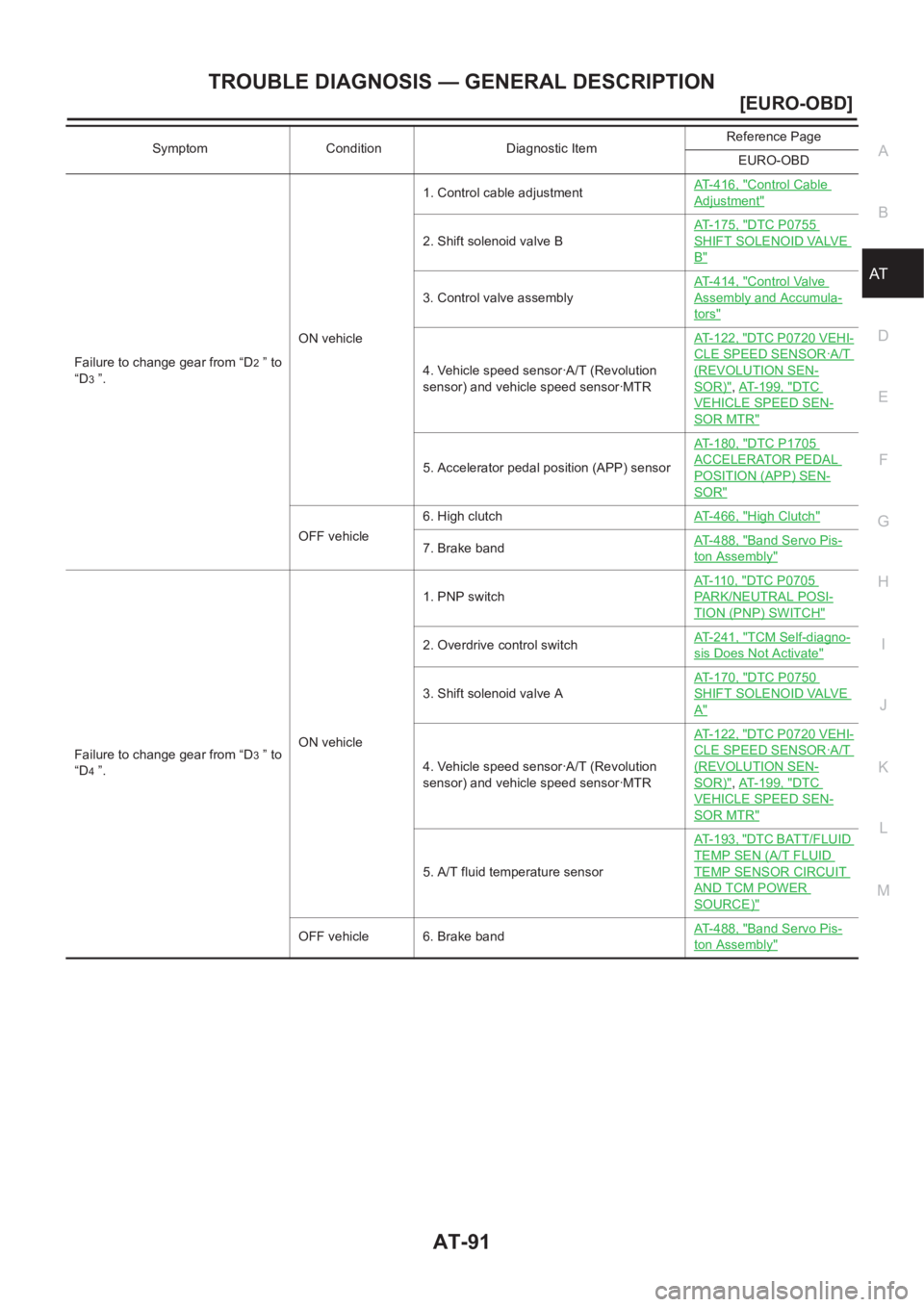

AT-91
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Failure to change gear from “D2 ” to
“D
3 ”.ON vehicle1. Control cable adjustmentAT-416, "
Control Cable
Adjustment"
2. Shift solenoid valve BAT-175, "
DTC P0755
SHIFT SOLENOID VALVE
B"
3. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT-199, "DTC
VEHICLE SPEED SEN-
SOR MTR"
5. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
OFF vehicle6. High clutchAT-466, "
High Clutch"
7. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Failure to change gear from “D3 ” to
“D
4 ”.ON vehicle1. PNP switchAT-110, "
DTC P0705
PARK/NEUTRAL POSI-
TION (PNP) SWITCH"
2. Overdrive control switchAT-241, "TCM Self-diagno-
sis Does Not Activate"
3. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT-199, "DTC
VEHICLE SPEED SEN-
SOR MTR"
5. A/T fluid temperature sensorAT-193, "
DTC BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT
AND TCM POWER
SOURCE)"
OFF vehicle 6. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

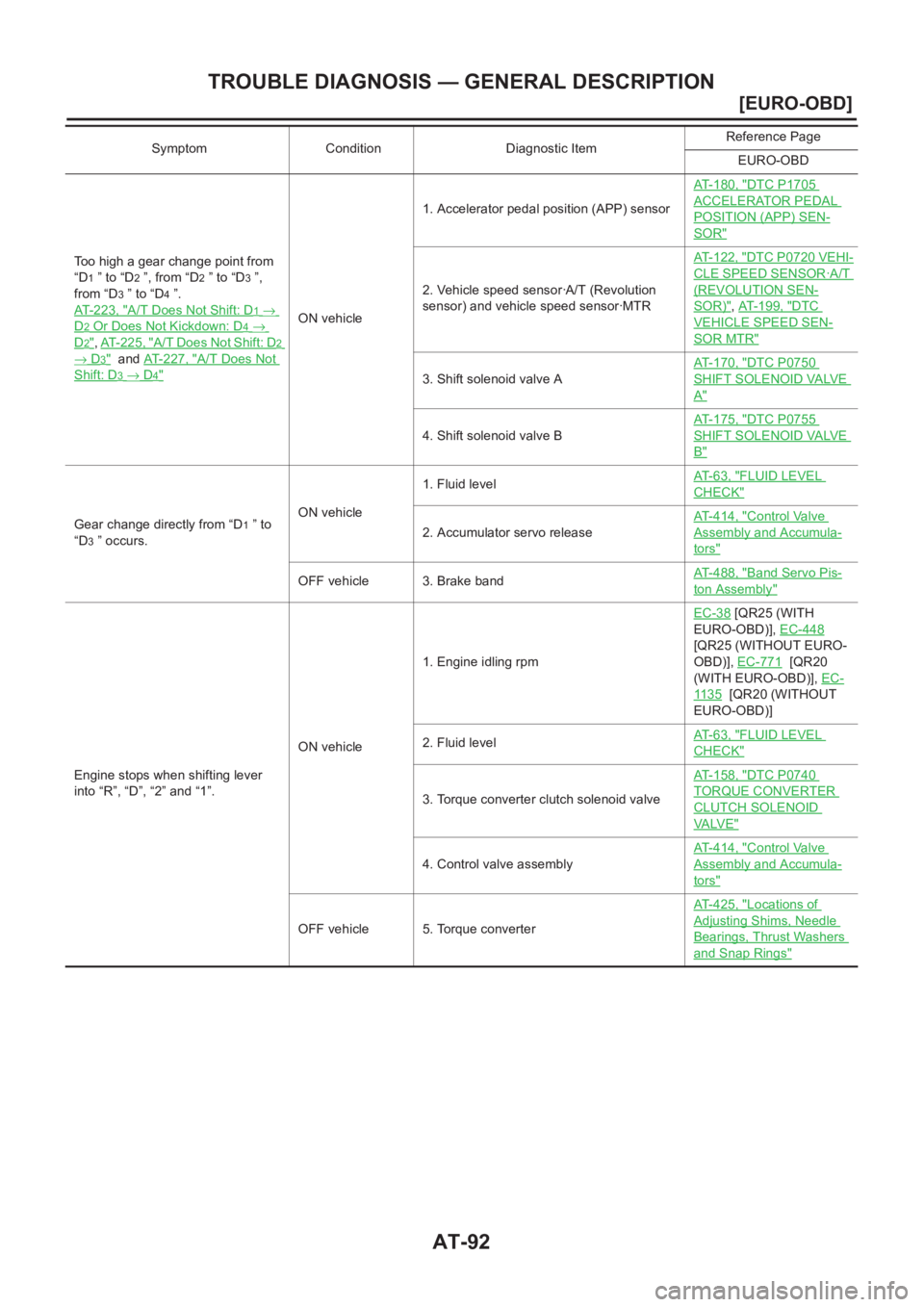

AT-92
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Too high a gear change point from
“D
1 ” to “D2 ”, from “D2 ” to “D3 ”,
from “D
3 ” to “D4 ”.
AT- 2 2 3 , "
A/T Does Not Shift: D1→
D2 Or Does Not Kickdown: D4→
D2",AT-225, "A/T Does Not Shift: D2
→ D3" and AT-227, "A/T Does Not
Shift: D3→ D4"
ON vehicle1. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT- 1 9 9 , "DTC
VEHICLE SPEED SEN-
SOR MTR"
3. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
4. Shift solenoid valve BAT-175, "
DTC P0755
SHIFT SOLENOID VALVE
B"
Gear change directly from “D1 ” to
“D
3 ” occurs.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Accumulator servo releaseAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 3. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Engine stops when shifting lever
into “R”, “D”, “2” and “1”.ON vehicle1. Engine idling rpmEC-38
[QR25 (WITH
EURO-OBD)], EC-448
[QR25 (WITHOUT EURO-
OBD)], EC-771
[QR20
(WITH EURO-OBD)], EC-
1135 [QR20 (WITHOUT
EURO-OBD)]
2. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
3. Torque converter clutch solenoid valveAT-158, "
DTC P0740
TORQUE CONVERTER
CLUTCH SOLENOID
VA LV E"
4. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 5. Torque converterAT-425, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD
