NISSAN X-TRAIL 2001  Service Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-53
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

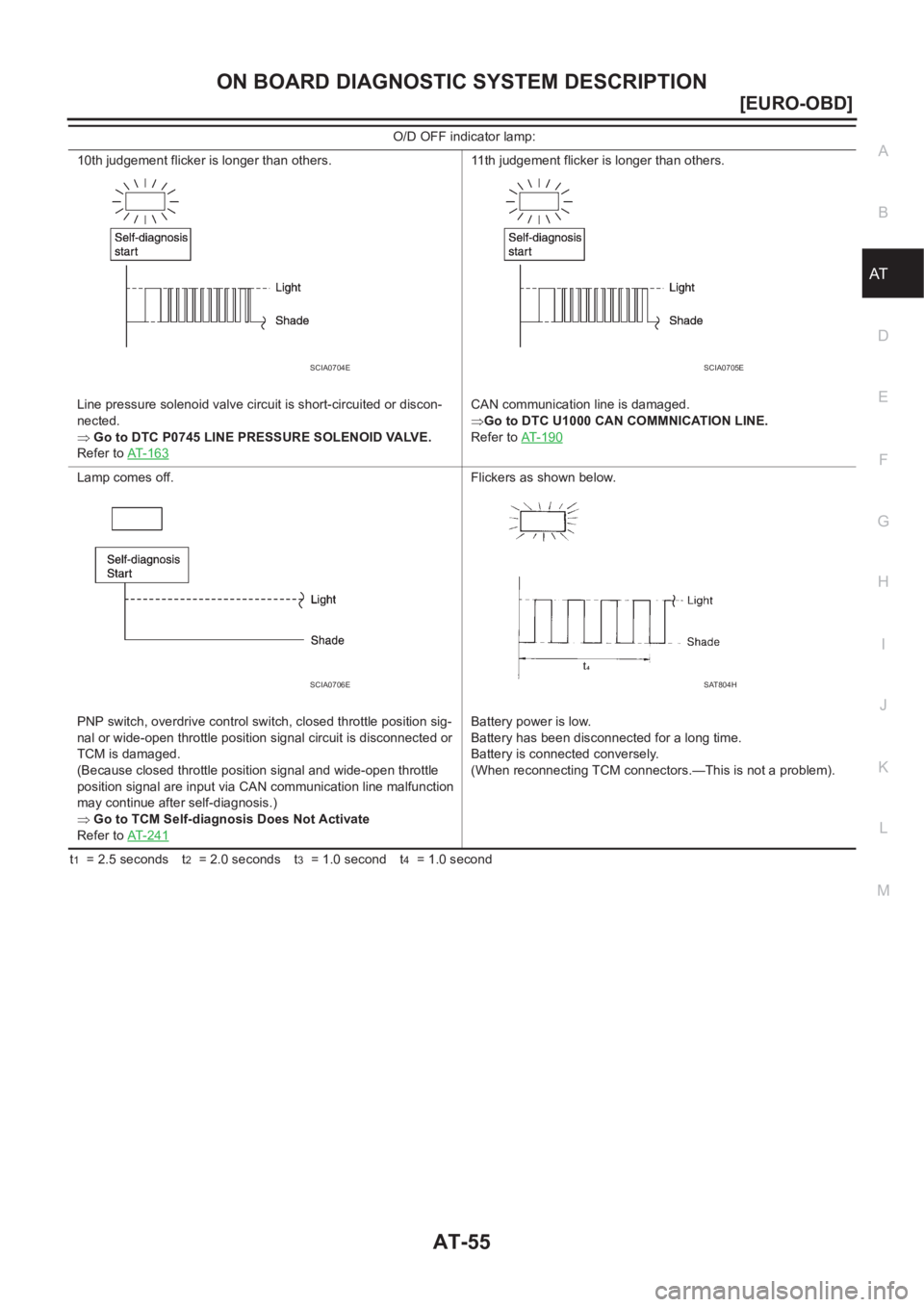

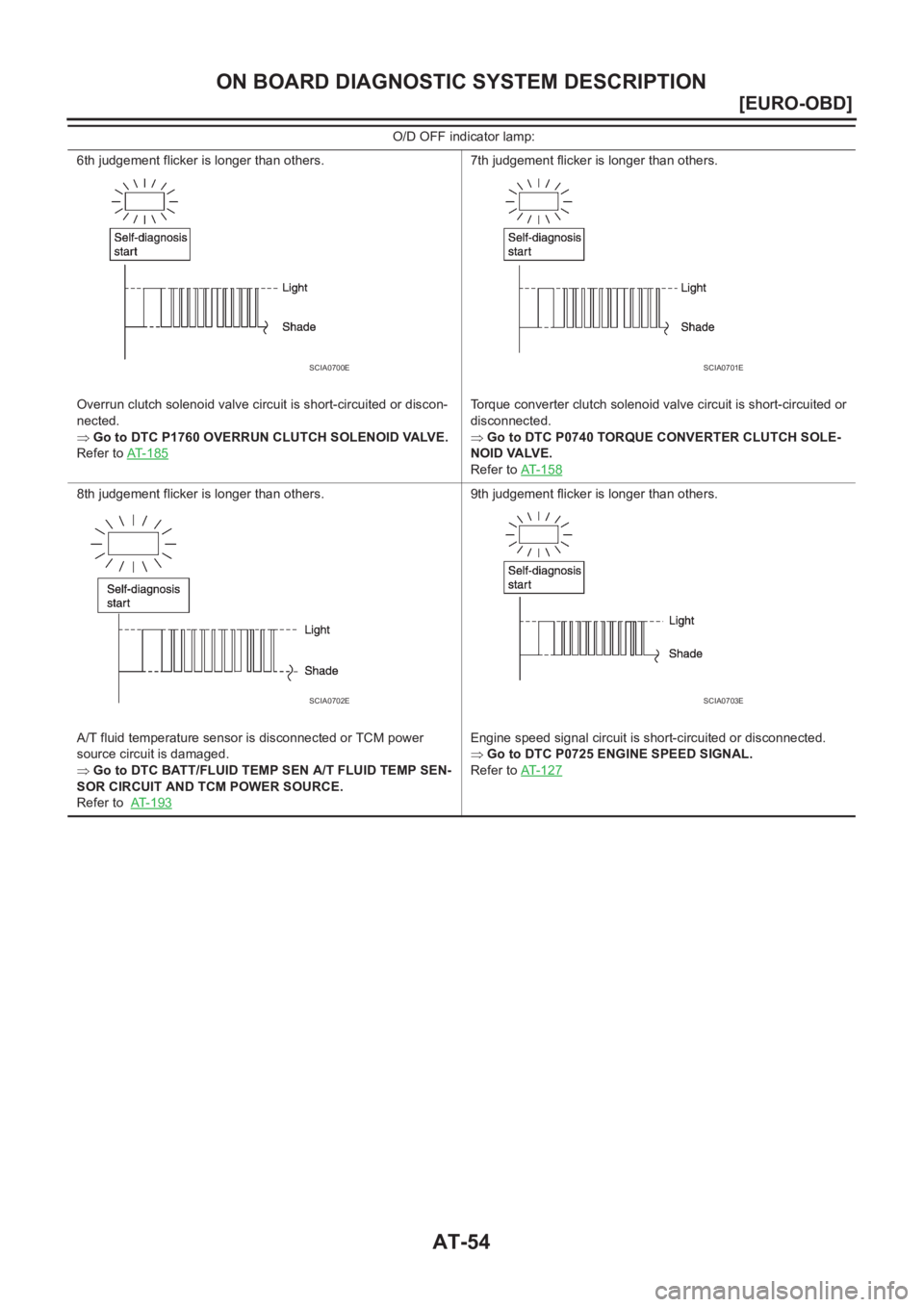

JUDGEMENT OF SELF-DIAGNOSIS CODE
O/D OFF indicator lamp:
All judgement flickers are the same.
All circuits that can be

Page 2132 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-54
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
6th judgement flicker is longer than others.
Overrun clutch solenoid valve circuit is short-circuited or discon-
nected.
 Go to DTC P1760 OVERR

Page 2133 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-55
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
t1  = 2.5 seconds t2  = 2.0 seconds t3  = 1.0 second t4  = 1.0 second 10th judgement flicker is longer than others.
Li

Page 2134 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-56
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
TROUBLE DIAGNOSIS — INTRODUCTION
PFP:00000
IntroductionECS004QO

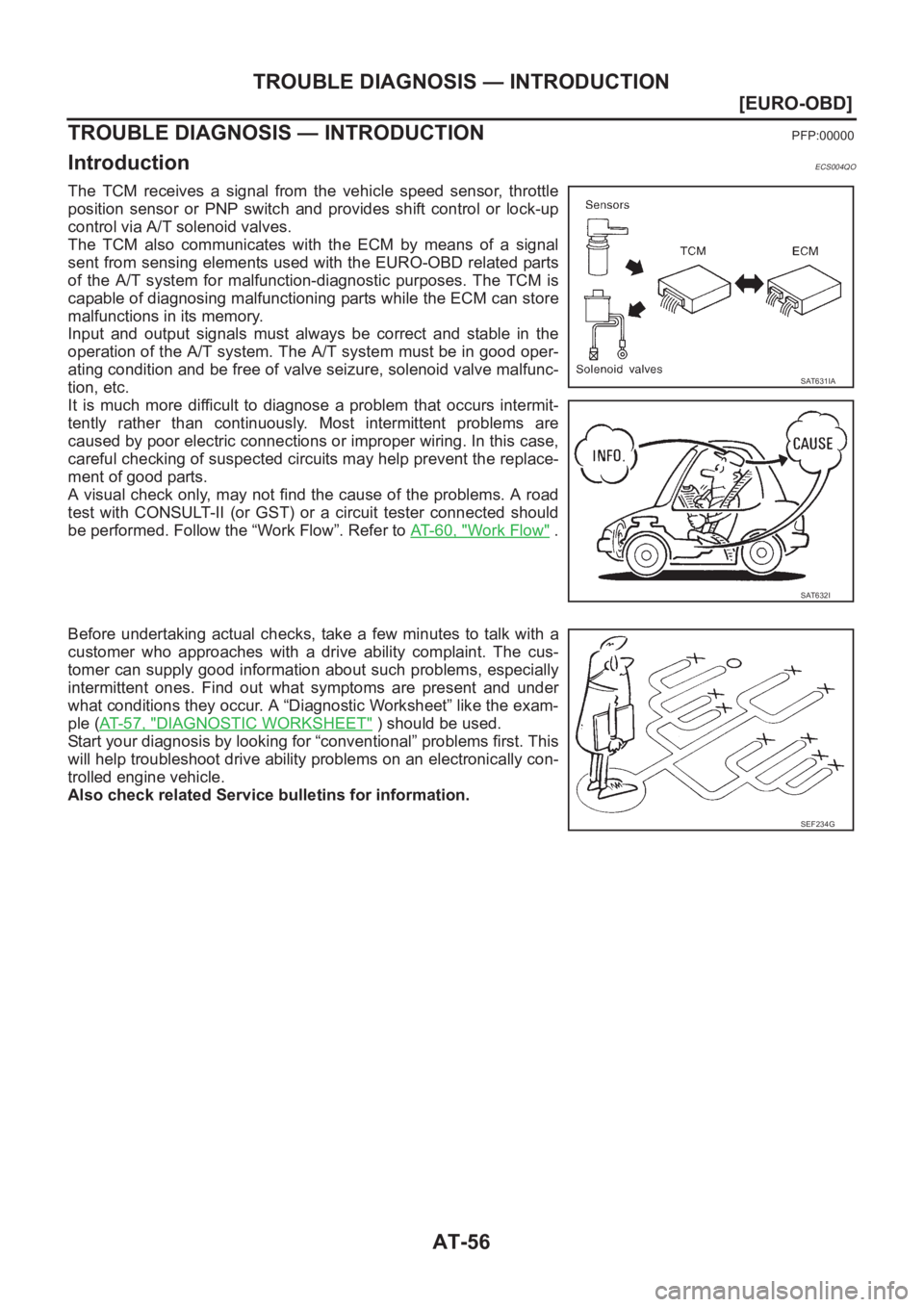

The TCM receives a signal from the vehicle speed sensor, throttle
position  sensor

Page 2135 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-57
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

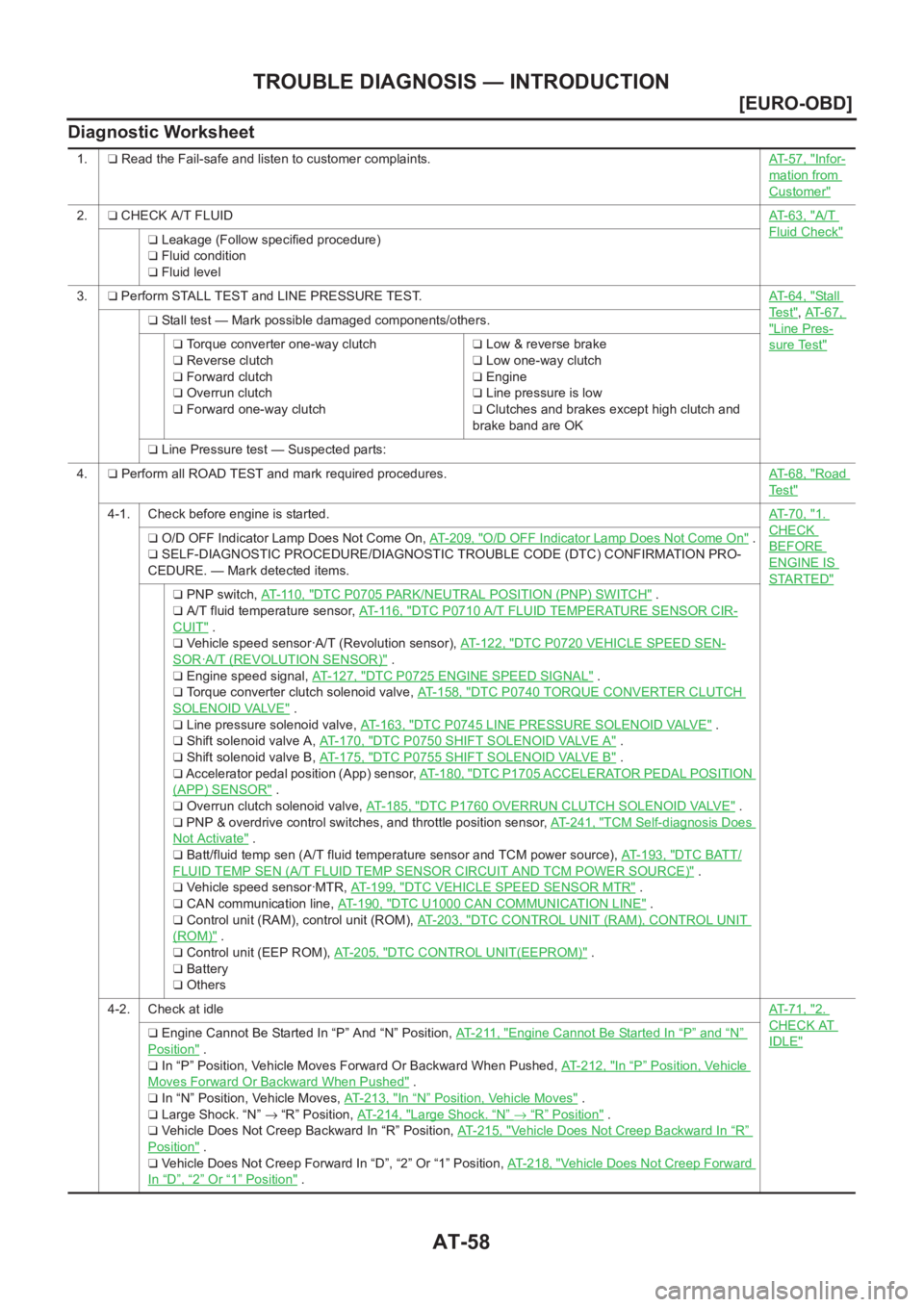

DIAGNOSTIC WORKSHEET

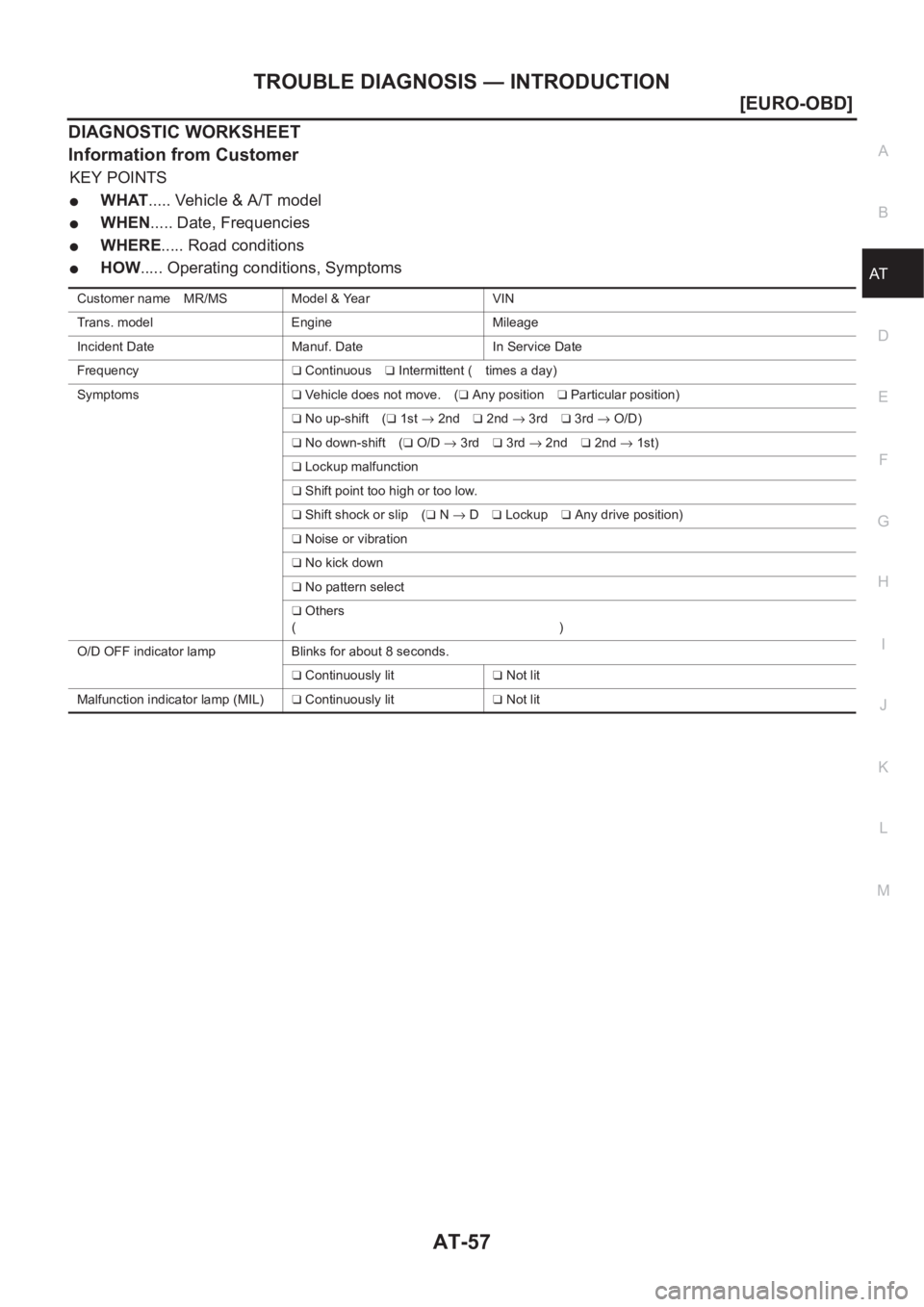

Information from Customer
KEY POINTS
●WHAT..... Vehicle & A/T model
●WHEN..... Date, Frequencies

Page 2136 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-58
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION
Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT-57, "Infor-
mation from
Customer"
2.❏ CHECK A/T FLUIDA

Page 2137 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-59
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

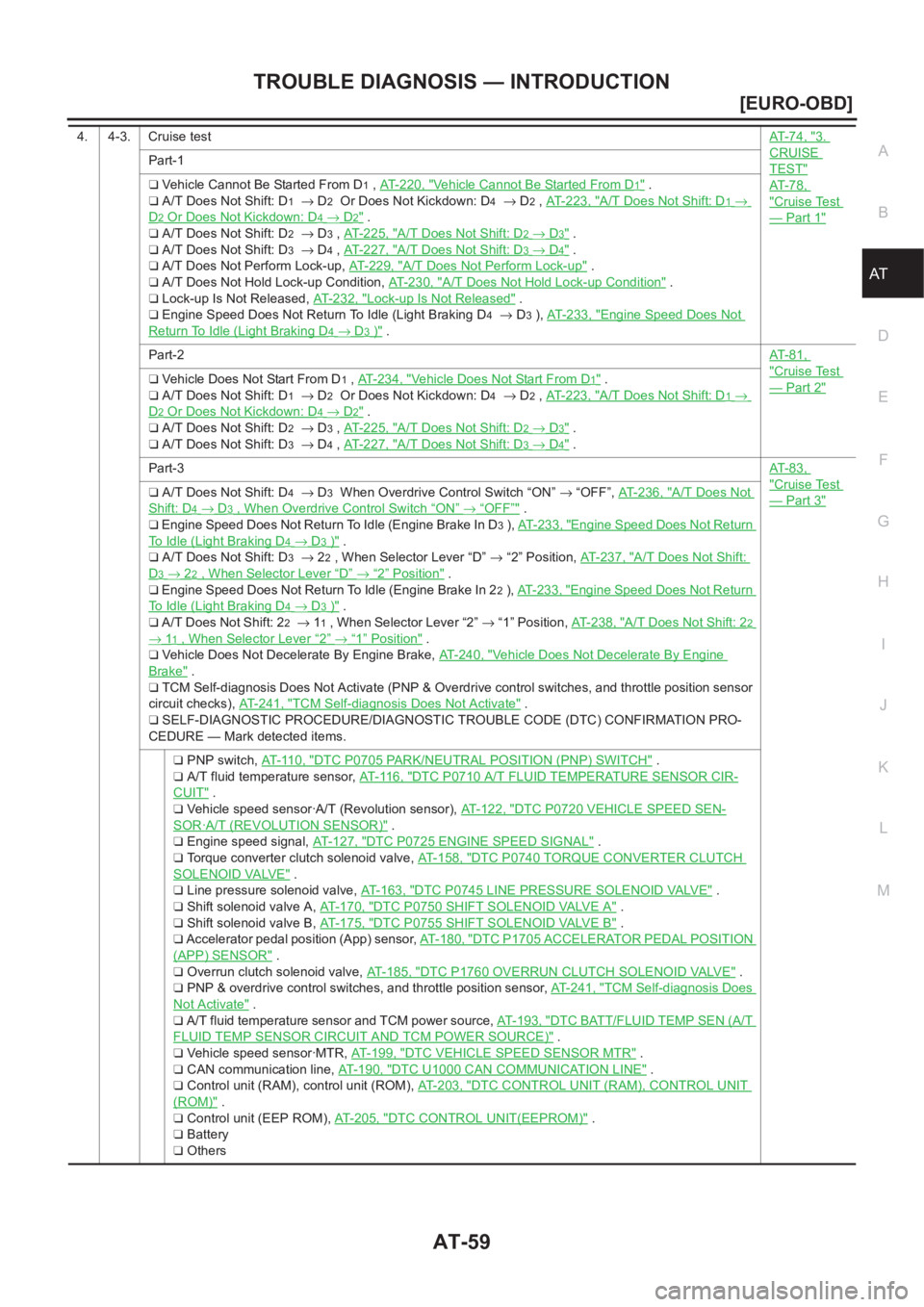

4. 4-3. Cruise testAT- 7 4 ,   "3.
CRUISE
TEST"
AT- 7 8 ,
"Cruise Test
— Part 1"
Part-1
❏ Vehicle

Page 2138 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-60
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION

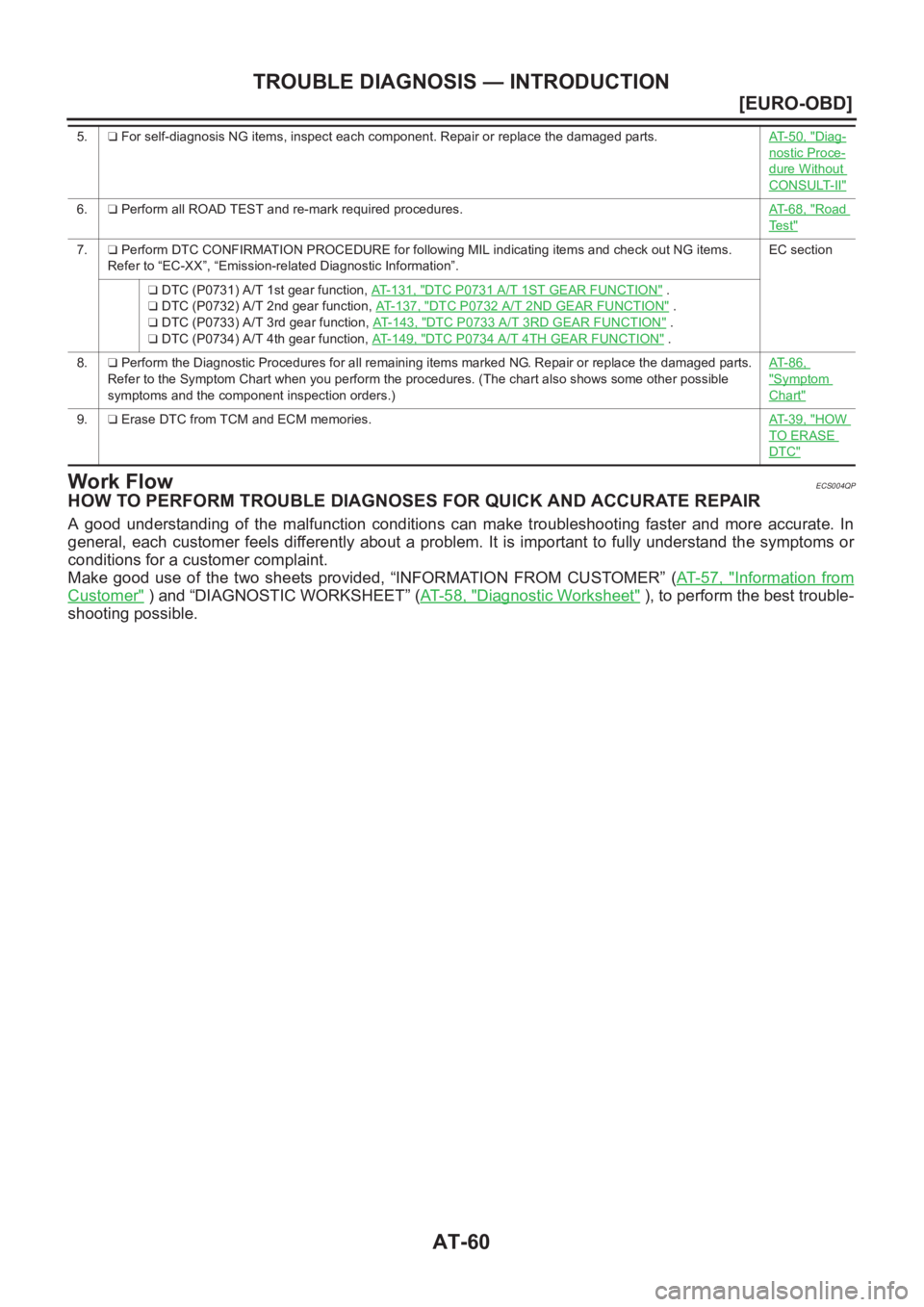

Work Flow
ECS004QP
HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR
A  good  understanding  of  the  malfunction  conditions  can  mak

Page 2139 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-61
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

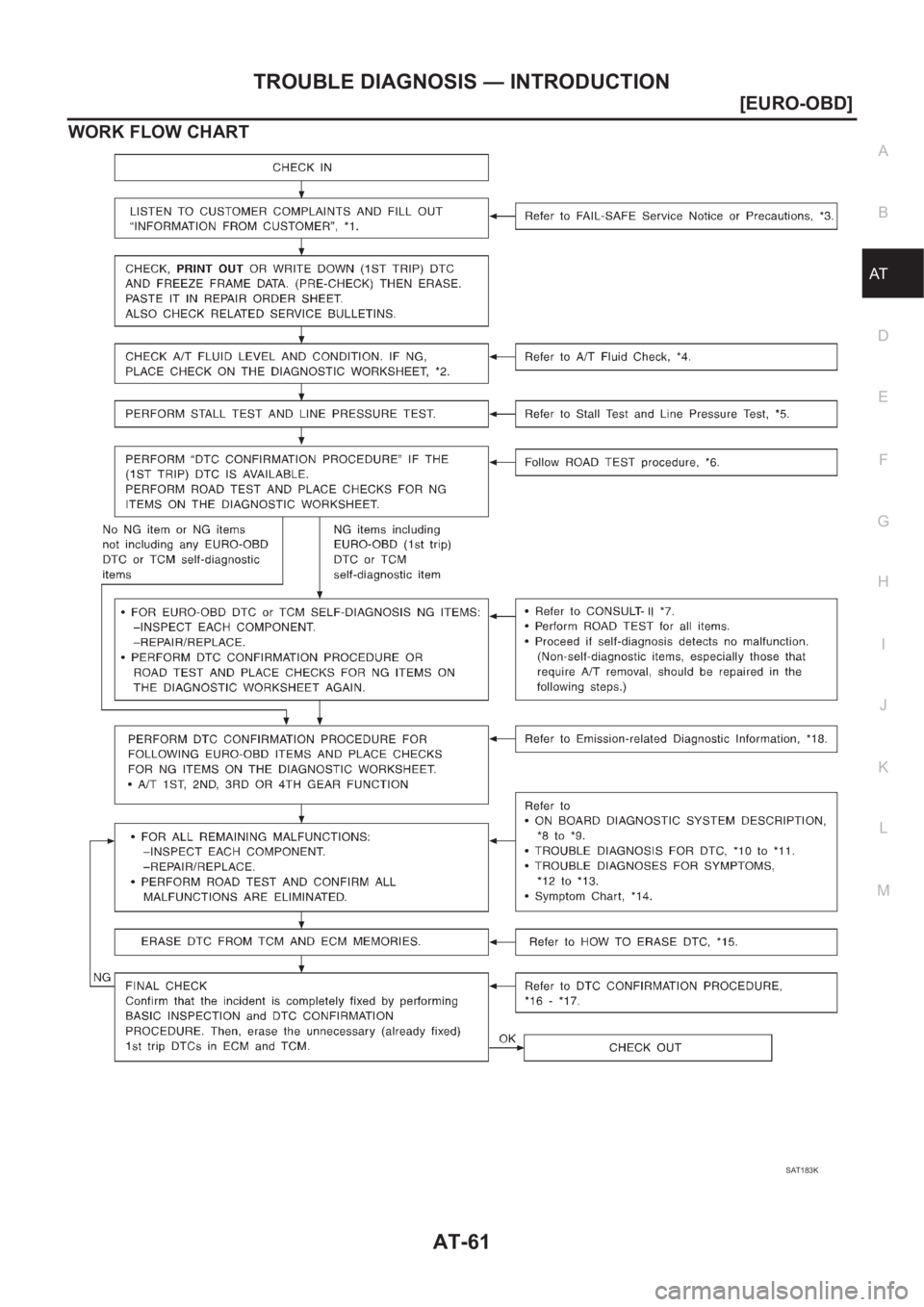

WORK FLOW CHART
SAT183K

Page 2140 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-62
[EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION

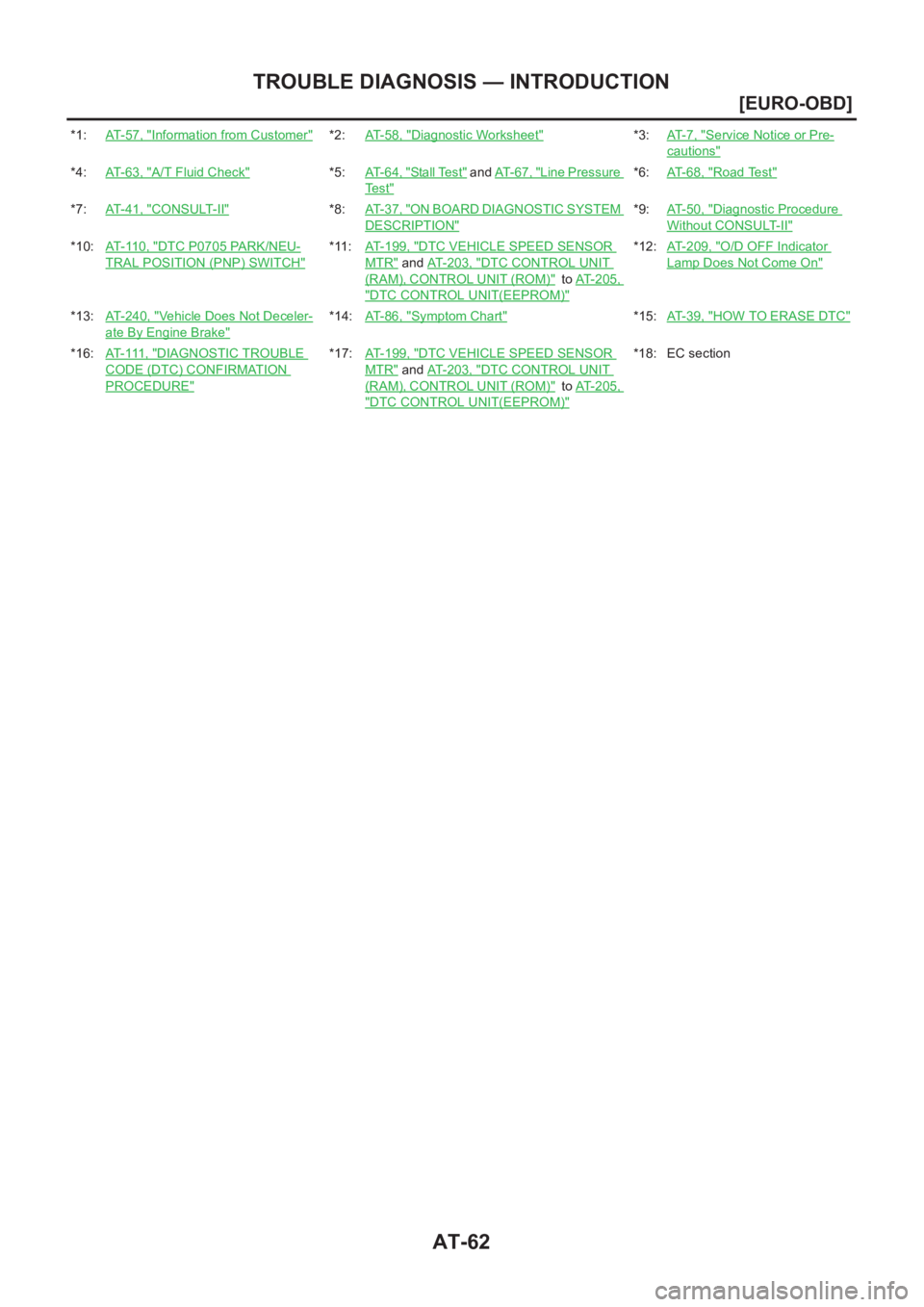

*1:AT-57, "Information from Customer"*2:AT-58, "Diagnostic Worksheet"*3:AT- 7 ,   "Service Notice or Pre-
cautions"
*4:AT-63
