NISSAN X-TRAIL 2003 Service Repair Manual

SENSOR ROTOR
BRC-117
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

SENSOR ROTORPFP:47970
Removal and InstallationEFS001CE
REMOVAL
Front
1. Remove drive shaft. Refer to FA X - 11 , "REMOVAL" in “FAX Front axle/Drive Shaft”.
2. Remove sensor rotor from drive shaft. Refer to “FAX Front axle/Drive shaft ” FA X - 1 3 , "
DISASSEMBLY"
Rear
1. Remove drive shaft. Refer to RAX-10, "REMOVAL" in “RAX Rear Axle/Drive Shaft”.
2. Remove sensor rotor from drive shaft. Refer to “RAX Rear axle/Drive shaft” RAX-11, "
DISASSEMBLY"
INSTALLATION
Front
1. Install sensor rotor to drive shaft. Refer to “FAX Front axle/Drive shaft” FAX-15, "ASSEMBLY"
2. Connect drive shaft. Refer to FAX-12, "INSTALLATION" in “FAX Front Axle/Drive Shaft”.
Rear
1. Install sensor rotor to drive shaft. Refer to RAX Rear axle/Drive shaft” RAX-12, "ASSEMBLY"
2. Connect drive shaft. Refer to RAX-10, "INSTALLATION" in “RAX Rear Axle/Drive Shaft”.

BRC-118
[ESP/TCS/ABS]
ESP/TCS/ABS CONTROL UNIT

ESP/TCS/ABS CONTROL UNITPFP:47660
Removal and InstallationEFS001B0
REMOVAL
1. Remove the glove box. Refer to IP-3.
2. Remove the instrument lower panel. Refer to IP-3.
3. Remove the glove box cover. Refer to IP-3.
4. Remove the ESP/TCS/ABS control unit.
INSTALLATION

Installation is the reverse order of removal.
SFIA1825E

ESP/TCS/ABS ACTUATOR AND RELAY BOX
BRC-119
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

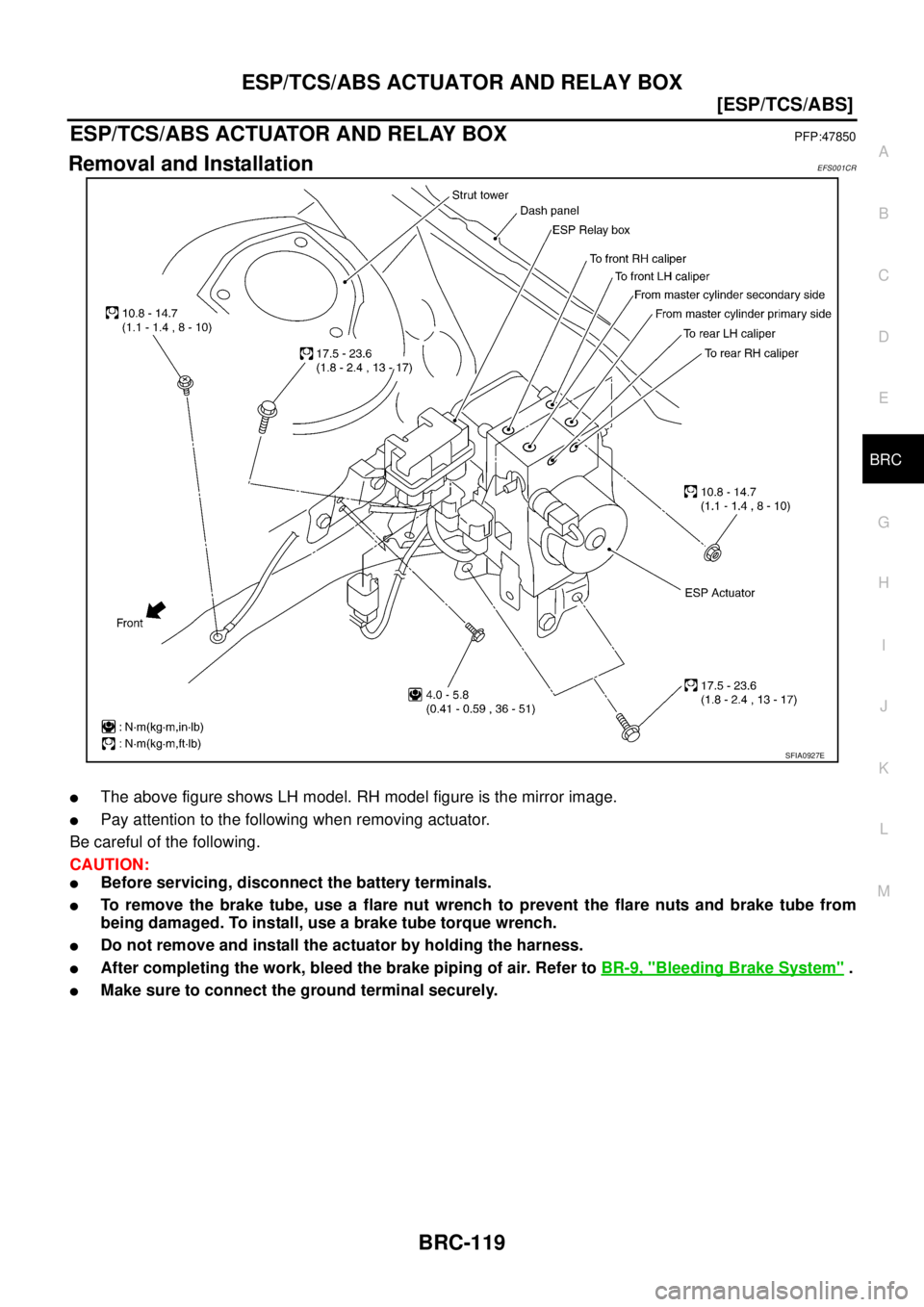

ESP/TCS/ABS ACTUATOR AND RELAY BOXPFP:47850
Removal and InstallationEFS001CR

The above figure shows LH model. RH model figure is the mirror image.

Pay attention to the following when removing actuator.
Be careful of the following.
CAUTION:

Before servicing, disconnect the battery terminals.

To remove the brake tube, use a flare nut wrench to prevent the flare nuts and brake tube from
being damaged. To install, use a brake tube torque wrench.

Do not remove and install the actuator by holding the harness.

After completing the work, bleed the brake piping of air. Refer to BR-9, "Bleeding Brake System" .

Make sure to connect the ground terminal securely.
SFIA0927E

BRC-120
[ESP/TCS/ABS]
YAW RATE/SIDE G SENSOR

YAW RATE/SIDE G SENSORPFP:47931
Removal and InstallationEFS001CS
REMOVAL
1. Remove the diagnosis sensor unit. Refer to SRS-41, "DIAGNO-
SIS SENSOR UNIT" .
2. Disconnect the harness connector.
3. Remove the mounting bolts, and remove the yaw rate/side G
sensor.
CAUTION:
Do not drop or strike yaw rate/side G sensor, because it has lit-
tle endurance against impact.
INSTALLATION

Installation is the reverse order of removal.
CAUTION:
Do not drop or strike yaw rate/side G sensor, because it has little endurance against impact.
SFIA2191E

ESP OFF SWITCH
BRC-121
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

ESP OFF SWITCHPFP:25145
Removal and InstallationEFS001CQ
REMOVAL
1. Remove the instrument driver lower panel. Refer to IP-13,
"Instrument Driver Lower Panel" .
2. Push the ESP OFF switch's pawls and remove the switch from
the instrument lower driver panel.
INSTALLATION
Installation is the reverse order of removal.
SFIA2208E

BRC-122
[ESP/TCS/ABS]
STEERING ANGLE SENSOR

STEERING ANGLE SENSORPFP:25554
Removal and InstallationEFS004HA
REMOVAL
1. Remove spiral cable assembly. Refer to SRS-33, "SPIRAL CABLE" .
2. Remove steering angle sensor from spiral cable assembly.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After work, make sure to adjust neutral position of steering angle sensor. Refer to BRC-51, "
Adjustment of
Steering Angle Sensor Neutral Position" .
SFIA1404E

PS-1
POWER STEERING SYSTEM
G STEERING
CONTENTS
C
D
E
F
H
I
J
K
L
M
SECTION
A
B
PS

POWER STEERING SYSTEM
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Caution ..................................................................... 3
FPREPARATION ........................................................ 4
Special Service Tools (SST) ..................................... 4
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 5
NVH Trouble shooting Chart .................................... 5
POWER STEERING FLUID ........................................ 6
Checking Fluid Level ................................................ 6
Checking Fluid Leakage ........................................... 6
Bleeding Hydraulic System ...................................... 6
STEERING WHEEL .................................................... 7
On-Vehicle Inspection and Service .......................... 7
PLAY INSPECTION .............................................. 7
NEUTRAL POSITION INSPECTION .................... 7
STEERING TORQUE CHECK .............................. 7
STEERING ANGLE INSPECTION ........................ 7
Removal and Installation .......................................... 8
REMOVAL ............................................................. 8
INSTALLATION ..................................................... 8
STEERING COLUMN ............................................... 10
Removal and Installation ........................................ 10
REMOVAL OF LOWER JOINT AND HOLE
COVER ............................................................... 10
INSTALLATION OF LOWER JOINT AND HOLE
COVER ............................................................... 10
REMOVAL OF STEERING COLUMN ASSEM-
BLY ....................................................................... 11
INSTALLING STEERING COLUMN ASSEMBLY .... 11
Disassembly and Assembly ................................... 12
DISASSEMBLY ................................................... 12
INSPECTION AFTER DISASSEMBLY ............... 12
ASSEMBLY ......................................................... 12
POWER STEERING GEAR AND LINKAGE ............ 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13Components ........................................................... 15
MODEL PR24AD ................................................. 15
Disassembly and Assembly .................................... 16
DISASSEMBLY ................................................... 16
INSPECTION AFTER DISASSEMBLY ................ 17
ASSEMBLY ......................................................... 18
POWER STEERING OIL PUMP ............................... 24
On-Vehicle Inspection and Service ......................... 24
OIL PUMP PULLEY HYDRAULIC PRESSURE
INSPECTION ...................................................... 24
Removal and Installation (QR20DE and QR25DE
engine models) ....................................................... 24
REMOVAL ........................................................... 24
INSTALLATION ................................................... 24
Disassembly and Assembly(QR20DE and
QR25DE engine models) ........................................ 25
INSPECTION BEFORE DISASSEMBLY ............. 25
DISASSEMBLY ................................................... 25
INSPECTION AFTER DISASSEMBLY ................ 26
ASSEMBLY ......................................................... 26
Removal and Installation (YD22DDTi engine
model) ..................................................................... 28
Disassembly and Assembly (YD22DDTi engine
model) ..................................................................... 30
INSPECTION BEFORE DISASSEMBLY ............. 30
DISASSEMBLY ................................................... 31
INSPECTION AFTER DISASSEMBLY ................ 32
ASSEMBLY ......................................................... 32
HYDRAULIC LINE .................................................... 34
Components (QR20DE and QR25DE engine mod-
els) .......................................................................... 34
REMOVAL AND INSTALLATION ........................ 38
Components (YD22DDTi engine model) ................ 39
REMOVAL AND INSTALLATION ........................ 41
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 42
Wheel ..................................................................... 42
Steering Angle ........................................................ 42
Steering Column ..................................................... 42
Steering Linkage ..................................................... 42
Steering Gear ......................................................... 43

PS-2 Oil Pump ................................................................. 43
Steering Fluid .......................................................... 43

PRECAUTIONS
PS-3
C
D
E
F
H
I
J
K
L
MA
B
PS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EGS000IZ
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
CautionEGS00049

Always follow the warnings and the cautions below in disassembly procedures:
–Work in a clean, dust-free place. No dust proof device is necessary.
–Clean outside of unit before disassembly.
–Clean parts to be disassembled. Be careful not to allow any dirt or other foreign materials to enter or con-
tact with parts.
–Assemble disassembled parts properly, following order shown in manual. If work has been suspended in
the middle of assembly, place a clean cover over parts. This will prevent them from being contaminated.
–Use paper towels when removing dirt and other foreign materials. Cloth shop towels can leave lint on
cleaned parts that might affect operation of parts.
–Clean disassembled parts (except rubber parts) with kerosene. Drain oil by blowing with air or absorbing
with shop papers.
–Before assembling, apply DEXRONTM III or equivalent to O-rings and seals.
–Replace gaskets and O-rings with new ones. Be careful not to damage any O-rings, oil seals, and gaskets
during assembly.

If following part is scratched after disassembly of steering pump, replace applicable part: case, rear body,
side plate, pulley, rotor, vane, or flow control valve.

Mark source of fluid leak with a white marker for identification.

Seals and copper washers must not be reused.

PS-4
FPREPARATION

FPREPARATIONPFP:00002
Special Service Tools (SST)EGS0004A
Tool number
Tool nameDescription
ST3127S000
Preload gaugeSteering torque check
ST27180001
Steering wheel pullerRemoval of steering wheel
KV48104400
Teflon ring correcting tool
a: 50 mm (1.97 in) dia.
b: 36 mm (1.42 in) dia.
C: 100 mm (3.94 in)Installing of rack Teflon ring
KV48103400
Torque adapterInspecting rotating torque
KV48103500
Hydraulic pressure gauge
KV48102500
Hydraulic pressure gauge adapter
1. KV48102500−01
(I-joint)
2. KV48102500−02
(Flare joint)
3. KV48102500−03
(Bolt)
4. KV48102500−04
(Washer)Measurement oil pump relief pressure
ST35300000
Drift
a: 45.1 mm (1.776 in) dia.
b: 59.0 mm (5.323 in) dia.Installing drive shaft seal
ZZA0806D
ZZA0819D
S-NT550
ZZA0824D
ZZA0839D
ZZA0881D
