NISSAN X-TRAIL 2003 Electronic Repair Manual
Manufacturer: NISSAN, Model Year: 2003, Model line: X-TRAIL, Model: NISSAN X-TRAIL 2003Pages: 3066, PDF Size: 51.47 MB
Page 1 of 3066
MODEL T30 SERIES
2001 NISSAN EUROPE N.V.
All rights reserved. No part of this Electronic Service Manual may be reproduced or stored in a retrieval system, or transmitted in any
form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan
Europe N.V., Paris, France.
A GENERAL INFORMATION
B ENGINE
C TRANSMISSION/
TRANSAXLE
D DRIVELINE/AXLE
E SUSPENSION
F BRAKES
G STEERING
H RESTRAINTS
I BODY
J AIR CONDITIONER
K ELECTRICAL
L MAINTENANCE
M INDEXGI General Information
EM Engine Mechanical
LU Engine Lubrication System
CO Engine Cooling System
EC Engine Control System
FL Fuel System
EX Exhaust System
ACC Accelerator Control System
CL Clutch
MT Manual Transaxle
AT Automatic Transaxle
TF Transfer
PR Propeller Shaft
RFD Rear Final Drive
FAX Front Axle
RAX Rear Axle
FSU Front Suspension
RSU Rear Suspension
WT Road Wheels & Tires
BR Brake System
PB Parking Brake System
BRC Brake Control System
PS Power Steering System
SB Seat Belts
SRS Supplemental Restraint System (SRS)
BL Body, Lock & Security System
GW Glasses, Window System & Mirrors
RF Roof
EI Exterior & Interior
IP Instrument Panel
SE Seat
ATC Automatic Air Conditioner
MTC Manual AIr Conditioner
SC Starting & Charging System
LT Lighting System
DI Driver Information System
WW Wiper, Washer & Horn
BCS Body Control System
LAN LAN System
AV Audio, Visual & Telephone System
PG Power Supply, Ground & Circuit Elements
MA Maintenance
IDX Alphabetical Index
QUICK REFERENCE INDEX
A
B
C
D
E
F
G
H
I
J
K
L
M
Page 2 of 3066

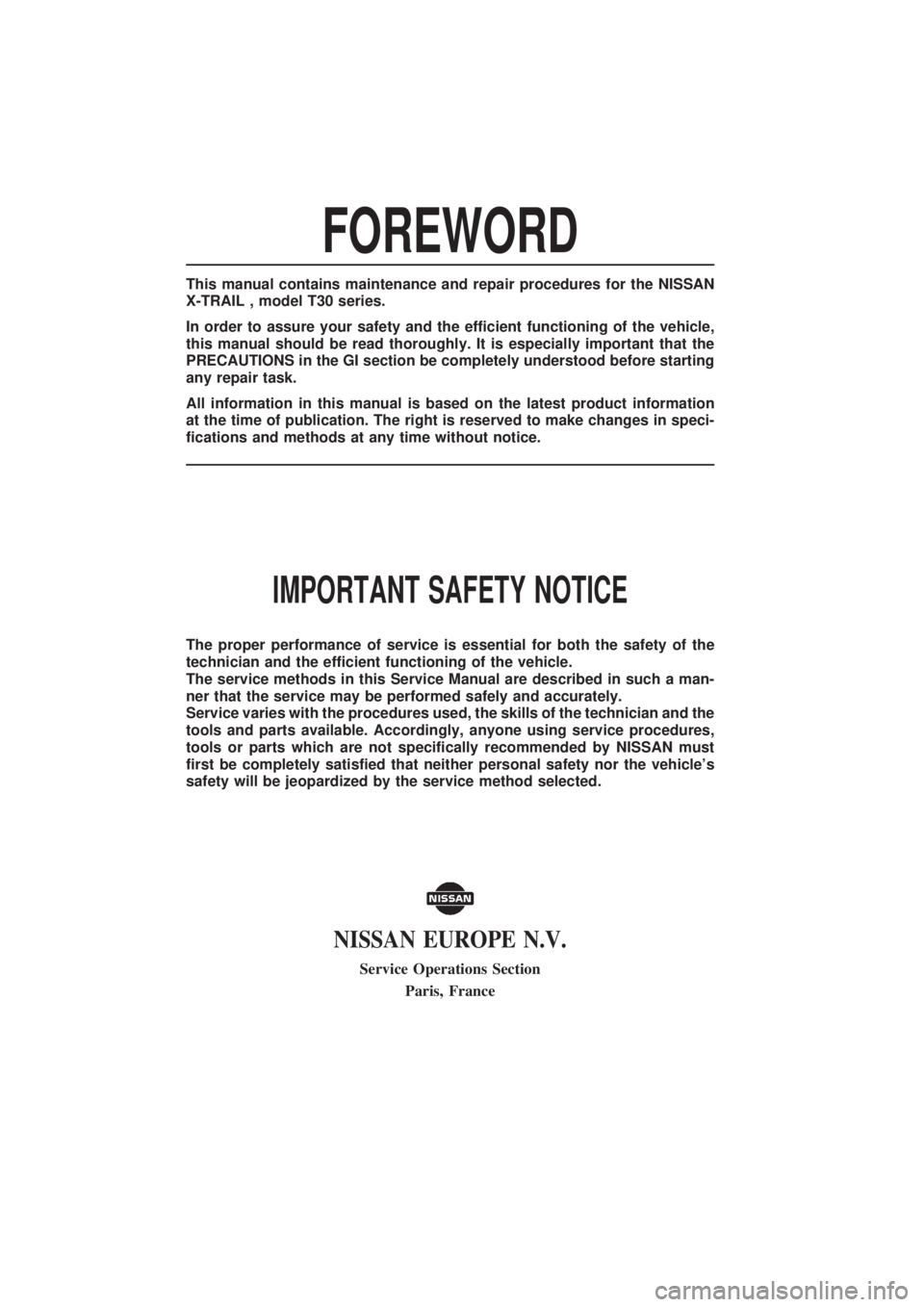

FOREWORD
This manual contains maintenance and repair procedures for the NISSAN
X-TRAIL , model T30 series.
In order to assure your safety and the efficient functioning of the vehicle,
this manual should be read thoroughly. It is especially important that the
PRECAUTIONS in the GI section be completely understood before starting
any repair task.
All information in this manual is based on the latest product information
at the time of publication. The right is reserved to make changes in speci-
fications and methods at any time without notice.
IMPORTANT SAFETY NOTICE
The proper performance of service is essential for both the safety of the
technician and the efficient functioning of the vehicle.
The service methods in this Service Manual are described in such a man-
ner that the service may be performed safely and accurately.
Service varies with the procedures used, the skills of the technician and the
tools and parts available. Accordingly, anyone using service procedures,
tools or parts which are not specifically recommended by NISSAN must
first be completely satisfied that neither personal safety nor the vehicle's
safety will be jeopardized by the service method selected.
NISSAN EUROPE N.V.
Service Operations Section
Paris, France
Page 3 of 3066
ACC-1
ACCELERATOR CONTROL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION
A
ACC
ACCELERATOR CONTROL SYSTEM
ACCELERATOR CONTROL SYSTEM ...................... 2
Removal and Installation .......................................... 2
QR20DE ................................................................ 2
YD22DDTI ............................................................. 2
REMOVAL ............................................................. 2
INSTALLATION ..................................................... 3
INSPECTION AFTER INSTALLATION ................. 3SERVICE DATA AND SPECIFICATIONS (SDS) ........ 4
Tightening Torque ..................................................... 4
Page 4 of 3066
ACC-2
ACCELERATOR CONTROL SYSTEM
ACCELERATOR CONTROL SYSTEM
PFP:18005
Removal and InstallationEBS003CH
QR20DE
YD22DDTI
REMOVAL
1. Remove harness connector.
2. Loosen nuts, and remove accelerator pedal assembly.
CAUTION:
lDo not disassemble the accelerator pedal assembly. Do not remove the sensors and the switches
from the assembly.
lAvoid impact from dropping etc. during handling.
lBe careful to keep the assembly away from water.

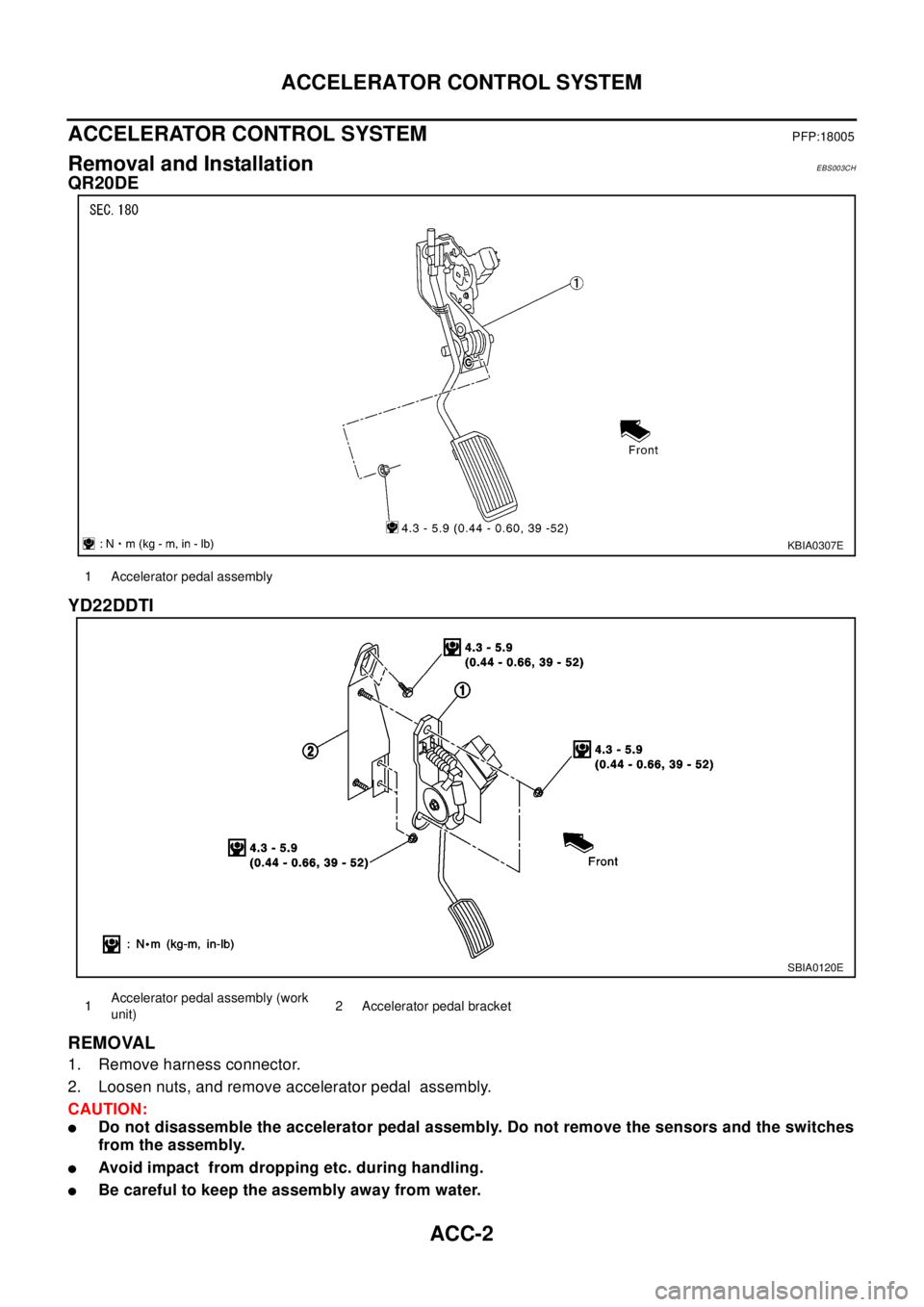

KBIA0307E
1 Accelerator pedal assembly
SBIA0120E
1Accelerator pedal assembly (work
unit)2 Accelerator pedal bracket
Page 5 of 3066
ACCELERATOR CONTROL SYSTEM
ACC-3
C
D
E
F
G
H
I
J
K
L
MA
ACC
lDo not adjust the adjusting screw (painted white) of the accelerator work unit. (YD22DDTi)
lWhen the harness connector of the accelerator sensor is disconnected, perform²Accelerator
Pedal Released Position Learning².Referto²Basic Service Procedure²in EC section.
INSTALLATION
Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION
lCheck that the accelerator pedal moves smoothly within the whole operation range.
lCheck that the accelerator pedal securely returns to the original position.
lFor the electrical inspection of the accelerator pedal assembly, refer toEC-154, "DTC P0121 APP SEN-
SOR"(WITH EURO-OBD) andEC-484, "DTC P0121 APP SENSOR"(WITHOUT EURO-OBD).
(QR20DE)
lFor the electrical inspection of the accelerator work unit, refer toEC-715, "DTC P0120 ACCELERATOR
PEDAL POSITION SENSOR"andEC-783, "DTC P1510 ACCELERATOR PEDAL RELEASED POSI-
TION SWITCH".(YD22DDTi)
lCheck that the drum of the accelerator work unit can be fully opened. (YD22DDTi)
Page 6 of 3066
ACC-4
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Tightening TorqueEBS003CI
Unit: N·m (Kg-m, in-lb)
Accelerator pedal assembly 4.3 - 5.9 (0.44 - 0.60, 39 - 52)
Accelerator pedal assembly (work unit) (YD22DDTi) 4.3 - 5.9 (0.44 - 0.60, 39 - 52)
Accelerator pedal bracket (YD22DDTi) 4.3 - 5.9 (0.44 - 0.60, 39 - 52)
Page 7 of 3066
AT-1
AUTOMATIC TRANSAXLE
C TRANSMISSION/TRANSAXLE
CONTENTS
D
E
F
G
H
I
J
K
L
M
SECTION
A
B
AT
AUTOMATIC TRANSAXLE
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 5
Precautions for On Board Diagnostic (EURO-OBD)
System of A/T and Engine — Euro-OBD — ............. 5
Precautions For Trouble Diagnosis .......................... 5
Precautions For Harness Repair .............................. 5
Precautions .............................................................. 6
Service Notice or Precautions .................................. 7
Wiring Diagrams and Trouble Diagnosis .................. 8
PREPARATION ........................................................... 9
Special Service Tools ............................................... 9
Commercial Service Tools .......................................11
A/T FLUID ................................................................. 13
Checking A/T Fluid ................................................. 13
Changing A/T Fluid ................................................ 13
OVERALL SYSTEM ................................................. 14
A/T Electrical Parts Location .................................. 14
Circuit Diagram ...................................................... 16
Cross-sectional View .............................................. 17
Hydraulic Control Circuit ........................................ 18
Shift Mechanism ..................................................... 19
Control System ....................................................... 27
Control Mechanism ................................................ 29
Control Valve .......................................................... 33
EURO-OBD
TROUBLE DIAGNOSIS — INDEX ........................... 35
Alphabetical & P No. Index for DTC ....................... 35
ON BOARD DIAGNOSTIC SYSTEM DESCRIP-
TION .......................................................................... 37
Introduction ............................................................ 37
EURO-OBD Function for A/T System .................... 37
One or Two Trip Detection Logic of EURO-OBD ... 37
EURO-OBD Diagnostic Trouble Code (DTC) ......... 37
Malfunction Indicator lamp (MIL) ............................ 41
CONSULT-II ........................................................... 41
Diagnostic Procedure Without CONSULT-II ........... 50TROUBLE DIAGNOSIS — INTRODUCTION ........... 56
Introduction ............................................................. 56
Work Flow ............................................................... 61
TROUBLE DIAGNOSIS — BASIC INSPECTION .... 64
A/T Fluid Check ...................................................... 64
Stall Test ................................................................. 65
Line Pressure Test .................................................. 68
Road Test ............................................................... 69
TROUBLE DIAGNOSIS — GENERAL DESCRIP-
TION .......................................................................... 86
Symptom Chart ....................................................... 86
TCM Terminals and Reference Value ...................125
CAN COMMUNICATION .........................................129
System Description ...............................................129
DTC P0705 PARK/NEUTRAL POSITION (PNP)
SWITCH ..................................................................130
Description ............................................................130
Wiring Diagram — AT — PNP/SW .......................132
Diagnostic Procedure ...........................................133
Component Inspection ..........................................135
DTC P0710 A/T FLUID TEMPERATURE SENSOR
CIRCUIT ..................................................................136
Description ............................................................136
Wiring Diagram — AT — FTS ..............................138
Diagnostic Procedure ...........................................139
Component Inspection ..........................................141
DTC P0720 VEHICLE SPEED SENSOR·A/T (REV-
OLUTION SENSOR) ...............................................142
Description ............................................................142
Wiring Diagram — AT — VSSA/T ........................144
Diagnostic Procedure ...........................................145
DTC P0725 ENGINESPEED SIGNAL ...................147
Description ............................................................147
Wiring Diagram — AT — ENGSS .........................148
Diagnostic Procedure ...........................................149
DTC P0731 A/T 1ST GEAR FUNCTION ................151
Description ............................................................151
Wiring Diagram — AT — 1ST ...............................154
Diagnostic Procedure ...........................................155
Component Inspection ..........................................156
Page 8 of 3066
AT-2
DTC P0732 A/T 2ND GEAR FUNCTION ................158
Description ............................................................158
Wiring Diagram — AT — 2ND ..............................161
Diagnostic Procedure ...........................................162
Component Inspection ..........................................163
DTC P0733 A/T 3RD GEAR FUNCTION ................165
Description ............................................................165
Wiring Diagram — AT — 3RD ..............................168
Diagnostic Procedure ...........................................169
Component Inspection ..........................................170
DTC P0734 A/T 4TH GEAR FUNCTION ................172
Description ............................................................172
Wiring Diagram — AT — 4TH ...............................175
Diagnostic Procedure ...........................................176
Component Inspection ..........................................179
DTC P0740 TORQUE CONVERTER CLUTCH
SOLENOID VALVE .................................................181
Description ............................................................181
Wiring Diagram — AT — TCV ..............................183
Diagnostic Procedure ...........................................184
Component Inspection ..........................................185
DTC P0745 LINE PRESSURE SOLENOID VALVE. 186
Description ............................................................186
Wiring Diagram — AT — LPSV ............................188
Diagnostic Procedure ...........................................189
Component Inspection ..........................................191
DTC P0750 SHIFT SOLENOID VALVE A ...............193
Description ............................................................193
Wiring Diagram — AT — SSV/A ...........................195
Diagnostic Procedure ...........................................196
Component Inspection ..........................................197
DTC P0755 SHIFT SOLENOID VALVE B ...............198
Description ............................................................198
Wiring Diagram — AT — SSV/B ...........................200
Diagnostic Procedure ...........................................201
Component Inspection ..........................................202
DTC P1705 ACCELERATOR PEDAL POSITION
(APP) SENSOR .......................................................203
Description ............................................................203
Wiring Diagram — AT — TPS ..............................205
Diagnostic Procedure ...........................................206
DTC P1760 OVERRUN CLUTCH SOLENOID
VALVE .....................................................................208
Description ............................................................208
Wiring Diagram — AT — OVRCSV ......................210
Diagnostic Procedure ...........................................211
Component Inspection ..........................................212
DTC U1000 CAN COMMUNICATION LINE ............213
Description ............................................................213
On Board Diagnosis Logic ....................................213
..............................................................................213
Wiring Diagram — AT ...........................................214
Diagnostic Procedure ...........................................215
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP
SENSOR CIRCUIT AND TCM POWER SOURCE). 216
Description ............................................................216
Wiring Diagram — AT — BA/FTS .........................218Diagnostic Procedure ............................................ 219
Component Inspection .......................................... 221
DTC VEHICLE SPEED SENSOR MTR ................... 222
Description ............................................................ 222
Wiring Diagram — AT — VSSMTR ....................... 224
Diagnostic Procedure ............................................ 225
DTC CONTROL UNIT (RAM), CONTROL UNIT
(ROM) ...................................................................... 226
Description ............................................................ 226
Diagnostic Procedure ............................................ 227
DTC CONTROL UNIT(EEPROM) ........................... 228
Description ............................................................ 228
Diagnostic Procedure ............................................ 229
TROUBLE DIAGNOSES FOR SYMPTOMS ........... 230
.............................................................................. 230
1. O/D OFF Indicator Lamp Does Not Come On .. 232
2. Engine Cannot Be Started In “P” and “N” Position. 233
3. In “P” Position, Vehicle Moves Forward Or Back-
ward When Pushed ............................................... 234
4. In “N” Position, Vehicle Moves .......................... 234
5. Large Shock. “N”®“R” Position ...................... 236
6. Vehicle Does Not Creep Backward In “R” Position. 237
7. Vehicle Does Not Creep Forward In “D”, “2” Or
“1” Position ............................................................ 240
8. Vehicle Cannot Be Started From D
1................. 242
9. A/T Does Not Shift: D
1®D2Or Does Not Kick-
down: D
4®D2..................................................... 244
10. A/T Does Not Shift: D
2®D3.......................... 246
11.A/TDoesNotShift:D
3®D4........................... 249
12. A/T Does Not Perform Lock-up ....................... 252
13. A/T Does Not Hold Lock-up Condition ............ 253
14. Lock-up Is Not Released ................................. 254
15. Engine Speed Does Not Return To Idle (Light
Braking D
4®D3) ................................................. 255
16. Vehicle Does Not Start From D
1..................... 257
17. A/T Does Not Shift: D
4®D3, When Overdrive
Control Switch “ON”®“OFF” ............................... 258
18. A/T Does Not Shift: D
3®22, When Selector
Lever “D”®“2” Position ....................................... 258
19. A/T Does Not Shift: 2
2®11, When Selector
Lever “2”®“1” Position ........................................ 259
20. Vehicle Does Not Decelerate By Engine Brake. 259
21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position
Sensor Circuit Checks) ......................................... 260
EXC.F/EURO-OBD
ON BOARD DIAGNOSTIC SYSTEM DESCRIP-
TION ........................................................................ 267
CONSULT-II .......................................................... 267
Diagnostic Procedure Without CONSULT-II ......... 273
TROUBLE DIAGNOSIS — INTRODUCTION ......... 279
Introduction ........................................................... 279
Work Flow ............................................................. 284
TROUBLE DIAGNOSIS — BASIC INSPECTION ... 286
A/T Fluid Check .................................................... 286
Stall Test ................................................................ 287
Page 9 of 3066
AT-3
D
E
F
G
H
I
J
K
L
MA
B
AT Line Pressure Test ............................................... 290
Road Test ............................................................. 291
TROUBLE DIAGNOSIS — GENERAL DESCRIP-
TION ........................................................................ 308
Symptom Chart .................................................... 308
TCM Terminals and Reference Value ................... 347
CAN COMMUNICATION ........................................ 351
System Description .............................................. 351
TROUBLE DIAGNOSES FOR SYMPTOMS .......... 352
............................................................................. 352
1. O/D OFF Indicator Lamp Does Not Come On . 354
2. Engine Cannot Be Started In “P” and “N” Position. 355
3. In “P” Position, Vehicle Moves Forward Or Back-
ward When Pushed .............................................. 356
4. In “N” Position, Vehicle Moves ......................... 356
5. Large Shock. “N”®“R” Position ...................... 358
6. Vehicle Does Not Creep Backward In “R” Position. 359
7. Vehicle Does Not Creep Forward In “D”, “2” Or
“1” Position ........................................................... 362
8. Vehicle Cannot Be Started From D
1................. 364
9. A/T Does Not Shift: D
1®D2Or Does Not Kick-
down: D
4®D2..................................................... 366
10. A/T Does Not Shift: D
2®D3......................... 368
11.A/TDoesNotShift:D
3®D4.......................... 371
12. A/T Does Not Perform Lock-up ...................... 374
13. A/T Does Not Hold Lock-up Condition ........... 375
14. Lock-up Is Not Released ................................ 376
15. Engine Speed Does Not Return To Idle (Light
Braking D
4®D3) ................................................ 377
16. Vehicle Does Not Start From D
1..................... 379
17. A/T Does Not Shift: D
4®D3, When Overdrive
Control Switch “ON”®“OFF” .............................. 380
18. A/T Does Not Shift: D
3®22, When Selector
Lever “D”®“2” Position ...................................... 380
19. A/T Does Not Shift: 2
2®11, When Selector
Lever “2”®“1” Position ....................................... 381
20. Vehicle Does Not Decelerate By Engine Brake. 381
21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position
Sensor Circuit Checks) ........................................ 382
ALL
MAIN POWER SUPPLY AND GROUND CIRCUIT. 389
Wiring Diagram — AT — MAIN ............................ 389
Diagnostic Procedure ........................................... 390
VEHICLE SPEED SENSOR·A/T (REVOLUTION
SENSOR) ................................................................ 392
Description ........................................................... 392
Wiring Diagram — AT — VSSA/T ........................ 394
Diagnostic Procedure ........................................... 395
DTC VEHICLE SPEED SENSOR MTR .................. 397
Description ........................................................... 397
Wiring Diagram — AT — VSSMTR ...................... 399
Diagnostic Procedure ........................................... 400
ACCELE RATOR PEDAL POSITION (APP) SEN-
SOR ........................................................................ 401
Description ........................................................... 401Wiring Diagram — AT — TPS ..............................403
Diagnostic Procedure ...........................................404
SHIFT SOLENOID VALVE A ..................................406
Description ............................................................406
Wiring Diagram — AT — SSV/A ...........................408
Diagnostic Procedure ...........................................409
Component Inspection ..........................................410
SHIFT SOLENOID VALVE B ..................................411
Description ............................................................411
Wiring Diagram — AT — SSV/B ...........................413
Diagnostic Procedure ...........................................414
Component Inspection ..........................................415
OVERRUN CLUTCH SOLENOID VALVE ...............416
Description ............................................................416
Wiring Diagram — AT — OVRCSV ......................418
Diagnostic Procedure ...........................................419
Component Inspection ..........................................420
TORQUE CONVERTER CLUTCH SOLENOID
VALVE .....................................................................421
Description ............................................................421
Wiring Diagram — AT — TCV ..............................423
Diagnostic Procedure ...........................................424
Component Inspection ..........................................425
BATT/FLUID TEMP SEN (A/T FLUID TEMP SEN-
SOR CIRCUIT AND TCM POWER SOURCE) .......426
Description ............................................................426
Wiring Diagram — AT — BA/FTS .........................428
Diagnostic Procedure ...........................................429
Component Inspection ..........................................431
ENGINE SPEED SIGNAL .......................................432
Description ............................................................432
Wiring Diagram — AT — ENGSS .........................433
Diagnostic Procedure ...........................................434
LINE PRESSURE SOLENOID VALVE ...................436
Description ............................................................436
Wiring Diagram — AT — LPSV ............................438
Diagnostic Procedure ...........................................439
Component Inspection ..........................................441
CAN CAMMUNICATION LINE ................................443
Description ............................................................443
On Board Diagnosis Logic ....................................443
Self-Diagnosis Code Confirmation Procedure ......443
Wiring Diagram — AT — CAN ..............................444
Diagnostic Procedure ...........................................445
A/T SHIFT LOCK SYSTEM ....................................446
Description ............................................................446
Shift Lock System Electrical Parts Location .........446
Wiring Diagram — SHIFT — ................................447
Diagnostic Procedure ...........................................448
KEY INTERLOCK CABLE ......................................452
Components .........................................................452
Removal ...............................................................452
Installation ............................................................453
ON-VEHICLE SERVICE ..........................................454
Control Valve Assembly and Accumulators ..........454
Control Cable Adjustment .....................................456
Park/Neutral Position (PNP) Switch Adjustment ..456
Page 10 of 3066
AT-4
Differential Side Oil Seal Replacement .................457
Revolution Sensor Replacement ..........................457
REMOVAL AND INSTALLATION ...........................458
Removal ...............................................................458
Installation .............................................................459
OVERHAUL .............................................................461
Components .........................................................461
Oil Channel ...........................................................464
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings ..........................465
DISASSEMBLY .......................................................466
Disassembly .........................................................466
REPAIR FOR COMPONENT PARTS ......................482
Manual Shaft ........................................................482
Oil Pump ...............................................................485
Control Valve Assembly ........................................489
Control Valve Upper Body ....................................498
Control Valve Lower Body ....................................502
Reverse Clutch .....................................................504
High Clutch ...........................................................507
Forward and Overrun Clutches ............................512
Low & Reverse Brake ...........................................518
Rear Internal Gear, Forward Clutch Hub and Over-
run Clutch Hub ......................................................521
Output Shaft, Idler Gear, Reduction Pinion Gear and
Bearing Retainer ...................................................525
Band Servo Piston Assembly ...............................530
Final Drive ............................................................535ASSEMBLY ............................................................. 540
Assembly (1) ......................................................... 540
Adjustment (1) ....................................................... 541
Assembly (2) ......................................................... 546
Adjustment (2) ....................................................... 553
Assembly (3) ......................................................... 556
SERVICE DATA AND SPECIFICATIONS (SDS) .... 563
General Specifications .......................................... 563
Shift Schedule ....................................................... 563
Stall Revolution ..................................................... 563
Line Pressure ........................................................ 563
Control Valves ....................................................... 564
Accumulator .......................................................... 564
Clutch and Brakes ................................................. 564
Final Drive ............................................................. 566
Planetary Carrier and Oil Pump ............................ 567
Input Shaft ............................................................. 568
Reduction Pinion Gear .......................................... 568
Band Servo ........................................................... 569
Output Shaft .......................................................... 569
Bearing Retainer ................................................... 569
Total End Play ....................................................... 569
Reverse Clutch End Play ...................................... 570
Removal and Installation ....................................... 570
Shift Solenoid Valves ............................................ 570
Solenoid Valves .................................................... 570
A/T Fluid Temperature Sensor .............................. 570
Revolution Sensor ................................................. 571
Dropping Resistor ................................................. 571
