NISSAN X-TRAIL 2005 Service Repair Manual

DTC P0340 CMP SENSOR (PHASE)
EC-707
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between CMP sensor (PHASE) terminal 2 and ECM terminal 13.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-708, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace camshaft position sensor (PHASE).
8. CHECK CAMSHAFT (INTAKE)
Check the following.

Accumulation of debris to the signal plate of camshaft rear end

Chipping signal plate of camshaft rear end
OK or NG
OK >> GO TO 9.
NG >> Remove debris and clean the signal plate of camshaft
rear end or replace camshaft.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-624, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
PBIB0565E

EC-708
[QR (WITHOUT EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)

Component InspectionEBS010ZU
CAMSHAFT POSITION SENSOR (PHASE)
1. Loosen the fixing bolt of the sensor.
2. Disconnect camshaft position sensor (PHASE) harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
Removal and InstallationEBS010ZV
CAMSHAFT POSITION SENSOR (PHASE)
Refer to EM-56, "CAMSHAFT" .
PBIB0563E
Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
3 (+) - 1 (-)
Except 0 or ∞ 3 (+) - 2 (-)
2 (+) - 1 (-)
MBIB0024E

DTC P0500 VSS
EC-709
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0500 VSSPFP:32702
DescriptionEBS010ZW
NOTE:
If DTC P0500 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-633, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
The vehicle speed signal is sent to the combination meter from the “ESP/TCS/ABS control unit” (with ESP
models) “ABS actuator and electric unit (control unit)” (without ESP models) through CAN communication line.
The combination meter then sends a signal to the ECM through CAN communication line.
On Board Diagnosis LogicEBS010ZX
DTC Confirmation ProcedureEBS010ZY
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Steps 1 and 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
2. Read “VHCL SPEED SE” in “DATA MONITOR” mode with CONSULT-II. The vehicle speed on CONSULT-
II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to EC-710, "
Diagnostic Procedure" .
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Warm engine up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec-
onds.
6. If 1st trip DTC is detected, go to EC-710, "
Diagnostic Procedure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0500
0500Vehicle speed sensorThe almost 0 km/h (0 MPH) signal from
vehicle speed sensor is sent to ECM
even when vehicle is being driven.

Harness or connectors
(The CAN communication line is open or
shorted.)

ESP/TCS/ABS control unit (with ESP models)

ABS actuator and electric unit (control unit)
(without ESP models)

Wheel sensor

Combination meter
ENG SPEEDM/T: 2,000 - 6,000 rpm
A/T: 1,750 - 6,000 rpm
COOLAN TEMP/S More than 70°C (158°F)
B/FUEL SCHDL QR20DE 4.9 - 31.8 msec
QR25DEM/T: 5.0 - 31.8 msec
A/T: 6.0 - 31.8 msec
Selector lever Suitable position
PW/ST SIGNAL OFF
SEF196Y

EC-710
[QR (WITHOUT EURO-OBD)]
DTC P0500 VSS

Overall Function CheckEBS010ZZ
Use this procedure to check the overall function of the vehicle speed signal circuit. During this check, a 1st trip
DTC might not be confirmed.
WITHOUT CONSULT-II
1. Lift up drive wheels.
2. Start engine.
3. Read vehicle speed with combination meter.
The vehicle speed indication should be able to exceed 10 km/h (6 MPH) when rotating wheels with suit-
able gear position.
4. If NG, go to EC-710, "
Diagnostic Procedure" .
Diagnostic ProcedureEBS01100
1. CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)” (WITHOUT ESP
MODELS) OR “ESP/TCS/ABS CONTROL UNIT” (WITH ESP MODELS)
Refer to BRC-12, "
TROUBLE DIAGNOSIS" (Models without ESP) or BRC-60, "TROUBLE DIAGNOSIS"
(Models with ESP).
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK COMBINATION METER
Check combination meter function.
Refer to DI-4, "
COMBINATION METERS" .
>>INSPECTION END

DTC P0550 PSP SENSOR
EC-711
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0550 PSP SENSORPFP:49763
Component DescriptionEBS01101
Power steering pressure (PSP) sensor is installed to the power
steering high-pressure tube and detects a power steering load. This
sensor is a potentiometer which transforms the power steering load
into output voltage, and emits the voltage signal to the ECM. The
ECM controls the electric throttle control actuator and adjusts the
throttle valve opening angle to increase the engine speed and
adjusts the idle speed for the increased load.
CONSULT-II Reference Value in Data Monitor ModeEBS01102
Specification data are reference values.
On Board Diagnosis LogicEBS01103
The MI will not light up for this self-diagnosis.
NOTE:
If DTC P0550 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229. Refer to
EC-775, "
DTC P1229 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS01104
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-713, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Start engine and let it idle for at least 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If 1st trip DTC is detected, go to EC-713, "
Diagnostic Procedure" .
PBIB0502E
MONITOR ITEM CONDITION SPECIFICATION
PW/ST SIGNAL

Engine: After warming up, idle
the engineSteering wheel is not being turned OFF
Steering wheel is being turned ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0550
0550Power steering pressure
sensor circuitAn excessively low or high voltage from the
sensor is sent to ECM.

Harness or connectors
(The sensor circuit is open or shorted.)

Power steering pressure sensor
SEF058Y

EC-712
[QR (WITHOUT EURO-OBD)]
DTC P0550 PSP SENSOR

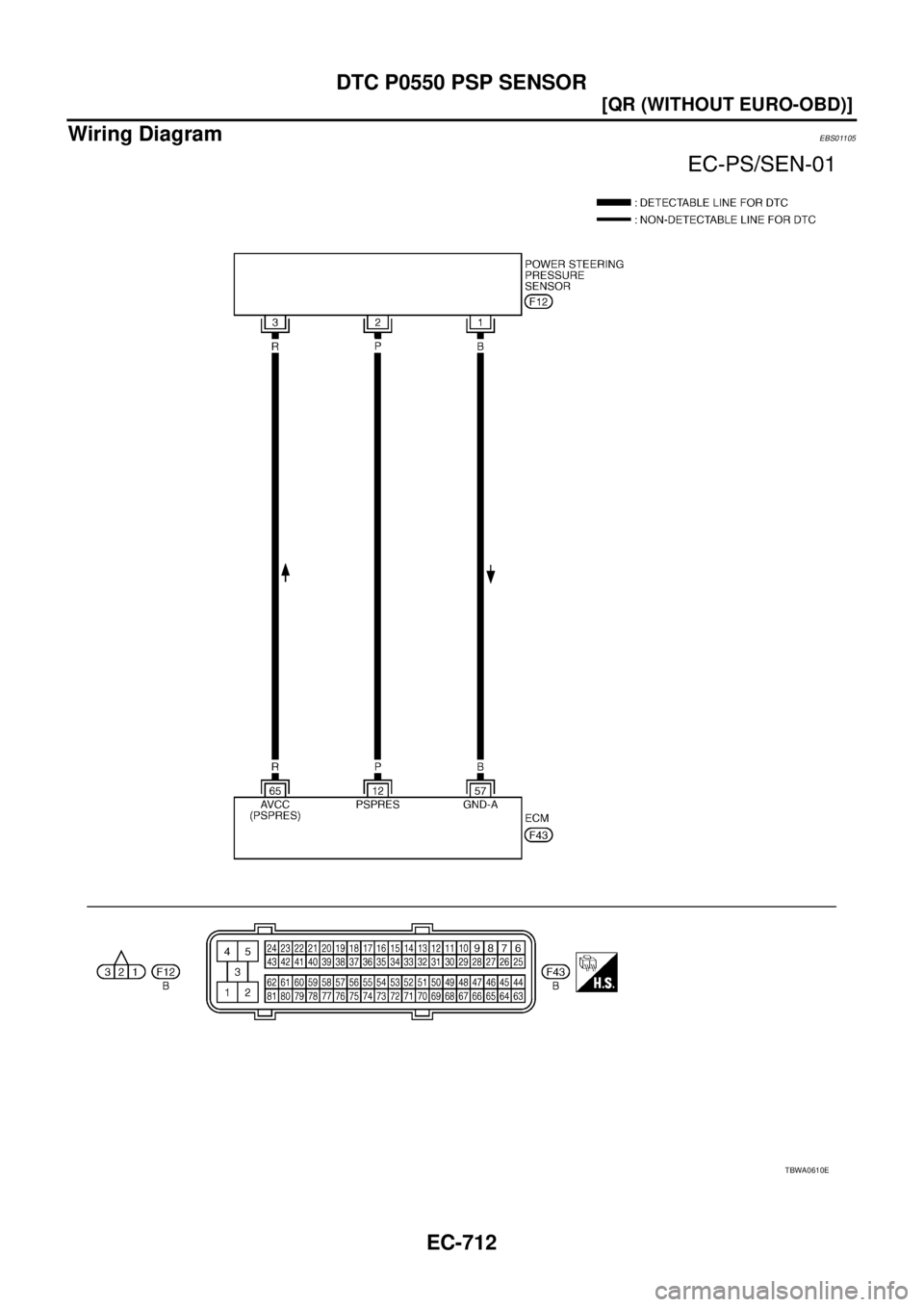

Wiring DiagramEBS01105
TBWA0610E

DTC P0550 PSP SENSOR
EC-713
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS01106
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-632, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
12 PPower steering pressure
sensor[Engine is running]

Steering wheel is being turned0.5 - 4.0V
[Engine is running]

Steering wheel is not being turned0.4 - 0.8V
57 B Sensor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0V
65 RSensor power supply
(Power steering pres-
sure sensor)[Ignition switch: ON]Approximately 5V
PBIB2021E

EC-714
[QR (WITHOUT EURO-OBD)]
DTC P0550 PSP SENSOR

2. CHECK PSP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect PSP sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between PSP sensor terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK PSP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between PSP sensor terminal 1 and ECM terminal 57.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between PSP sensor terminal 2 and ECM terminal 12.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK PSP SENSOR
Refer to EC-715, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace PSP sensor.
PBIB0502E
Voltage: Approximately 5V
SEF509Y
Continuity should exist.
Continuity should exist.

DTC P0550 PSP SENSOR
EC-715
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. CHECK INTERMITTENT INCIDENT
Refer to EC-624, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS01107
POWER STEERING PRESSURE SENSOR
1. Reconnect all harness connectors disconnected.
2. Start engine and let it idle.
3. Check voltage between ECM terminal 12 and ground under the
following conditions.
Removal and InstallationEBS0128H
POWER STEERING PRESSURE SENSOR
Refer to PS-37, "HYDRAULIC LINE" .
Condition Voltage
Steering wheel is being turned 0.5 - 4.0V
Steering wheel is not being turned 0.4 - 0.8V
MBIB0025E

EC-716
[QR (WITHOUT EURO-OBD)]
DTC P0605 ECM

DTC P0605 ECMPFP:23710
Component DescriptionEBS01108
The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.
On Board Diagnosis LogicEBS01109
This self-diagnosis has one or two trip detection logic.
FAIL-SAFE MODE
ECM enters fail-safe mode when malfunction A is detected.
DTC Confirmation ProcedureEBS0110A
Perform PROCEDURE FOR MALFUNCTION A first. If the DTC cannot be confirmed, perform PROCE-
DURE FOR MALFUNCTION B. If there is no malfunction on PROCEDURE FOR MALFUNCTION B, per-
form PROCEDURE FOR MALFUNCTION C.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If 1st trip DTC is detected, go to EC-718, "
Diagnostic Procedure"
.
Without CONSULT-II
1. Turn ignition switch ON.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0605
0605Engine control moduleA) ECM calculation function is malfunctioning.

ECM B) ECM EEP-ROM system is malfunctioning.
C) ECM self shut-off function is malfunctioning.
Detected items Engine operation condition in fail-safe mode
Malfunction A

ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx.
5 degrees) by the return spring.

ECM deactivates ASCD operation.
SEF058Y
