NISSAN X-TRAIL 2005 Service Repair Manual

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-737
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAYPFP:16119
Component DescriptionEBS0110T
Power supply for the Throttle Control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
CONSULT-II Reference Value in Data Monitor ModeEBS0110U
Specification data are reference values.
On Board Diagnosis LogicEBS0110V
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the DTC detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS0110W
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P1124
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V.
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If DTC is detected, go to EC-742, "
Diagnostic Procedure" .
MONITOR ITEM CONDITION SPECIFICATION
THRTL RELAY

Ignition switch: ON ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1124
11 2 4Throttle control motor
relay circuit shortECM detect the throttle control motor relay
is stuck ON.

Harness or connectors
(Throttle control motor relay circuit is shorted.)

Throttle control motor relay
P1126
11 2 6Throttle control motor
relay circuit openECM detects a voltage of power source for
throttle control motor is excessively low.

Harness or connectors
(Throttle control motor relay circuit is open.)

Throttle control motor relay
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.
SEF058Y

EC-738
[QR (WITHOUT EURO-OBD)]
DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY

Without CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-742, "
Diagnostic Procedure" .
PROCEDURE FOR DTC P1126
With CONSULT-II
1. Turn ignition switch ON and wait at least 2 seconds.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If DTC is detected, go to EC-742, "
Diagnostic Procedure" .
Without CONSULT-II
1. Turn ignition switch ON and wait at least 2 second.
2. Start engine and let it idle for 5 seconds.
3. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
4. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
5. If DTC is detected, go to EC-742, "
Diagnostic Procedure" .
SEF058Y

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-739
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

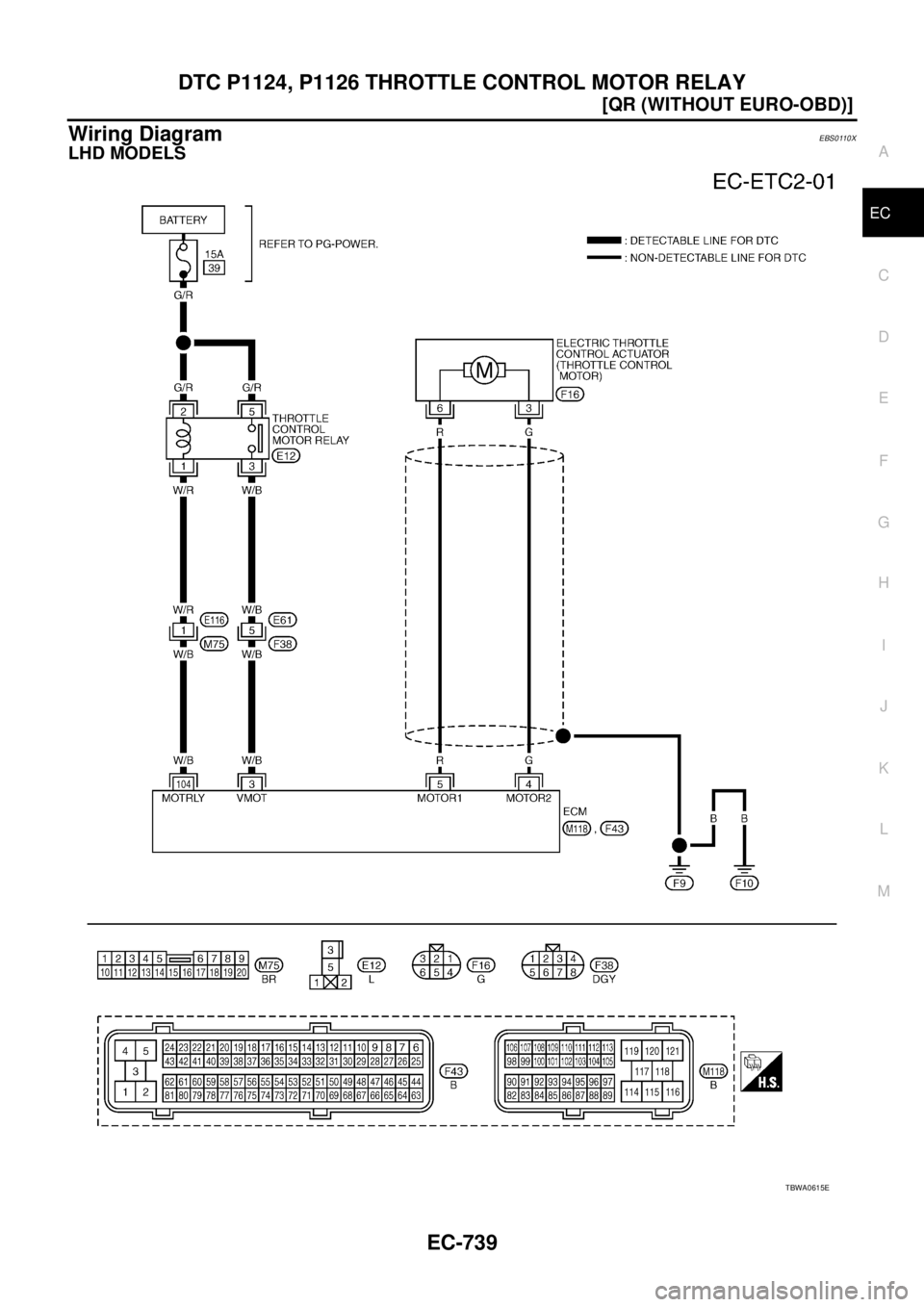

Wiring DiagramEBS0110X
LHD MODELS
TBWA0615E

EC-740
[QR (WITHOUT EURO-OBD)]
DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
3W/BThrottle control motor
relay power supply[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
104 W/BThrottle control motor
relay[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]0 - 1.0V

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-741
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

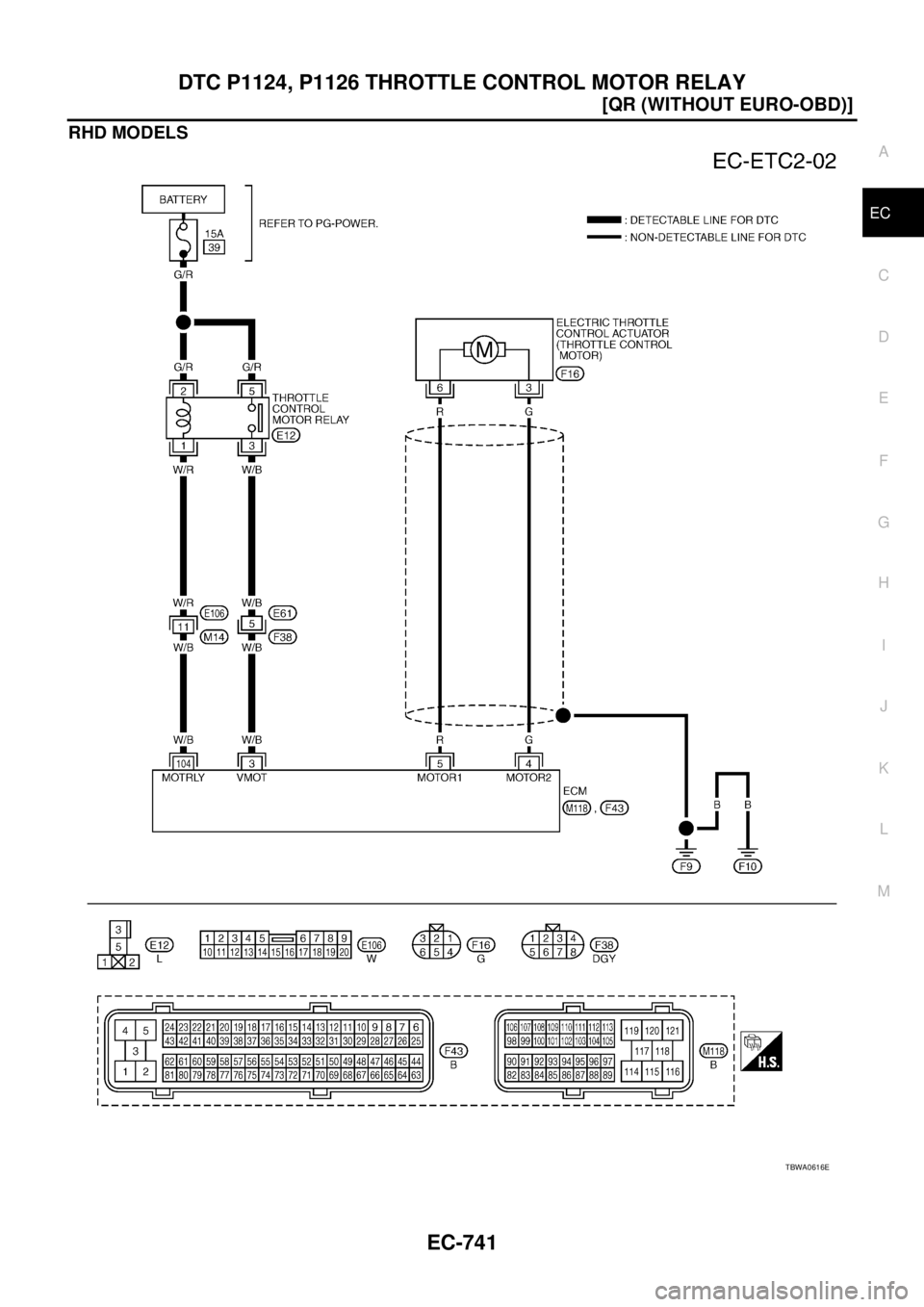

RHD MODELS
TBWA0616E

EC-742
[QR (WITHOUT EURO-OBD)]
DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS0110Y
1. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect throttle control motor relay.
3. Check voltage between throttle control motor relay terminals 2, 5
and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

15A fuse

Harness for open or short between throttle control motor relay and battery
>> Repair or replace harness or connectors.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
3W/BThrottle control motor
relay power supply[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
104 W/BThrottle control motor
relay[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]0 - 1.0V
PBIB1972E
Voltage: Battery voltage
PBIB0575E

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-743
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT
1. Disconnect ECM harness connector.
2. Check harness continuity between throttle control motor relay terminal 3 and ECM terminal 3.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E61, F38

Harness for open or short between throttle control motor relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK THROTTLE CONTROL MOTOR RELAY OUTPUT SIGNAL CIRCUIT
1. Check continuity between throttle control motor relay terminal 1 and ECM terminal 104.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E116, M75 (LHD models)

Harness connectors E106, M14 (RHD models)

Harness for open or short between throttle control motor relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK THROTTLE CONTROL MOTOR RELAY
Refer to EC-744, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace throttle control motor relay.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-624, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Continuity should exist.

EC-744
[QR (WITHOUT EURO-OBD)]
DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY

Component InspectionEBS0110Z
THROTTLE CONTROL MOTOR RELAY
1. Apply 12V direct current between relay terminals 1 and 2.
2. Check continuity between relay terminals 3 and 5.
3. If NG, replace throttle control motor relay.
Conditions Continuity
12V direct current supply between terminals
1 and 2Ye s
No current supply No
PBIB0098E

DTC P1128 THROTTLE CONTROL MOTOR
EC-745
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1128 THROTTLE CONTROL MOTORPFP:16119
Component DescriptionEBS01110
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.
On Board Diagnosis LogicE B S 0 1111
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS01112
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 2 seconds.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If DTC is detected, go to EC-750, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Turn ignition switch ON and wait at least 2 second.
2. Start engine and let it idle for 5 seconds.
3. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
4. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
5. If DTC is detected, go to EC-750, "
Diagnostic Procedure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1128
11 2 8Throttle control motor
circuit shortECM detects short both circuits between ECM
and throttle control motor.

Harness or connectors
(Throttle control motor circuit is shorted.)

Electric throttle control actuator
(Throttle control motor)
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.
SEF058Y

EC-746
[QR (WITHOUT EURO-OBD)]
DTC P1128 THROTTLE CONTROL MOTOR

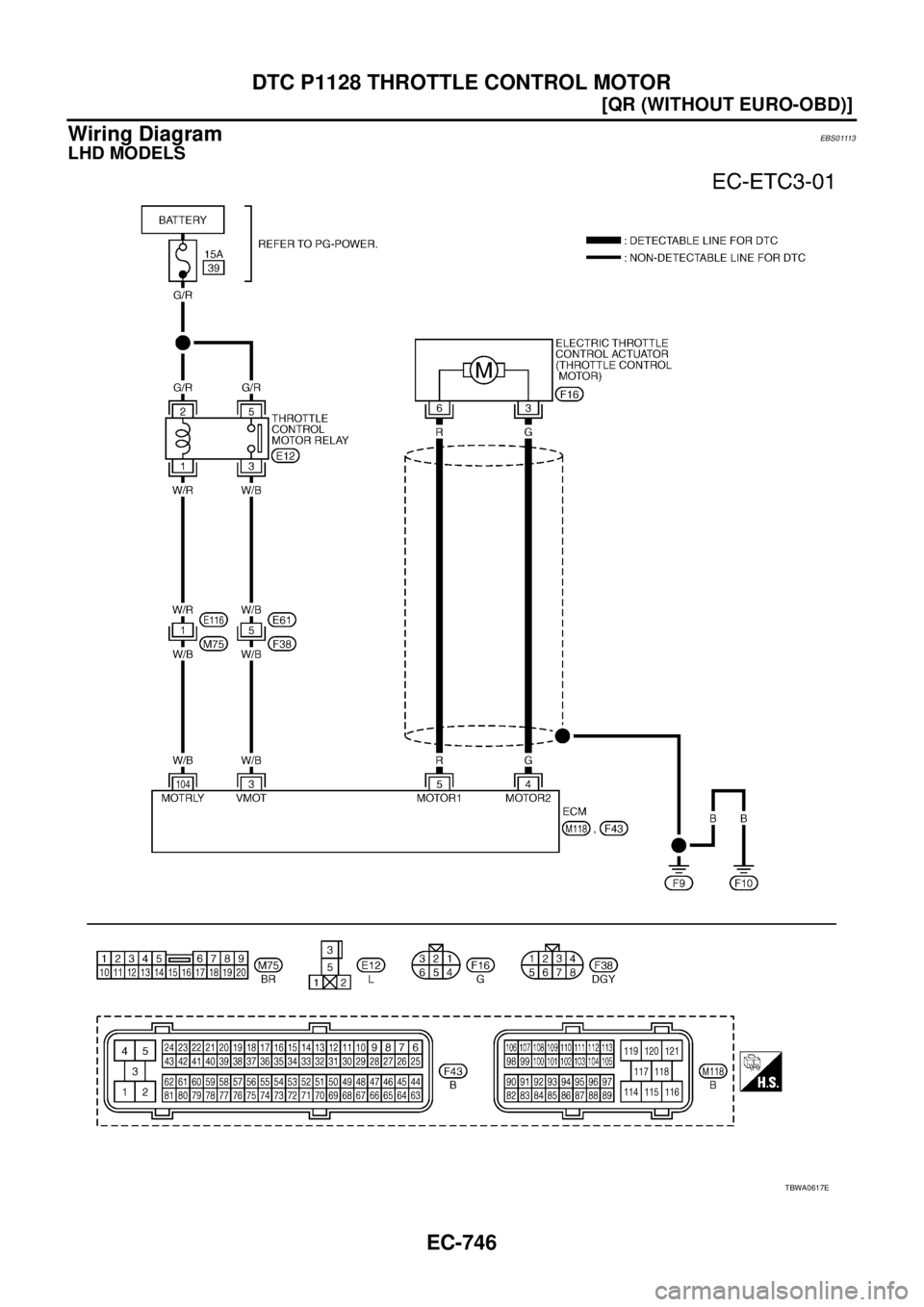

Wiring DiagramEBS01113
LHD MODELS
TBWA0617E
