ASCD INDICATOR
EC-957
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS01FBY
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK DTC
Check that DTC U1000 or U1001 is not displayed.
OK or NG
OK >> GO TO 3.
NG >> Perform trouble diagnoses for DTC U1000, U1001. Refer to EC-633, "
DTC U1000, U1001 CAN
COMMUNICATION LINE" .
3. CHECK COMBINATION METER FUNCTION
Refer to DI-4, "
COMBINATION METERS" .
OK or NG
OK >> GO TO 4.
NG >> Replace combination meter.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-624, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
ASCD INDICATOR CONDITION SPECIFICATION
CRUISE LAMP

Ignition switch: ONMAIN switch: Pressed at the 1st time
→ at the 2nd timeON → OFF
SET LAMP

MAIN switch: ON

When vehicle speed is between
40 km/h (25 MPH) and 144 km/h
(89 MPH)ASCD: Operating ON
ASCD: Not operating OFF

EC-958
[QR (WITHOUT EURO-OBD)]
MI & DATA LINK CONNECTORS

MI & DATA LINK CONNECTORSPFP:24814

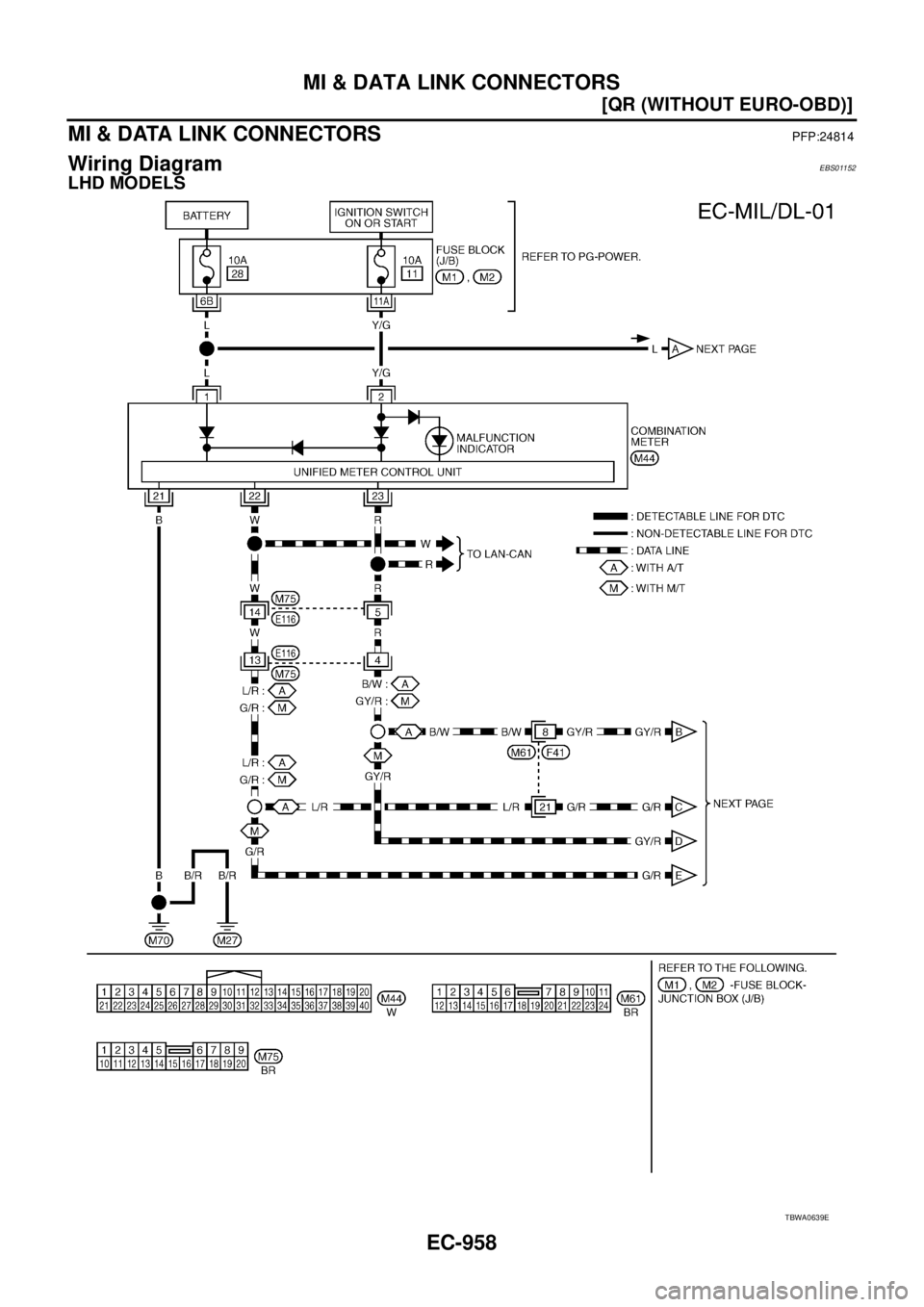

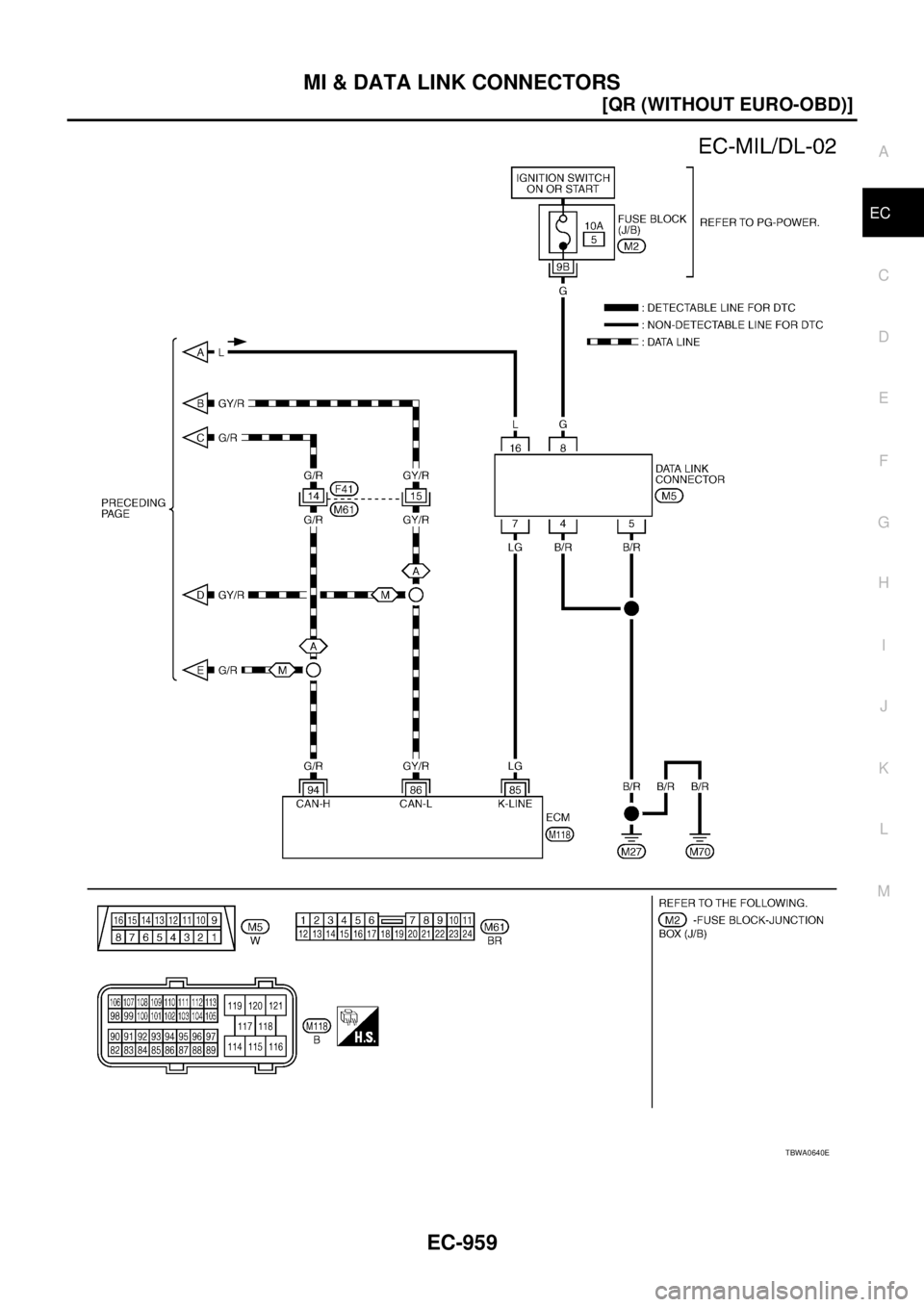

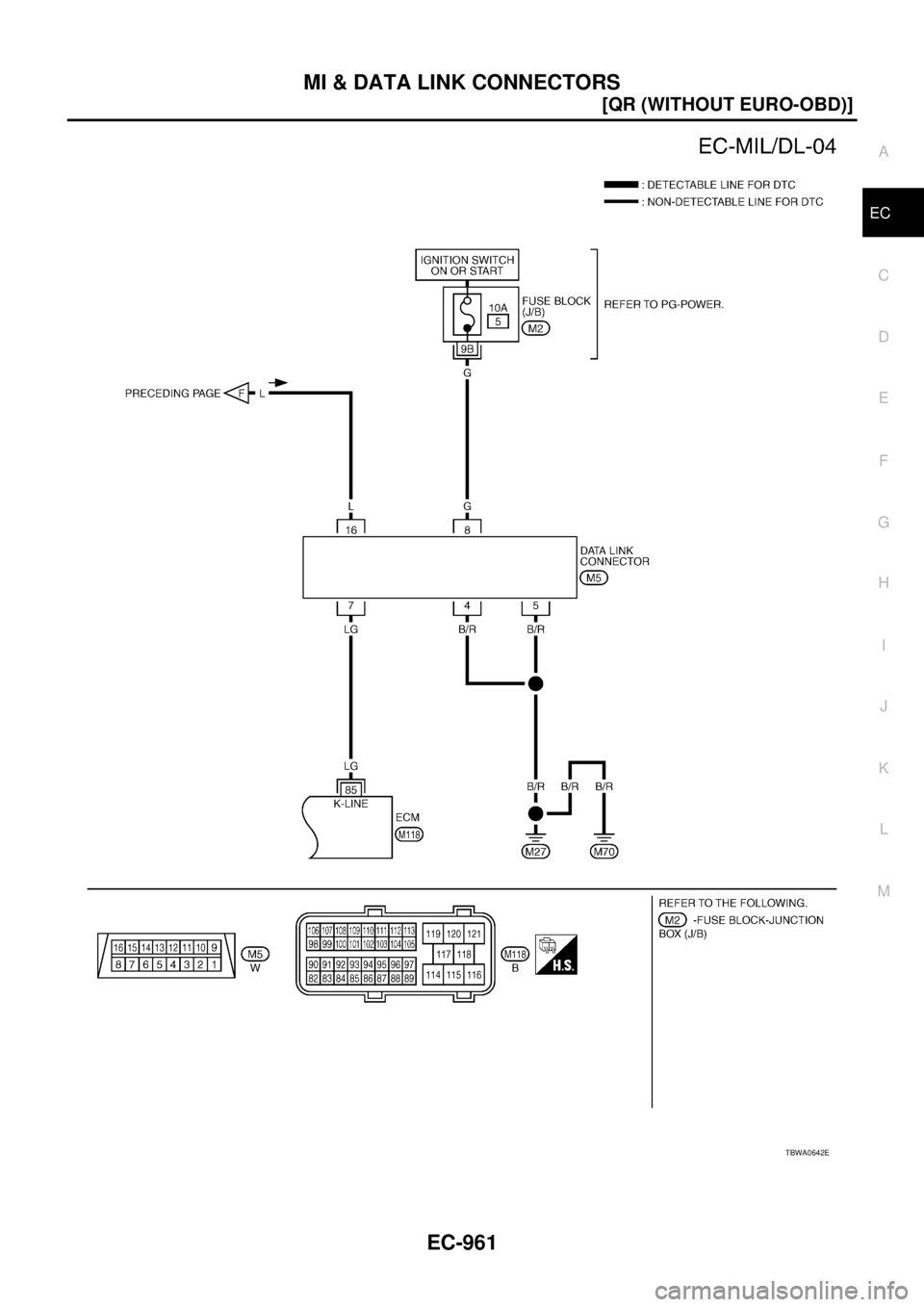

Wiring DiagramEBS01152
LHD MODELS
TBWA0639E

MI & DATA LINK CONNECTORS
EC-959
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

TBWA0640E

EC-960
[QR (WITHOUT EURO-OBD)]
MI & DATA LINK CONNECTORS

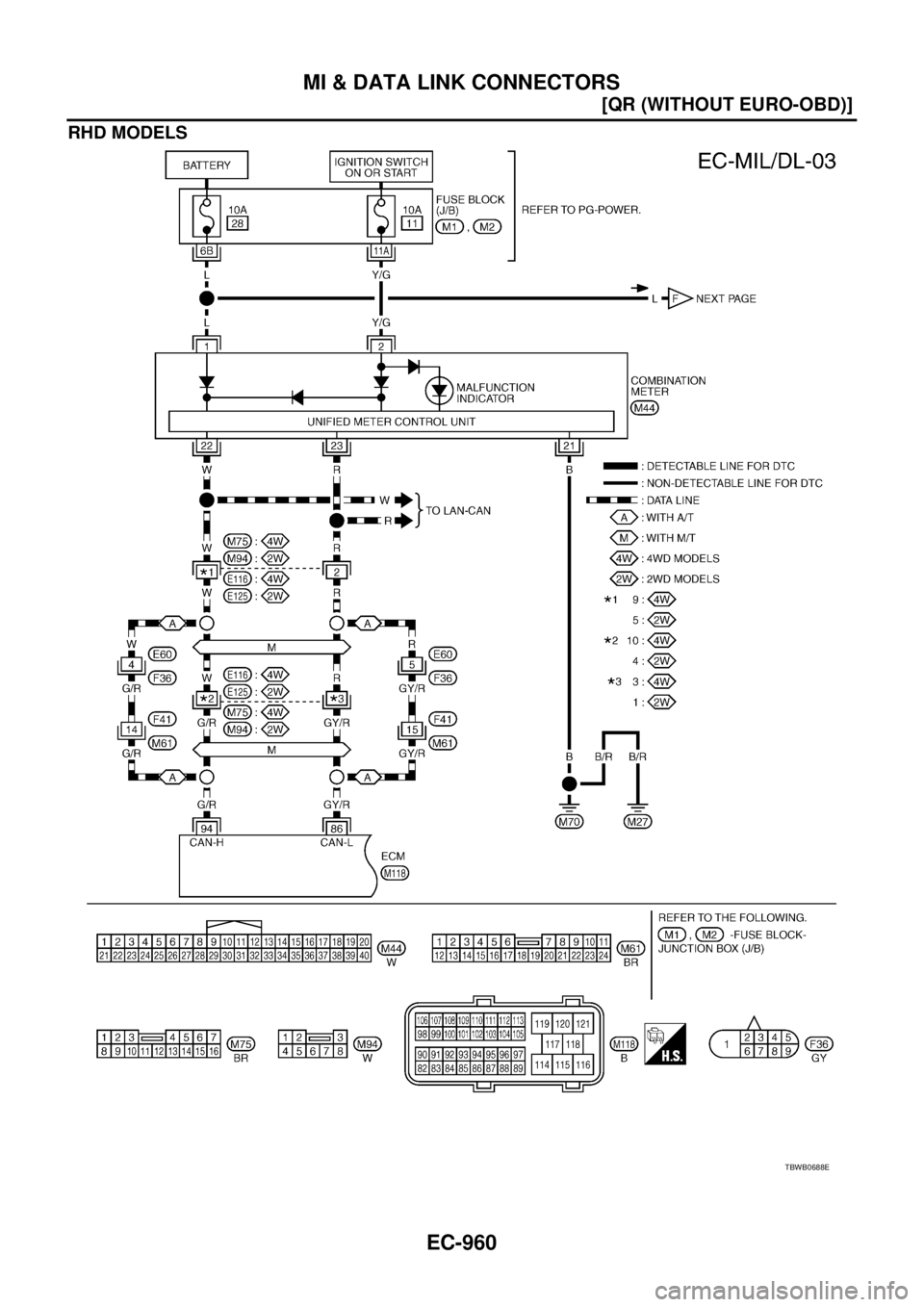

RHD MODELS
TBWB0688E

MI & DATA LINK CONNECTORS
EC-961
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

TBWA0642E

EC-962
[QR (WITHOUT EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM

EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionEBS01154

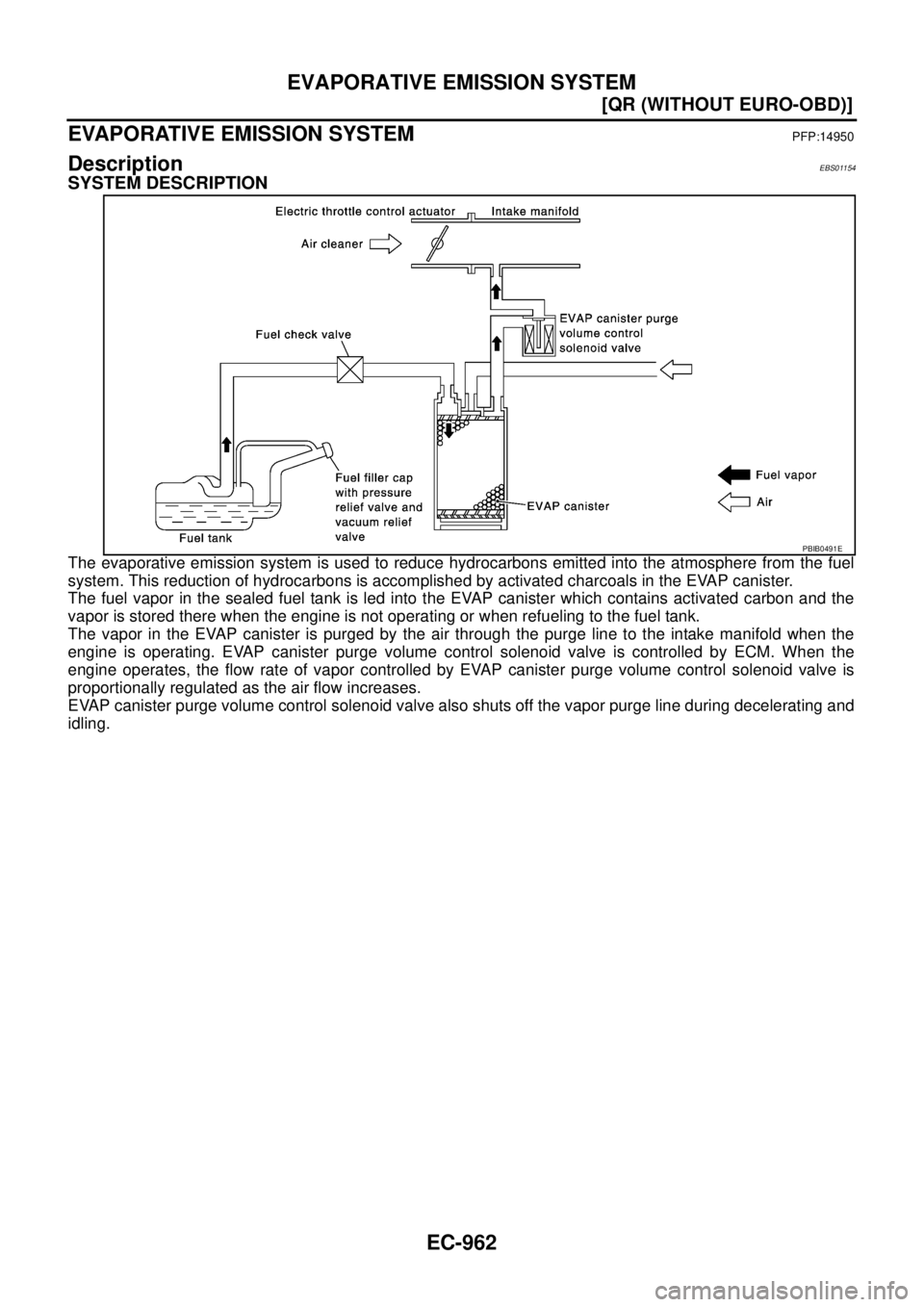

SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.
PBIB0491E

EVAPORATIVE EMISSION SYSTEM
EC-963
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

EVAPORATIVE EMISSION LINE DRAWING

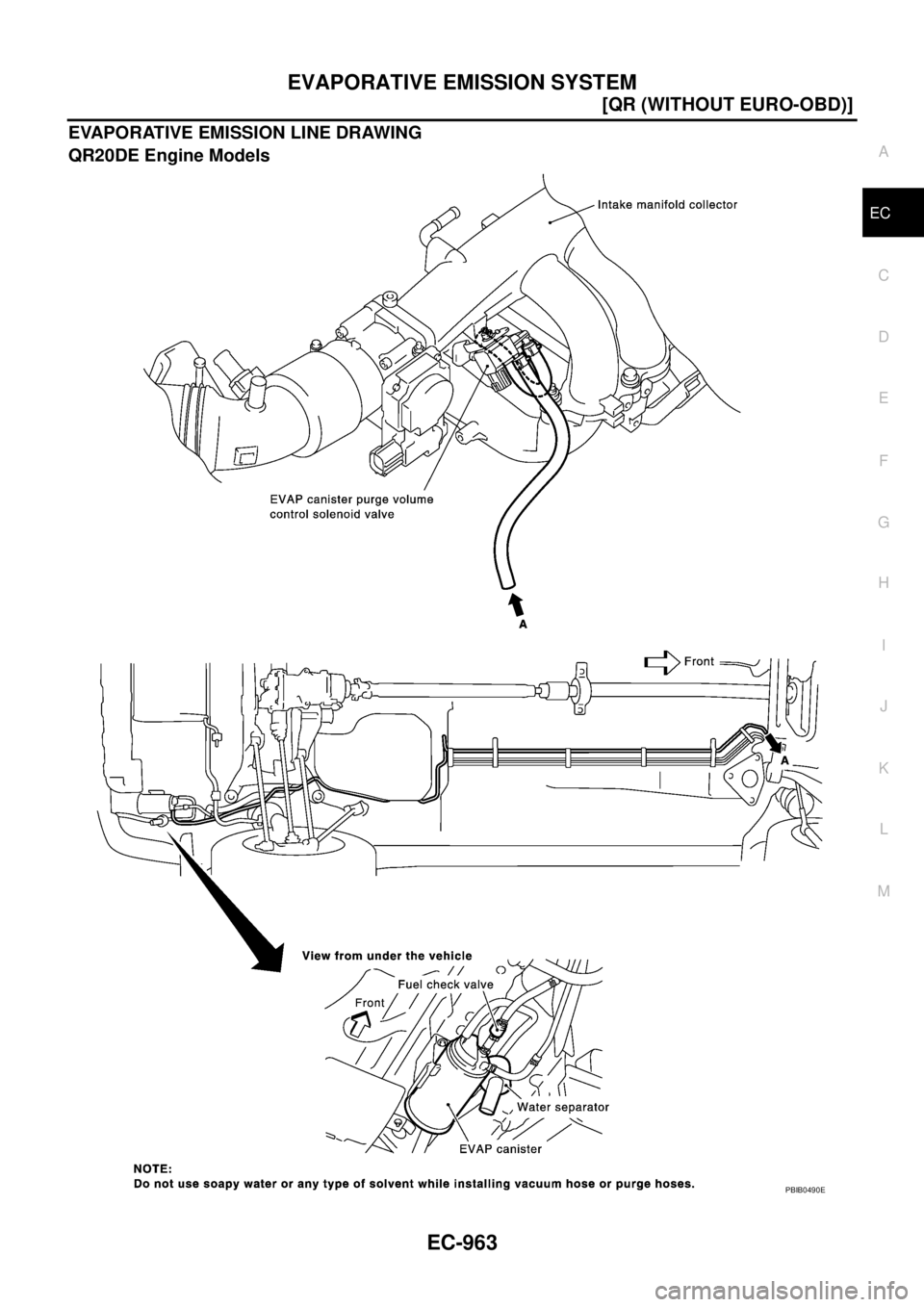

QR20DE Engine Models
PBIB0490E

EC-964
[QR (WITHOUT EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM

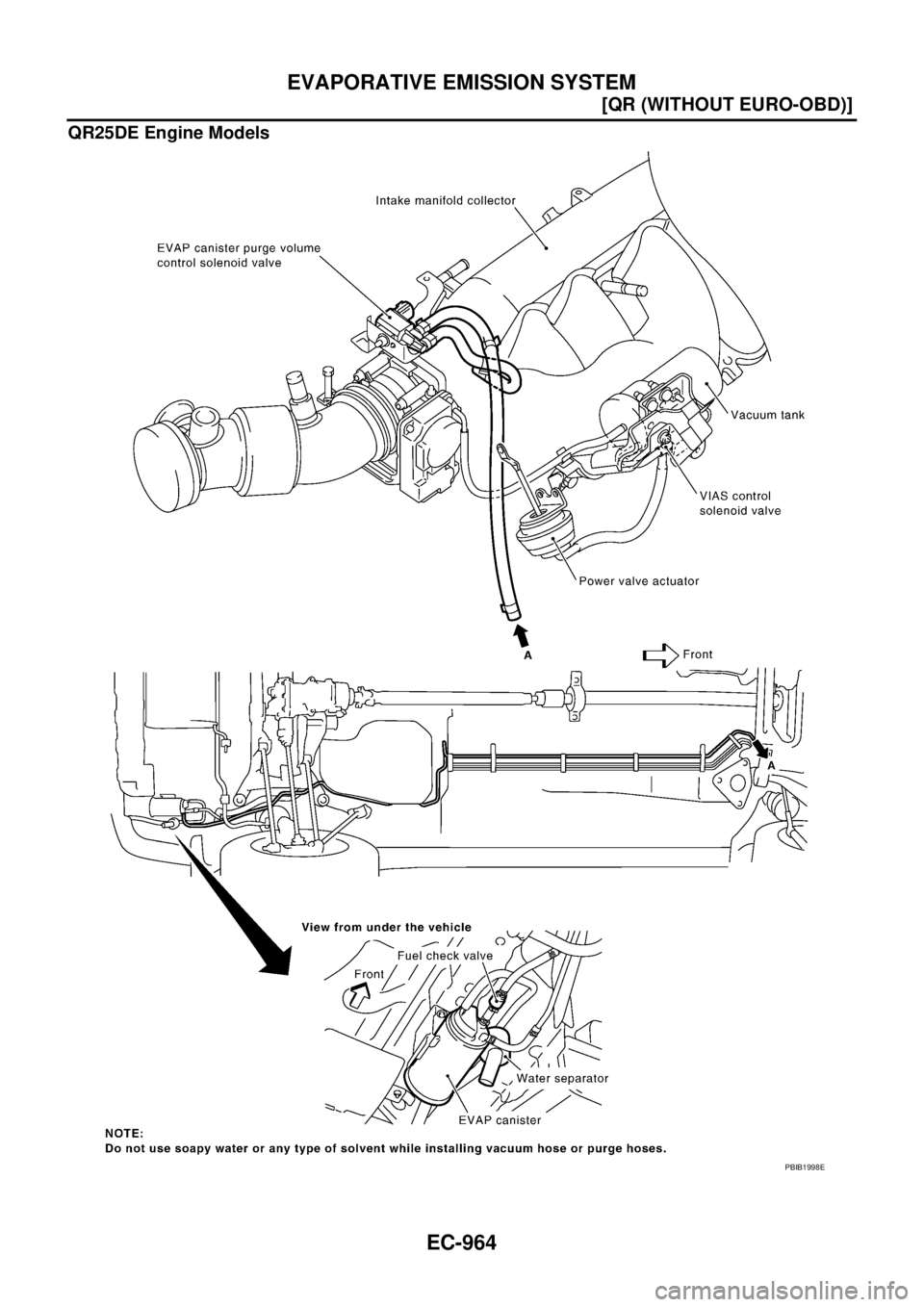

QR25DE Engine Models
PBIB1998E

EVAPORATIVE EMISSION SYSTEM
EC-965
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Component InspectionEBS01155

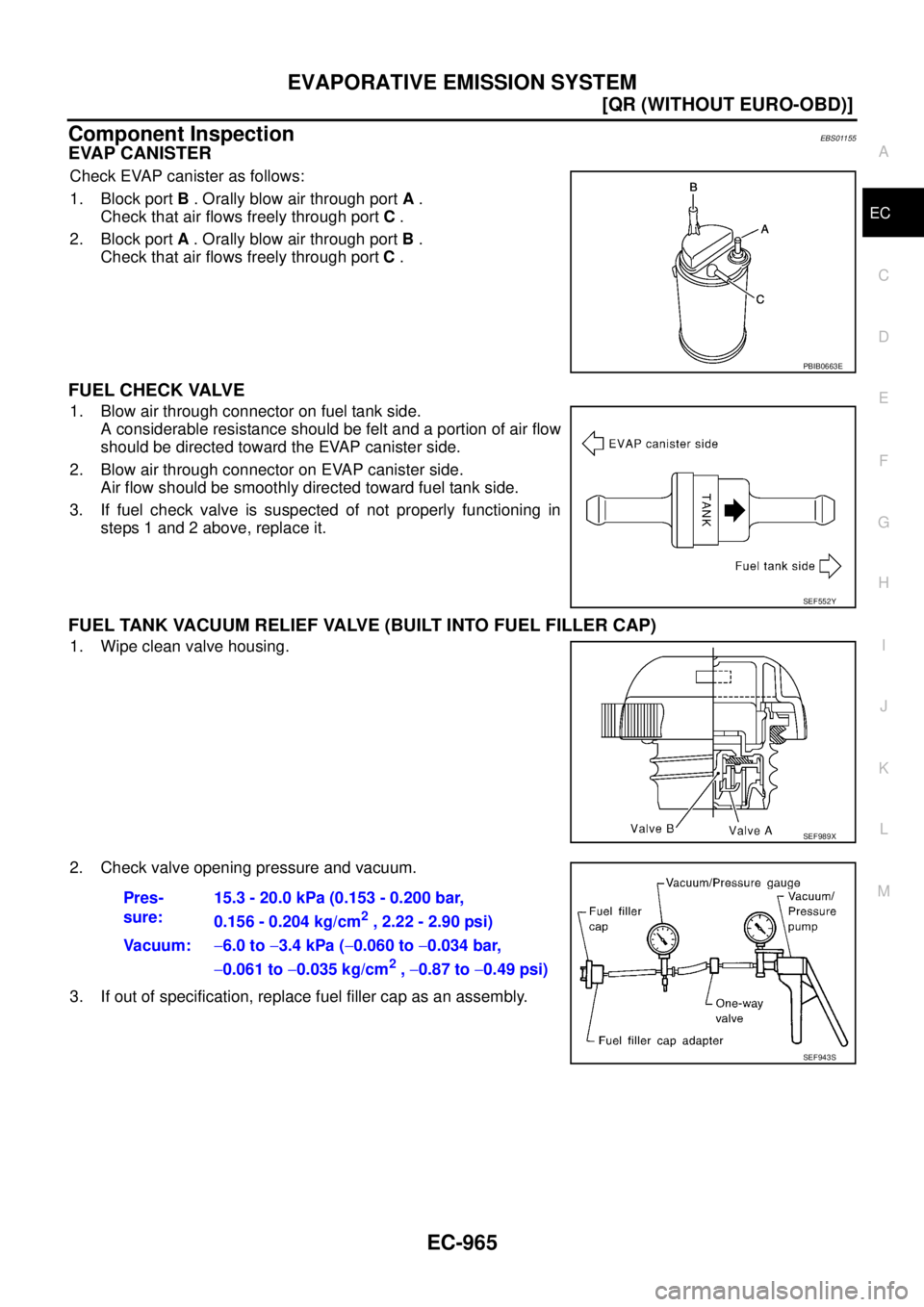

EVAP CANISTER
Check EVAP canister as follows:
1. Block port B . Orally blow air through port A .
Check that air flows freely through port C .
2. Block port A . Orally blow air through port B .
Check that air flows freely through port C .
FUEL CHECK VALVE
1. Blow air through connector on fuel tank side.
A considerable resistance should be felt and a portion of air flow
should be directed toward the EVAP canister side.
2. Blow air through connector on EVAP canister side.
Air flow should be smoothly directed toward fuel tank side.
3. If fuel check valve is suspected of not properly functioning in
steps 1 and 2 above, replace it.
FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)
1. Wipe clean valve housing.
2. Check valve opening pressure and vacuum.
3. If out of specification, replace fuel filler cap as an assembly.
PBIB0663E
SEF552Y
SEF989X
Pres-
sure:15.3 - 20.0 kPa (0.153 - 0.200 bar,
0.156 - 0.204 kg/cm
2 , 2.22 - 2.90 psi)
Va c u u m :−6.0 to −3.4 kPa (−0.060 to −0.034 bar,
−0.061 to −0.035 kg/cm
2 , −0.87 to −0.49 psi)
SEF943S

EC-966
[QR (WITHOUT EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM

WATER SEPARATOR
1. Check visually for insect nests in the water separator air inlet.
2. Check visually for cracks or flaws in the appearance.
3. Check visually for cracks or flaws in the hose.
4. Check that A and C are not clogged by blowing air into B with
A , and then C plugged.
5. In case of NG in items 2 - 4, replace the parts.
NOTE:

Do not disassemble water separator.
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-890, "Component Inspection" .
PBIB1032E
