NISSAN X-TRAIL 2005 Service Repair Manual

REFRIGERANT PRESSURE SENSOR
EC-917
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. CHECK GROUND CONNECTIONS
1. Turn A/C switch and blower switch OFF.
2. Stop engine.
3. Loosen and retighten three ground screws on the body.
Refer to EC-632, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
PBIB2021E

EC-918
[QR (WITHOUT EURO-OBD)]
REFRIGERANT PRESSURE SENSOR

3. CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect refrigerant pressure sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between refrigerant pressure sensor terminal 3
and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E61, F38

Harness for open or short between refrigerant pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between refrigerant pressure sensor terminal 1 and ECM terminal 57.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E61, F38

Harness for open or short between refrigerant pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0503E
Voltage: Approximately 5V
SEF479Y
Continuity should exist.

REFRIGERANT PRESSURE SENSOR
EC-919
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

7. CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between refrigerant pressure sensor terminal 2 and ECM terminal 69.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E61, F38

Harness for open or short between refrigerant pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-624, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace refrigerant pressure sensor.
NG >> Repair or replace.
Removal and InstallationEBS0114X
REFRIGERANT PRESSURE SENSOR
Refer to ATC-141, "REFRIGERANT LINES" . Continuity should exist.

EC-920
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL

ELECTRICAL LOAD SIGNALPFP:25350
CONSULT-II Reference Value in Data Monitor ModeEBS01FFG
Specification data are reference values.
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL

Ignition switch: ONRear window defogger switch is ON and/or
lighting switch is in 2nd position (placed in LOW
position for models with Xenon headlamp).ON
Rear window defogger switch is OFF and light-
ing switch is OFF.OFF
HEATER FAN SW

Ignition switch: ONHeater fan is operating ON
Heater fan is not operating OFF

ELECTRICAL LOAD SIGNAL
EC-921
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Wiring DiagramEBS01FFH
LHD MODELS WITHOUT XENON HEADLAMP
TBWB0468E

EC-922
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
84 L/YElectrical load signal
(Headlamp signal)[Ignition switch: ON]

Lighting switch: 2nd positionBATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]

Lighting switch: OFFApproximately 0V
96 LG/B Heater fan switch[Engine is running]

Heater fan switch: ONApproximately 0V
[Engine is running]

Heater fan switch: OFFBATTERY VOLTAGE
(11 - 14V)

ELECTRICAL LOAD SIGNAL
EC-923
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

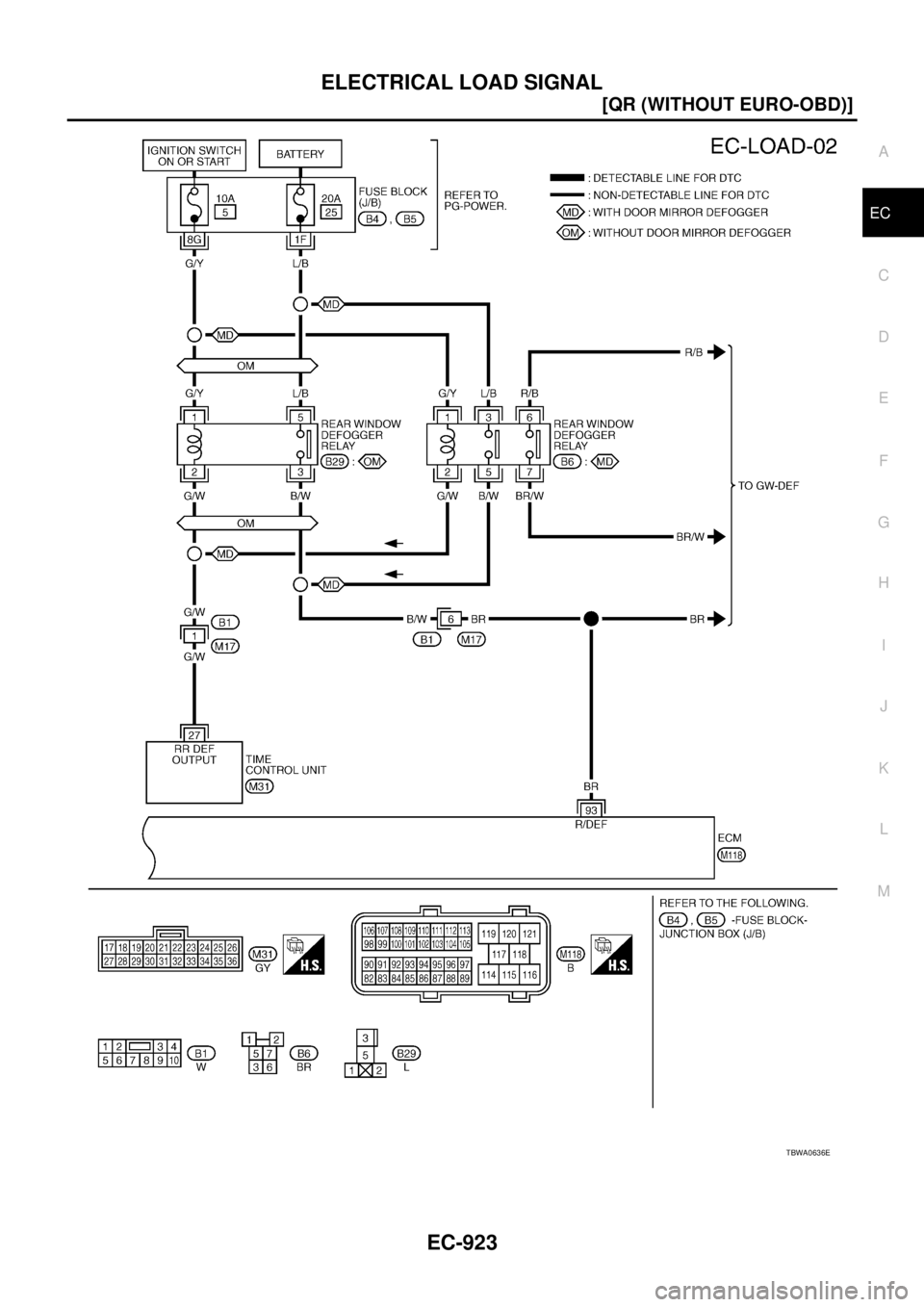

TBWA0636E

EC-924
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
93 BRElectrical load signal
(Rear window defogger
signal)[Ignition switch: ON]

Rear window defogger switch: ONBATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]

Rear window defogger switch: OFFApproximately 0V

ELECTRICAL LOAD SIGNAL
EC-925
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

LHD MODELS WITH XENON HEADLAMP
TBWB0469E

EC-926
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
84 L/YElectrical load signal
(Headlamp signal)[Ignition switch: ON]

Lighting switch: 2nd position and placed in
LOW positionBATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]

Lighting switch: OFFApproximately 0V
96 LG/B Heater fan switch[Engine is running]

Heater fan switch: ONApproximately 0V
[Engine is running]

Heater fan switch: OFFBATTERY VOLTAGE
(11 - 14V)
