NISSAN X-TRAIL 2005 Service Repair Manual

DTC P0200 FUEL INJECTOR
EC-1117
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-1001,
"NATS (Nissan Anti-theft System)" .
3. Perform Fuel Pump Learning Value Clearing. Refer to EC-994, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END

EC-1118
[YD (WITH EURO-OBD)]
DTC P0201 - P0204 FUEL INJECTOR

DTC P0201 - P0204 FUEL INJECTORPFP:16600
Component DescriptionEBS0119P
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the needle valve back and
allows fuel to flow through the fuel injector into the cylinder. The
amount of fuel injected depends upon the injection pulse duration.
Pulse duration is the length of time the fuel injector remains open.
The ECM controls the injection pulse duration based on engine fuel
needs.
CONSULT-II Reference Value in Data Monitor ModeEBS0119Q
Specification data are reference values.
On Board Diagnosis LogicEBS0119S
PBIB0465E
MONITOR ITEM CONDITION SPECIFICATION
MAIN INJ WID

Engine: After warming up

Shift lever: Neutral position

Idle speedNo-load 0.68 - 0.78 msec
Blower fan switch: ON
Rear window defogger switch: ON0.78 - 0.88 msec
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0201
0201No. 1 cylinder fuel injector
circuit openAn improper voltage signal is sent to ECM
through No. 1 cylinder fuel injector.

Harness or connectors
(The fuel injector circuit is open.)

Fuel injector P0202
0202No. 2 cylinder fuel injector
circuit openAn improper voltage signal is sent to ECM
through No. 2 cylinder fuel injector.
P0203
0203No. 3 cylinder fuel injector
circuit openAn improper voltage signal is sent to ECM
through No. 3 cylinder fuel injector.
P0204
0204No. 4 cylinder fuel injector
circuit openAn improper voltage signal is sent to ECM
through No. 4 cylinder fuel injector.

DTC P0201 - P0204 FUEL INJECTOR
EC-1119
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC Confirmation ProcedureEBS0119T
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION
Before performing the following procedure, confirm the ambient temperature is more than -20°C (-4°F).
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-1122, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF817Y

EC-1120
[YD (WITH EURO-OBD)]
DTC P0201 - P0204 FUEL INJECTOR

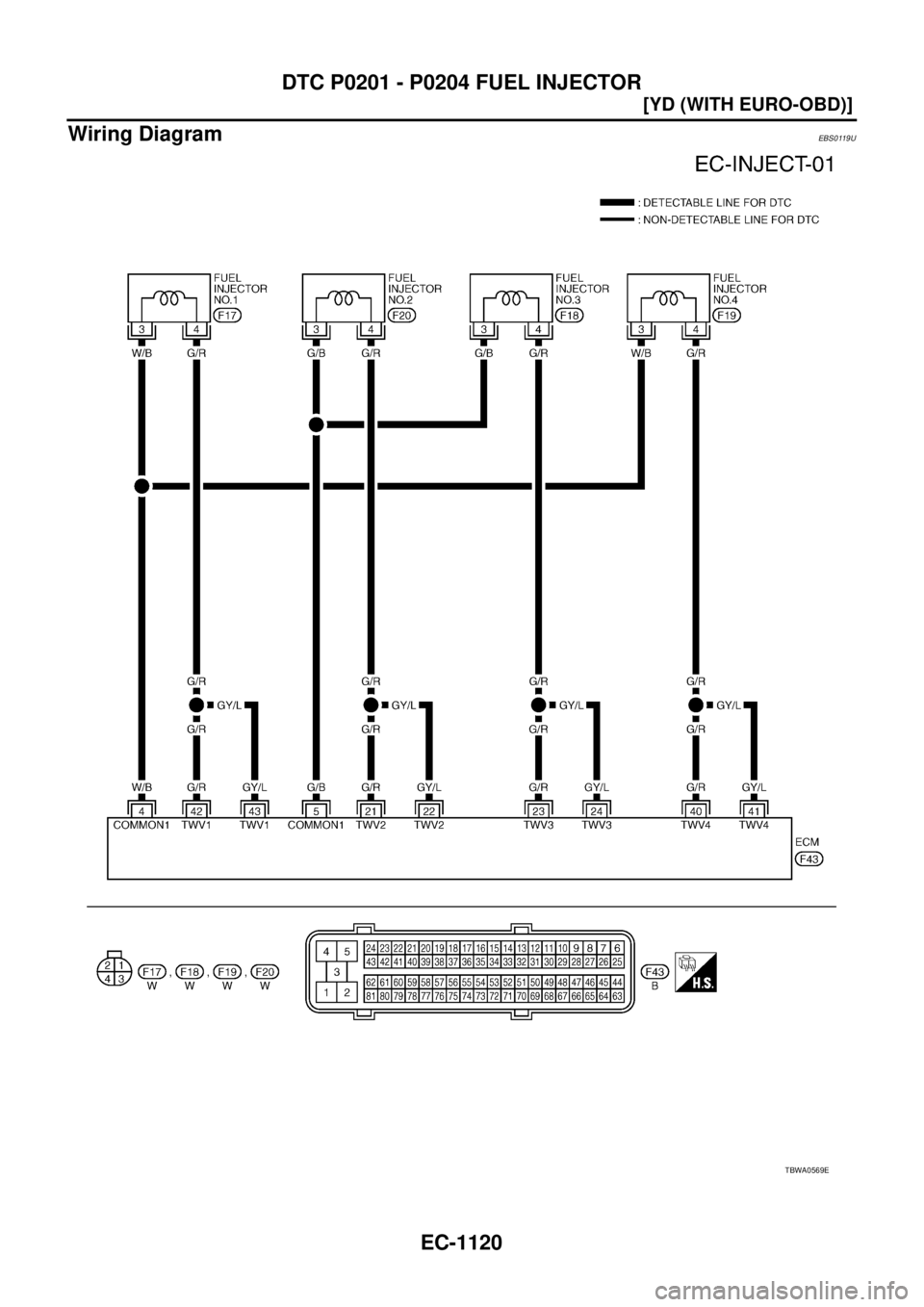

Wiring DiagramEBS0119U
TBWA0569E

DTC P0201 - P0204 FUEL INJECTOR
EC-1121
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

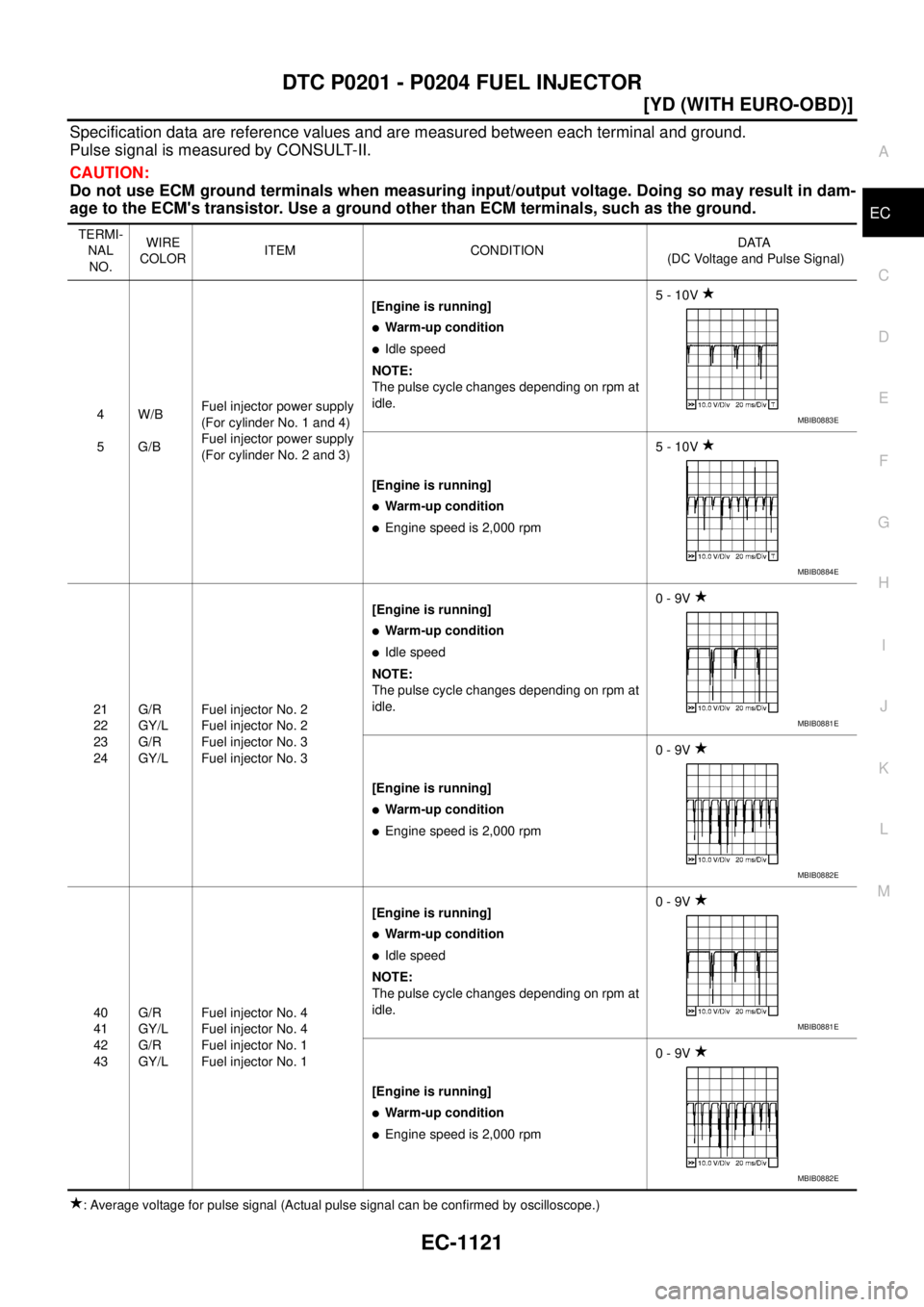

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
4
5W/B
G/BFuel injector power supply
(For cylinder No. 1 and 4)
Fuel injector power supply
(For cylinder No. 2 and 3)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.5 - 10V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm5 - 10V
21
22
23
24G/R
GY/L
G/R
GY/LFuel injector No. 2
Fuel injector No. 2
Fuel injector No. 3
Fuel injector No. 3[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 9V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 9V
40
41
42
43G/R
GY/L
G/R
GY/LFuel injector No. 4
Fuel injector No. 4
Fuel injector No. 1
Fuel injector No. 1[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 9V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 9V
MBIB0883E
MBIB0884E
MBIB0881E
MBIB0882E
MBIB0881E
MBIB0882E

EC-1122
[YD (WITH EURO-OBD)]
DTC P0201 - P0204 FUEL INJECTOR

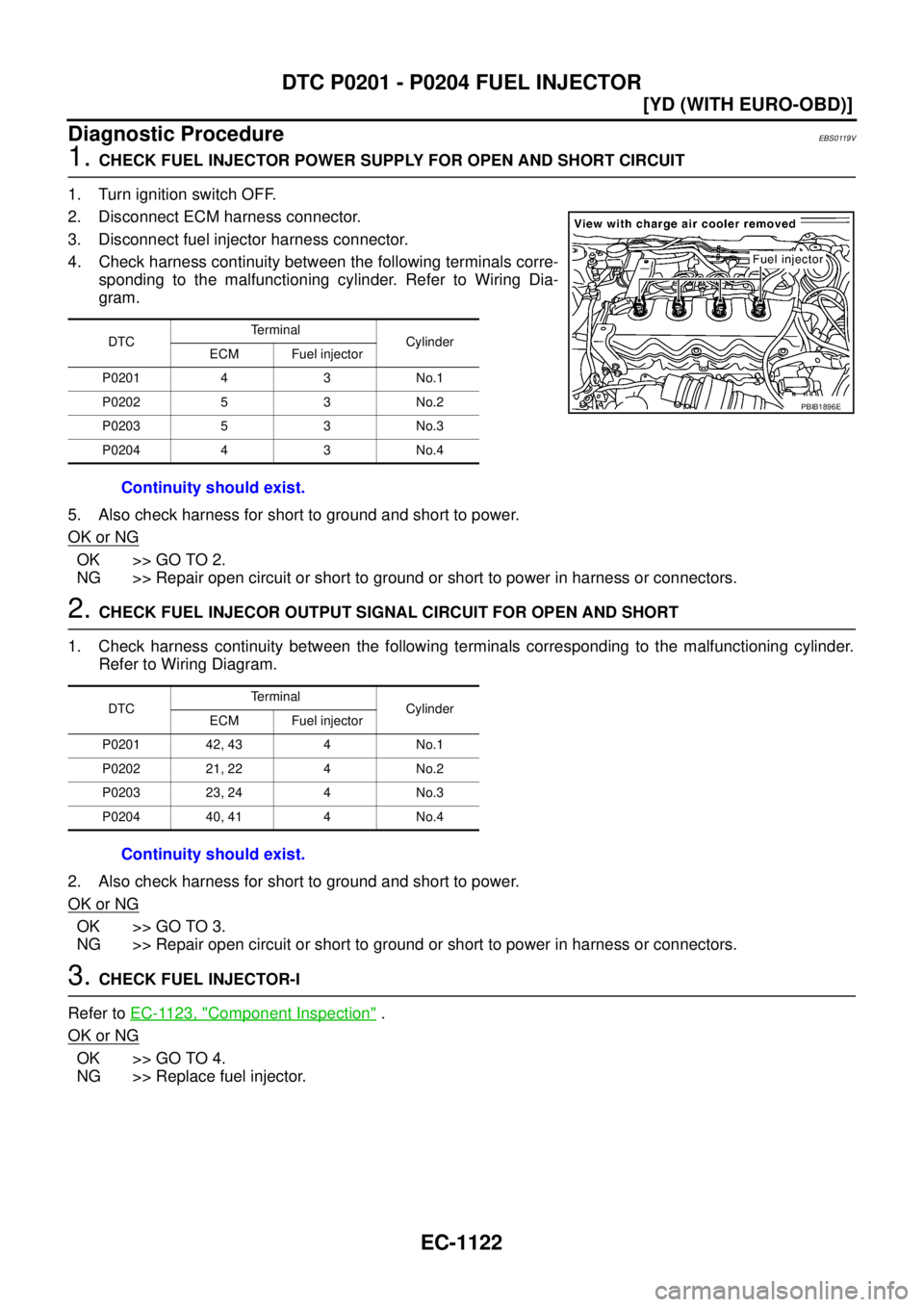

Diagnostic ProcedureEBS0119V
1. CHECK FUEL INJECTOR POWER SUPPLY FOR OPEN AND SHORT CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect fuel injector harness connector.
4. Check harness continuity between the following terminals corre-
sponding to the malfunctioning cylinder. Refer to Wiring Dia-
gram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
2. CHECK FUEL INJECOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between the following terminals corresponding to the malfunctioning cylinder.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK FUEL INJECTOR-I
Refer to EC-1123, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace fuel injector.
DTCTerminal
Cylinder
ECM Fuel injector
P0201 4 3 No.1
P0202 5 3 No.2
P0203 5 3 No.3
P0204 4 3 No.4
Continuity should exist.
PBIB1896E
DTCTerminal
Cylinder
ECM Fuel injector
P0201 42, 43 4 No.1
P0202 21, 22 4 No.2
P0203 23, 24 4 No.3
P0204 40, 41 4 No.4
Continuity should exist.

DTC P0201 - P0204 FUEL INJECTOR
EC-1123
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

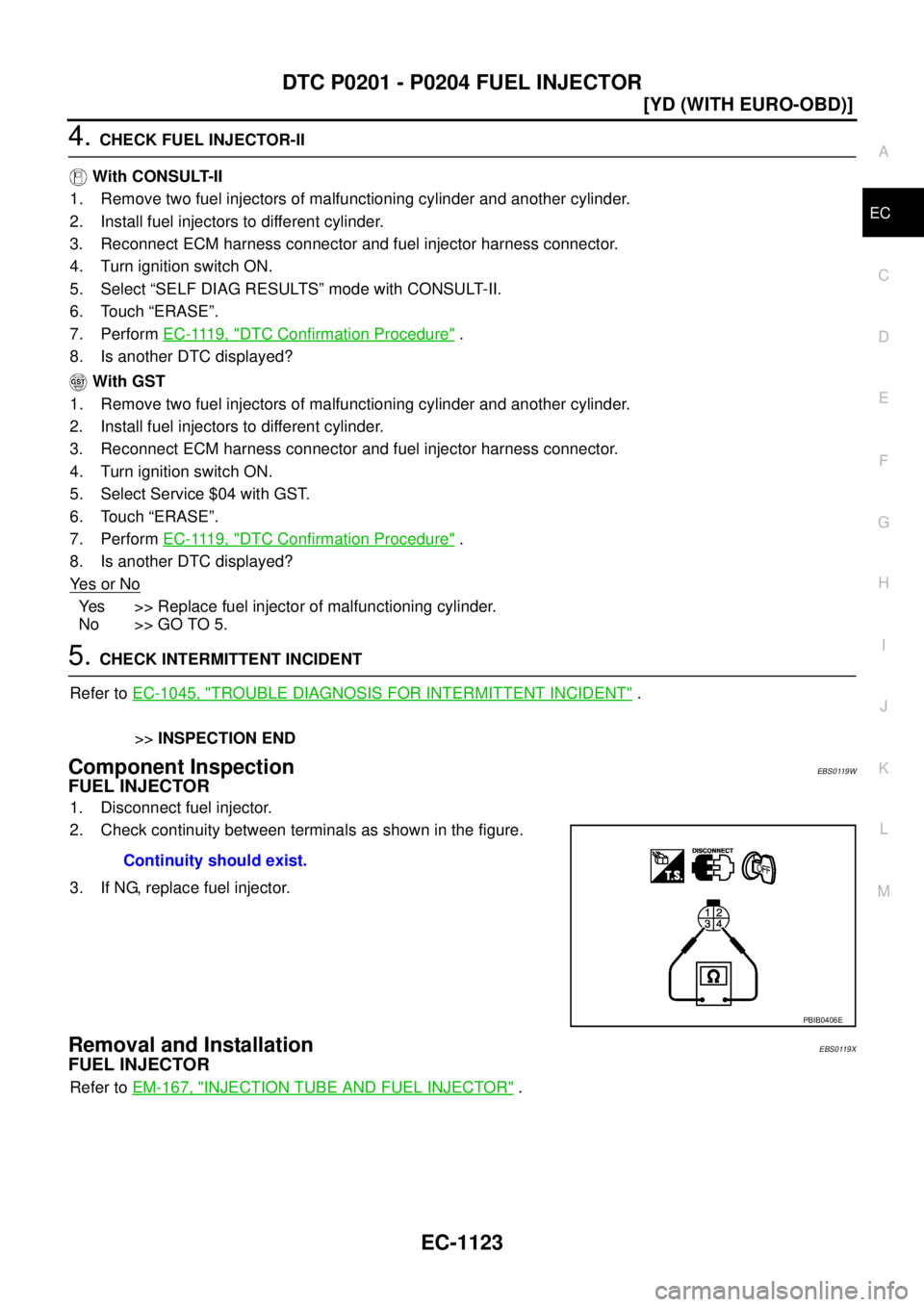

4. CHECK FUEL INJECTOR-II
With CONSULT-II
1. Remove two fuel injectors of malfunctioning cylinder and another cylinder.
2. Install fuel injectors to different cylinder.
3. Reconnect ECM harness connector and fuel injector harness connector.
4. Turn ignition switch ON.
5. Select “SELF DIAG RESULTS” mode with CONSULT-II.
6. Touch “ERASE”.
7. Perform E C - 111 9 , "
DTC Confirmation Procedure" .
8. Is another DTC displayed?
With GST
1. Remove two fuel injectors of malfunctioning cylinder and another cylinder.
2. Install fuel injectors to different cylinder.
3. Reconnect ECM harness connector and fuel injector harness connector.
4. Turn ignition switch ON.
5. Select Service $04 with GST.
6. Touch “ERASE”.
7. Perform E C - 111 9 , "
DTC Confirmation Procedure" .
8. Is another DTC displayed?
Ye s o r N o
Yes >> Replace fuel injector of malfunctioning cylinder.
No >> GO TO 5.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-1045, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS0119W
FUEL INJECTOR
1. Disconnect fuel injector.
2. Check continuity between terminals as shown in the figure.
3. If NG, replace fuel injector.
Removal and InstallationEBS0119X
FUEL INJECTOR
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" .
Continuity should exist.
PBIB0406E

EC-1124
[YD (WITH EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE

DTC P0217 ENGINE OVER TEMPERATUREPFP:21481

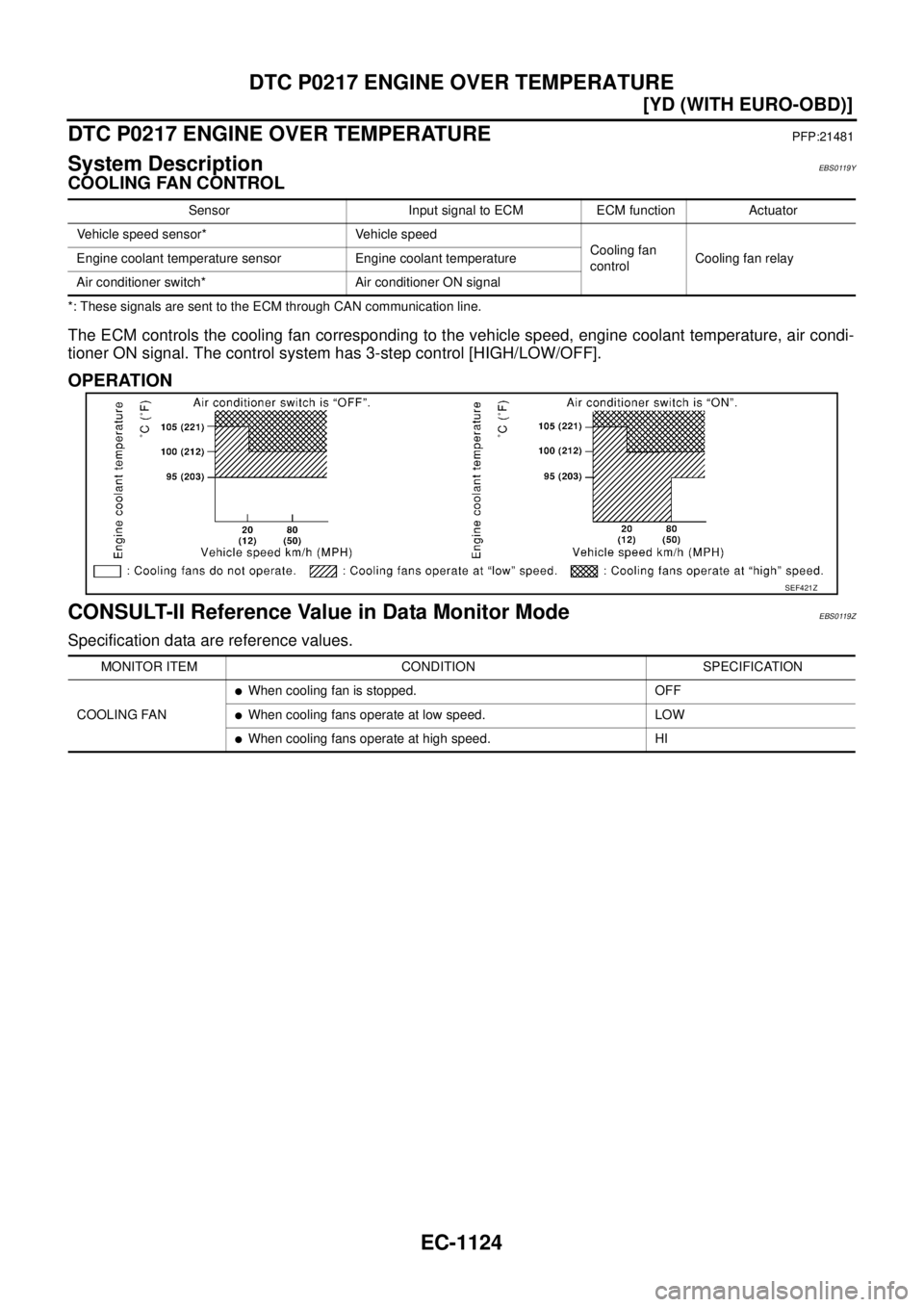

System DescriptionEBS0119Y
COOLING FAN CONTROL
*: These signals are sent to the ECM through CAN communication line.
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, air condi-
tioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS0119Z
Specification data are reference values.
Sensor Input signal to ECM ECM function Actuator
Vehicle speed sensor* Vehicle speed
Cooling fan
controlCooling fan relay Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch* Air conditioner ON signal
SEF421Z
MONITOR ITEM CONDITION SPECIFICATION
COOLING FAN

When cooling fan is stopped. OFF

When cooling fans operate at low speed. LOW

When cooling fans operate at high speed. HI

DTC P0217 ENGINE OVER TEMPERATURE
EC-1125
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

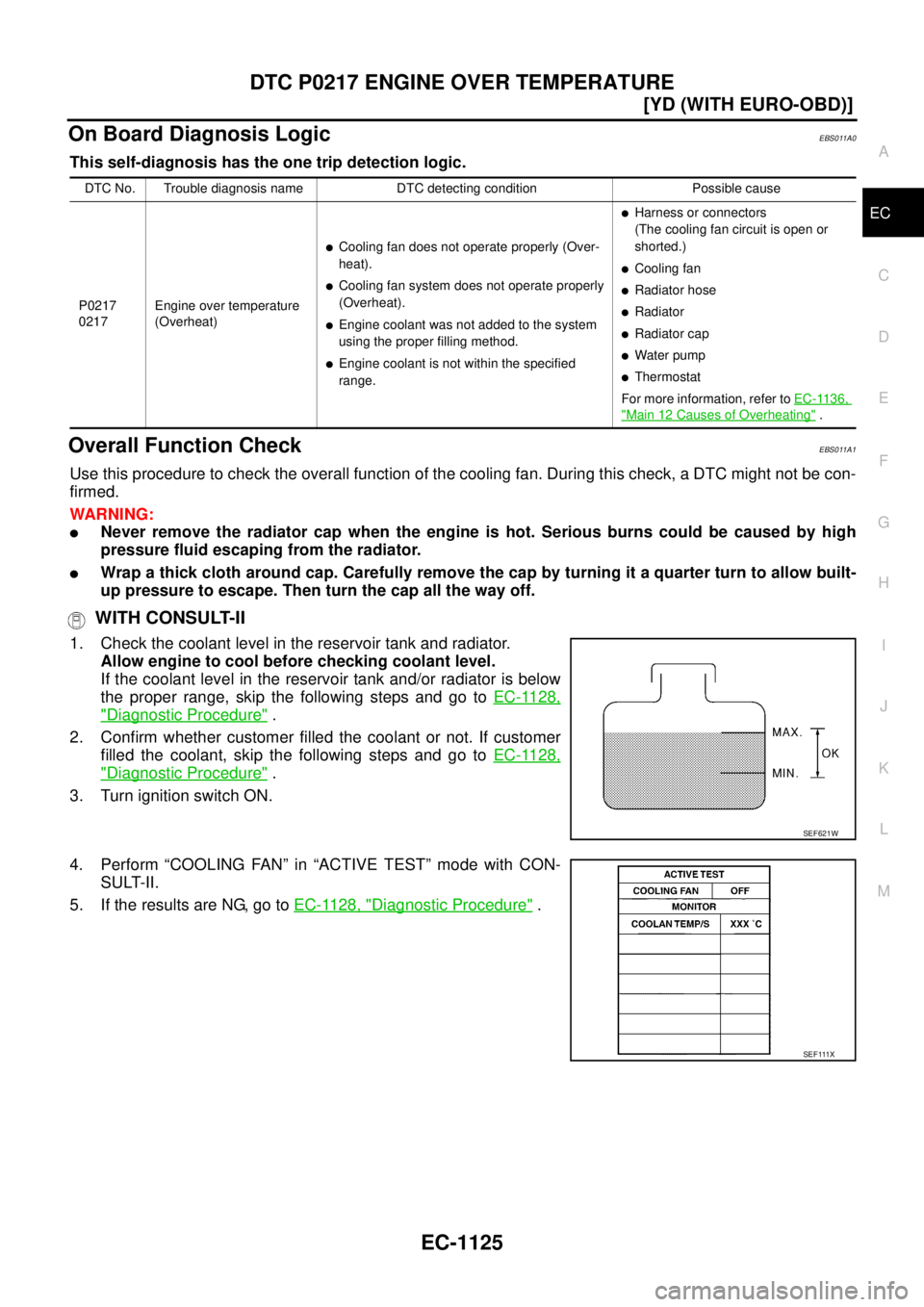

On Board Diagnosis LogicEBS011A0
This self-diagnosis has the one trip detection logic.
Overall Function CheckEBS011A1
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could be caused by high
pressure fluid escaping from the radiator.

Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-
up pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-1128,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-1128,
"Diagnostic Procedure" .
3. Turn ignition switch ON.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-1128, "
Diagnostic Procedure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0217
0217Engine over temperature
(Overheat)

Cooling fan does not operate properly (Over-
heat).

Cooling fan system does not operate properly
(Overheat).

Engine coolant was not added to the system
using the proper filling method.

Engine coolant is not within the specified
range.

Harness or connectors
(The cooling fan circuit is open or
shorted.)

Cooling fan

Radiator hose

Radiator

Radiator cap

Water pump

Thermostat
For more information, refer to EC-1136,
"Main 12 Causes of Overheating" .
SEF621W
SEF111X

EC-1126
[YD (WITH EURO-OBD)]
DTC P0217 ENGINE OVER TEMPERATURE

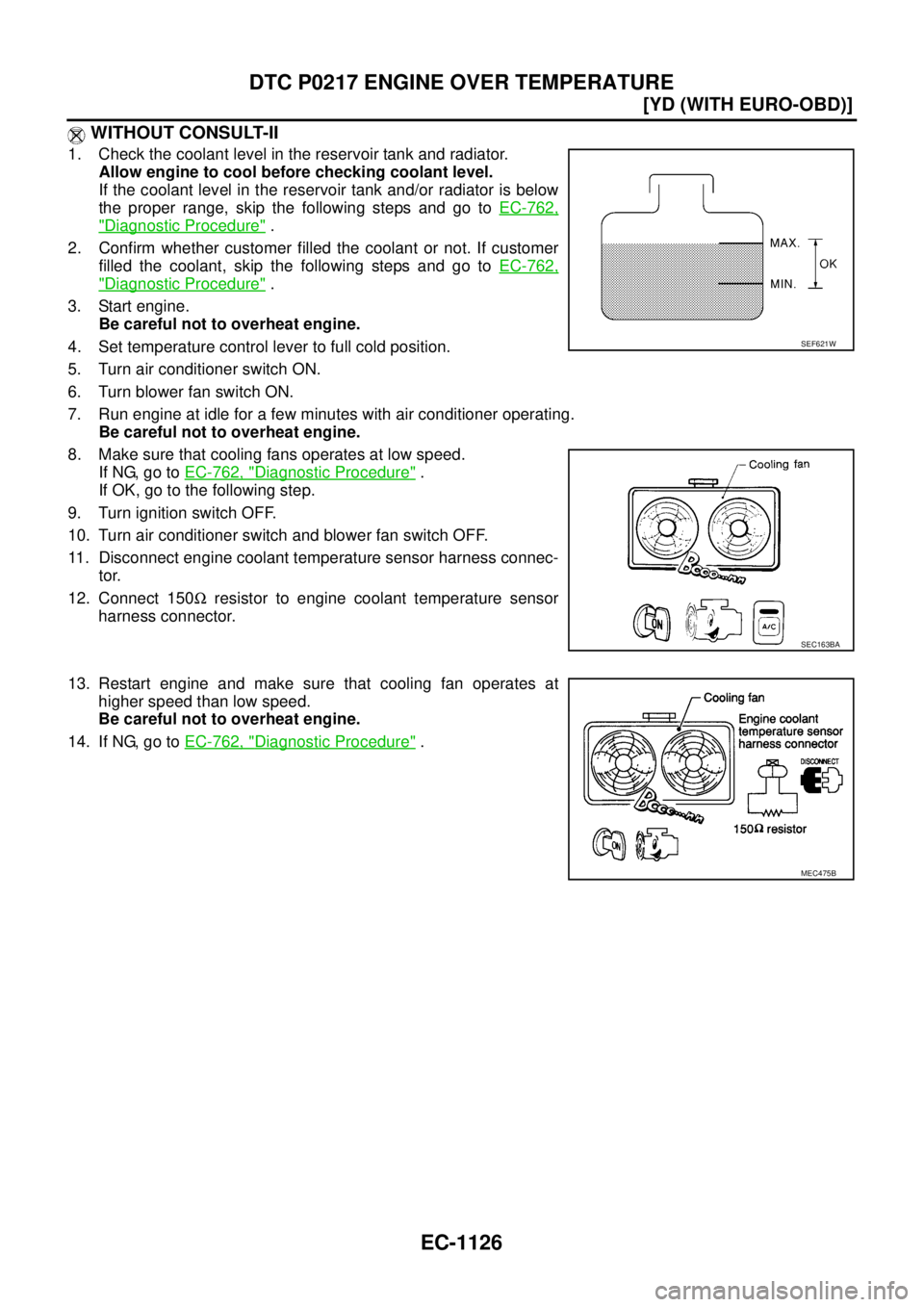

WITHOUT CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-762,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-762,
"Diagnostic Procedure" .
3. Start engine.
Be careful not to overheat engine.
4. Set temperature control lever to full cold position.
5. Turn air conditioner switch ON.
6. Turn blower fan switch ON.
7. Run engine at idle for a few minutes with air conditioner operating.
Be careful not to overheat engine.
8. Make sure that cooling fans operates at low speed.
If NG, go to EC-762, "
Diagnostic Procedure" .
If OK, go to the following step.
9. Turn ignition switch OFF.
10. Turn air conditioner switch and blower fan switch OFF.
11. Disconnect engine coolant temperature sensor harness connec-
tor.
12. Connect 150Ω resistor to engine coolant temperature sensor
harness connector.
13. Restart engine and make sure that cooling fan operates at
higher speed than low speed.
Be careful not to overheat engine.
14. If NG, go to EC-762, "
Diagnostic Procedure" .
SEF621W
SEC163BA
MEC475B
