NISSAN X-TRAIL 2005 Service Repair Manual

TROUBLE DIAGNOSIS
EC-1397
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

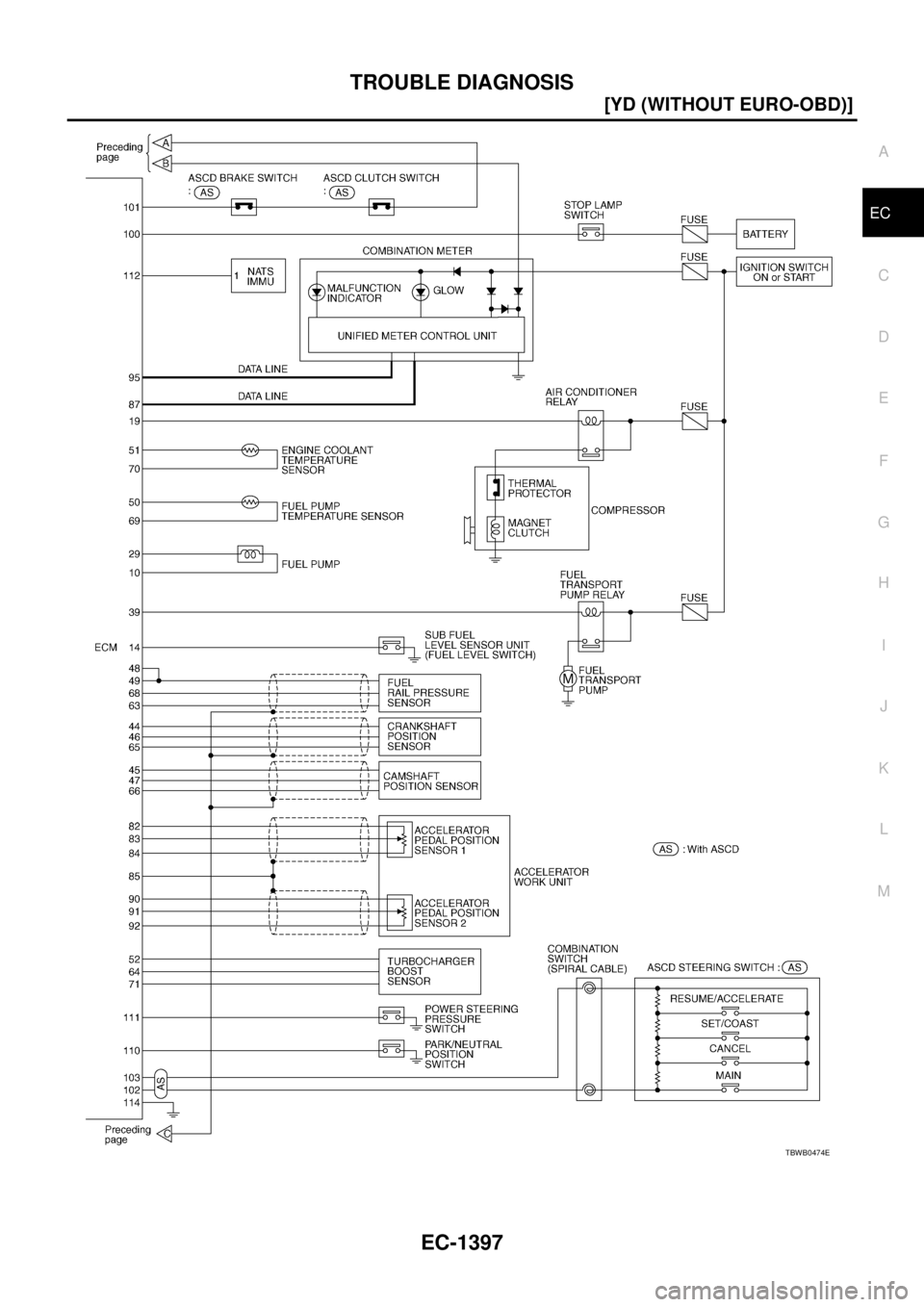

TBWB0474E

EC-1398
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

ECM Harness Connector Terminal LayoutEBS011XJ
ECM Terminals And Reference ValueEBS01FD9
PREPARATION
1. ECM is located behind the glove box. For this inspection,
remove glove box.
2. Remove ECM harness protector.
3. When disconnecting ECM harness connector, loosen it with
levers as far as they will go as shown in the figure.
4. Connect a break-out box (SST) and Y-cable adapter (SST)
between the ECM and ECM harness connector.

Use extreme care not to touch 2 pins at one time.

Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Remarks: Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
MBIB0045E
PBIB1899E
PBIB1512E

TROUBLE DIAGNOSIS
EC-1399
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
1
2
3B
B
BECM ground[Engine is running]

Warm-up condition

Idle speedApproximately 0V
4
5W/B
G/BFuel injector power supply
(For cylinder No. 1 and 4)
Fuel injector power supply
(For cylinder No. 2 and 3)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.5 - 10V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm5 - 10V
6LTurbocharger boost control
solenoid valve[Ignition switch ON]

Warm-up condition

Idle speed0 - 12.5V
[Ignition switch ON]

Warm-up condition

Engine speed is 2,000 rpm0 - 12.5V
10 Y/L Fuel pump power supply[Engine is running]

Warm-up condition

Idle speed0 - 12.5V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 12.5V
MBIB0883E
MBIB0884E
MBIB0889E
MBIB0890E
MBIB0885E
MBIB0886E

EC-1400
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

14 W/PU Fuel level switch[Ignition switch ON]
Some fuel is in the fuel tankApproximately 0V
[Ignition switch ON]

No fuel is in the fuel tankBATTERY VOLTAGE
(11 - 14V)
19 L Air conditioner relay[Engine is running]

Air conditioner switch is OFFBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Both air conditioner switch and blower fan
switch are ON (Compressor is operating)Approximately 0.1V
21
22
23
24G/R
GY/L
G/R
GY/LFuel injector No. 2
Fuel injector No. 2
Fuel injector No. 3
Fuel injector No. 3[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 9V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 9V
25
26
27
28GY
W/L
OR/B
GY/BEGR volume control valve[Engine is running]

Warm-up condition

Idle speed0.1 - 14V
(Voltage signals of each ECM ter-
minals differ according to the con-
trol position of EGR volume
control valve.)
29 L Fuel pump[Engine is running]

Warm-up condition

Idle speed0.5 - 1.0V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0.5 - 1.0V
34 LG/B Cooling fan relay (High)[Engine is running]

Cooling fan is not operating

Cooling fan is operating at low speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Cooling fan is operating at high speedApproximately 0.1V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
MBIB0881E
MBIB0882E
MBIB0887E
MBIB0888E

TROUBLE DIAGNOSIS
EC-1401
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

36 LG Cooling fan relay (Low)[Engine is running]

Cooling fan is not operating

Cooling fan is operating at high speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Cooling fan is operating at low speedApproximately 0.1V
37 W/R Glow relay Refer to EC-1305, "
GLOW CONTROL SYSTEM" .
39 B/OR Fuel transport pump relay[Engine is running]

Some fuel is in the fuel tankApproximately 0V
[Engine is running]

No fuel is in the fuel tankBATTERY VOLTAGE
(11 - 14V)
40
41
42
43G/R
GY/L
G/R
GY/LFuel injector No. 4
Fuel injector No. 4
Fuel injector No. 1
Fuel injector No. 1[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 9V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 9V
44 L/WCrankshaft position sen-
sor power supply[Ignition switch ON]Approximately 5.3V
45 G/ORCamshaft position sensor
power supply[Ignition switch ON]Approximately 5.3V
46 L Crankshaft position sensor[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 6V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 6V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
MBIB0881E
MBIB0882E
MBIB0879E
MBIB0880E

EC-1402
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

47 G/R Camshaft position sensor[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 6V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 6V
48
49Y/R
RFuel rail pressure sensor[Engine is running]

Warm-up condition

Idle speed1.7 - 2.0V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm2.0 - 2.3V
50 PUFuel pump temperature
sensor[Engine is running]

Warm-up conditionApproximately 0.3 - 5.3V
Output voltage varies with fuel
pump temperature
51 L/OREngine coolant tempera-
ture sensor[Engine is running]

Warm-up conditionApproximately 0.3 - 5.3V
Output voltage varies with engine
coolant temperature
52 Y Turbocharger boost sensor[Engine is running]

Warm-up condition

Idle speed2.3 - 2.6V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm2.5 - 2.8V
54 W Mass air flow sensor[Engine is running]

Warm-up condition

Idle speed1.8 - 2.3V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm2.5 - 3.0V
55 GIntake air temperature sen-
sor[Engine is running]

Warm-up conditionApproximately 0.3 - 5.2V
Output voltage varies with intake
air temperature
59
60
61
62W/B
Y/B
G/B
R/BFuel injector adjustment
resistor No. 1
Fuel injector adjustment
resistor No. 3
Fuel injector adjustment
resistor No. 4
Fuel injector adjustment
resistor No. 2[Ignition switch ON]0.5 - 5.1V
(There are individual differences
between fuel injector adjustment
resistors.) TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
MBIB0877E
MBIB0878E

TROUBLE DIAGNOSIS
EC-1403
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
63 WFuel rail pressure sensor
power supply[Ignition switch ON]Approximately 5.3V
64 WTurbocharger boost sensor
power supply[Ignition switch ON]Approximately 5.3V
65 L/RCrankshaft position sen-
sor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
66 G/YCamshaft position sensor
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
67 —Sensor ground
(Sensors shield circuit)[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
68 BFuel rail pressure sensor
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
69 BFuel pump temperature
sensor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
70 BEngine coolant tempera-
ture sensor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
71 BTurbocharger boost sensor
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
73 BMass air flow sensor
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
74 RIntake air temperature sen-
sor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
78 RFuel injector adjustment
resistor ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
82 BAccelerator pedal position
sensor 1 power supply[Ignition switch ON]Approximately 5.3V
83 WAccelerator pedal position
sensor 1[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully released0.5 - 1.0V
[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully depressed4.2 - 5.2V
84 RAccelerator pedal position
sensor 1 ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)

EC-1404
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

85 —Sensor ground
(Accelerator pedal posi-
tion sensor shield circuit)[Engine is running]
Warm-up condition

Idle speedApproximately 0.3V
87 GY/R CAN communication line[Ignition switch ON]Approximately 2.0 - 2.6V
Output voltage varies with the
communication status.
89 LG Data link connector[Ignition switch ON]

CONSULT-II is disconnected.Approximately 0V - Battery volt-
age (11 - 14V)
90 LAccelerator pedal position
sensor 2 power supply[Ignition switch ON]Approximately 5.3V
91 GAccelerator pedal position
sensor 2[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully released0.4 - 0.7V
[Ignition switch ON]

Engine stopped

Accelerator pedal: Fully depressed2.2 - 2.7V
92 YAccelerator pedal position
sensor 2 ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
95 G/R CAN communication line[Ignition switch ON]Approximately 2.6 - 3.2V
Output voltage varies with the
communication status.
99 B/Y Start signal[Ignition switch ON]Approximately 0.3V
[Ignition switch START]BATTERY VOLTAGE
(11 - 14V)
100 P Stop lamp switch[Ignition switch OFF]

Brake pedal: Fully releasedApproximately 0V
[Ignition switch OFF]

Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
101 GY/L ASCD brake switch[Ignition switch ON]

Brake pedal and clutch pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
[Ignition switch ON]

Brake pedal and/or clutch pedal: Slightly
depressedApproximately 0V
102PU*
1
W/R*2ASCD steering switch[Ignition switch ON]

ASCD steering switch: OFFApproximately 4.3V
[Ignition switch ON]

MAIN switch: PressedApproximately 0.3V
[Ignition switch ON]

CANCEL switch: PressedApproximately 1.3V
[Ignition switch ON]

RESUME/ACCELERATE switch: PressedApproximately 3.3V
[Ignition switch ON]

SET/COAST switch: PressedApproximately 2.3V
103 B/ORASCD steering switch
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)

TROUBLE DIAGNOSIS
EC-1405
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
*1: LHD models
*2: RHD models
CONSULT-II Function (ENGINE)EBS011XL
FUNCTION
*: The following emission-related diagnostic information is cleared when the ECM memory is erased.

Diagnostic trouble codes

Freeze frame data105 G ECM relay (self-shutoff)[Ignition switch ON]
[Ignition switch OFF]

For a few seconds after turning ignition
switch OFFApproximately 1.2V
[Ignition switch OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
107
108W/R
W/RIgnition switch [Ignition switch ON]BATTERY VOLTAGE
(11 - 14V)
110 G/ORPark/Neutral position
switch[Ignition switch ON]

Gear position is Neutral Approximately 0V
[Ignition switch ON]

Except the above gear positionBATTERY VOLTAGE
(11 - 14V)
111 P / BPower steering pressure
switch[Engine is running]

Steering wheel is being turnedApproximately 0V
[Engine is running]

Steering wheel is not being turnedBATTERY VOLTAGE
(11 - 14V)
113 G ECM relay (self-shutoff)[Ignition switch ON]
[Ignition switch OFF]

For a few seconds after turning ignition
switch OFFApproximately 1.2V
[Ignition switch OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
114 B ECM ground[Engine is running]

Warm-up condition

Idle speedApproximately 0V
11 9
120Y
RPower supply for ECM[Ignition switch ON]BATTERY VOLTAGE
(11 - 14V)
121 W/LPower supply for ECM
(Back-up)[Ignition switch OFF]BATTERY VOLTAGE
(11 - 14V) TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
Diagnostic test mode Function
Self-diagnostic results Self-diagnostic results such as DTCs and freeze frame data can be read and erased quickly.*
Data monitor Input/Output data in the ECM can be read.
CAN diagnostic support
monitorThe results of transmit/receive diagnosis of CAN communication can be read.
Active testDiagnostic Test Mode in which CONSULT-II drives some actuators apart from the ECMs and also
shifts some parameters in a specified range.
Function test This mode is used to inform customers when their vehicle condition requires periodic maintenance.
ECM part number ECM part number can be read.

EC-1406
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector, which is located
under the driver side dash panel.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “ENGINE”.
If “ENGINE” is not indicated, go to GI-35, "
CONSULT-II Data
Link Connector (DLC) Circuit"
6. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual.
MBIB0156E
BCIA0029E
BCIA0030E
BCIA0031E
