DTC P0192, P0193 FRP SENSOR
EC-1467
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

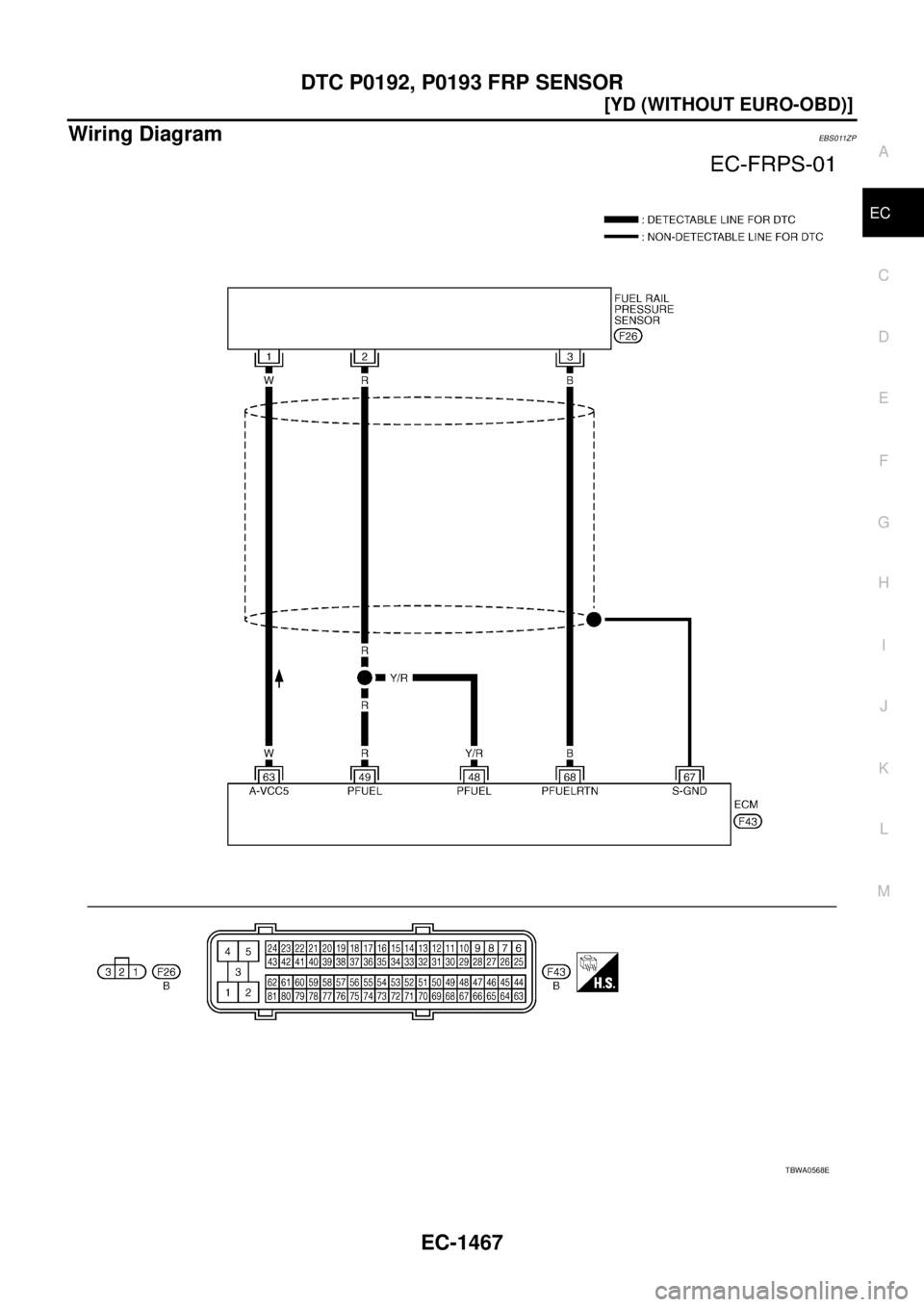

Wiring DiagramEBS011ZP
TBWA0568E

EC-1468
[YD (WITHOUT EURO-OBD)]
DTC P0192, P0193 FRP SENSOR

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
48
49Y/R
RFuel rail pressure sensor[Engine is running]

Warm-up condition

Idle speed1.7 - 2.0V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm2.0 - 2.3V
63 WFuel rail pressure sensor
power supply[Ignition switch ON]Approximately 5.3V
67 —Sensor ground
(Sensors shield circuit)[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
68 BFuel rail pressure sensor
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V

DTC P0192, P0193 FRP SENSOR
EC-1469
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS011ZQ

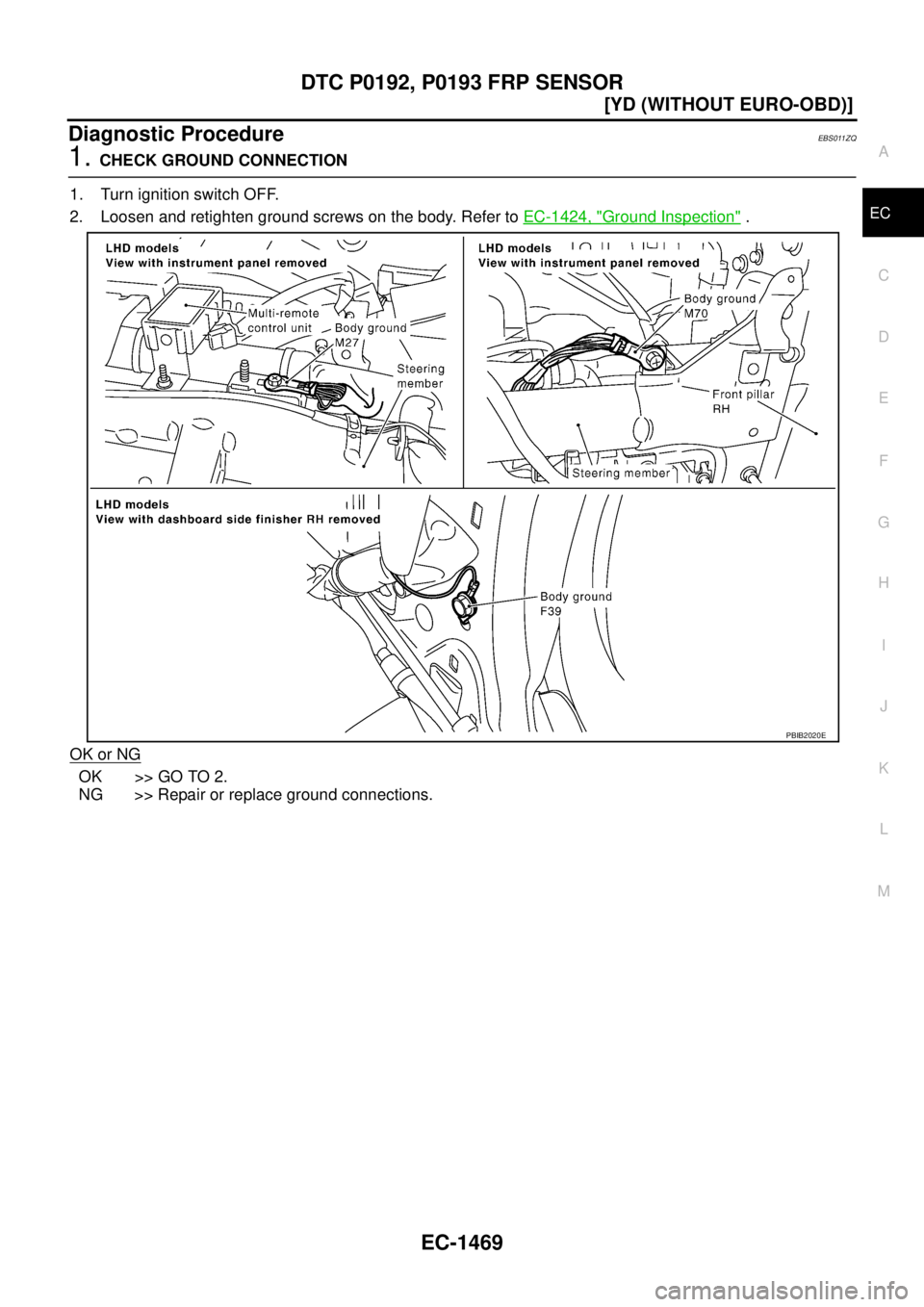

1. CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1424, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E

EC-1470
[YD (WITHOUT EURO-OBD)]
DTC P0192, P0193 FRP SENSOR

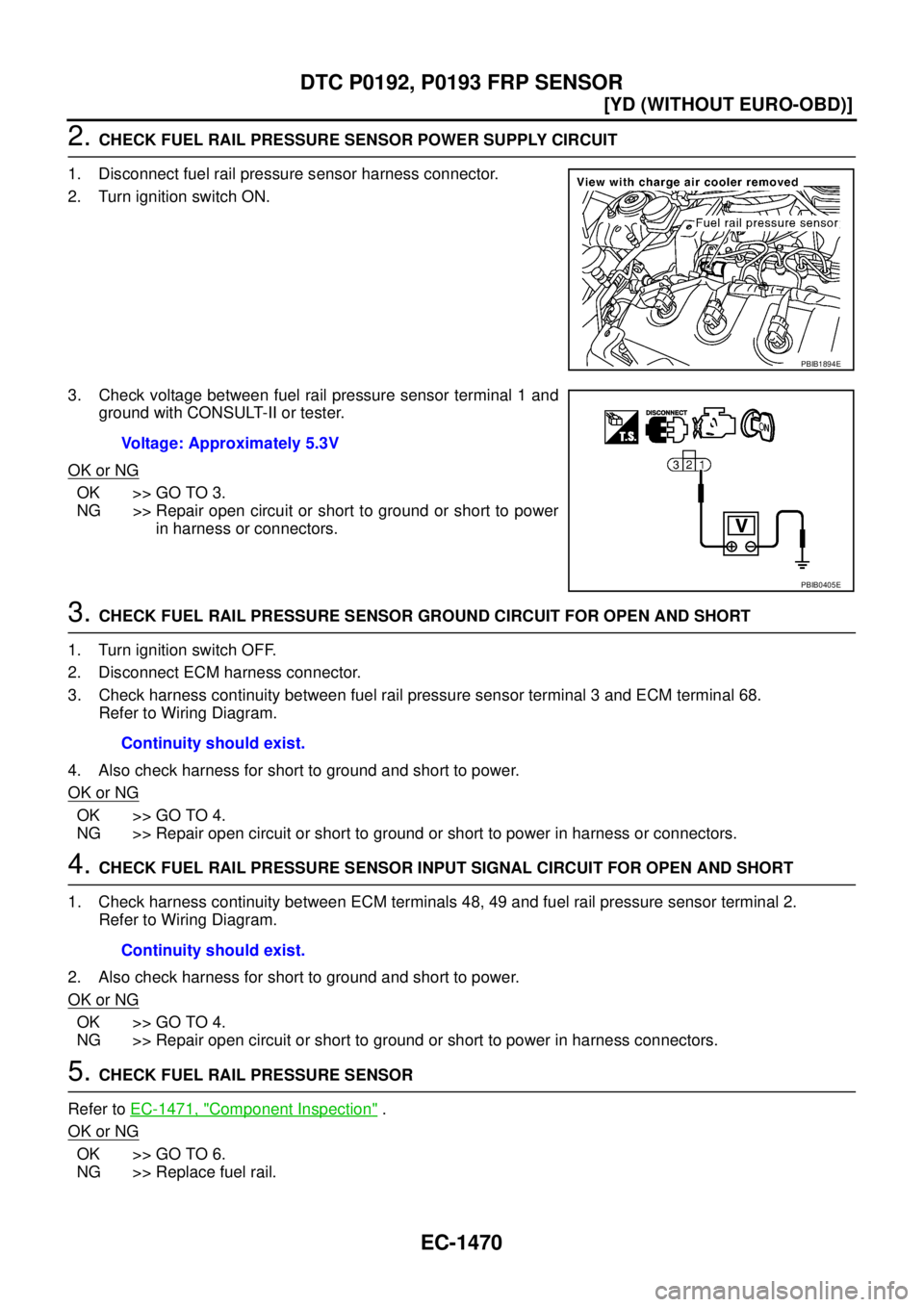

2. CHECK FUEL RAIL PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect fuel rail pressure sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between fuel rail pressure sensor terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK FUEL RAIL PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between fuel rail pressure sensor terminal 3 and ECM terminal 68.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FUEL RAIL PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminals 48, 49 and fuel rail pressure sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness connectors.
5. CHECK FUEL RAIL PRESSURE SENSOR
Refer to EC-1471, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace fuel rail.
PBIB1894E
Voltage: Approximately 5.3V
PBIB0405E
Continuity should exist.
Continuity should exist.

DTC P0192, P0193 FRP SENSOR
EC-1471
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS011ZR
FUEL RAIL PRESSURE SENSOR
1. Reconnect harness connector disconnected.
2. Start engine and warm it up to normal operating temperature.

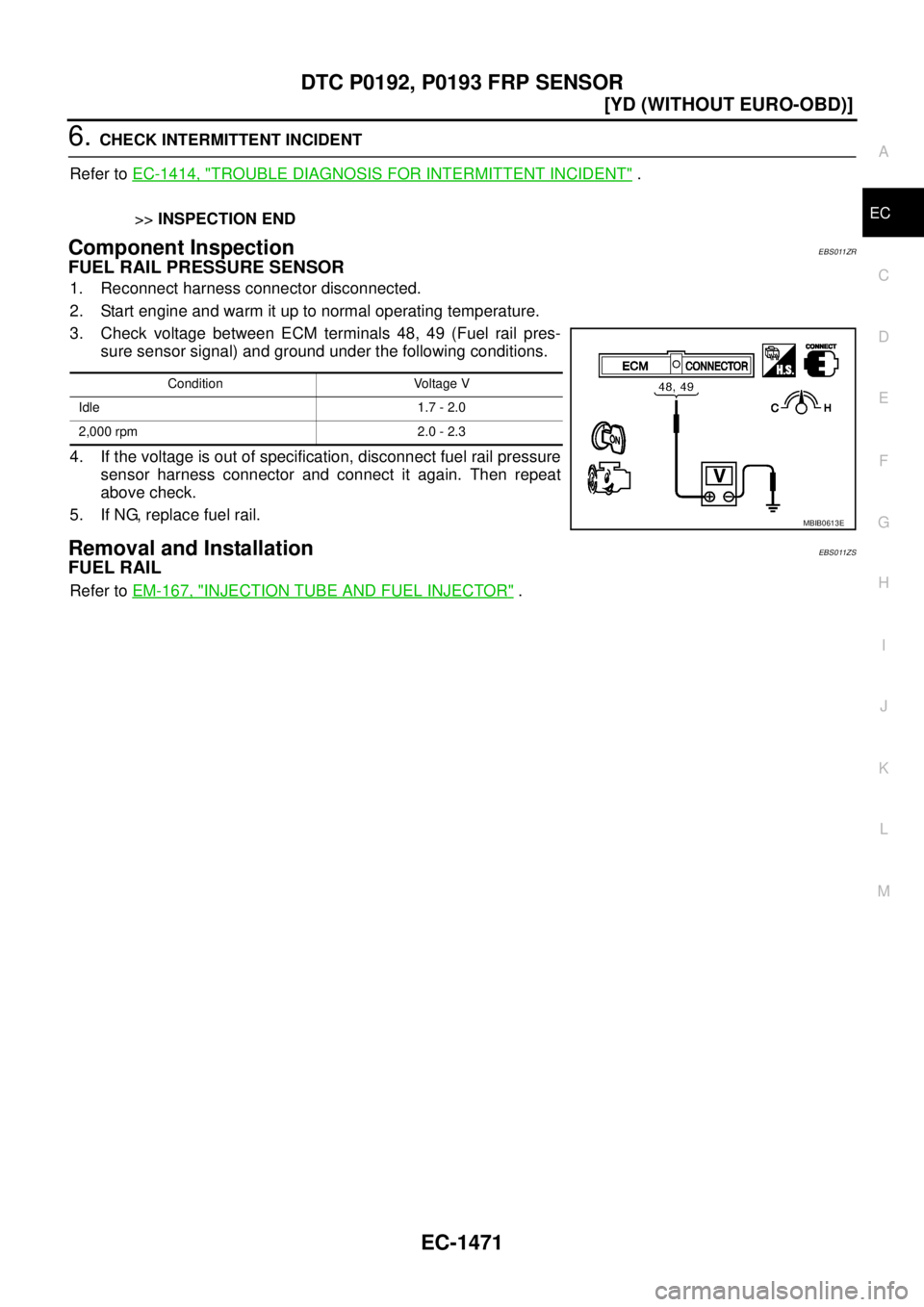

3. Check voltage between ECM terminals 48, 49 (Fuel rail pres-
sure sensor signal) and ground under the following conditions.
4. If the voltage is out of specification, disconnect fuel rail pressure
sensor harness connector and connect it again. Then repeat
above check.
5. If NG, replace fuel rail.
Removal and InstallationEBS011ZS
FUEL RAIL
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" .
Condition Voltage V
Idle 1.7 - 2.0
2,000 rpm 2.0 - 2.3
MBIB0613E

EC-1472
[YD (WITHOUT EURO-OBD)]
DTC P0200 FUEL INJECTOR

DTC P0200 FUEL INJECTORPFP:16600
On Board Diagnosis LogicEBS011ZT
DTC Confirmation ProcedureEBS011ZU
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

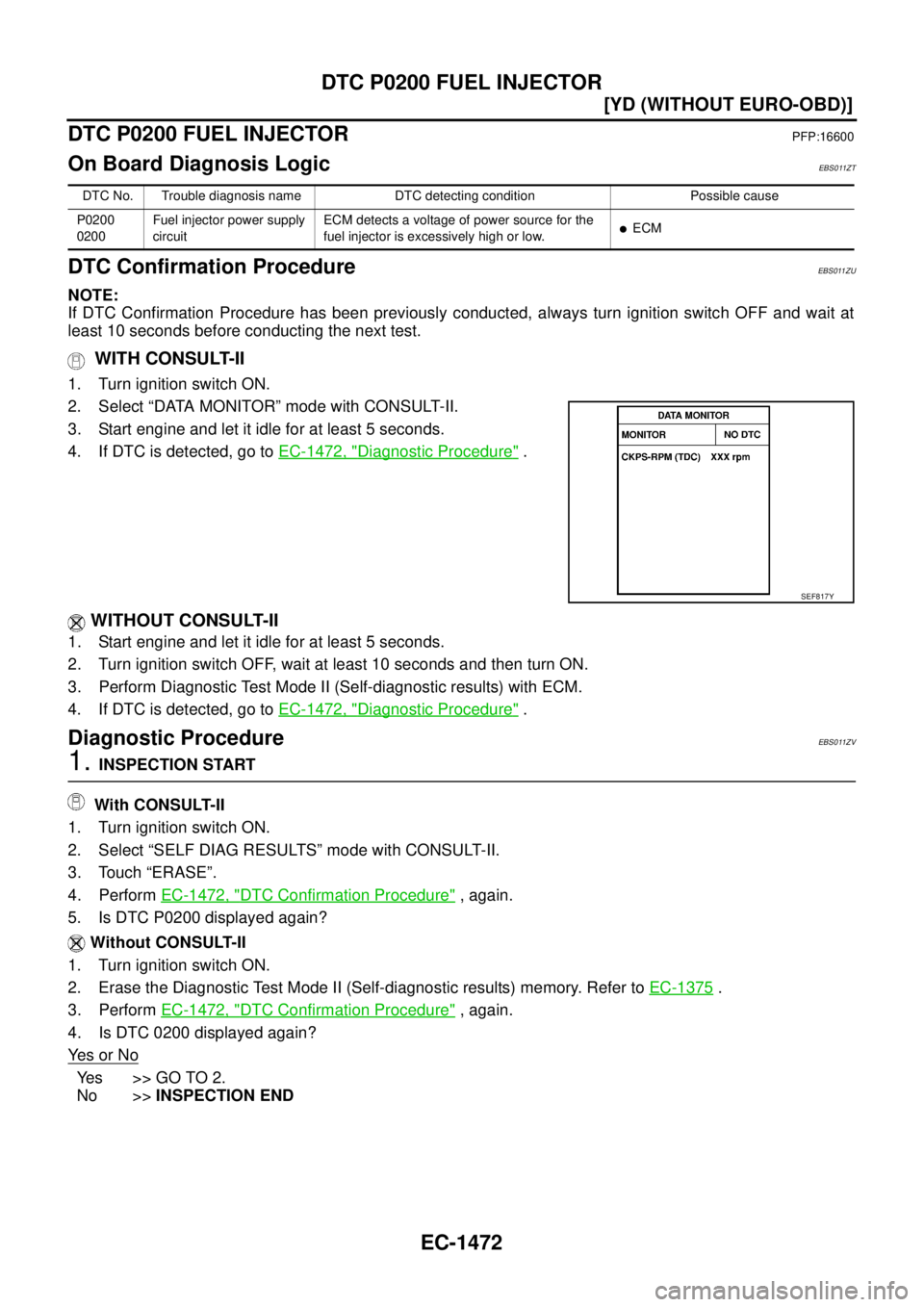

WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
4. If DTC is detected, go to EC-1472, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for at least 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-1472, "
Diagnostic Procedure" .
Diagnostic ProcedureEBS011ZV
1. INSPECTION START
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4. Perform EC-1472, "
DTC Confirmation Procedure" , again.
5. Is DTC P0200 displayed again?
Without CONSULT-II
1. Turn ignition switch ON.
2. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory. Refer to EC-1375
.
3. Perform EC-1472, "
DTC Confirmation Procedure" , again.
4. Is DTC 0200 displayed again?
Ye s o r N o
Yes >> GO TO 2.
No >>INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0200
0200Fuel injector power supply
circuitECM detects a voltage of power source for the
fuel injector is excessively high or low.

ECM
SEF817Y

DTC P0200 FUEL INJECTOR
EC-1473
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-1373,
"NATS (Nissan Anti-theft System)" .
3. Perform Fuel Pump Learning Value Clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END

EC-1474
[YD (WITHOUT EURO-OBD)]
DTC P0201 - P0204 FUEL INJECTOR

DTC P0201 - P0204 FUEL INJECTORPFP:16600
Component DescriptionEBS011ZW
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the needle valve back and
allows fuel to flow through the fuel injector into the cylinder. The
amount of fuel injected depends upon the injection pulse duration.
Pulse duration is the length of time the fuel injector remains open.
The ECM controls the injection pulse duration based on engine fuel
needs.
CONSULT-II Reference Value in Data Monitor ModeEBS011ZX
Specification data are reference values.
On Board Diagnosis LogicEBS011ZZ
The MI will not light up for these self-diagnoses.
PBIB0465E
MONITOR ITEM CONDITION SPECIFICATION
MAIN INJ WID

Engine: After warming up

Shift lever: Neutral position

Idle speedNo-load 0.68 - 0.78 msec
Blower fan switch: ON
Rear window defogger switch: ON0.78 - 0.88 msec
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0201
0201No. 1 cylinder fuel injector
circuit openAn improper voltage signal is sent to ECM
through No. 1 cylinder fuel injector.

Harness or connectors
(The fuel injector circuit is open.)

Fuel injector P0202
0202No. 2 cylinder fuel injector
circuit openAn improper voltage signal is sent to ECM
through No. 2 cylinder fuel injector.
P0203
0203No. 3 cylinder fuel injector
circuit openAn improper voltage signal is sent to ECM
through No. 3 cylinder fuel injector.
P0204
0204No. 4 cylinder fuel injector
circuit openAn improper voltage signal is sent to ECM
through No. 4 cylinder fuel injector.

DTC P0201 - P0204 FUEL INJECTOR
EC-1475
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC Confirmation ProcedureEBS01200
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION
Before performing the following procedure, confirm the ambient temperature is more than -20°C (-4°F).
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
4. If DTC is detected, go to EC-1478, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for at least 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-1478, "
Diagnostic Procedure" .
SEF817Y

EC-1476
[YD (WITHOUT EURO-OBD)]
DTC P0201 - P0204 FUEL INJECTOR

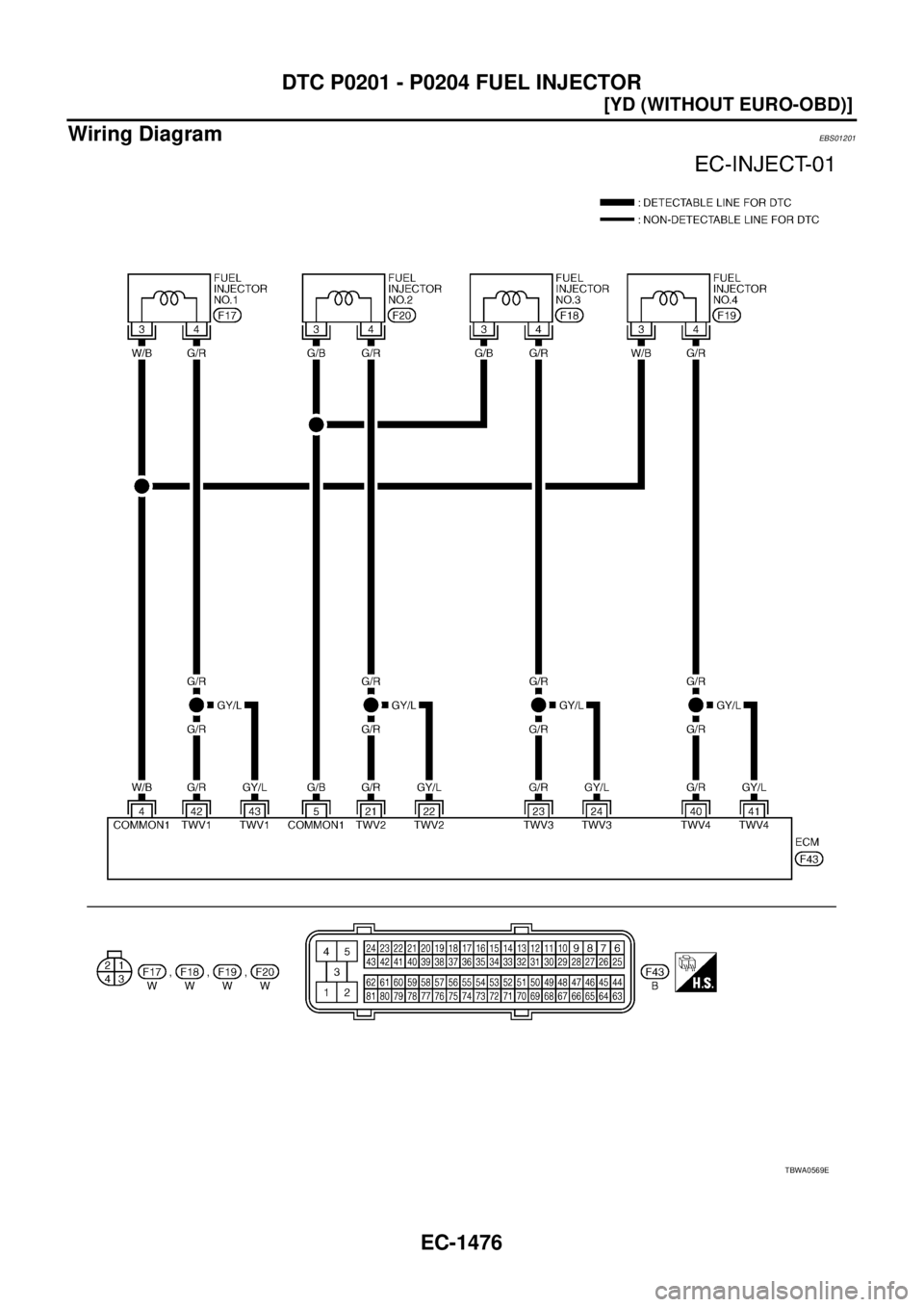

Wiring DiagramEBS01201
TBWA0569E
