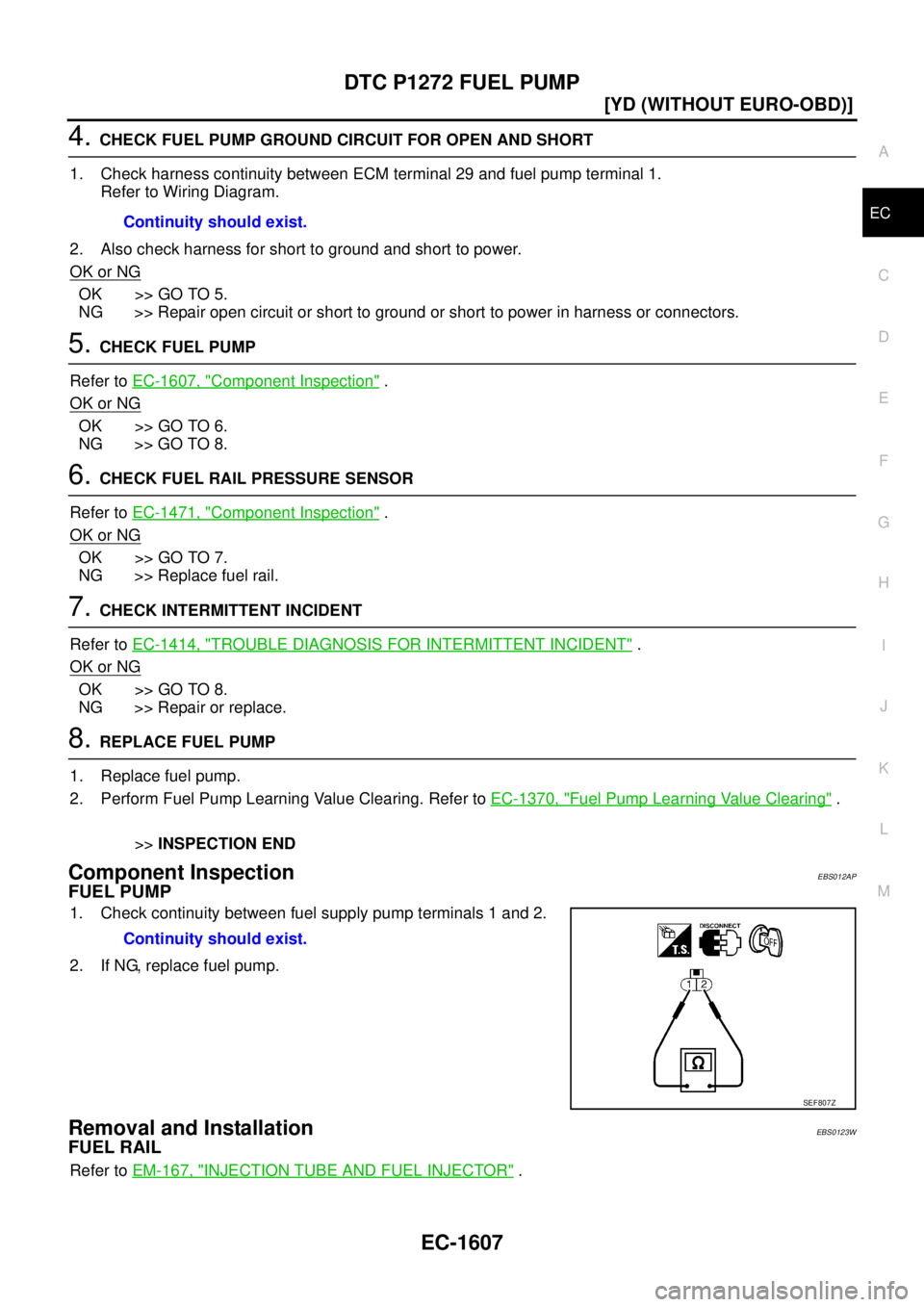

DTC P1272 FUEL PUMP
EC-1607
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4. CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 29 and fuel pump terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK FUEL PUMP
Refer to EC-1607, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6. CHECK FUEL RAIL PRESSURE SENSOR
Refer to EC-1471, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace fuel rail.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace.
8. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Value Clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
Component InspectionEBS012AP
FUEL PUMP
1. Check continuity between fuel supply pump terminals 1 and 2.
2. If NG, replace fuel pump.
Removal and InstallationEBS0123W
FUEL RAIL
Refer to EM-167, "INJECTION TUBE AND FUEL INJECTOR" . Continuity should exist.
Continuity should exist.
SEF807Z

EC-1608
[YD (WITHOUT EURO-OBD)]
DTC P1272 FUEL PUMP

FUEL PUMP
Refer to EM-171, "FUEL PUMP" .

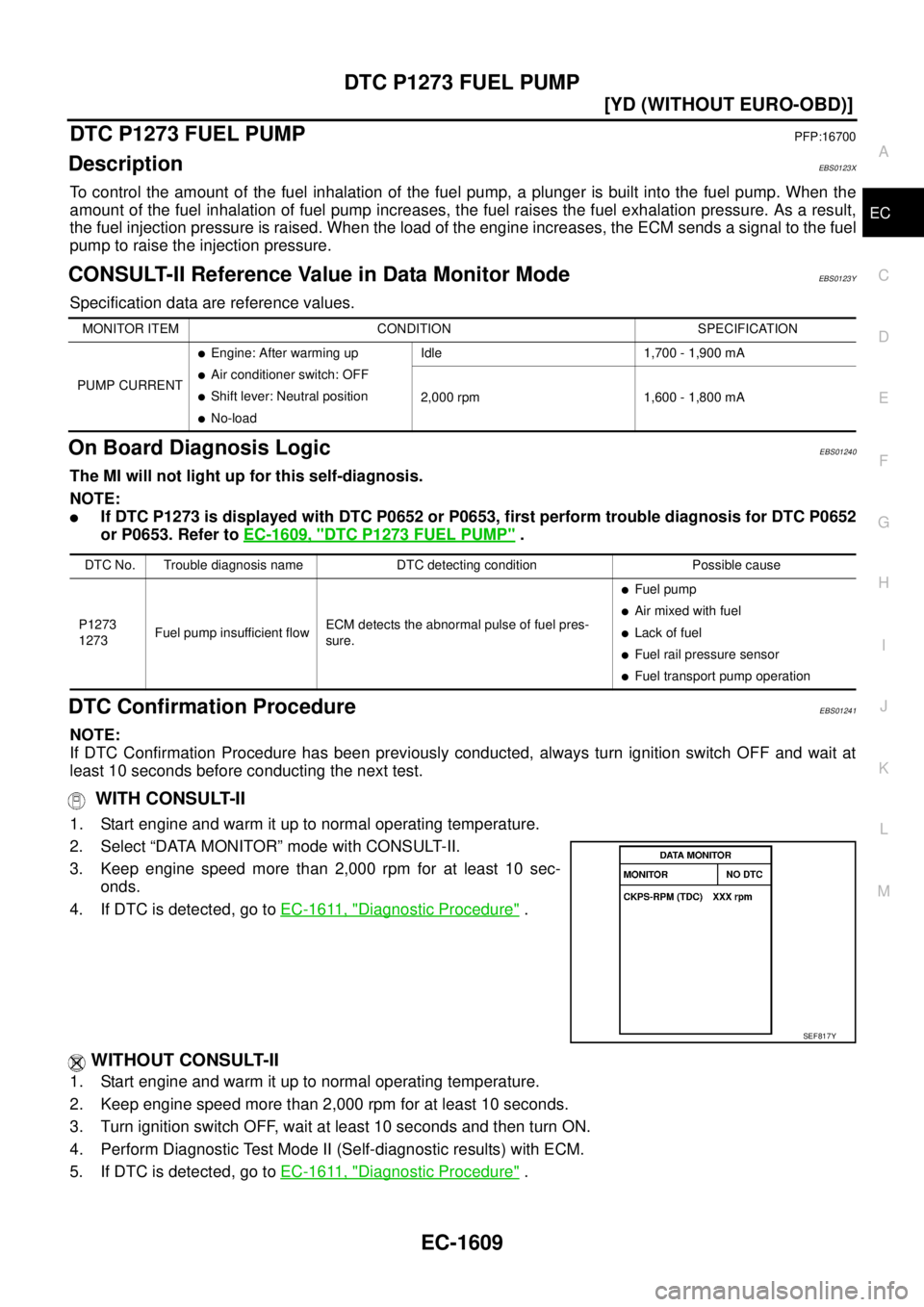

DTC P1273 FUEL PUMP
EC-1609
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1273 FUEL PUMPPFP:16700
DescriptionEBS0123X
To control the amount of the fuel inhalation of the fuel pump, a plunger is built into the fuel pump. When the
amount of the fuel inhalation of fuel pump increases, the fuel raises the fuel exhalation pressure. As a result,
the fuel injection pressure is raised. When the load of the engine increases, the ECM sends a signal to the fuel
pump to raise the injection pressure.
CONSULT-II Reference Value in Data Monitor ModeEBS0123Y
Specification data are reference values.
On Board Diagnosis LogicEBS01240
The MI will not light up for this self-diagnosis.
NOTE:

If DTC P1273 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1609, "
DTC P1273 FUEL PUMP" .
DTC Confirmation ProcedureEBS01241
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Keep engine speed more than 2,000 rpm for at least 10 sec-
onds.
4. If DTC is detected, go to EC-1611, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Keep engine speed more than 2,000 rpm for at least 10 seconds.
3. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
4. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
5. If DTC is detected, go to EC-1611, "
Diagnostic Procedure" .
MONITOR ITEM CONDITION SPECIFICATION
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1273
1273Fuel pump insufficient flowECM detects the abnormal pulse of fuel pres-
sure.

Fuel pump

Air mixed with fuel

Lack of fuel

Fuel rail pressure sensor

Fuel transport pump operation
SEF817Y

EC-1610
[YD (WITHOUT EURO-OBD)]
DTC P1273 FUEL PUMP

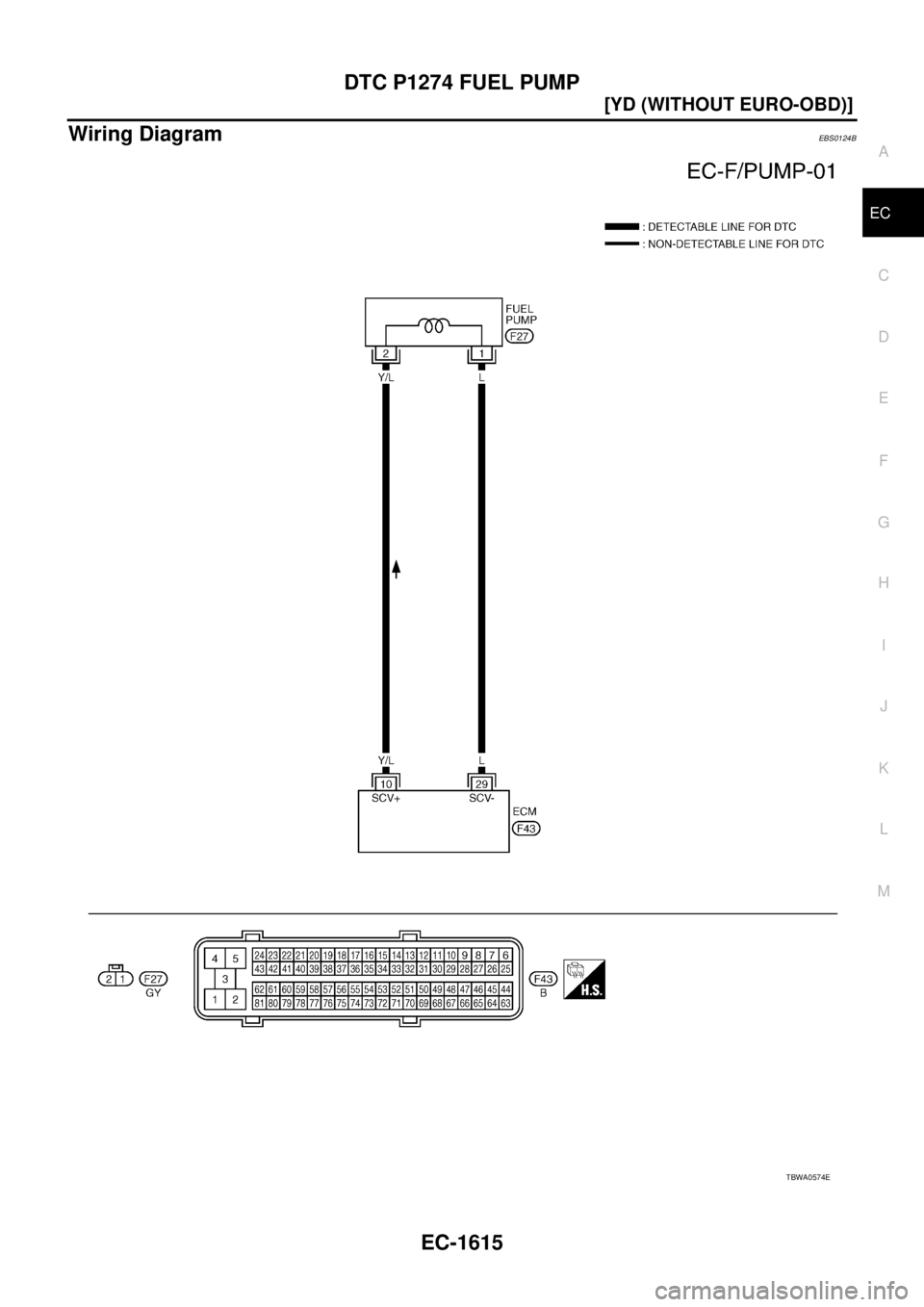

Wiring DiagramEBS01242
TBWA0574E

DTC P1273 FUEL PUMP
EC-1611
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

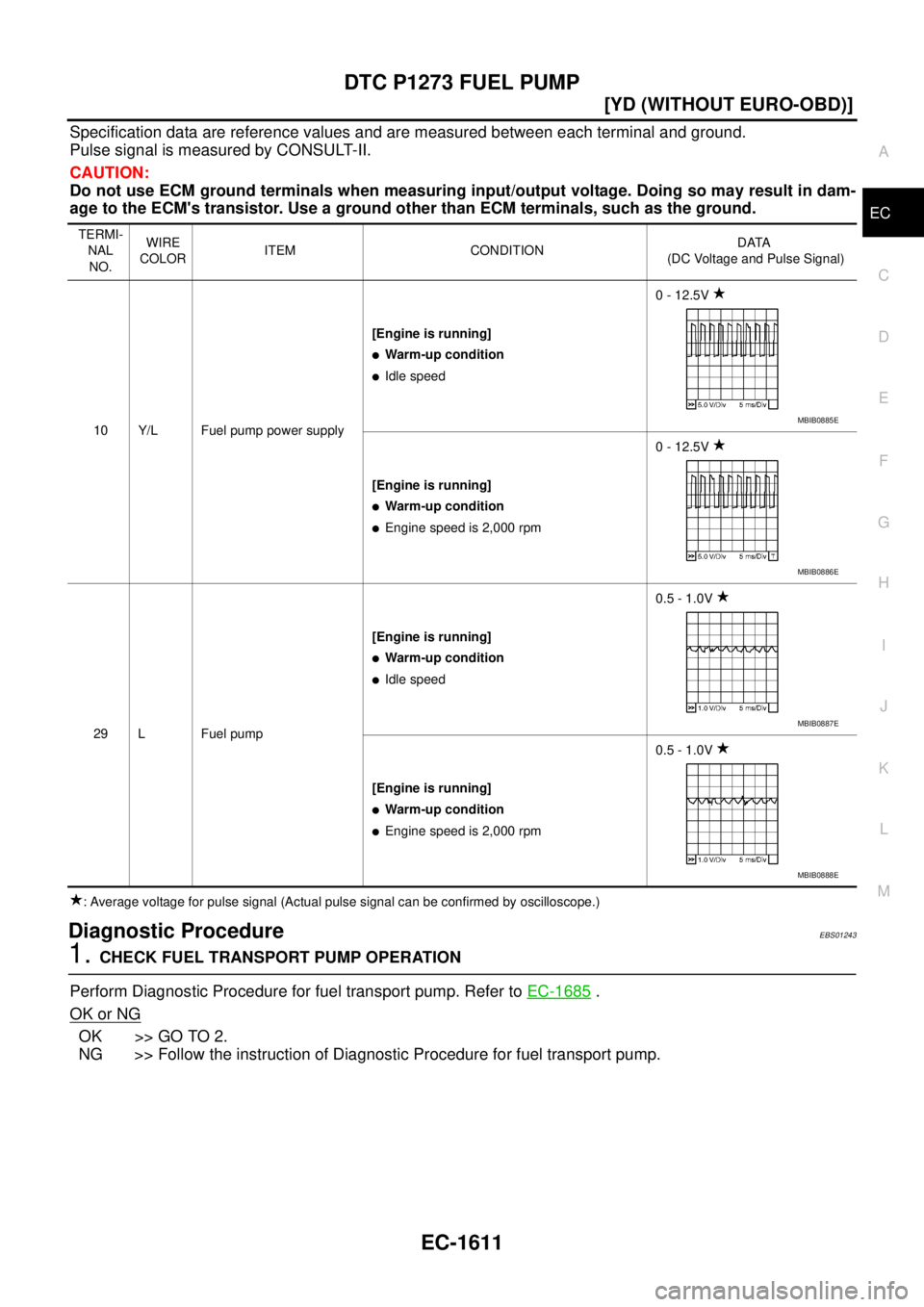

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureEBS01243
1. CHECK FUEL TRANSPORT PUMP OPERATION
Perform Diagnostic Procedure for fuel transport pump. Refer to EC-1685
.
OK or NG
OK >> GO TO 2.
NG >> Follow the instruction of Diagnostic Procedure for fuel transport pump.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
10 Y/L Fuel pump power supply[Engine is running]

Warm-up condition

Idle speed0 - 12.5V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 12.5V
29 L Fuel pump[Engine is running]

Warm-up condition

Idle speed0.5 - 1.0V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0.5 - 1.0V
MBIB0885E
MBIB0886E
MBIB0887E
MBIB0888E

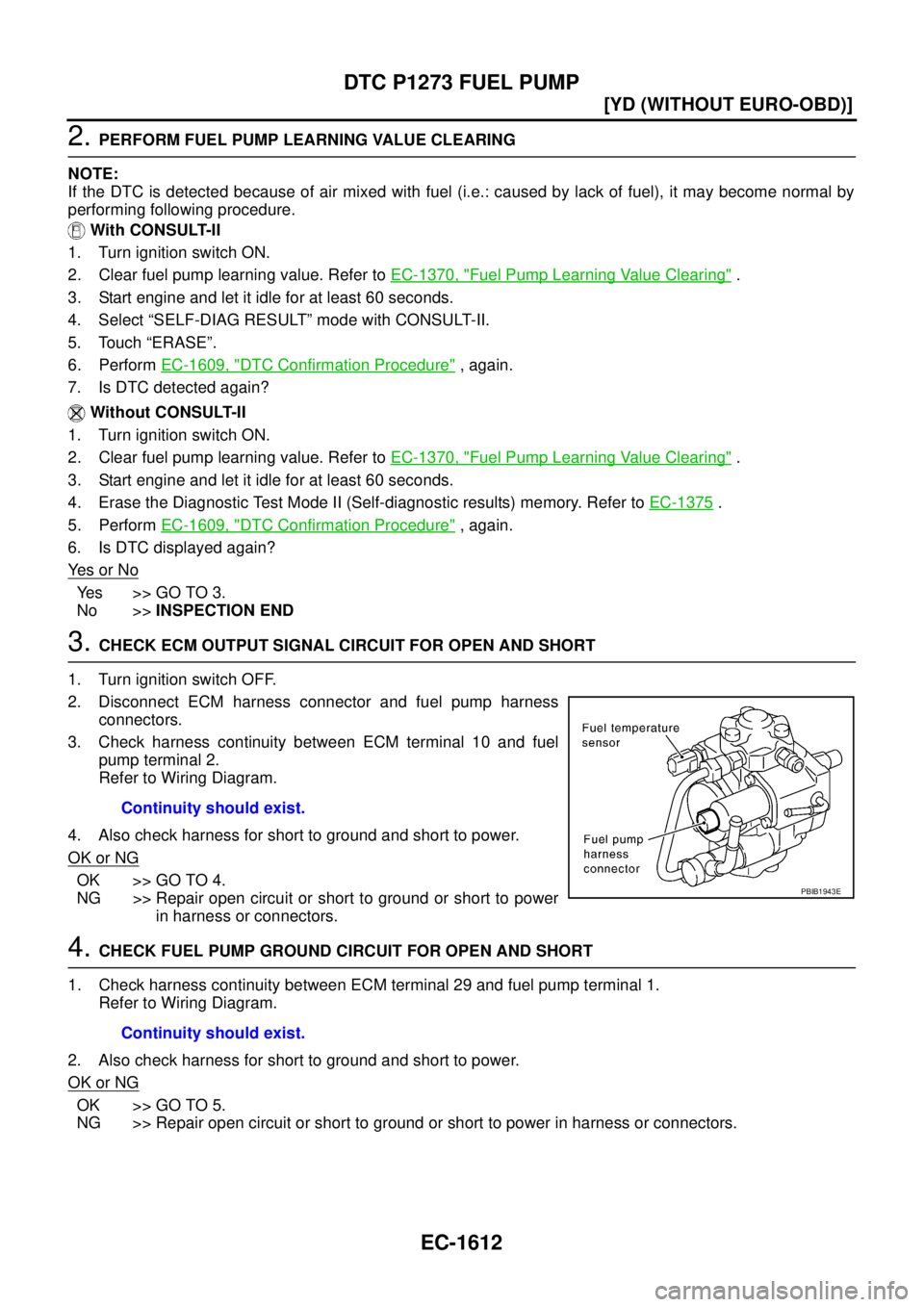

EC-1612
[YD (WITHOUT EURO-OBD)]
DTC P1273 FUEL PUMP

2. PERFORM FUEL PUMP LEARNING VALUE CLEARING
NOTE:
If the DTC is detected because of air mixed with fuel (i.e.: caused by lack of fuel), it may become normal by
performing following procedure.
With CONSULT-II
1. Turn ignition switch ON.
2. Clear fuel pump learning value. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Select “SELF-DIAG RESULT” mode with CONSULT-II.
5. Touch “ERASE”.
6. Perform EC-1609, "
DTC Confirmation Procedure" , again.
7. Is DTC detected again?
Without CONSULT-II
1. Turn ignition switch ON.
2. Clear fuel pump learning value. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
3. Start engine and let it idle for at least 60 seconds.
4. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory. Refer to EC-1375
.
5. Perform EC-1609, "
DTC Confirmation Procedure" , again.
6. Is DTC displayed again?
Ye s o r N o
Yes >> GO TO 3.
No >>INSPECTION END
3. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and fuel pump harness
connectors.
3. Check harness continuity between ECM terminal 10 and fuel
pump terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
4. CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 29 and fuel pump terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Continuity should exist.
PBIB1943E
Continuity should exist.

DTC P1273 FUEL PUMP
EC-1613
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

5. CHECK FUEL RAIL PRESSURE SENSOR
Refer to EC-1471, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace fuel rail.
6. CHECK FUEL PUMP
Refer to EC-1613, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Valve Clearing. Refer to EC-1370, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
8. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS01244
FUEL PUMP
1. Check continuity between fuel supply pump terminals 1 and 2.
2. If NG, replace fuel pump.
Removal and InstallationEBS01245
FUEL PUMP
Refer to EM-171, "FUEL PUMP" . Continuity should exist.
SEF807Z

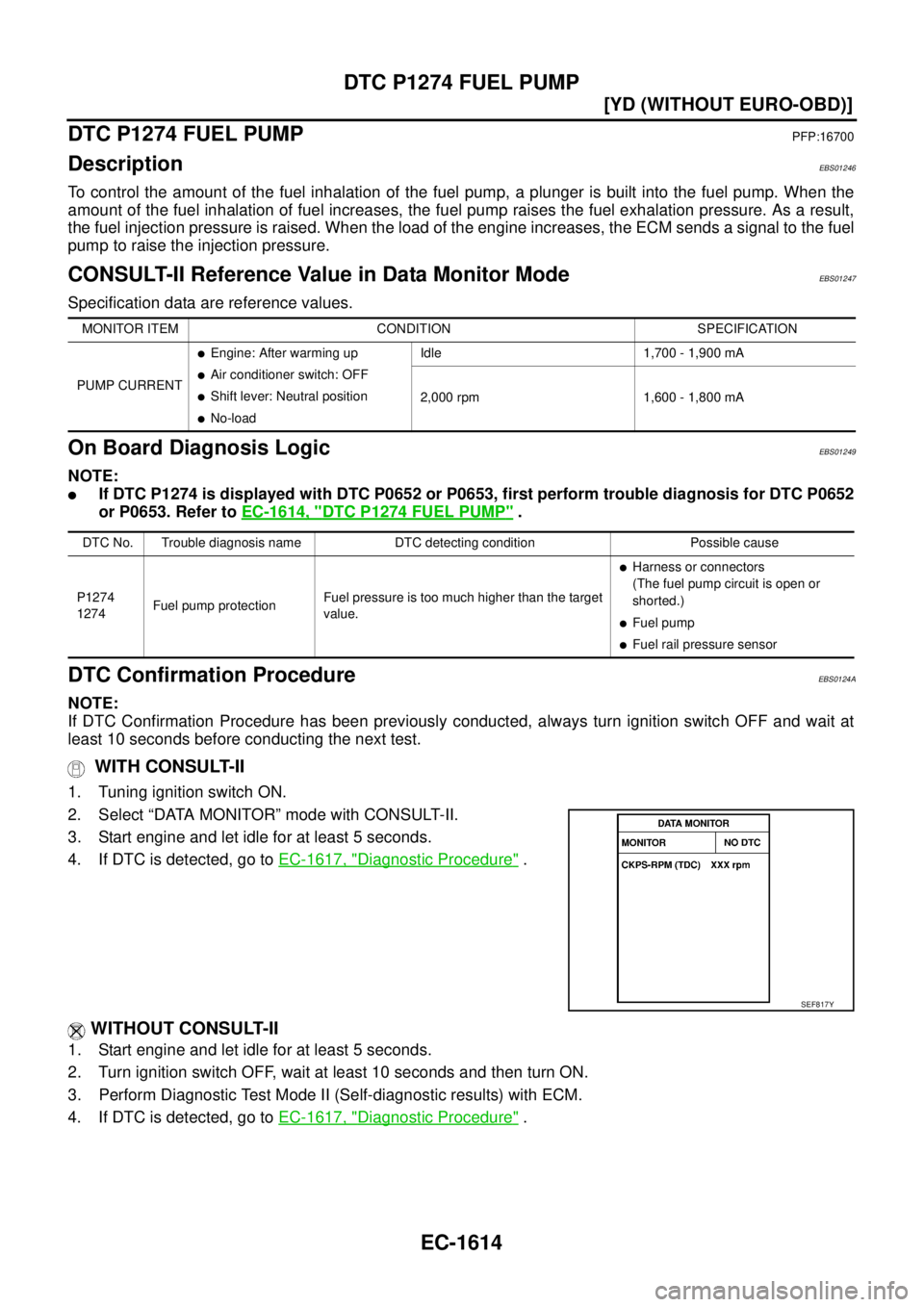

EC-1614
[YD (WITHOUT EURO-OBD)]
DTC P1274 FUEL PUMP

DTC P1274 FUEL PUMPPFP:16700
DescriptionEBS01246
To control the amount of the fuel inhalation of the fuel pump, a plunger is built into the fuel pump. When the
amount of the fuel inhalation of fuel increases, the fuel pump raises the fuel exhalation pressure. As a result,
the fuel injection pressure is raised. When the load of the engine increases, the ECM sends a signal to the fuel
pump to raise the injection pressure.
CONSULT-II Reference Value in Data Monitor ModeEBS01247
Specification data are reference values.
On Board Diagnosis LogicEBS01249
NOTE:

If DTC P1274 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1614, "
DTC P1274 FUEL PUMP" .
DTC Confirmation ProcedureEBS0124A
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Tuning ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let idle for at least 5 seconds.
4. If DTC is detected, go to EC-1617, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let idle for at least 5 seconds.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-1617, "
Diagnostic Procedure" .
MONITOR ITEM CONDITION SPECIFICATION
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1274
1274Fuel pump protectionFuel pressure is too much higher than the target
value.

Harness or connectors
(The fuel pump circuit is open or
shorted.)

Fuel pump

Fuel rail pressure sensor
SEF817Y

DTC P1274 FUEL PUMP
EC-1615
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

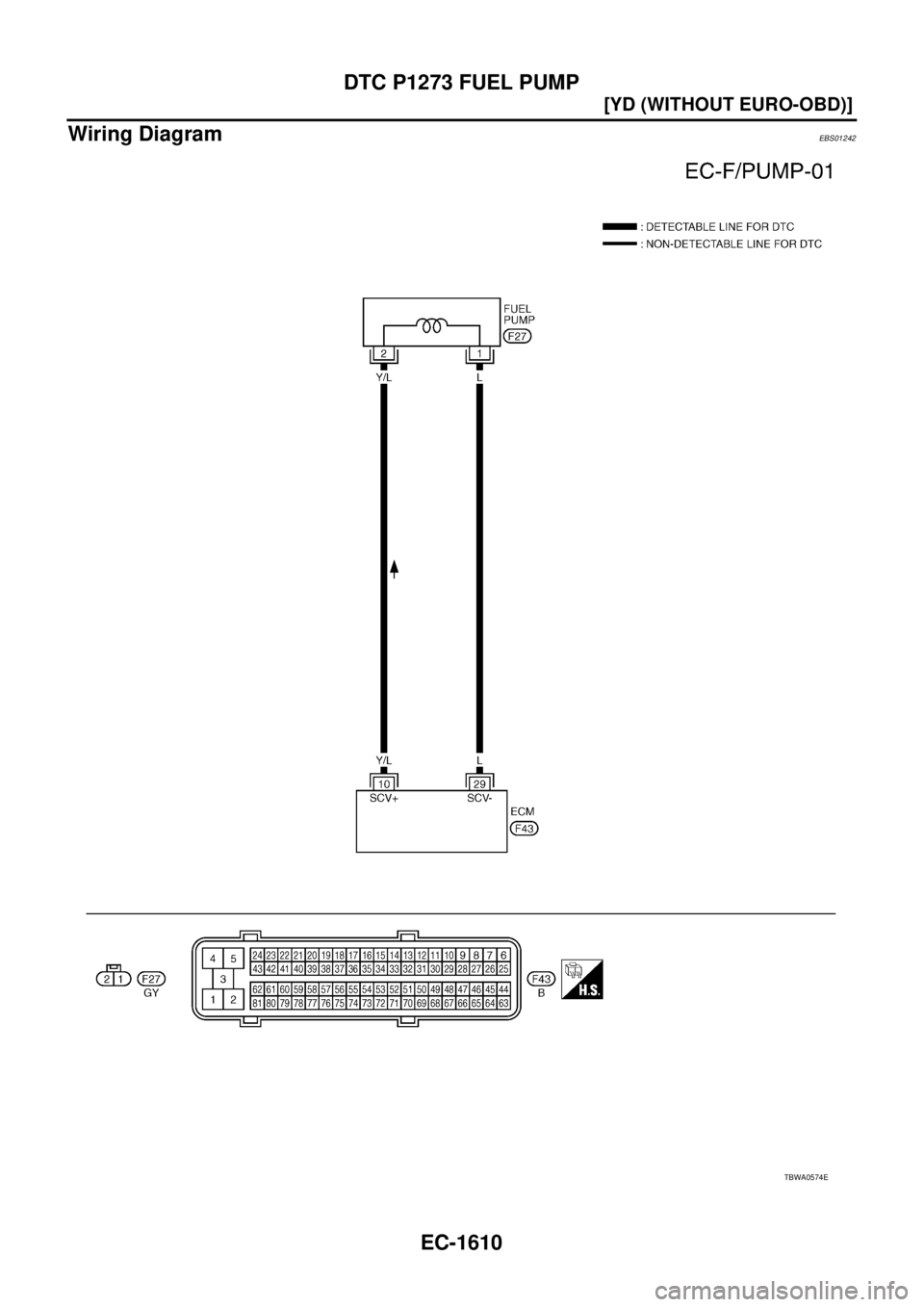

Wiring DiagramEBS0124B
TBWA0574E

EC-1616
[YD (WITHOUT EURO-OBD)]
DTC P1274 FUEL PUMP

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
10 Y/L Fuel pump power supply[Engine is running]

Warm-up condition

Idle speed0 - 12.5V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 12.5V
29 L Fuel pump[Engine is running]

Warm-up condition

Idle speed0.5 - 1.0V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0.5 - 1.0V
MBIB0885E
MBIB0886E
MBIB0887E
MBIB0888E
