NISSAN X-TRAIL 2005 Service Repair Manual

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-307
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

A/T Does Not Shift: D2 → D3ECS00EBN
SYMPTOM:
A/T does not shift from D
2 to D3 at the specified speed.
1. CHECK SYMPTOM
Check symptom. Refer to AT- 2 7 0 , "
Cruise Test — Part 1" and AT- 2 7 3 , "Cruise Test — Part 2" .
Are
“Vehicle Does Not Creep Ford In “D”, “2” Or “1” Position” and “Vehicle Cannot Be Started From D1 ” OK?
YES >> GO TO 2.
NO >> GO TO AT- 2 9 9 , "
Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position" , AT- 3 0 1 , "Ve h i c l e
Cannot Be Started From D1" .
2. ADJUST CONTROL CABLE
Check control cable. Refer to AT- 4 0 9 , "
CONTROL CABLE ADJUST-
MENT" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 0 9 , "
CONTROL
CABLE ADJUSTMENT" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 3 2 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 3 3 9 , "DTC VEHICLE SPEED SENSOR
MTR" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 4 5 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SAT023JB
PBIB0498E

AT-308
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 2 5 6 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve B
–Shift solenoid valve B
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 2 7 0 , "
Cruise Test — Part 1" and AT- 2 7 3 , "Cruise Test — Part 2" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
8. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve B
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
4. Check the following items:
–Servo piston assembly
–High clutch assembly. Refer to AT- 4 6 9 , "High Clutch" .
–Oil pump assembly. Refer to AT- 4 4 3 , "Oil Pump" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
SAT171B

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-309
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

A/T Does Not Shift: D3 → D4ECS00EBO
SYMPTOM:

A/T does not shift from D3 to D4 at the specified speed.

A/T must be warm before D3 to D4 shift will occur.
1. CHECK SYMPTOM
Check symptom. Refer to AT- 2 7 0 , "
Cruise Test — Part 1" and AT- 2 7 3 , "Cruise Test — Part 2" .
Are
“Vehicle Does Not Creep Ford In “D”, “2” Or “1” Position” and “Vehicle Cannot Be Started From D1 ” OK?
YES >> GO TO 2.
NO >> GO TO AT- 2 9 9 , "
Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position" , AT- 3 0 1 , "Ve h i c l e
Cannot Be Started From D1" .
2. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 2 4 2 , "
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" or AT-
246, "Diagnostic Procedure Without CONSULT-II" .
Do the self-diagnosis results indicate PNP switch, overdrive control switch, A/T fluid temperature sensor, vehi-
cle speed sensor·A/T (revolution sensor), shift solenoid valve A,B or vehicle speed sensor·MTR circuit?
YES >>
Check damaged circuit. Refer to the following items.
–AT- 3 3 2 , "VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)"
–AT- 3 5 0 , "SHIFT SOLENOID VALVE A"
–AT- 3 5 6 , "SHIFT SOLENOID VALVE B"
–AT- 3 7 4 , "BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)"
–AT- 3 3 9 , "DTC VEHICLE SPEED SENSOR MTR"
–AT- 3 2 4 , "TCM Self-Diagnosis Does Not Activate"
NO >> GO TO 3.
3. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 4 5 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR"
OK or NG
OK >> GO TO 4.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 6 4 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 5.
NG >> GO TO 7.
PBIB0498E
SAT171B

AT-310
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

5. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Overrun clutch control valve
–Shift solenoid valve A
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK SYMPTOM
Check again. Refer to AT- 2 7 0 , "
Cruise Test — Part 1" and AT- 2 7 3 , "Cruise Test — Part 2" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
7. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Overrun clutch control valve
–Shift solenoid valve A
–Pilot valve
–Pilot filter
3. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
4. Check the following items:
–Servo piston assembly
–Torque converter. Refer to AT- 4 2 4 , "Disassembly" .
–Oil pump assembly. Refer to AT- 4 4 3 , "Oil Pump" .
–Brake band
OK or NG
OK >> GO TO 6
NG >> Repair or replace damaged parts.

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-311
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

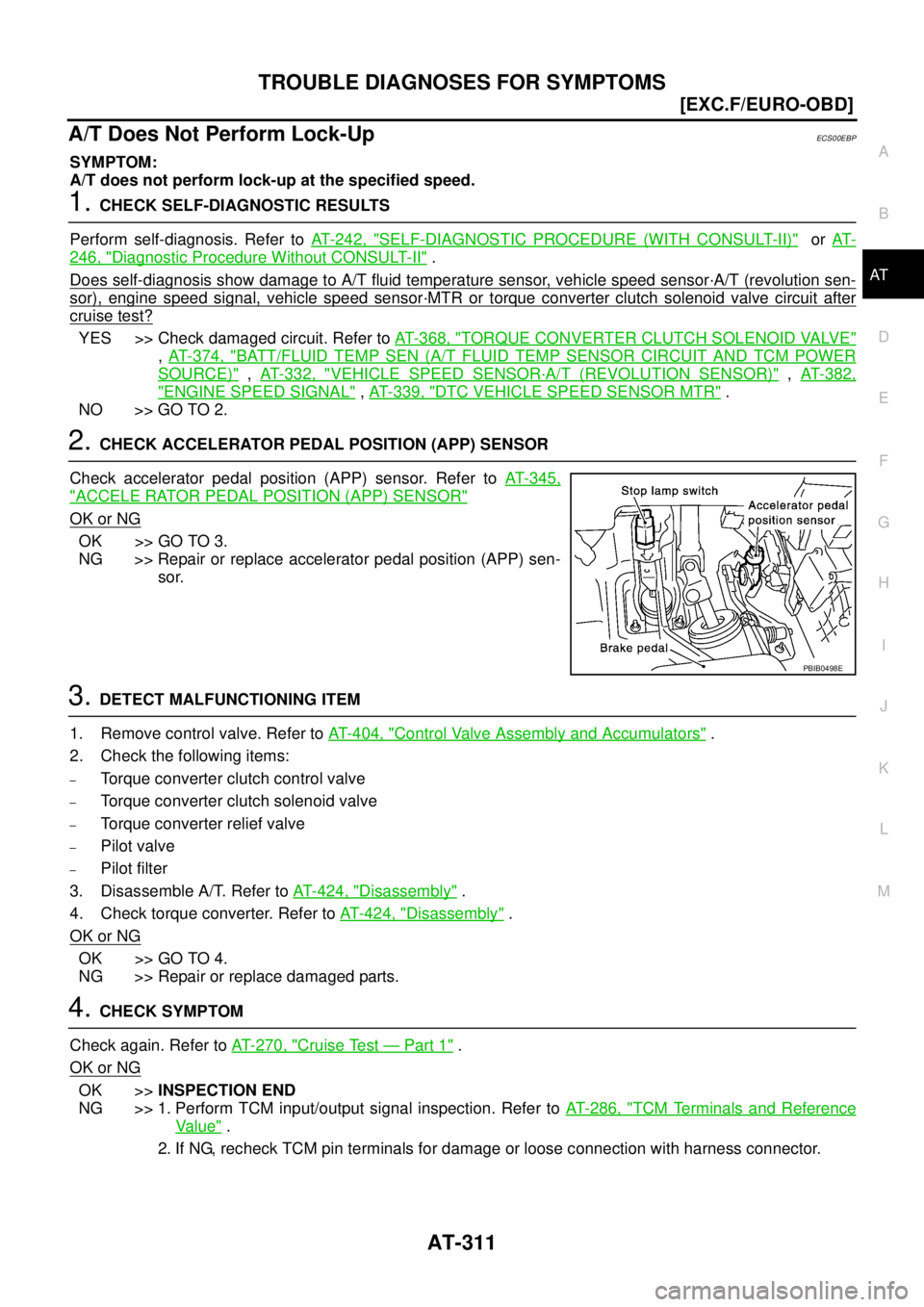

A/T Does Not Perform Lock-UpECS00EBP
SYMPTOM:
A/T does not perform lock-up at the specified speed.
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 2 4 2 , "
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" or AT-
246, "Diagnostic Procedure Without CONSULT-II" .
Does self-diagnosis show damage to A/T fluid temperature sensor, vehicle speed sensor
·A/T (revolution sen-
sor), engine speed signal, vehicle speed sensor·MTR or torque converter clutch solenoid valve circuit after
cruise test?
YES >> Check damaged circuit. Refer to AT- 3 6 8 , "TORQUE CONVERTER CLUTCH SOLENOID VALVE"
, AT- 3 7 4 , "BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)" , AT- 3 3 2 , "VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" , AT- 3 8 2 ,
"ENGINE SPEED SIGNAL" , AT- 3 3 9 , "DTC VEHICLE SPEED SENSOR MTR" .
NO >> GO TO 2.
2. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 4 5 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR"
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
3. DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Torque converter clutch control valve
–Torque converter clutch solenoid valve
–Torque converter relief valve
–Pilot valve
–Pilot filter
3. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
4. Check torque converter. Refer to AT- 4 2 4 , "
Disassembly" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK SYMPTOM
Check again. Refer to AT- 2 7 0 , "
Cruise Test — Part 1" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
PBIB0498E

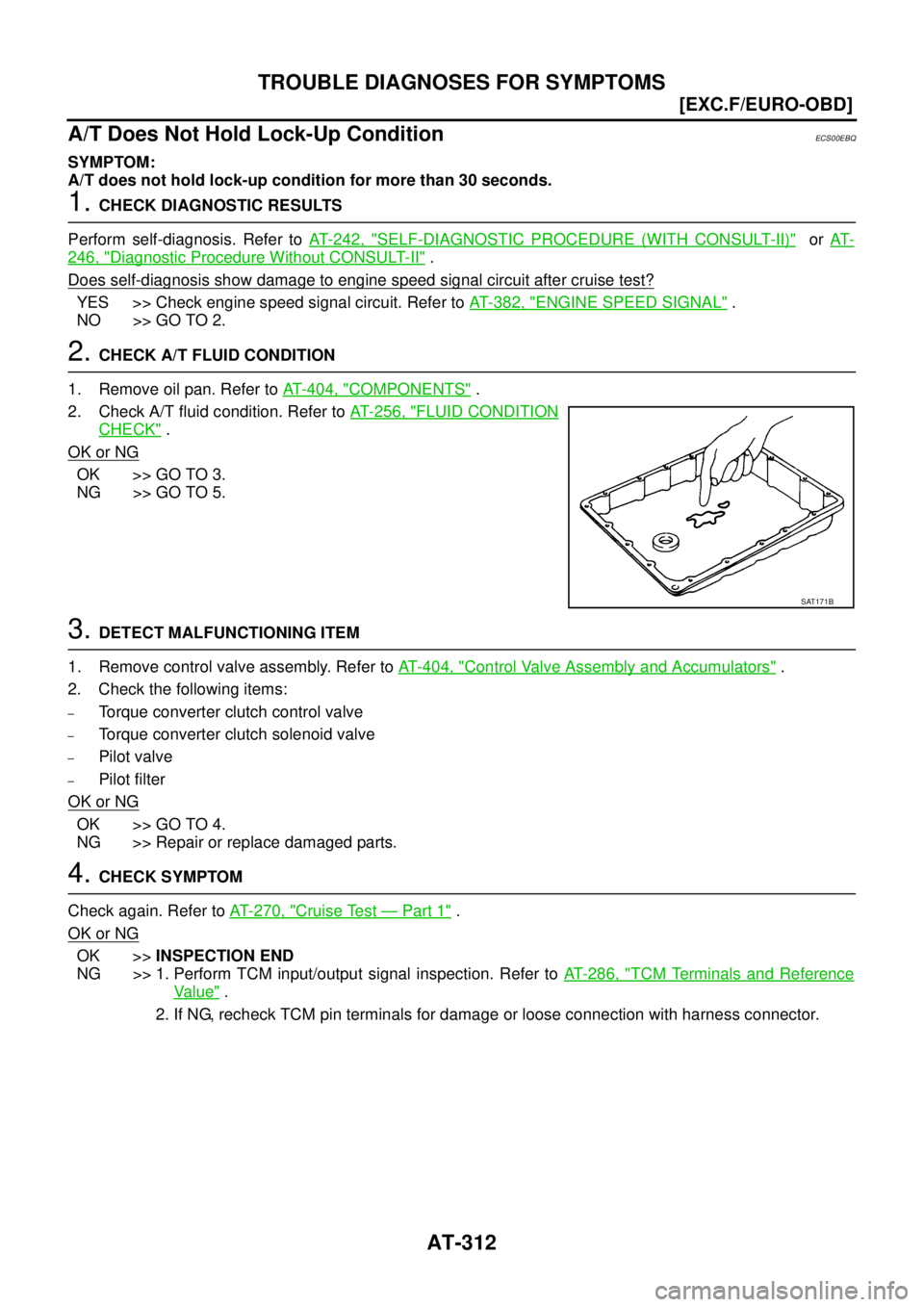

AT-312
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

A/T Does Not Hold Lock-Up ConditionECS00EBQ
SYMPTOM:
A/T does not hold lock-up condition for more than 30 seconds.
1. CHECK DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 2 4 2 , "
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" or AT-
246, "Diagnostic Procedure Without CONSULT-II" .
Does self-diagnosis show damage to engine speed signal circuit after cruise test?
YES >> Check engine speed signal circuit. Refer to AT- 3 8 2 , "ENGINE SPEED SIGNAL" .
NO >> GO TO 2.
2. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 2 5 6 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
3. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Torque converter clutch control valve
–Torque converter clutch solenoid valve
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK SYMPTOM
Check again. Refer to AT- 2 7 0 , "
Cruise Test — Part 1" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT171B

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-313
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

5. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Torque converter clutch control valve
–Torque converter clutch solenoid valve
–Pilot valve
–Pilot filter
3. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
4. Check torque converter and oil pump assembly.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.

AT-314
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

Lock-Up Is Not ReleasedECS00EBR
SYMPTOM:
Lock-up is not released when accelerator pedal is released.
1. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR CIRCUIT
Perform self-diagnosis. Refer to AT- 2 4 2 , "
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" or AT-
246, "Diagnostic Procedure Without CONSULT-II" .
Do the self-diagnosis results indicate accelerator pedal position (APP) sensor circuit?
YES >> Check accelerator pedal position (APP) sensor circuit. Refer to AT- 3 4 5 , "ACCELE RATOR
PEDAL POSITION (APP) SENSOR" .
NO >> GO TO 2.
2. CHECK SYMPTOM
Check again. Refer to AT- 2 7 0 , "
Cruise Test — Part 1" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-315
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Engine Speed Does Not Return To Idle (Light Braking D4 → D3 )ECS00EBS
SYMPTOM:
Engine speed does not smoothly return to idle when A/T shifts from D
4 to D3 .
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 2 4 2 , "
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" or AT-
246, "Diagnostic Procedure Without CONSULT-II" .
Does self-diagnosis show damage to overrun clutch solenoid valve circuit after cruise test?
YES >> Check overrun clutch solenoid valve circuit. Refer to AT- 3 6 2 , "OVERRUN CLUTCH SOLENOID
VA LV E" .
NO >> GO TO 2.
2. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 4 5 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR"
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
3. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 2 5 6 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 6.
4. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
PBIB0498E
SAT171B

AT-316
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

5. CHECK SYMPTOM
Check again. Refer to AT- 2 7 0 , "
Cruise Test — Part 1" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "
TCM Terminals and Reference
Va l u e" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Overrun clutch control valve
–Overrun clutch reducing valve
–Overrun clutch solenoid valve
3. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
4. Check the following item:
–Overrun clutch assembly. Refer to AT- 4 7 5 , "Forward and Overrun Clutches" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
