5. Install new seal rings carefully after packing ring groove with
petroleum jelly.
CAUTION:

Do not spread the gap of seal ring excessively while
installing. The ring may be deformed.

Do not reuse seal rings.

Apply petroleum jelly to seal rings.
SCIA3638E

AT-448
[ALL]
REPAIR FOR COMPONENT PARTS

Control Valve AssemblyECS00EC1

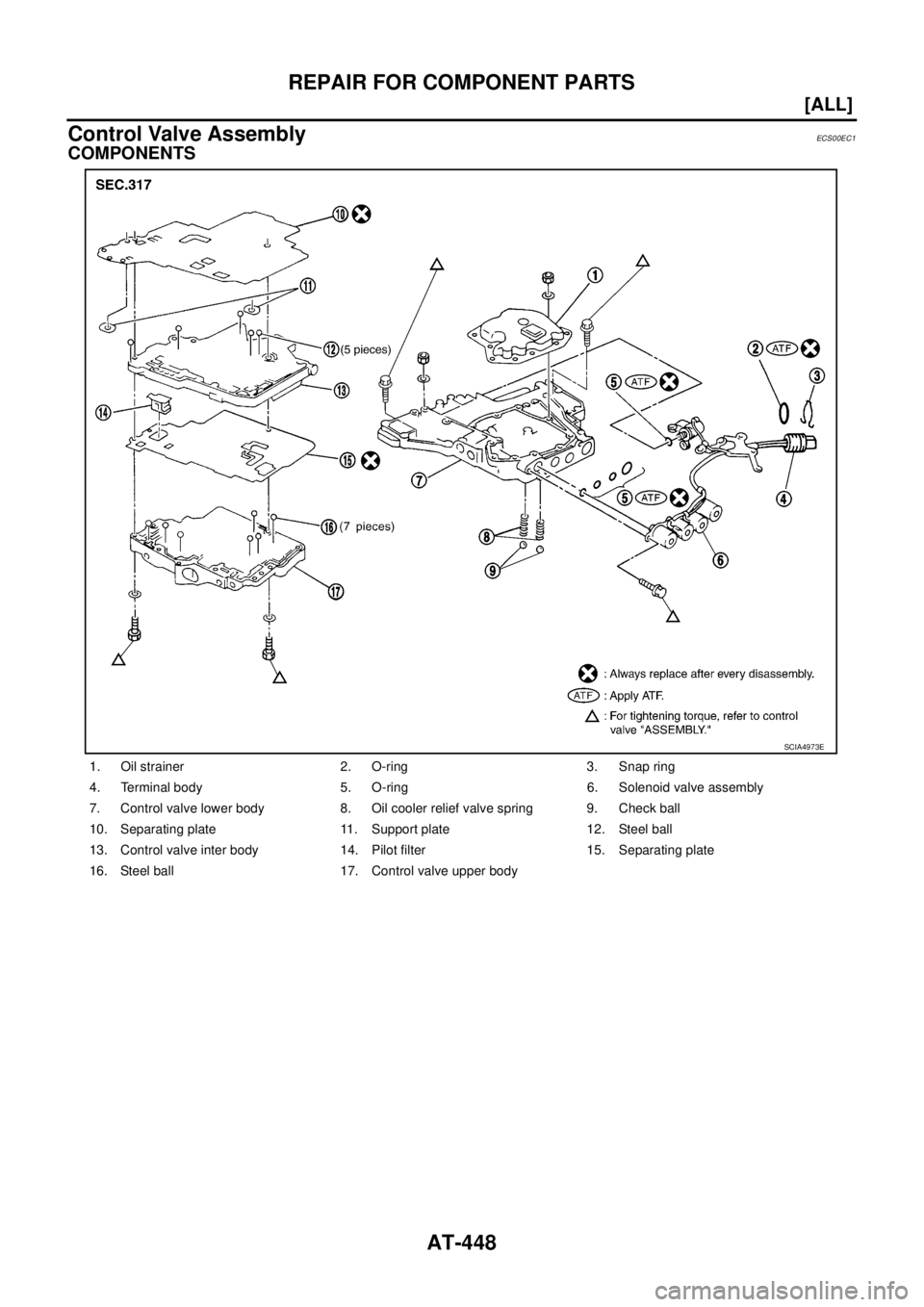

COMPONENTS
1. Oil strainer 2. O-ring 3. Snap ring
4. Terminal body 5. O-ring 6. Solenoid valve assembly
7. Control valve lower body 8. Oil cooler relief valve spring 9. Check ball
10. Separating plate 11. Support plate 12. Steel ball
13. Control valve inter body 14. Pilot filter 15. Separating plate
16. Steel ball 17. Control valve upper body
SCIA4973E

REPAIR FOR COMPONENT PARTS
AT-449
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

DISASSEMBLY
Disassemble upper, inter and lower bodies.
Bolt length, number and location:
f: Reamer bolt and nut.

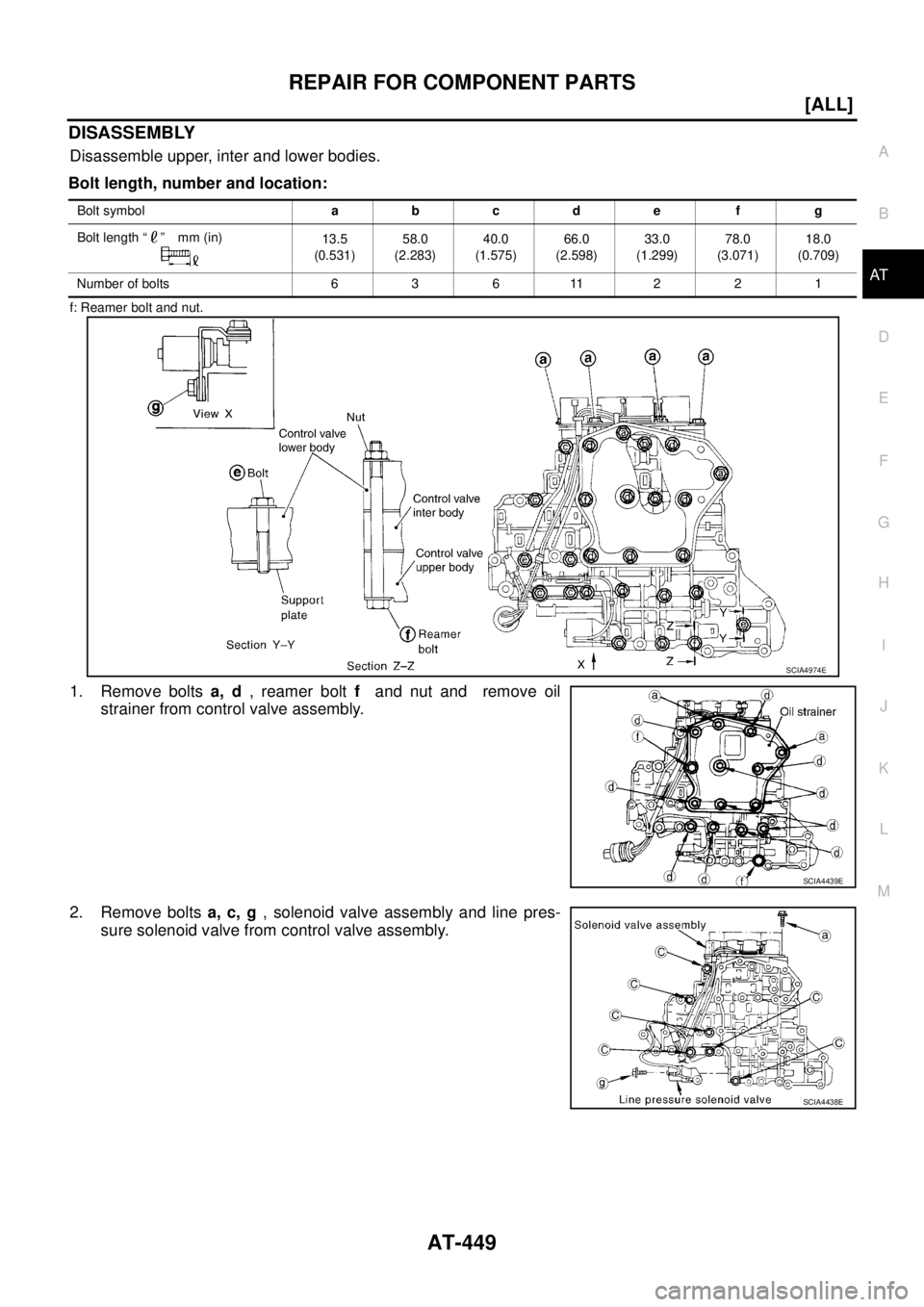

1. Remove bolts a, d , reamer bolt f and nut and remove oil
strainer from control valve assembly.
2. Remove bolts a, c, g , solenoid valve assembly and line pres-
sure solenoid valve from control valve assembly.
Bolt symbolabcde f g
Bolt length “ ” mm (in)
13.5
(0.531)58.0
(2.283)40.0
(1.575)66.0
(2.598)33.0
(1.299)78.0
(3.071)18.0
(0.709)
Number of bolts 6 3 6 11 2 2 1
SCIA4974E
SCIA4439E
SCIA4438E

AT-450
[ALL]
REPAIR FOR COMPONENT PARTS

3. Remove O-rings from solenoid valves and terminal body.
4. Place control valve upper body facedown, and remove bolts b ,
and nut f .
CAUTION:
Remove bolts with control valve upper body facing down,
because control valve upper body and control valve inter
body may come off and steel ball may fall and be lost.
5. Remove control valve lower body from control valve inter body.
6. Turn over control valve lower body.
7. Remove bolts e , separating plate and support plates from con-
trol valve lower body.
8. Remove check balls and oil cooler relief valve springs from con-
trol valve lower body.
CAUTION:
Be careful not to lose check balls and oil cooler relief valve
springs.
SCIA3693E
SCIA4437E
SCIA4975E
SCIA5637E
SAT110DA

REPAIR FOR COMPONENT PARTS
AT-451
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

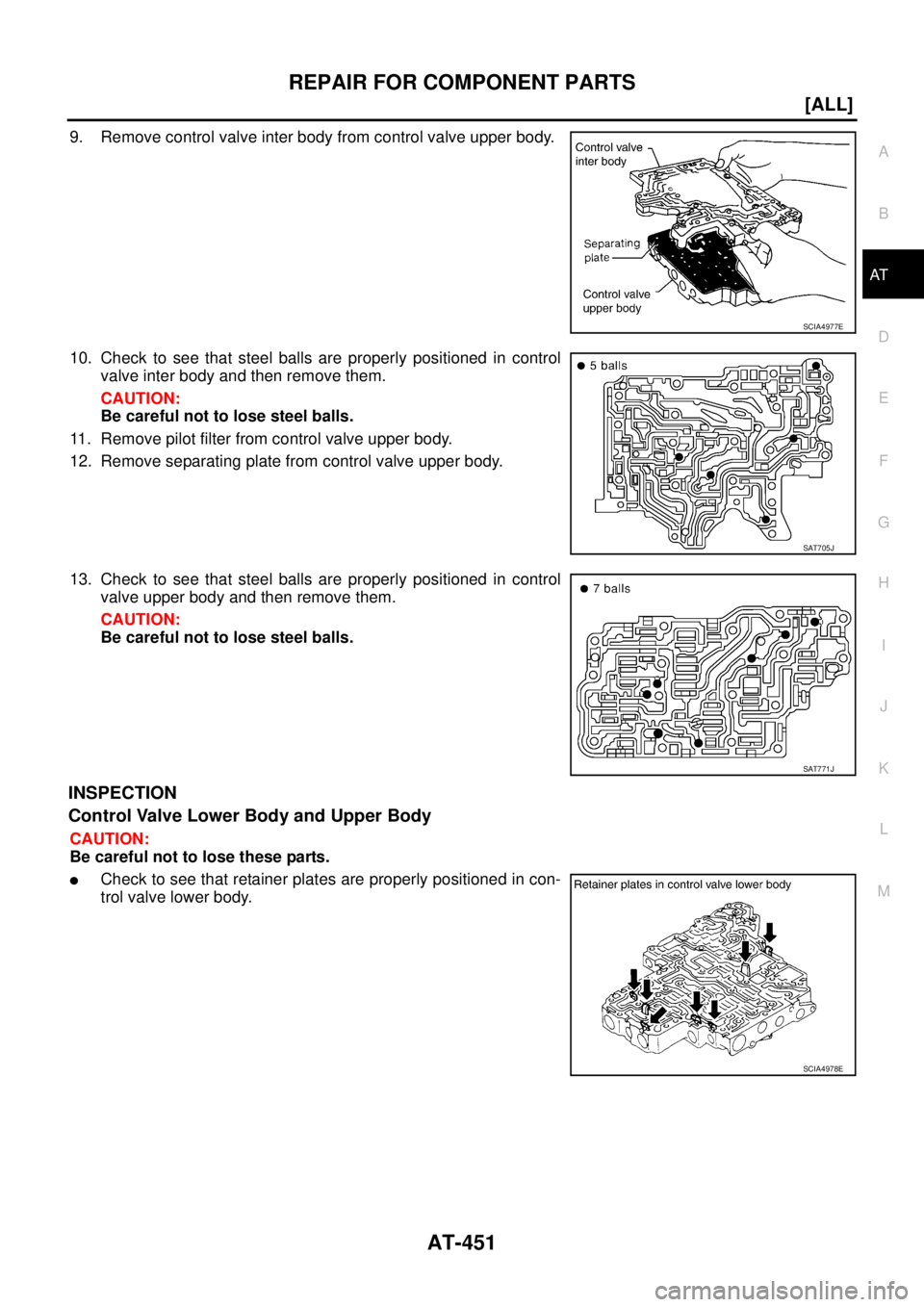

9. Remove control valve inter body from control valve upper body.
10. Check to see that steel balls are properly positioned in control
valve inter body and then remove them.
CAUTION:
Be careful not to lose steel balls.
11. Remove pilot filter from control valve upper body.
12. Remove separating plate from control valve upper body.
13. Check to see that steel balls are properly positioned in control
valve upper body and then remove them.
CAUTION:
Be careful not to lose steel balls.
INSPECTION
Control Valve Lower Body and Upper Body
CAUTION:
Be careful not to lose these parts.

Check to see that retainer plates are properly positioned in con-
trol valve lower body.
SCIA4977E
SAT705J
SAT771J
SCIA4978E

AT-452
[ALL]
REPAIR FOR COMPONENT PARTS


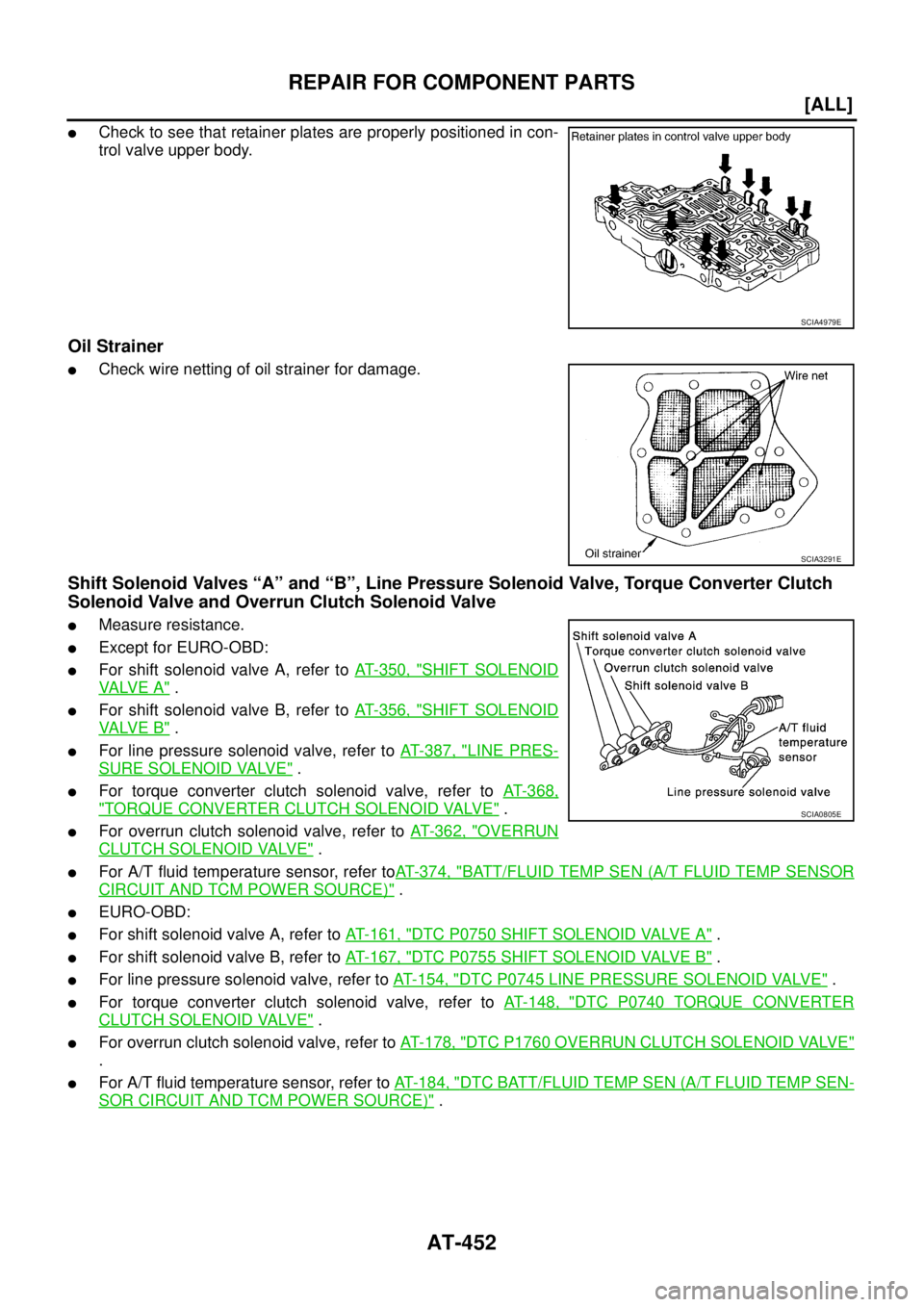

Check to see that retainer plates are properly positioned in con-
trol valve upper body.
Oil Strainer

Check wire netting of oil strainer for damage.
Shift Solenoid Valves “A” and “B”, Line Pressure Solenoid Valve, Torque Converter Clutch
Solenoid Valve and Overrun Clutch Solenoid Valve

Measure resistance.

Except for EURO-OBD:

For shift solenoid valve A, refer to AT- 3 5 0 , "SHIFT SOLENOID
VALVE A" .

For shift solenoid valve B, refer to AT- 3 5 6 , "SHIFT SOLENOID
VALVE B" .

For line pressure solenoid valve, refer to AT- 3 8 7 , "LINE PRES-
SURE SOLENOID VALVE" .

For torque converter clutch solenoid valve, refer to AT- 3 6 8 ,
"TORQUE CONVERTER CLUTCH SOLENOID VALVE" .

For overrun clutch solenoid valve, refer to AT- 3 6 2 , "OVERRUN
CLUTCH SOLENOID VALVE" .

For A/T fluid temperature sensor, refer toAT-374, "BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR
CIRCUIT AND TCM POWER SOURCE)" .

EURO-OBD:

For shift solenoid valve A, refer to AT- 1 6 1 , "DTC P0750 SHIFT SOLENOID VALVE A" .

For shift solenoid valve B, refer to AT- 1 6 7 , "DTC P0755 SHIFT SOLENOID VALVE B" .

For line pressure solenoid valve, refer to AT- 1 5 4 , "DTC P0745 LINE PRESSURE SOLENOID VALVE" .

For torque converter clutch solenoid valve, refer to AT- 1 4 8 , "DTC P0740 TORQUE CONVERTER
CLUTCH SOLENOID VALVE" .

For overrun clutch solenoid valve, refer to AT- 1 7 8 , "DTC P1760 OVERRUN CLUTCH SOLENOID VALVE"
.

For A/T fluid temperature sensor, refer to AT- 1 8 4 , "DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SEN-
SOR CIRCUIT AND TCM POWER SOURCE)" .
SCIA4979E
SCIA3291E
SCIA0805E

REPAIR FOR COMPONENT PARTS
AT-453
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

Oil Cooler Relief Valve Spring

Check springs for damage or deformation.

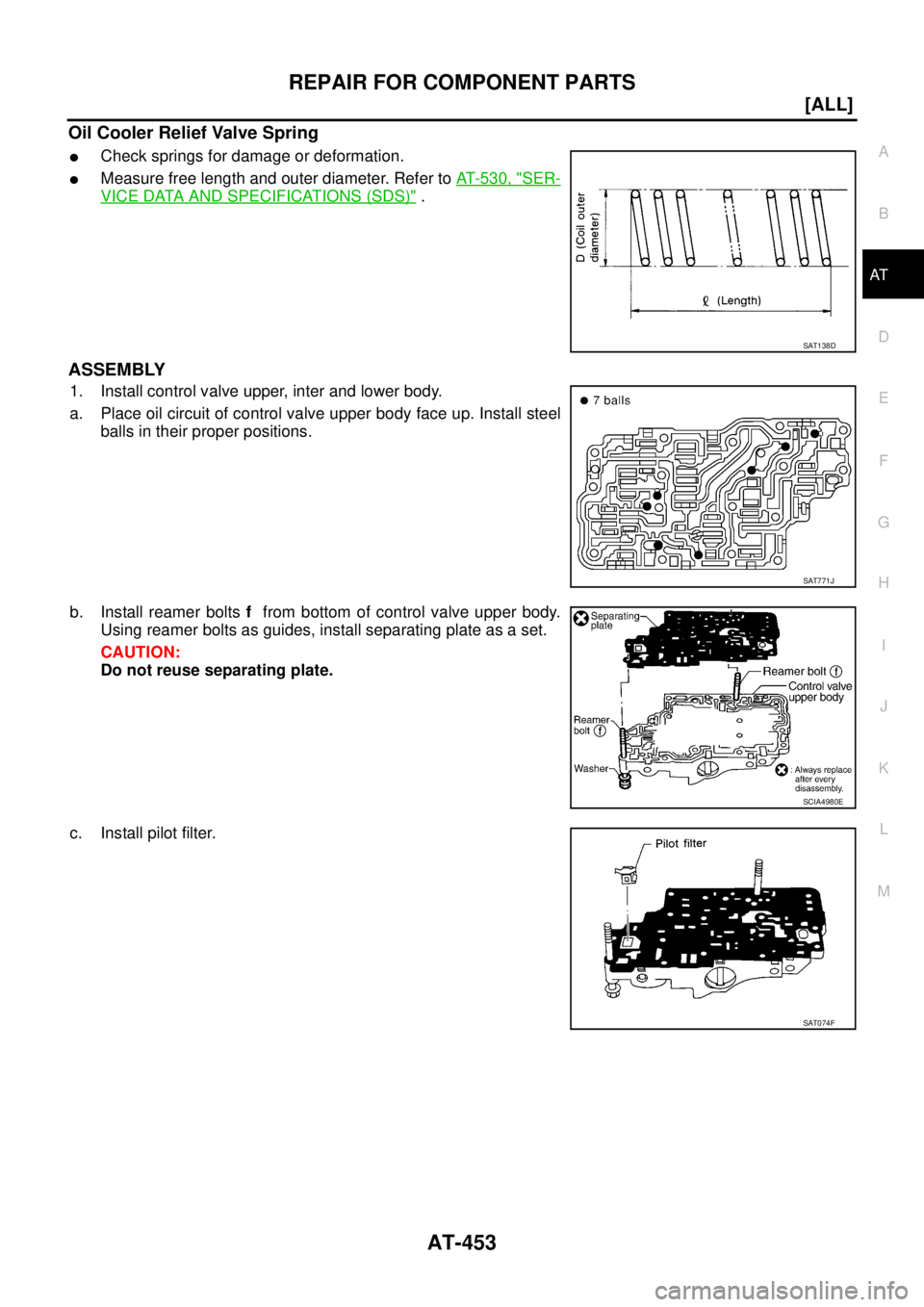

Measure free length and outer diameter. Refer to AT- 5 3 0 , "SER-
VICE DATA AND SPECIFICATIONS (SDS)" .
ASSEMBLY

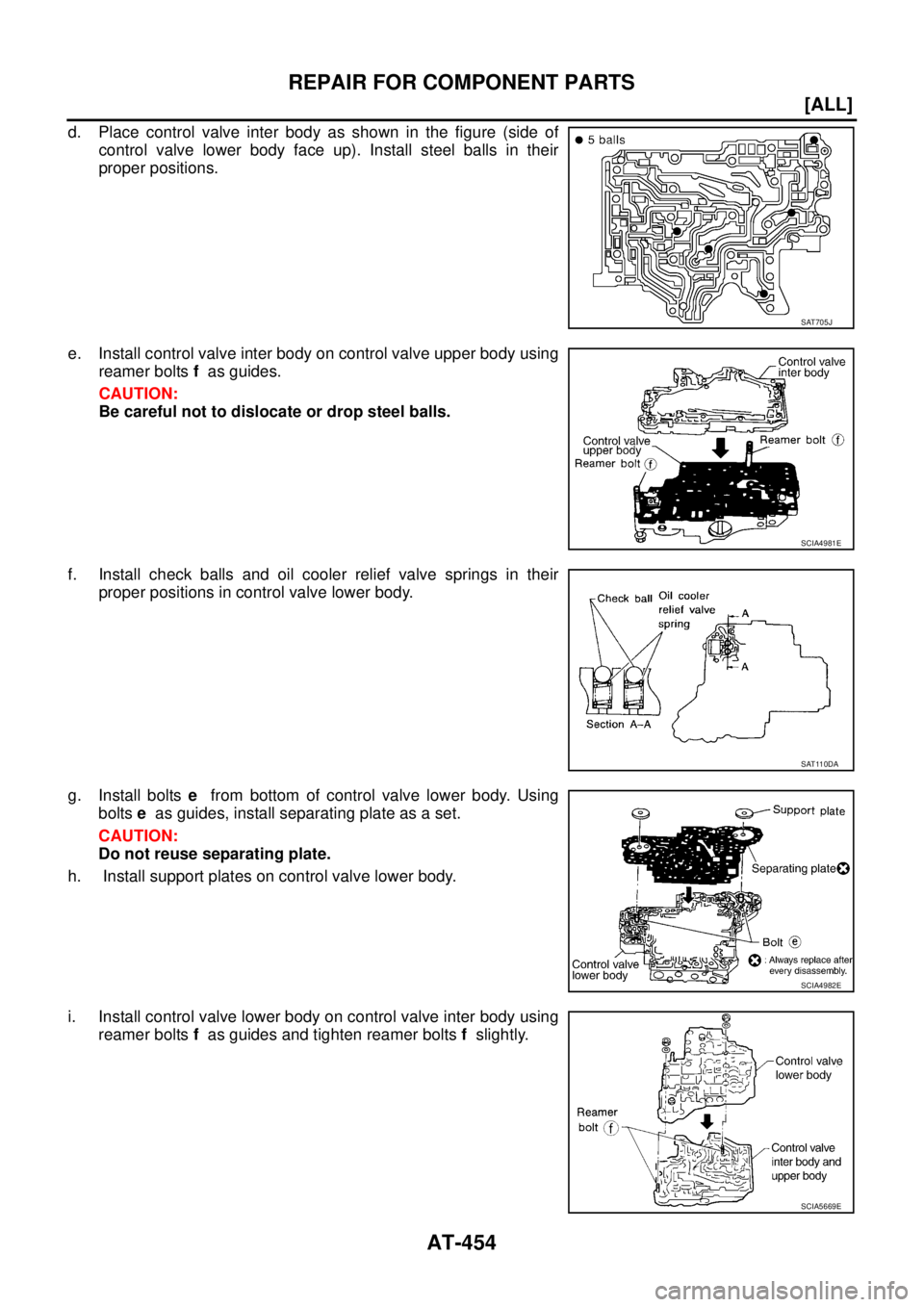

1. Install control valve upper, inter and lower body.
a. Place oil circuit of control valve upper body face up. Install steel
balls in their proper positions.
b. Install reamer bolts f from bottom of control valve upper body.
Using reamer bolts as guides, install separating plate as a set.
CAUTION:
Do not reuse separating plate.
c. Install pilot filter.
SAT138D
SAT771J
SCIA4980E
SAT074F

AT-454
[ALL]
REPAIR FOR COMPONENT PARTS

d. Place control valve inter body as shown in the figure (side of
control valve lower body face up). Install steel balls in their
proper positions.
e. Install control valve inter body on control valve upper body using
reamer bolts f as guides.
CAUTION:
Be careful not to dislocate or drop steel balls.
f. Install check balls and oil cooler relief valve springs in their
proper positions in control valve lower body.
g. Install bolts e from bottom of control valve lower body. Using
bolts e as guides, install separating plate as a set.
CAUTION:
Do not reuse separating plate.
h. Install support plates on control valve lower body.
i. Install control valve lower body on control valve inter body using
reamer bolts f as guides and tighten reamer bolts f slightly.
SAT705J
SCIA4981E
SAT110DA
SCIA4982E
SCIA5669E

REPAIR FOR COMPONENT PARTS
AT-455
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

2. Install O-rings to solenoid valves and terminal body.
CAUTION:

Do not reuse O-rings.

Apply ATF to O-rings.

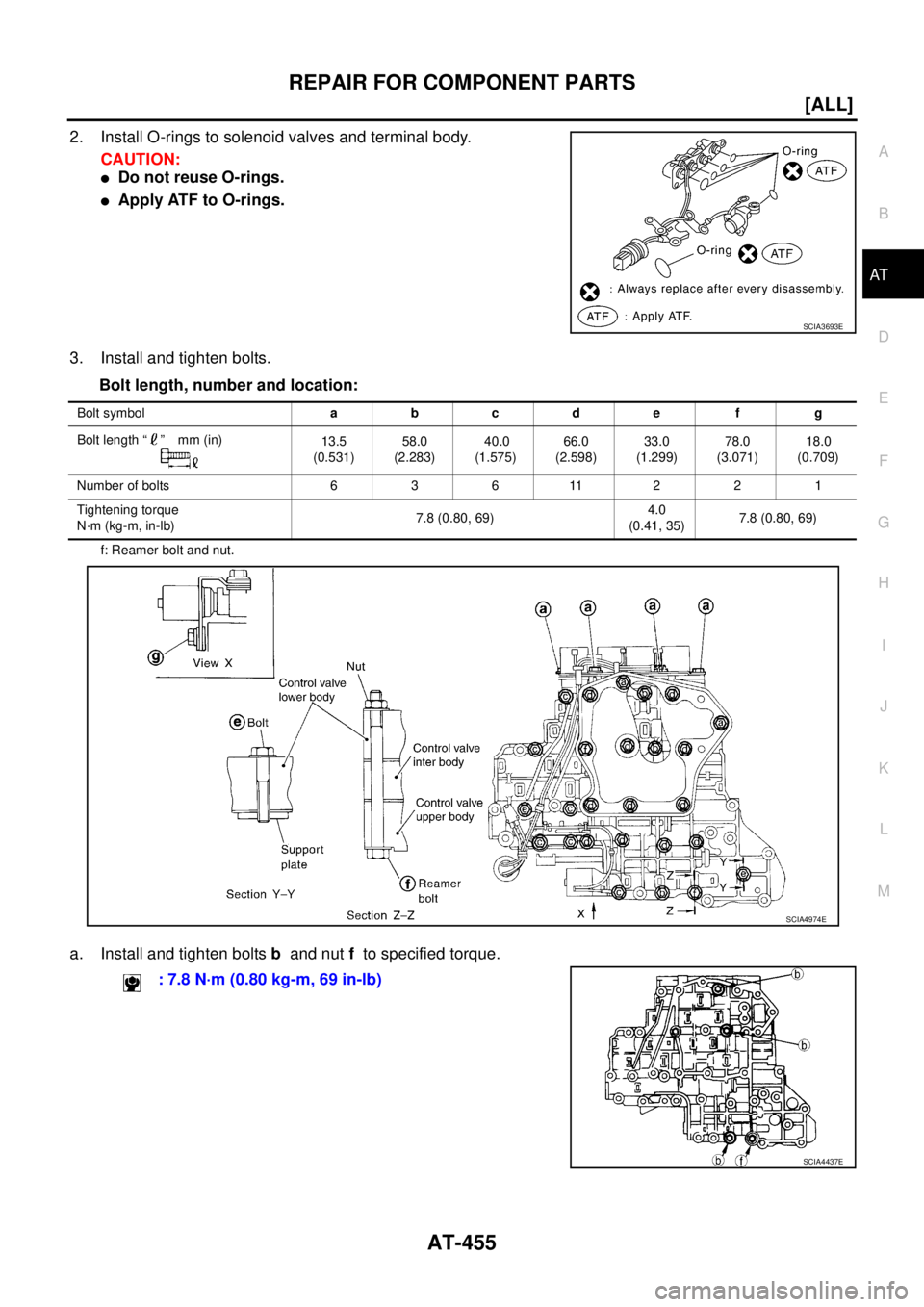

3. Install and tighten bolts.
Bolt length, number and location:
f: Reamer bolt and nut.
a. Install and tighten bolts b and nut f to specified torque.
SCIA3693E
Bolt symbolabcde f g
Bolt length “ ” mm (in)
13.5
(0.531)58.0
(2.283) 40.0
(1.575)66.0
(2.598)33.0
(1.299)78.0
(3.071)18.0
(0.709)
Number of bolts 6 3 6 11 2 2 1
Tightening torque
N·m (kg-m, in-lb)7.8 (0.80, 69)4.0
(0.41, 35)7.8 (0.80, 69)
SCIA4974E
: 7.8 N·m (0.80 kg-m, 69 in-lb)
SCIA4437E

AT-456
[ALL]
REPAIR FOR COMPONENT PARTS

b. Install solenoid valve assembly and line pressure solenoid valve
on control valve assembly.
c. Tighten bolts a , c and g to specified torque.
d. Set oil strainer, then tighten bolts a , d and nut f to specified
torque.
e. Tighten bolts e to specified torque. : 7.8 N·m (0.80 kg-m, 69 in-lb)
SCIA4438E
: 7.8 N·m (0.80 kg-m, 69 in-lb)
SCIA3484E
: 4.0 N·m (0.41 kg-m, 35 in-lb)
SCIA3487E
