NISSAN X-TRAIL 2005 Service Repair Manual

BACK DOOR
BL-99
C
D
E
F
G
H
J
K
L
MA
B
BL

BACK DOORPFP:90100
Fitting AdjustmentEIS000LF
VERTICAL/LATERAL CLEARANCE ADJUSTMENT
1. With striker removed, loosen hinge mount nuts on the back door and close it.
2. Make lateral clearance and clearance to rear window glass equal. Open back door to tighten mounting
bolts to specified torque.
3. If taking the steps above does not result in fine adjustment,
remove headliner and loosen the hinge mount nuts on the vehi-
cle for further adjustment.
PIIA3653E
SIIA0081E

BL-100
BACK DOOR

Back Door AssemblyEIS000LG
REMOVAL AND INSTALLATION
Removal
1. Disconnect connectors in the back door and encamp the harness. Pull the harness out of the back door.
2. Support the back door lock with a proper material to prevent it from falling and remove back door stay (gas
stay).
3. Remove hinge mount nuts on the back door and remove back door assembly.
Installation
Install in the reverse order of removal.
INSPECTION
1. Check hinges for the following items

Abnormal noise or door closing and opening effort

Component wear or damage
2. Apply Body Grease to the rotating part of the hinge.
Removal and Installation of Back Door HandleEIS0015D
REMOVAL
1. Remove back door trim. Refer to EI-34, "BACK DOOR TRIM" .
SIIA0085E
PIIA3747E

BACK DOOR
BL-101
C
D
E
F
G
H
J
K
L
MA
B
BL

2. Remove license lamp finisher. Refer to EI-31, "LICENSE LAMP
FINISHER" .
3. Remove cable clamp and remove cable from the back door han-
dle.
4. Remove mount nuts and back door handle.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Back Door Lock and ActuatorEIS000LI
REMOVAL
1. Remove back door trim. Refer to EI-34, "BACK DOOR TRIM" .
2. Disconnect back door lock & actuator connector.
3. Remove bolts from the back door lock and actuator and remove
back door lock & actuator.
INSTALLATION
Install in the reverse order of removal.
SIIA0232E
SIIA0234E

BL-102
BACK DOOR

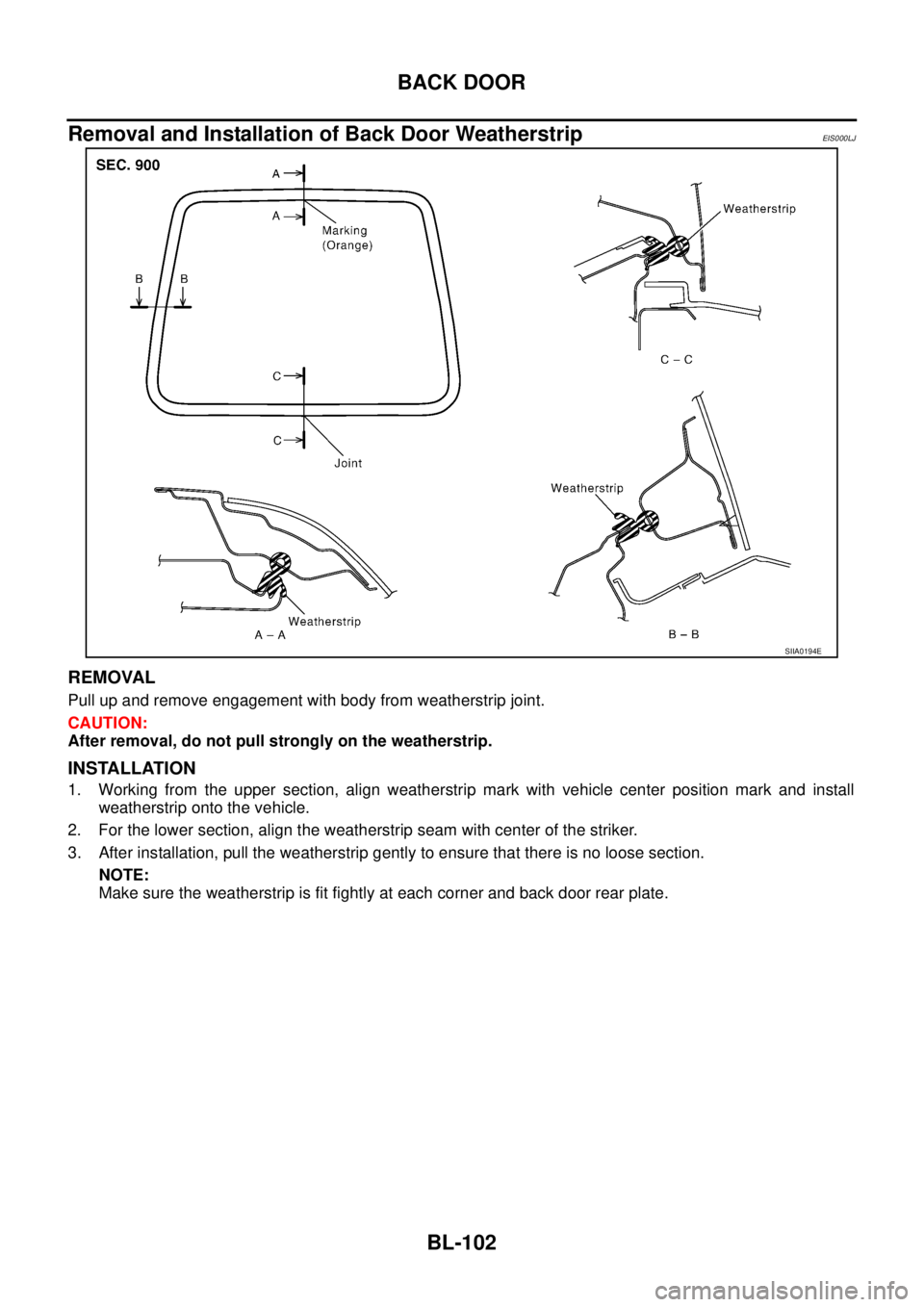

Removal and Installation of Back Door WeatherstripEIS000LJ
REMOVAL
Pull up and remove engagement with body from weatherstrip joint.
CAUTION:
After removal, do not pull strongly on the weatherstrip.
INSTALLATION
1. Working from the upper section, align weatherstrip mark with vehicle center position mark and install
weatherstrip onto the vehicle.
2. For the lower section, align the weatherstrip seam with center of the striker.
3. After installation, pull the weatherstrip gently to ensure that there is no loose section.
NOTE:
Make sure the weatherstrip is fit fightly at each corner and back door rear plate.
SIIA0194E

FUEL FILLER LID OPENER
BL-103
C
D
E
F
G
H
J
K
L
MA
B
BL

FUEL FILLER LID OPENERPFP:78820
Component Parts LocationEIS000LK
SIIA0166E

BL-104
THEFT WARNING SYSTEM

THEFT WARNING SYSTEMPFP:25362

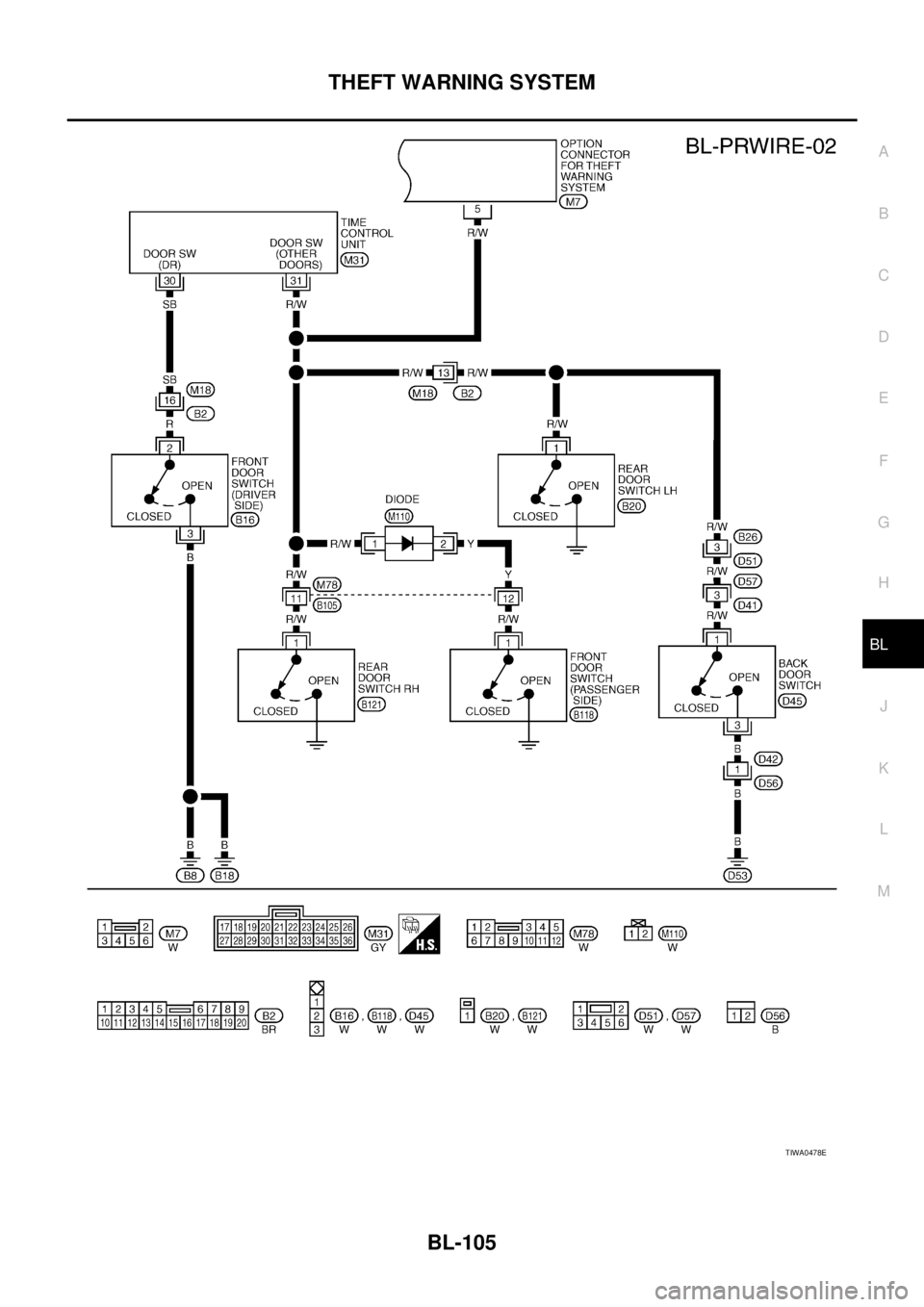

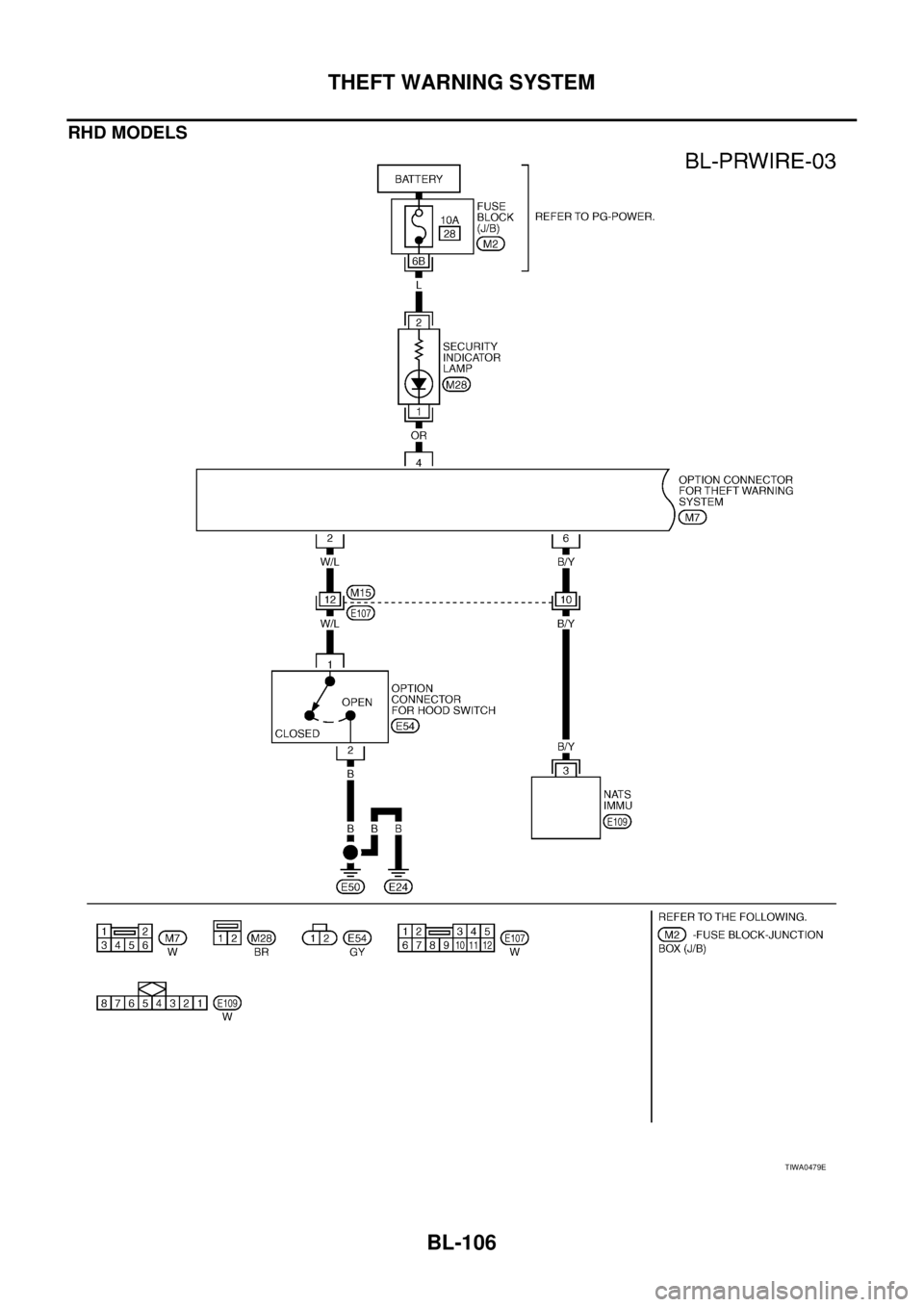

Wiring Diagram — THEFT —/PRI-WIREEIS001RM
LHD MODELS
TIWA0477E

THEFT WARNING SYSTEM
BL-105
C
D
E
F
G
H
J
K
L
MA
B
BL

TIWA0478E

BL-106
THEFT WARNING SYSTEM

RHD MODELS
TIWA0479E

THEFT WARNING SYSTEM
BL-107
C
D
E
F
G
H
J
K
L
MA
B
BL

TIWA0480E

BL-108
NATS (NISSAN ANTI-THEFT SYSTEM)

NATS (NISSAN ANTI-THEFT SYSTEM)PFP:25386
Component Parts and Harness Connector LocationEIS001RQ
PIIA0586E
