NISSAN X-TRAIL 2005 Service Repair Manual

SUNROOF
RF-13
C
D
E
F
G
H
J
K
L
MA
B
RF

Terminal and Reference Value for Sunroof SwitchEIS000MN
Wind Deflector InspectionEIS000MO
1. Open glass lid.
2. Visually confirm that the mounting condition is correct.
3. Confirm wind deflector connection is properly greased. If neces-
sary, apply body grease.
4. Confirm wind deflector can be properly raised by hand. If excess
wear or damage is detected, remove and visually check it. If it is
damaged, replace it with a new one. If no damage is found, rein-
stall it properly.
Glass Lid Weatherstrip InspectionEIS000MP
If there is water leakage around glass lid, close glass lid and flush with water to determine whether it is from
damaged parts or a gap.
1. Remove glass lid.
2. Visually check weatherstrip for damage, deterioration, or deformation. If excess wear or damage is
detected, replace glass lid.
Link and Wire Assembly InspectionEIS000MQ
1. If the link coating peels off to show the base material and an abnormal noise is heard, replace it.
2. Visually confirm the wire and rail groove are properly greased. If necessary, apply body grease.
TERMI-
NAL WIRE
COLORITEM CONDITIONVOLTAGE(V)
(Approx)
1 Y Sunroof OPEN signal Sunroof switch OPEN operation Battery voltage
2 B Ground — 0
3 R Sunroof CLOSE signal Sunroof switch CLOSE operation Battery voltage
4 L Sunroof TILT DOWN signal Sunroof switch TILT DOWN operation Battery voltage
5 G Sunroof AUTO OPEN signal Sunroof switch AUTO OPEN operation Battery voltage
6 W Sunroof TILT UP signal Sunroof switch TILT UP operation Battery voltage
SIIA0115E
SIIA0114E

RF-14
SUNROOF

Fitting AdjustmentEIS000MR
LONGITUDINAL/LATERAL CLEARANCE ADJUSTMENT
1. Tilt up glass lid and then remove side trim.
2. After loosening glass lid mounting nuts, tilt down glass lid.
3. Adjust glass lid according to sections A–A, B–B, C–C as shown in the figure.
4. After adjusting glass lid, tighten nuts to the specified torque.
5. Tilt glass lid 4 to 5 times to check that it smoothly goes up and down.
SURFACE MISMATCH ADJUSTMENT
1. Adjust surface height of glass lid and roof panel to 0 ± 1.5 mm
(0±0.059 in) by altering the number of shims between glass lid
and link assembly. (Standard: 2, max: 4)
2. After fitting adjustment, use a hose to flush the entire surface of
the roof with water to check for leaks.
PIIA3748E
SIIA0119E

SUNROOF
RF-15
C
D
E
F
G
H
J
K
L
MA
B
RF

Removal and InstallationEIS000MS

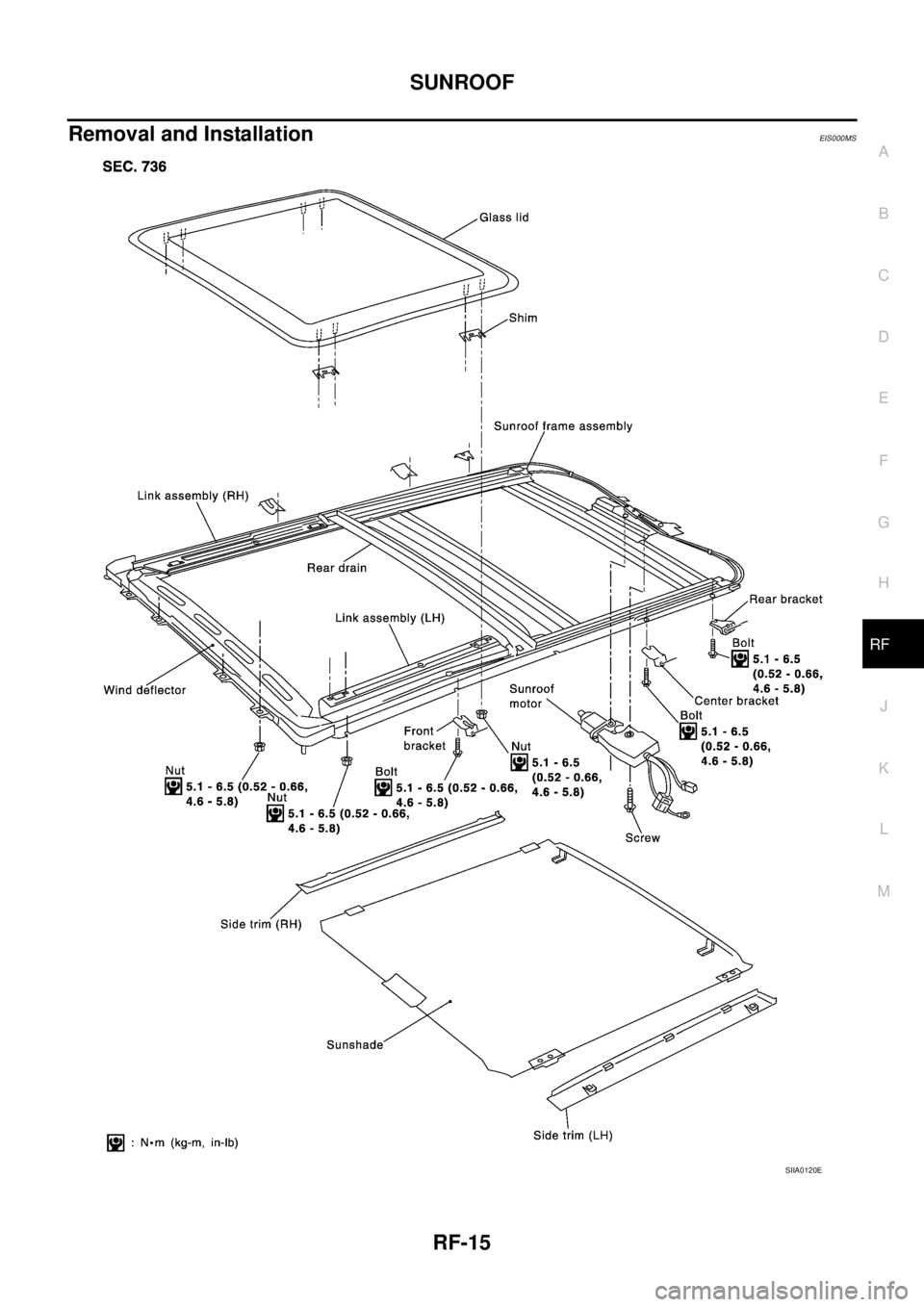

SIIA0120E

RF-16
SUNROOF

SUNROOF UNIT
Removal
CAUTION:

Removal and installation of sunroof unit require 2 workers.

When taking sunroof unit out, use shop cloths to protect seats and trim from damage.

After installing sunroof unit and glass lid, be sure to carry out the leak test to confirm there is no
more leakage.
1. Remove headlining. Refer to EI-39, "
HEADLINING"
2. Disconnect drain hoses.
3. Disconnect interior lamp harness.
4. Remove both sunroof unit-side and body-side front bracket
mounting bolts.
5. Remove both sunroof unit-side and body-side center and rear
bracket mounting bolts.
6. Disconnect connector from sunroof motor and then remove sun-
roof motor bracket mounting bolt.
7. Remove mounting bolts from the front end and side rails, then
remove sunroof unit from the roof panel.
8. Take out the sunroof unit from the passenger compartment while
being careful not to damage the seats and trim.
SIIA0130E
SIIA0184E
SIIA0121E
SIIA0183E

SUNROOF
RF-17
C
D
E
F
G
H
J
K
L
MA
B
RF

Installation
1. After bringing sunroof unit into the passenger compartment,
tighten mounting nuts on the side rails start from the one at the
front reference point.
2. Tighten mounting nuts of the front end.
3. Align the front bracket to lower face of the rail and roof side
mounting face. Tighten bolts of the sunroof unit side and then
tighten bolts of the roof side.
4. Align the center and rear brackets to lower face of the rail and
roof side mounting face. Tighten bolts of the sunroof unit side
and then tighten bolts of the roof side.
NOTE:
Install the sunroof bracket evenly so that the roof surface has no
distortion.
5. Tighten bolts of sunroof motor bracket.
6. Connect the sunroof motor harness connector.
7. Connect the interior lamp harness connector.
GLASS LID
Removal
1. Tilt up glass lid.
2. Remove side trim.
3. Confirm the number of shims between glass lid and link.
NOTE:
Number of shims. Standard: 2, max: 4.
4. Remove mounting nut and then remove glass lid.
Installation
Install in the reverse order of removal.
NOTE:

Tighten nuts on glass lid diagonally.

After installation, adjust the fit.
SUNSHADE
Removal and installation
1. Remove glass lid.
2. Remove rear drain.
3. Move link assembly to the fully open position.
4. Loosen the mounting screws of the front LH shade slider.
SIIA0122E
SIIA0131E
SIIA0124E

RF-18
SUNROOF

5. As shown in the figure, slide sunshade and then remove it from
the aluminum rail.
6. Swivel sunshade toward the left, then remove RH shade from
the aluminum rail.
7. Slide sunshade forward, then remove rear shade sliders as well.
8. Install in the reverse order of removal.
WIND DEFLECTOR
Removal and installation
1. Remove deflector arm mounting screws.
2. Using a pointed tool, pull up the tabs on the bushing.
NOTE:
Do not reuse the bushing after its tabs are pulled up.
3. Press and pull off the shaft.
4. Install in the reverse order of removal.
SUNROOF MOTOR
Removal
1. Remove headlining.
2. Remove motor mounting screw and mounting nut.
3. Remove the harness connector from sunroof motor, then
remove the sunroof motor.
NOTE:

Remove the sunroof motor when the sunroof is in the fully-
closed position.

Do not rotate the removed sunroof motor as a single unit.
Installation
Install in the reverse order of removal.
NOTE:

Move sunroof motor laterally little by little until the gear is completely engaged onto the wire on sunroof
unit and the mounting surface becomes parallel. Then secure sunroof motor with screws and nuts.

Before installing sunroof motor, be sure to place the link and wire assembly in the symmetrical and fully
closed position.
SIIA0126E
SIIA0127E
SIIA0128E
