NISSAN X-TRAIL 2005 Service Repair Manual

SERVICE DATA AND SPECIFICATIONS (SDS)
CO-25
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00KOP
CAPACITY
Unit: (lmp qt)
RADIATOR
Unit: kPa (bar, kg/cm2 , psi)
THERMOSTAT
WATER CONTROL VALVE
*: Reference data
Tightening TorqueEBS00KOQ
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)*
Engine coolant capacity (With reservoir tank at “MAX” level) Approx. 7.1 (6-1/4)
Reservoir tank0.7 (5/8)
Cap relief pressureStandard 78 - 98 (0.78 - 0.98, 0.8 - 1.0, 11- 14)
Limit 59 (0.59, 0.6, 9)
Leakage test pressure 157 (1.57, 1.6, 23)
Valve opening temperature 80.5 - 83.5°C (177 - 182°F)
Maximum valve lift 8 mm/ 95°C (0.315 in/ 203°F)
Valve closing temperature 77°C (171°F)
Valve opening temperature 93.5 - 96.5°C (200 - 206°F)
Maximum valve lift 8 mm/ 108°C (0.315 in/ 226°F)*
Valve closing temperature 90°C (194°F)
Radiator mounting bracket 5.5 (0.56, 49)*
Radiator cooling fan assembly 5.5 (0.56, 49)*
Cooling fan3.43 (0.35, 30)*
Fan motor4.41 (0.45, 39)*
Water pump24.5 (2.5, 18)
Water pump housing28.0 (2.9, 21)
Water pipe28.0 (2.9, 21)
Water inlet28.0 (2.9, 21)
Water control valve housing (water outlet) 28.0 (2.9, 21)
Hater pipe28.0 (2.9, 21)
Engine coolant temperature sensor 24.5 (2.5, 18)

CO-26
[YD22DDTi]
PRECAUTIONS

[YD22DDTi]PRECAUTIONSPFP:00001
Precautions For Liquid GasketEBS01276
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.

Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt
holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.
3. Attach liquid gasket tube to the tube presser (special service
tool).
Use Genuine Liquid Gasket or equivalent.

Within five minutes of liquid gasket application, install the mat-
ing component.

If liquid gasket protrudes, wipe it off immediately.

Do not retighten mounting bolts or nuts after the installation.

After 30 minutes or more have passed from the installation, fill
engine oil and engine coolant.
PBIC2160E

PREPARATION
CO-27
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

PREPARATIONPFP:00002
Special Service ToolsEBS00BAV
Commercial Service ToolsEBS011UY
Tool number
Tool nameDescription
EG17650301
Radiator cap tester adapterAdapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
KV99103510
Radiator plate pliers AInstalling radiator upper and lower tanks
KV99103520
Radiator plate pliers BRemoving radiator upper and lower tanks
S-NT564
S-NT224
S-NT225
Tool nameDescription
Radiator cap tester Checking radiator and radiator cap
PBIC1982E

CO-28
[YD22DDTi]
OVERHEATING CAUSE ANALYSIS

OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartEBS00BAW
Symptom Check items
Cooling sys-
tem parts
malfunctionPoor heat transferWater pump malfunction Worn or loose drive belt
— Thermostat stuck closed —
Damaged finsDust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tubeExcess foreign material
(rust, dirt, sand, etc.)
Reduced air flowCooling fan does not oper-
ateRefer to DTC in EC1217
(cooling system)
— High resistance to fan rota-
tion
Fan assembly
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio—— —
Poor engine coolant quality — Engine coolant density —
Insufficient engine coolantEngine coolant leaksCooling hoseLoose clamp
Cracked hose
Water pump Poor sealing
Radiator capLoose
Poor sealing
RadiatorO-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tankExhaust gas leaks into
cooling systemCylinder head deterioration
Cylinder head gasket dete-
rioration

OVERHEATING CAUSE ANALYSIS
CO-29
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

Except cool-
ing system
parts mal-
function— Overload on engineAbusive drivingHigh engine rpm under no
load
Driving in low gear for
extended time
Driving at extremely high
speed
Powertrain system mal-
function
— Installed improper size
wheels and tires
Dragging brakes
Improper ignition timing
Blocked or restricted air
flowBlocked bumper —
— Blocked radiator grilleInstalled car brassiere
Mud contamination or
paper clogging
Blocked radiator —
Blocked condenser
Blocked air flow
Installed large fog lamp Symptom Check items

CO-30
[YD22DDTi]
COOLING SYSTEM

COOLING SYSTEMPFP:21020

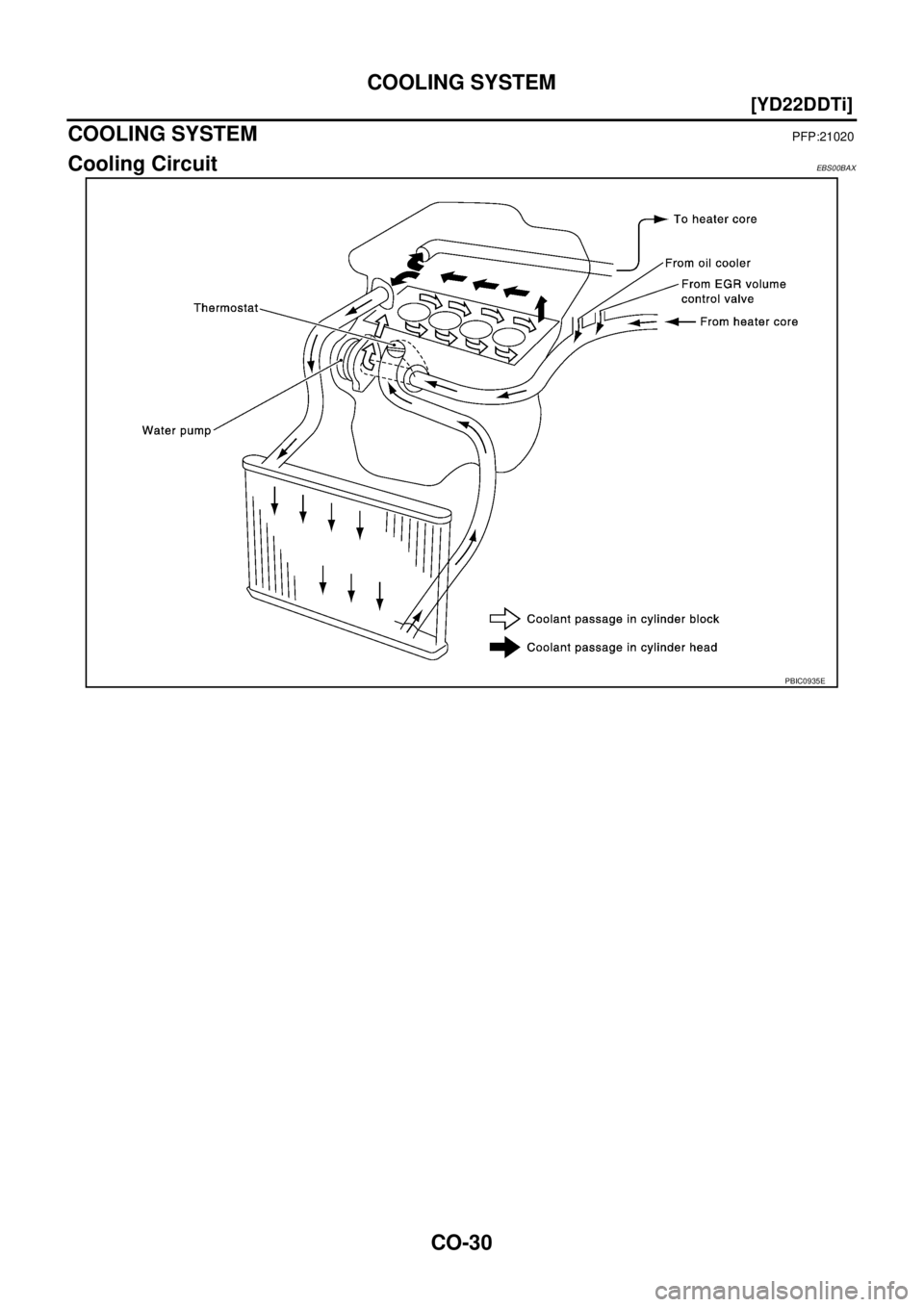

Cooling CircuitEBS00BAX
PBIC0935E

COOLING SYSTEM
CO-31
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

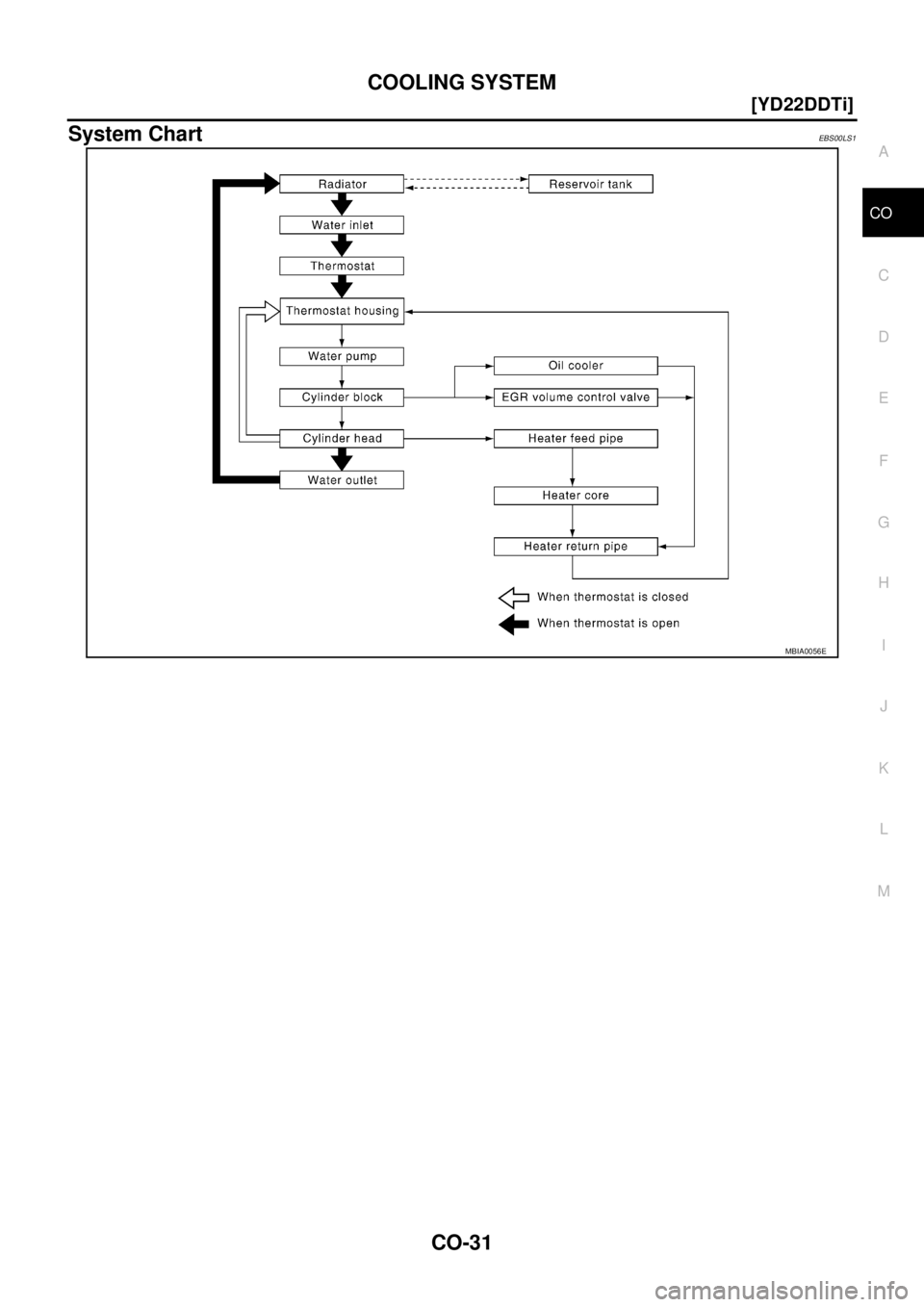

System ChartEBS00LS1
MBIA0056E

CO-32
[YD22DDTi]
ENGINE COOLANT

ENGINE COOLANTPFP:KQ100
InspectionEBS00BAY
LEVEL CHECK

Check if the reservoir tank engine coolant level is within “MIN” to
“MAX” when engine is cool.

Adjust engine coolant level as necessary.
CHECKING RADIATOR SYSTEM FOR LEAKS

To check for leaks, apply pressure to the cooling system with the
radiator cap tester (commercial service tool) and the radiator
cap tester adapter (special service tool).
WARNING:
Do not remove radiator cap when engine is hot. Serious
burns could occur from high pressure engine coolant
escaping from radiator.
CAUTION:
Higher test pressure than specified may cause radiator
damage.
NOTE:
In a case that engine coolant decreases, replenish radiator with engine coolant.

If anything is found, repair or replace damaged parts.
Changing Engine CoolantEBS00BAZ
WARNING:

To avoid being scalded, do not change engine coolant when engine is hot.

Wrap a thick cloth around cap and carefully remove radiator cap. First, turn radiator cap a quarter
of a turn to release built-up pressure. Then turn the cap all the way.
DRAINING ENGINE COOLANT
1. Remove engine undercover.
2. Open radiator drain plug at the bottom of radiator, and remove
radiator cap.
CAUTION:

Be careful not to allow engine coolant to contact drive
belts.

Cover the exhaust tube heat shield to prevent from
splashing engine coolant.
When draining all engine coolant in the system, open water drain plug on engine cylinder block. Refer
to EM-231, "
DISASSEMBLY".
3. Remove reservoir tank, drain engine coolant, then clean reservoir tank.
4. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
SMA412B
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm
2 , 23 psi)
SLC134B
PBIC0236E

ENGINE COOLANT
CO-33
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
CO

If contaminated, flush engine cooling system. Refer to CO-34, "FLUSHING COOLING SYSTEM" .
REFILLING ENGINE COOLANT
1. Install reservoir tank, and radiator drain plug.
CAUTION:
Be sure to clean radiator drain plug and install with new O-ring.

If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-235, "ASSEM-
BLY" .
2. Remove air relief plug.
3. Fill radiator and reservoir tank to the specified level.

Pour engine coolant through engine coolant filler neck
slowly of less than 2 (1-3/4 lmp qt) a minute to allow air
in system to escape.

Use Genuine Nissan Anti-freeze Coolant or equivalent
mixed with water (distilled or demineralized). Refer to
MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS".

When engine coolant overflows air relief hole, install air relief
plug with new copper washer.
4. Install radiator cap.
5. Warm up until opening thermostat and water control valve. Standard for warming-up time is approximately
10 minutes at 3,000 rpm.

Make sure thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch water temperature gauge so as not to overheat engine.
6. Stop engine and cool down to less than approximately 50°C(122°F).

Cool down using a fan to reduce the time.

If necessary, refill radiator up to filler neck with engine coolant.
7. Refill reservoir tank to “MAX” level line with engine coolant.
8. Repeat steps 3 through 6 two or more times with radiator cap installed until engine coolant level no longer
drops.
9. Check cooling system for leaks with engine running.
PBIC3608E
Engine coolant capacity
(with reservoir tank at “MAX” level)
: Approx. 9.5 (8-3/8 lmp qt)
SMA182B
Reservoir tank capacity (at “MAX” level)
: 0.7 (5/8 lmp qt)
Air relief plug
: 7.4 N·m (0.75 kg-m, 65 in-lb)
SMA412B

CO-34
[YD22DDTi]
ENGINE COOLANT

10. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000
rpm with heater temperature controller set at several position between “COOL” and “WARM”.

Sound may be noticeable at heater unit.
11. Repeat step 10 three times.
12. If sound is heard, bleed air from cooling system by repeating steps 3 through 6 until engine coolant level
no longer drops.
FLUSHING COOLING SYSTEM
1. Install reservoir tank if removed, and radiator drain plug.
CAUTION:
Be sure to clean drain plug and install with new O-ring.

If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-235, "ASSEM-
BLY" .
2. Fill radiator with water until water spills from the air relief hole, then close air relief plug. Fill radiator and
reservoir tank with water and reinstall radiator cap.
3. Run engine and warm it up to normal operating temperature.
4. Rev engine two or three times under no-load.
5. Stop engine and wait until it cools down.
6. Drain water from the system. Refer to CO-32, "
DRAINING ENGINE COOLANT" .
7. Repeat steps 1 through 6 until clear water begins to drain from radiator.
