OIL COOLER
LU-29
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU

2. Start engine, and make sure that there is no leaks of engine oil or engine coolant.
3. Stop engine and wait for 10 minutes.
4. Check the engine oil level and the engine coolant level again. Refer to LU-20, "
ENGINE OIL" and CO-32,
"ENGINE COOLANT" .

LU-30
[YD22DDTi]
OIL PUMP

OIL PUMPPFP:15010
Removal and InstallationEBS01AJ3
REMOVAL
Remove oil pump assembly. Refer to EM-198, "PRIMARY TIMING CHAIN" .
INSTALLATION
Installation is the reverse order of removal.
INSPECTION AFTER INSTALLATION
1. After warming up engine, check there is no leaks of engine oil.
2. Stop engine and wait for 10 minutes.
3. Check the engine oil level and adjust engine oil. Refer to LU-20, "
ENGINE OIL" .
Disassembly and AssemblyEBS01AI7
DISASSEMBLY
1. Remove oil pump cover.
2. Remove inner rotor and outer rotor from oil pump housing.
3. After removing regulator plug, remove inner and outer regulator springs and regulator valve.
INSPECTION AFTER DISASSEMBLY
Clearance of Oil Pump Parts

Measure the clearance with feeler gauge.
Clearance between outer rotor and oil pump housing (position 1)
Tip clearance between inner rotor and outer rotor (position 2)

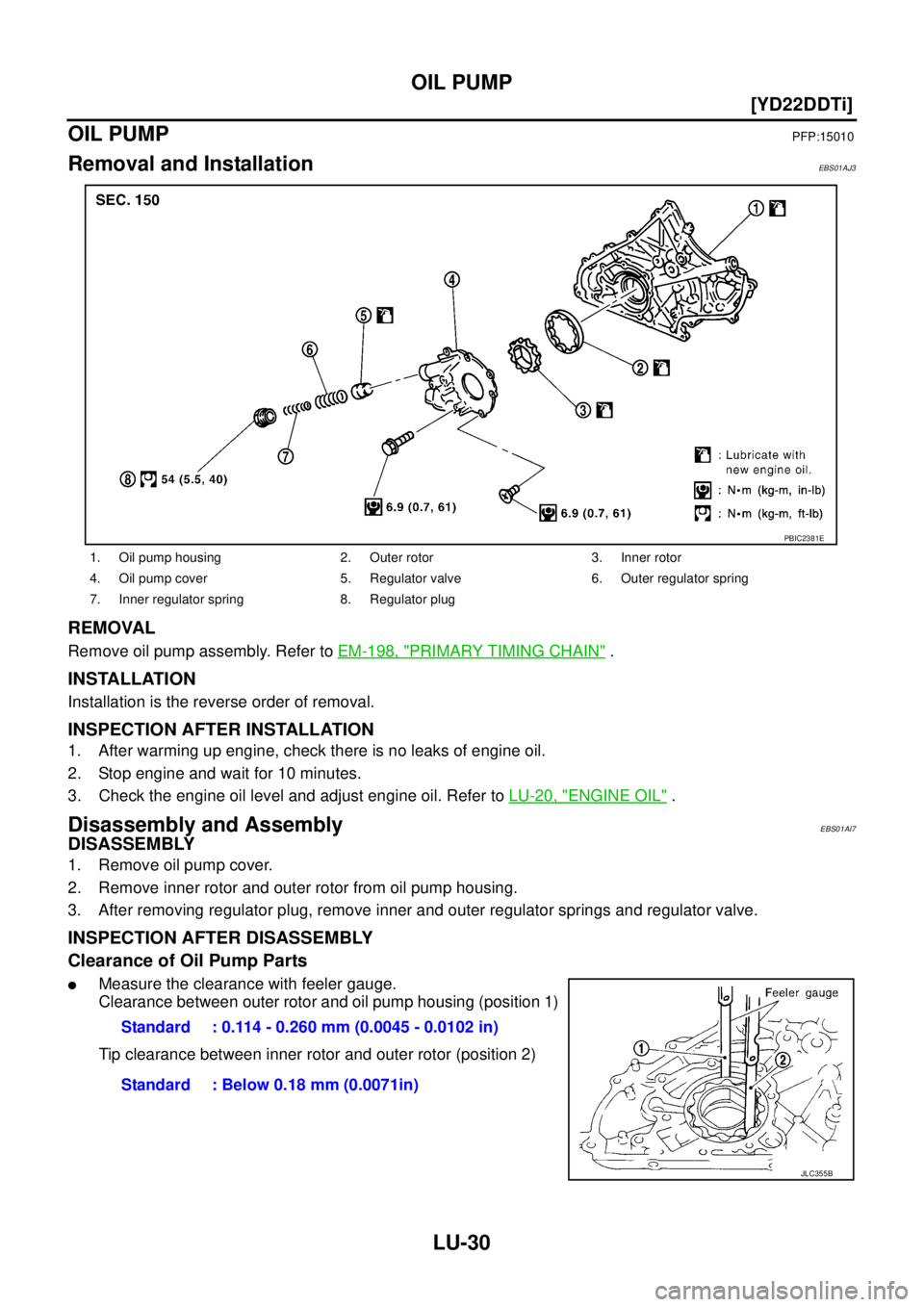

1. Oil pump housing 2. Outer rotor 3. Inner rotor
4. Oil pump cover 5. Regulator valve 6. Outer regulator spring
7. Inner regulator spring 8. Regulator plug
PBIC2381E
Standard : 0.114 - 0.260 mm (0.0045 - 0.0102 in)
Standard : Below 0.18 mm (0.0071in)
JLC355B

OIL PUMP
LU-31
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU

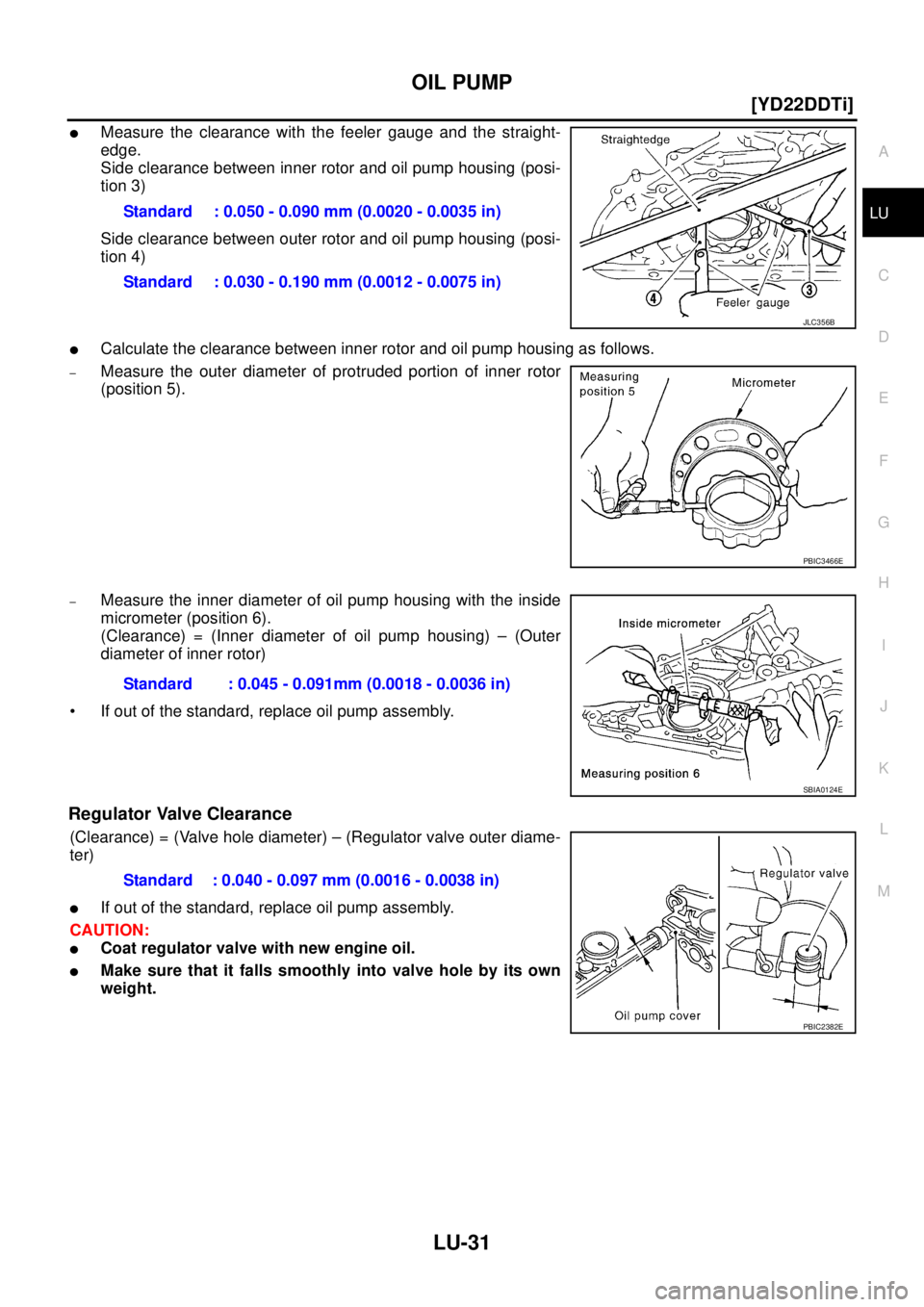

Measure the clearance with the feeler gauge and the straight-
edge.
Side clearance between inner rotor and oil pump housing (posi-
tion 3)
Side clearance between outer rotor and oil pump housing (posi-
tion 4)

Calculate the clearance between inner rotor and oil pump housing as follows.
–Measure the outer diameter of protruded portion of inner rotor
(position 5).
–Measure the inner diameter of oil pump housing with the inside
micrometer (position 6).
(Clearance) = (Inner diameter of oil pump housing) – (Outer
diameter of inner rotor)
 If out of the standard, replace oil pump assembly.
Regulator Valve Clearance
(Clearance) = (Valve hole diameter) – (Regulator valve outer diame-
ter)

If out of the standard, replace oil pump assembly.
CAUTION:

Coat regulator valve with new engine oil.

Make sure that it falls smoothly into valve hole by its own
weight.Standard : 0.050 - 0.090 mm (0.0020 - 0.0035 in)
Standard : 0.030 - 0.190 mm (0.0012 - 0.0075 in)
JLC356B
PBIC3466E
Standard : 0.045 - 0.091mm (0.0018 - 0.0036 in)
SBIA0124E
Standard : 0.040 - 0.097 mm (0.0016 - 0.0038 in)
PBIC2382E

LU-32
[YD22DDTi]
OIL PUMP

ASSEMBLY

Assembly is the reverse order of disassembly.

Install inner rotor and outer rotor with the punched marks on the
oil pump cover side.
JLC286B

SERVICE DATA AND SPECIFICATIONS (SDS)
LU-33
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS00CTZ
OIL PRESSURE
OIL PUMP
Unit: mm (in)
REGULATOR VALVE
Unit: mm (in)
OIL CAPACITY (APPROXIMATE)
Unit: · (Imp qt)
Tightening TorqueEBS00B0F
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)* Engine speed rpm
Approximate discharge pressure kPa (bar, kg/cm
2 , psi)
Idle speed
2,000140 (1.40, 1.43, 20.3) or more
270 (2.70, 2.75, 39.2) or more
Oil pump housing to outer rotor radial clearance 0.114 - 0.260 (0.0045 - 0.0102)
Inner rotor to outer rotor tip clearance Below 0.18 (0.0071)
Oil pump housing to inner rotor side clearance 0.050 - 0.090 (0.0020 - 0.0035)
Oil pump housing to outer rotor side clearance 0.030 - 0.190 (0.0012 - 0.0075)
Inner rotor to oil pump housing clearance 0.045 - 0.091 (0.0018 - 0.0036)
Regulator valve to valve hole clearance 0.040 - 0.097 (0.0016 - 0.0038)
With oil filter change 5.2 (4-5/8 Imp qt)
Without oil filter change 4.9 (4-3/8 Imp qt)
Dry engine (engine overhaul) 6.3 (5-1/2 Imp qt)
Oil pressure switch15 (1.5, 11)
Oil pan drain plug34 (3.5, 25)
Oil filter bracket21.5 (2.2, 16)
Oil filter (TYPE A)18 (1.8, 13)
Oil filler body (TYPE B) 22 (2.2, 16)
Oil pump cover Bolts 6.9 (0.7, 61)*
Screws 6.9 (0.7, 61)*
Regulator plug54 (5.5, 40)
Water hose connector 23.6 (2.4, 17)
Oil cooler24.5 (2.5, 18)

LU-34
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)
