NISSAN X-TRAIL 2005 Service Repair Manual

GROUND
PG-25
C
D
E
F
G
H
I
J
L
MA
B
PG

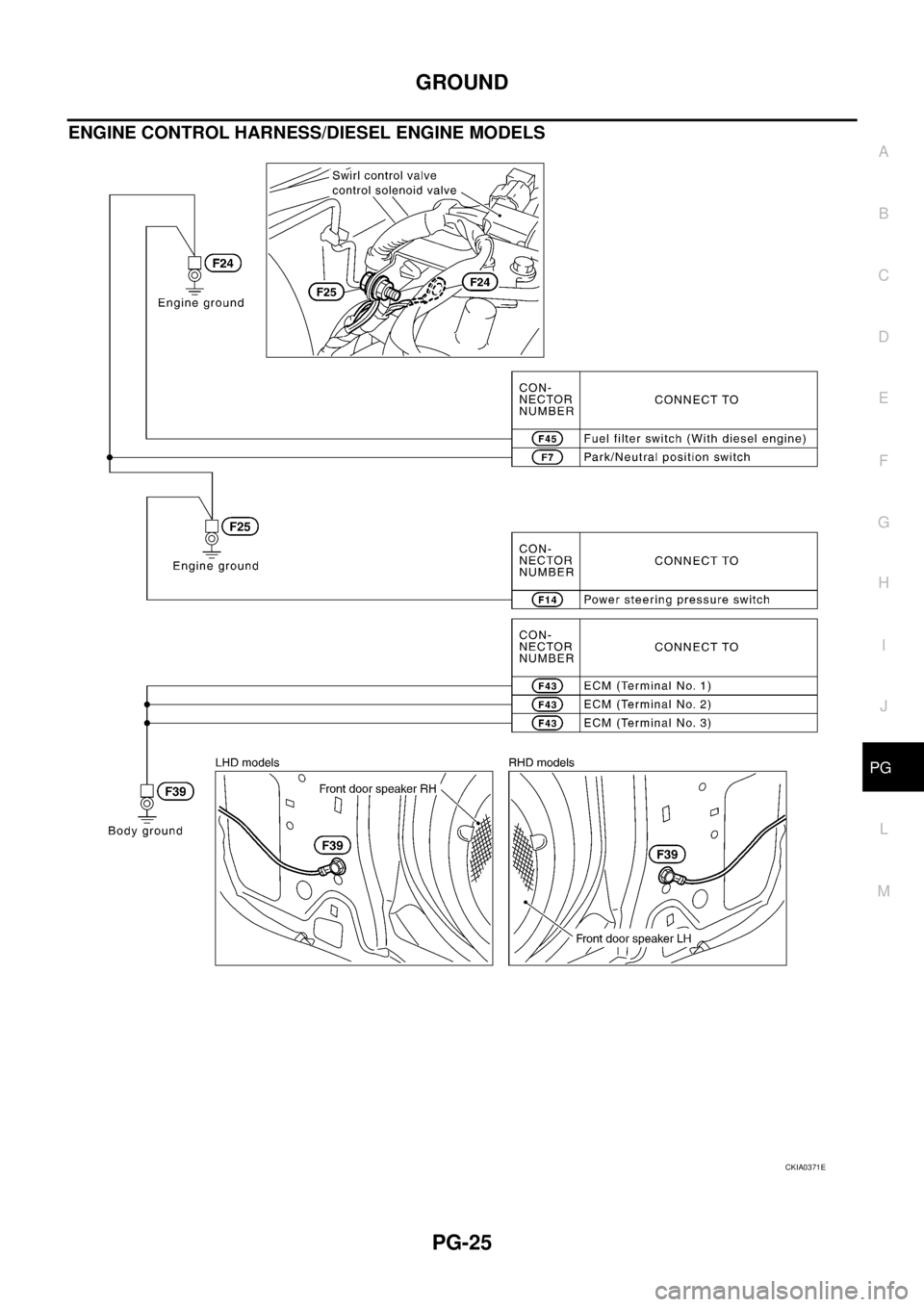

ENGINE CONTROL HARNESS/DIESEL ENGINE MODELS
CKIA0371E

PG-26
GROUND

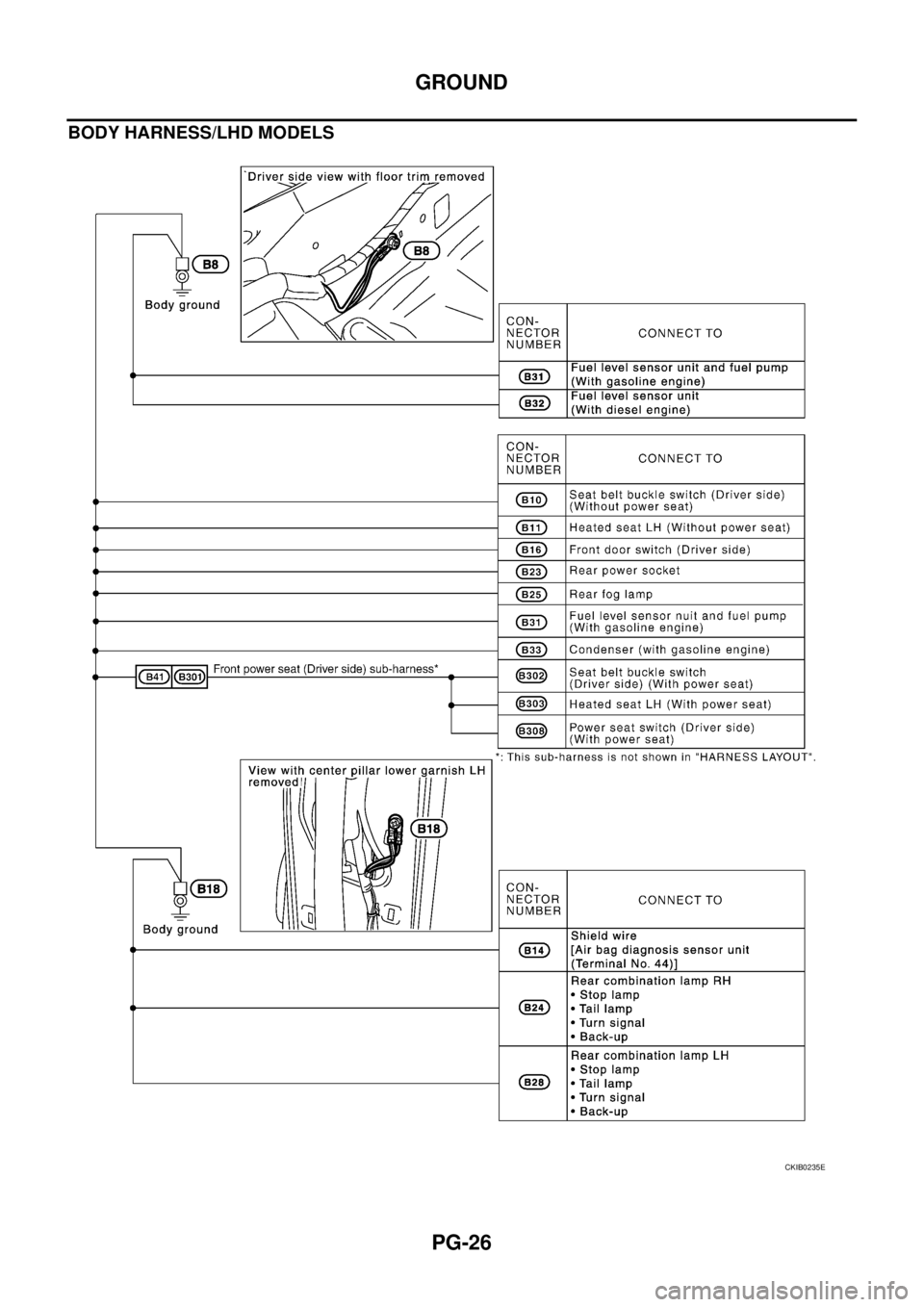

BODY HARNESS/LHD MODELS
CKIB0235E

GROUND
PG-27
C
D
E
F
G
H
I
J
L
MA
B
PG

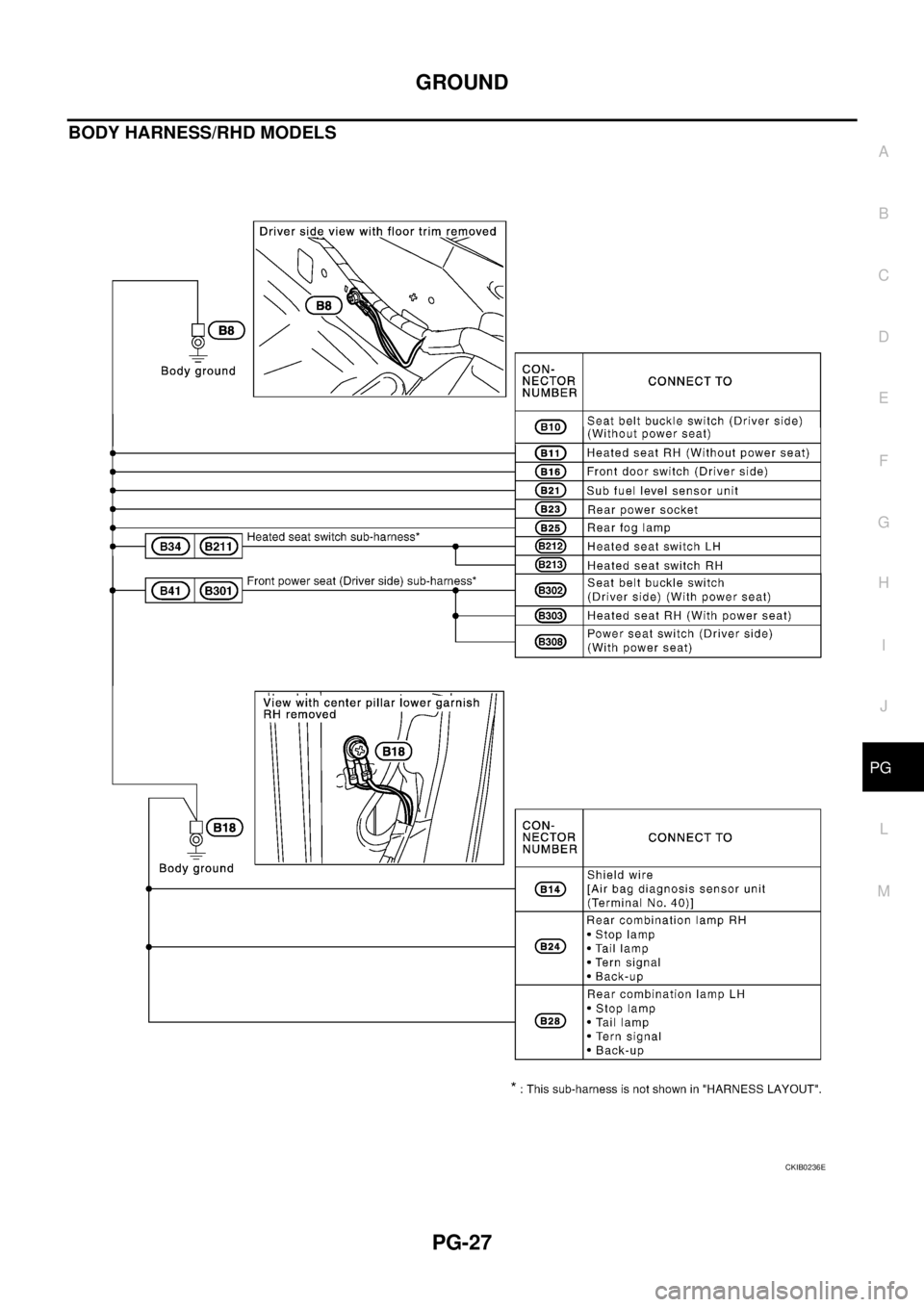

BODY HARNESS/RHD MODELS
CKIB0236E

PG-28
GROUND

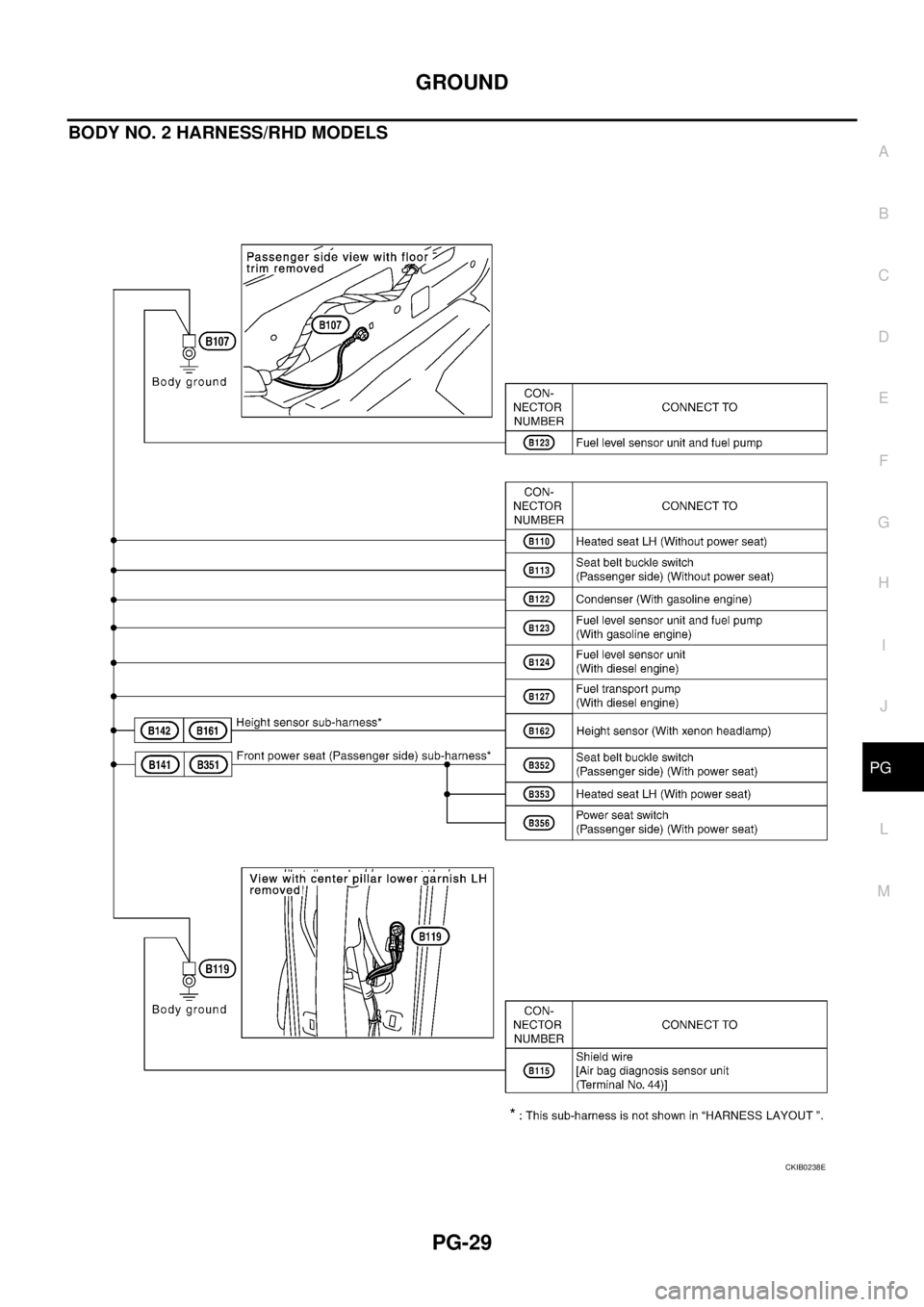

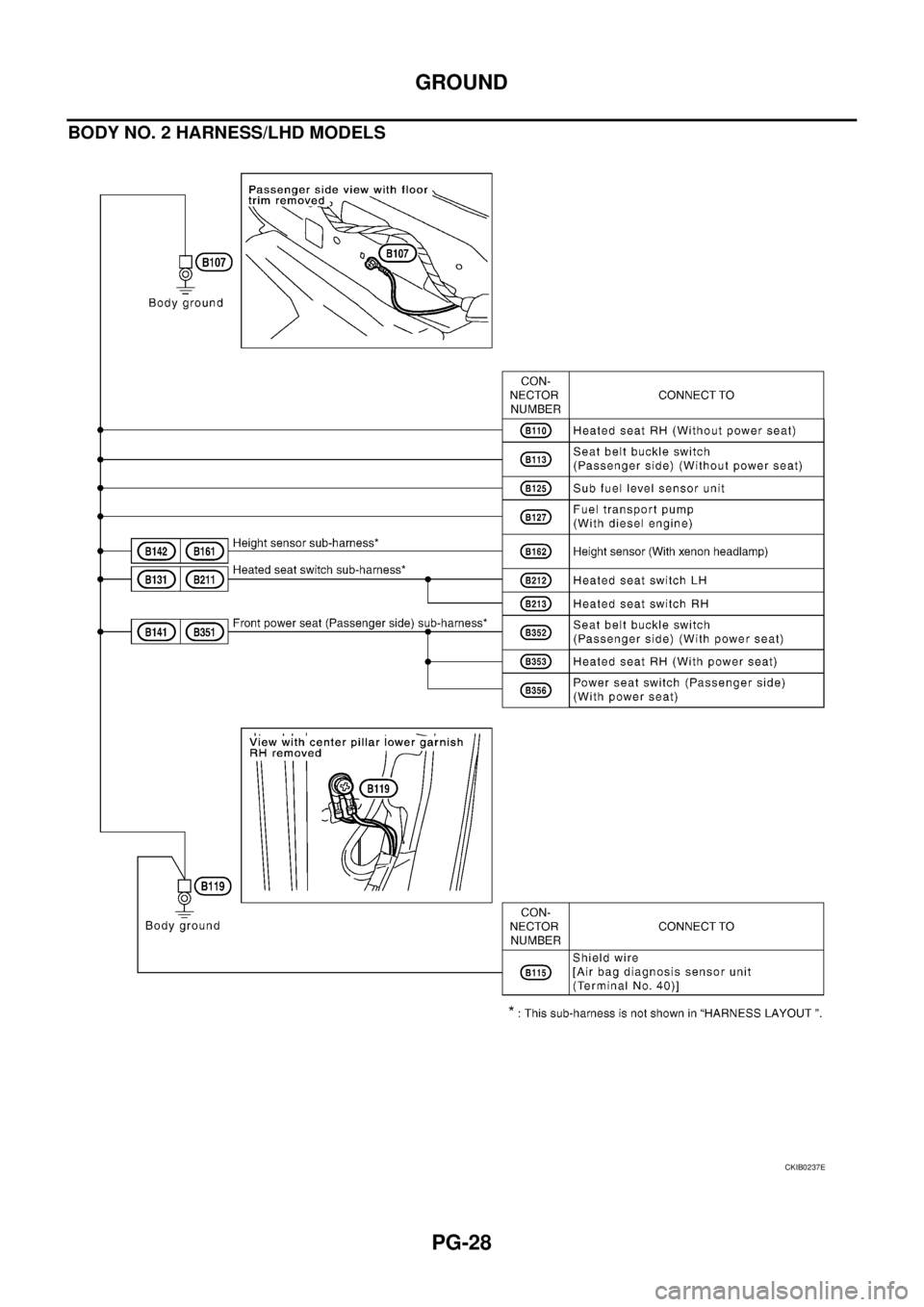

BODY NO. 2 HARNESS/LHD MODELS
CKIB0237E

GROUND
PG-29
C
D
E
F
G
H
I
J
L
MA
B
PG

BODY NO. 2 HARNESS/RHD MODELS
CKIB0238E

PG-30
GROUND

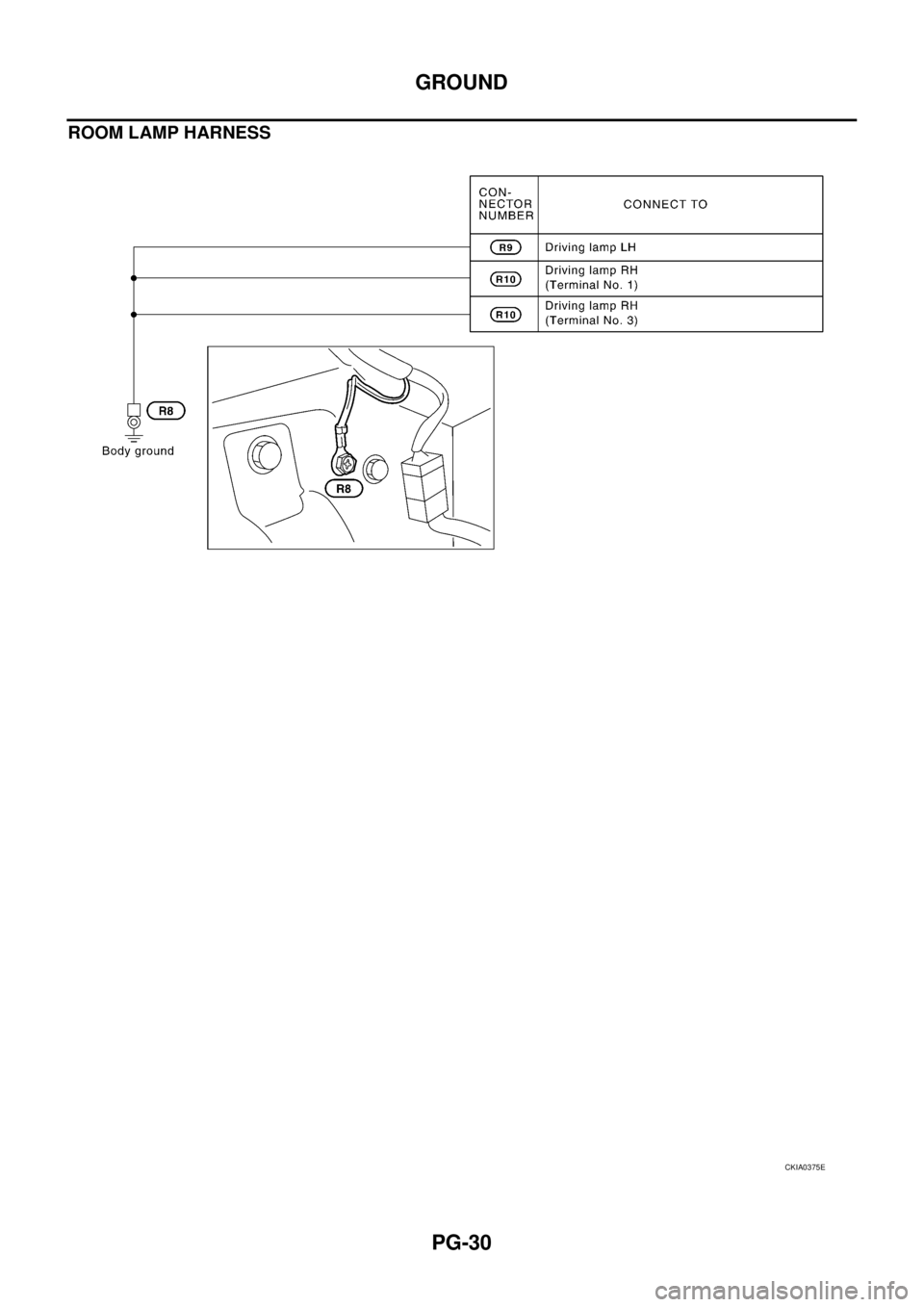

ROOM LAMP HARNESS
CKIA0375E

GROUND
PG-31
C
D
E
F
G
H
I
J
L
MA
B
PG

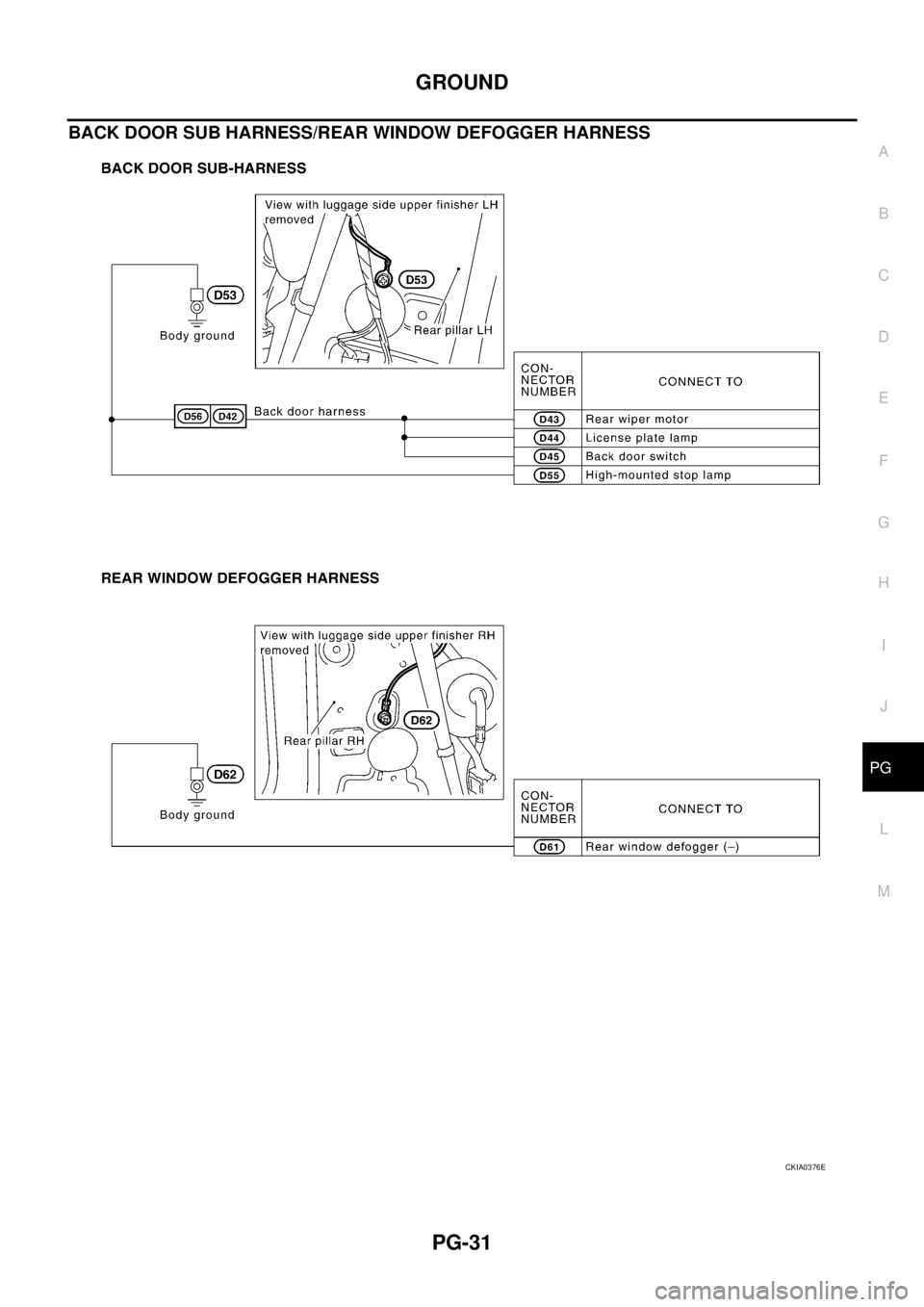

BACK DOOR SUB HARNESS/REAR WINDOW DEFOGGER HARNESS
CKIA0376E

PG-32
HARNESS

HARNESS PFP:00011
Harness Layout EKS0032I
HOW TO READ HARNESS LAYOUTS
The following Harness Layouts use a map style grid to help locate
connectors on the figures:

Main Harness

Engine Room Harness
To Use the Grid Reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the figure, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

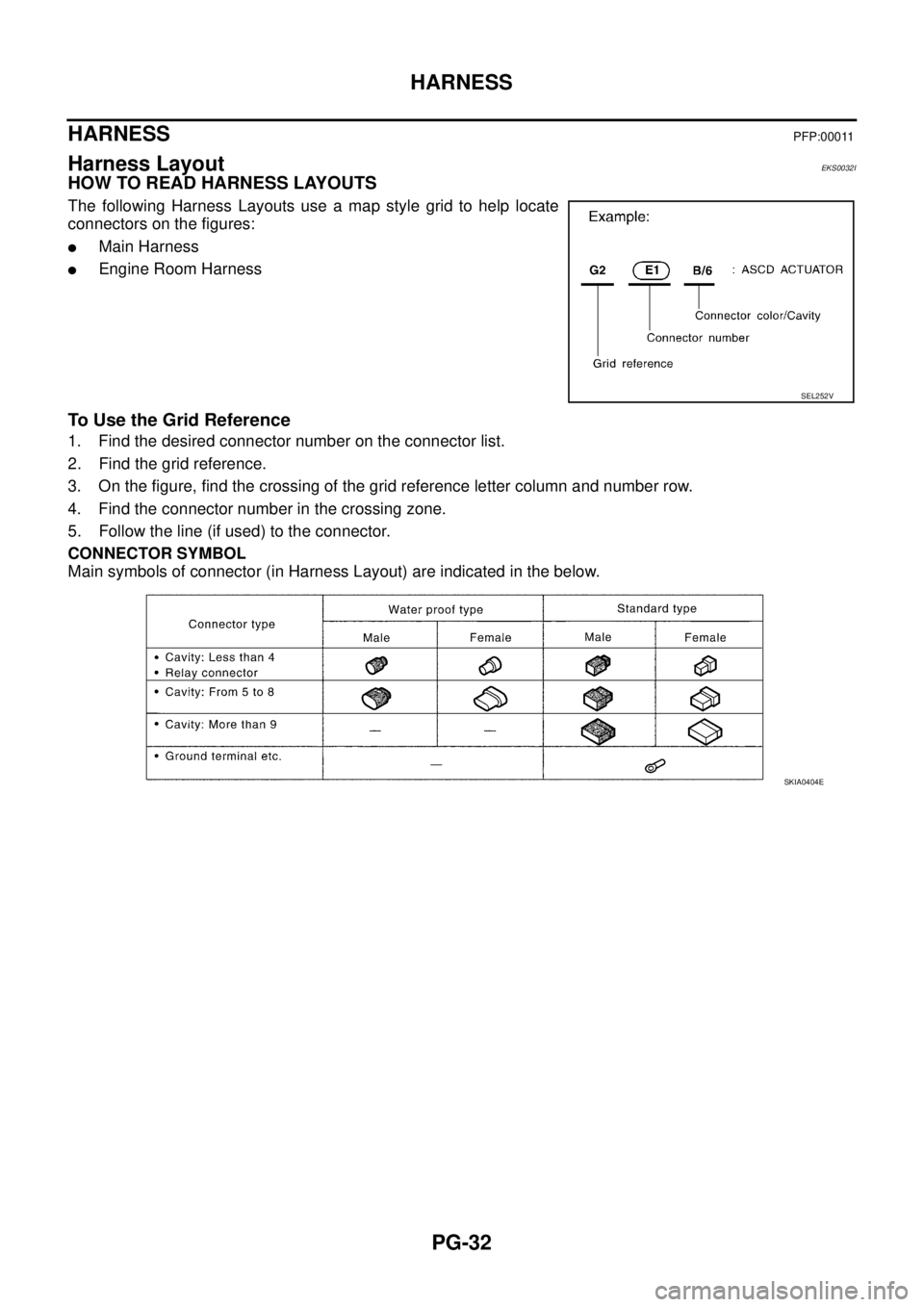

CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
SEL252V
SKIA0404E

HARNESS
PG-33
C
D
E
F
G
H
I
J
L
MA
B
PG

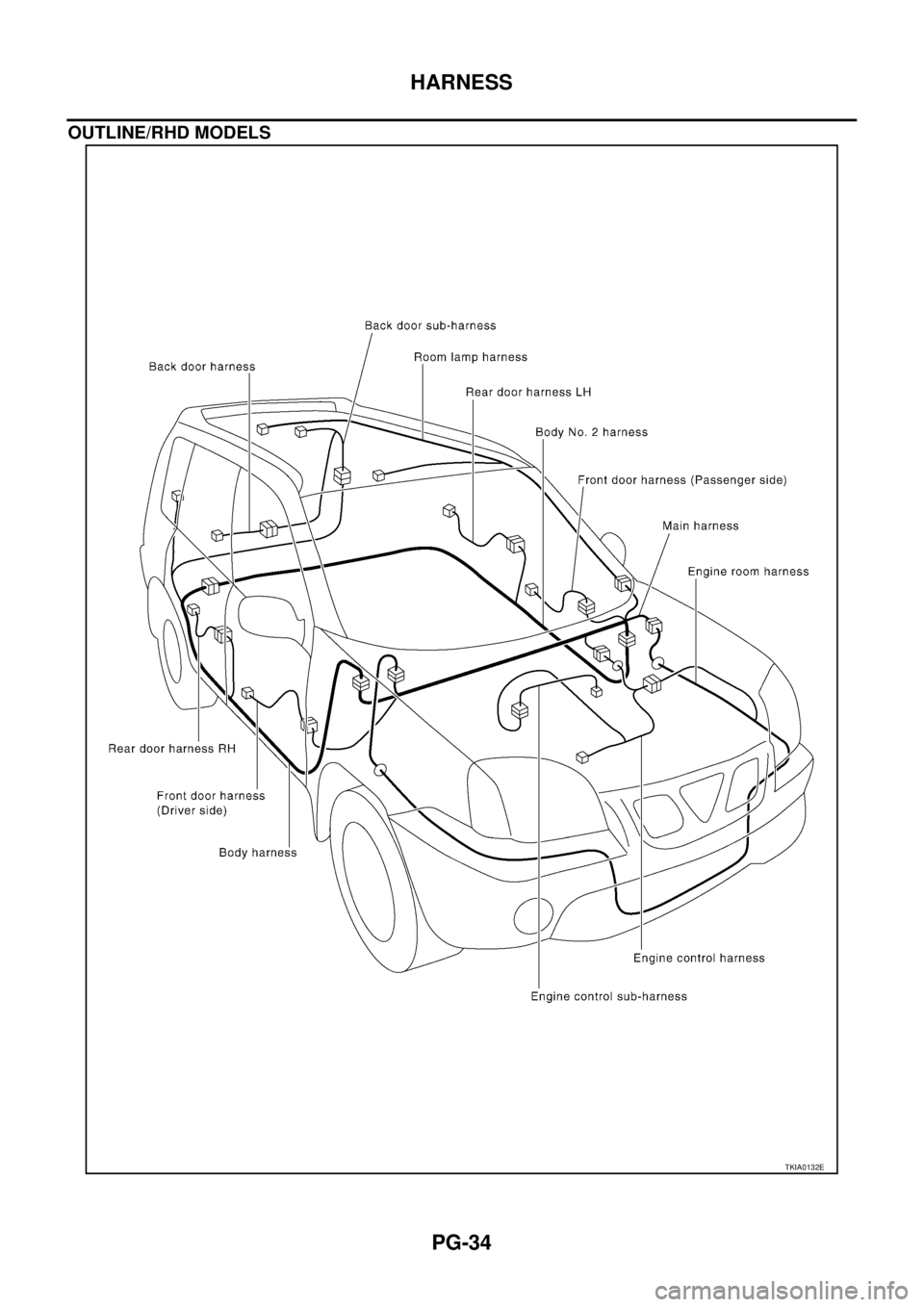

OUTLINE/LHD MODELS
TKIA0131E

PG-34
HARNESS

OUTLINE/RHD MODELS
TKIA0132E
