NISSAN X-TRAIL 2005  Service Repair Manual HARNESS
PG-35
C
D
E
F
G
H
I
J
L
MA
B
PG

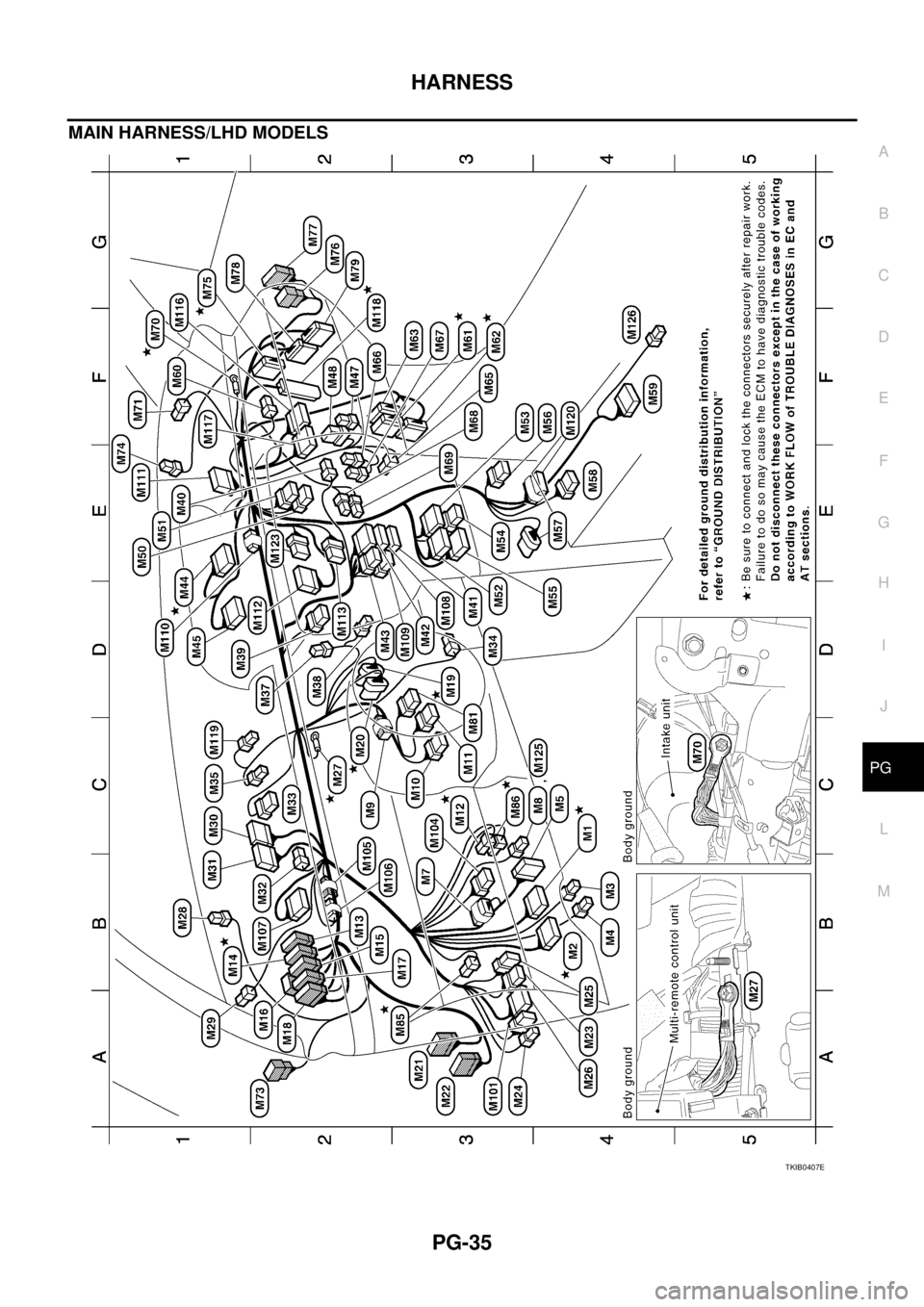

MAIN HARNESS/LHD MODELS
TKIB0407E

Page 4452 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual PG-36
HARNESS

TKIB0408E

Page 4453 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual HARNESS
PG-37
C
D
E
F
G
H
I
J
L
MA
B
PG

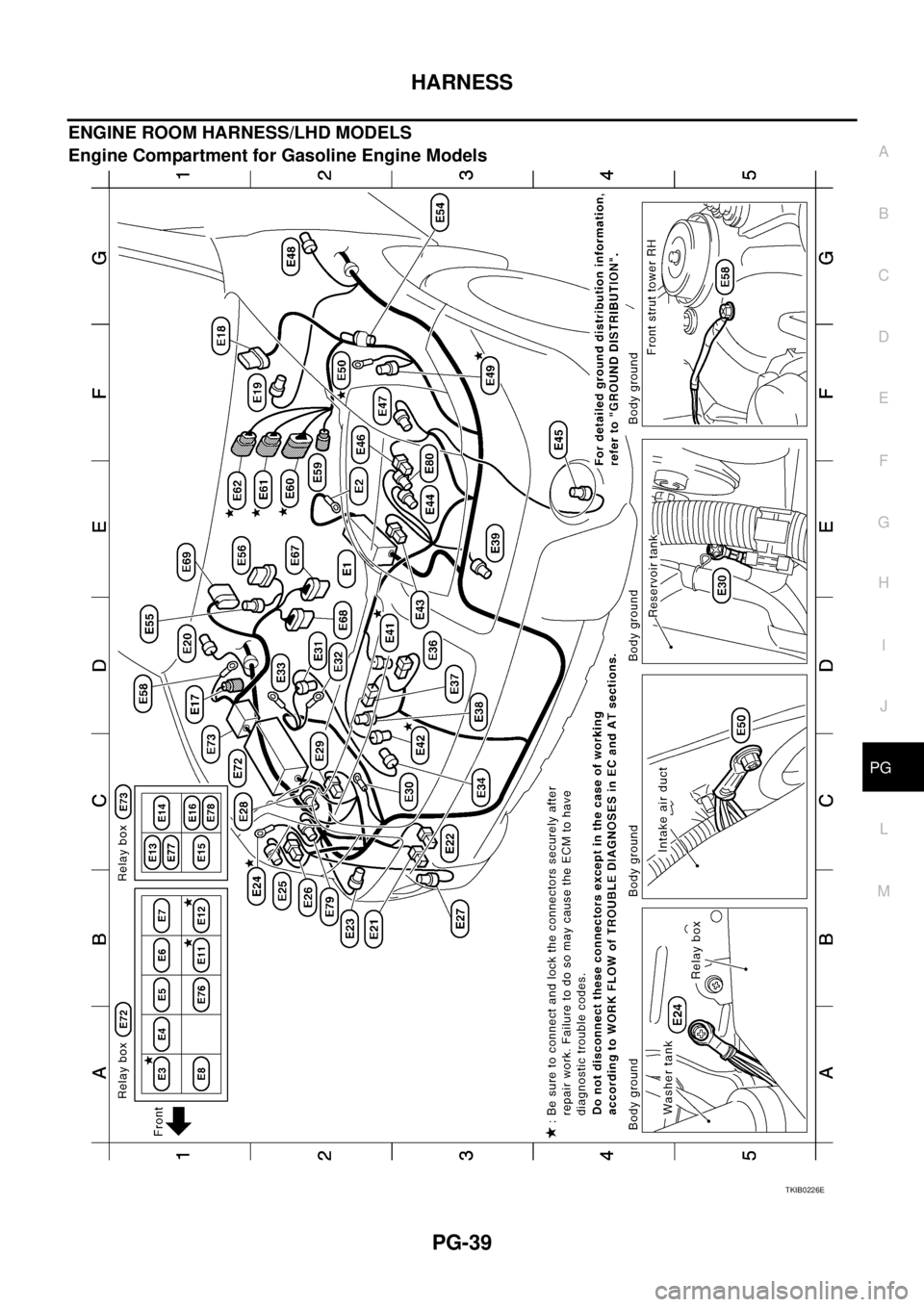

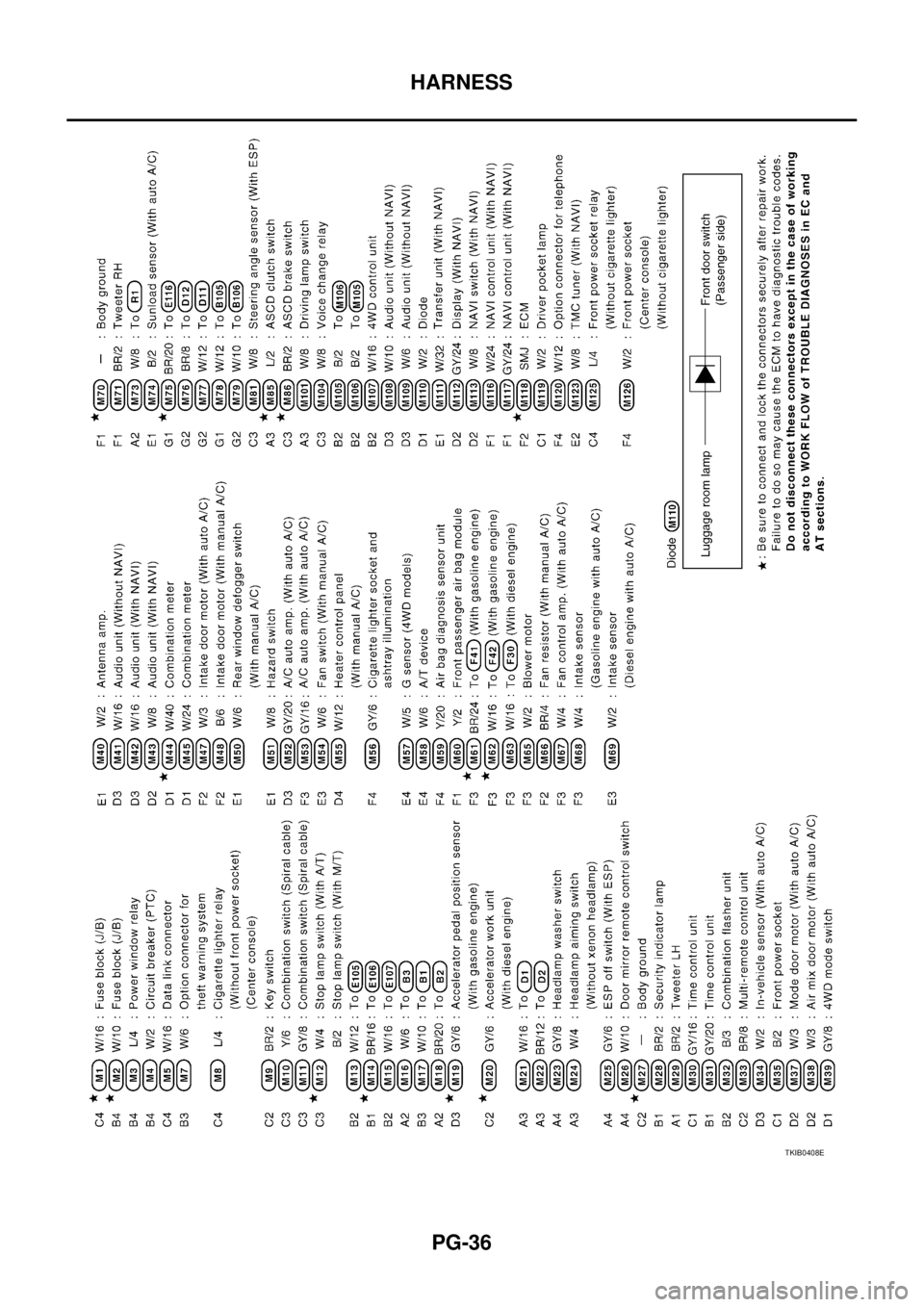

MAIN HARNESS/RHD MODELS
TKIB0409E

Page 4454 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual PG-38
HARNESS

TKIB0410E

Page 4455 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual HARNESS
PG-39
C
D
E
F
G
H
I
J
L
MA
B
PG

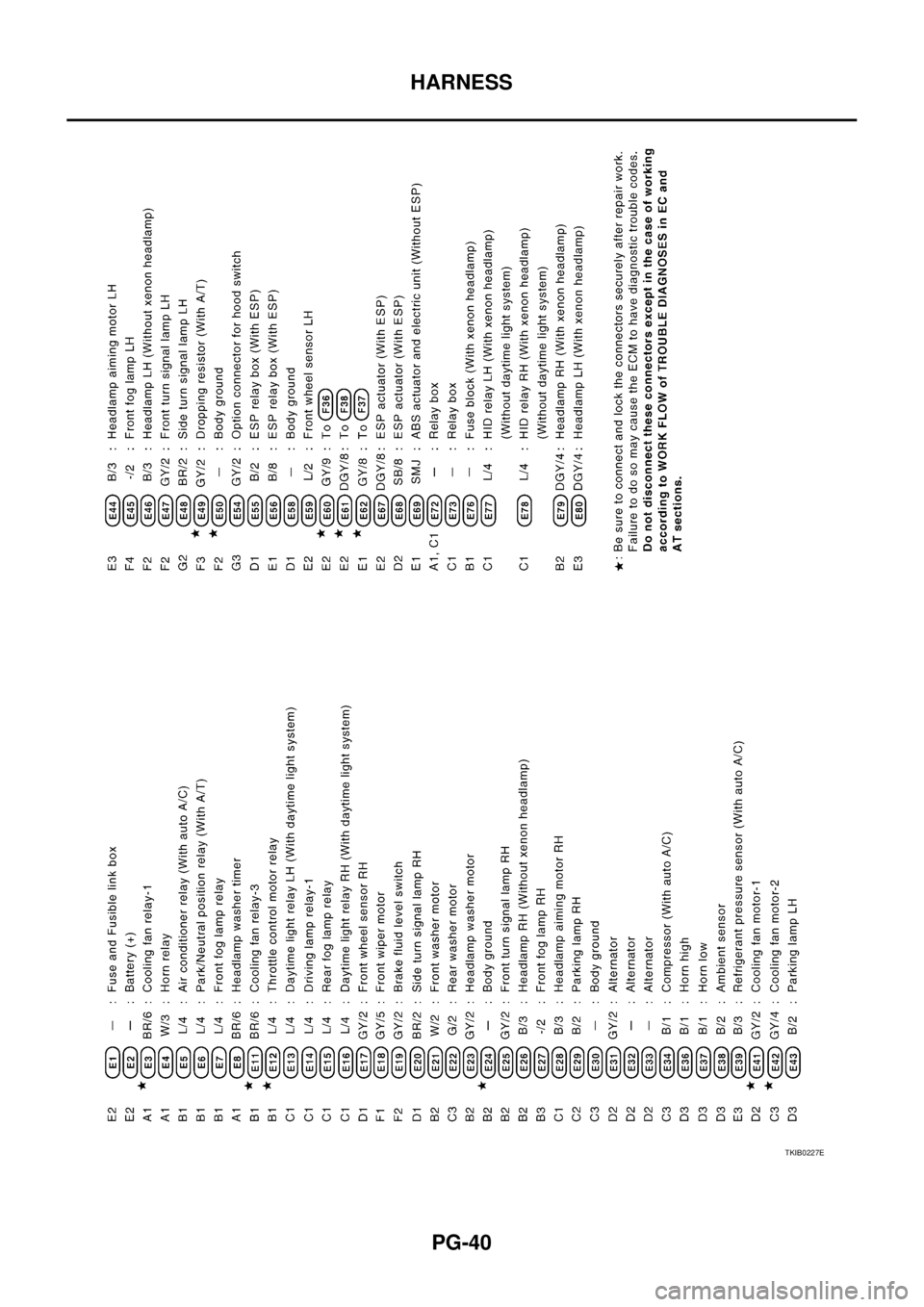

ENGINE ROOM HARNESS/LHD MODELS
Engine Compartment for Gasoline Engine Models
TKIB0226E

Page 4456 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual PG-40
HARNESS

TKIB0227E

Page 4457 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual HARNESS
PG-41
C
D
E
F
G
H
I
J
L
MA
B
PG

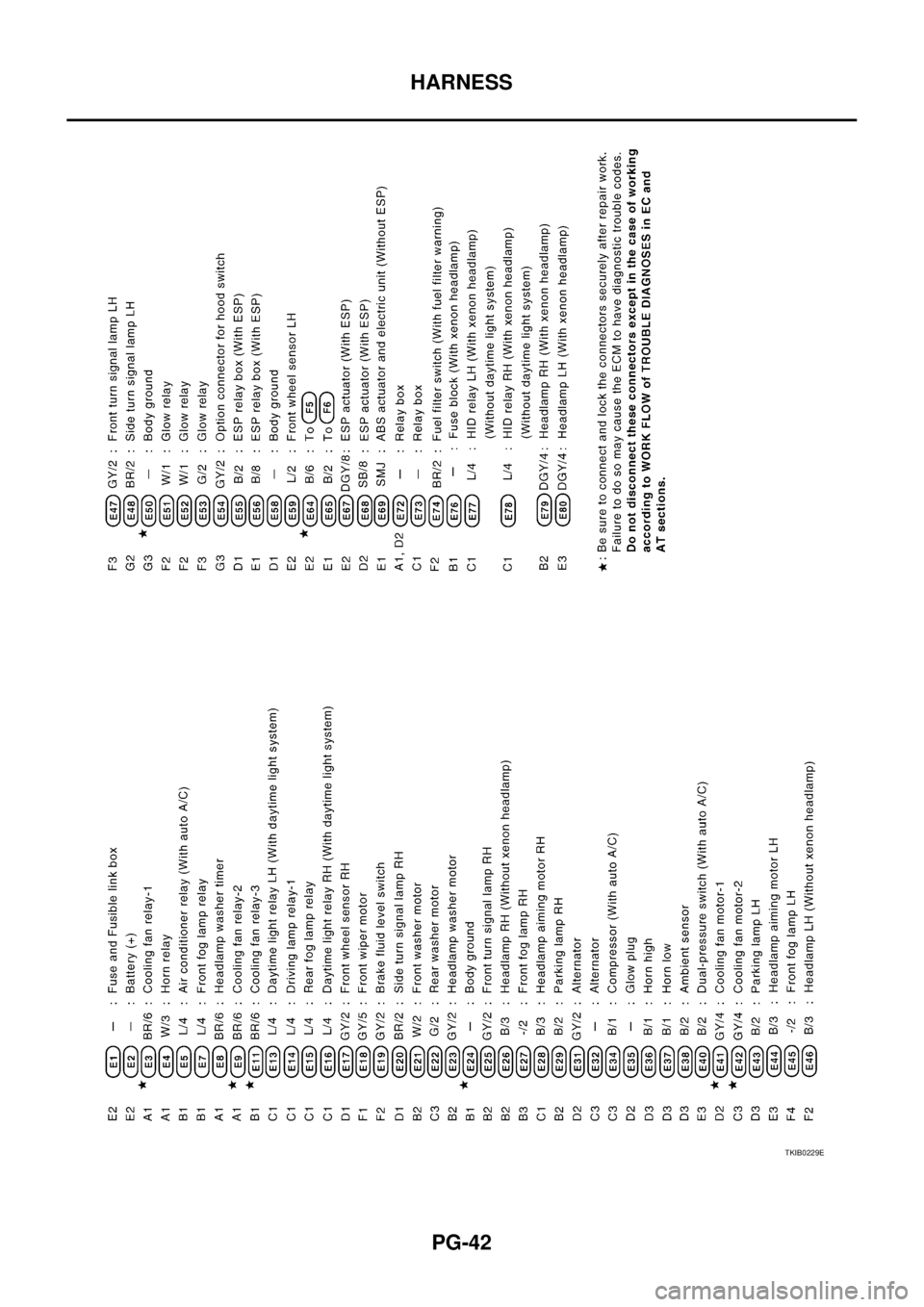

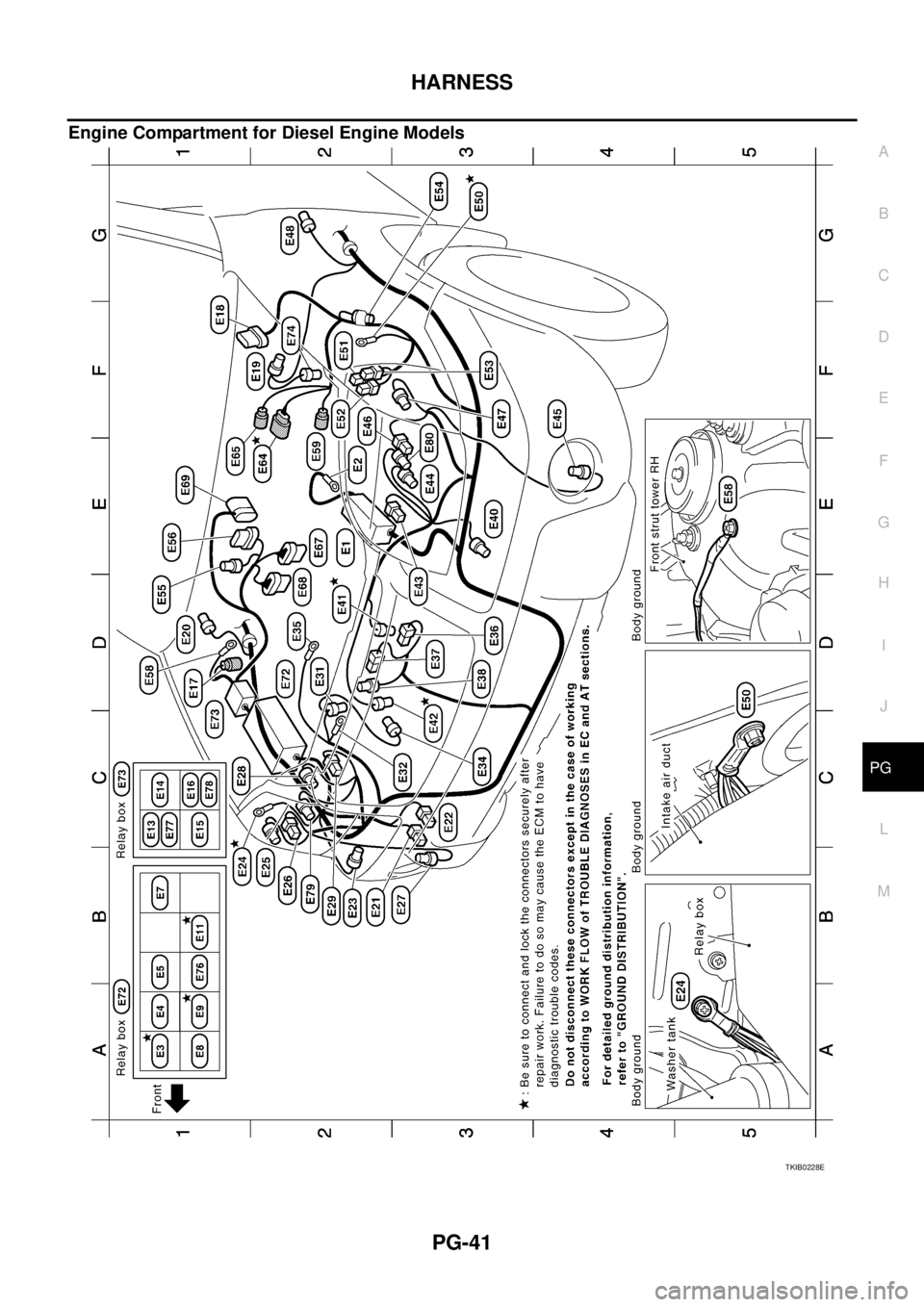

Engine Compartment for Diesel Engine Models
TKIB0228E

Page 4458 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual PG-42
HARNESS

TKIB0229E

Page 4459 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual HARNESS
PG-43
C
D
E
F
G
H
I
J
L
MA
B
PG

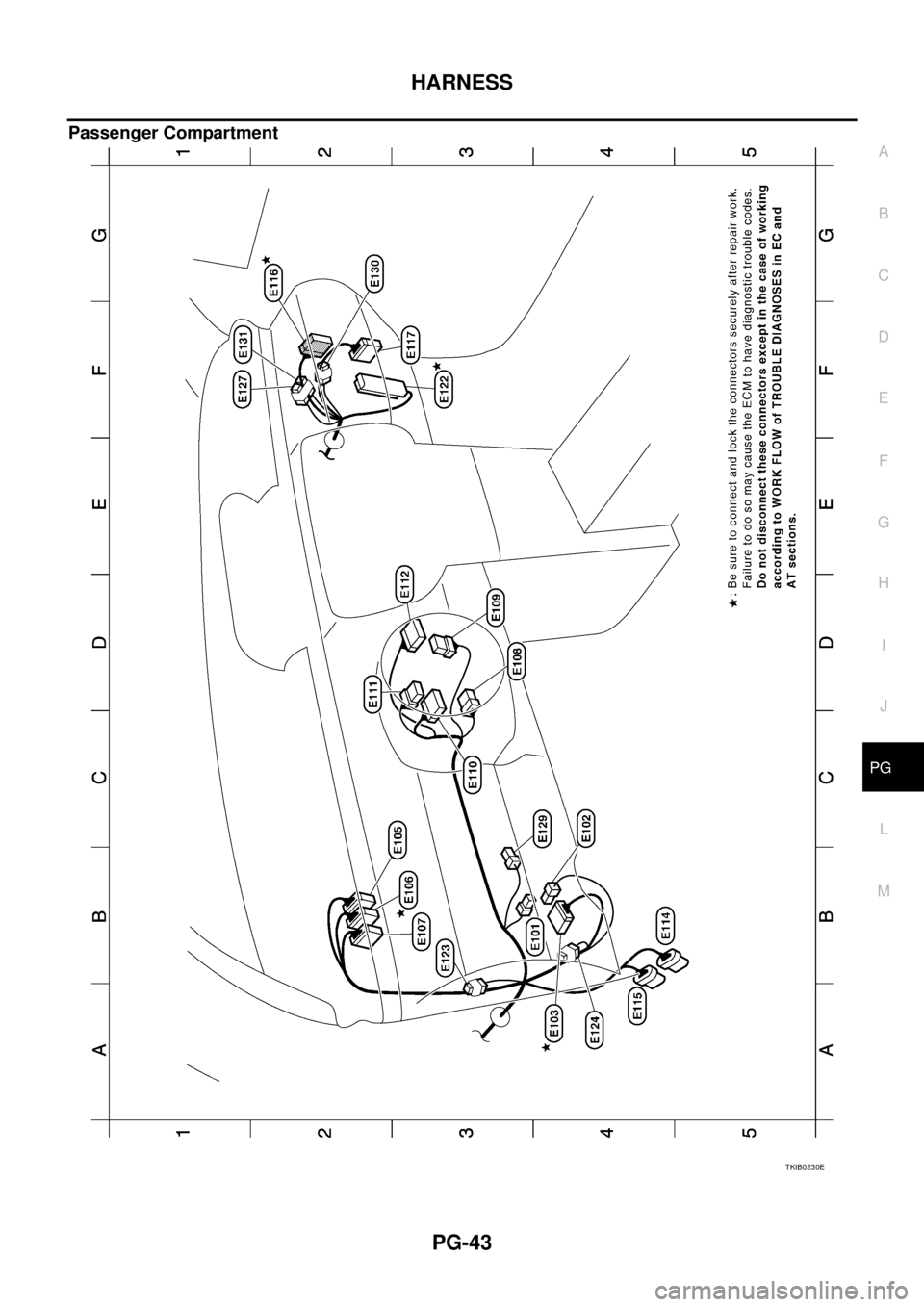

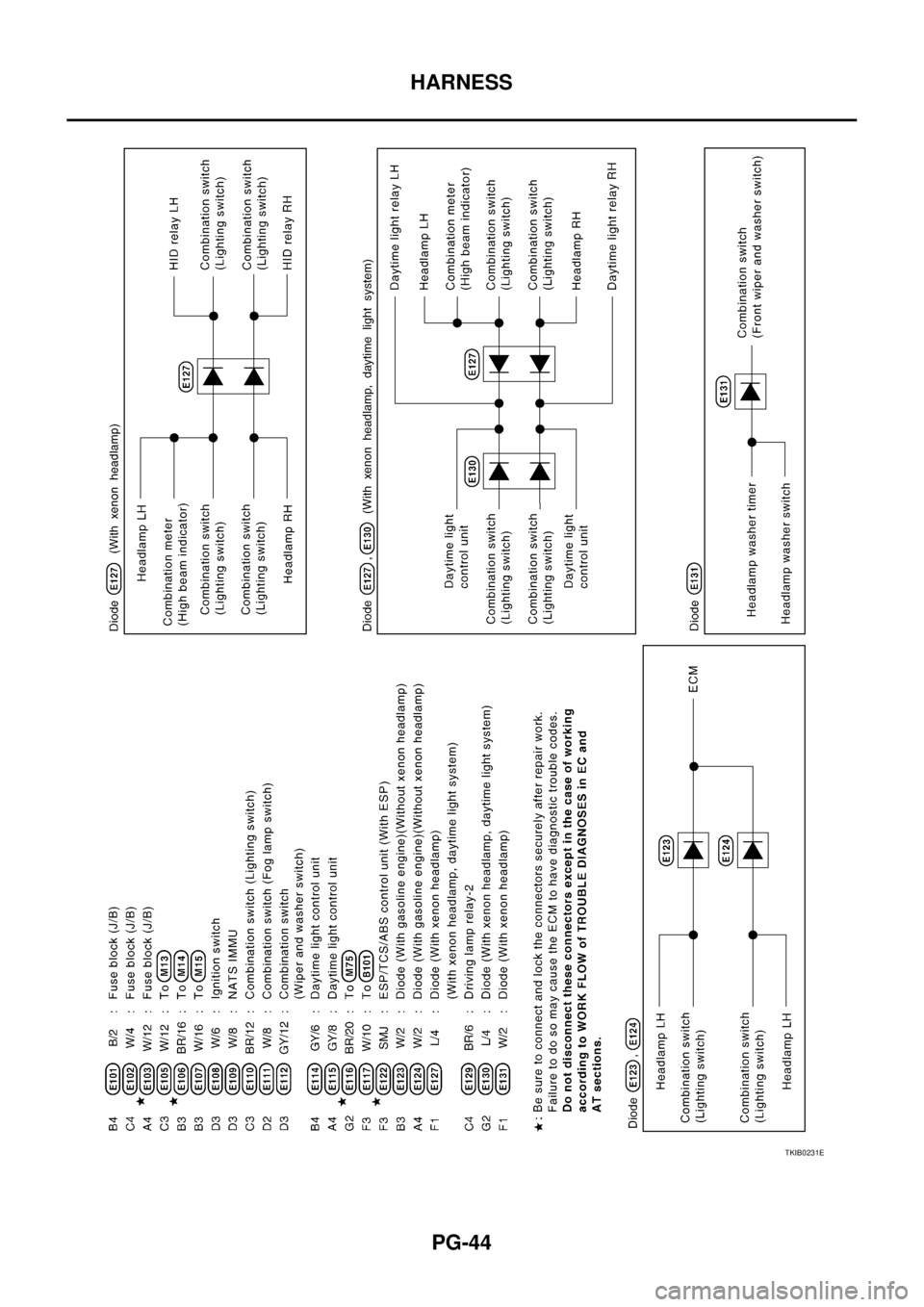

Passenger Compartment
TKIB0230E

Page 4460 of 4555

NISSAN X-TRAIL 2005  Service Repair Manual PG-44
HARNESS

TKIB0231E
