TROUBLE DIAGNOSIS
EC-117
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

AIR COND RLY
Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates)ON
FUEL PUMP RLY

For 1 second after turning ignition switch ON

Engine running or crankingON

Except above conditions OFF
THRTL RELAY

Ignition switch: ON ON
COOLING FAN

Engine: After warming up, idle
the engine

Air conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 99°C
(210°F)LOW
Engine coolant temperature is 100°C
(212°F) or moreHIGH
HO2S1 HTR (B1)

Engine: After warming up

Engine speed: Below 3,600 rpmON

Engine speed: Above 3,600 rpm OFF
HO2S2 HTR (B1)

Engine speed is below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute
and at idle for 1 minute under no load.ON

Engine speed: Above 3,600 rpm OFF
TRVL AFTER MIL

Ignition switch: ONVehicle has traveled after MI has
turned ON.0 - 65,535 km
(0 - 40,723 mile)
O2SEN HTR DTY

Engine coolant temperature when engine started: More than 80°C
(176°F)

Engine speed: below 3,600 rpmApprox. 50%
AC PRESS SEN

Engine: Idle

Air conditioner switch: ON (Compressor operates)1.0 - 4.0V
VEH SPEED SE

Turn drive wheels and compare CONSULT-II value with the speedome-
ter indication.Almost the same speed as the
speedometer indication
SET VHCL SPD*
2
Engine: Running ASCD: Operating.The preset vehicle speed is dis-
played.
MAIN SW*
2
Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW*
2
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW*
2
Ignition switch: ONRESUME/ACCELERATE switch:
PressedON
RESUME/ACCELERATE switch:
ReleasedOFF
SET SW*
2
Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
BRAKE SW1*
2
Ignition switch: ONBoth clutch pedal (M/T) and brake
pedal: Fully releasedON
Clutch pedal (M/T) and/or brake
pedal: Slightly depressedOFF
BRAKE SW2*
2
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON MONITOR ITEM CONDITION SPECIFICATION

EC-118
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

*1: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ
from ECM terminals voltage signal.
*2: For QR25DE engine models
Major Sensor Reference Graph in Data Monitor ModeEBS010M1
The following are the major sensor reference graphs in “DATA MONITOR” mode.
CLSD THL POS, ACCEL SEN 1, THRTL SEN 1
Below is the data for “CLSD THL POS”, “ACCEL SEN 1” and “THRTL SEN 1” when depressing the accelera-
tor pedal with the ignition switch ON and with selector lever in D position (A/T models) or with shift lever in 1st
position (M/T models).
The signal of “ACCEL SEN 1” and “THRTL SEN 1” should rise gradually without any intermittent drop or rise
after “CLSD THL POS” is changed from “ON” to “OFF”.

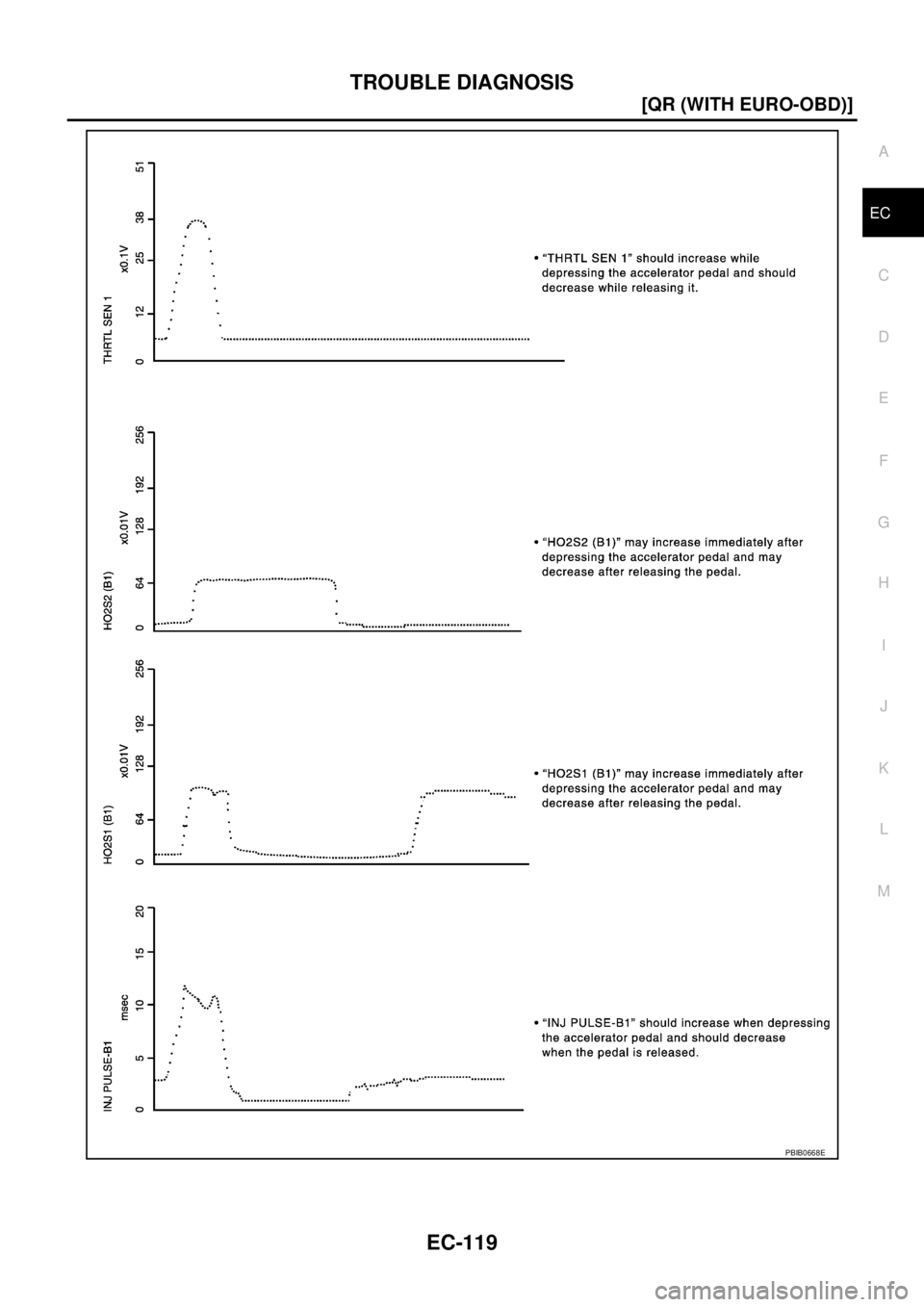

ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), HO2S1 (B1), INJ PULSE-B1
Below is the data for “ENG SPEED”, “MAS A/F SE-B1”, “THRTL SEN 1”, “HO2S2 (B1)”, “HO2S1 (B1)” and
“INJ PULSE-B1” when revving engine quickly up to 4,800 rpm under no load after warming up engine suffi-
ciently.
Each value is for reference, the exact value may vary.
CRUISE LAMP*2
Ignition switch: ONMAIN switch: Pressed at the 1st time
→ at the 2nd timeON → OFF
SET LAMP*
2

MAIN switch: ON

Vehicle speed: Between 40 km/
h (25 MPH) and 144 km/h (89
MPH)ASCD: Operating ON
ASCD: Not operating OFF MONITOR ITEM CONDITION SPECIFICATION
PBIB0198E
PBIB2445E

TROUBLE DIAGNOSIS
EC-119
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

PBIB0668E

EC-120
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE

TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionEBS010M2
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:

B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)

A/F ALPHA-B1 (The mean value of air-fuel ratio feedback correction factor per cycle)

MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionEBS010M3

Vehicle driven distance: More than 5,000 km (3,017 miles)

Barometric pressure: 98.3 - 104.3 kPa (0.983 - 1.043 bar, 1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)

Atmospheric temperature: 20 - 30°C (68 - 86°F)

Engine coolant temperature: 75 - 95°C (167 - 203°F)

Transmission: Warmed-up*1

Electrical load: Not applied*2

Engine speed: Idle
*1: For A/T models, after the engine is warmed up to normal operating temperature, drive vehicle until “FLUID
TEMP SE” (A/T fluid temperature sensor signal) indicates more than 60°C (140°F).
For M/T models, after the engine is warmed up to normal operating temperature, drive vehicle for 5 minutes.
*2: Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
Inspection ProcedureEBS010M4
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-79, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1” and “MAS A/F SE-
B1” in “DATA MONITOR (SPEC)” mode with CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-121, "
Diagnostic Procedure" .
SEF601Z

TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-121
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

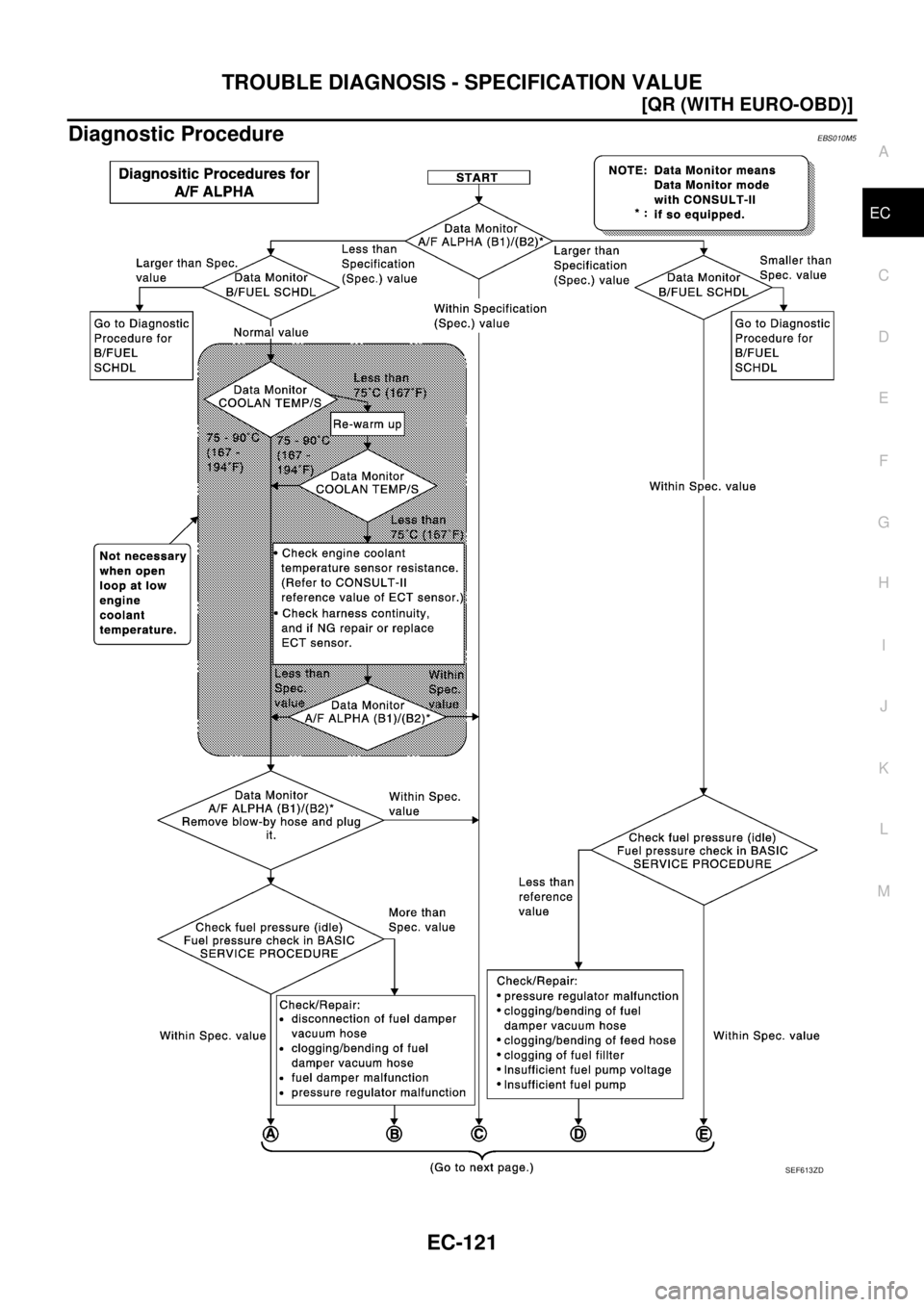

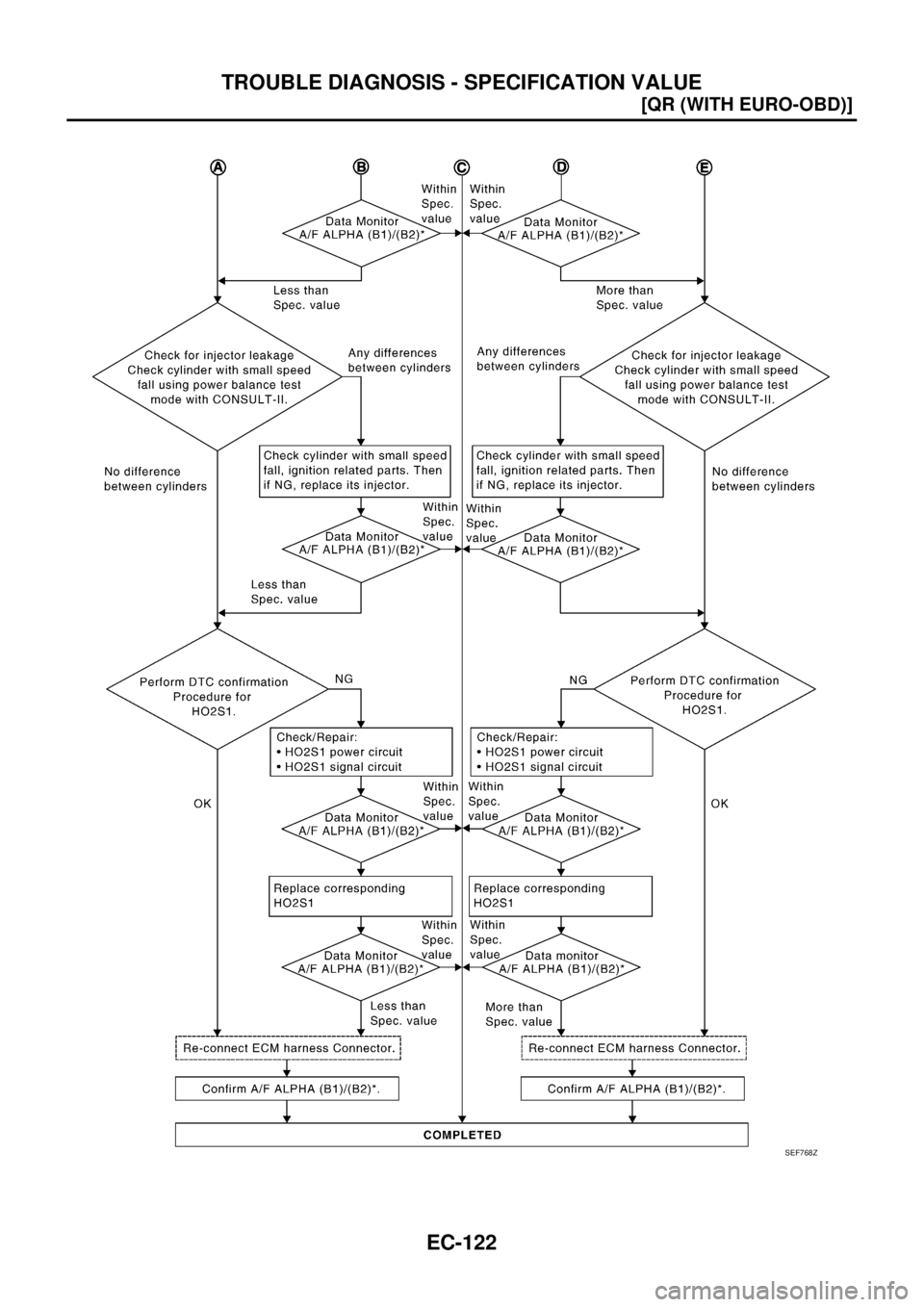

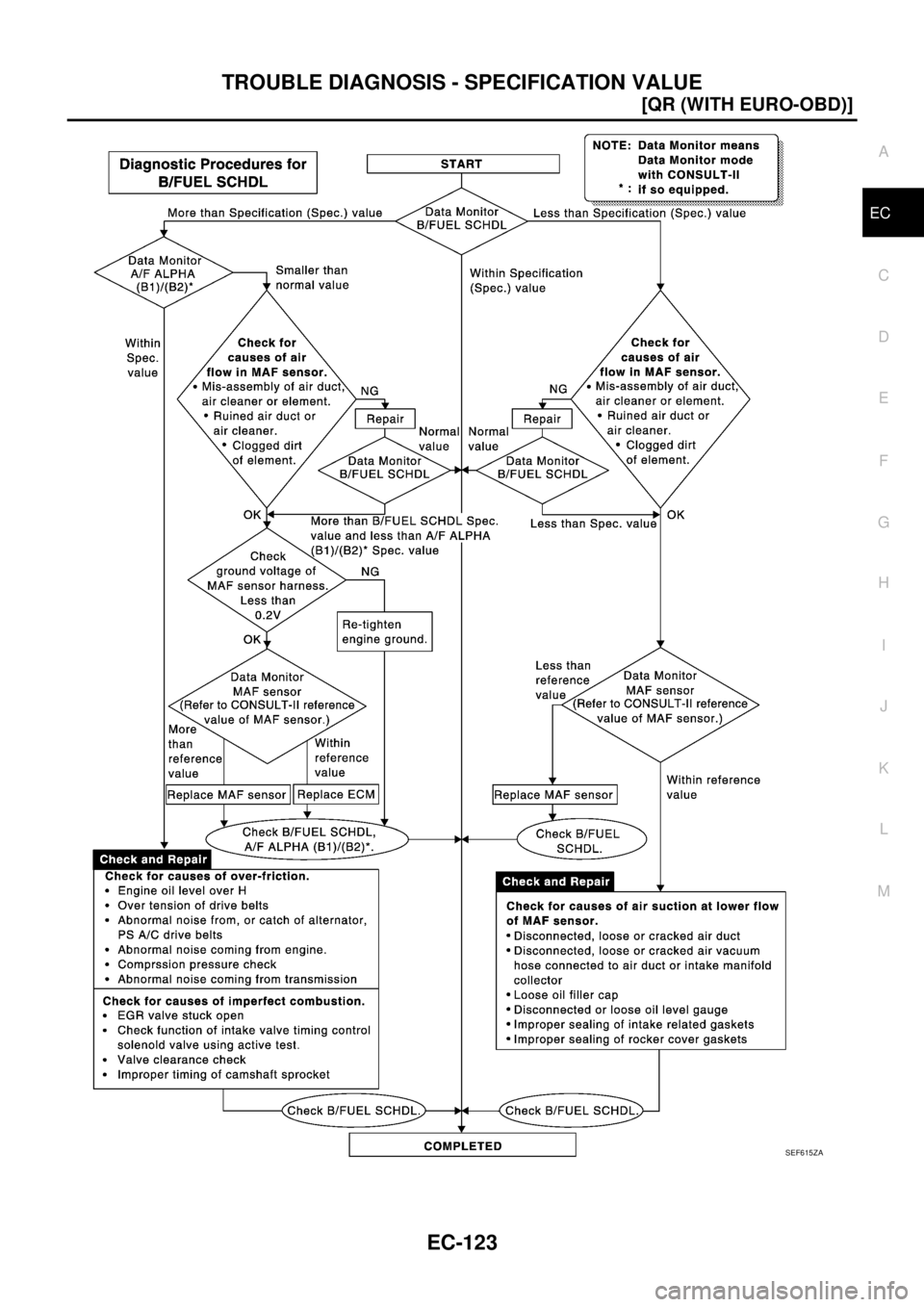

Diagnostic ProcedureEBS010M5
SEF613ZD

EC-122
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE

SEF768Z

TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-123
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

SEF615ZA

EC-124
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT

TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTPFP:00006
DescriptionEBS010M6
Intermittent incidents may occur. In many cases, the malfunction resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the customer's
complaint often do not recur on (1st trip) DTC visits. Realize also that the most frequent cause of intermittent
incident occurrences is poor electrical connections. Because of this, the conditions under which the incident
occurred may not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may
not indicate the specific malfunctioning area.
Common Intermittent Incident Report Situations
Diagnostic ProcedureEBS010M7
1. INSPECTION START
Erase (1st trip) DTCs. Refer to EC-63, "
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMA-
TION" .
>> GO TO 2.
2. CHECK GROUND TERMINALS
Check ground terminals for corroding or loose connection.
Refer to EC-132, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. SEARCH FOR ELECTRICAL INCIDENT
Perform GI-23, "
How to Perform Efficient Diagnosis for an Electrical Incident" , “Incident Simulation Tests”.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace.
STEP in Work Flow Situation
II The CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than [0] or [1t].
III The symptom described by the customer does not recur.
IV (1st trip) DTC does not appear during the DTC Confirmation Procedure.
VI The Diagnostic Procedure for PXXXX does not indicate the malfunctioning area.

POWER SUPPLY AND GROUND CIRCUIT
EC-125
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

POWER SUPPLY AND GROUND CIRCUITPFP:24110

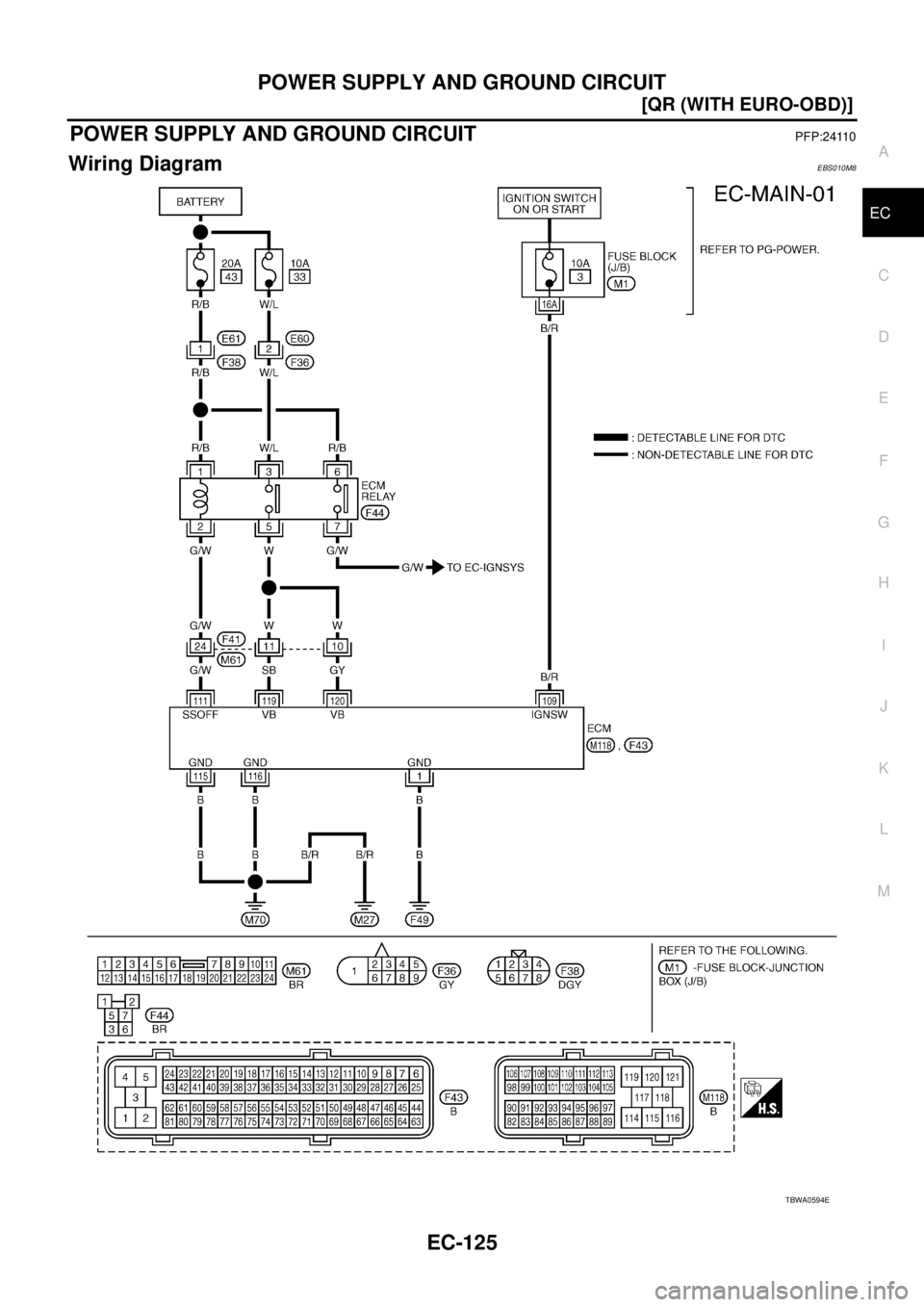

Wiring DiagramEBS010M8
TBWA0594E

EC-126
[QR (WITH EURO-OBD)]
POWER SUPPLY AND GROUND CIRCUIT

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS010M9
1. INSPECTION START
Start engine.
Is engine running?
Ye s o r N o
Yes >> GO TO 11.
No >> GO TO 2.
2. CHECK ECM POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF and then ON.
2. Check voltage between ECM terminal 109 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector M1

10A fuse

Harness for open or short between ECM and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1 B ECM ground[Engine is running]

Idle speedBody ground
109 B/R Ignition switch[Ignition switch: OFF]0V
[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
111 G / WECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition switch
OFF0 - 1.0V
[Ignition switch: OFF]

More than a few seconds passed turning ignition
switch OFFBATTERY VOLTAGE
(11 - 14V)
11 5
11 6B
BECM ground[Engine is running]

Idle speedBody ground
11 9
120SB
GYPower supply for
ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
Voltage: Battery voltage
MBIB0015E
