fuse box location NISSAN XTERRA 2010 Owner´s Manual

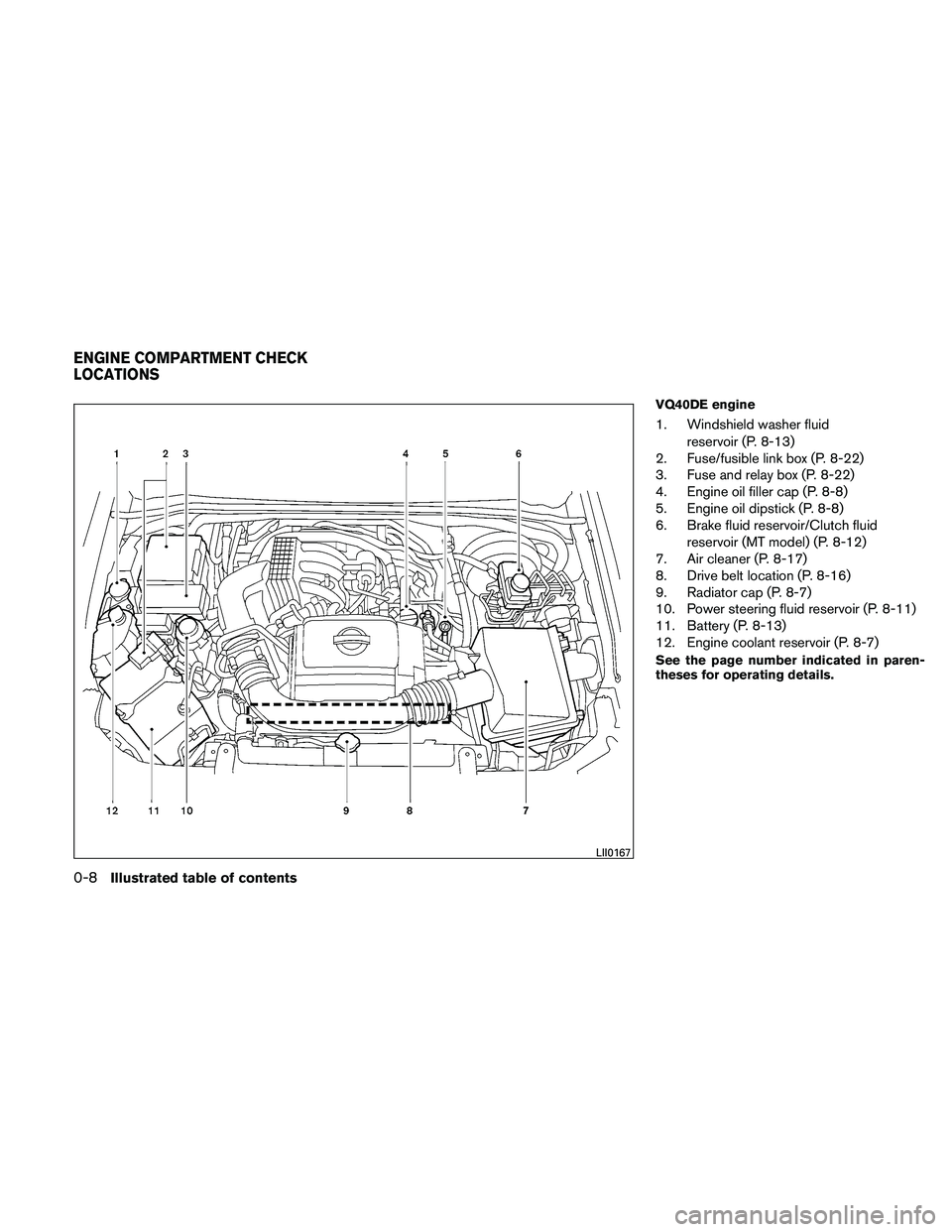

VQ40DE engine
1. Windshield washer fluidreservoir (P. 8-13)
2. Fuse/fusible link box (P. 8-22)
3. Fuse and relay box (P. 8-22)
4. Engine oil filler cap (P. 8-8)
5. Engine oil dipstick (P. 8-8)
6. Brake fluid reservoir/Clutch fluid
reservoir (MT model) (P. 8-12)
7. Air cleaner (P. 8-17)
8. Drive belt location (P. 8-16)
9. Radiator cap (P. 8-7)
10. Power steering fluid reservoir (P. 8-11)
11. Battery (P. 8-13)
12. Engine coolant reservoir (P. 8-7)
See the page number indicated in paren-
theses for operating details.
LII0167
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

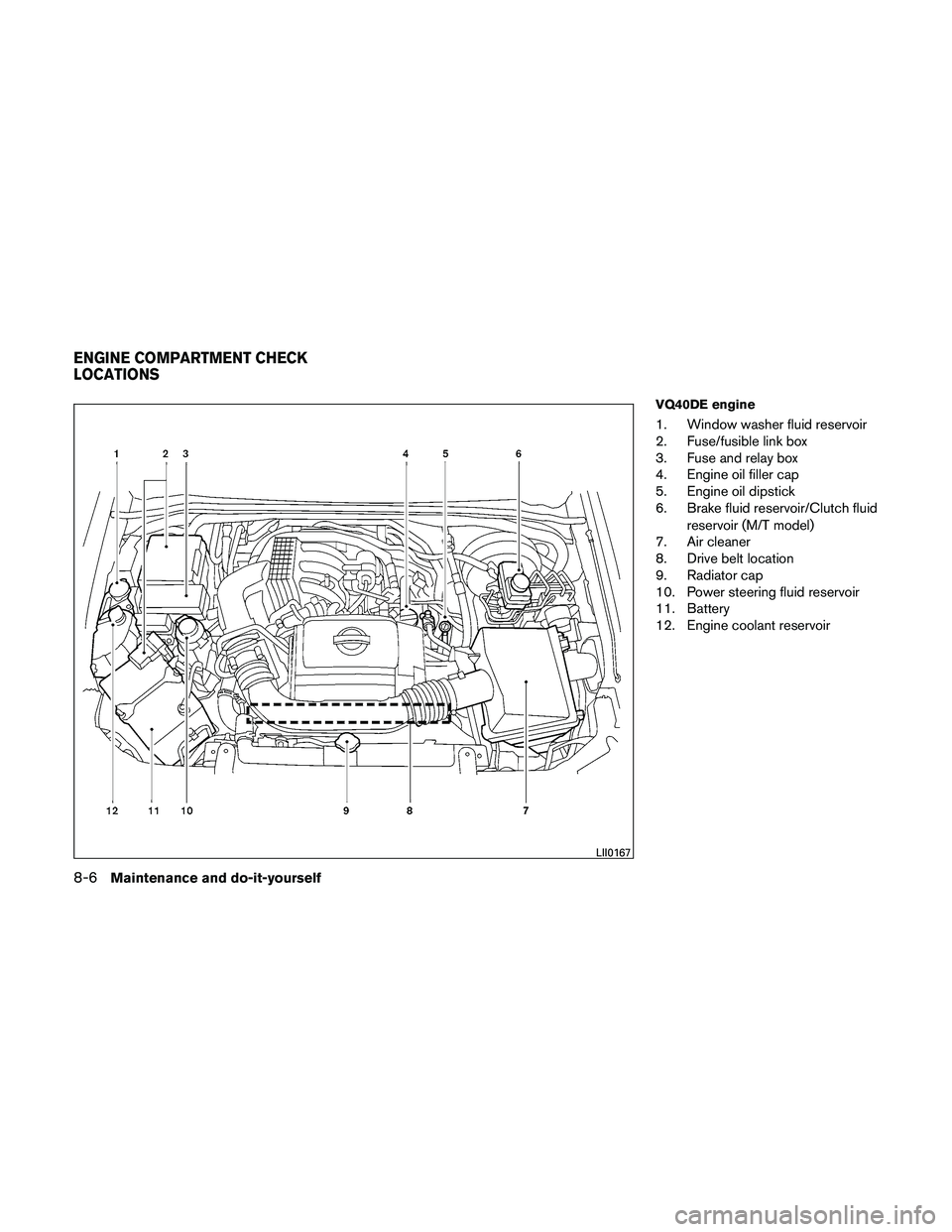

VQ40DE engine
1. Window washer fluid reservoir
2. Fuse/fusible link box
3. Fuse and relay box
4. Engine oil filler cap
5. Engine oil dipstick
6. Brake fluid reservoir/Clutch fluidreservoir (M/T model)
7. Air cleaner
8. Drive belt location
9. Radiator cap
10. Power steering fluid reservoir
11. Battery
12. Engine coolant reservoir
LII0167
ENGINE COMPARTMENT CHECK
LOCATIONS
8-6Maintenance and do-it-yourself

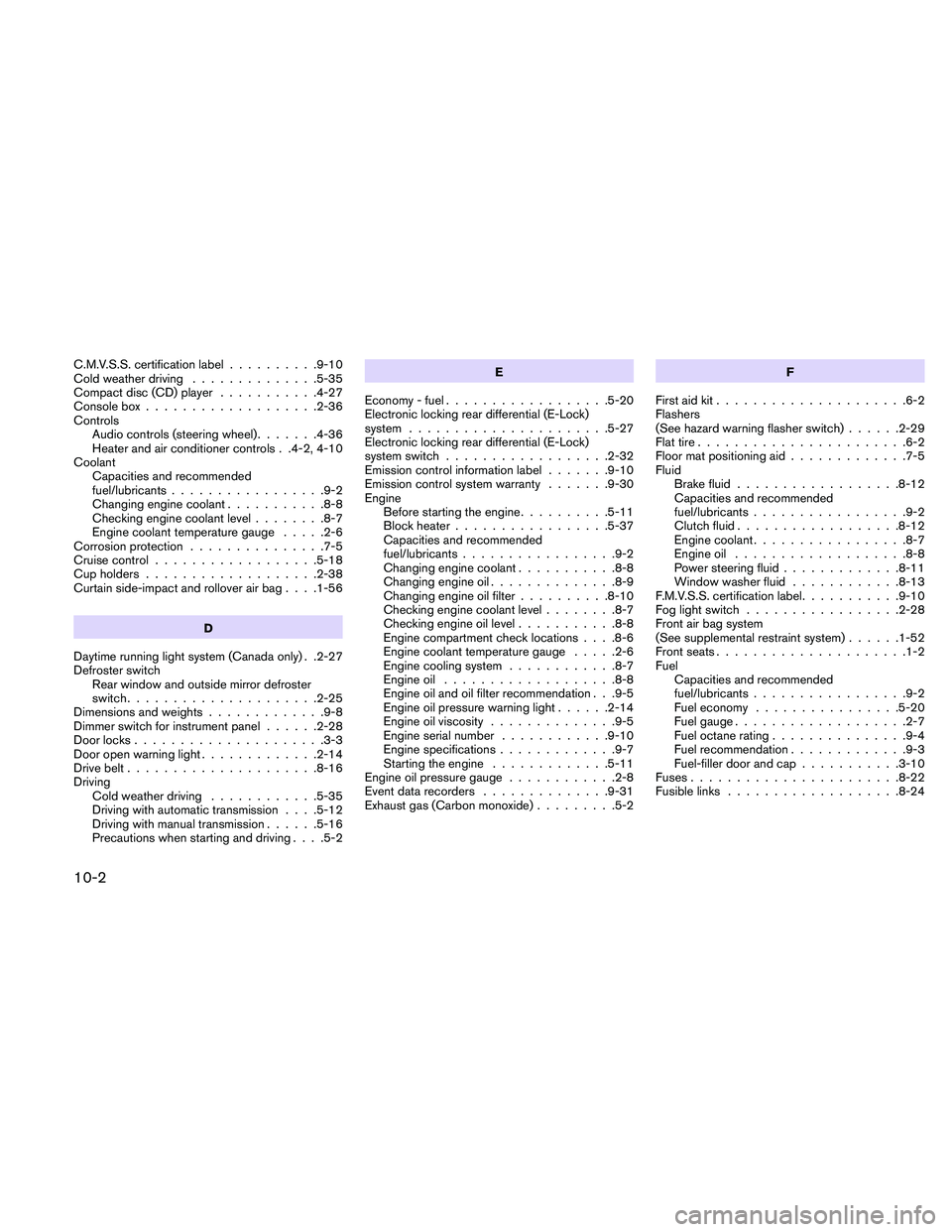

C.M.V.S.S. certification label..........9-10
Cold weather driving ..............5-35
Compact disc (CD) player ...........4-27
Console box ...................2-36
Controls Audio controls (steering wheel) .......4-36
Heater and air conditioner controls . .4-2, 4-10
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Checking engine coolant level ........8-7
Engine coolant temperature gauge .....2-6
Corrosion protection ...............7-5
Cruise control ..................5-18
Cup holders ...................2-38
Curtain side-impact and rollover air bag . . . .1-56
D
Daytime running light system (Canada only) . .2-27
Defroster switch Rear window and outside mirror defroster
switch .....................2-25
Dimensions and weights .............9-8
Dimmer switch for instrument panel ......2-28
Door locks .....................3-3
Door open warning light .............2-14
Drive belt .....................8-16
Driving Cold weather driving ............5-35
Driving with automatic transmission . . . .5-12
Driving with manual transmission ......5-16
Precautions when starting and driving . . . .5-2 E
Economy - fuel ..................5-20
Electronic locking rear differential (E-Lock)
system ......................5-27
Electronic locking rear differential (E-Lock)
system switch ..................2-32
Emission control information label .......9-10
Emission control system warranty .......9-30
Engine Before starting the engine ..........5-11
Block heater .................5-37
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Changing engine oil.............

.8-9
Changing engine oil filter ..........8-10
Checking engine coolant level ........8-7
Checking engine oil level ...........8-8
Engine compartment check locations . . . .8-6
Engine coolant temperature gauge .....2-6
Engine cooling system ............8-7
Engine oil ...................8-8
Engine oil and oil filter recommendation . . .9-5
Engine oil pressure warning light ......2-14
Engine oil viscosity ..............9-5
Engine serial number ............9-10
Engine specifications .............9-7
Starting the engine .............5-11
Engine oil pressure gauge ............2-8
Event data recorders ..............9-31
Exhaust gas (Carbon monoxide) .........5-2 F
First aid kit .....................6-2
Flashers
(See hazard warning flasher switch) ......2-29
Flat tire .......................6-2
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-12
Capacities and recommended
fuel/lubricants .................9-2
Clutch fluid ..................8-12
Engine coolant .................8-7
Engine oil ...................8-8
Power steering fluid .............8-11
Window washer fluid ............8-13
F.M.V.S.S. certification label ...........9-10
Fog light switch .................2-28
Front air bag system
(See supplemental restraint system) ......1-52
Front seats .....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-20
Fuel gauge .................. .2-7
Fuel

octane rating ...............9-4
Fuel recommendation .............9-3
Fuel-filler door and cap ...........3-10
Fuses .......................8-22
Fusible links ...................8-24
10-2
