Page 91 of 339

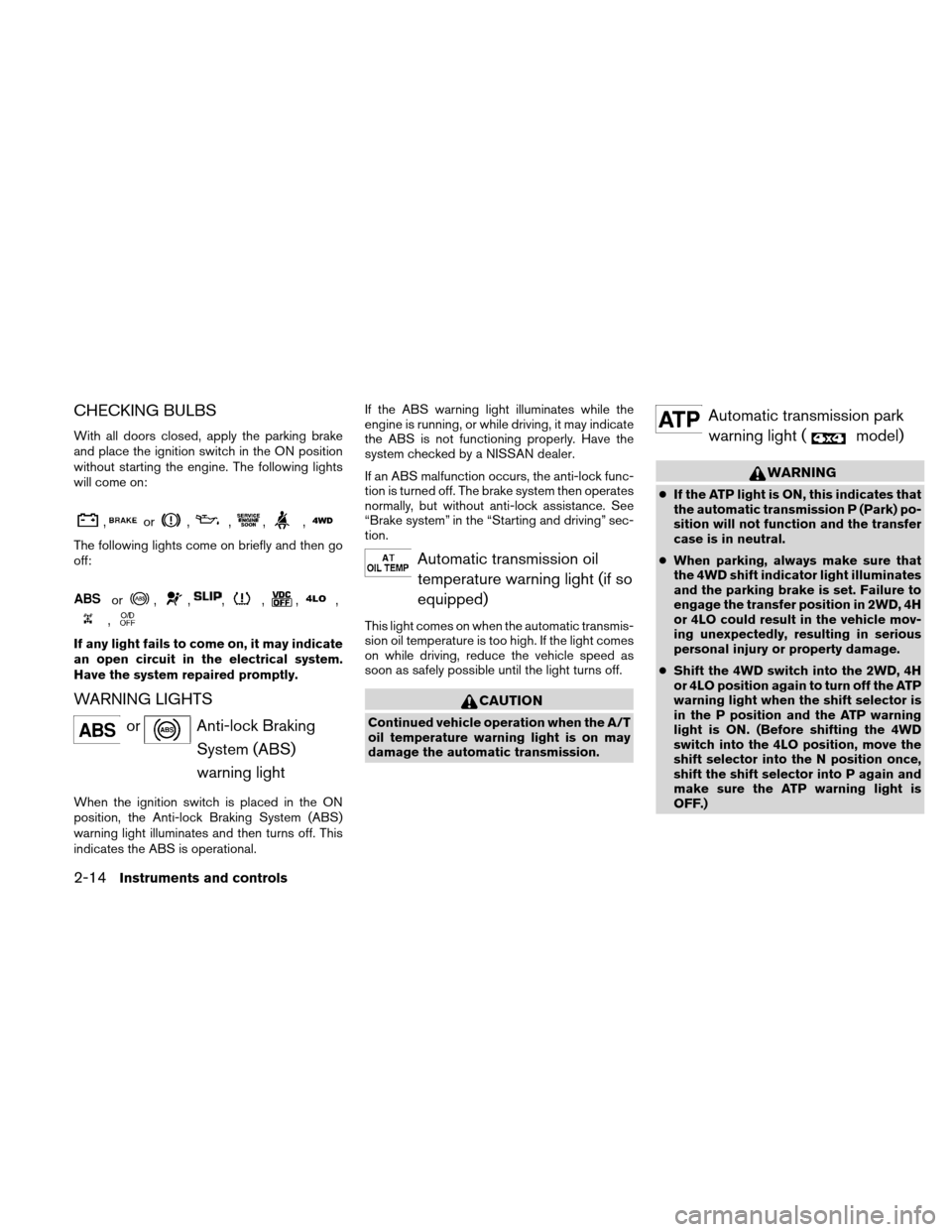

NISSAN XTERRA 2011 N50 / 2.G Owners Manual CHECKING BULBS
With all doors closed, apply the parking brake
and place the ignition switch in the ON position
without starting the engine. The following lights
will come on:
,or,,,,
The following lig

Page 92 of 339

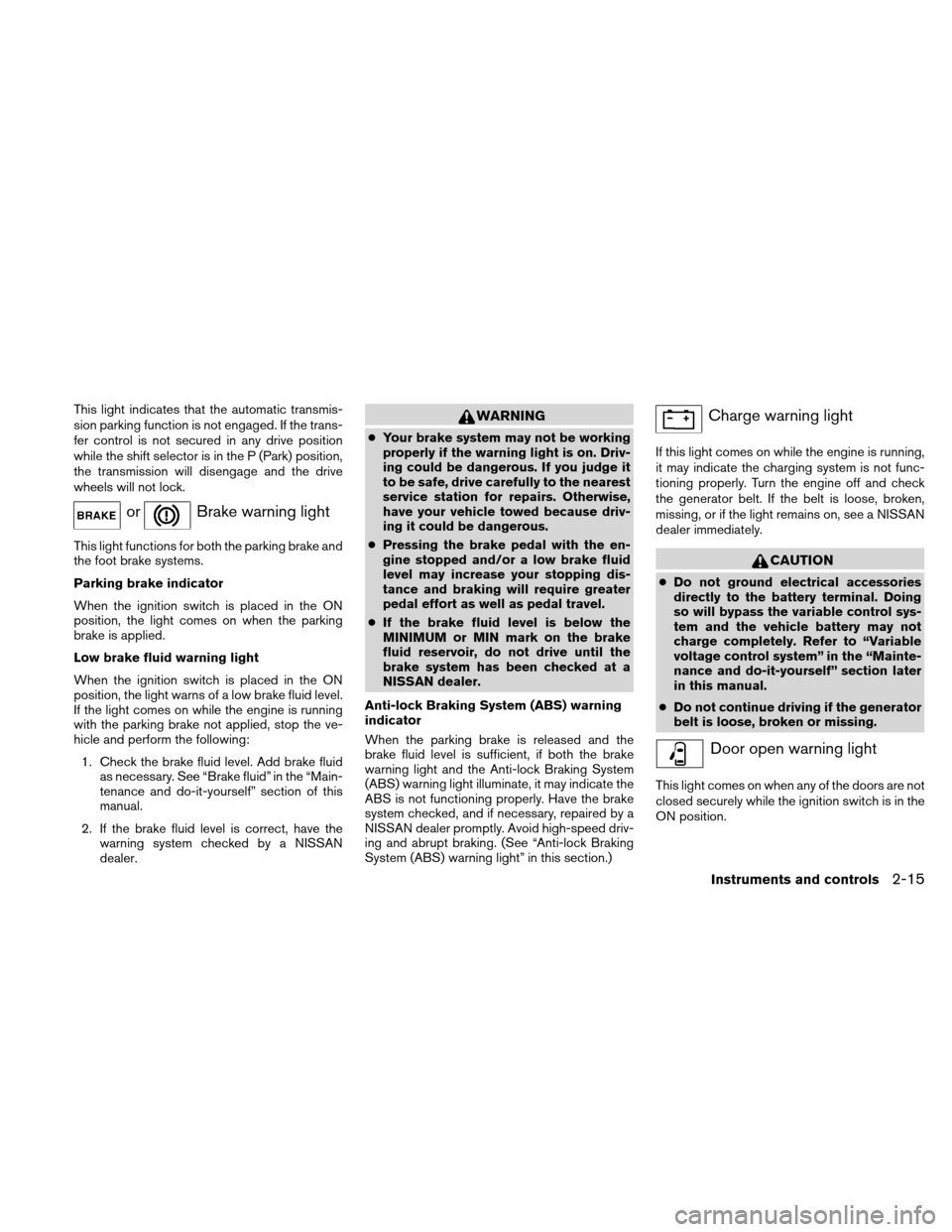

NISSAN XTERRA 2011 N50 / 2.G Owners Manual This light indicates that the automatic transmis-
sion parking function is not engaged. If the trans-
fer control is not secured in any drive position
while the shift selector is in the P (Park) posit

Page 93 of 339

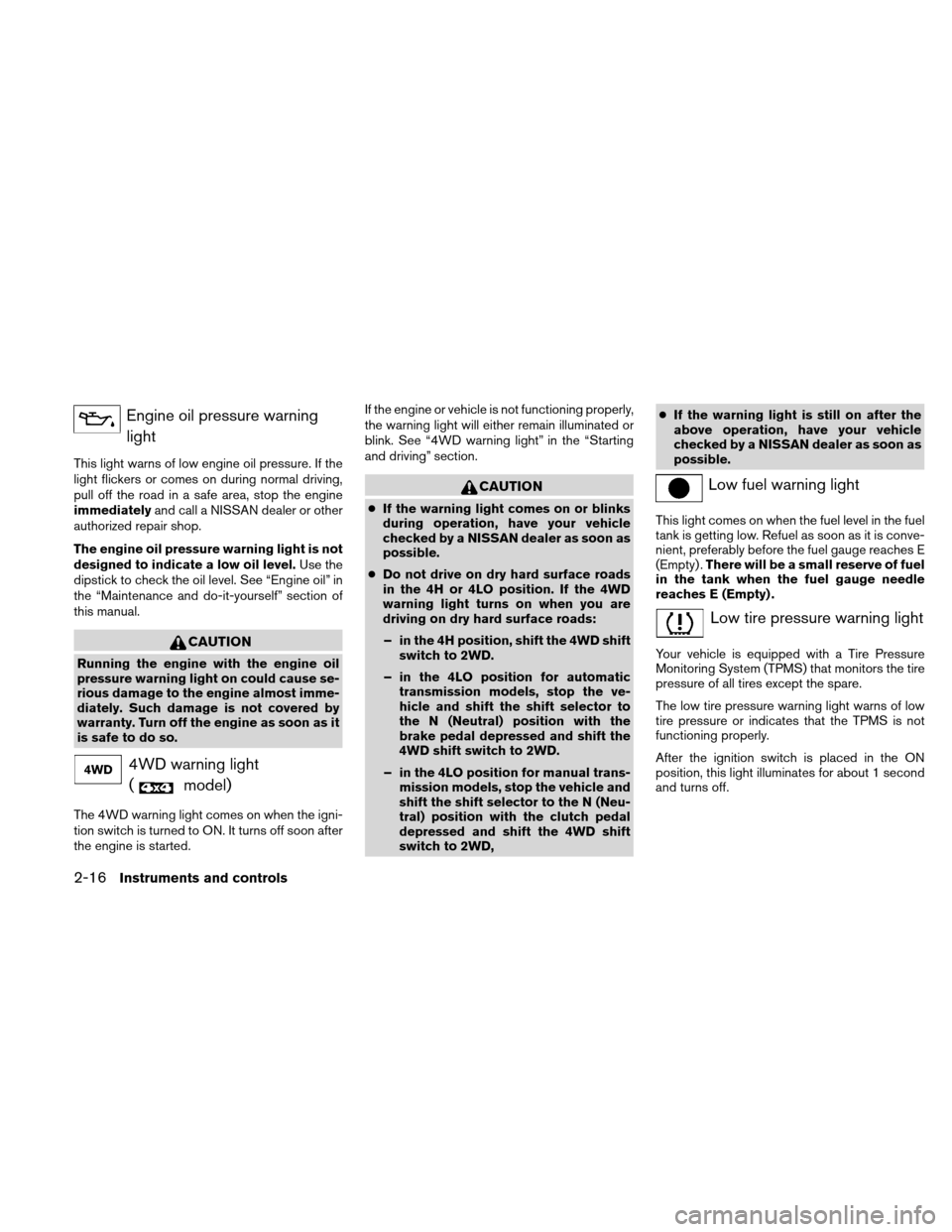

NISSAN XTERRA 2011 N50 / 2.G Owners Manual Engine oil pressure warninglight
This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and

Page 94 of 339

NISSAN XTERRA 2011 N50 / 2.G Owners Manual Low tire pressure warning:
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
A CHECK TIRE PRES (pressure) warning
message is also displayed in the odometer.
If

Page 95 of 339

NISSAN XTERRA 2011 N50 / 2.G Owners Manual ●When a spare tire is mounted or a wheel
is replaced the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute

Page 96 of 339

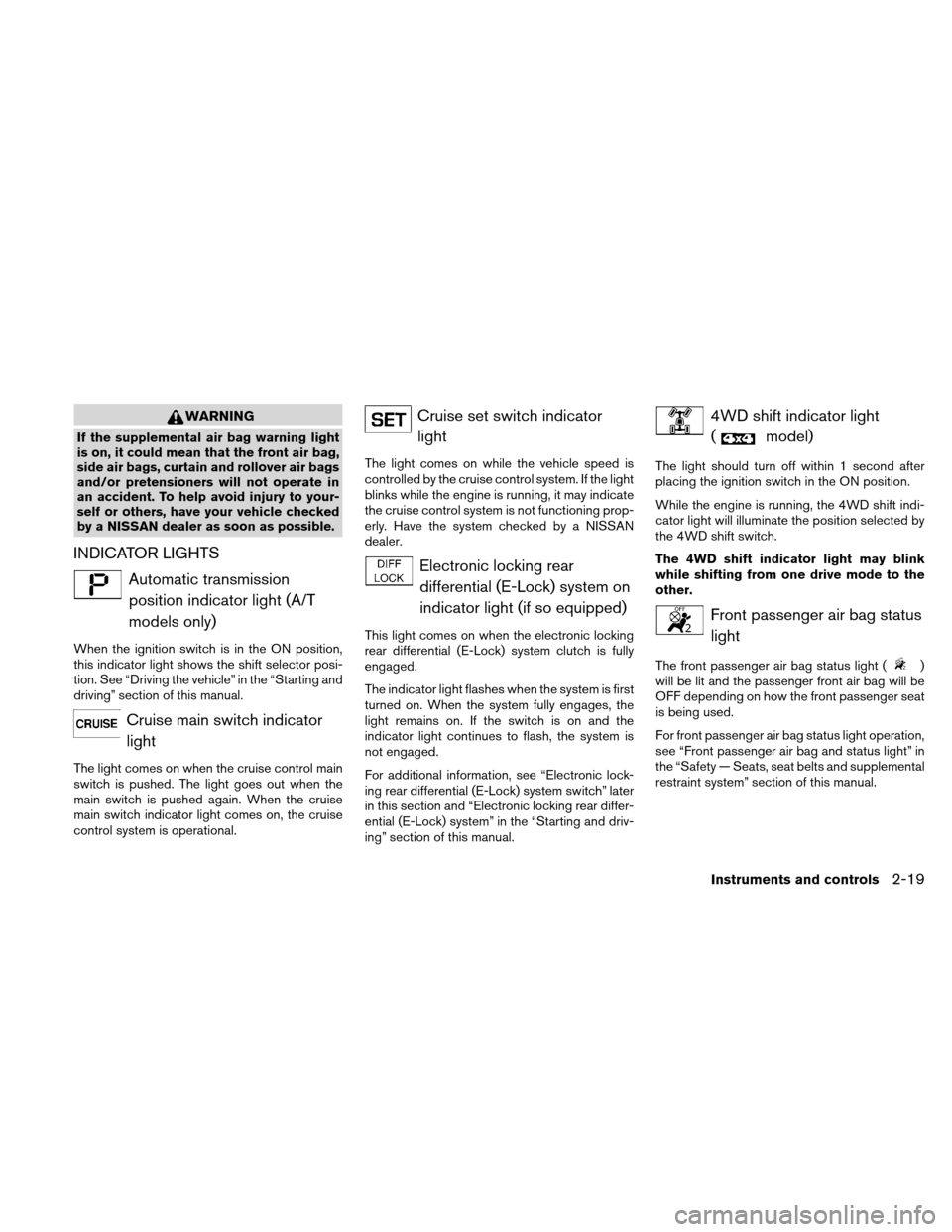

NISSAN XTERRA 2011 N50 / 2.G Owners Manual WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bags, curtain and rollover air bags
and/or pretensioners will not operate in
an accident. To hel

Page 97 of 339

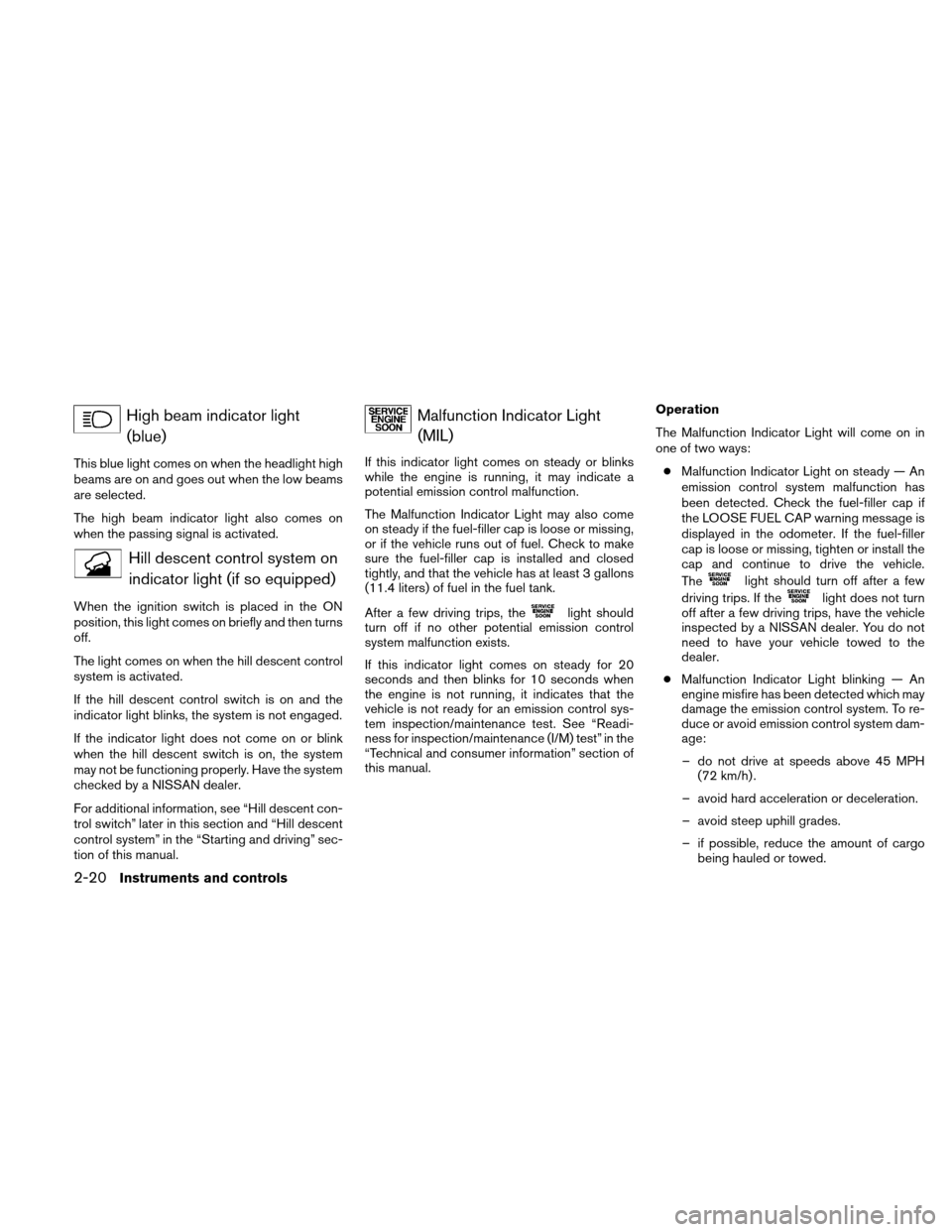

NISSAN XTERRA 2011 N50 / 2.G Owners Manual High beam indicator light(blue)
This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.
The high beam indicator light also comes on
when the passing

Page 98 of 339

NISSAN XTERRA 2011 N50 / 2.G Owners Manual The Malfunction Indicator Lamp Light may stop
blinking and come on steady. Have the vehicle
inspected by a NISSAN dealer. You do not need
to have your vehicle towed to the dealer.
CAUTION
Continued ve

Page 99 of 339

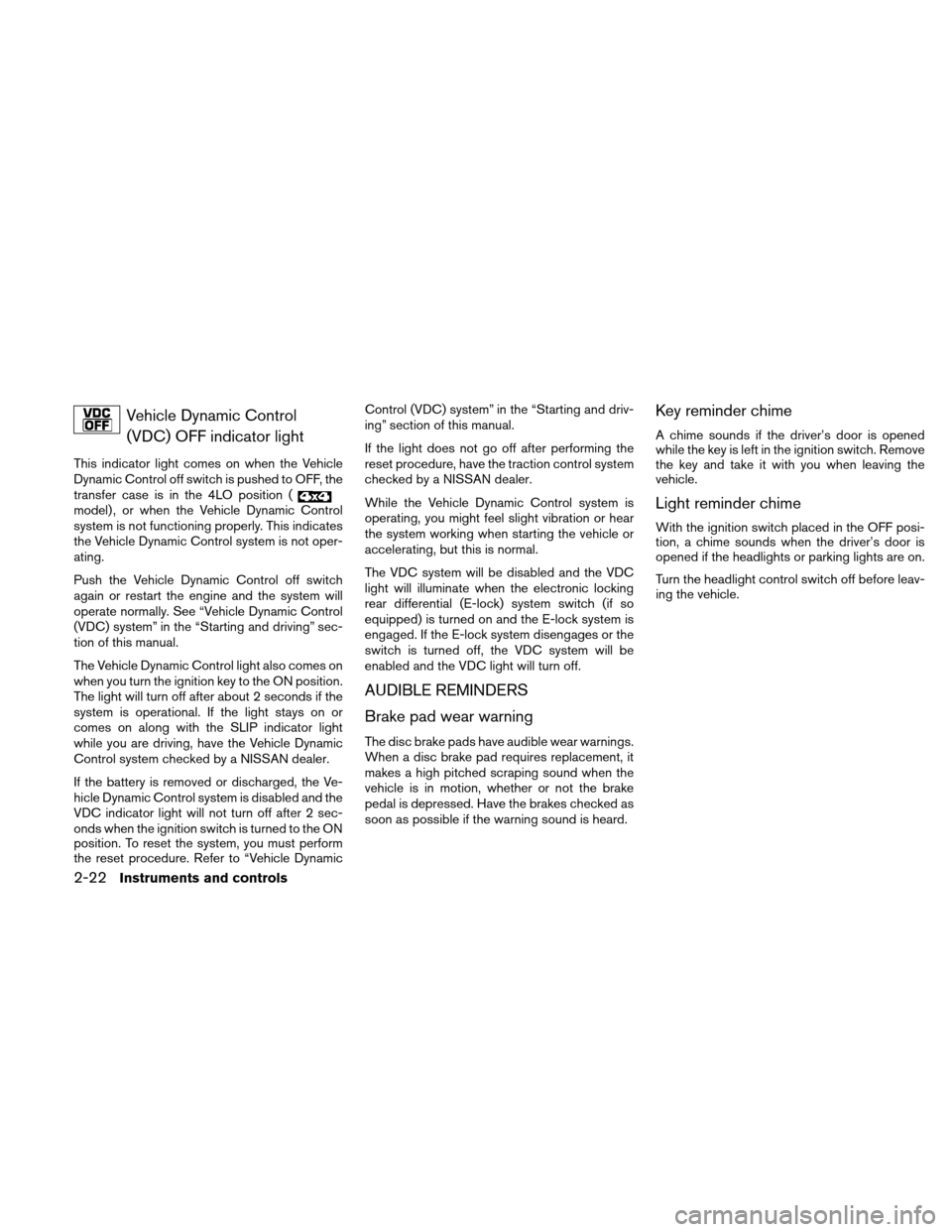

NISSAN XTERRA 2011 N50 / 2.G Owners Manual Vehicle Dynamic Control(VDC) OFF indicator light
This indicator light comes on when the Vehicle
Dynamic Control off switch is pushed to OFF, the
transfer case is in the 4LO position (
model) , or when

Page 100 of 339

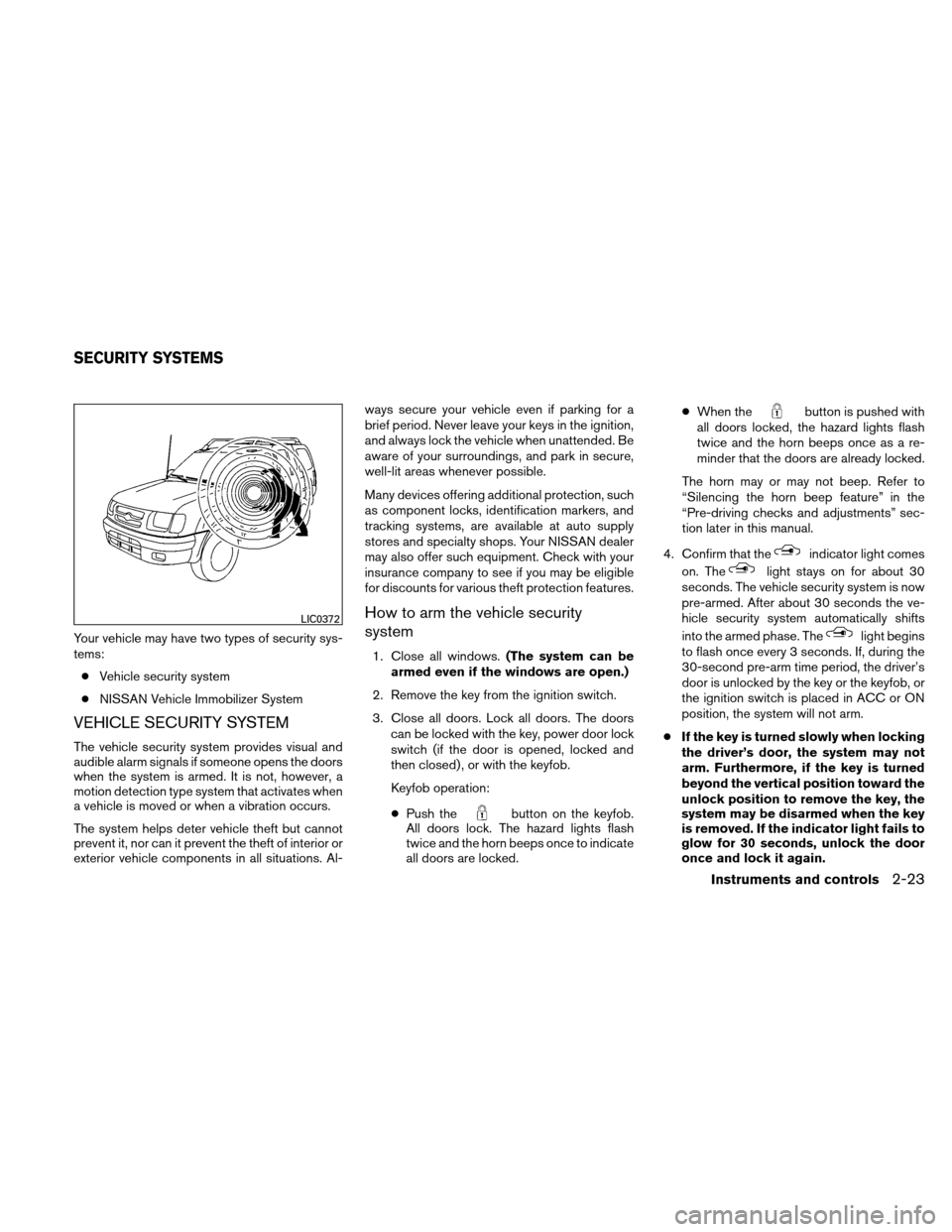

NISSAN XTERRA 2011 N50 / 2.G Owners Manual Your vehicle may have two types of security sys-
tems:● Vehicle security system
● NISSAN Vehicle Immobilizer System
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and
audible
