NISSAN XTERRA 2011 N50 / 2.G Owners Manual

NISSAN XTERRA 2011 N50 / 2.G Owners Manual https://www.carmanualsonline.info/img/5/271/w960_271-0.png NISSAN XTERRA 2011 N50 / 2.G Owners Manual

Page 121 of 339

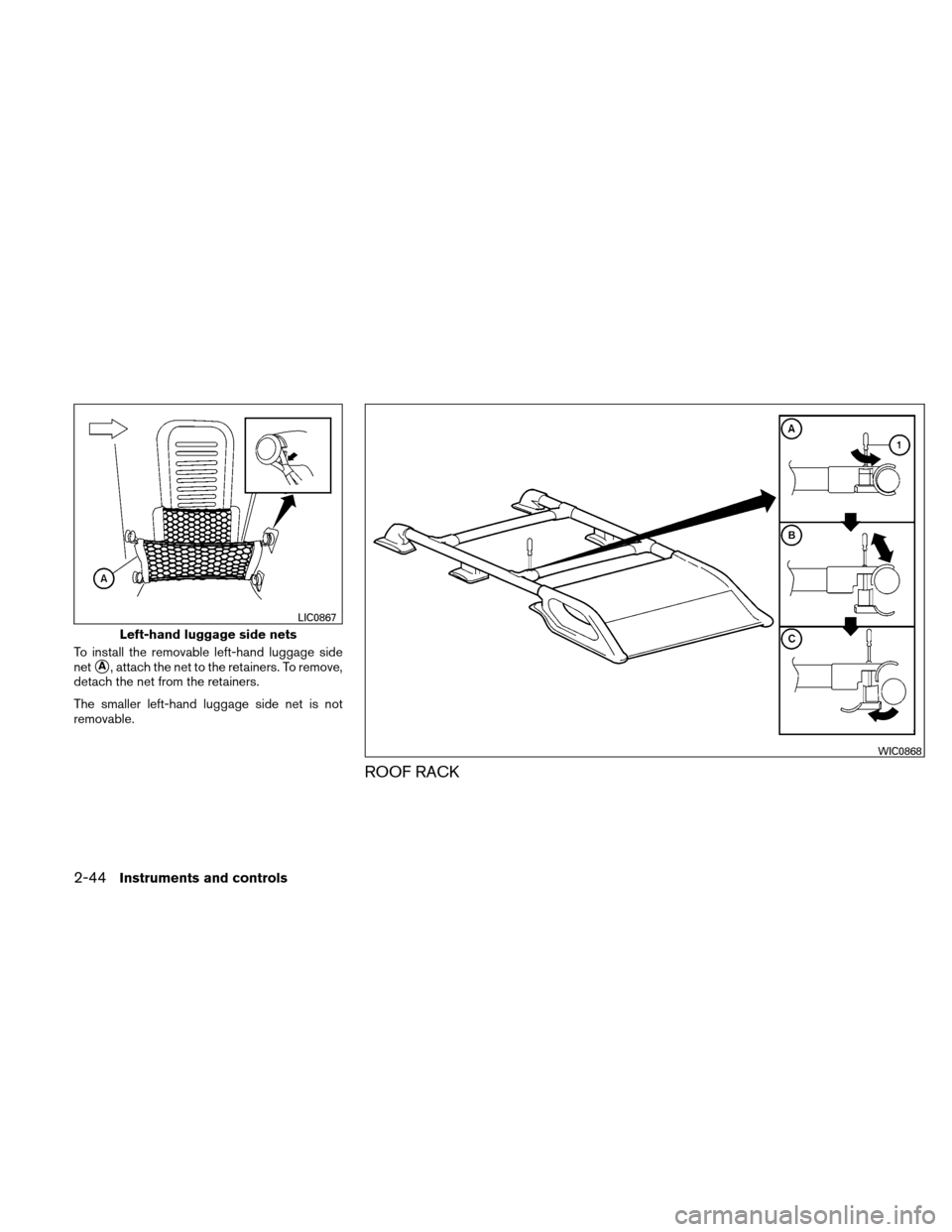

NISSAN XTERRA 2011 N50 / 2.G Owners Manual To install the removable left-hand luggage side
net
A, attach the net to the retainers. To remove,
detach the net from the retainers.
The smaller left-hand luggage side net is not
removable.
ROOF RAC

Page 122 of 339

NISSAN XTERRA 2011 N50 / 2.G Owners Manual WARNING
●Drive extra carefully when the vehicle is
loaded at or near the cargo carrying
capacity, especially if the significant
portion of that load is carried on the
roof rack.
● Heavy loading of

Page 123 of 339

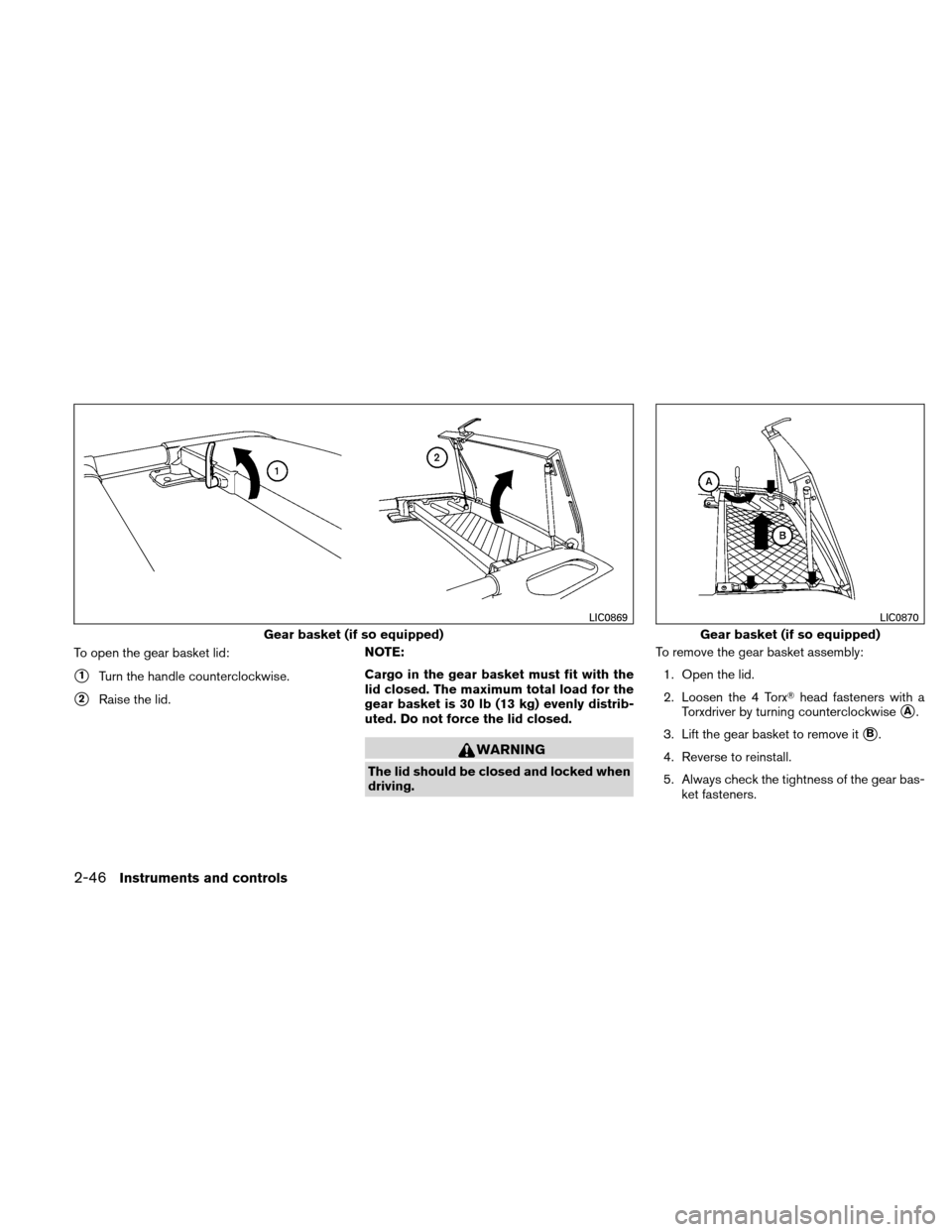

NISSAN XTERRA 2011 N50 / 2.G Owners Manual To open the gear basket lid:
1Turn the handle counterclockwise.
2Raise the lid.NOTE:
Cargo in the gear basket must fit with the
lid closed. The maximum total load for the
gear basket is 30 lb (13 kg

Page 124 of 339

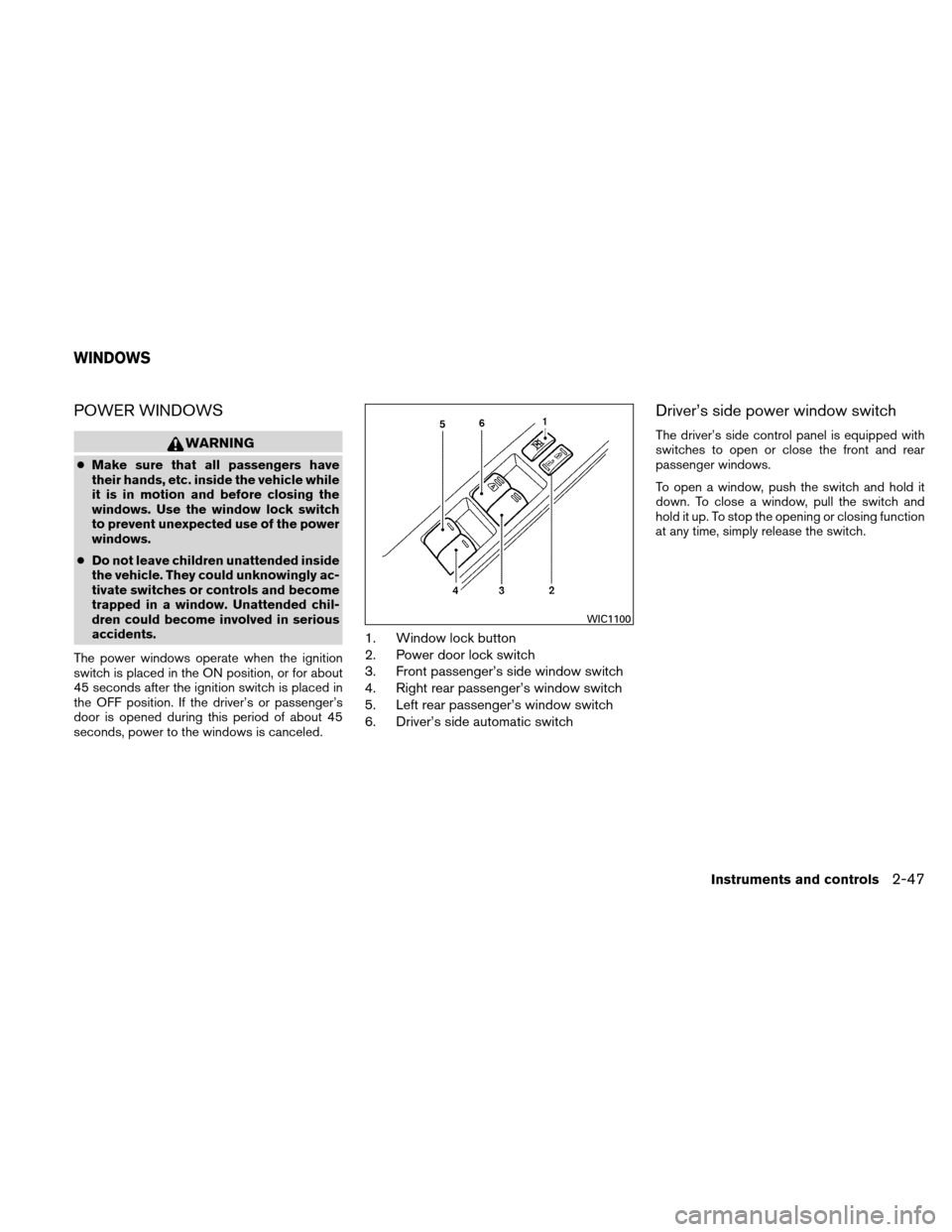

NISSAN XTERRA 2011 N50 / 2.G Owners Manual POWER WINDOWS
WARNING
●Make sure that all passengers have
their hands, etc. inside the vehicle while
it is in motion and before closing the
windows. Use the window lock switch
to prevent unexpected

Page 125 of 339

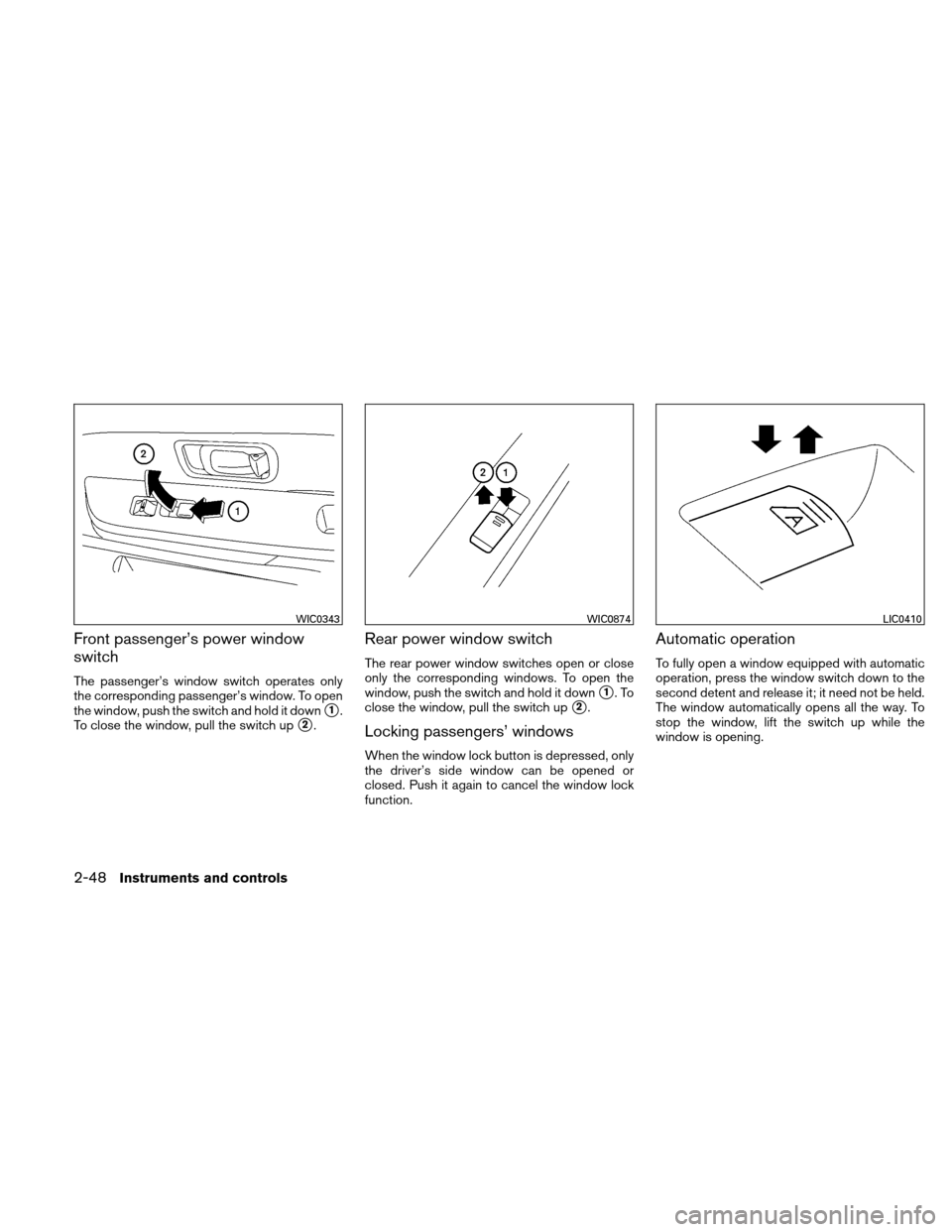

NISSAN XTERRA 2011 N50 / 2.G Owners Manual Front passenger’s power window
switch
The passenger’s window switch operates only
the corresponding passenger’s window. To open
the window, push the switch and hold it down
1.
To close the wind

Page 126 of 339

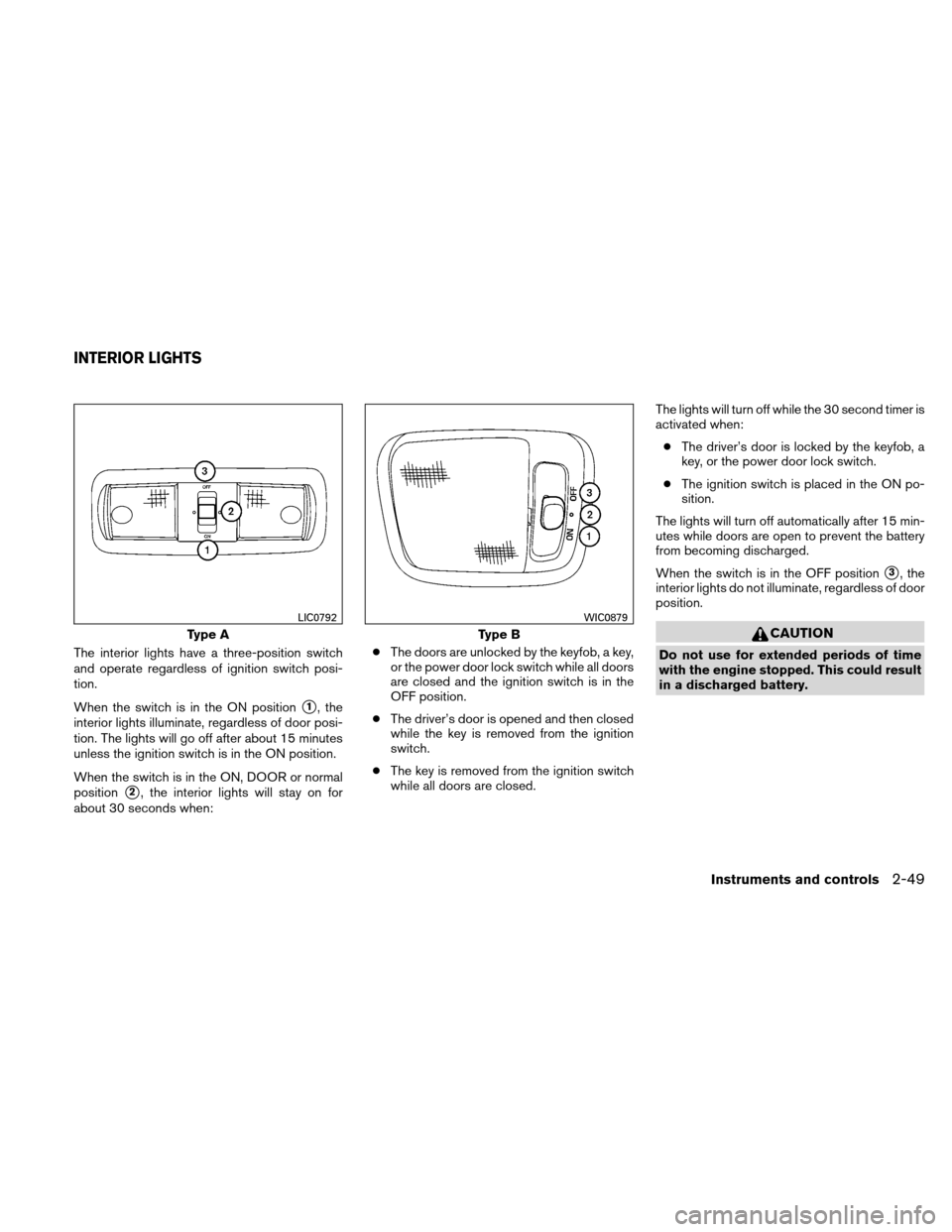

NISSAN XTERRA 2011 N50 / 2.G Owners Manual The interior lights have a three-position switch
and operate regardless of ignition switch posi-
tion.
When the switch is in the ON position
1, the
interior lights illuminate, regardless of door posi

Page 127 of 339

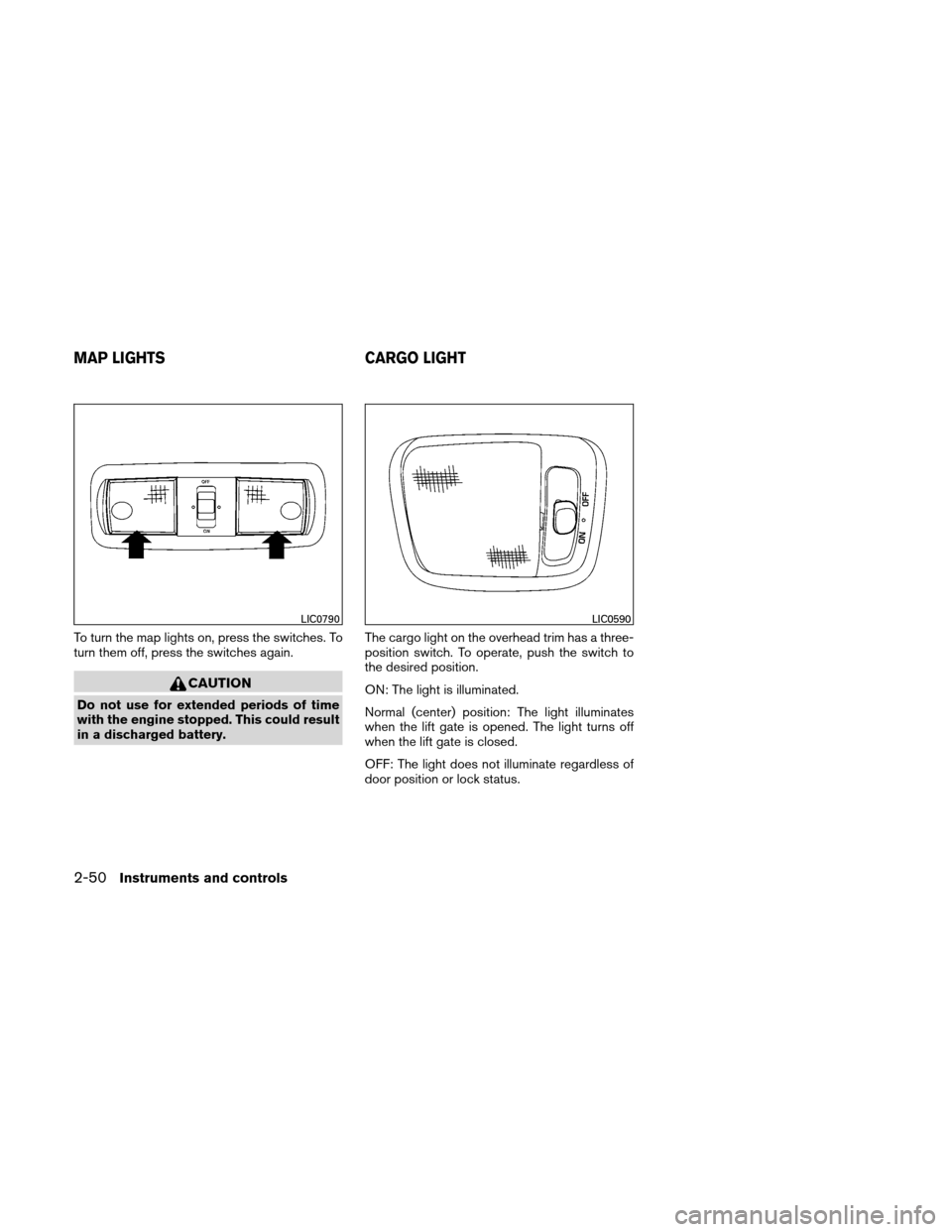

NISSAN XTERRA 2011 N50 / 2.G Owners Manual To turn the map lights on, press the switches. To
turn them off, press the switches again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged ba

Page 128 of 339

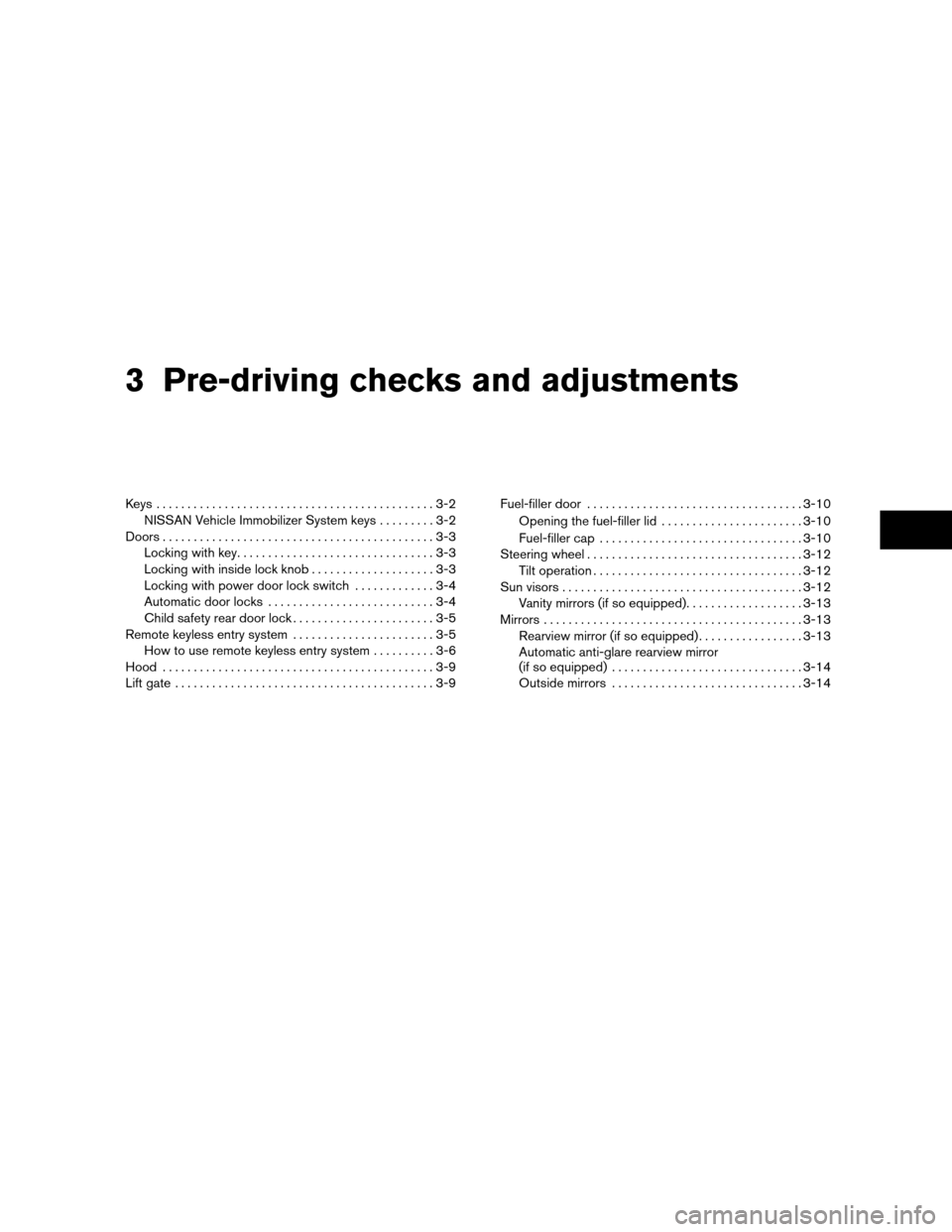

NISSAN XTERRA 2011 N50 / 2.G Owners Manual 3 Pre-driving checks and adjustments
Keys .............................................3-2NISSAN Vehicle Immobilizer System keys .........3-2
Doors ............................................3-3
Lock

Page 129 of 339

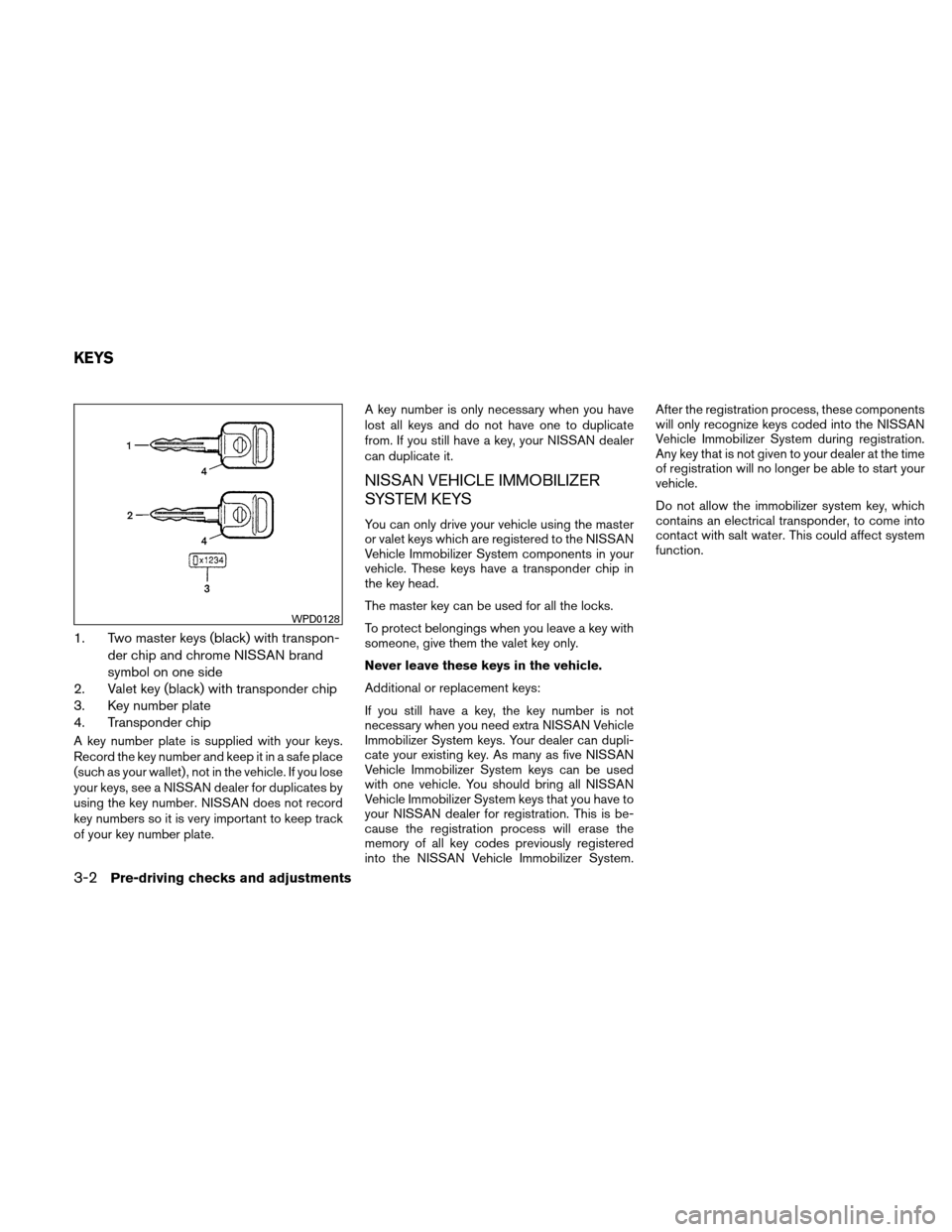

NISSAN XTERRA 2011 N50 / 2.G Owners Manual 1. Two master keys (black) with transpon-der chip and chrome NISSAN brand
symbol on one side
2. Valet key (black) with transponder chip
3. Key number plate
4. Transponder chip
A key number plate is su

Page 130 of 339

NISSAN XTERRA 2011 N50 / 2.G Owners Manual When the doors are locked using one of the
following methods, the doors can not be opened
using the inside or outside door handles. The
doors must be unlocked to open the doors.
WARNING
●Always have
