NISSAN XTERRA 2011 N50 / 2.G Owners Manual AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)
The inside mirror is designed so that it automati-
cally dims according to the intensity of the head-
lights of the vehicle following you. The aut

Page 142 of 339

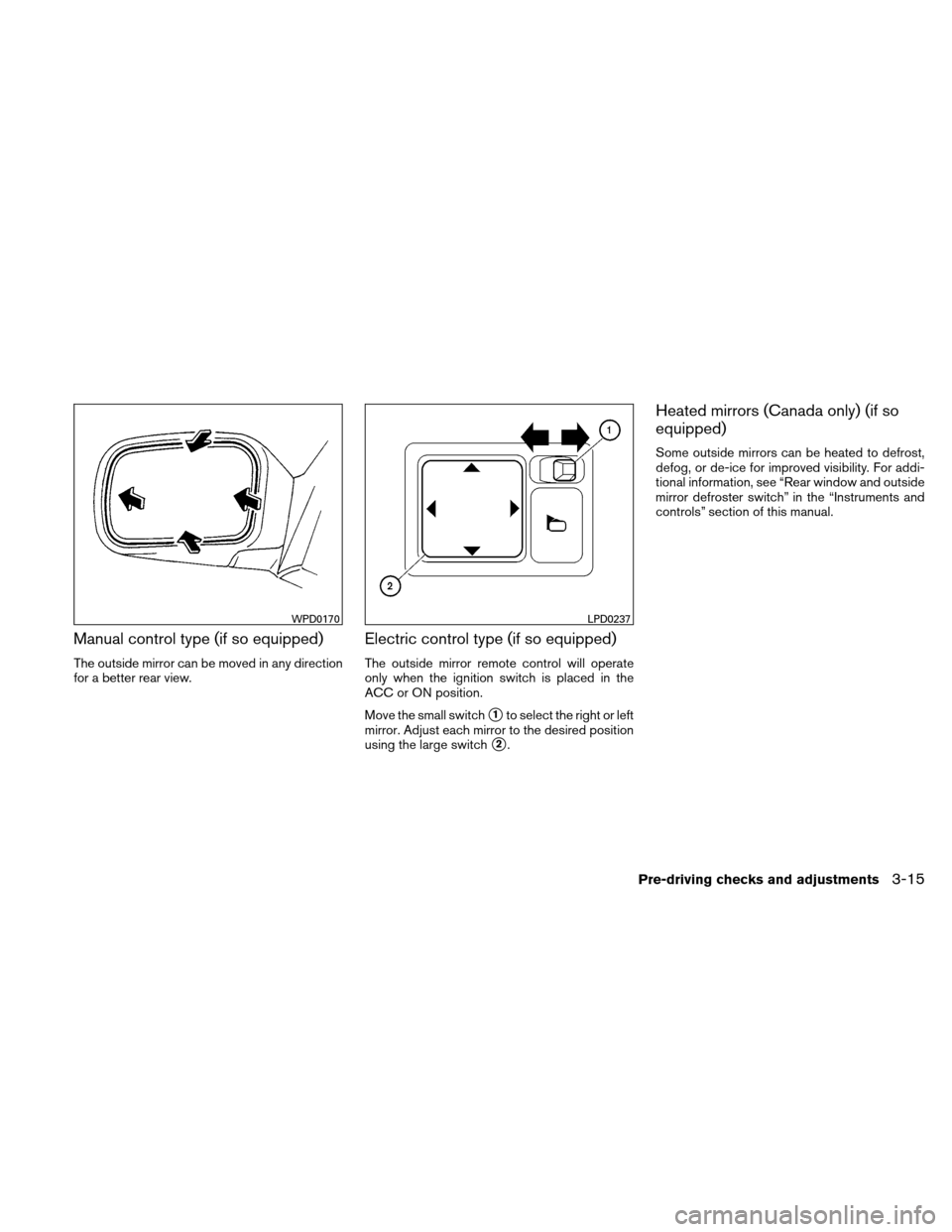

NISSAN XTERRA 2011 N50 / 2.G Owners Manual Manual control type (if so equipped)
The outside mirror can be moved in any direction
for a better rear view.
Electric control type (if so equipped)
The outside mirror remote control will operate
only

Page 143 of 339

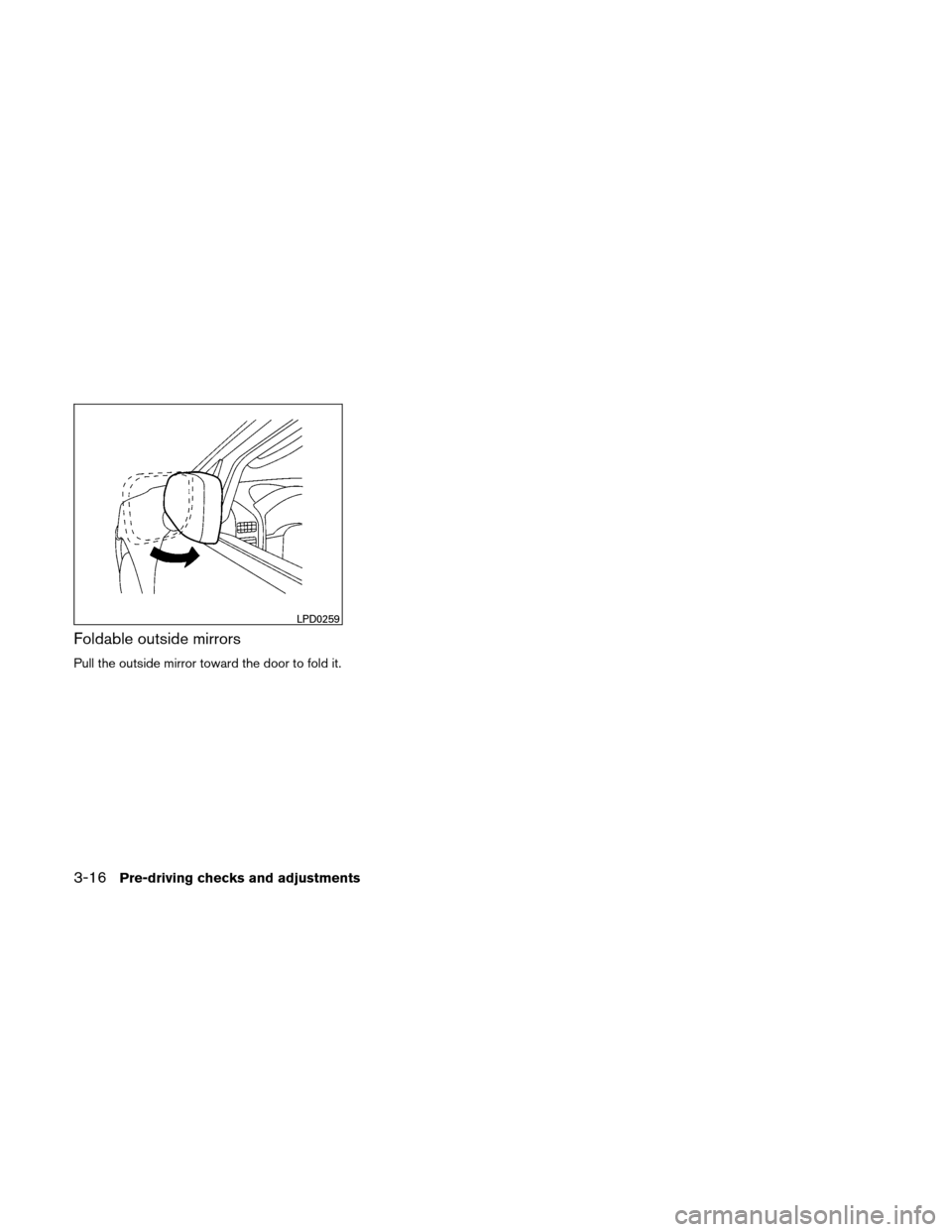

NISSAN XTERRA 2011 N50 / 2.G Owners Manual Foldable outside mirrors
Pull the outside mirror toward the door to fold it.
LPD0259
3-16Pre-driving checks and adjustments

Page 144 of 339

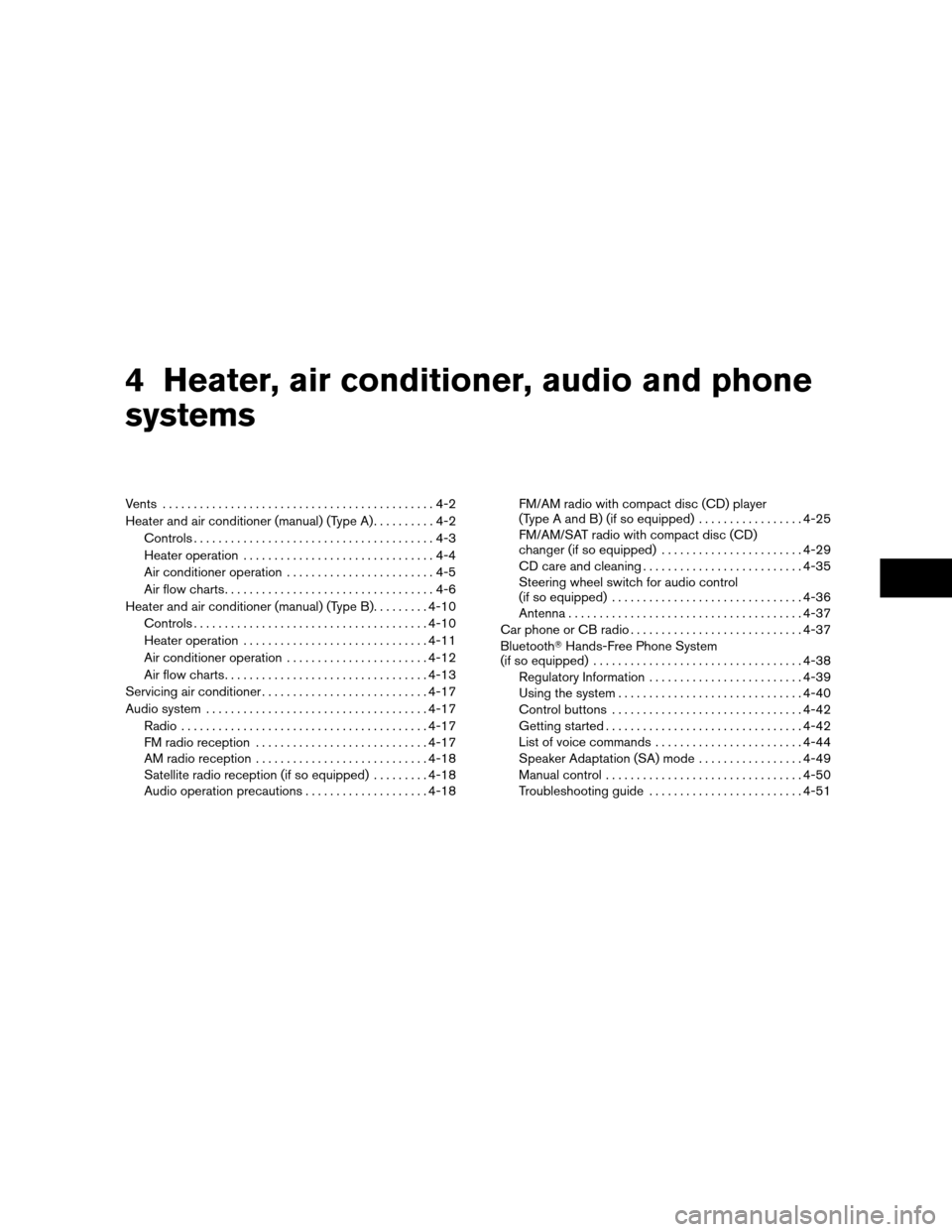

NISSAN XTERRA 2011 N50 / 2.G Owners Manual 4 Heater, air conditioner, audio and phone
systems
Vents............................................4-2
Heater and air conditioner (manual) (Type A) ..........4-2
Controls ............................

Page 145 of 339

NISSAN XTERRA 2011 N50 / 2.G Owners Manual Adjust air flow direction for the driver’s side vents
1, center vents2, and passenger’s side vents
3by moving the vent slide and/or vent assem-
blies.
WARNING
● The air conditioner cooling fu

Page 146 of 339

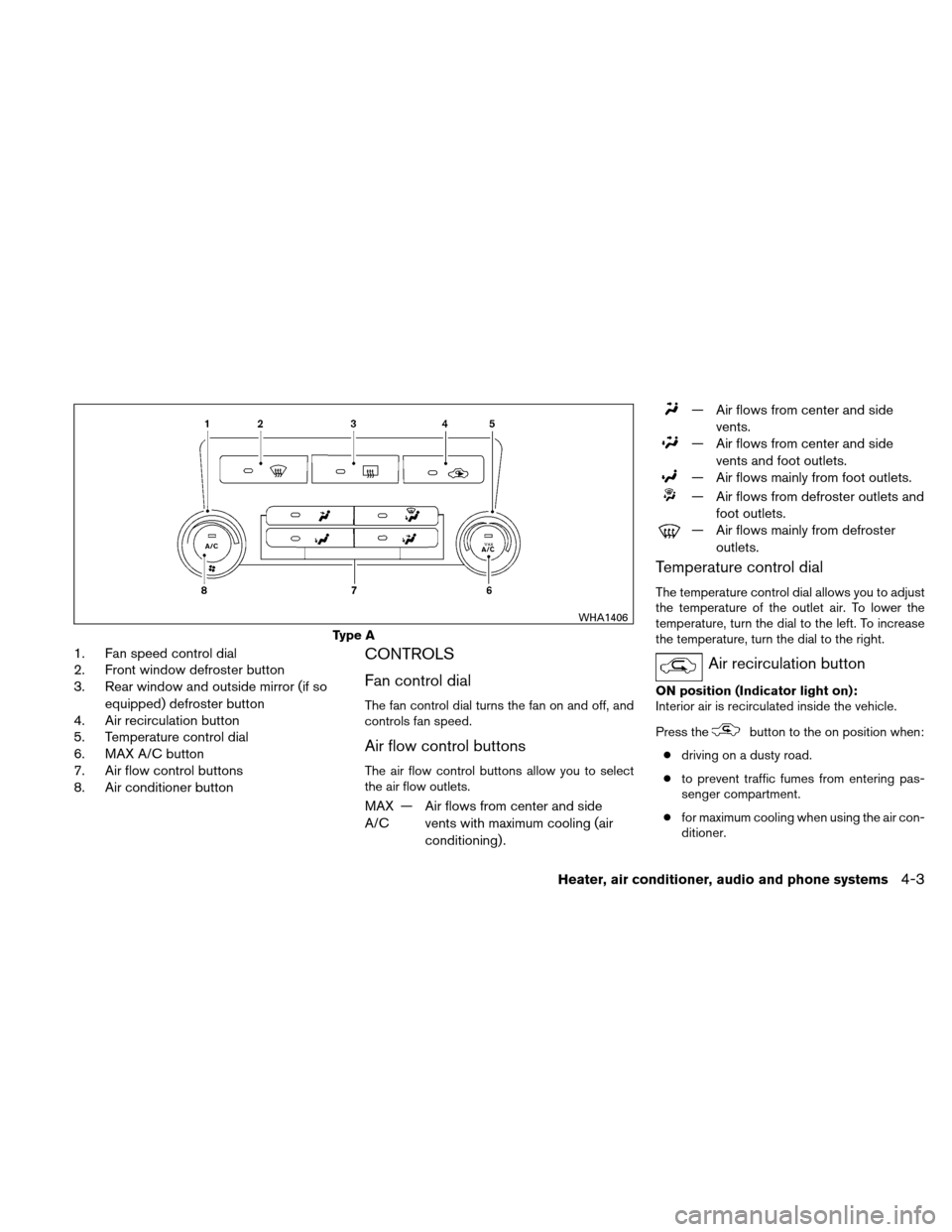

NISSAN XTERRA 2011 N50 / 2.G Owners Manual 1. Fan speed control dial
2. Front window defroster button
3. Rear window and outside mirror (if soequipped) defroster button
4. Air recirculation button
5. Temperature control dial
6. MAX A/C button

Page 147 of 339

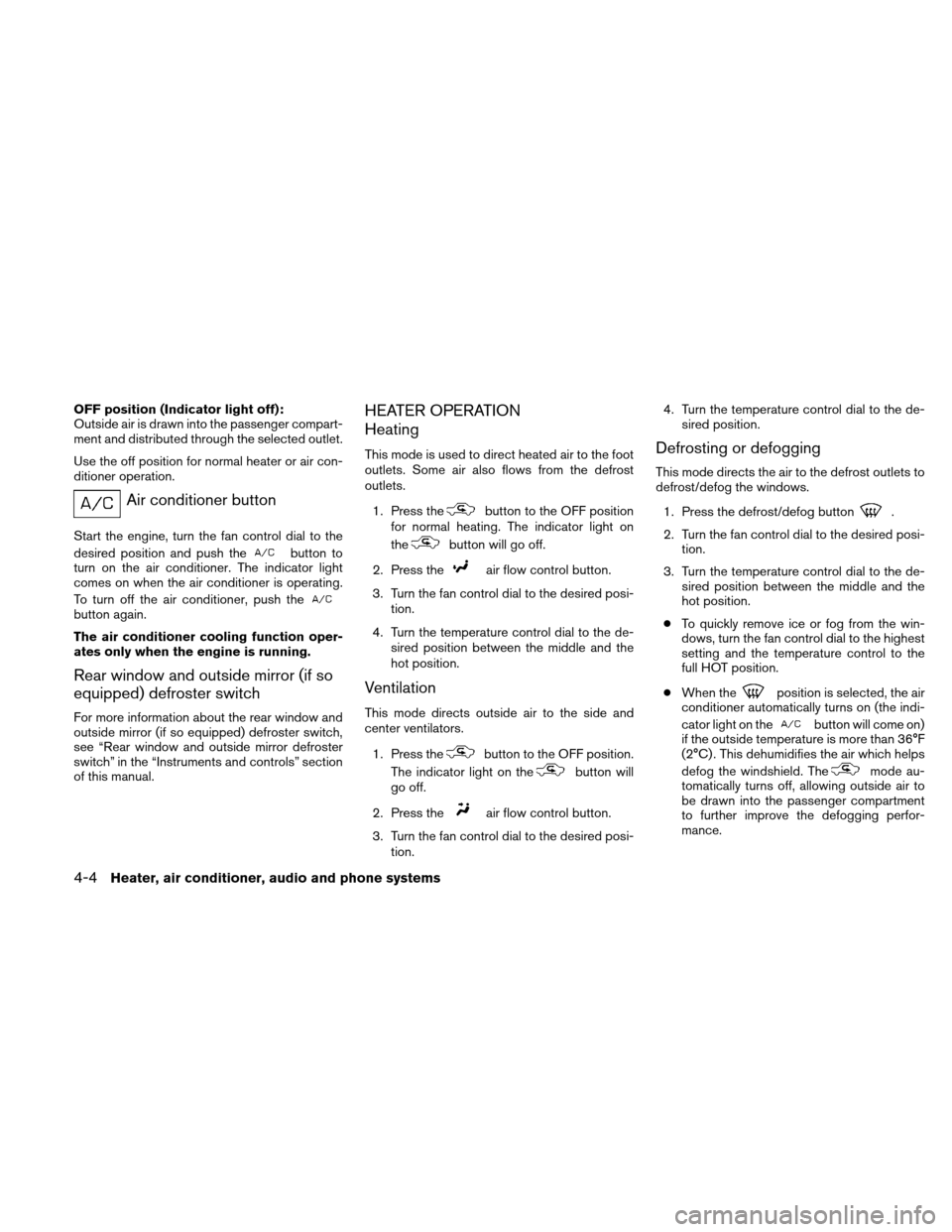

NISSAN XTERRA 2011 N50 / 2.G Owners Manual OFF position (Indicator light off):
Outside air is drawn into the passenger compart-
ment and distributed through the selected outlet.
Use the off position for normal heater or air con-
ditioner opera

Page 148 of 339

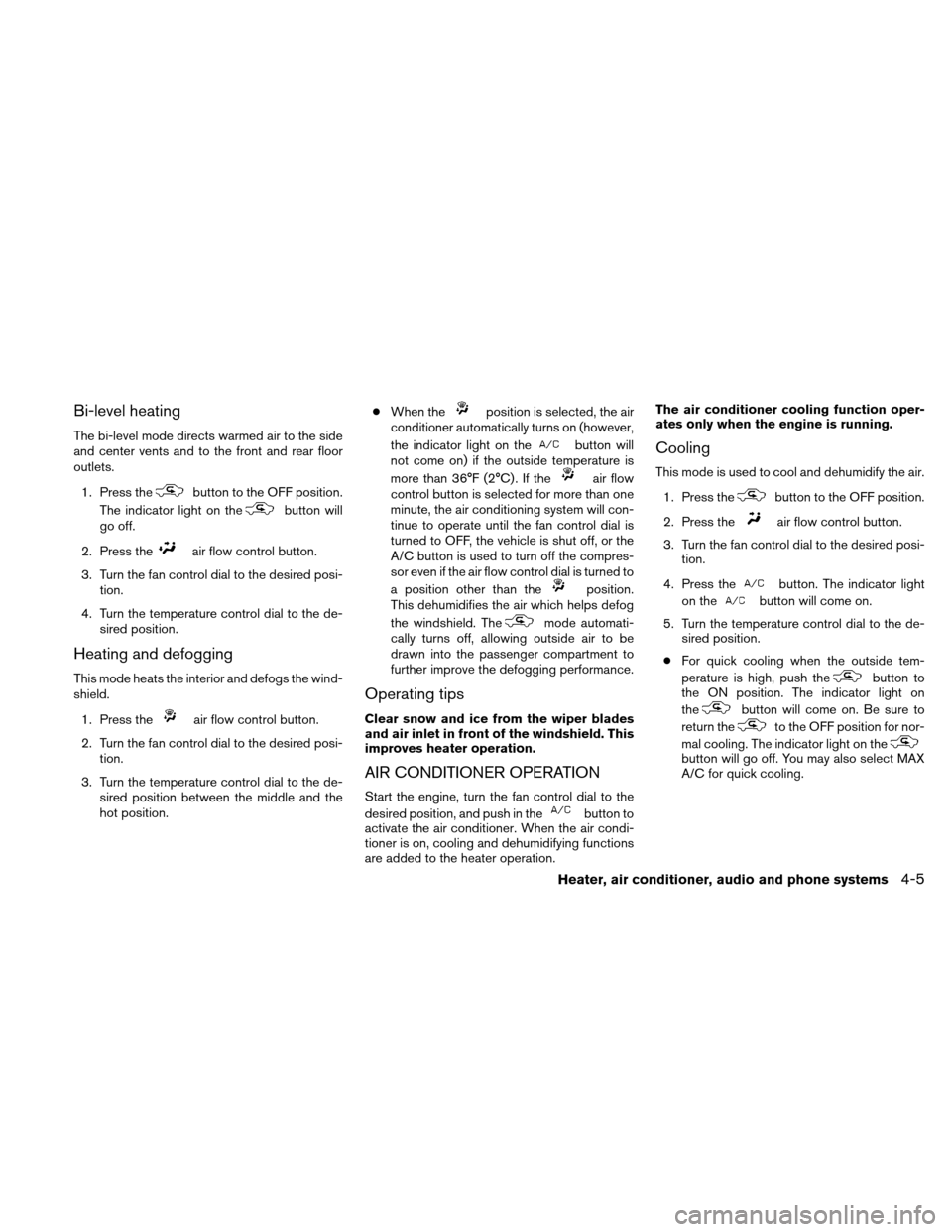

NISSAN XTERRA 2011 N50 / 2.G Owners Manual Bi-level heating
The bi-level mode directs warmed air to the side
and center vents and to the front and rear floor
outlets.1. Press the
button to the OFF position.
The indicator light on the
button wi

Page 149 of 339

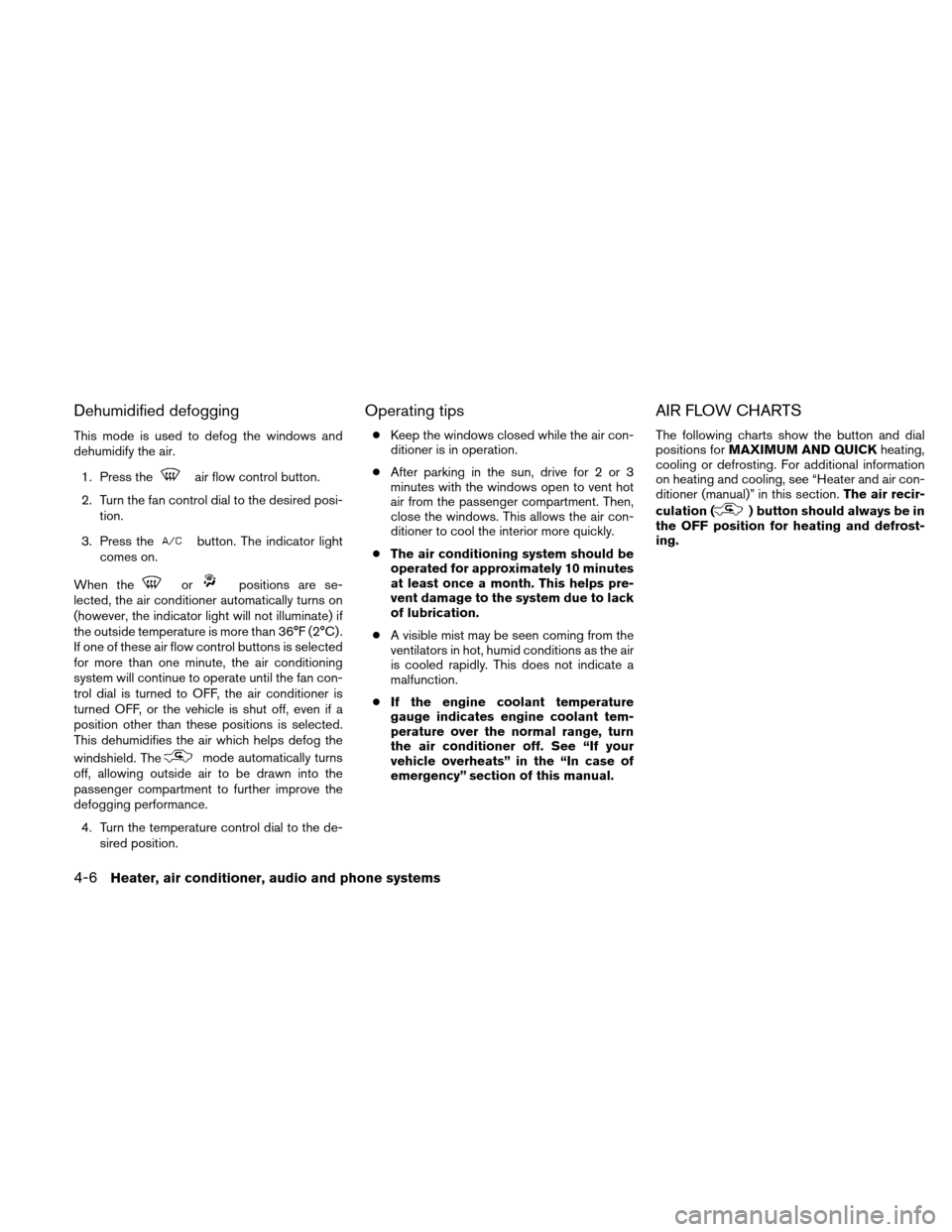

NISSAN XTERRA 2011 N50 / 2.G Owners Manual Dehumidified defogging
This mode is used to defog the windows and
dehumidify the air.1. Press the
air flow control button.
2. Turn the fan control dial to the desired posi- tion.
3. Press the
button.

Page 150 of 339

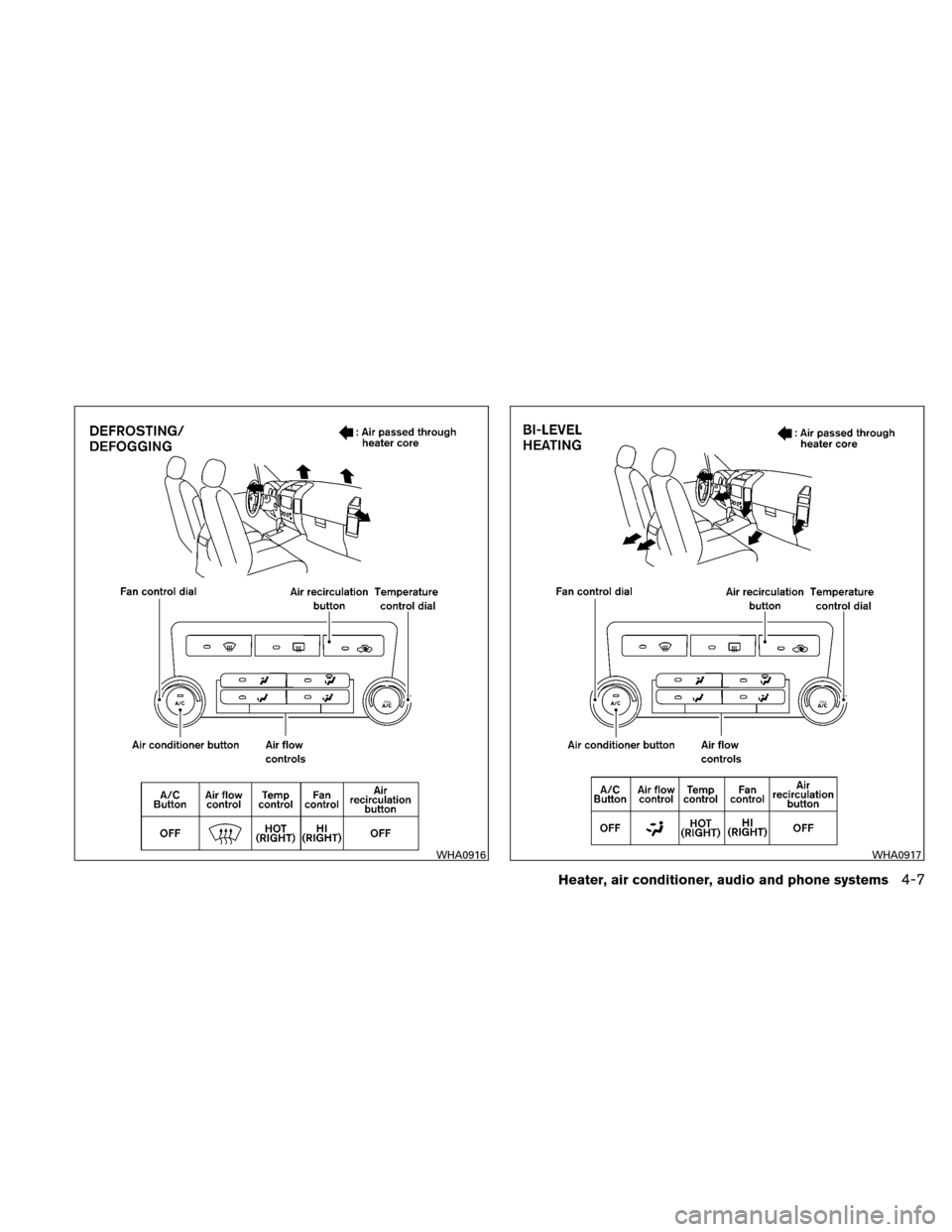

NISSAN XTERRA 2011 N50 / 2.G Owners Manual WHA0916WHA0917
Heater, air conditioner, audio and phone systems4-7
