Page 91 of 384

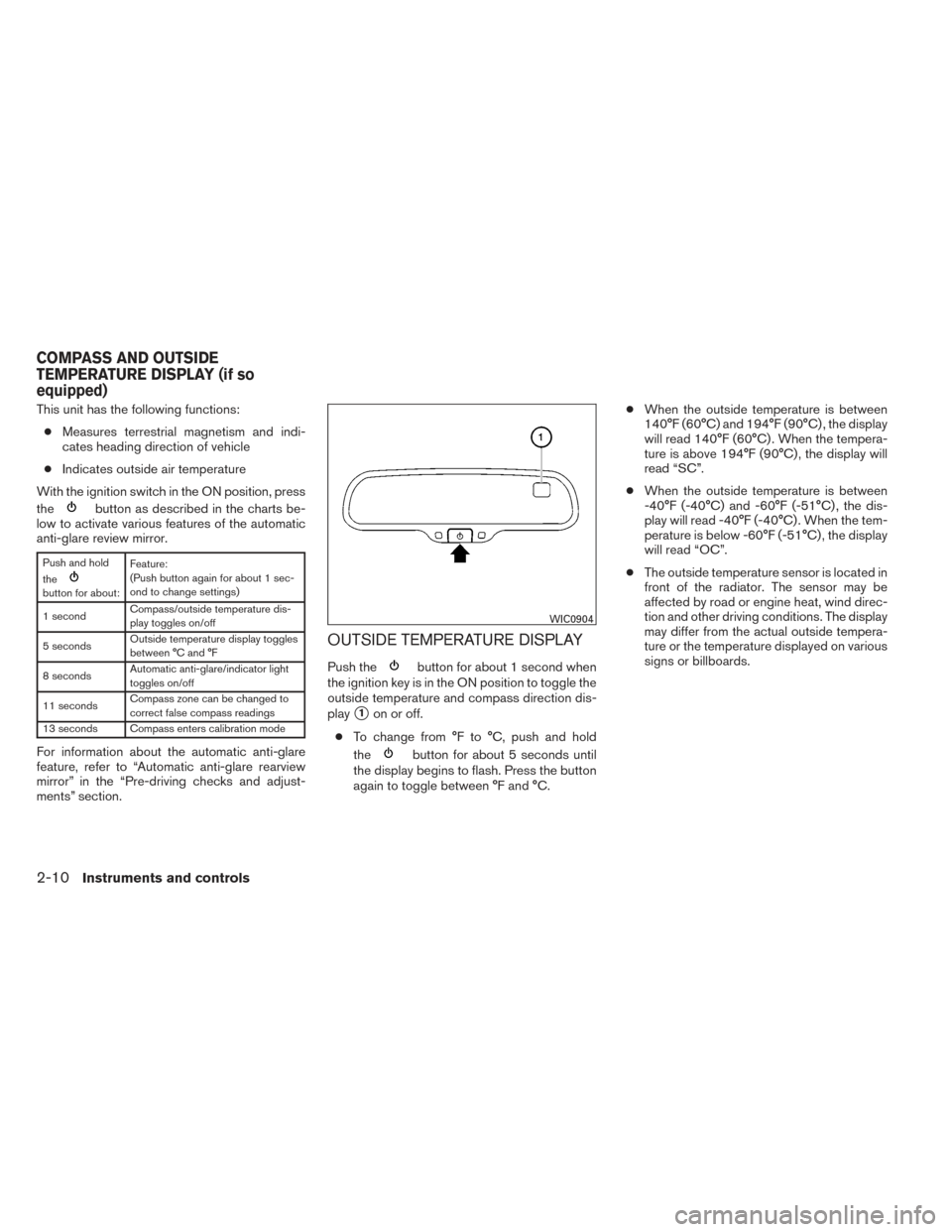

NISSAN XTERRA 2014 N50 / 2.G Owners Manual This unit has the following functions:● Measures terrestrial magnetism and indi-
cates heading direction of vehicle
● Indicates outside air temperature
With the ignition switch in the ON position,

Page 92 of 384

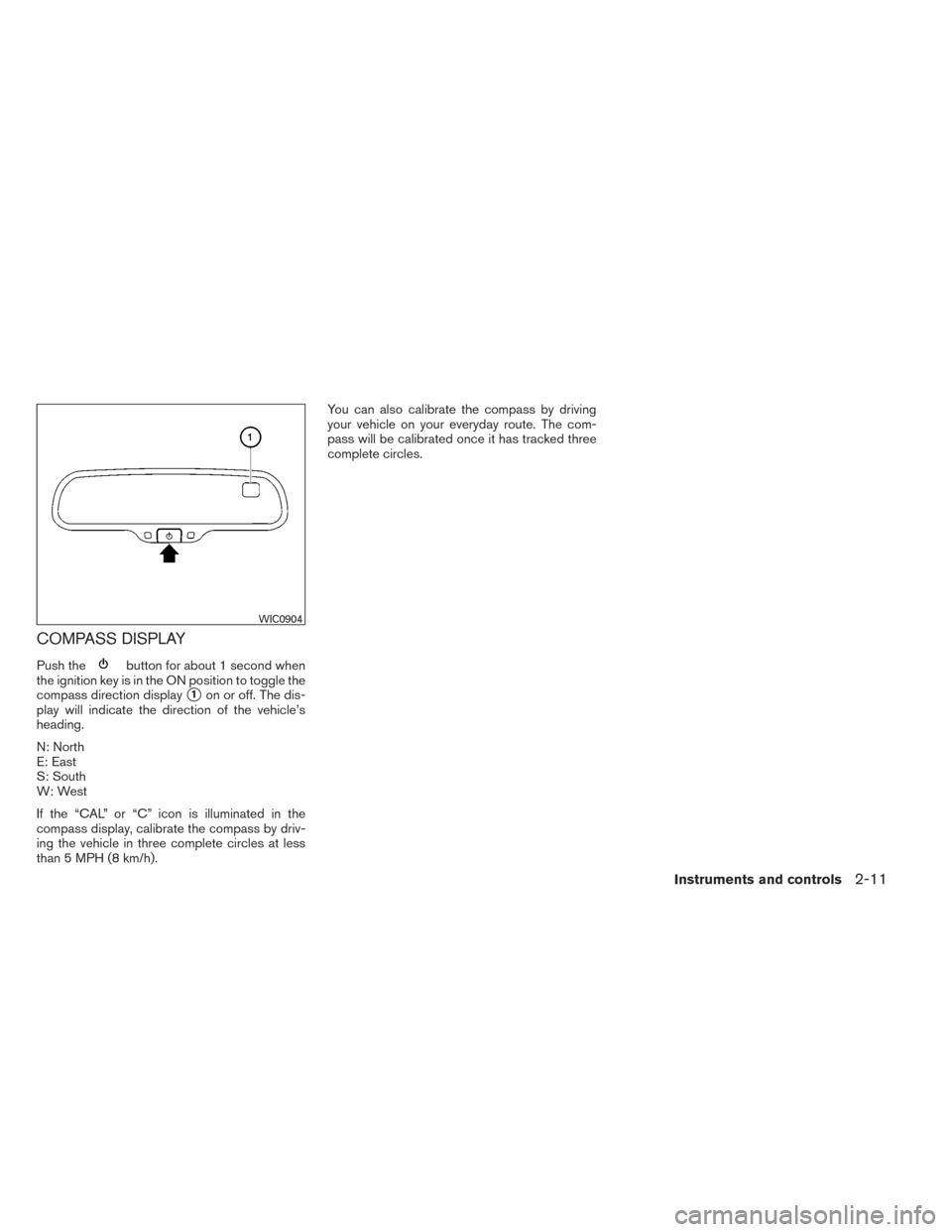

NISSAN XTERRA 2014 N50 / 2.G Owners Manual COMPASS DISPLAY
Push thebutton for about 1 second when
the ignition key is in the ON position to toggle the
compass direction display
1on or off. The dis-
play will indicate the direction of the vehi

Page 93 of 384

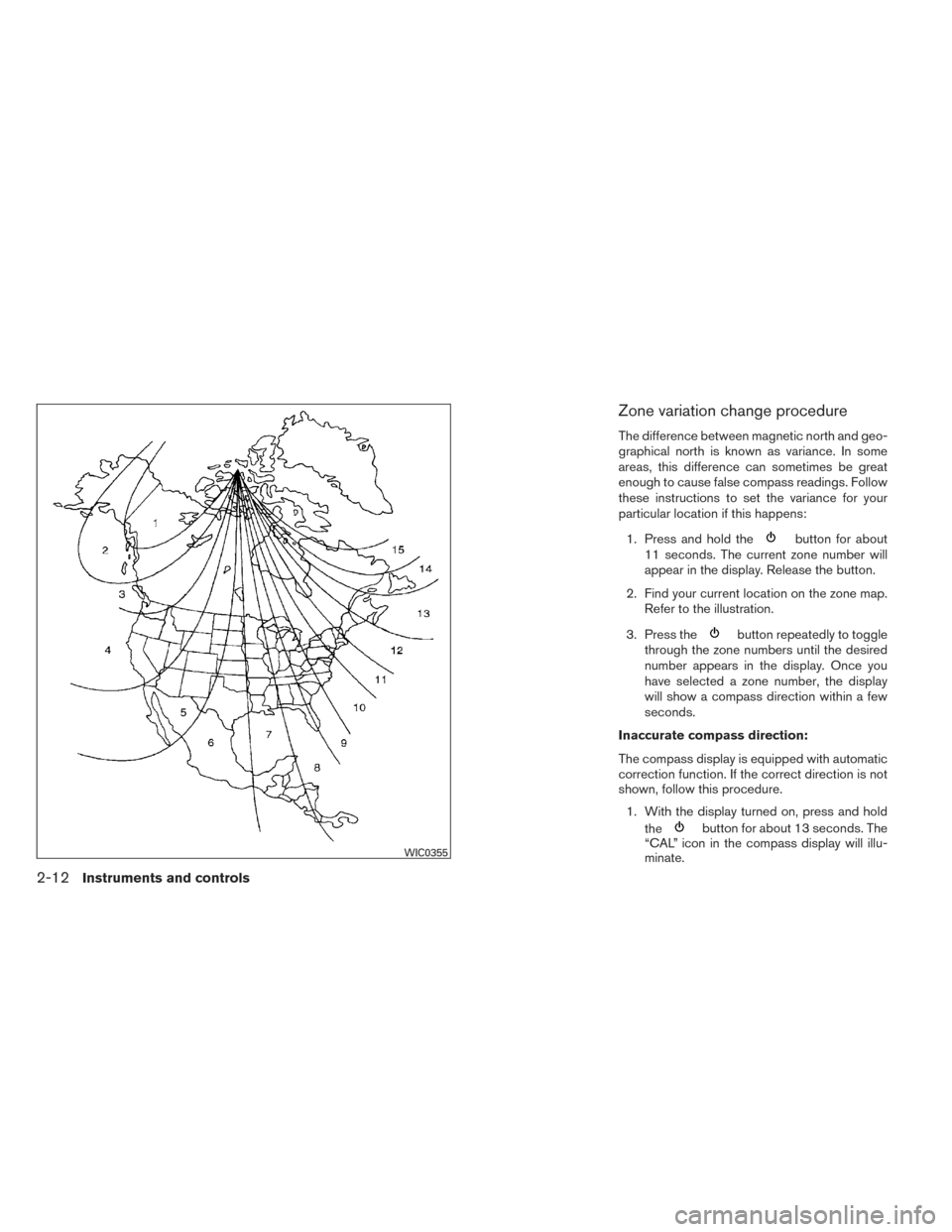

NISSAN XTERRA 2014 N50 / 2.G Owners Manual Zone variation change procedure
The difference between magnetic north and geo-
graphical north is known as variance. In some
areas, this difference can sometimes be great
enough to cause false compass

Page 94 of 384

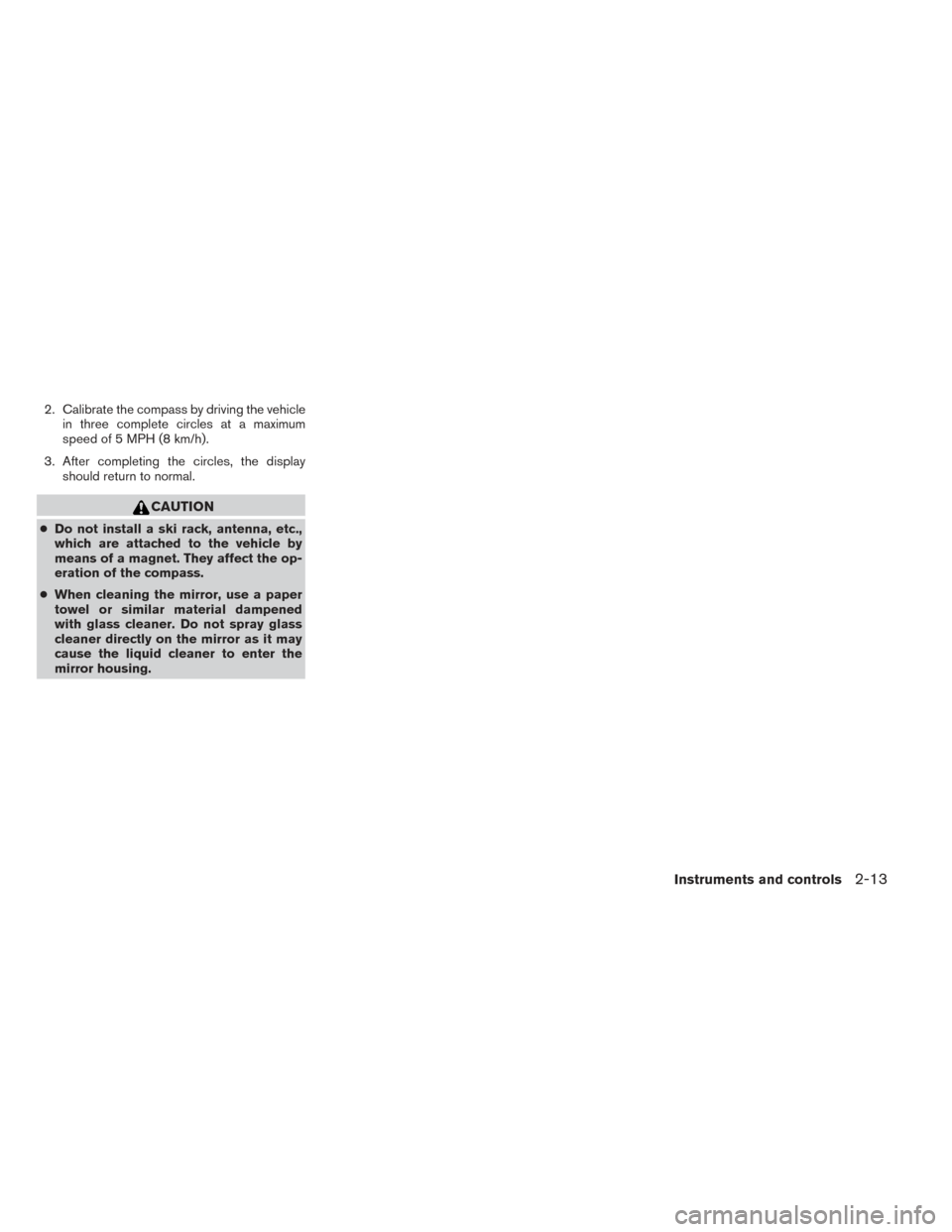

NISSAN XTERRA 2014 N50 / 2.G Owners Manual 2. Calibrate the compass by driving the vehiclein three complete circles at a maximum
speed of 5 MPH (8 km/h).
3. After completing the circles, the display should return to normal.
CAUTION
●Do not i

Page 95 of 384

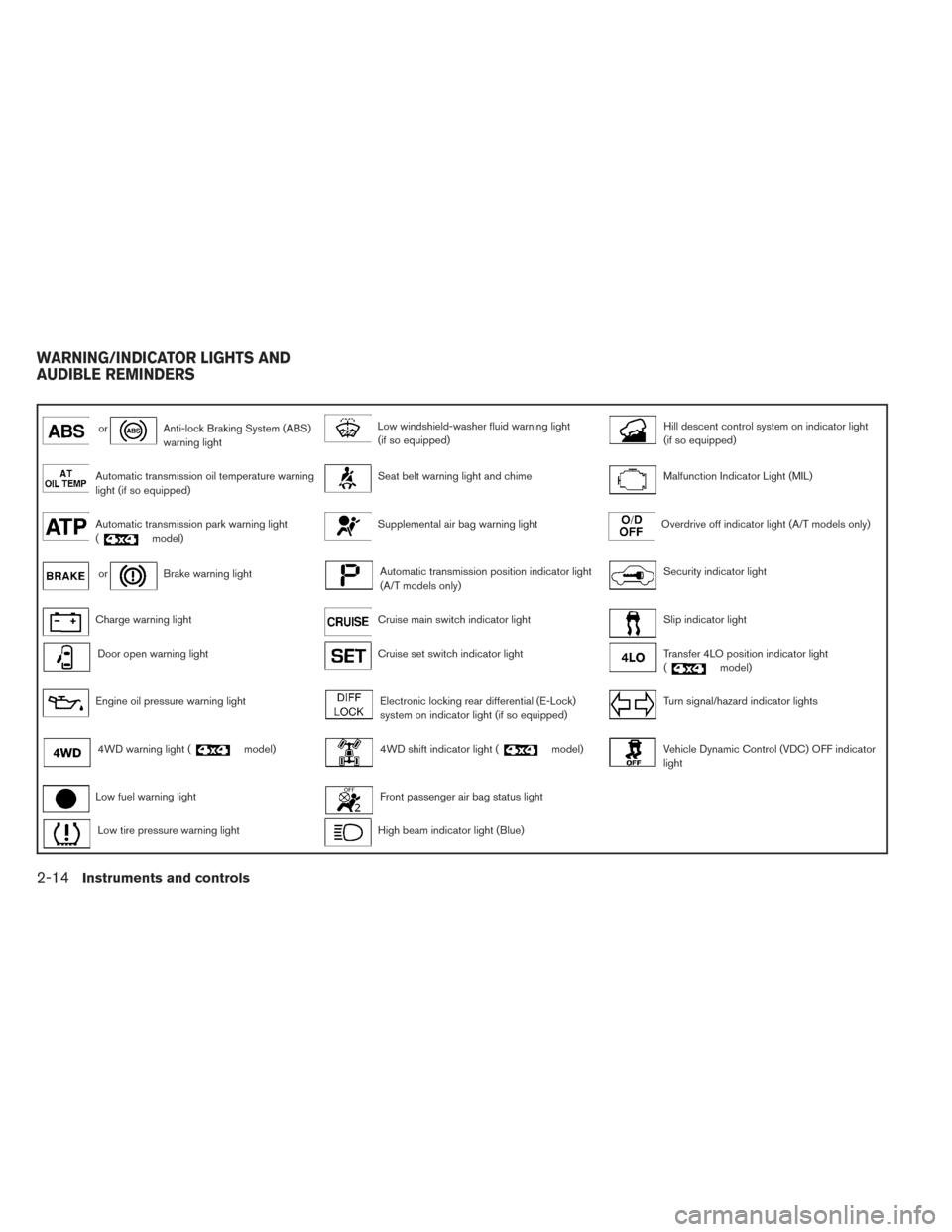

NISSAN XTERRA 2014 N50 / 2.G Owners Manual orAnti-lock Braking System (ABS)
warning lightLow windshield-washer fluid warning light
(if so equipped)Hill descent control system on indicator light
(if so equipped)
Automatic transmission oil tempe

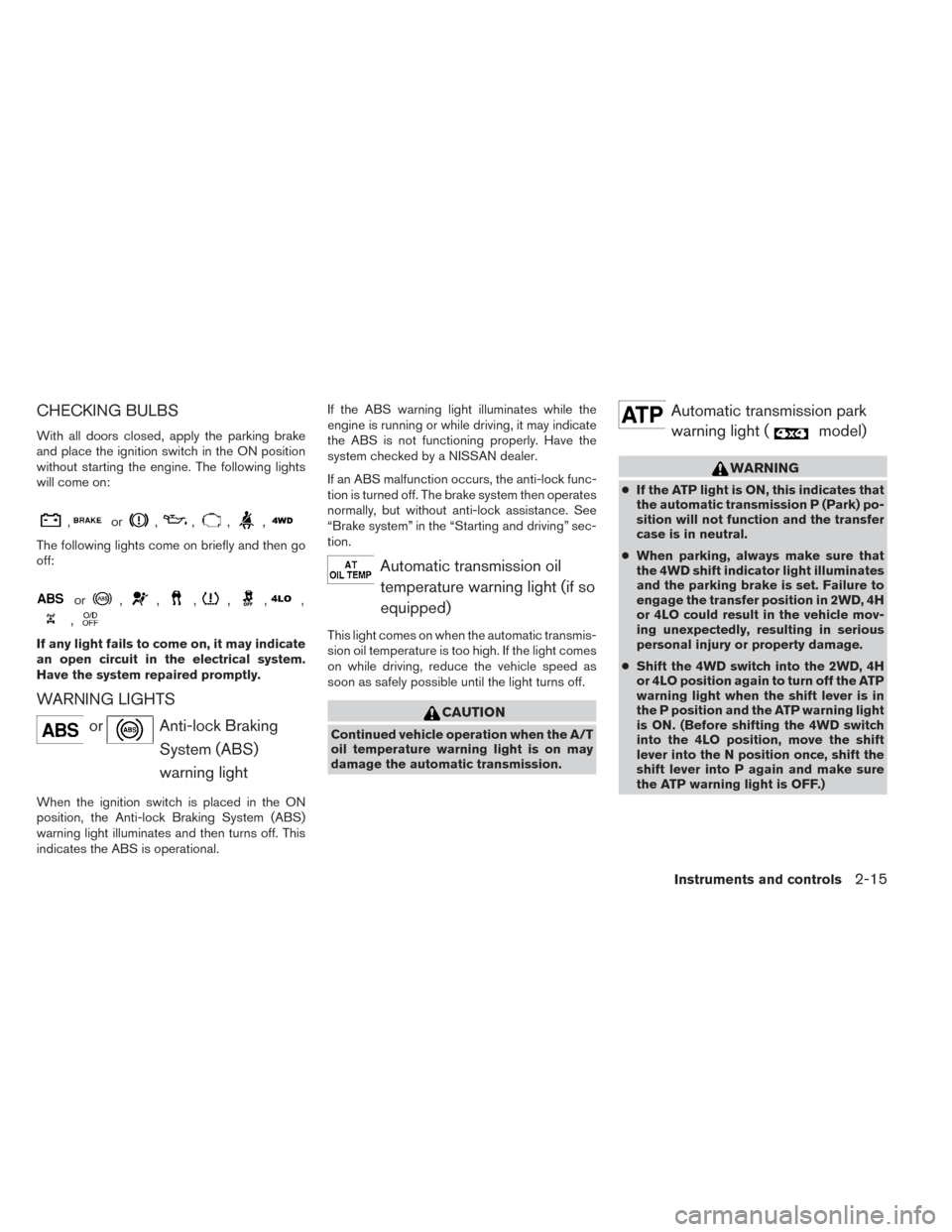

Page 96 of 384

NISSAN XTERRA 2014 N50 / 2.G Owners Manual CHECKING BULBS
With all doors closed, apply the parking brake
and place the ignition switch in the ON position
without starting the engine. The following lights
will come on:
,or,,,,
The following lig

Page 97 of 384

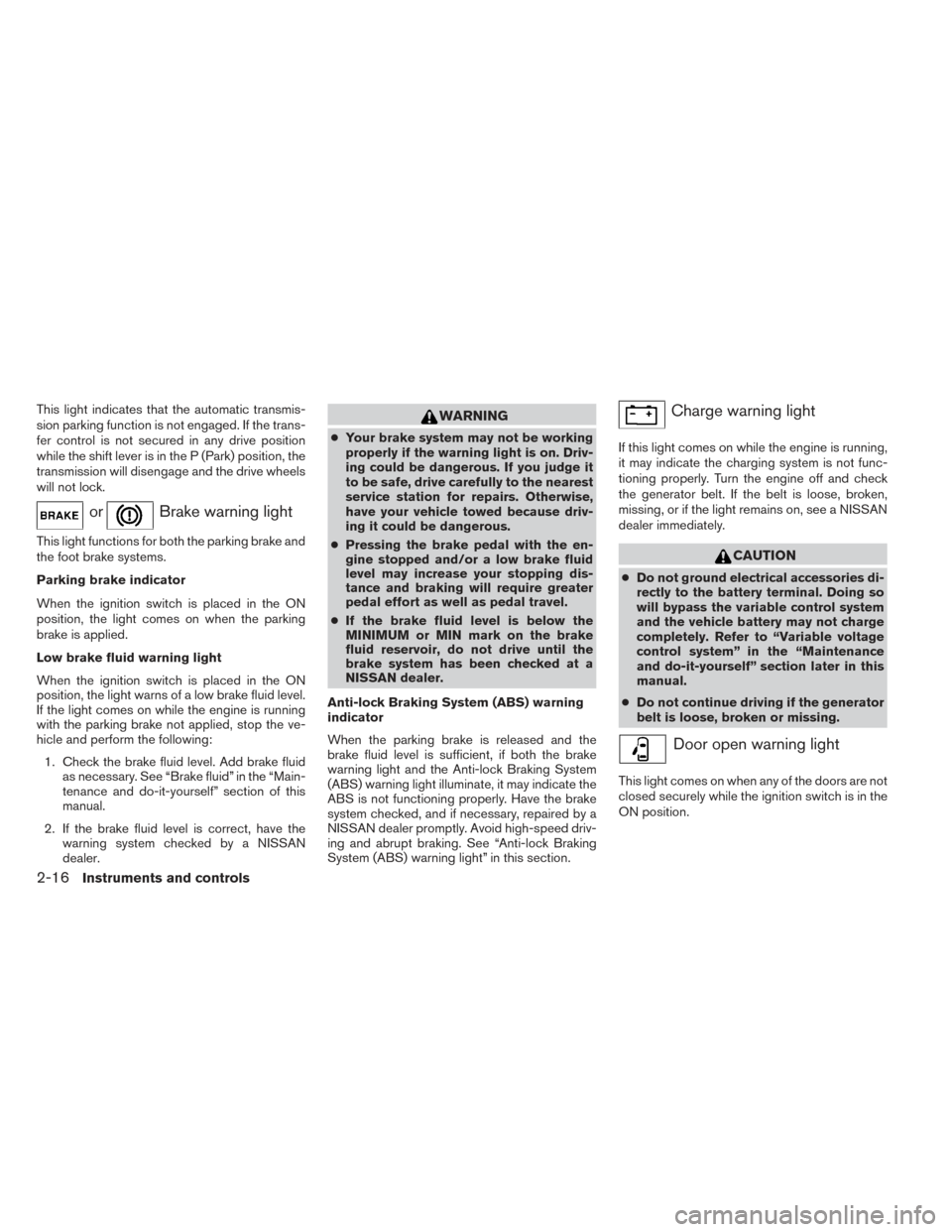

NISSAN XTERRA 2014 N50 / 2.G Owners Manual This light indicates that the automatic transmis-
sion parking function is not engaged. If the trans-
fer control is not secured in any drive position
while the shift lever is in the P (Park) position

Page 98 of 384

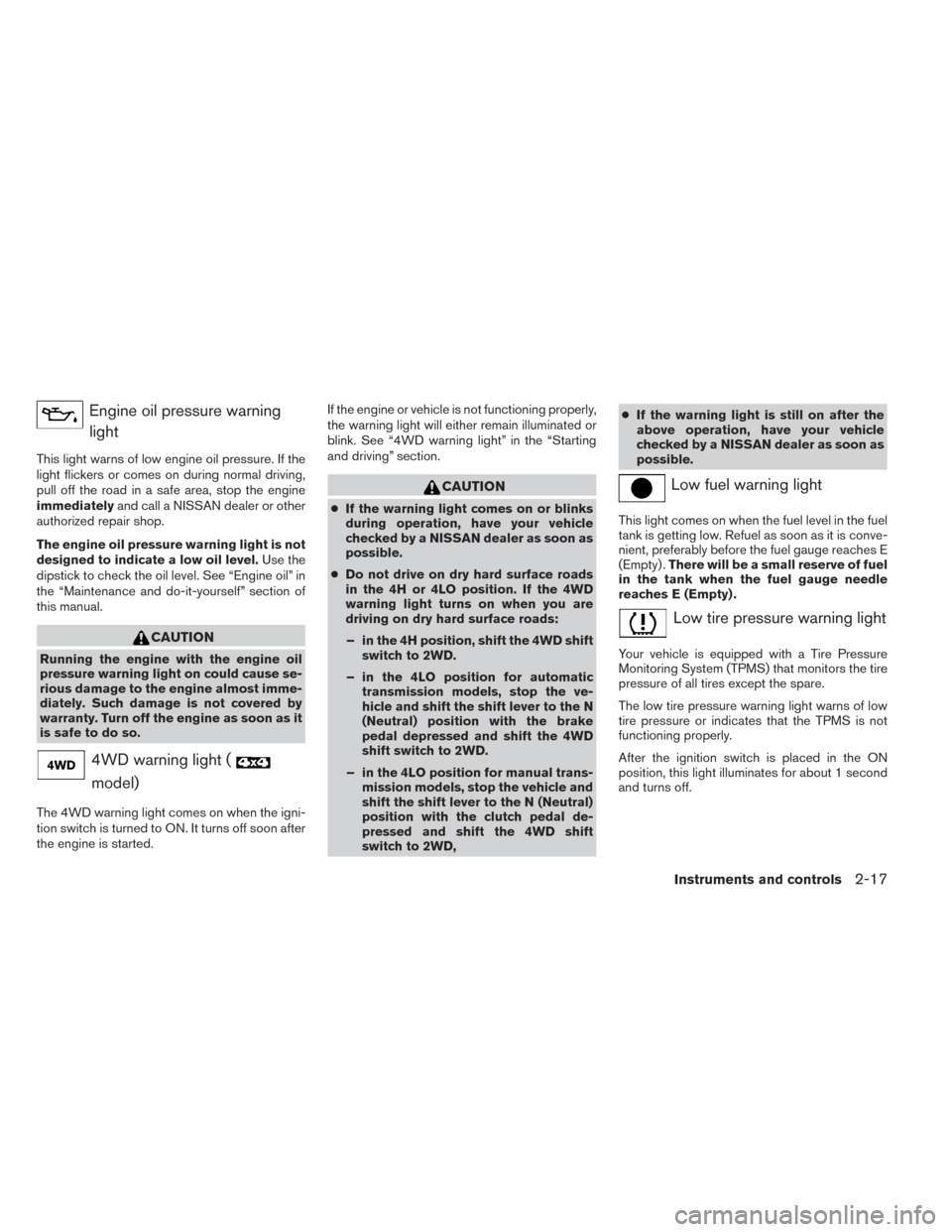

NISSAN XTERRA 2014 N50 / 2.G Owners Manual Engine oil pressure warninglight
This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and

Page 99 of 384

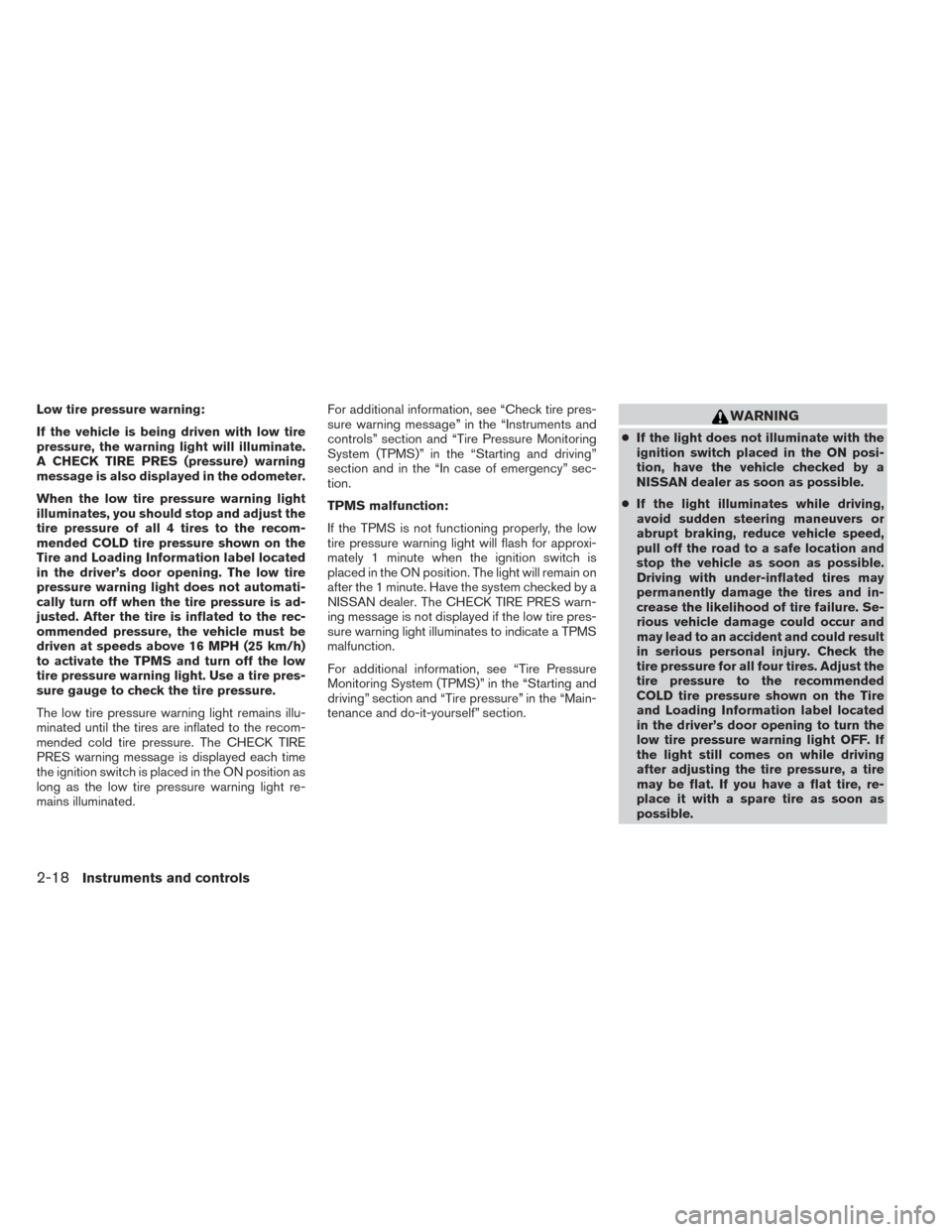

NISSAN XTERRA 2014 N50 / 2.G Owners Manual Low tire pressure warning:
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
A CHECK TIRE PRES (pressure) warning
message is also displayed in the odometer.
Whe

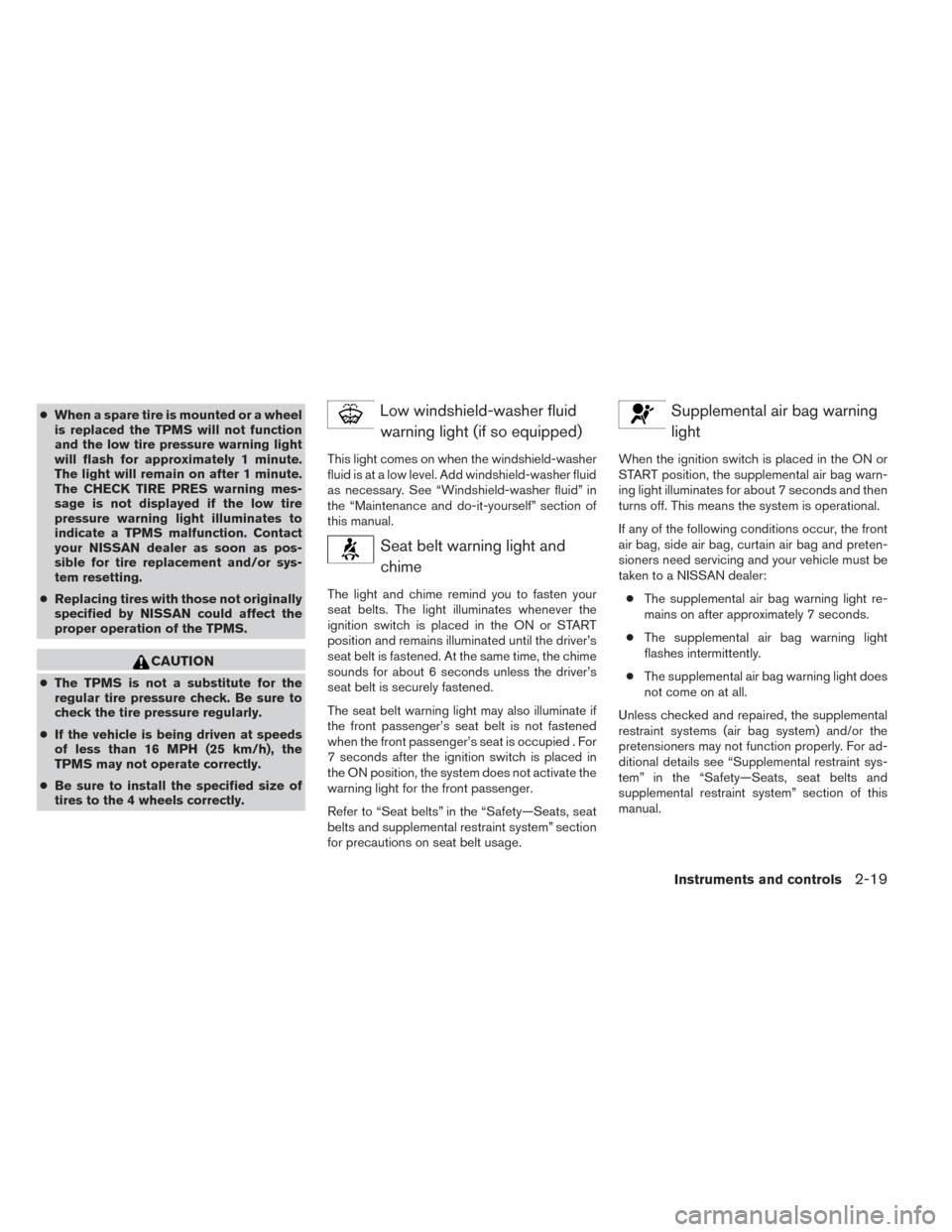

Page 100 of 384

NISSAN XTERRA 2014 N50 / 2.G Owners Manual ●When a spare tire is mounted or a wheel
is replaced the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute
