Illuminated EntryExit System
When you lift the outside handle of either front door or
open either rear door, the lamps inside your vehicle will
go on. These lamps will fade out after about 40 seconds,
or when the ignition
is turned on after all doors have
been closed.
If the ignition was recently turned off, the
lamps will fade
out after four seconds. These lamps will
also go on when you press the
DOOR or UNLOCK
button on the optional Remote Lock Control transmitter.
Rear Door Security Locks
Your Oldsmobile is
equipped with rear
door security locks
that help prevent
passengers from
opening the rear
doors
of your vehicle from
the inside.
If the ignition has been off for less than two minutes,
the lamps inside your vehicle will stay
on for about
15 seconds after your key is removed from the ignition
to provide an illuminated exit. To use one of these locks:
1. Use a key to move the lock all the way up.
2. Close the door.
3.. Do the same thing to the other rear door lock.
Page 62 of 340
The rear doors of your vehicle cannot be opened from
inside when this feature
is in use. If you want to open a
rear door when the security lock is on:
1. Unlock the door from the inside.
2. Then open the door from the outside.
If you don’t cancel the security lock feature, adults or
older children who ride in the rear won’t be able to open
the rear door from the inside. You should let adults and
older children know how these security locks work, and
how to cancel the locks.
To Cancel the Rear Door Lock:
1. Unlock the door from the inside and open the door
from the outside.
2. Use a key to move the lock all the way down.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Remote Lock Control (Option)
If your Oldsmobile has this option, you can lock and
unlock your doors or unlock your trunk from
up to
30 feet (9 m) away using the key chain transmitter
supplied with your vehicle.
Your Remote Lock Control operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules.
2-6
Page 63 of 340
This device complies with Part 15 of the FCC Rules.
Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
Should interference to this system occur, try this:
Check to determine if battery replacement is
necessary. See the instructions on battery
replacement.
Check the distance. You may be too far from your
vehicle. This product has a maximum range.
Check the location. Other vehicles or objects may be
blocking the signal.
See your Oldsmobile retailer or a qualified
technician for service.
Changes or modifications to
this system by other than an
authorized service facility could void authorization to
use this equipment.
Operation
The driver’s door will unlock when UNLOCK is
pressed.
If pressed again within five seconds, all doors
will unlock. All doors will lock when
DOOR is pressed.
The trunk will unlock anytime when the vehicle symbol
on the Remote
Lock Control is pressed and the ignition is
off. If the ignition is on, the trunk will unlock if the
parking brake is set (manual transaxle) or
the gear selector
is in PARK
(P) or NEUTRAL, (N) (automatic transaxle).
Press
DOOR or UNLOCK to illuminate the interior
lamps. The lamps will then
go off after 40 seconds when
UNLOCK is pressed and four seconds when
DOOR is
pressed. When the ignition is turned on, the lamps will
also fade out (see Illuminated EntryExit System earlier
in this section).
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle.
If a transmitter
is lost or stolen,
a replacement can be purchased through
your retailer. Remember to bring any remaining
transmitters with you when you
go to your retailer.
When the retailer matches the replacement transmitter to
your vehicle, the remaining transmitters must also be
matched. Once the new transmitter
is coded, the lost
transmitter will not unlock your vehicle.
2-7
Page 64 of 340
You can match a transmitter to as many different
vehicles as
you own, provided they are equipped with
exactly the sume model system. (General Motors offers
several different models
of these systems on their
vehicles.) Each vehicle can have only two transmitters
matched to it.
See your retailer to match transmitters to another
vehicle.
Battery Replacement
Under normal use, the batteries in your key chain
transmitter should last about two years.
You can tell the batteries are weak if the transmitter
won’t work at the normal range in any location. If you
have to get close to your vehicle before the transmitter
works, it’s probably time to change the batteries. To Replace Batteries in the Remote Lock Control
1. Pop the cover off by inserting a coin or similar
object in the slot between the covers, and then
twisting.
2. Lift the front cover off, bottom half first.
3. Remove and replace the two batteries. Use two
Duracell@ batteries, type DL-20
16, or equivalent.
4. Replace the front cover. Make sure the cover is on
tightly, so water won’t get in.
5. Check the transmitter operation.
2-8
Page 65 of 340

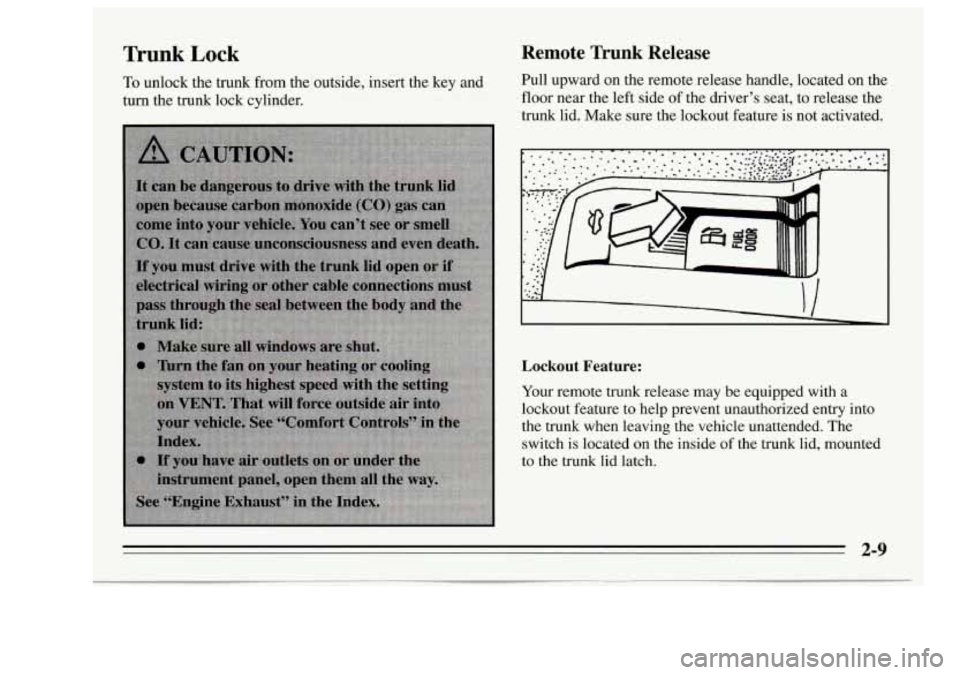

Trunk Lock
To unlock the trunk from the outside, insert the key and
turn the trunk lock cylinder.
Remote Trunk Release
Pull upward on the remote release handle, located on the
floor near the left side of the driver's seat, to release the
trunk lid. Make sure the lockout feature is not activated.
Lockout Feature:
Your remote trunk release may be equipped with a
lockout feature
to help prevent unauthorized entry into
the trunk when leaving the vehicle unattended. The
switch is located on the inside of the trunk lid, mounted
to the trunk lid latch.
2-9
Page 66 of 340
To turn the lockout on,
slide the switch all the
way
to the right. To
turn the lockout off,
slide the switch all the
way to the left.
When the lockout is
on, the mechanical remote trunk
release will not release
the trunk lid. However, the trunk
lid can still be opened with the key.
If
you have the optional Remote Lock Control feature,
your vehicle is not equipped with the trunk lockout
switch.
Convenience Net (Option)
Your vehicle may have a convenience net. You’ll see it
just inside the back wall of the trunk.
Put small loads, like grocery bags, behind the net. It can
help keep them from falling over during sharp turns
or
quick starts and stops.
The net isn’t for larger, heavier loads. Store them in the
trunk as far forward as you can.
You can unhook the net so that it will lie flat when
you’re
not using it.
2-10
Page 67 of 340
Theft
Glove Box
Use one of the vehicle’s keys to lock and unlock the
glove box. To open, pull the glove box handle toward
you.
Vehicle theft is big business, especially in some cities.
Although your Oldsmobile has a number
of theft
deterrent features, we know that nothing we put
on it
can make it impossible to steal. However, there are ways
you can help.
Key in the Ignition
If you walk away from your vehicle with the keys
inside,
it’s an easy target fm joy riders or professional
thieves
-- so don’t do it.
When you park your Oldsmobile and open the driver’s
door,
you’ll hear a chime reminding you to remove your
key from
the ignition and take it with you. Always do
this.
Your steering wheel will be locked, and so will
your ignition.
If you have an automatic transaxle, taking
your key out also locks your transaxle. And remember
to lock the doors.
2-11
Page 68 of 340
New Vehicle 4LBreak-In” Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out
of sight.
Put them
in a storage area, or take them with you.
, Parking Lots
If you park in a lot where someone will be watching
your vehicle, it’s best to lock it up and take your keys.
But what
if you have to leave your ignition key? What if
you have to leave something valuable in your vehicle?
0 Put your valuables in a storage area, like your trunk
or glove box.
0 Lock the glove box.
0 Lock all the doors except the driver’s.
0 Then take the door key with you.
NOTICE:
Your modern Oldsmobile doesn’t need an
elaborate “break-in.” But
it will perform better
in the long run
if you follow these guidelines:
0 Don’t drive at any one speed -- fast or
slow
-- for the first 500 miles (804 km).
Don’t make full-throttle starts.
200 miles (322 km) or so. During this time
your new brake linings aren’t yet broken
in. Hard stops with new linings
can mean
premature wear and earlier replacement.
Follow this “breaking-in” guideline every
time you get new brake linings.
0 Don’t tow a trailer during “break-in.” See
(‘Towing
a Trailer’’ in the Index for more
information.
0 Avoid making hard stops for the first
2-12
-5 T
Page 69 of 340
Ignition Switch
A E
With the key in the ignition switch, you can turn the
switch to five positions:
ACCESSORY (A): This is an “on” position in which
you can operate some
of your electrical power
accessories. Press in the ignition switch as you
turn the
top
of it toward you.
LOCK (B): This is the only position in which you can
remove the key. This locks your steering wheel, ignition
and transaxle (on automatic models).
OFF (C): This position unlocks the steering wheel,
ignition, and transaxle (on automatic models), but does
not send electrical power to any accessories. Use this
position
if your vehicle must be pushed or towed, but
never try to push-start your vehicle.
A warning chime
will sound if
you open the driver’s door when the
ignition is
off and the key is in the ignition.
RUN (D): This is an “on” position to which the switch
returns after you start your engine and release the
switch. The switch stays
in the RUN position when the
engine is running. But even when the engine
is not
running, you can use
RUN to operate your electrical
power accessories, and to display some instrument panel
warning lights.
START (E): Use this for starting the engine. When the
engine starts, release the key.
The ignition switch will
return to
RUN for normal driving.
Note that even
if the engine is not running, the positions
ACCESSORY and RUN are “on” positions that allow you
to operate your electrical accessories, such as the radio.
2-13
Page 70 of 340
Key Release Button (Manual Transaxle)
The key cannot be removed from the ignition unless the
key release button is used.
To remove the key, turn the key to the OFF position.
While pressing the
key release button in, turn the key to
the
LOCK position. Pull the key straight out.
NOTICE:
If your key seems stuck in LOCK and you can’t
turn it, be sure it is all the
way in. If it is, then
turn the steering wheel left and right while you
turn the key hard. But turn the key only with
your hand. Using a tool to force it could break
the key or the ignition switch.
If none of this
works, then your vehicle needs service.
2-14
