Turn Signal and Lane Change Indicator
a
0
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow
you
to signal a turn or a lane change.
To signal a turn, move the lever all the way
up or down.
When
the turn is finished, the lever will return
automatically.
A green arrow on the
instrument panel will
flash in the direction
of the turn or lane
change.
To signal
a lane change, just raise or lower the lever until
the green arrow starts to flash. Hold it there until
you
complete your lane change. The lever will return by itself
when you release it.
A warning chime signal will come on if you have left
your turn signal on for more than three-quarters mile
(1 km).
As you signal a turn or a lane change, if the arrows don I:
flash but just stay on, a signal bulb may be burned out
and other drivers won’t see your
turn signal.
If a bulb is burned out, replace it to help avoid an
accident.
If the green arrows don’t go on at all when you
signal a turn, check the fuse (see “Fuses and Circuit
Breakers’’ in the Index) and for burned-out bulbs.
2-34

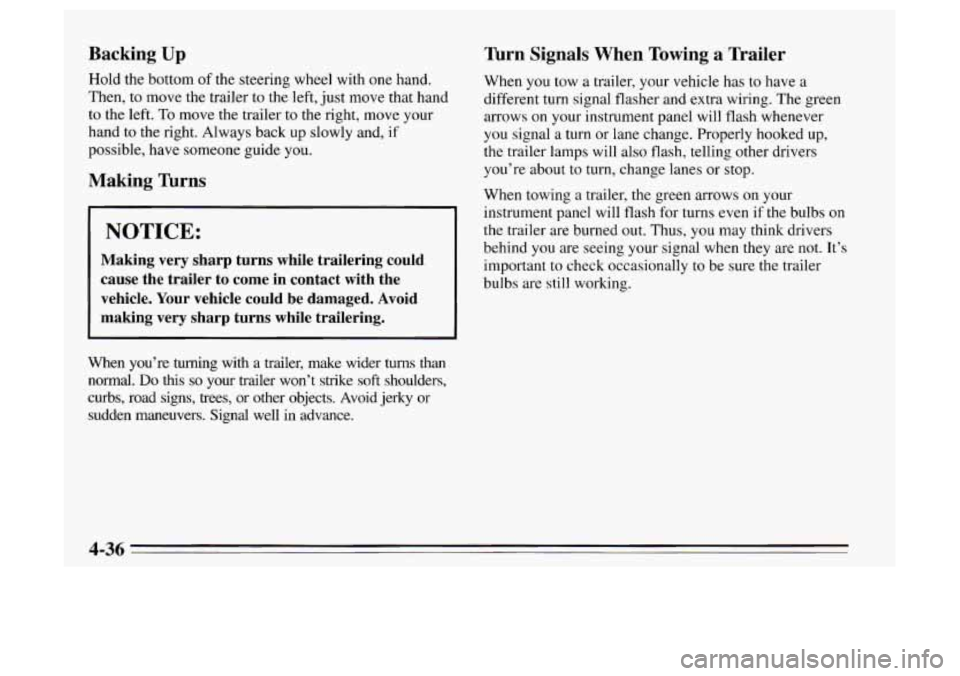

Backing Up
Hold the bottom of the steering wheel with one hand.
Then, to move the trailer to the left, just move that hand
to the left.
To move the trailer to the right, move your
hand
to the right. Always back up slowly and, if
possible, have someone guide you.
Making nrns
NOTICE:
Making very sharp turns while trailering could
cause the trailer to come in contact with the vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you’re turning with a trailer, make wider turns than
normal.
Do this so your trailer won’t strike soft shoulders,
curbs, road signs, trees, or other objects. Avoid jerky or
sudden maneuvers. Signal well in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have a
different turn signal flasher and extra wiring. The green
arrows on your instrument panel will flash whenever
you signal a turn or lane change. Properly hooked
up,
the trailer lamps will also flash, telling other drivers
you’re about to turn, change lanes or stop.
When towing a trailer, the green arrows
on your
instrument panel will flash for turns even if the bulbs on
the trailer are burned out. Thus, you may think drivers
behind you are seeing your signal when they are not. It’s
important to check occasionally
to be sure the trailer
bulbs are still working.
4-36

Replacement Bulbs
OUTSIDE LAMPS BULB
Back-up Lamps ........................... 2057
Front Parking/Turn Signal Lamps .......... 2057 NA
License Plate Lamp ......................... 194
Center High-Mounted Stoplamp ............... 9 12
Halogen Headlamps
Low Beam
............................. 9004
High Beam ............................. 9004
Fog Lamps ................................ 885
Side Marker Lamps
Front ................................ 194NA
Rear
................................... 161
Stop/TaiI/Turn Signal Lamps ................. 3057
Trunk Lamp ............................... 906
Underhood Lamp ........................... 906
INSIDE LAMPS BULB
Ashtray .................................. 161
Without Su11roof .......................... i68
With Sunroof ........................... 2 14-2
Front
Reading Lamps
Rear Reading Lamps
........................ 168
Underdash Lamps .......................... 194
Heater
& A/C Control ....................... 161
High-Beam Indicator ....................... 161
Instr~~ment Cluster Warning Lights ............. 161
Glove Box ................................ 161
6-56

Seats and Restraint Systems ........................ 1 . 1
Seats and Seat Controls ........................... 1 . 1
Second Gear (2). Automatic Transaxle .............. 2-2 I
Second Gear (2) . Manual Transaxle ................. 2-24
Service
........................................ 6-1
Service and Appearance Care ...................... 6- 1
Service and Owner Publications .................... 8-7
Service Bulletins. Ordering
........................ 8-7
Service Engine Soon Light (Malfunction Indicator Lamp)
2-65
Service Manuals . Ordering ........................ 8-7
Service Parts Identification Label
.................. 6-50
Service Publications .............................. 8-7
Service Work. Doing Your Own
.................... 6- 1
Servicing Your Air Bag-Equipped Oldsrnobile ........ 1-24
Sheet Metal Damage
............................ 6-48
Shift Light. Manual Transaxle ................ 2-24 . 2-61
Shift Speeds. Manual Transaxle
.................... 2-25
Shifting Into Park (P) ............................ 2-27
Shifting Out
of Park (P) .......................... 2-29
Shifting. Automatic Transaxle
..................... 2- IC)
Signaling Turns ................................ 2-34
Skidding
...................................... 4-12
Sound Equipment
. Adding ........................ 3- 15
Spare Tire. Cornpact ............................. 5-27
Specifications Chart
............................. 6-57
Speedometer (Std and Gage Cluster)
................ 2-58
Split Fold-Down Seat
............................ 1-6
Stains. Cleaning ................................ 6-43
Starter Switch
.................................. 7-37
Starting Your Engine
2.3Liter
.................................... 2-15
3.1Liter
.................................... 2-16
Autolnatic Transaxle
.......................... 2- IS
Manual Transaxle ............................ 2- I5
Steam . If Coming From Your Engine ............... 5- I2
Steering ....................................... 4-8
Steering Wheel.
Tilt ............................. 2-33
Steering.
In Emergencies .......................... 4-9
Steering. Power
................................. 4-8
Steering
. Tips ................................... 4-8
Storage Armrest
................................ 2-49
Storage
. Of Your Vehicle ......................... 6-29
Storage. Sunglasses
............................. 2-53
Stuck. If You Are
............................... 5-28
Sun Visors
.................................... 2-48
Sunglasses Storage
.............................. 2-53
Sunroof
....................................... 2-53
Supplemental Restraint System
(SRS) ............... 1-20
Symbols . Vehicle .................................. v
Steering Column Lock ........................... 7-38
Surge
Tank Pressure Cap ......................... 6-23
Tachometer (Gage ~~uster)
...................... 2-69
Taillamps. Bulb Replacement
..................... 6-31
Tamper Resistant Odometer ....................... 2-58
Tape Player Care
............................... 3-16
Theft
......................................... 2-11
Theft Deterrent Feature. CD Player ................. 3-13
Thermostat
.................................... 6-24
Third Gear
(3). Automatic Transaxle ................ 2-21
Third Gear
(3) . M;UILI~~ Transaxle .................. 2-24
Tilt Steering Wheel ............................. 2-33
Time. Setting the
................................ 3-5
Tire Chains .................................... 6-41
Tire Inspection
and Rotation ...................... 6-35
Tire Loading
................................... 4-29
9-10
