The best way to protect the fetus is to protect the
mother. When
a safety belt is worn properly, it’s more
likely that the fetus won’t be hurt in a crash. For
pregnant women, as
for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position
The right front passenger’s safety belt works the same
way as the driver’s safety belt. See “Driver Position,”
earlier in this section.
Supplemental Restraint System (SRS)
This part explains the Supplemental Restraint System (SRS)
or air bag system.
Your Oldsmobile has two air bags
-- one air bag for the
driver and another air bag for the right front passenger.
Here are the most important things to
know about the
air bag system:
You can be severely injured or kill-- in a crash if
you aren’t wearing your safety belt -- even if you
have air bags. Wearing your safety belt during
a
crash helps reduce your chance of hitting things
inside the vehicle or being ejected from it. Air
bags are “supplemental restraints’’ to the safety
belts.
All air bags are designed to work with
safety belts, but don’t replace them. Air bags are
designed to work only in moderate to severe
crashes where the front of your vehicle hits
something. They aren’t designed to inflate
at all
in rollover, rear, side or low-speed frontal
crashes. Everyone
in your vehicle should wear a
safety belt properly -- whether or not there’s an
air bag for that person.

Your vehicle is equipped with a crash sensing and
diagnostic module, which records information about
the
air bag system. The module records mformation
about the readiness of the system, when the sensors are
activated and driver’s safety belt usage at deployment.
system. Improper service can mean that your
air bag
system won’t work properly. See your retailer for service.
0 Let only qualified technicians work on your air bag
NOTICE:
If you damage the covering for the driver’s or the
right front passenger’s air bag, the bag may not
work properly. You may have to replace the air
bag module in the steering wheel or both the air
bag module and the instrument panel for the right front passenger’s
air bag. Do not open or
break the air bag coverings.
Servicing Your Air Bag-Equipped
Oldsmobile
Air bags affect how your Oldsmobile should be
serviced. There are parts of the air bag system in several
places around your vehicle.
You don’t want the system
to inflate while someone is working on your vehicle.
Your Oldsmobile retailer and the Achieva Service
Manual have information about servicing your vehicle
and the air bag system.
To purchase a service manual,
see “Service and Owner Publications” in
the Index.
For up to
10 minutes after the ignition key is
turned off and the battery is disconnected, an air
bag can still inflate during improper service. You
can be injured if you are close to an air bag when
it inflates. Avoid wires wrapped with yellow tape
or yellow connectors. They are probably part
of
the air bag system. Be sure to follow proper
service procedures, and make sure the person
performing work for you is qualified
to do so.
The air bag system does not need regular maintenance.

Section 2 Features and Controls
Here you can learn about the many standard and optional features on your Oldsmobile, and information on starting,
shifting and braking.
Also explained are the instrument panel and the warning systems that tell you if everything is
working properly -- and what to do if you have a problem.
2-2 2-4
2-7
2-10
2-12 2-12
2-13 2-14
2-
16
2-19
2-2
1
2-25 2-28 2-29
2-3
1
Keys
Door Locks
Remote Lock Control (If Equipped)
Trunk
Theft Passlock
TM
New Vehicle “Break-In”
Ignition Positions
Starting Your Engine
Engine Coolant Heater (If Equipped)
Automatic Transaxle Operation
Manual Transaxle Operation
Parking Brake
Shifting Into PARK (P) (Automatic Transaxle
Models Only) Shifting Out
of PARK (P) (Automatic
Transaxle) 2-3
1
2-32
2-32
2-33
1 2-34
1, 2-35
2-35
2-43
2-46
2-49
2-50
2-54
2-55
2-56
2-60 Parking
Your Vehicle
(Manual Transaxle)
Parking Over Things That Burn
Engine Exhaust
Running Your Engine While You’re Parked
(Automatic Transaxle)
Windows
Tilt Wheel
Turn SignalMultifunction Lever
Exterior Lamps
Interior Lamps
Mirrors
Storage Compartments
Accessory Power Outlet
Sunroof (If Equipped)
Instrument Panel
Warning Lights, Gages and Indicators

1-
A CAUTION:
-
Leaving young children in a vehicle with the
ignition key is dangerous for many reasons.
A child or others could be badly injured or
even killed.
They could operate power windows
or other
controls or even make the vehicle move. Don't
leave the keys in
a vehicle with young children.
2-2

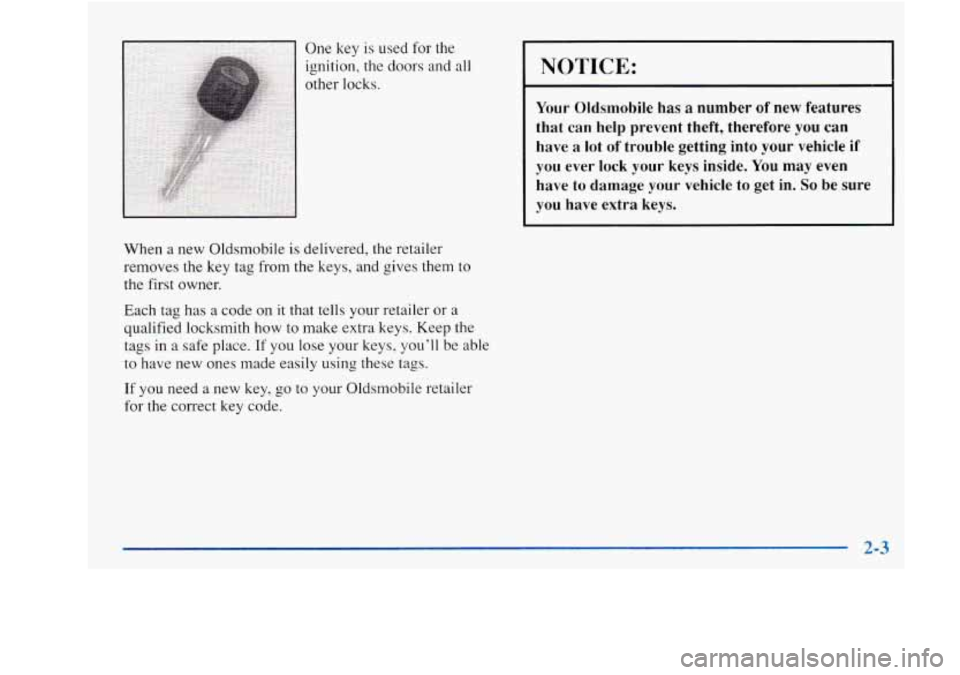

One key is used for the
ignition, the doors
and all
other locks.
When a new Oldsmobile is delivered, the retailer
removes the key tag from the keys, and gives them
to
the first owner.
Each tag has a code on it that tells your retailer or a
qualified locksmith how
to make extra keys. Keep the
tags
in a safe place. If you lose your keys, you’ll be able
to have new ones made easily using these tags.
If you need a new key, go to your Oldsmobile retailer
for the correct key
code.
NOTICE:
Your Oldsmobile has a number of new features
that can help prevent theft, therefore you
can
have a lot of trouble getting into your vehicle if
you ever lock your keys inside. You may even
have to damage
your vehicle to get in. So be sure
you have extra keys.

Door Locks
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and
fall out. When a door is
locked, the inside handle won’t open it.
Outsiders can easily enter through an unlocked
door when you slow down
or stop your vehicle.
This may not be
so obvious: You increase the
chance of being thrown out
of the vehicle in a
crash if the doors aren’t locked. Wear safety belts
properly, lock your doors, and you will be far
better
off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use your door key or Remote Lock
Control, if your vehicle has this option.
From the inside, to lock the door, slide the locking
lever rearward.
To unlock the door, slide the locking lever forward.
2-4

Power Door Locks
With power door locks, you
can lock or unlock all the
doors of your vehicle from
the driver or front passenger
door lock switch.
Automatic Door Locks
Just close your doors and turn on the ignition. If you
have an automatic transaxle, all
of the doors will lock
when you move your shift lever out
of PARK (P)
or NEUTRAL (N). If you have a manual transaxle,
all
of the doors will lock when the vehicle reaches about
8 mph (13 km/h). If someone needs to get out while the
vehicle
is running, have that person use the manual or
power lock. When the door is closed again, it will lock
automatically when you move your shift lever out
of
PARK (P) or NEUTRAL (N). If you have a manual
transaxle, the doors will lock when the vehicle reaches
about
8 mph (13 km/h). All doors will automatically
unlock when the key is turned to the
OFF position.
If you don’t want the doors to automatically unlock
when
the key is turned to the OFF position, you can
remove the
DR UNLK fuse. For fuse location, see
“Fuses and Circuit Breakers” in the Index.
2-5

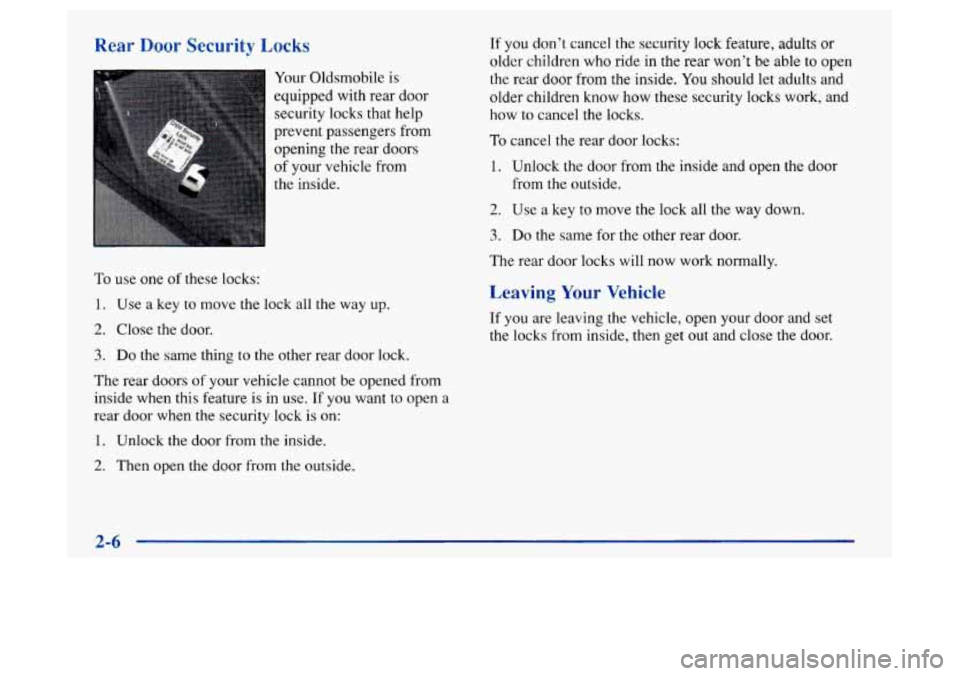

Rear Door Security Locks
Your Oldsmobile is
equipped with rear door security locks that help
prevent passengers from
opening the rear doors
of your vehicle
from
the inside.
To use one
of these locks:
1. Use a key to move the lock all the way up.
2. Close the door.
3. Do the same thing to the other rear door lock.
The rear doors
of your vehicle cannot be opened from
inside when this feature is in use.
If you want to open a
rear door when the security lock is on:
1. Unlock the door from the inside.
2. Then open the door from the outside. If you
don't cancel the security lock feature, adults or
older children who ride
in the rear won't be able to open
the rear door from the inside.
You should let adults and
older children know how these security locks work, and
how to cancel the locks.
To cancel the rear door locks:
1. Unlock the door from the inside and open the door
from the outside.
2. Use a key to move the lock all the way down.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Leaving Your Vehicle
If you are leaving the vehicle, open your door and set
the locks from inside, then get out and close the door.
2-6

Remote Lock Control (If Equipped)
If your Oldsmobile has this option, you can lock and
unlock your doors or unlock your trunk from about
3 feet (1 m) up to 30 feet (9 m) away using the remote
keyless entry transmitter supplied with your vehicle.
In addition, the system illuminates the interior lamps for
a set period
of time. The Remote Lock Control system
consists
of a receiver, which is located in the vehicle,
and two hand-held transmitters.
Your Remote Lock Control
operates on a radio
frequency subject to
Federal Communications
Commission (FCC)
Rules and with Industry
and Science Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmhl interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation. This device
complies with
RSS-210 of Industry and
Science Canada. Operation is subject to the following
two conditions:
(1) this device may not cause
interference, and
(2) this device must accept any
interference received, including interference that may
cause undesired operation of the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
This system has a range about
3 feet (1 m) up to 30 feet
(9 m). At times you may notice a decrease in range. This
is normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work,
try this:
8
8
8
8
Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.
Check the distance. You may be too far from your
vehicle.
You may need to stand closer during rainy
or snowy weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or right,
hold the transmitter higher, and try again.
If you’re still having trouble, see your Oldsmobile
retailer or a qualified technician for service.
2-7

Operation
The following functions are available with the Remote
Lock Control system:
LOCK: All doors will automatically lock when the
LOCK
button on the transmitter is pressed. The interior larnps
stay on for two seconds after all
of the doors are closed.
UNLOCK: The driver’s door will unlock automatically
when
the UNLOCK button on the transmitter is pressed.
If the UNLOCK button is pressed again within five
seconds, all remaining doors will unlock. The interior
lamps will stay on for
40 seconds or until the ignition is
turned on.
Trunk Release: The trunk will unlock anytime the
vehicle symbol on the transmitter is pressed and the
ignition is
OFF. If the ignition is on, the trunk will
unlock
if the parking brake is set (manual transaxle) or
the gear selector is in PARK (P) or NEUTRAL (N)
(automatic transaxle). The interior lamps will come on
for
40 seconds or until the ignition switch is turned to
the
ON position.
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle. If
a transmitter
is lost or stolen, a replacement can be purchased through
your retailer. Remember
to bring any remaining
transmitters with you when you go to your retailer.
When the retailer matches the replacement transmitter to
your vehicle, any remaining transmitters must also be
matched. Once your retailer has coded the new
transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only two transmitters
matched to it.
You can match your transmitter to as many 1997
General Motors vehicles as you own, as long as they
have the same Remote Lock Control system. Contact
your retailer
for assistance with this.
2-8
