NOTICE: (Continued)
If your tires have too much air (overinflation),
you can get the following:
Unusual wear
Bad handling
Rough ride
0 Needless damage from road hazards.
When to Check
Check your tires once a month or more.
Don’t forget your compact spare tire. It should be at
60 psi (420 Pa).
How to Check
Use a good quality pocket-type gage to check tire
pressure. You can’t tell if your tires are properly inflated
simply by looking at them. Radial tires may look
properly inflated even when they’re underinflated.
Be sure to put the valve caps back on the valve stems.
They help prevent leaks by keeping
out dirt and moisture.
Tire Inspection and Rotation
Tires should be rotated every 6,000 to 8,000 miles
( 10 000 to 13 000 km). Any time you notice unusual
wear, rotate your tires as soon as possible and check
wheel alignment. Also check for damaged tires or wheels.
See “When It’s Time for New Tires” and “Wheel
Replacement” later
in this section for more information.
The purpose
of regular rotation is to achieve more
uniform wear for all tires on the vehicle. The first
rotation is the most important. See “Scheduled
Maintenance Services” in the Index for scheduled
rotation intervals.
When rotating your tires, always use the correct rotation
pattern shown here.
6-42

Maintenance Schedule
[ Short Trip/City Definition
Follow the Short Trip/City Maintenance Schedule if any
one
of these conditions is true for your vehicle:
0
0
0
0
0
Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving in stop-and-go traffic).
Most trips
are through dusty areas.
You frequently tow a trailer or use a carrier on top of
your vehicle. (With some models, you should never
tow a trailer. See “Towing a Trailer” in the Index.)
If the vehicle is used for delivery service, police, taxi
or other commercial application.
One of the reasons you should follow this sch.edule if
you operate your vehicle under any
of these conditions
is
that these conditions cause engine oil to break
down sooner.
I i
I Short Trip/City Intervals
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Every 6,000 Miles (10 000 km): Chassis Lubrication
Every 15,000 Miles (25 000 km): Air Cleaner Filter
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Change
(or
3 months, whichever occurs first).
(or
6 months, whichever occurs first). Tire Rotation.
Inspection,
if driving in dusty conditions.
Replacement. Fuel Tank, Cap and Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic Transaxle
Service (severe conditions only).
Every 60,000 Miles (100 000 km): Engine Accessory
Every 100,000 Miles (166 000 km): Spark Plug Wire
Every 150,000 Miles (240 000 km): Cooling System
These intervals only summarize maintenance services.
Be sure to
follow the complete maintenance schedule
on tlze,following pages.
Drive Belt Inspection.
Inspection. Spark Plug Replacement. Service (or every
60 months, whichever occurs first).

Maintenance Schedule
~~~~~~
I Long TriplHighway Definition
Follow this maintenance schedule only if none of the
conditions from the Short Trip/City Maintenance
Schedule is true.
Do not use this schedule if the vehicle
is used for trailer towing, driven in a dusty area or used
off paved roads. Use the
Short Trip/City schedule for
these conditions.
Driving a vehicle with a fully warmed engine under
highway conditions causes engine oil
to break
down slower.
I Long TrzH
Every 7,500 Miles (12 500 km): Engine Oil and Filter
Change (or every
12 months, whichever occurs first).
Chassis Lubrication (or every
12 months, whichever
occurs first). Tire Rotation.
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel Tank, Cap and Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic Transaxle
Service (severe conditions only).
Every 60,000 Miles (100 000 km): Engine Accessory
Every 100,000 Miles (166 000 km): Spark Plug Wire
Every 150,000 Miles (240 000 km): Cooling System
These intervals only summarize maintenance services.
Be sure
to follow the complete maintenance schedule
on the.foIlowing pages.
Drive Belt Inspection.
Inspection. Spark Plug Replacement.
Service (or every
60 months, whichever occurs first).
7-6

I Short Trip/City Maintenance Schedule I
The services shown in this schedule up to 100,000 miles
(166 000 km) should be performed after 100,000 miles
(166 000 km) at the same intervals. The services shown
at
150,000 miles (240 000 km) should be performed at
the same interval after
150,000 miles (240 000 km).
See “Owner Checks and Services” and “Periodic
Maintenance Inspections” following.
Footnotes
? The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that
the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to the
completion
of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and
the maintenance
be recorded.
# Lubricate the suspension and steering linkage.
+ A good time to check your brakes is during tire
rotation. See “Brake System Inspection” under “Periodic
Maintenance Inspection” in Part C
of this schedule.
++ If you drive in a highly corrosive environment, your
brake calipers may require additional inspection and
service, at every other tire rotation. See “CaliperKnuckle
Maintenance Inspection” under “Periodic Maintenance
Inspections”
in Part C of this schedule.
7-7

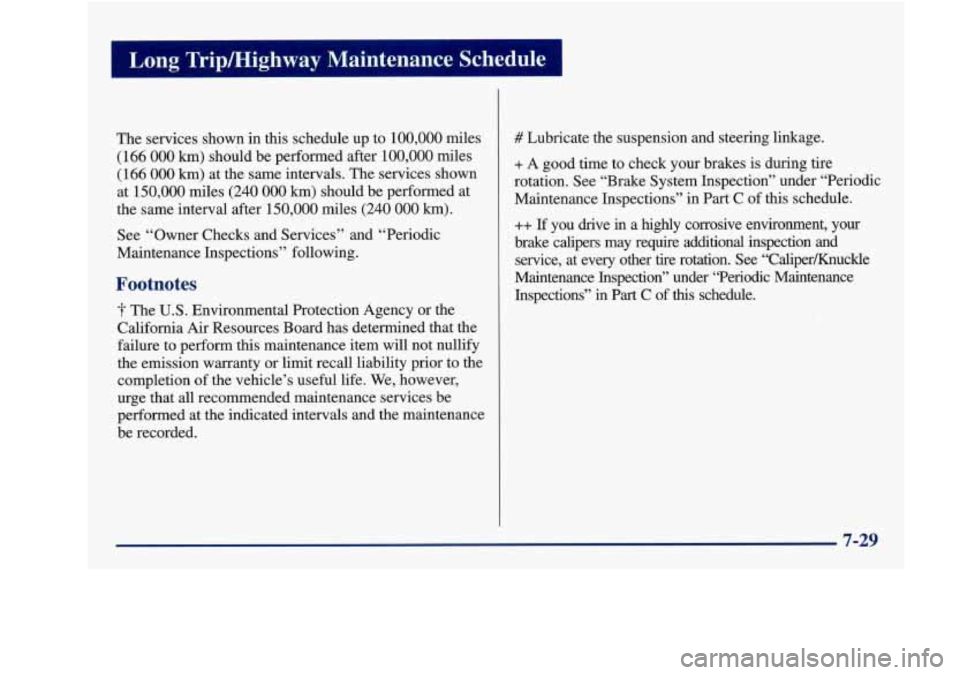

The services shown in this schedule up to 100,000 miles
(166
000 km) should be performed after 100,000 miles
(166
000 km) at the same intervals. The services shown
at
150,000 miles (240 000 km) should be performed at
the same interval after
150,000 miles (240 000 km).
See “Owner Checks and Services” and “Periodic
Maintenance Inspections” following.
Footnotes
The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform
this maintenance item will not nullify
the emission warranty or limit recall liability prior to the
completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
# Lubricate the suspension and steering linkage.
+ A good time to check your brakes is during tire
rotation. See “Brake System Inspection” under “Periodic
Maintenance Inspections” in Part C
of this schedule.
++ If you drive in a highly corrosive environment, your
brake calipers may require additional inspection and service, at every other tire rotation. See ‘‘Caliperfiuckle
Maintenance Inspection” under “Periodic Maintenance
Inspections” in Part C of
this schedule.
7-29

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants
are added to your
vehicle, make sure
they are the proper ones, as shown in
Part
D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each fuel fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for
further details.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL@
coolant mix if necessary. See “Engine Coolant’’ in the
Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add
the proper fluid if
necessary. See “Windshield Washer Fluid”
in the Index
for further details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the correct pressures. See
“Tires” in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the Index
for further details.
7-41

Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed the service
in the boxes provided after the maintenance interval. Any
additional information from “Owner Checks and
Services” or “Periodic Maintenance’’ can be added on
the following record pages. Also, you should retain all
maintenance receipts. Your owner information portfolio
is a convenient place to store them.
Maintenance Record
ODOMETER
DATE MAINTENANCE
PERFORMED SERVICED BY READING

Latches. Seatback ................................ 1-6
Leaving Your Vehicle
............................. 2-6
Leaving Your Vehicle with the Engine Running
....... 2-30
Lighter
....................................... 2-53
Lights Air Bag Readiness
....................... 1.22. 2.6 1
Anti-Lock Brake System Warning ............ 2.63. 4.7
Brake System Warning
.................... 2.62. 6.31
Charging System Indicator
...................... 2-62
Check Engine
................................ 2-66
CheckOil
................................... 2-70
Cruise
...................................... 2-71
Engine Oil Pressure Warning Light
............... 2-69
Enhanced Traction System Active Light
....... 2.65. 4-9
ETS Warning .......................... 2- 64. 4. 10
Interior
..................................... 2-46
Low Coolant Warning
......................... 2-66
Low Washer
................................. 2-71
Passlock Warning
............................. 2-70
Safety Belt Reminder
...................... 1.8. 2.61
Loading Your Vehicle
........................... 4-33
Lock-Out Switch
............................... 2-34
Automatic Door
............................... 2-5
Cylinders ................................... 7-42
Door
........................................ 2-4
Key Lock Cylinder Service
..................... 7-42
PowerDoor
.................................. 2-5
Rear Door Security
............................. 2-6
Steering Column Lock Check
................... 7-44
Trunk
...................................... 2-10
CheckGages
................................ 2-71
Enhanced Traction System Warning Light
.... 2.64. 4.10
Upshift
.................................... 2-71
Locks
......................................... 2-4 Low Coolant Warning Light
...................... 2-66
Low Washer Light
.............................. 2-71
Lubricants and Fluids
............................ 7-47
Lubrication Service. Body
........................ 7-42
Maintenance. Normal Replacement Parts
........... 6-63
Maintenance Record
............................ 7-49
Maintenance Schedule
............................ 7-1
Introduction
.................................. 7-2
Long Tripmighway Definition ................... 7-6
Long Tripmighway Intervals
..................... 7-6
Organization
.................................. 7-3
Owner Checks and Services
..................... 7-41
Periodic Maintenance Inspections
................ 7-45
Recommended Fluids and Lubricants
............. 7-47
Scheduled Maintenance Services
.................. 7-4
Short Trip/City Definition ....................... 7-5
Short Trip/City Intervals
........................ 7-5
Maintenance. Underbody
......................... 6-54
Maintenance When Trailer Towing
................. 4-41
Making Turns
with a Trailer ...................... 4-40
Malfunction Indicator Lamp
...................... 2-66
Manual Front Seat
............................... 1-2
Manual Lumbar Support .......................... 1-3
Manual Remote Control Mirror
.................... 2-49
ManualTransaxle
............................... 2-16
Shifting
..................................... 2-25
Starting Your Engine
.......................... 2-16
Manual Transaxle Check
......................... 7-42
Manual Transaxle Fluid
.......................... 6-22
Methanol
...................................... 6-4
