wiper blades Oldsmobile Achieva 1997 Owner's Manuals

For steady wiping at low speed, move the stalk up to
the
(1) position. For high-speed wiping, move the stalk
up further, to
(2). To stop the wipers, move the stalk
to OFF.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain
or snow.
Move the stalk to
DELAY? then rotate the inner band and
choose the delay you want. Rotate the inner band
up for
shorter delay times between wiper cycles. Rotate the band
down for a longer delay time between wiper cycles.
Remember that damaged wiper blades may prevent
you
from seeing well enough to drive safely. To avoid
damage, be sure to clear ice and snow from the wiper
blades before using them.
If they’re frozen to the
windshield, carefully loosen or thaw them. If your
blades do become damaged, get new blades or
blade inserts.
Heavy snow or ice can overload your wiper motor.
A
circuit breaker will stop the motor until it cools. Clear
away snow
or ice to prevent an overload.
Windshield Washer
To wash your windshield, pull the stalk toward you until
the washers begin.
2-38

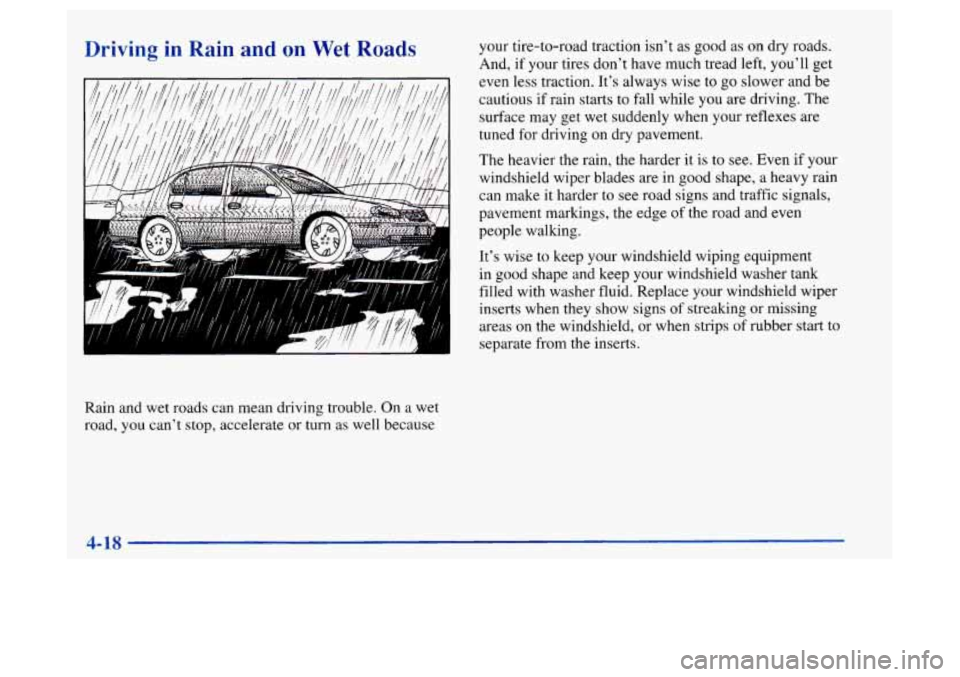

Driving in Rain and on Wet Roads
Rain and wet roads can mean driving trouble. On a wet
road, you can’t stop, accelerate or turn as
well because your tire-to-road traction isn’t as good as on dry roads.
And,
if your tires don’t have much tread left, you’ll get
even less traction. It’s always wise
to go slower and be
cautious if rain starts
to fall while you are driving. The
surface may get wet suddenly when your reflexes are
tuned for driving on dry pavement.
The heavier the rain, the harder it is to see. Even if your
windshield wiper blades are in good shape, a heavy rain
can make it harder
to see road signs and traffic signals,
pavement markings, the edge of the road and even
people walking.
It’s wise
to keep your windshield wiping equipment
in good shape and keep your windshield washer tank filled with washer fluid. Replace your windshield wiper
inserts when they show signs of streaking or missing
areas on the windshield, or when strips of rubber start to
separate from the inserts.
4-1 8

Windshield Wiper Blade Replacement Tires
Your new Oldsmobile comes with high-quality tires maae
by a leading tire manufacturer.
If you ever have questions
about your tire warranty and where to obtain service, see
your Oldsmobile
Warranty booklet for details.
Replacement blades come
in different types and are
removed in different ways. Here’s how to remove the
type with a release clip:
1. Pull the windshield wiper am away from the windshield.
2. Lift the release clip with a screwdriver and pull the
blade assembly off the wiper arm.
3. Push the new wiper blade securely onto the wiper arm.
For proper size and type, see “Capacities and
Specifications” in the Index.
Poorly maintained and improperly used tires
are dangerous.
Overloading your tires can cause
overheating as a result
of too much friction.
You could have an air-out and a serious
accident. See “Loading
Your Vehicle” in
the Index.
CAUTION: (Continued)
I
6-40

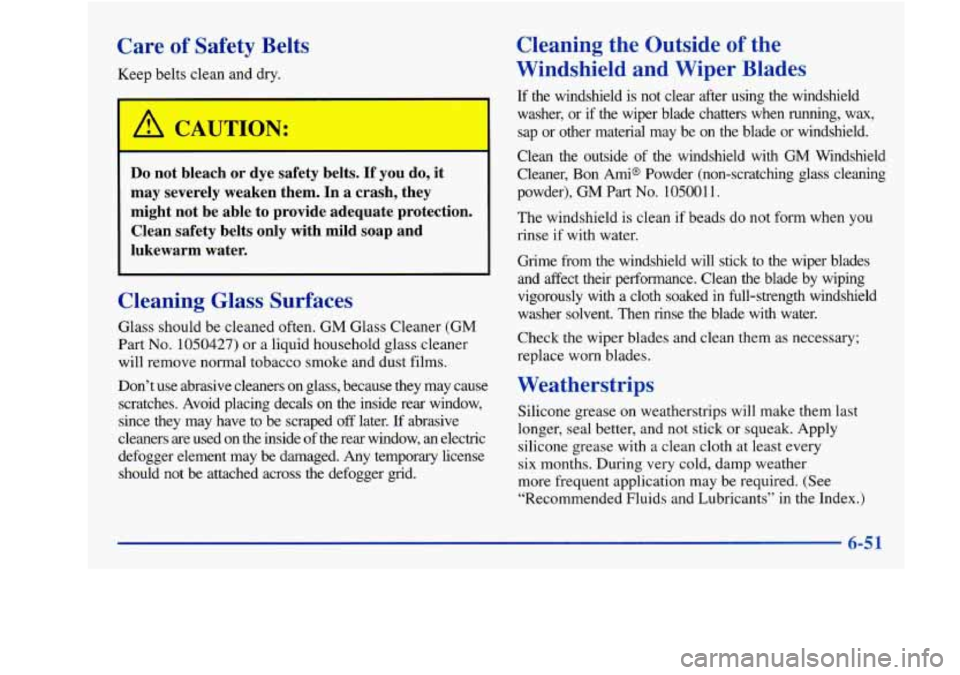

Care of Safety Belts
Keep belts clean and dry.
I
PL CAUTION:
Do not bleach or dye safety belts. If you do, it
may severely weaken them. In a crash, they
might not be able to provide adequate protection.
Clean safety belts only with mild soap and
lukewarm water.
Cleaning Glass Surfaces
Glass should be cleaned often. GM Glass Cleaner (GM
Part No. 1050427) or a liquid household glass cleaner
will remove normal tobacco smoke and dust films.
Don’t use abrasive cleaners on glass, because they may cause
scratches. Avoid placing decals on the inside rear window,
since they may have to be scraped
off later. If abrasive
cleaners are used on the inside of the rear window, an electric
defogger element may be damaged. Any temporary license
should not be attached across the defogger grid.
Cleaning the Outside of the
Windshield and Wiper Blades
If the windshield is not clear after using the windshield
washer, or if the wiper blade chatters when running, wax,
sap or other material may be on the blade or windshield.
Clean the outside of the windshield with
GM Windshield
Cleaner, Bon
A.mi@ Powder (non-scratching glass cleaning
powder), GM
Part No. 105001 1.
The windshield is clean if beads do not form when you
rinse if with water.
Grime from the windshield will stick to the wiper blades
and affect their performance. Clean the blade by wiping
vigorously with a cloth soaked in full-strength windshield
washer solvent. Then rinse the blade with water.
Check the wiper blades and clean them as necessary;
replace worn blades.
Weatherstrips
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth at least every
six months. During very cold, damp weather
more frequent application may be required.
(See
“Recommended Fluids and Lubricants’’ in the Index.)
6-f’

Normal Maintenance
Replacement Parts
Air Cleaner Element
2.4L ....................... AC Type A- 1233C
3100
....................... ACTypeA-1233C
Engine Oil Filter
2.4L .......................... AC Type PF-44
3100
.......................... ACTypePF-47
Spark Plugs
2.4L ........... AC Type 04 1-9 10 (Platinum Plug)
Gap:
0.060 inch (1.52 mm)
3 100
........... AC Type 041-940 (Platinum Plug)
Gap: 0.060 inch (1.52 mm)
Windshield Wiper Blades ...... 19 inches (48 cm)
Dimensions
Length
Coupe
................ 187.9 inches (477.1 cm)
Sedan
................. 1 87.9 inches (477.2 cm)
Coupe
................. 74.1 inches (188.2 cm)
Sedan
.................. 74.1 inches (188.2 cm)
Coupe
................. 53.5 inches (135.9 cm)
Sedan
.................. 53.5 inches (135.9 cm)
Coupe
................ 103.4 inches (262.7 cm)
Sedan
................. 103.4 inches (262.7 cm)
Coupe
................. 55.8 inches ( 14 1.7 cm)
Sedan
.................. 55.8 inches (141.7 cm)
Coupe
................. 55.3 inches ( 140.4 cm)
Sedan
.................. 55.3 inches (140.4 cm)
Width
Height Wheelbase
Front Tread
Rear Tread

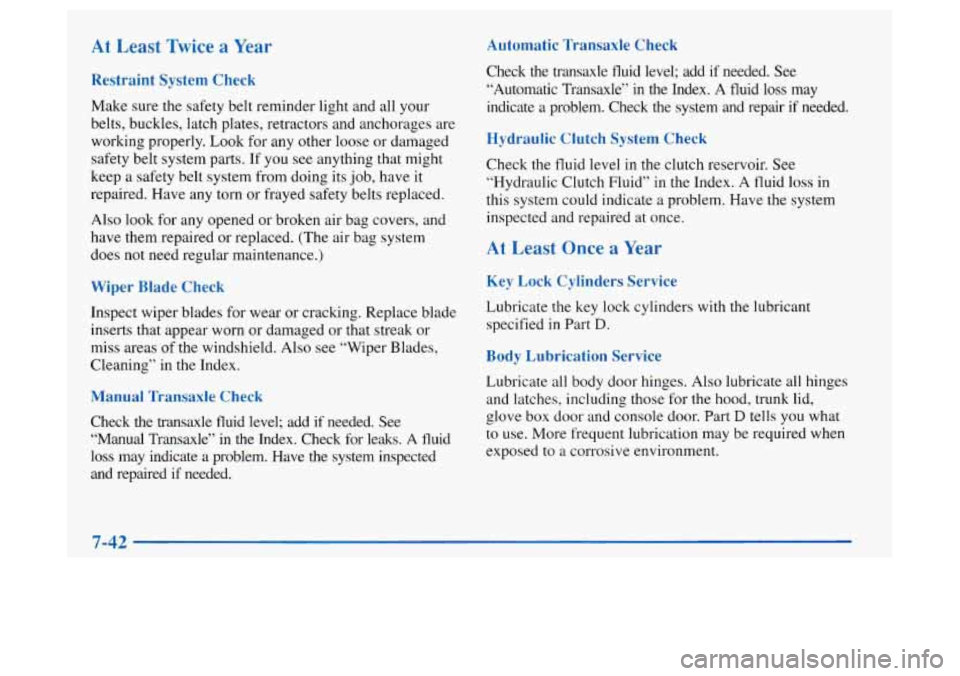

At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are
working properly. Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace blade
inserts that appear worn or damaged or that streak or
miss areas of the windshield. Also see “Wiper Blades,
Cleaning” in
the Index.
Manual Transaxle Check
Check the transaxle fluid level; add if needed. See
“Manual Transaxle”
in the Index. Check for leaks. A fluid
loss may indicate a problem. Have the system inspected
and repaired if needed.
Automatic Transaxle Check
Check the transaxle fluid level; add if needed. See
“Automatic Transaxle” in the Index.
A fluid loss may
indicate a problem. Check the system and repair
if needed.
Hydraulic Clutch System Check
Check the fluid level in the clutch reservoir. See
“Hydraulic Clutch Fluid” in the Index. A fluid
loss in
this system could indicate a problem. Have the system
inspected and repaired at once.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part
D.
Body Lubrication Service
Lubricate all body door hinges. Also lubricate all hinges
and latches, including those for the hood, trunk lid,
glove box door and console door. Part
D tells you what
to use. More frequent lubrication may be required when
exposed to a corrosive environment.
7-42
