Page 197 of 372

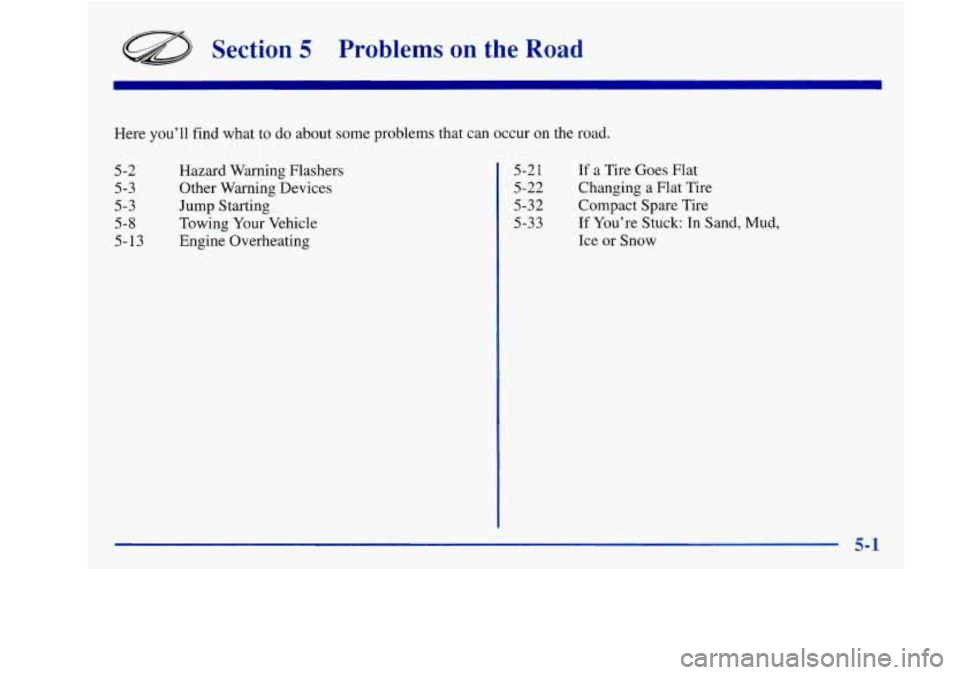

Section 5 Problems on the Road
Here you’ll find what to do about some problems that can occur on the road.
5-2 5-3
5-3 5-8
5-13 Hazard Warning Flashers
Other
Warning Devices
Jump Starting Towing Your Vehicle
Engine Overheating 5-21
5-22
5-32
5-33
If a Tire Goes Flat
Changing a Flat Tire
Compact
Spare Tire
If You’re Stuck: In Sand, Mud,
Ice or Snow
5-1
Page 199 of 372

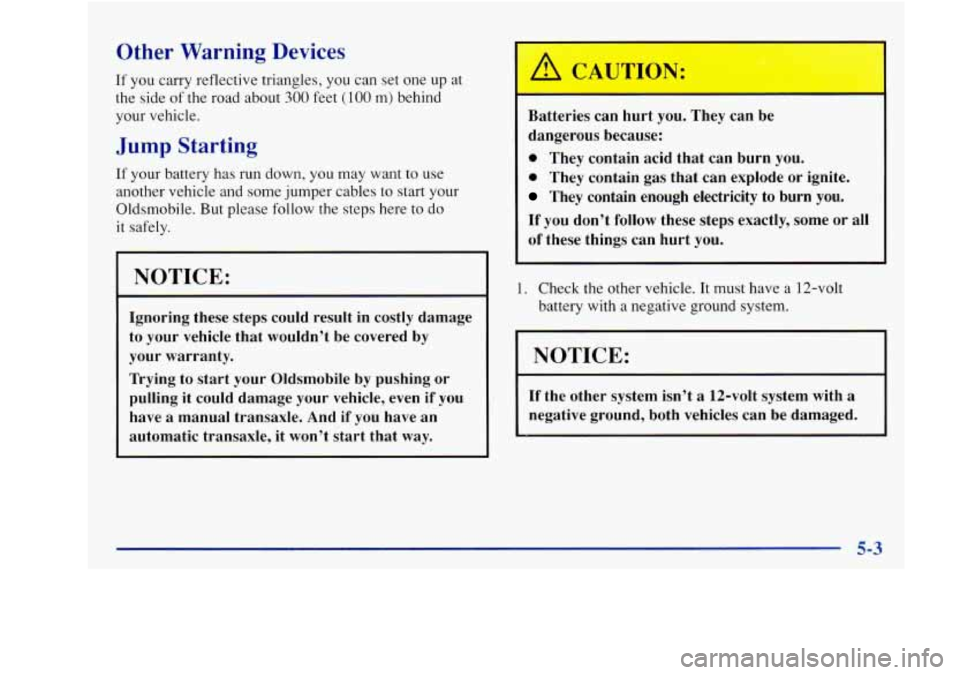

Other Warning Devices
If you carry reflective triangles, you can set one up at
the side
of the road about 300 feet (100 m) behind
your vehicle.
Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables
to start your
Oldsmobile.
But please follow the steps here to do
it safely.
I NOTICE:
Ignoring these steps could result in costly damage
to your vehicle that wouldn’t be covered by
your warranty.
Trying to
start your Oldsmobile by pushing or
pulling it could damage your vehicle, even if you
have a manual transaxle. And
if you have an
automatic transaxle, it won’t start that way. Batteries can hurt
you. They can be
dangerous because:
0 They contain acid that can burn you.
0 They contain gas that can explode or ignite.
They contain enough electricity to burn you.
If you don’t follow these steps exactly, some or all
of these things can hurt you.
1. Check the other vehicle. It must have a 12-volt
battery with
a negative ground system.
I NOTICE:
I
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.
Page 200 of 372

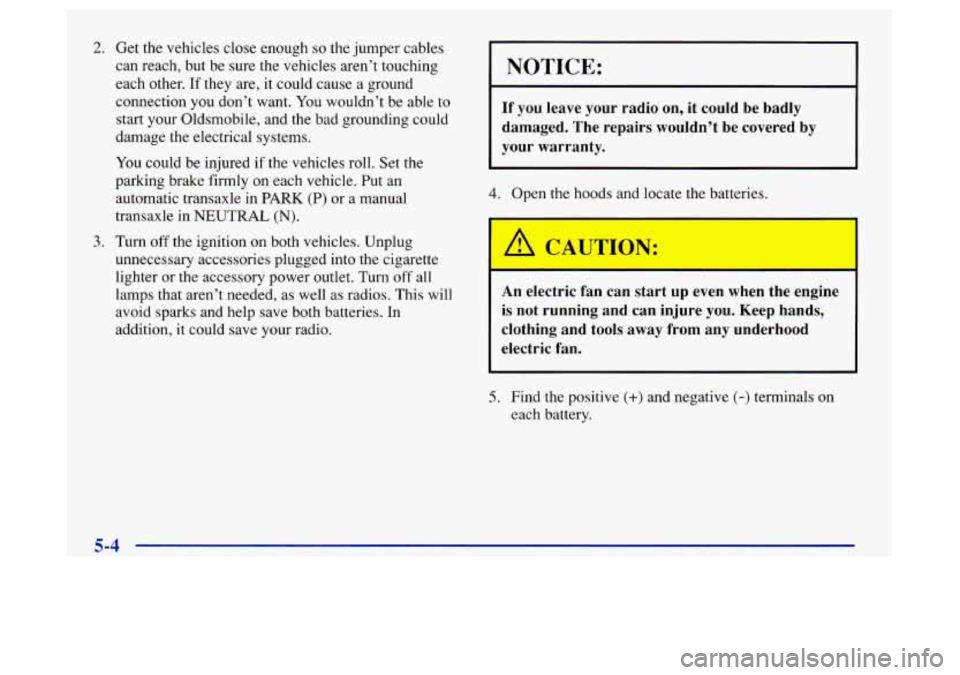

2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other. If they are, it could cause a ground
connection you don’t want. You wouldn’t be able to
start your Oldsmobile, and the bad grounding could
damage the electrical systems.
You could be injured if the vehicles roll. Set the
parking brake firmly on each vehicle. Put an automatic transaxle in PARK (P) or a manual
transaxle in NEUTRAL
(N) .
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or the accessory power outlet. Turn
off all
lamps that aren’t needed, as well as radios. This will
avoid sparks and help save both batteries. In
addition, it could save your radio.
NOTICE:
If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
4. Open the hoods and locate the batteries.
I9
An electric fan can start up even when the engine
is not running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.
5. Find the positive (+) and negative (-) terminals on
each battery.
5-4
Page 265 of 372

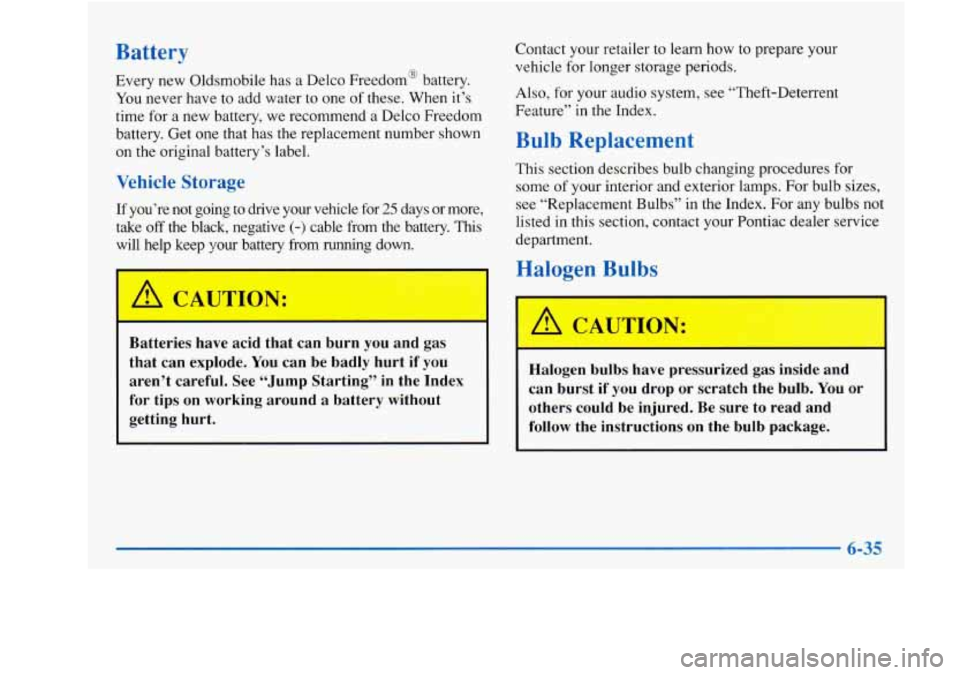

Battery
Every new Oldsmobile has a Delco Freedom@ battery.
You never have to add water to one of these. When it’s
time for a new battery, we recommend a Delco Freedom
battery. Get one that has the replacement number shown
on the original battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days or more,
take
off the black, negative (-) cable from the battery. This
will help keep your battery from running down.
I
A CAUTLN:
Contact your retailer to learn how to prepare your
vehicle for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Feature” in the Index.
Bulb Replacement
This section describes bulb changing procedures for
some of your interior and exterior lamps. For bulb sizes,
see “Replacement Bulbs” in the Index. For any bulbs not
listed in this section, contact your Pontiac dealer service
department.
Batteries have acid that can burn you and gas
that can explode.
You can be badly hurt if you
aren’t careful. See “Jump Starting”
in the Index
for tips on working around a battery without
getting hurt.
Halogen Bulbs
Halogen bulbs have pressuri,J gas inside and
can burst if
you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
Page 359 of 372

Section 9 Index
Accessory Power Outlet ......... ....... 2-54
AirBag
..................................... 1-21
How Does it Restrain .......................... 1-25
How it Works
...... ... ............ 1-23
Location
.................................... 1-23
Readiness Light
......................... 1-22, 2-6 1
Servicing
................................... 1-26
What Makes it Inflate
.......................... 1-24
What Will
You See After it Inflates ............... 1-25
When Should it Inflate
......................... 1-24
Aircleaner
.................................... 6-18
Air Conditioning
................................ 3-3
Air Conditioning Refrigerants
..................... 6-62
Alignment and Balance, Tire
... ................ 6-46
Aluminum Wheels, Cleaning
... .............. 6-53
Antifreeze
..................................... 6-24
Anti-Lock
Brake System Warning Light
................ 2-63, 4-7
Brakes
...................................... 4-7
Anti-Theft, Radio
.............................. 3-19
Appearancecare
............................... 6-48
Appearance Care Materials
....................... 6-55
Arbitration Program
.............................. 8-7
Armrest, Storage
............................... 2-51
Ashtrays
....... .. ................... 2-53 Audio Equipment. Adding
. . ...... 3-21
Audio Systems
........... ........... 3-6
Auto-Down Window
... ...... 2-34
Automatic DoorLocks
................................... 2-5
Overdrive
................................... 2-23
Starting Your Engine
.......................... 2-16
Transaxle
................................... 2-16
Transaxle Check
.................. ........ 7-42
Transaxle Fluid
............................... 6-19
Transaxle Park Mechanism Check
................ 7-44
Automatic Transaxle Operation
.................... 2-21
Shifting
..................................... 2-21
Backing up with a Trailer
..................... 4-40
Battery
..................................... 6-35
Charging System Indicator Light
. . .......... 2-62
Jump Starting
................................. 5-3
Replacement. Remote Lock Control
............... 2-9
Saver
...................................... 2-48
Warnings
.................................... 5-3
BBB Auto Line
................................. 8-7
Better Business Bureau Mediation
................... 8-7
Blizzard
...................................... 4-28
9-1
Page 363 of 372

Guide en FranGais 11
GVWR ....................................... 4-33
.. .................................
Halogen Bulbs ................................ 6-35
Hazard Warning Flashers
.......................... 5-2
Head Restraints
................................. 1-5
Headlamps
.................................... 2-44
Bulb Replacement
............................ 6-35
HighLow Beam Changer
...................... 2-37
OnReminder
................................ 2-44
Wiring
..................................... 6-57
Hearing Impaired. Customer Assistance
.............. 8-4
Heating
........................................ 3-4
High-Beam Headlamps
.......................... 2-37
Highway Hypnosis
.............................. 4-24
Hill and Mountain Roads
......................... 4-24
Hitches. Trailer
................................. 4-38
Hood Checking Things Under
......................... 6-8
Release
...................................... 6-9
Horn ......................................... 2-34
Hydraulic Clutch
............................... 6-23
Hydraulic Clutch Fluid
........................... 6-23
Hydraulic Clutch System Check
................... 7-42
Hydroplaning
.................................. 4-20
If a Tire Goes Flat .............................. 5-21
Ignition Positions
............................... 2- 14
Illuminated EntryExit System
..................... 2-46
Inflation. Tire
.................................. 6-41
Inside Daymight Rearview Mirror
................. 2-49 Inspections
Brakesystem
................................ 7-46
Caliper/Knuckle Maintenance
................... 7-46
Exhaust Systems
............................. 7-45
Front-Wheel-Drive Axle Boot
.................. 7-45
Front-Wheel-Drive Axle Seal
................... 7-45
Radiator and Heater Hose
...................... 7-45
Steering
.................................... 7-45
Suspension
.................................. 7-45
Throttle Linkage
.............................. 7-45
Instrumentpanel
............................... 2-56
Brightness Control
............................ 2-46
Cleaning
.................................... 6-50
Cluster
..................................... 2-58
FuseBlock
.................................. 6-58
Interior Lamps
................................. 2-46
Jack. Tire
.................................... 5-24
Jump Starting
................................... 5-3
Key Lock Cylinders Service
..................... 7-42
Key Release Button
............................. 2-16
Keys
.......................................... 2-2
Labels Certification
................................. 4-33
Service Parts Identification
..................... 6-56
Tire-Loading Information
...................... 4-33
Vehicle Identification Number
................... 6-56
Lamps
........................................ 2-43
Interior
..................................... 2-46
OnReminder
................................ 2-44
Exterior
.................................... 2-43
Fog
........................................ 2-45
9-5
.
