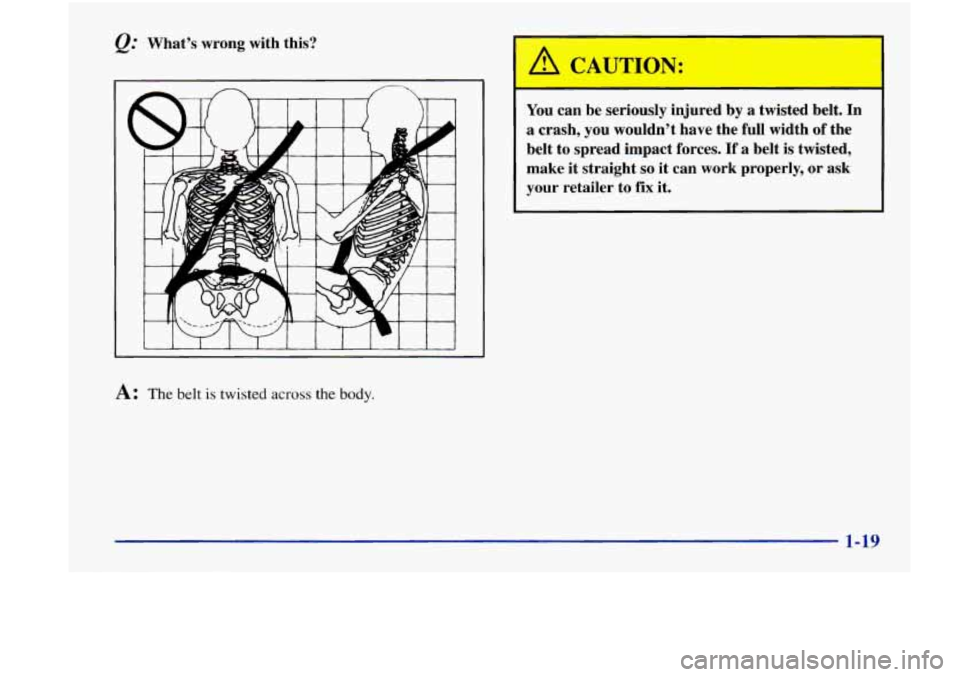

What's wrong with this?
A: The belt is twisted across the body.
1
You can be seriously injured by a twisted belt. In
a crash, you wouldn't have the full width of the
belt to spread impact forces.
If a belt is twisted,
make it straight
so it can work properly, or ask
your retailer to
fix it.
I
1-19

Temperature -- A, B, C
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of
heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure.
The grade
C corresponds to a level of performance
which all passenger car tires must meet under the
Federal Motor Vehicle Safety Standard
No. 109. Grades
B and A represent higher levels of performance on the
laboratory test wheel than the minimum required by law.
Warning: The temperature grade for this tire
is
established for a tire that is properly inflated and not
overloaded. Excessive speed, underinflation, or
excessive loading, either separately or in combination,
can cause heat buildup and possible
tire failure.
Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance. Scheduled
wheel alignment and wheel balancing are not
needed. However,
if you notice unusual tire wear or
your vehicle pulling one way or the other, the alignment
may need to be reset.
If you notice your vehicle
vibrating when driving on a smooth road, your wheels
may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded.
If wheel nuts keep coming loose, the wheel,
wheel bolts and wheel nuts should be replaced. If the
wheel leaks air, replace it (except some aluminum
wheels, which can sometimes be repaired). See your
retailer if any
of these conditions exist.
Your retailer will know the kind of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted
the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new
GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your
Oldsmobile model.
6-42

Normal Maintenance Replacement Parts
Air Cleaner Element
2.4L ....................... AC Type A-1233C
3100
....................... ACTypeA-1233C
Engine Oil Filter
2.4L .......................... AC Type PF-44
3100
.......................... ACTypePF-47
Spark Plugs
2.4L .......... AC Type 41 -942 (Platinum Plug)
Gap:
0.050 inch (1.27 mm)
3100
.......... AC Type 41-940 (Platinum Plug)
Gap: 0.060 inch (1.52 mm)
Windshield Wiper Blades ...... 19 inches (48 cm)
Vehicle Dimensions
Length
Coupe
................ 187.9 inches (477.1 cm)
Sedan
................. 187.9 inches (477.2 cm)
Width Coupe
................. 74.1 inches (188.2 cm)
Sedan
.................. 74.1 inches (1 88.2 cm)
Height Coupe
................. 53.5 inches (135.9 cm)
Sedan
.................. 53.5 inches (135.9 cm)
Wheelbase Coupe
................ 103.4 inches (262.7 cm)
Sedan
................. 103.4 inches (262.7 cm)
Front Tread
Coupe
................. 55.8 inches (141.7 cm)
Sedan
.................. 55.8 inches (141.7 cm)
Rear Tread Coupe
................. 55.3 inches (140.4 cm)
Sedan
.................. 55.3 inches (140.4 cm)
6-59
