Page 107 of 360
The main components of your instrument panel are the
following:
A. Instrument Panel Fuse Blocks. SeeFuses and
Circuit Breakers on page 5-90.
B. Air Outlets. SeeOutlet Adjustment on page 3-22.
C. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-24.
D. Hazard Warning Flashers Button. SeeHazard
Warning Flashers on page 3-4.
E. Audio System. SeeAudio System(s) on page 3-39.
F. Climate Control System. SeeClimate Control
System on page 3-19.
G. Side Window Defogger Vent. See “Defogging and
Defrosting” inClimate Control System on page 3-19.
H. Fog Lamp Button (If Equipped). See “Fog Lamps”
inExterior Lamps on page 3-14.
I. Instrument Panel Brightness Thumbwheel. See
“Instrument Panel Brightness” inInterior Lamps on
page 3-16.J. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-6.
K. Hood Release Handle. SeeHood Release on
page 5-10.
L. Cruise Control Switches (If Equipped). SeeCruise
Control on page 3-10.
M. Tilt Wheel Lever. SeeTilt Wheel on page 3-5.
N. Ignition Switch. SeeIgnition Positions on page 2-17.
O. Windshield Wiper/Washer Lever. SeeWindshield
Wiper Lever on page 3-9.
P. Enhanced Traction System Button (If Equipped).
SeeEnhanced Traction System (ETS) on page 4-9.
Q. Transaxle Shift Lever. SeeAutomatic Transaxle
Operation on page 2-22.
R. Parking Brake. SeeParking Brake on page 2-27.
S. Cigarette Lighter/Accessory Power Outlet. See
Ashtrays and Cigarette Lighter on page 3-19.
T. Accessory Power Outlet. SeeAccessory Power
Outlets on page 3-18.
3-3
Page 221 of 360
Service............................................................5-3
Doing Your Own Service Work.........................5-3
Adding Equipment to the Outside of Your
Vehicle......................................................5-4
Fuel................................................................5-4
Gasoline Octane............................................5-4
Gasoline Specifications....................................5-4
California Fuel...............................................5-5
Additives.......................................................5-5
Fuels in Foreign Countries...............................5-6
Filling Your Tank............................................5-6
Filling a Portable Fuel Container.......................5-9
Checking Things Under the Hood.....................5-9
Hood Release..............................................5-10
Engine Compartment Overview.......................5-12
Engine Oil...................................................5-15
Engine Air Cleaner/Filter................................5-20
Automatic Transaxle Fluid..............................5-21
Manual Transaxle Fluid..................................5-22
Hydraulic Clutch...........................................5-22
Engine Coolant.............................................5-23
Engine Overheating.......................................5-26
Cooling System............................................5-29
Power Steering Fluid.....................................5-35
Windshield Washer Fluid................................5-36Brakes........................................................5-38
Battery........................................................5-41
Jump Starting...............................................5-42
Headlamp Aiming...........................................5-48
Bulb Replacement..........................................5-50
Halogen Bulbs..............................................5-50
Headlamps..................................................5-50
Front Turn Signal and Parking Lamps..............5-51
Center High-Mounted Stoplamp (CHMSL).........5-51
Taillamps, Turn Signal, and Stoplamps............5-52
Replacement Bulbs.......................................5-52
Windshield Wiper Blade Replacement..............5-53
Tires..............................................................5-54
Inflation - Tire Pressure.................................5-61
Tire Inspection and Rotation...........................5-62
When It Is Time for New Tires.......................5-64
Buying New Tires.........................................5-65
Uniform Tire Quality Grading..........................5-66
Wheel Alignment and Tire Balance..................5-67
Wheel Replacement......................................5-67
Tire Chains..................................................5-69
If a Tire Goes Flat........................................5-70
Changing a Flat Tire.....................................5-70
Compact Spare Tire......................................5-80
Section 5 Service and Appearance Care
5-1
Page 230 of 360

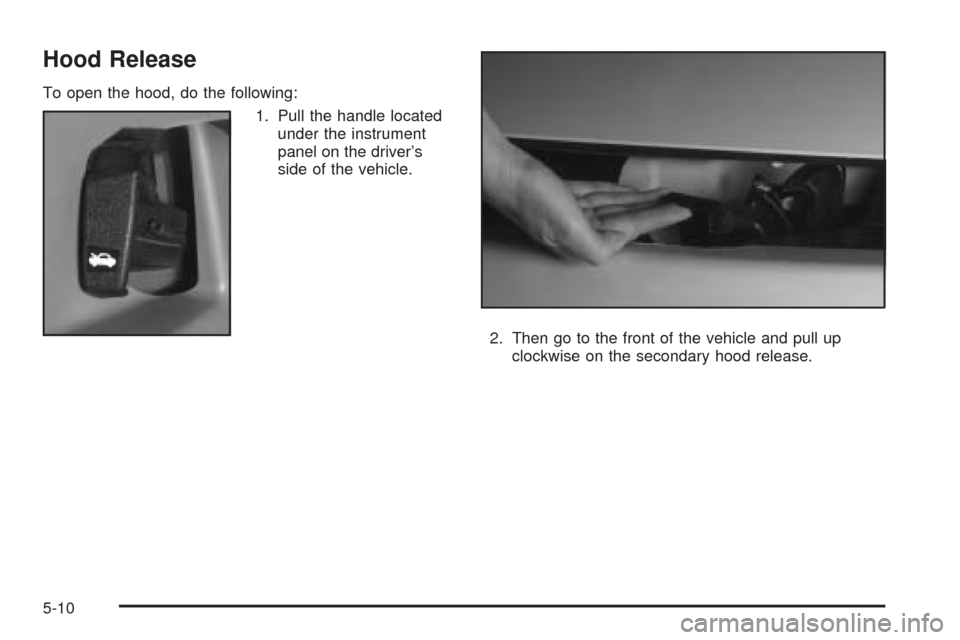

Hood Release
To open the hood, do the following:
1. Pull the handle located
under the instrument
panel on the driver’s
side of the vehicle.
2. Then go to the front of the vehicle and pull up
clockwise on the secondary hood release.
5-10
Page 231 of 360

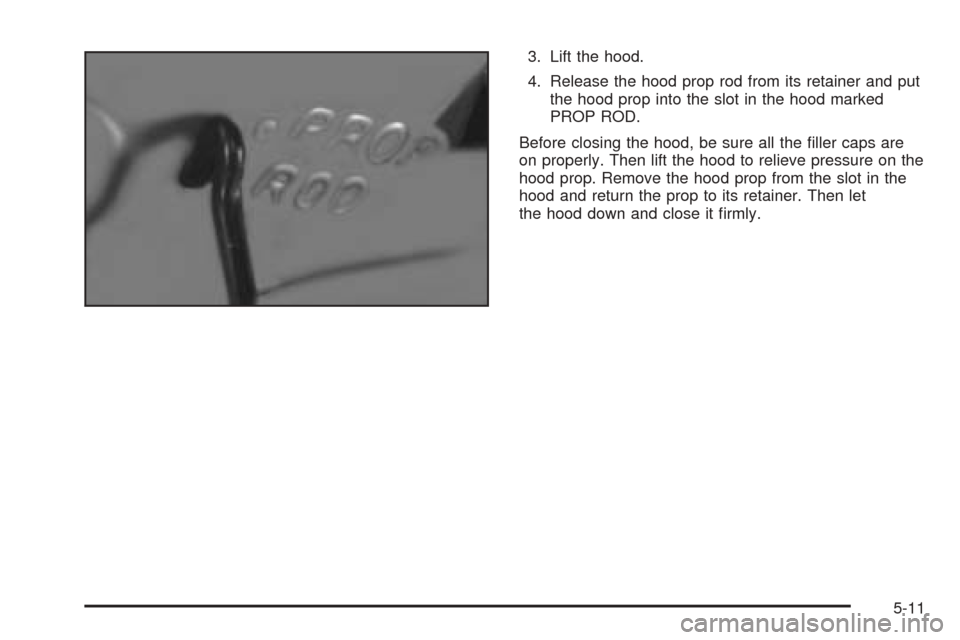

3. Lift the hood.
4. Release the hood prop rod from its retainer and put
the hood prop into the slot in the hood marked
PROP ROD.
Before closing the hood, be sure all the filler caps are
on properly. Then lift the hood to relieve pressure on the
hood prop. Remove the hood prop from the slot in the
hood and return the prop to its retainer. Then let
the hood down and close it firmly.
5-11
Page 328 of 360
Recommended Fluids and
Lubricants
Fluids and lubricants identified below by name, part
number or specification may be obtained from your
dealer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certified for Gasoline Engines
starburst symbol. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil on
page 5-15.
Engine Coolant50/50 mixture of clean, drinkable
water and use only
DEX-COOL
®Coolant. SeeEngine
Coolant on page 5-23.
Hydraulic Brake
SystemDelco Supreme 11 Brake Fluid or
equivalent DOT-3 brake fluid.
Windshield
Washer SolventGM Optikleen
®Washer Solvent.
Hydraulic
Clutch SystemHydraulic Clutch Fluid (GM Part No.
U.S. 12345347 in Canada
10953517) or equivalent DOT-3
brake fluid.
Usage Fluid/Lubricant
Power Steering
SystemGM Power Steering Fluid (GM Part
No. U.S. 89021184, in Canada
89021186).
Manual
TransaxleDEXRON
®-III Automatic
Transmission Fluid.
Automatic
TransaxleDEXRON
®-III Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring Anchor
and Release
PawlLubriplate Lubricant Aerosol (GM
Part No. U.S. 12346293, in Canada
992723) or lubricant meeting
requirements of NLGI #2, Category
LB or GC-LB.
Hood and Door
HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Weatherstrip
ConditioningDielectric Silicone Grease (GM Part
No. U.S. 12345579, in Canada
992887).
6-12
Page 352 of 360
G
Gage
Engine Coolant Temperature.........................3-31
Fuel..........................................................3-38
Speedometer..............................................3-25
Tachometer.................................................3-25
Gasoline
Octane........................................................ 5-4
Specifications............................................... 5-4
Glove Box.....................................................2-34
GM Mobility Program for Persons with
Disabilities.................................................... 7-6
H
Hazard Warning Flashers................................... 3-4
Head Restraints............................................... 1-5
Headlamp
Aiming.......................................................5-48
Headlamps......................................3-7, 3-14, 5-50
Bulb Replacement.......................................5-50
Front Turn Signal and Parking Lamps.............5-51
Halogen Bulbs............................................5-50
Headlamps Off in PARK (P)..............................3-15
Highway Hypnosis...........................................4-24Hill and Mountain Roads..................................4-24
Hitches..........................................................4-42
Hood
Checking Things Under.................................. 5-9
Release.....................................................5-10
Horn............................................................... 3-5
How to Add Coolant to the Coolant Surge Tank . . 5-31
How to Check................................................5-62
How to Check and Add Fluid............................5-23
How to Check Power Steering Fluid..................5-36
How to Inspect the Engine Air Cleaner/Filter.......5-20
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-14
Hydraulic Clutch.............................................5-22
Hydroplaning..................................................4-19I
If No Steam Is Coming From Your Engine..........5-28
If Steam Is Coming From Your Engine...............5-27
If the Light Is Flashing.....................................3-33
If the Light Is On Steady.................................3-34
If You Are Caught in a Blizzard.........................4-28
If You Are Stuck in Sand, Mud, Ice or Snow.......4-30
If You Do Decide To Pull A Trailer.....................4-40
Ignition Positions.............................................2-17
