check engine OLDSMOBILE AURORA 1995 Owner's Manual

NOTICE:
If you use an improper coolant mix, your engine
could overheat and be badly damaged. The
repair cost wouldn’t be covered by your
warranty.
Too much water in the mix can freeze
and crack the engine, radiator, heater core and
other parts.
Adding Coolant
The engine coolant
surge tank is located
on the driver’s side
of
the engine
compartment.
To Check Coolant
When your engine is cold, the coolant level should be at
the FULL COLD mark or
a little higher. If the message
LOW ENGINE COOLANT is displayed on your
message center, it means you’re low on engine coolant.
6-20
I
ProCarManuals.com

To Add Coolant
If you need more coolant, add the proper mix at the
surge tank, but only when the engine is cool.
When replacing the pressure cap, make sure it is tight.
Thermostat
Engine coolant temperature is controlled by a thermostat
in the engine coolant system. The thermostat stops the
flow of coolant through the radiator until the coolant
reaches a preset temperature.
When you replace your thermostat, an AC@ thermostat
is recommended.
Power Steering Fluid
How To Check Power Steering Fluid
When the engine compartment is cool, unscrew the cap
and wipe the dipstick with a clean rag. Replace the cap
and completely tighten it. Then remove the cap again
and look at the fluid level on the dipstick.
The level should be at the
FULL COLD mark. Add
enough fluid to bring the level up to the mark.
A fluid loss in this system could indicate a problem.
Have the system inspected and repaired.
6-21
ProCarManuals.com

Part B: Owner Checks and Services
Listed below are owner checks and sewices which
should be performed at the intervals specified to help
ensure the safety. dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
velicle, make sure they are the proper ones, as shown
in Part D.
At Each Fuel Fill
Engine Oil Level
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for further
details.
Engine Coolant Level
Check the engine coolant level and add the proper
coolant
mix if necessary. See ”Coolant“ in the Index
for further details.
Windshield Washer Fluid Level
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid
if
necessary. See “Windsl1ield Washer Fluid” in the
Index for further details.
At Least Once a Month
Tire Inflation
Check tire inflation. Make sure tires are inflated to the
pressures specified on the Tire-Loading Information
label located on the rear edge of the driver’s door. See
“Tires”
in the Index for further details.
Cassette Deck
Clean cassette deck. Cleaning should be done every
SO hours of tape play. See “Audio Systems” in the
Index for further details.
Power Antenna
Clean power antenna mast. See “Audio Systems” in the
Index for further details.
7-36
ProCarManuals.com

Brake-Transaxle Shift Interlock -- BTSI
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle.
It should be parked on a level
surface.
Firmly apply the parking brake (see "Parking Brake"
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately
if the vehicle begins to move.
With the engine
off, turn the key to the RUN
position, but don't start the engine. Without applying
the regular brake,
try to move the shift lever out of
PARK (P) with normal effort. If the shift lever
moves out
of PARK (P), your vehicle's BTSI needs
service.
Steering Column Lock
While parked, and with the parking brake set, try to turn
the key
to LOCK in each shift lever position.
0 The key should turn to LOCK only when the shift
lever
is in PARK (P).
0 The key should come out only in LOCK.
Parking Brake and Automatic Transaxle PARK (P)
Mechanism Check
7-3s
ProCarManuals.com

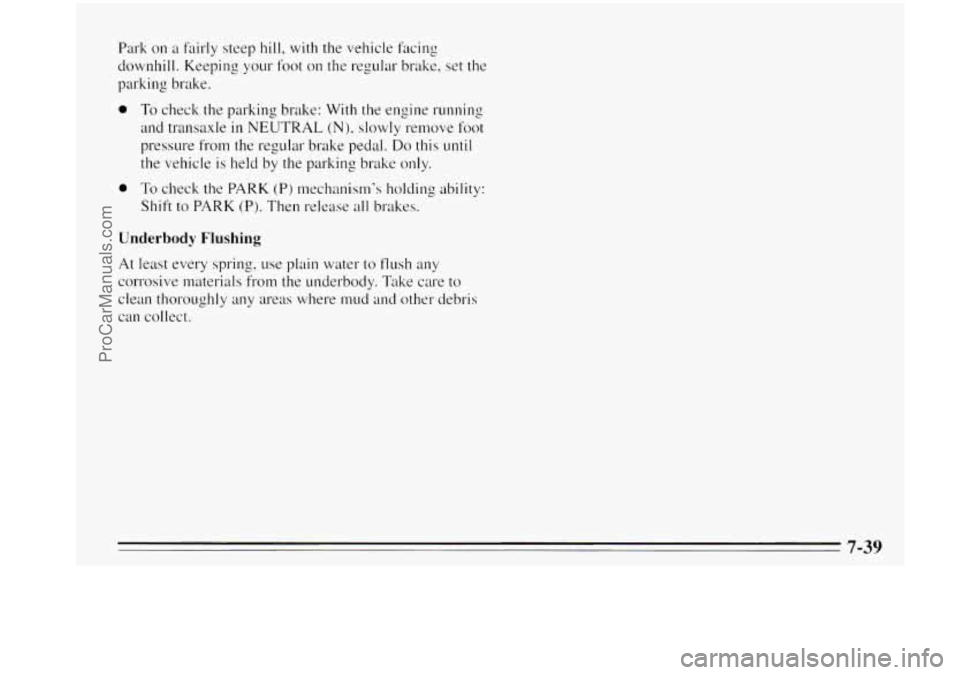

Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot
011 the regular brake, set the
parking brake.
0 To check the parking brake: With the engine running
and transaxle in NEUTRAL (N). slowly remove foot
pressure from the regular brake pedal. Do this until
the vehicle is held by the parking brake only.
0 To check the PARK (P) mechanism’s holding ability:
Shift
to PARK (P). Then release all brakes.
Underbody Flushing
At least every spring. LIS~ plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud
and other debris
can collect.
7-39
ProCarManuals.com

Automatic Transaxle ............................ 2-20 “Break.In. ” New Vehicle ......................... 2-14
Adding Fluid
................................ 6-18 Bulb Chart .................................... 6-62
Checking Fluid
.............................. 6- 16 Bulb Replacement
Fluid Life Monitor
........................... 2-75 Headlamp .................................. 6-30
Shifting
..................... 2-20,2-23,2-25, 2-27
Taillamp ................................... 6-32
Average Speed Message .......................... 2-74 Bulbs, Halogen ................................. 6-27
Battery
.................................. 5.2. 6.26
Jump Starting
................................ 5-2
Warning Light
............................... 2-65
Belt. Engine Accessory
.......................... 6- 10
Block Heater, Engine ............................ 2- 18
Blowout. Tire .................................. 5-21
Blizzard
...................................... 4-26
Brake Adjustment
................................. 6-25
Anti-Lock
................................... 4-6
Fluid
...................................... 6-23
Parking
.................................... 2-24
PedalTravel
................................ 6-25
Master Cylinder
............................. 6-23
Replacement
................................ 6-26
System. Anti-Lock Warning Light
............... 2-67
System Warning Light
........................ 2-65
Transaxle Shift Interlock
....................... 2-27
Brakes, Trailer
................................. 4-33
Braking
in Emergencies ........................... 4-9
Wear
...................................... 6-25
Braking
........................................ 4-5 Canadian
Roadside Assistance
.................... 8-6
Capacities and Specifications Chart
................. 6-60
Carbon Monoxide
......................... 2-10. 2-28
Cassette Tape Player
.................. 3- 12. 3- 16. 3-20
Cassette Tape Player Care
........................ 3-29 ...
CB Radio. Adding .................... 2-57.3-29. 6-52
Cellular Telephone. Adding
............. 2-57. 3-29. 6-52
Chains. Tire
.............................. 5-29. 6-42
Change Oil Message
............................ 2-75
Changing a Flat Tire
............................. 5-21
Check Oil Level Message ........................ 2-76
Brake Fluid
................................. 6-23
Engine Coolant
.............................. 6-19
Power Steering Fluid
......................... 6-21
Transaxle Fluid
.............................. 6-16
Windshield Washer Fluid
...................... 6-22
Cautions. Safety
.................................. 111
Checking
Engineoil
.................................. 6-11
Restraint Systems
............................. 1-43
Underhood
.................................. 6.7
9-2
ProCarManuals.com

Chemical Paint Spotting .......................... 6-49
Children and Safety Belts
................... 1.30 . 1-40
Chilcl
Restraints
................................ 1-32
Cigar Lighters
................................. 2-56
Circuit Breakers and Fuses
....................... 6-54
Cleaner. Air
.............................. 6- 14.6-61
Cleaning
Aluminum Wheels ........................... 6-48
Antenna .................................... 3-3 1
Cassette Player and Tapes ...................... 3-29
Compact Discs .............................. 3-30
Fabric
..................................... 6-44
Glass ...................................... 6-46
Inside Your Aurora
........................... 6-43
Instrument Panel
............................. 6-46
Leather
.................................... 6-46
Outside Your Aurora
.......................... 6-47
Safety Belts
................................. 6-46
Underbody Maintenance
....................... 6-49
Vinyl
...................................... 6-45
Weatherstrips
............................... 6-47
Windshield and Wiper Blacks
................... 6-47
Clock. Setting the
................................ 3-9
Cluster
. Instrument Panel ......................... 2-60
Comfort Controls
Automatic Electronic Climate Control
............. 3- I
Dual Temperature Control ...................... 3-6
Steering Wheel Touch Controls
.................. 3-8
Compact Disc Care
............................. 3-30
City Driving ................................... 4-18 Compact
Disc Player
....................... 3- 13 . 3-21
Compact Spare Tire
............................. 5-29
Control
of a Vehicle .............................. 4-5
Controls . Features and ............................ 2-1
Convenience Net ............................... - 3-52
Coolant
Checking and Adding .................... 5- 16 . 6-20
Engine
..................................... 6-19
Engine . Temperature Gage ..................... 2-69
Heater
..................................... 2-18
Proper Mixture
to Use ........................ 6-19
Safety Warnings
................... 5- I3 . 5- 16. 5-17
Cornering Lamps
............................... 2-40
Courtesy Lamps
................................. - 7-9
Cruise Control ................................. 2-34
Cupholders
.................................... 2-55
Customer Assistance Hearing/Speech Impaired
....................... 8-2
Satislhctioll Procedure ......................... 8-1
Daytime Running Lamps ........................ 2-41
Defensive Driving
............................... 4-1
Dcfogger. Rear Window .......................... 3-7
Defrost
........................................ 3-6
Disc Brake Wear Indicators
....................... 6-25
Disposal
of Used Oil ............................ 6-14
Distance to Destination
.......................... 2-77
Door Asjar Reminder ............................. 2-4
DoorLocks
..................................... 2-3
9-3
ProCarManuals.com

Driver Information Center ........................ 2-72
Driving
City
....................................... 4-18
Curve ..................................... 4-10
Defensive ................................... 4- 1
Drunken .................................... 4-2
Foreign Country .............................. 6-4
Freeway .................................... 4-19
Hill and Mountain Roads ...................... 4-22
Long Distance ............................... 4-20
Night ...................................... 4-14
Through Deep Standing Water .................. 2- 18
Rain ....................................... 4-16
Winter ..................................... 4-23
With a Trailer ............................... 4-30
Dual Temperature Control ......................... 3-6
Drunken Driving ................................ 4-2
Electric Outside Mirror Control ................... 2-5 1
Electrical Equipment. Adding ........... 2.57. 3.29. 6-52
Electrochromic Day/Night Rearview Mirror .......... 2-50
Electronic Level Control ......................... 4-29
Emergency
Braking
..................................... 4-9
Starting ..................................... 5-2
Steering .................................... 4- 1 1
Towing ..................................... 5-8
Engine
Accessory Belt
.............................. 6-10
BlockHeater ................................ 2-18
Coolant .......................... 5- 15. 6- 19. 6-60
Coolant Heater .............................. 2-18
Coolant Temperature Gage ..................... 2-69
Exhaust .................................... 2-28
Identil'ication (VIN) .......................... 6-51
Overheating
................................. 5-13
Starting .................................... 2-16
Engineoil .................................... 6-10
Additives ................................... 6-13
Capacity ................................... 6-60
Checking and Adding ......................... 6-11
Life Monitor ................................ 2-75
Pressure Warning Light ....................... 2-70
Estimated Time of Arrival (ETA) .................. 2-77
Ethanol In Gasoline .............................. 6-3
Exhaust
Dangerous
Gas in ....................... 2- IO. 2-28
Extender. Safety Belt ............................ 1-43
Parking with the Engine Running ........... 2-26. 2-28
Expectant Mothers. Use of Safety Belts ............. 1-23
Fabric Cleaning
............................... 6-44
Features and Controls ............................ 2-1
Filling the Fuel Tank ............................. 6-5
9-4
ProCarManuals.com

Restraints. Head ................................. 1-4
Retained Accessory Power ........................ 2- 16
Reverse Gear Position
........................... 2-2 1
Roads. Hill and Mountain ........................ 4-22
Roadside Assistance
.............................. 8-6
Rocking Your Vehicle
........................... 5-30
Rotation
. Tire .................................. 6-36
Reverse Gear Day Mode
......................... 2-50
Running Your Engine While You're Parked
.......... 2-28
Safety Belts
................................... 1-5
AdLllts ..................................... 1-10
Care ....................................... 6-46
Center Passenger Position
...................... 1-29
Checking ................................... 1-43
Children
.............................. 1.30. 1-40
Driver Position
.............................. 1 . I0
Extender
................................... 1-43
Lap ....................................... 1-29
Lap-Shoulder
.......................... I . 10. 1-24
Pregnancy
. Use During ........................ 1-23
Properly Worn
............................... I . 10
Larger Chilclren .............................. 1-40
Questions About .............................. 1-9
Rear Safety Belt Comfort Guides ................ 1-27
Rear Seat Passengers
......................... 1-23
Reminder Light
.............................. 2-64
Replacement
................................ 1-44
Right Front Passenger Position
.................. 1-23
Shoulder Belt Tightness Adjuster ................ I . I2
Smaller Children and Babies
................... 1-30
Tor11 ....................................... 1-43
Twisted
.................................... 1-16
Why Safety Belts Work ........................ 1-6
Safety Cautions .................................. 111
Safety Defects . Reporting ......................... 8-4
Scheduled Maintenance Services
.................... 7-3
Seat
Cushion Removal. Rear ...................... 6-52
Seats
and Restraint Systems ........................ 1 . 1
Seats and Seat Controls ........................... 1 . 1
Head Restraints ............................... 1-4
Heated Seats ................................. 1-4
Lumbar Controls .............................. 1-3
Memory Function
............................. 1-3
Rear Seat Removal
........................... 6-52
Reclining Seatbacks ........................... 1-2
Six-Way Power Seats .......................... 1 . 1
Second Gear Position ............................ 2-22
Securing A Child Restraint
............. 1.34 . 1.35 . 1-37
Security Light
.................................. 2-13
Security Locks. Rear Door ......................... 2-5
Security Override. Trunk
......................... 2-11
Selectable Shift
................................ 2-23
Service and Appearance Care
...................... 6-1
Service
and Owner Publications .................... 8-7
Service Information
.............................. 6-1
Service Parts Identification Label
.................. 6-51
...
Service Engine Soon (Malfunction Indicator Lamp) .... 2-70
Servicing Your Air Bag-Equipped Aurora
........... 1-22
9-9
ProCarManuals.com

Tracrion Control System Active Light ........... 2.68. 4-8
Traction Control System Warning Light
............. 2-67
Trailer Brakes
.................................. 4-33
Trailer Towing
................................. 4-30
Transaxle. Automatic
............................ 2-20
Fluid
...................................... 6-16
Fluid Life Monitor ........................... 2-75
Transmitter. HomeLink Universal
.................. 2-48
Trip Odometer
................................. 2-6 1
Trunk
Access Panel ................................ 2-55
Convenicnce
Net ............................. 2-52
Lock
...................................... 2-10
Release. Remote
............................. 2-1 1
Security Override ............................ 2- I 1
Turn Signal/Mllltifunctioll Lever ................... 2-33
Indicator
................................... 2-73
Reminder
................................... 2-34
Twilight Sentinel
............................... 2-42
underbody MainLenawe
........................ 6-49
Unleaded Gasoline
............................... 6-2
Upholstery
Care ................................ 6-43
Used Oil Disposal
.............................. 6- 14 Ventilation
..................................... 3-8
Vinyl . Cleaning ................................ 6-45
Visor Vanity Mirror
............................. 2-53
warning Flashers. Hazard
........................ 5-1
Warning Lights ................................. 2-63
Air Bag ............................... 1 . 18.2-64
Anti-Lock Brake System
.................. 2-67.4-6
Battery ..................................... 2-65
Brake
...................................... 2-65
Check Oil Message
........................... 2-76
Door A-ial-
................................... 2-4
Engine Oil
.................................. 2-70
Low Coolant
................................ 2-49
Low Fuel ................................... 2-71
Oil Pressure
................................. 2-70
Salety
Belt ................................. 2-64
Security
.................................... 2- 1-7
Service Engine Soon (Malfunction Indicator Lamp) . 2-70
Traction Control Systcm
....................... 2-67
Washer Fluid Low
............................ 2-32
Washer
. Windshield ........................ 2-32. 6-22
Washing
Your Vehicle ........................... 6-47
Weatherstrips
.................................. 6-47
Engine Coolant Tcmperature
................... 2-69
Variable Assist Steering 4-
IO
Vehicle Identification Number (VIN) 6-5 1
Vehicle Storage ................................ 6-27 Weight
......................... .............. Gross Axle Weight Rating (GAWR) 4-28
Gross Vehiclc Weight Rating (GVWR)
........... 4-28
Trailer
..................................... 4-31
...............
Vehicle Loading ................................ 4-28
ProCarManuals.com
