service indicator OLDSMOBILE AURORA 2003 Owners Manual

The 2003 Oldsmobile Aurora Owner Manual
Seats and Restraint Systems ........................... 1-1
Front Seats
............................................... 1-2
Safety Belts
.............................................. 4 -8
Child Restraints
....................................... 1-28
Air Bag Systems
...................................... 1-47
Restraint System Check
............................ 1-55
Features and Controls ..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
...................................... 2-10
Windows
................................................. 2-1 7
Theft-Deterrent Systems ............................ 2-1 9
Starting and Operating Your Vehicle
........... 2-23
Mirrors
.................................................... 2-35
Onstar@ System
...................................... 2-39
HomeLink@ Transmitter
............................. 2-41
Storage Areas
......................................... 2-45
Sunroof
.................................................. 2-47
venicie Personaiization
............................. 2-48
Instrument Panel ............................................. 3-1
Instrument Panel Overview
.......................... 3-2
Climate Controls
...................................... 3-23
Warning Lights, Gages and Indicators
......... 3-30
D!%%?r !!?formatior! Center (D!C) .................. u 12-AK -rJ
Audio System(s) ....................................... 3-59 Driving
Your Vehicle
....................................... 4-1
Your Driving. the Road. and Your Vehicle
..... 4-2
Service and Appearance Care
.......................... 5-1
Towing
................................................... 4-33
Service
............................... ;. .................... 5-3
Fuel
......................................................... 5-5
Checking Things Under
the Hood
............................................. 5-12
Headlamp Aiming
..................................... 5-50
Windshield Wiper Blade Replacement
= ~ iI I I 5-59
Tires ...................................................... 5-60
Appearance Care
..................................... 5-82
Vehicle Identification
................................. 5-90
Electrical System
...................................... 5-91
Capacities and Specifications
................... 5-1 00
Maintenance Schedule ..................................... 6-1
Maintenance Schedule ................................ 6-2
Customer Assistance Information
.................... 7-1
Customer Assistance Information
.................. 7-2
Bulb
Replacement
.................................... 5-54
Normal Maintenance Replacement Parts
.... 5-101
Reporting Safety Defects
............................ 7-8
I-- -I ~ a lnQex ................................................................. 1
ProCarManuals.com

Your tape player should be cleaned regularly after every
50 hours of use. Your radio may display CLEAN
PLAYR to indicate that you have used your tape player
for
50 hours without resetting the tape clean timer. If
this message appears on the display, your cassette tape
player needs to be cleaned. It will still play tapes, but
you should clean it as soon as possible
to prevent
damage to your tapes and player. If you notice a
reduction in sound quality, try a known good cassette to
see
if the tape or the tape player is at fault. If this
other cassette has no improvement in sound quality,
clean the tape player.
For best results, use a scrubbing action, non-abrasive
cleaning cassette with pads which scrub the tape
head as the hubs of the cleaner cassette turn. The
recommended cleaning cassette is available through
your dealership.
The cut tape detection feature of your cassette tape
player may identify the cleaning cassette as a damaged
tape, in error. To prevent the cleaning cassette from
being ejected, use the following steps.
1. Turn the ignition on.
2. Turn the radio off.
3. Press and hold the TP CD button for five seconds.
4. Insert the scrubbing action cleaning cassette.
5. Eject the cleaning cassette after the manufacturer’s
recommended cleaning time. You may
also choose a non-scrubbing action, wet-type
cleaner which uses a cassette with a fabric belt to
clean the tape head. This type of cleaning cassette will
not eject on its own. A non-scrubbing action cleaner
may not clean as thoroughly as the scrubbing type
cleaner. The use of a non-scrubbing action, dry-type
cleaning cassette is not recommended.
After you clean the player, press and hold the eject
button for five seconds to reset the CLEAN PLAYR
indicator. The radio will display CLEANED to show the
indicator was reset.
Cassettes are subject to wear and the sound quality
may degrade over time. Always make sure the cassette
tape is in good condition before you have your tape
player serviced.
Care of Your CDs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a disc is soiled, dampen
a clean,
soft cloth in a mild, neutral detergent solution
and clean it, wiping from the center to the edge.
Be sure never to touch the side without writing when
handling discs. Pick up discs by graspin9 the outer
edges or the edge of the hole and the outer edge.
3-75
ProCarManuals.com

Some gasolines that are not reformulated for low
emissions may contain an octane-enhancing additive
called methylcyclopentadienyl manganese tricarbonyl
(MMT); ask the attendant where you buy gasoline
whether the fuel contains MMT. General Motors does
not recommend the use
of such gasolines. Fuels
containing
MMT can reduce the life of spark plugs and
the performance of the emission control system may
be affected. The malfunction indicator lamp may turn on.
If this occurs, return to your authorized GM dealer for
service.
Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel may be hard
to find. Never use leaded gasoline or any other fuel
not recommended in the previous text on fuel. Costly
repairs caused by use of improper fuel wouldn’t be
covered by your warranty.
Filling Your Tank
Fuel vapor is highly flammable. It burns
violently, and that can cause very bad injuries.
Don’t smoke
if you’re near fuel or refueling
your vehicle. Keep sparks, flames and smoking
materials away from fuel.
?2 check the !!x! 2xi!2bi!i?;, 2:sk 2R 2ztc C!k, cr
contact a major oil company that does business in the
country where you’ll be driving.
5-7
ProCarManuals.com

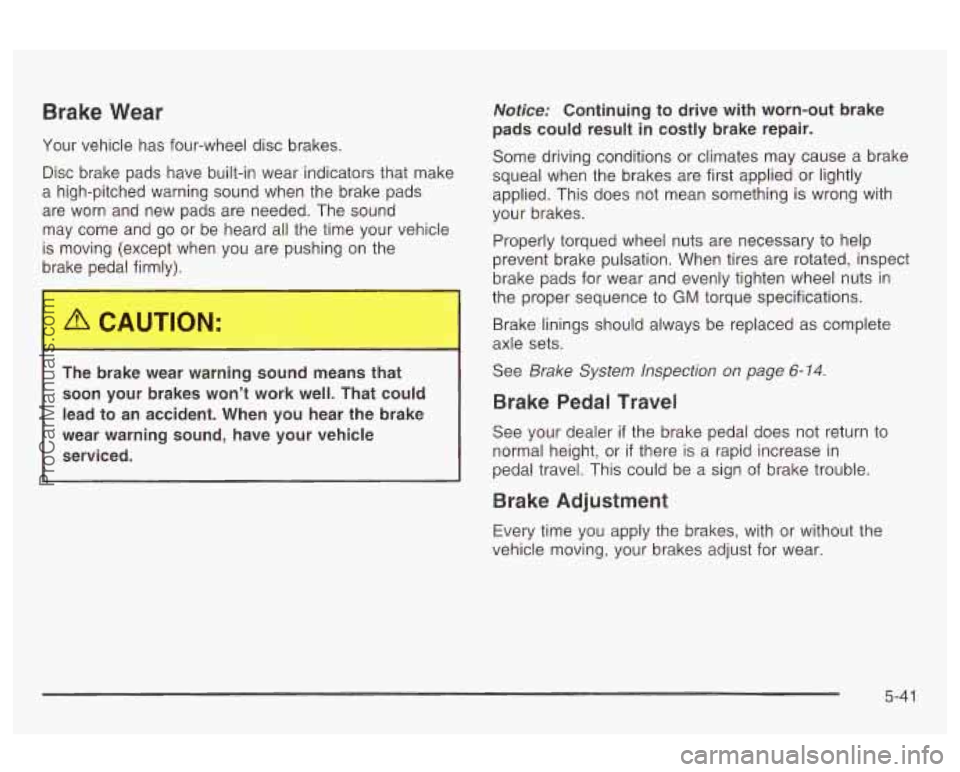

Brake Wear
Your vehicle has four-wheel disc brakes.
Disc brake pads have built-in wear indicators that make
a high-pitched warning sound when the brake pads
are worn and new pads are needed. The sound
may come and go or be heard all the time your vehicle
is moving (except when you are pushing on the
brake pedal firmly).
The brake wear warning sound means that
soon your brakes won’t work well. That could
lead to an accident. When you hear the brake
wear warning sound, have your vehicle
serviced.
Notices Continuing to drive with worn-out brake
pads could result in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
applied. This does not mean something is wrong with
your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly tighten wheel nuts in
the proper sequence to
GM torque specifications.
Brake linings should always be replaced as complete
axle sets.
See
Brake System Inspection on page 6- 14.
Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or
if there is a rapid increase in
pedal travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you apply the brakes, with or without the
vehicle moving, your brakes adjust for wear.
5-4 1
ProCarManuals.com

Headlamp Aiming
Your vehicle has a visual optical headlamp aiming
system equipped with horizontal aim indicators. The aim
has been preset at the factory and should need no
further adjustment. This is true even though your
horizontal aim indicators may not fall exactly on the
“0 (zero) marks on their scales.
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment to the low beam
may be necessary
if it is difficult to see lane markers (for
horizontal aim),
or if oncoming drivers flash their high
beams at you (for vertical aim).
If you believe your
headlamps need to be re-aimed, we recommend that
you take your vehicle to your dealer for service.
However, it is possible for you to re-aim your headlamps
as described
in the following procedure.
Notice: To make sure your headlamps are aimed
properly, read all the instructions before beginning.
Failure to follow these instructions could cause
damage to headlamp parts.
The vehicle should be properly prepared as follows:
The vehicle should be placed so the headlamps are
25 ft. (7.6 m) from a light colored wall or other flat
surface.
The vehicle must have all four tires on a perfectly
level surface which is level all the way to the wall
or other flat surface.
The vehicle should be placed so it is perpendicular
to the wall or other flat surface.
The vehicle should not have any snow, ice or mud
attached to it.
The vehicle should be fully assembled and all other
work stopped while headlamp aiming is being done.
full tank of fuel and one person or 160
Ibs (75 kg) on
the driver’s seat.
The vehicle should be normally loaded with a
Tires should be properly inflated.
5-50
ProCarManuals.com

Instrument Panel Cluster
.............. .... .... ........... 3-31
Overview
..................................... ......... 3-2
Instrument Panel Brightness
........... ........... 3-17
Interior Lamps
............................................. 3-17
Interior Plastic Components
.............................. 5-83
Jump Starting
................................................. 5-44
Key Lock Cylinders Service
.............................. 6-10
Keyless Entry System
....................................... 2-5
Key Reminder Warning
.................................... 2-24
Keys
............................................................... 2-3
L
Lamps Exterior
................................... ....... 3-14
Interior
....................................................... 3-1 7
Lap-§boulder Belt ................................... 1-14, 1-22
Child Restraints
........................................... 1-40
Securing a Child Restraint Designed for the
LATCH System
........................................ 1-42
Leather
......................................................... 5-83
LATCH System Leaving
Your Vehicle
....................................... 2-14
Leaving Your Vehicle With the Engine Running
...... 2-31
Light
Air Bag Readiness
....................................... 3-34
Anti-Lock Brake System Warning
................... 3-36
Battery Warning
.......................................... 3-35
Brake System Warning
................................. 3-35
Cruise Control
............................................. 3-43
Malfunction Indicator
.................................... 3-39
Oil Pressure
............................................... 3-42
Safety Belt Reminder
................................... 3-33
TCS Warning Light
...................................... 3-37
Traction Control System Active
...................... 3-38
Traction Control System (TCS) Warning
.......... 3-37
Lighted Visor Vanity Mirror
............................... 2-18
Loading Your Vehicle
....................................... 4-34
Lockout Protection
.......................................... 2-14
Locks Central Door Unlocking System
..................... 2-11
Delayed Locking
.......................................... 2-11
Door
.......................................................... 2-10
Leaving Your Vehicle
.................................... 2-14
Lockout Protection
....................................... 2-14
Power Door
................................................ 2-11
Programmable Automatic Door Locks
............. 2-12
Rear Door Security Locks
............................. 2-13
Loss of Control
................... ................ 4-15
Lumbar Manual Controls
.......... ............ .. 1-3
Power Controls
............................................. 1-4
a
ProCarManuals.com

Magnetic-Speed Variable Assist Steering ............ 4-1 0
Maintenance. Normal Replacement Parts .......... 5-1 01
Maintenance Schedule
At Each Fuel Fill
....................................... 6-9
At Least Once a Month
....... ............... 6-9
At Least Once a Year
..... .............. 6-10
At Least Twice a Year
.................................. 6-10
Brake System Inspection
.............................. 6-14
Exhaust System Inspection
........................... 6-1 3
How This Section is Organized ....................... 6-3
Introduction
.................................................. 6-2
Maintenance Requirements
............................. 6-2
Part
A - Scheduled Maintenance Services ......... 6-4
Part B
- Owner Checks and Services ............... 6-9
Part C
- Periodic Maintenance Inspections ...... 6-13
Part D
- Recommended Fluids and Lubricants . 6-15
Part E
- Maintenance Record ........................ 6-16
Scheduled Maintenance
................................. 6-5
Boot and Seal Inspection
.......................... 6-13
Throttle System Inspection
............................ 6-14
Engine
Cooling System Inspection
................. 6-14
Fuel System Inspection
................................ 6-13
cv---.- -. . .----- :-.- -.--I I- L n .. f. ._ A . . I - ateGI II IY, auq.~w IWWI I IU rl UI 11 UI IV~ nx~e
Using Your ................................................... 6-4 Maintenance Schedule
(cont.)
Your Vehicle and the Environment
............... 6-2
Maintenance When Trailer Towing
..................... 4-43
Making Turns
................................................. 4-41
Malfunction Indicator Light
................................ 3-39
Manual Lumbar Controls
.................................... 1-3
Manual Operation
........................................... 3-24
Manual Passenger Seat
.................................... 1-2
Matching Transmitter(s) to Your Vehicle
............... 2-8
Memory Mirrors
.............................................. 2-48
Memory Seat
................................................. 2-48
Memory Seats
................................................ 3-58
Message DIC Warnings and Messages
........................ 3-50
Mexico, Central America and Caribbean Islands/
Countries (Except Puerto Rico and
US
. Virgin Islands) ....................... ..... 7-4
Mirror Operation
............................................. 2-35
Mirrors Automatic Dimming Rearview with Compass
.... 2-35
Memory
..................................................... 2-48
Outside Curb View Assist Mirror
.................... 2-37
Outside Heated Mirrors
................................ 2-38
Outside Power Mirrors
.............................. 2-37
A, ttcirla Pnnrrnv hl;rrnr WUL~IUU -ut IVUfi *Vfftt ut 1-30 n on .................................
9
ProCarManuals.com

Trip Odometers .............................................. 3-32 Vehicle Personalization
Trunk
............................................................ 2-14 DIC ........................................................... 3-52
Trunk Lock Release
........................................ 2-15 Memory Seat and Mirrors ............................. 2-48
Trunk Release Lockout
.................................... 2-15 Vehicle Storage .............................................. 5-43
Turn and Lane-Change Signals
.......................... 3-6 Ventilation Adjustment ...................................... 3-27
Turn Signal/Multifunction Lever
........................... 3-6 Vinyl ............................................................. 5-83
Turn Signals When Towing a Trailer
.................. 4-41 Visors ........................................................... 2-18
U
Underbody Flushing Service ............................. 6-1 2
Understanding Radio Reception
........................ 3-74
Uniform Tire Quality Grading
............................ 5-67
United States
................................................... 7-4
Used Replacement Wheels
.............................. 5-69
Using HomeLink@
........................................... 2-44
Using RDS
.................................................... 3-62
v
Vehicle
Cnntrc\! ........................................................ 4-5
Damage Warnings ........................................... iv
Loading
...................................................... 4-34
Symbols
......................................................... iv
Number
(VIN) ............................................. 5-90
Service Parts Ideniification Label ................... 5-90
Vehicle Identification Warning
Lights. Gages and Indicators
................ 3-30
Warnings DIC Warnings and Messages
........................ 3-50
Hazard Warning Flashers
............................... 3-4
Safety and Symbols
......................................... III
Vehicle Damage .............................................. iv
Washing Your Vehicle
................................... 5-85
Other Warning
Devices
.................................. 3-5 ...
Weatherstrip Lubrication ..... .................... 6-10
Weight of the Trailer
......................... .... 4-38
Weight of the Trailer Tongue
............................. 4-38
What Kind of Engine Oil to Use
........................ 5-18
What to Do with Used Oil ................................ 5-20
What to Use .................................. 5-25, 5-37, 5-38
Wheels
Alignment and Tire Balance
.......................... 5-68
Replacement
............................................... 5-68
LVher; to Add Efigine Oil 1747 ..................................
15
ProCarManuals.com
