lock OLDSMOBILE BRAVADA 1994 User Guide

f

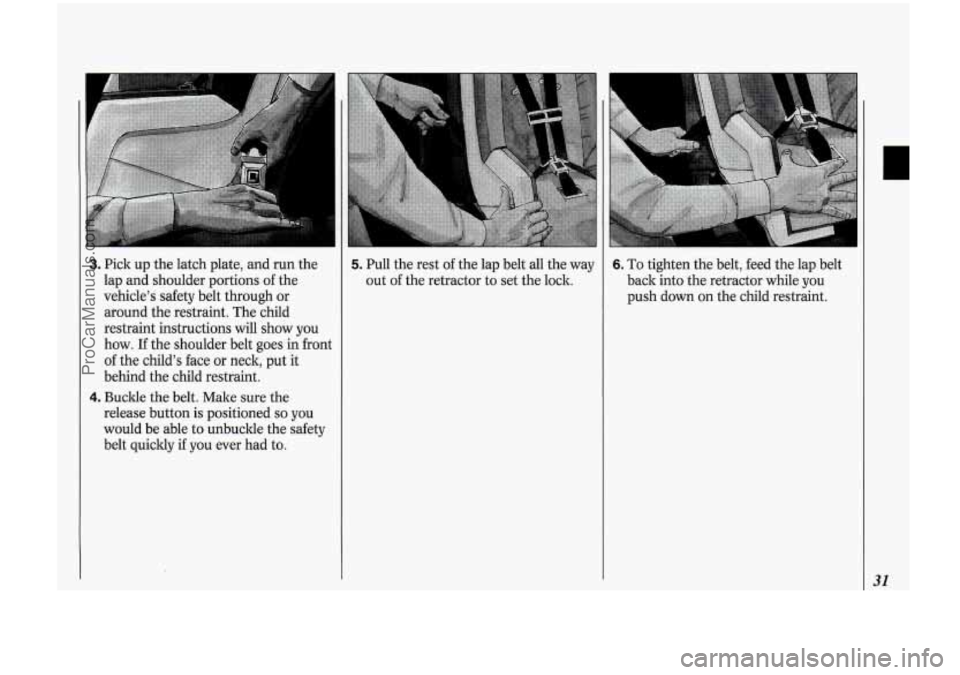

3. Pick up the latch plate, and run the
lap and shoulder portions of the
vehicle’s safety belt through or
around the restraint. The child
restraint instructions will show you
how.
If the shoulder belt goes in front
of the child’s face or neck, put it
behind the child restraint.
release button is positioned
so you
would be able to unbuckle the safety
belt quickly
if you ever had to.
4. Buckle the belt. Make sure the
I
5. Pull the rest of the lap belt all the way
out of the retractor to set the lock. 6. To tighten the belt, feed the lap belt
back into the retractor while you
push down on the child restraint.
L
31
ProCarManuals.com

Here you can learn about the many standard and optional features on
your Oldsmobile. and information on
starting. shifting and braking
. Also
explained are the instrument panel
and the warning systems that tell you
if everything is working properly -
and what to do if you have a problem .
Part 2
Features & Controls
Keys ........................................................................\
.......................................... .. ....... 38
Locks ........................................................................\
.................................................. 39
Remote Lock Control
........................................................................\
........................ 40
Tailgate ........................................................................\
.............................................. 42
Ignition ........................................................................\
.............................................. 45
Starting Your Engine ........................................................................\
........................ 45
Shifting the Transmission ........................................................................\
................. 48
Parking Brake ........................................................................\
.................................... 51
Shifting into Park ........................................................................\
.............................. 51
Horn ........................................................................\
................................................... 54
Tilt Steering Wheel ........................................................................\
............................ 55
Windows ........................................................................\
............................................ 55
Turn Signal/Multifunction Lever ........................................................................\
..... 55
Windshield Wipers and Washer ........................................................................\
........ 57
Cruise Control ........................................................................\
................................... 59
Headlights
........................................................................\
.......................................... 62
Fog Lights ........................................................................\
.......................................... 63
Overhead Console
........................................................................\
............................. 64
Sun Visors
........................................................................\
......................................... 69
Mirrors
........................................................................\
............................................... 69
Storage Compartments
........................................................................\
..................... 71
Ashtrays and Lighter
........................................................................\
......................... 73
Luggage Carrier ........................................................................\
................................. 74
Warning Lights, Gages and Indicators
..................................................................... 80
Instrument Panel ........................................................................\
............................... 76
37
ProCarManuals.com

Features & Controls
38
The square-shaped keys are for the
.gnition only. The
oval-shaped keys are for the doors
and all other loclts.
When a new Oldsmobile
is delivered,
the dealer removes the plugs from the
keys and gives them to the first owner.
Each plug has a code on it that tells
your dealer or a qualified locksmith
how to make extra keys. Keep the plugs
in a safe place. If you lose your keys,
you'll
be able to have new ones made
easily using these plugs.
ProCarManuals.com

NOTICE:
Your Oldsmobile has a number of
new features that can help prevent
theft. But you can have a lot of
trouble getting into your vehicle if
you ever lock your keys inside. You
may even have to damage your
vehicle
to get in. So be sure you
have extra keys.
Door Locks
I'here are several ways to lock and
unlock your vehicle.
From the Outside:
Use your door key or Remote Lock
Control.
rl
39
ProCarManuals.com

Features & Controls
40
I I II I
From the Inside:
To lock the door, push the manual
locking lever forward. To unlock the
door, push the lever back.
The rear doors have only a manual door
lock lever.
LOCK 1> I
I I II I
Power Door Locks
You can lock or unlock all doors at the
same time from either front door. Push
the switch forward to lock the doors.
Push it rearward to unlock them. This
switch does not keep you from locking
or unlocking a door with the key.
The switch on each rear door works
only that door’s lock. It won’t lock (or
unlock) all of the doors-that’s a safety
feature.
Leaving Your Vehicle
If you are leaving the vehicle, open your
door and set the locks from the inside.
Then get out and close the door.
I
I Remote Lock Control
You can lock and unlock your doors, or
mloclc your tailgate glass, from about
50 feet (9 m) away using the key chain
:ransmitter supplied with your vehicle.
four remote lock control operates on a
radio frequency subject to Federal
Zommunications Commission
(FCC)
Rules.
rhis device complies with Part
15 of the
XC Rules. Operation is subject to the
’olIowing two conditions:
(1) This
levice may not cause harmful
.nterference, and
(2) This device must
iccept any interference received,
ncluding interference that may cause
Indesired operation.
ProCarManuals.com

Should interference to this system
occur, try this:
Check to determine if battery
replacement is necessary. See the
instructions on battery replacement.
Check the distance. You may be too
far from your vehicle. This product
has a maximum range.
Check the location. Other vehicles or
objects may be blocking the signal.
See your Oldsmobile dealer or a
qualified technician for service.
Changes or modifications to this system
by other than an authorized service
facility could void authorization to use
this equipment.
Operation
When you press UNLOCK, the driver’s
door will unlock automatically. If you
press
UNLOCK again within five
seconds, all doors will unlock. All doors
will lock when
DOOR is pressed.
The tailgate glass will unlock when
0 is pressed, but only when the
transmission is in
P (Park).
Matching rransmitfer(sj To Your
Vehicle
Each key chain transmitter is coded to
prevent another transmitter from
unlocking your vehicle. If a transmitter
is lost or stolen, a replacement can be
purchased through your dealer.
Remember to bring the remaining
transmitters with you when you go to
your dealer. When the dealer matches
the replacement transmitter to your
vehicle, the remaining transmitters
must also be matched. Once the new
transmitter is coded, the lost
transmitter will not unlock your vehicle.
You can match a transmitter to as many
different vehicles as you own, provided
they are equipped with
exactly the
same model system.
(General Motors
offers several different models of these
systems on their vehicles.) Each vehicle
can have only two transmitters matched
to it.
See your dealer to match transmitters to
another vehicle.
Battery Replacement
Under normal use, the batteries in your
key chain transmitter should last about
two years.
You can tell the batteries are weak if the
transmitter won’t work at the normal
range in any location.
If you have to get
close to your vehicle before the
transmitter works, it’s probably time to
change the batteries.
To Replace Batteries in the Remote
Lock Control:
1. Pop the cover off by inserting a dime
(or something similar) in the groove
between the covers and twisting.
41
ProCarManuals.com

Features & Controls
42
2. Lift the front cover off, bottom half
3. Remove and replace the batteries
4. Reassemble the transmitter.
5. Check the transmitter operation.
first.
(2016).
Theft
Vehicle
theft is big business, especially
in some cities. Although your
I Oldsmobile has a number of theft
deterrent features, we know that
nothing we put on it can make it
impossible to steal. However, there are
ways you can help.
Key in the Ignition
If you walk away from your vehicle with
the keys inside, it’s an easy target for
joy riders
or professional thieves - so
don’t do it.
When
you park your Oldsmobile and
open the driver’s door, you’ll hear a
tone reminding you to remove your key
from the ignition and take it with you.
Always do this. Your steering wheel
will be locked, and
so will your ignition
and transmission. And remember to
lock the doors.
Parking at Night
Park in a lighted spot, close all windows
and lock your vehicle. Remember to
keep your valuables out of sight. Put
them in a storage area, or take them
with you.
Parking Lots
If you park in a lot where someone will
be watching your vehicle, it’s best to
lock it up and take your keys. But what
if you have to leave your ignition key?
What
if you have to leave something
valuable
in your vehicle?
Put your valuables in a storage area,
like your glove box.
Lock the glove box.
Lock all the doors except the driver’s.
Then take the door key with you.
Tailgate Lock
From the outside, use the round key to
open the tailgate. With the key in the
lock, turn the lock handle to the left to
unlock the window.
Raise the window, then turn the lock
handle to the right to unlock the
tailgate.
ProCarManuals.com

Power Tailgate Window Release
From inside the vehicle, press the REAR
WINDOW button, located to the left of
the radio, to unlock the tailgate window.
Your shift lever must be in
P (Park) or
N (Neutral).
Tailgate-Mounted Spare Tire
Carrier
(OPTION)
You must move the carrier arm out of
the way to open the tailgate window.
r
43
ProCarManuals.com

Features & Controls
44
Here’s How to Move the Arm:
1. Squeeze the release handle to free the
carrier arm.
2. Swing the carrier arm away from the
tailgate. You may need to give it a
slight tug.
To latch the carrier arm, swing it hard
toward the tailgate. The latch has one
catch,
so push hard on the carrier arm
to make sure it has locked in place. If it
is not securely latched, the carrier will
swing freely.
Glove Box
Use the door key to lock and unlock the
glove box. To open, pinch the latch
release.
New Vehicle “BreakmIn”
NOTICE:
Your modern Oldsmobile doesn’t
need an elaborate “break-in.” But it
will perform better in the long run
if you follow these guidelines:
Keep your speed at 55 mph (88
ltm/h) or less for the first 500
miles (804 ltm) .
Don’t drive at any one speed -
fast or slow - for the first 500
miles (804 ltm) . Don’t make full-
throttle starts.
Avoid malting hard stops for the
first
200 miles (322 lun) or so.
During this time your new brake
linings aren’t yet broken in. Hard
stops with new linings can mean
premature wear and earlier
replacement. Follow this
“breaking-in” guideline every
time you get new brake linings.
ProCarManuals.com

U
Ignition Switch
With the ignition key in the ignition
switch, you can turn the switch to five
positions:
Accessory: An “on7’ position in which
you can operate your electrical power
xcessories. Press in the ignition switch
2s you turn the top of it toward you.
Lock: The only position in which you
:an remove the key. This locks your
steering wheel, ignition and
transmission.
Off: Unlocks the steering wheel,
ignition, and transmission, but does not
send electrical power to any accessories.
Use this position if your vehicle must be
pushed or towed, but never try to push-
start your vehicle. A warning chime will
sound if you open the driver’s door
when the ignition is off and the key is in
the ignition.
Run: An “on” position to which the
switch returns after you start your
engine and release the switch. The
switch stays in the
Run position when
the engine is running. But even when
the engine
is not running, you can use
Run to operate your electrical power
accessories, and to display some
instrument panel warning lights.
Start: Starts the engine. When the
engine starts, release the key. The
ignition switch will return to
Run for
normal driving.
Note that even if the engine is not
running, the positions
Accessory and
Run are “on” positions that allow you
to operate your electrical accessories,
such as the radio.
NOTICE:
If your key seems stuck in Lock
and you can’t turn it, be sure it is
all the way in.
If it is, then turn the
steering wheel left and right while
you turn the key hard. But turn the
key only with your hand. Using a
tool to force it could break the key
or the ignition switch. If none of
this works, then your vehicle needs
service.
Starting Your Engine
Move your shift lever to P (Park) or
N (Neutral). Your engine won’t start in
any other position
- that’s a safety
feature. To restart when you’re already
moving, use
N (Neutral) only.
NOTICE:
Don’t try to shift to P (Park) if your
Oldsmobile is moving. If you do,
you could damage the transmission.
Shift to
P (Park) only when your
vehicle is stopped.
45
ProCarManuals.com
