hur Driving and the Road
114
Loss of Control
Let’s review what driving experts say
about what happens when the three
control systems (brakes, steering and
acceleration) don’t have enough friction
where the tires meet the road to do
what the driver has asked.
In any emergency, don’t give up. Keep
trying to steer and constantly seek an
escape route or area of less danger.
Skidding
In a skid, a driver can lose control of
the vehicle. Defensive drivers avoid
most skids by taking reasonable care
suited to existing conditions, and by not
“overdriving” those conditions. But
skids are always possible.
The three types of skids correspond to
your Oldsmobile’s three control
systems. In the braking skid your
wheels aren’t rolling. In the steering or
cornering skid, too much speed or
steering in a curve causes tires to slip
and lose cornering force. And in the
acceleration skid too much throttle
causes the driving wheels to spin. A cornering
skid and an acceleration
skid are best handled by easing your
foot
off the accelerator pedal.
If your vehicle starts to slide, ease your
foot
off the accelerator pedal and
quickly steer the way you want the
vehicle to go. If you start steering
quicldy enough, your vehicle may
straighten out. Always be ready for a
second skid if it occurs.
Of course, traction is reduced when
water, snow, ice, gravel, or other material is on the road. For safety, you’ll want to
slow down and adjust your driving to
these conditions. It is important to slow
down on slippery surfaces because stopping distance will be longer and
vehicle control more limited. While driving
on a surface with reduced
traction, try your best to avoid sudden
steering, acceleration, or braking (including engine braking by shifting to a
lower gear). Any sudden changes could
cause the tires to slide. You may not
realize the surface is slippery until your
vehicle is skidding. Learn to recognize
warning clues
- such as enough water,
ice or packed snow on the road to make
a “mirrored surface”
- and slow down
when you have any doubt.
Remember: Any anti-lock braking
system (ABS) helps avoid only the
braking skid.
ProCarManuals.com

Controlling your vehicle is the key to
successful off-road driving. One of the
best ways to control your vehicle is to
control your speed. Here are some
things to keep in mind. At higher
speeds:
you approach things faster and you
have less time to scan the terrain for
obstacles.
you have less time to react.
you have more vehicle bounce when
you drive over obstacles.
you’ll need more distance for braking,
especially since you’re on an unpaved
surface.
Scanning the Terrain
Off-road driving can take you over
many different kinds of terrain.
You
need to be familiar with the terrain and
its many different features. Here are
some things to consider.
Surface Conditions
Off-roading can take you over hard-
packed
dirt, gravel, rocks, grass, sand,
mud, snow or ice. Each
of these surfaces
affects the steering, acceleration, and
braking of your vehicle in different ways.
Depending upon the kind of surface you
are on, you may experience slipping,
sliding, wheel spinning, delayed
acceleration, poor traction, and longer
braking distances.
Surface Obstacles
Unseen or hidden obstacles can be
hazardous. A rock, log, hole, rut, or
bump can startle you
if you’re not
prepared for them. Often these obstacles
are hidden by grass, bushes, snow or
even the rise and
fall of the terrain itself.
Here are some things to consider:
Is the path ahead clear?
Will the surface texture change
Does the travel take you uphill or
abruptly
up ahead?
downhill? (There’s more discussion of
these subjects later.)
change direction quickly?
Will you have to stop suddenly or
When you drive over obstacles or rough
terrain, keep a firm grip on the steering
wheel. Ruts, troughs, or other surface
features can jerk the wheel out of your
hands
if you’re not prepared.
When you drive over bumps, rocks, or
other obstacles, your wheels can leave
the ground. If this happens, even with
one or two wheels, you can’t control the
vehicle as well or at all.
Because you will be on an unpaved
surface, it’s especially important to
avoid sudden acceleration, sudden
turns, or sudden braking.
In a way, off-road driving requires a
different kind of alertness from driving
on paved roads and highways. There are
no road signs, posted speed limits or
signal lights.
You have to use your own
good judgment about what is safe and
what isn’t.
117
ProCarManuals.com

Driving Uphi//
Once you decide you can safely drive
up the hill, you need to take some
special steps.
Use a low gear and get a firm grip on
the steering wheel.
Get a smooth start up the hill and try
to maintain your speed. Don’t use
more power than you need, because
you don’t want your wheels to start
spinning or sliding.
Try to drive straight up the hill if at all
possible. If the path twists and turns,
you might want to find another route.
Ease up on your speed as you
approach the top of the.hill..
Attach a flag to the vehicle to make
you more visible to approaching
traffic on trails or hills.
Sound the horn as you approach the
top of the hill to let opposing traffic
know you’re there.
Use your headlights even during the
day. They make you more visible to
oncoming traffic.
Q: What should I do if my vehicle
stalls,
or is about to stall, and I
can’t make it up the hill?
A: If this happens, there are some
things you should
do, and there are
some things you must not do. First,
here’s what you
should do:
Push the brake pedal to stop the
vehicle and keep it from rolling
backwards. Also, apply the parking
brake.
the transmission into reverse,
release the parking brake, and
slowly back down the hill in reverse.
If your engine has stopped running,
you’ll need
to restart it. With the
brake pedal depressed and the
parking brake still applied, shift the
transmission to
P (Park) and
restart the engine. Then, shift to
reverse, release the parking brake,
and slowly back down the hill as
straight as possible in reverse.
As you are backing down the hill,
put
your left hand on the steering
wheel at the
12 o’clock position.
This way, you’ll be able to tell if
your wheels are straight and
maneuver
as you back down. It’s
best that you back down the hill
with your wheels straight rather
than in the left or right direction.
Turning the wheel too far
to the
left or right will increase the
possibility
of a rollover.
If your engine is still running, shift
119
ProCarManuals.com

Your Driving and the Road
122
Stalling on an Mine
If your vehicle stalls when you’re
crossing an incline, be sure you (and
your passengers) get
out on the uphill
side, even if the door there is harder to
open. If you get out on the downhill
side and the vehicle starts to roll over,
you’ll be right in its path.
If you have to walk down the slope, stay
out of the path the vehicle will take if it
does roll over.
Driving In Mud, Sand, Snow, Or
Ice
When you drive in mud, snow or sand,
your wheels won’t get good traction.
You can’t accelerate as quickly, turning
is more difficult, and you’ll need longer
braking distances.
It’s best to use a low gear when you’re
in mud -the deeper the mud, the
lower the gear. In really deep mud, the
idea is to keep your vehicle moving
so
you don’t get stuck.
When you drive on sand, you’ll sense a
change in wheel traction. But it will
depend upon how loosely packed the
sand
is. On loosely packed sand (as on
beaches or sand dunes) your tires will tend
to sink into the sand. This has an
effect on steering, accelerating, and
braking. You may want to reduce the
air pressure in your tires slightly when
driving on sand. This will improve
traction.
Hard packed snow and ice offer the
worst tire traction.
On these surfaces,
it’s very easy to lose control.
On wet
ice, for example, the traction is
so poor
that you will have difficulty
accelerating. And
if you do get moving,
poor steering and difficult braking can
cause you to slide
out of control.
ProCarManuals.com

Driving In Water
Light rain causes no special off-road
driving problems. But heavy rain can
mean flash flooding, and flood waters
demand extreme caution.
Find
out how deep the water is before
you drive through it. If it’s deep enough
to cover your wheel hubs, axles, or
exhaust pipe, don’t
try it - you
probably won’t get through.
Also, water
that deep can damage your axle and
other vehicle parts.
If the water isn’t too deep, then drive
through it slowly. At fast speeds, water
splashes on your ignition system and
your vehicle can stall. Stalling can also
occur
if you get your tailpipe under
water.
And, as long as your tailpipe is
under water, you’ll never be able to
start your engine. When you go through
water, remember that when your brakes
get wet, it may take you longer to stop.
After OtY-Road Driving
Remove any brush or debris that has
collected on the underbody, chassis or
under the hood. These accumulations
can be a fire hazard.
After operation
in mud or sand, have
the brake linings cleaned and checked.
These substances can cause glazing and
uneven braking. Check the body
structure, steering, suspension, wheels,
tires, and exhaust system for damage.
Also, check the fuel lines and cooling
system for any leakage.
Your vehicle
will require more frequent
service due to off-road use. Refer to the
Maintenance Schedule for additional
information.
L
123
ProCarManuals.com

Your Driving and the Road
130
Winter Driving
Here are some tips for winter driving:
Have your Oldsmobile in good shape
for winter. Be sure your engine
coolant mix is correct.
You may want to put winter
emergency supplies in your vehicle.
Include an ice scraper,
a small brush or
broom,
a supply of windshield washer
fluid,
a rag, some winter outer clothing,
a small shovel, a flashlight, a red cloth,
and a couple of reflective warning
triangles. And, if you will be driving
under severe conditions, include a small
bag of sand, a piece of old carpet or a
couple
of burlap bags to help provide
traction. Be sure you properly secure
these items in your vehicle.
Driving on Snow or Ice
Most of the time, those places where
your tires meet the road probably have
good traction.
However,
if there is snow or ice
between your tires and the road, you
can have a very slippery situation.
You’ll have a lot less traction or “grip”
and will need to be very careful.
What’s the worst time for this? “Wet
ice.” Very cold snow or ice can be slick
and hard to drive on. But wet ice can be
even more trouble because it may offer
the least traction of all. You can get
“wet ice” when it’s about freezing
(32°F; 0.C) and freezing rain begins to
fall. Try to avoid driving on wet ice until
salt and sand crews can get there. Whatever
the condition
- smooth ice,
packed, blowing or loose snow
- drive
with caution.
Accelerate gently. Try not to break the
fragile traction. If you accelerate too fast,
the drive wheels will spin and polish the
surface under the tires even more.
Your anti-lock brakes improve your ability to make a hard stop on
a slippery
road. Even though you have an anti-lock
braking system, you’ll want to begin
stopping sooner than you would on dry
pavement. See
Anti-Lock in the Index.
Allow greater following distance on
any slippery road.
Watch for slippery spots. The road
might be fine until you hit a spot
that’s covered with ice. On an
otherwise clear road, ice patches may
appear in shaded areas where the sun
can’t reach: around clumps of trees,
behind buildings, or under bridges.
Sometimes the surface of a curve or
an overpass may remain icy when the
surrounding roads are clear.
If you see
a patch of ice ahead of you, brake
before you are on it. Try not to brake
while you’re actually on the ice, and
avoid sudden steering maneuvers.
ProCarManuals.com

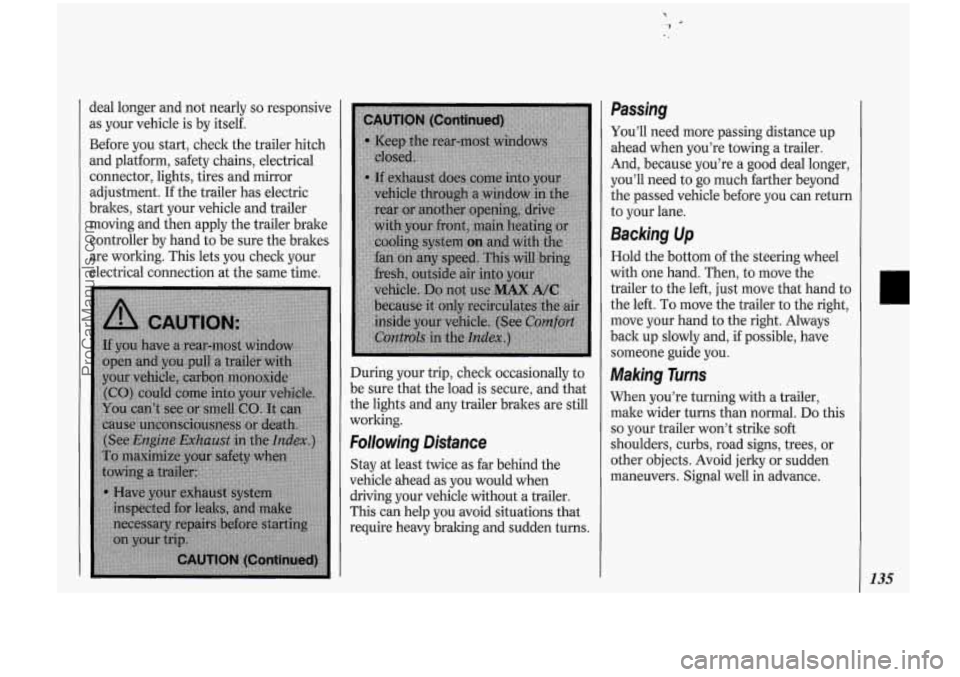

deal longer and not nearly so responsive
as your vehicle is by itself.
Before you start, check the trailer hitch
and platform, safety chains, electrical
connector, lights, tires and mirror
adjustment.
If the trailer has electric
brakes, start your vehicle and trailer
moving and then apply the trailer brake
controller by hand to be sure the brakes
are working. This lets you check your
electrical connection at the same time.
During your trip, check occasionally to
be sure that the load is secure, and that
the lights and any trailer brakes are still
working.
following Distance
Stay at least twice as far behind the
vehicle ahead as you would when
driving your vehicle without a trailer.
This can help
you avoid situations that
require heavy braking and sudden turns.
Passing
You’ll need more passing distance up
ahead when you’re towing a trailer.
And, because you’re a good deal longer,
you’ll need to go much farther beyond
the passed vehicle before you can return
to your lane.
Backing Up
Hold the bottom of the steering wheel
with one hand. Then, to move the
trailer to the left, just move that hand to
the left. To move the trailer to the right,
move your hand to the right. Always
back up slowly and, if possible, have
someone guide you.
Making Turns
When you’re turning with a trailer,
make wider turns than normal. Do this
so your trailer won’t strilte soft
shoulders, curbs, road signs, trees, or
other objects. Avoid jerky or sudden
maneuvers. Signal well in advance.
LI
ProCarManuals.com

When your vehicle is being towed, have
the ignition key off. The steering wheel
should be clamped in a straight-ahead
position, with a clamping device
designed for towing service.
Do not use
the vehicle’s steering column lock for
this. The transmission should be in
P (Park) and the parking brake
released.
Don’t have your Bravada towed with
the wheels in contact with the ground.
If your vehicle is being towed with
sling-type or wheel-lift equipment,
either the front or rear wheels must be
supported on a dolly.
If towing your Bravada with a car
carrier, block supports may be required
to prevent damage to the vehicle.
Engine Overheating
You will find a coolant temperature
;age and the warning light about
a hot
mgine on your Oldsmobile’s instrument
)anel.
If Steam Is Coming From Your
Engine
!45
ProCarManuals.com

Engine Fan Noise
This vehicle has a clutched engine
cooling fan. When the clutch is engaged,
the fan spins faster to provide more air
to cool the engine. In most everyday
driving conditions the clutch is not
engaged. This improves fuel economy
and reduces fan noise. Under heavy
vehicle loading, trailer towing and/or
high outside temperatures, the fan speed
increases when the clutch engages.
So
you may hear an increase in fan noise.
This is normal and should not be
mistaken as the transmission slipping or
making extra shifts. It is merely the
cooling system functioning properly.
The fan will slow down when additional
cooling is not required and the clutch
disengages. You may also hear this fan
noise when you start the engine. It will
go away
as the fan clutch disengages.
I Ifa Tire Goes Flat
It’s unusual for a tire to “blow out”
while you’re driving, especially if you
maintain your tires properly. If air goes
out of a tire, it’s much more likely to
leak out slowly. But if you should ever
have a “blowout,” here are a few tips
about what to expect and what to do:
If a front tire fails, the flat tire
will
create a drag that pulls the vehicle
toward that side. Take your foot
off the
accelerator pedal and grip the steering
wheel firmly. Steer to maintain lane
position, then gently brake to a stop
well out of the traffic lane.
A rear blowout, particularly on a curve,
acts much like a skid and may require
the same correction you’d use in a skid.
In any rear blowout, remove your foot
from the accelerator pedal. Get the
vehicle under control by steering the
way you want the vehicle to go. It may
be very bumpy and noisy, but you can
still steer. Gently brake to a stop, well
off the road if possible.
If a tire goes
flat, the next section shows
how to use your jacking equipment to
change a flat tire safely.
I Changing a Flat Tire
If a tire goes flat, avoid further tire and
wheel damage by driving slowly to a
level place. Turn
on your hazard
warning flashers.
151
ProCarManuals.com

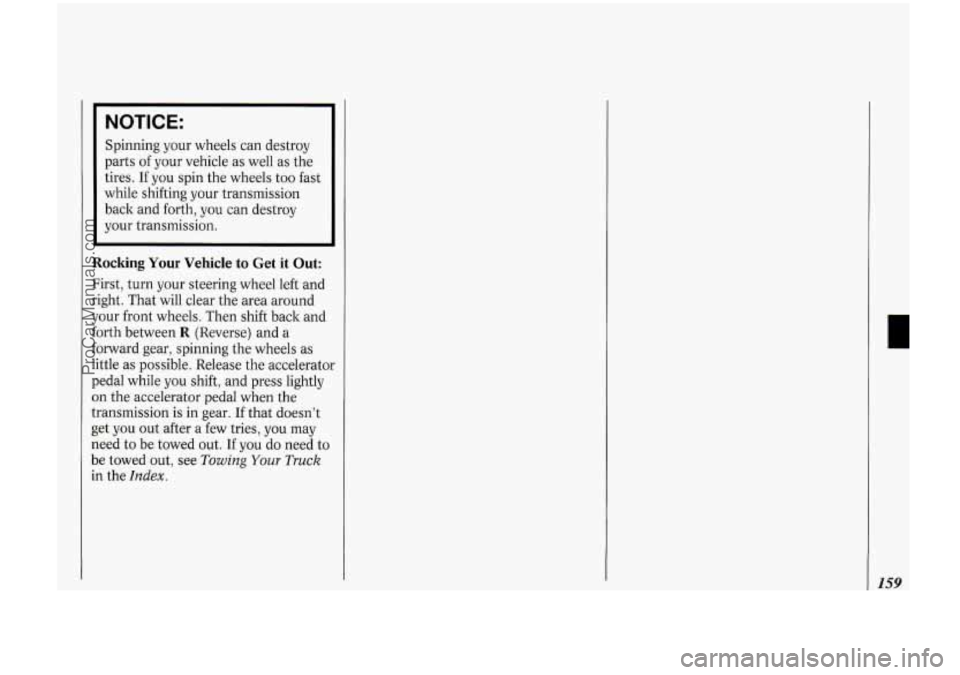

NOTICE:
Spinning your wheels can destroy
parts
of your vehicle as well as the
tires.
If you spin the wheels too fast
while shifting your transmission
back and forth, you can destroy
your transmission.
Rocking Your Vehicle to Get it Out:
First, turn your steering wheel left and
right. That will clear the area around
your front wheels. Then shift back and
forth between
R (Reverse) and a
forward gear, spinning the wheels as
little as possible. Release the accelerator
pedal while you shift, and press lightly
on the accelerator pedal when the
transmission
is in gear. If that doesn’t
get you out after a few tries, you may
need
to be towed out. If you do need to
be towed out, see
Towing Your Truck
in the Index.
159
ProCarManuals.com
