steering OLDSMOBILE BRAVADA 1994 Owner's Manual

Part 6
Sewice &Appearance Care
Service ........................................................................\
............................................. 162
Fuel
........................................................................\
.................................................. 163
Hood Release
........................................................................\
................................... 165
Engine Oil
........................................................................\
........................................ 168
Air Cleaner
........................................................................\
...................................... 171
Transmission Fluid ........................................................................\
.......................... 172
Axles/Transfer Case
........................................................................\
........................ 174
Engine Coolant
........................................................................\
................................ 174
Power Steering Fluid
........................................................................\
....................... 176
Windshield Washer Fluid ........................................................................\
................
177
Brakes ........................................................................\
.............................................. 178
Battery ........................................................................\
............................................. 180
Bulb Replacement
........................................................................\
........................... 181
Windshield Wiper Blade Replacement ................................................................... 182
..
Loading Your Vehicle ........................................................................\
..................... 183
Tires ........................................................................\
................................................. 185
Appearance Care ........................................................................\
............................. 190
Vehicle Identification Number (VIN)
.................................................................... 195
Add-on Electrical Equipment
........................................................................\
........ 196
Fuses
& Circuit Breakers ........................................................................\
................ 196
Capacities
& Specifications ........................................................................\
............ 199
Normal Maintenance Replacement Parts
............................................................... 200
Fluids & Lubricants ........................................................................\
........................ 201
Replacement Bulbs
........................................................................\
.......................... 202
.
161
ProCarManuals.com

4.3L V6 Engine (CODE w)
When you open the hood, you’ll see:
1. Engine Coolant Recovery Tank
2. Automatic Transmission Dipstick
3. Engine Oil Fill Cap
4. Brake Fluid Reservoir
5. Windshield Washer Fluid Reservoir
6. Air Cleaner
7. Power Steering Fluid Reservoir
8. Engine Oil Dipstick
9. Radiator Pressure Cap
IO. Battery
a
167
ProCarManuals.com

Service & Appearance Care
1 76
To Add Coolant
If you need more coolant, add the proper
mix
at the coolant recovery tank.
Add coolant mix at the recovery tank,
but be careful not
to spill it.
I Radiator Pressure Cap
NOTICE:
Your radiator cap is a 15 psi
(105 1tPa) pressure-type cap and
must be tightly installed
to prevent
coolant
loss and possible engine
damage from overheating. Be sure
the arrows on the cap line up with
the overflow tube
on the radiator
filler neck.
When you replace your radiator
pressure cap, an AC@ cap
is
recommended.
Thermostat
Engine coolant temperature is
controlled by a thermostat in the engine
coolant system. The thermostat stops
the flow
of coolant through the radiator
until the coolant reaches a preset
temperature.
When you replace your thermostat, an
AC@ thermostat is recommended.
I Power Steering Fluid
How To Check Power Steering
Fluid
Unscrew the cap and wipe the dipstick
with a clean rag. Replace the cap and
completely tighten it. Then remove the
cap again and look at the fluid level on
the dipstick.
. When the engine compartment is hot,
the level should be
at the HOT mark.
When the engine compartment is
cool, the level should be at the
FULL
COLD mark.
ProCarManuals.com

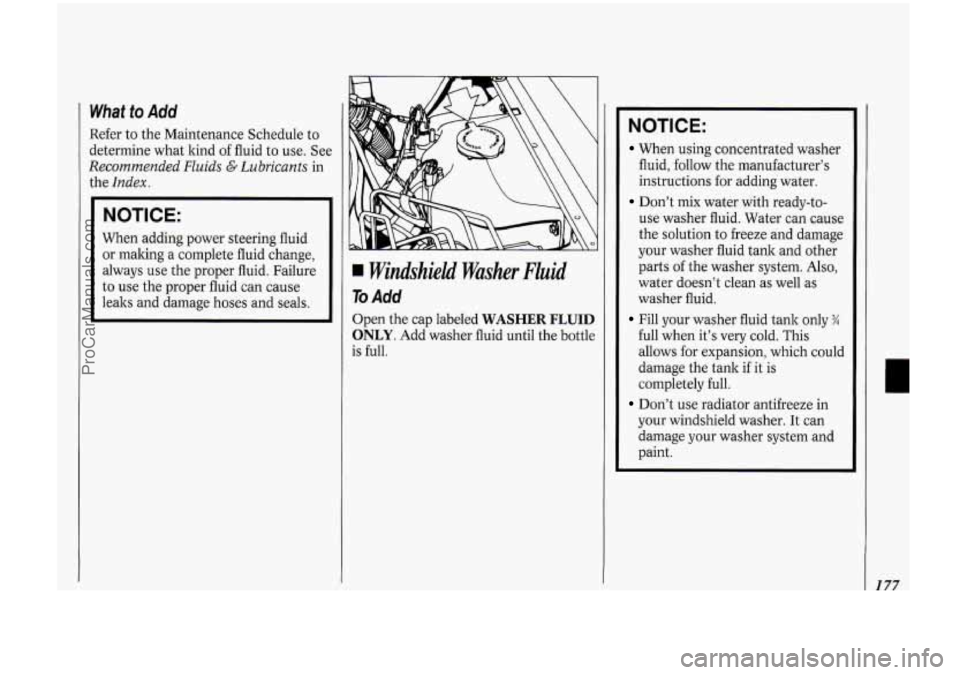

What to Add
Refer to the Maintenance Schedule to
determine what kind of fluid to use. See
Recommended Fluids G Lubricants in
the
Index.
NOTICE:
When adding power steering fluid
or malting a complete fluid change,
always use the proper fluid. Failure
to use the proper fluid can cause
leaks and damage hoses and seals.
Windshield Washer Fluid
To Add
Open the cap labeled WASHER FLUID
ONLY. Add washer fluid until the bottle
is full.
NOTICE:
When using concentrated washer
fluid, follow the manufacturer’s
instructions for adding water.
Don’t mix water with ready-to-
use washer fluid. Water can cause
the solution to freeze and damage
your washer fluid tank and other
parts of the washer system. Also,
water doesn’t clean as well as
washer fluid.
Fill your washer fluid tank only %
full when it’s very cold. This
allows for expansion, which could
damage the tank if it is
completely full.
Don’t use radiator antifreeze in
your windshield washer. It can
damage your washer system and
paint.
n
I77
ProCarManuals.com

Fluids & Lubricants
I ITEM APPLICATION GM PART NUMBER SIZE
Antifreeze Coolant ................................ Year-round antifreeze for .............. 1052103 1 gal. (3.8 L)
(Ethylene Glycol Base) coolant mixtures
(Grease Gun Insert) 1052497
Chassis
Lubricant
................................. General chassis lube, etc. .............. 12346003 or 14 oz. (397 g)
Delco Supreme 110 Brake Fluid ......... Brake System ................................. 1052535 16 02. (0.5 L)
Automatic Transmission Fluid
............ Automatic Transmission, Transfer Case
DEXRON@-I11
........................................................................\
................... 12346143 32 02. (1.0 L)
DEXRONB-IIE ........................................................................\
.................. 12345881 32 02. (1.0 L)
Engine Oil ............................................. Engine lubrication .......................... See the Index under Engine OiZ.
Gear Lubricant 8OW-90 ....................... Limited Slip Differential , ................ 1052271
GM Engine Oil Supplement
(E.O.S.) ... See your dealer for advice ............. 1052367
Engine Oil
............................................. Hood, tailgate and door hinges
Windshield Washer Solvent
................. Windshield washer fluid
Power Steering Fluid
........................... Power Steering System .................. 1050017 32 oz. (1 .O L)
1052884 16 02. (0.5 L)
Front Differential
Silicone Grease
.................................... Weatherstrips ................................. 12345579 1 02. (28 g)
Spray-A-Squeak Silicone Lubricant
.... General purpose silicone ................ 1052276 (aerosol) 4.5 oz. (127 g)
lubricant, weatherstrips
............. 1052277 12 oz. (0.35 L)
16 oz. (0.5 L)
201
ProCarManuals.com

210
Explanation of Scheduled
Maintenance Services
Below are explanations of the services
listed in Schedule I and Schedule 11.
The proper fluids and lubricants to use
are listed in Section
D. Make sure
whoever services your vehicle uses
these. All parts should be replaced and
all necessary repairs done before you or
anyone else drives the vehicle.
ITEM SERVICE
NO.
1. Engine Oil and Filter Change* -
Always use SH or SG Energy
Conserving I1 oils of proper viscosity.
The
“SH” or “SG” designation may be
shown alone or in combination with
others, such as “SH/CD,”
“SH, SG,
CD,” “SG/CD,” etc. To determine the
preferred viscosity for your vehicle’s engine (e.g., SAE 5W-30 or SAE 1OW-
30), see the Index under Engine Oil.
2. Chassis Lubrication - Lubricate the
transmission shift linkage, parking
brake cable guides, underbody contact points and linkage. Lubricate the front
suspension and steering linkage.
3. Tire and Wheel Rotation and
Inspection
- For proper wear and
maximum tire life, rotate your tires
following the instructions
in this
manual. See
Tires, Inspection G.
Rotation in the Index. Check the
tires for uneven wear or damage. If
you see irregular or premature wear,
check the wheel alignment. Check for
damaged wheels also.
Inspection - Inspect the drive belt
for cracks, fraying, wear and proper
tension. Replace as needed.
5. Cooling System Service‘: - Drain,
flush and refill the system with new
or approved recycled coolant
conforming to
GM Specification
6038-M. Keep coolant at the proper
mixture as specified. See
CooZant in
the
Index. This provides proper
freeze and boil protection, corrosion
inhibitor level and maintains proper
engine operating temperature.
Inspect hoses and replace if they are
cracked, swollen or deteriorated.
Tighten screw-type hose clamps. Clean the outside of the radiator and
air conditioning condenser. Wash the
pressure cap and neck.
4. Engine Accessory Drive Belt
To help ensure proper operation, we
recommend
a pressure test of both the
cooling system and the pressure cap.
6. Transmission Service - Change
both the fluid and filter every 15,000
miles
(25 000 lun) if the vehicle is
mainly driven under one or more of
these conditions:
In heavy city traffic where the
outside temperature regularly
reaches
90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police
If you do not use your vehicle under
any of these conditions, change both
the fluid and filter every
100,000
miles (166 000 lun) .
Replace spark plugs with the proper
type. See
Replacement Parts in the
Index.
8. Spark Plug Wire Inspection‘%t -
Inspect for burns, cracks or other
damage. Check the boot
fit at the
coils and at the spark plugs. Replace
wires as needed.
car
or delivery service.
7. Spark Plug Replacement” -
ProCarManuals.com

At Least Once a Year
CHECK
OR SERVICE
Key Lock Cylinders
Body Lubrication
Starter Switch
Steering Column
Lock
WHAT TO DO
Lubricate the key lock cylinders with the lubricant specified in Section D.
Lubricate all body door hinges including the tailgate. Also lubricate all hinges and latches,
including those for the hood, rear compartment, glove box door, console door and any folding
seat hardware. Section
D tells you what to use.
CAUTION When you are doing this check, the vehicle could move suddenly\
. If it does, you
or others could be injured. Follow the steps below.
1, Before you start, be sure you have enough room around the vehicle.
2. Firmly apply both the parking brake (see Parking Brake in the Index if necessary) and the
NOTE: Do not use the accelerator pedal, and be ready to turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The starter should work only in P (Park) or N (Neutral). If
regular
brake.
the starter works in any other position, your vehicle needs service.
While parked, and with the parking brake set, try to turn the key to
LOCK in each shift lever
position.
The key should turn to LOCK only when the shift lever is in P (Park).
The key should come out only in LOCK.
213
ProCarManuals.com

Section C: Periodic Maintenance Inspections
Listed below are inspections and services which should be performed at least twice a year (for instance, each spring and fall).
You should let your GM dealer’s service department or other qualified service center do these jobs. Make sure any necessary
repairs are completed at once.
Restraint Systems Steering, Suspension
and Rear-Wheel-
Drive Axle Boot and
Seal Inspection
Exhaust System
Inspection
WHAT SHOULD BE DONE
Now and then, make sure all your belts, buckles, latch plates, retractors, anchorages and
reminder systems are working properly. Look for any loose parts or damage. If you see anything
that might keep
a restraint system from doing its job, have it repaired.
Inspect the front and rear suspension and steering system for damaged, loose or missing parts,
signs of wear, or lack of lubrication. Inspect the power steering lines and hoses for proper hook-
up, binding, leaks, cracks, chafing, etc. Clean and then inspect the drive axle boot seals for
damage, tears or leakage. Replace seals if necessary.
Inspect the complete exhaust system. Inspect the body near the exhaust system. Look for broken,
damaged, missing or out-of-position parts as well as open seams, holes, loose connections, or
other conditions which could cause a heat build-up in the floor pan or could let exhaust fumes
into the vehicle. See
Engine Exhaust in the Index.
215
ProCarManuals.com

Section D: Recommended Fluids & Lubricants
NOTE: Fluids and lubricants identified below by name, part number or specification may be obtained from your GM dealer
USAGE
Engine Oil
Engine Coolant
Hydraulic Brake
System
Parking Brake Guides
Power Steering System
Automatic Transmission
Locking Differential
Key Lock Cylinders
Automatic Transmission Shift
Linkage
FLUID/LUBRICANT
API service SH or SG Energy Conserving I1 oils of the proper viscosity. The “SH” or “SG” designation
may be shown alone or in combination with others, such as “SH/CD,” “SH,SG,CD,” “SG/CD,” etc.
To determine the preferred viscosity for your vehicle’s engine, see
Engine Oil in the Index.
A 50/50 mixture of water (preferably distilled) and good quality ethylene glycol base antifreeze
(GM Part No. 1052103 or equivalent) conforming to GM Specification 6038-M.
Delco Supreme
1 I@ Brake Fluid (GM Part No. 1052535 or equivalent DOT-3 brake fluid).
Chassis lubricant (GM Part No. 1052497 or equivalent) or lubricant meeting requirements of
NLGI Grade
2, Category LB or GC-LB.
GM Hydraulic Power Steering Fluid (GM Part No. 1052884 or equivalent).
DEXRONo-I11 or DEXRONB-IIE Automatic Transmission Fluid.
SAE 8OW-90 Gear Lubricant (GM Part No. 1052271).
Lubricate with Multi-Purpose Lubricant (GM Part
No. 123451120), synthetic SAE 5W-30 engine oil ~ ~~
Engine oil.
21 7
ProCarManuals.com

Index
ABS Warning Light ......................... 88
Accelerator Control System ............. 185
Accessory Belt Drive ........................ 184
Accessory Power Outlets
................... 71
Fluid
............................ 176. 199. 201
Adding
Automatic Transmission
Brake Fluid
............................. 178. 201
Electrical Equipment
......... 46. 95. 196
Engine Coolant
...... 174. 177. 199. 201
Engine Oil
...................... 168. 199. 201
Power Steering Fluid
............. 176. 201
Windshield Washer Fluid
...... 177. 201
Add-on Equipment
.......................... 184
Air Cleaner
................................ 171. 200
Air Conditioner
.......................... 92. 184
Alcohol. Driving Under the
Influence of
.................................... 106
Alcohol in Gasoline
.......................... 163
All-Wheel Drive
................................ 108
Aluminum Wheels. Cleaning
........... 194
Antenna
............................................ 103
Anti-Lock Brakes (ABS)
Antifreeze
......................... 174.
199. 201
Using ABS
...................................... 110
Warning Light
.................................. 88
Appearance Care .............................. 190
Ashtrays and Lighter
.......................... 73 Audio
Systems
.................................... 95
AM/FM Stereo Radio with
Cassette Player
& Equalizer ......... 96
AM/FM Stereo Radio with
Compact Disc Player
..................... 98
Care of Compact Discs .................. 102
Care of Cassette Player
.................. 102
Radio Reception. For the Best
....... 101
Setting the Clock
.............................. 95
Automatic Transmission Adding Fluid
.................................. 173
Checking Fluid
............................... 172
Shifting
............................................. 48
Battery
........................................... 180
Jump Starting
................................. 140
Light
........................................... 87. 90
Belt. Accessory Drive
....................... 184
Blizzard
............................................. 13 1
Block Heater. Engine ................. 47. 170
Blowout. Tire
.................................... 15 1
Brake
Adjustment
..................................... 179
Fluid
....................................... 178. 201
Master Cylinder
............................. 178
Parking
............................................. 51
Rear Drum ...................................... 179
Replacing Brake System Parts
....... 179
Warning Light
.................................. 88
Wear Indicators .............................. 179 Brake
System Warning Light
............. 88
Braking .............................................. 109
Braking in Emergencies
.................... 111
Break.1n. New Vehicle ............... 44. 132
Buckling Up (see
Safety Belts)
Bulb Replacement Brakes. Anti-Lock
............................ 110
Braking Technique
........................... 109
Fog Light
........................................ 182
Headlight ........................................ 181
Taillight .......................................... 182
Bulbs. Replacement
.......................... 202
Capacities
& Specscations .......... 199
Carbon Monoxide in
Exhaust
...................... 53. 54. 131. 135
Cargo Bed Liner .................................. 75
Cassette Tape Player
(see
Audio Systems )
CD Player (see Audio Systems)
Center Passenger Position
Certificatioflire Label
.................... 186
Chains. Tire ...................................... 190
Changing a Flat Tire
......................... 151
Checking
Brake Fluid
..................................... 178
Engine
Oil ...................................... 168
(see Safety Belts )
Engine Coolant .............................. 174
233
ProCarManuals.com
