clock OLDSMOBILE BRAVADA 1994 Owners Manual

i 3.5K 10K
nn on AUTO REVERSE I
* x7 Ii3W
EJECT SEARCH TAPE FWD REV
In this part you’ll find out how to
operate the comfort control systems
and audio systems offered with your
Oldsmobile. Be sure to read about
the particular system supplied with
your vehicle.
Part 3
Comfort Controls &Audio Systems
Climate Control System ........................................................................\
.................... 92
Defogging and Defrosting ........................................................................\
................. 93
Rear Window Defogger ........................................................................\
..................... 94
Setting the Clock ........................................................................\
............................... 95
AM/FM Stereo with Cassette Player and Equalizer ................................................ 96
AM/FM Stereo Radio with Compact Disc Player .................................................... 98
Understanding Radio Reception.. ... . . . , , . . . . . . . . , . . . . . . . . . . . . . . . . . . . , . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Care of Your Cassette Tape Player ........................................................................\
. 102
Care of Your Compact Discs ........................................................................\
.......... 102
Fixed Mast Antenna ........................................................................\
........................ 103
c
91
ProCarManuals.com

This helps clear the intake ducts of
snow and moisture, and reduces the
chance
of fogging the inside of your
windows.
Keep the air path under the front
seats and console clear of objects.
This helps air to circulate throughout
your vehicle.
Audio Systems
The following pages describe the audio
systems available for your Oldsmobile,
and how to get the best performance
from them. Please read about the
system in your vehicle.
Hearing damage from loud noise is
almost undetectable until it is too late.
Your hearing can adapt to higher
volumes of sound. Sound that seems
normal can be loud and harmful to your
hearing. Take precautions by adjusting
the volume control on your radio to a
safe sound level before your hearing
adapts to it.
To help avoid hearing loss or damage:
1. Adjust the volume control to the
lowest setting.
2. Increase the volume slowly until you
hear comfortably and clearly.
NOTICE:
Before you add any sound
equipment to your vehicle
- like a
tape player, CB radio, mobile
telephone or two-way radio
- be
sure
you can add what you want. If
you can, it’s very important to do it
properly. Added sound equipment
may interfere with the operation
of
your vehicle’s engine, Delcom radio
or other systems, and even damage
them. And, your vehicle’s systems
may interfere with the operation of
sound equipment that has been
added improperly.
So, before
adding sound equipment, check
with your dealer and be sure to
check federal rules covering mobile
radio and telephone units.
1 3.5K 10K , I
;CAN SEEK
nn on AUTO REVERSE
’( EJECT SEARCH
Setting the Clock
Setting the clock is easy.
I. With the radio on or off and the
ignition
on, press SET. The SET
indicator will appear on the digital
screen for five seconds.
2. You must begin to set the clock to
the correct hour and minute during
those five seconds. Press
SCAN to
set the correct hour. Press
SEEK to
set the correct minute.
n
95
ProCarManuals.com

Your Driving and the Road
112

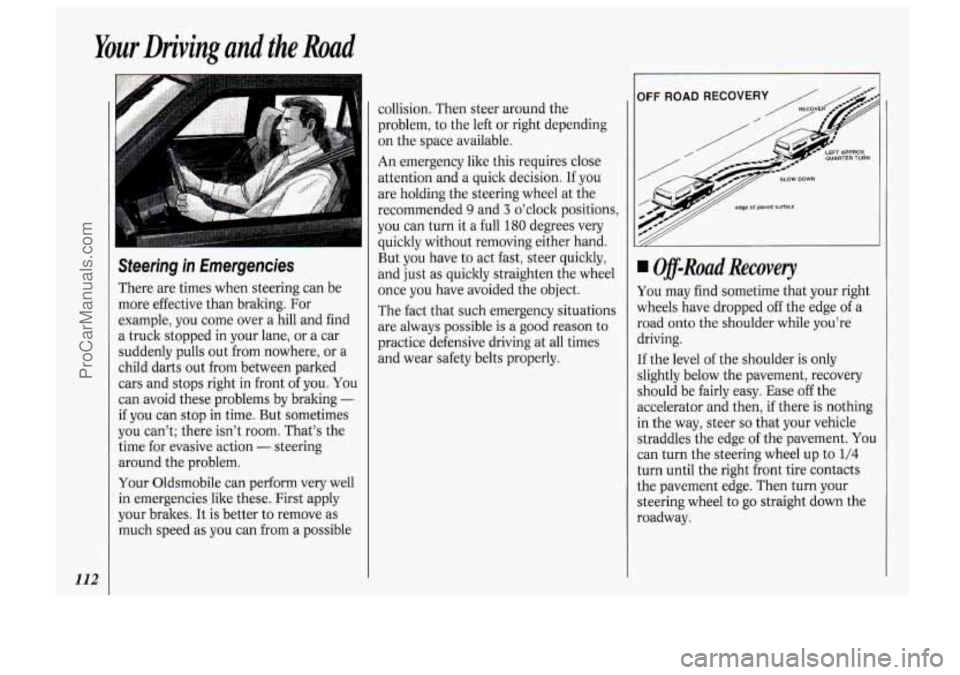

Steering in Emergencies
There are times when steering can be
more effective than braking. For
example, you come over a hill and find
a truck stopped in your lane,
or a car
suddenly pulls out from nowhere, or a
child darts out from between parked
cars and stops right in front of you.
You
can avoid these problems by braking -
if you can stop in time. But sometimes
you can’t; there isn’t room. That’s the
time for evasive action
- steering
around the problem.
Your Oldsmobile can perform very well
in emergemies like these. First apply
your brakes. It is better to remove as
much speed as
you can from a possible collision. Then
xeer around the
problem, to the left or right depending
on the space available.
An emergency like this requires close
attention and
a quick decision. If you
are holding the steering wheel at the
recommended
9 and 3 o’clock positions,
you can turn it a
full 180 degrees very
quickly without removing either hand.
But you have to act fast, steer quickly,
and just as quickly straighten the wheel
once
you have avoided the object.
The fact that such emergency situations
are always possible is
a good reason to
practice defensive driving at all times
and wear safety belts properly.
, IOFF ROAD RECOVERY /
Off-Road Recovery
You may find sometime that your right
wheels have dropped off the edge of a
road onto the shoulder while you’re
driving.
If the level of the shoulder is only
slightly below the pavement, recovery
should be fairly easy. Ease
off the
accelerator and then, if there is nothing
in the way, steer
so that your vehicle
straddles the edge of the pavement.
You
can turn the steering wheel up to 1/4
turn until the right front tire contacts
the pavement edge. Then turn your
steering wheel to
go straight down the
roadway.
ProCarManuals.com

Driving Uphi//
Once you decide you can safely drive
up the hill, you need to take some
special steps.
Use a low gear and get a firm grip on
the steering wheel.
Get a smooth start up the hill and try
to maintain your speed. Don’t use
more power than you need, because
you don’t want your wheels to start
spinning or sliding.
Try to drive straight up the hill if at all
possible. If the path twists and turns,
you might want to find another route.
Ease up on your speed as you
approach the top of the.hill..
Attach a flag to the vehicle to make
you more visible to approaching
traffic on trails or hills.
Sound the horn as you approach the
top of the hill to let opposing traffic
know you’re there.
Use your headlights even during the
day. They make you more visible to
oncoming traffic.
Q: What should I do if my vehicle
stalls,
or is about to stall, and I
can’t make it up the hill?
A: If this happens, there are some
things you should
do, and there are
some things you must not do. First,
here’s what you
should do:
Push the brake pedal to stop the
vehicle and keep it from rolling
backwards. Also, apply the parking
brake.
the transmission into reverse,
release the parking brake, and
slowly back down the hill in reverse.
If your engine has stopped running,
you’ll need
to restart it. With the
brake pedal depressed and the
parking brake still applied, shift the
transmission to
P (Park) and
restart the engine. Then, shift to
reverse, release the parking brake,
and slowly back down the hill as
straight as possible in reverse.
As you are backing down the hill,
put
your left hand on the steering
wheel at the
12 o’clock position.
This way, you’ll be able to tell if
your wheels are straight and
maneuver
as you back down. It’s
best that you back down the hill
with your wheels straight rather
than in the left or right direction.
Turning the wheel too far
to the
left or right will increase the
possibility
of a rollover.
If your engine is still running, shift
119
ProCarManuals.com

Problems on the Road
158
I
16. Replace the wheel nut cover on the
spare wheel. Be sure to insert the
pin on the wheel cover into the hole
in the wheel. Screw the cover in
place using the TorxB head wrench.
17. Lower the jack head completely by
rotating the jack handle
counterclockwise. If you have an
inside-mounted spare tire, return
the jack and wheel wrench to their
storage compartment and secure
them with the wing nut. Replace the
jack storage compartment cover.
18. Fasten the flat tire where the spare
was stored. If you have a tailgate-
mounted spare tire carrier, tighten
firmly. Push and pull to make sure it
is not loose.
As soon as possible,
tighten the nuts to 22-32 pound-feet
(30-40
Nom) torque.
I If You’re Stuck: In Sand,
Mud, Ice or Snow
19. If you have a tailgate-mounted spare
tire, return the jack and wheel
wrench to their storage
compartment and replace the jack
storage compartment cover. Insert
the cover tabs into the trim panel,
align the cover and fasten the latch. What
you
don’t want to do when your
vehicle is stuck is to spin your wheels.
The method known as “rocking” can
help you get out when you’re stuck, but
you must use caution.
ProCarManuals.com

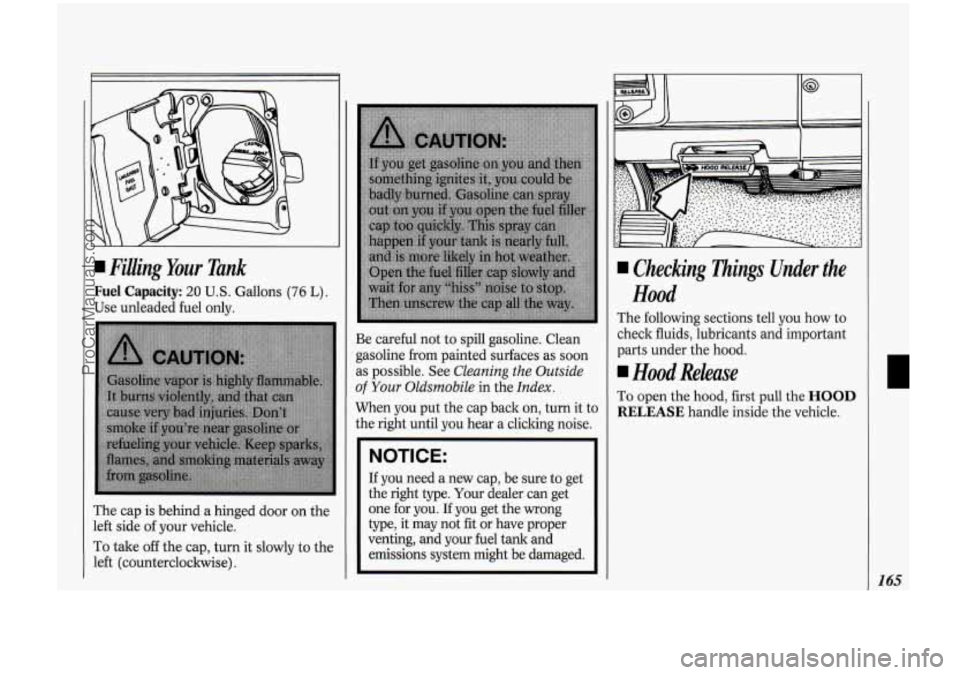

Filling Your Tank
Fuel Capacity: 20 U.S. Gallons (76 L)
Use unleaded fuel only.
The cap is behind a hinged door on the
left side
of your vehicle.
To take
off the cap, turn it slowly to the
left (counterclockwise). Be
careful not to spill gasoline. Clean
gasoline from painted surfaces as soon
as possible. See
Cleaning the Outside
of Your Oldsmobile in the Index.
When you put the cap back on, turn it to
the right until you hear a clicking noise.
NOTICE:
If you need a new cap, be sure to get
the right type.
Your dealer can get
one for you. If you get the wrong
type, it may not fit
or have proper
venting, and your fuel tank and
emissions system might be damaged.
rn I IP I
I Checking fiings Under the
Hood
The following sections tell you how to
check fluids, lubricants and important
parts under the hood.
Hood Release
To open the hood, first pull the HOOD
RELEASE handle inside the vehicle.
165
ProCarManuals.com

INST LPS PWR ACC
HORNIDM IGNIGAU BRAKE STOPIHAZ
h TAIL LPS TURNIBU HTR A/C RADIO
%se Usage
Position
INST LPS
PWR ACC
HORN/DM
IGN/GAU BRAKE
STOP/HAZ
TAIL LPS
TURNDU HTR A/C RADIO
ECM B
ECM I
PWR WDO
WIPER
CRANK
TRAILER*
Rating
(AMP.)
5
30
20
20
15
15
20
15
25
15
15
10
30
25
3
30
UNDERHOOD':' 4
CD PLAYER 10
"In-line fuse.
Circuitry
Instrument Panel Lights, Headlight Warning Buzzer, Heater
Light, Ashtray Light, Radio Illumination Light, Rear Wiper
Switch Light
Power Door Locks, Rear Defogger, Console Accessory
Receptacles, CD Player
Horn, Dome Lights, Glove
Box Light, Clock, Lighter, Lighted
Vanity Mirror, Outside Rearview Mirror, Courtesy Lights
Indicator Lights and Gages, Rear Defogger Relay, Cruise
Control, Rear Defogger Switch, Seat Belt Timer
Four Wheel Anti-lock Brake Module, Digital Ratio Adapter
Module (Speedometer)
Stop Lights, Hazard Warning Lights, Chime Module, Center
High Mounted Stop Light (CHMSL)
Light Switch, TaiVPark Lights, Electronic Cluster, License Light
Turn Signals
& Back-up Lights
Heating and Air Conditioning
Radio, Inside Rearview Mirror Map Lights, Rear Wiper, Rear
Washer, Compass
Electronic Control Module, Fuel Pump
Electronic Control Module
Power Windows
Windshield Wipers and Washer
Electronic Control Module
Trailer Wiring Harness
Underhood Light
CD Player (attached to fuse block)
197
ProCarManuals.com

Index
ABS Warning Light ......................... 88
Accelerator Control System ............. 185
Accessory Belt Drive ........................ 184
Accessory Power Outlets
................... 71
Fluid
............................ 176. 199. 201
Adding
Automatic Transmission
Brake Fluid
............................. 178. 201
Electrical Equipment
......... 46. 95. 196
Engine Coolant
...... 174. 177. 199. 201
Engine Oil
...................... 168. 199. 201
Power Steering Fluid
............. 176. 201
Windshield Washer Fluid
...... 177. 201
Add-on Equipment
.......................... 184
Air Cleaner
................................ 171. 200
Air Conditioner
.......................... 92. 184
Alcohol. Driving Under the
Influence of
.................................... 106
Alcohol in Gasoline
.......................... 163
All-Wheel Drive
................................ 108
Aluminum Wheels. Cleaning
........... 194
Antenna
............................................ 103
Anti-Lock Brakes (ABS)
Antifreeze
......................... 174.
199. 201
Using ABS
...................................... 110
Warning Light
.................................. 88
Appearance Care .............................. 190
Ashtrays and Lighter
.......................... 73 Audio
Systems
.................................... 95
AM/FM Stereo Radio with
Cassette Player
& Equalizer ......... 96
AM/FM Stereo Radio with
Compact Disc Player
..................... 98
Care of Compact Discs .................. 102
Care of Cassette Player
.................. 102
Radio Reception. For the Best
....... 101
Setting the Clock
.............................. 95
Automatic Transmission Adding Fluid
.................................. 173
Checking Fluid
............................... 172
Shifting
............................................. 48
Battery
........................................... 180
Jump Starting
................................. 140
Light
........................................... 87. 90
Belt. Accessory Drive
....................... 184
Blizzard
............................................. 13 1
Block Heater. Engine ................. 47. 170
Blowout. Tire
.................................... 15 1
Brake
Adjustment
..................................... 179
Fluid
....................................... 178. 201
Master Cylinder
............................. 178
Parking
............................................. 51
Rear Drum ...................................... 179
Replacing Brake System Parts
....... 179
Warning Light
.................................. 88
Wear Indicators .............................. 179 Brake
System Warning Light
............. 88
Braking .............................................. 109
Braking in Emergencies
.................... 111
Break.1n. New Vehicle ............... 44. 132
Buckling Up (see
Safety Belts)
Bulb Replacement Brakes. Anti-Lock
............................ 110
Braking Technique
........................... 109
Fog Light
........................................ 182
Headlight ........................................ 181
Taillight .......................................... 182
Bulbs. Replacement
.......................... 202
Capacities
& Specscations .......... 199
Carbon Monoxide in
Exhaust
...................... 53. 54. 131. 135
Cargo Bed Liner .................................. 75
Cassette Tape Player
(see
Audio Systems )
CD Player (see Audio Systems)
Center Passenger Position
Certificatioflire Label
.................... 186
Chains. Tire ...................................... 190
Changing a Flat Tire
......................... 151
Checking
Brake Fluid
..................................... 178
Engine
Oil ...................................... 168
(see Safety Belts )
Engine Coolant .............................. 174
233
ProCarManuals.com

234
Power Steering Fluid ..................... 176
Safety Belt Systems
.......................... 34
Transmission Fluid
........................ 172
Child Restraints
.................................. 26
Children and Safety Belts
................... 25
Cigarette Lighter
................................. 73
Circuit Breakers
& Fuses ................. 196
Checking Things Under
the Hood
.... 165
City Driving
...................................... 126
Cleaner. Air
............................... 171. 200
Cleaning Aluminum Wheels
......................... 194
Antenna
.......................................... 103
Cassette Player
............................... 102
Fabric .............................................. 191
Glass
............................................... 192
Inside
of Your Vehicle ................... 190
Outside
of Your Vehicle ................ 193
Safety Belts
.................................... 192
Special Problems
............................ 191
Vinyl or Leather
............................. 192
Warnings
................ 192. 193. 194. 196
Weatherstrips
................................. 194
Underbody
Maintenance
............... 194
Windshield
..................................... 193
Climate Controls
................................. 92
Clock. Setting the
............................... 95
Clusters. Instrument Panel
................. 78
Coin Holder
........................................ 72
Comfort Controls
................................ 92 Air Conditioner
........................ 92.
184
Heater
............................................... 92
Ventilation 94 .. ........................................
Compass .............................................. 64
Control
of a Vehicle .......................... 108
Convex Outside Mirror
...................... 70
Coolant
..................................... 176. 203
Console
Storage
............................ 64. 71
Checking
& Adding ............... 149. 177
Proper Mixture to
Use ........... 149. 177
Safety Warnings About ..... 149.177. 178
Temperature Gage ..................... 85. 88
Cruise Control .................................... 59
Curves. Driving on
........................... 111
Customer Assistance Information ...... 221
Cup
Holder
......................................... 71
Dead Battery: What to Do
............ 140
Defensive Driving
............................. 106
Defogger. Rear Window
..................... 94
Defrosting
........................................... 93
Dome Lights
....................................... 68
Door Locks
......................................... 39
Driver Position
...................... ............ 18
Driving At Night
.......................................... 124
City
................................................. 126
Controlling a Slid
.......................... 114
Defensively
..................................... 106
Drunken
......................................... 106 Freeway
.......................................... 127
Guidelines
...................................... 115
Hill and Mountain ................. 118. 129
In a Foreign Country
..................... 164
In Mud. Sand. Snow. or Ice
.......... 122
In the Rain
...................................... 125
In Water
......................................... 123
Loss of Control
.............................. 114
Off-Road
................................. 115. 123
On Curves
...................................... 111
On Inclines ..................................... 121
Through Deep Standing Water
....... 46
Winter Driving
............................... 130
With a Trailer
................................. 132
Drunken Driving
.............................. 106
Long
Distance
................................ 128
Passing.,
.......................................... 113
Electric Outside Mirror Control ..... 70
Electrical Equipment.
Adding
................................ 46. 95. 196
Electronic Cluster
............................... 79
Emergencies on the Road
................. 139
Emergencies. Braking
in
................... 111
Emergencies. Steering in .................. 112
Emergency Starting
.......................... 140
Emergency Towing
........................... 144
Engine Coolant
......................... 174. 201
E/M Switch ......................................... 83
Engine Block Heater
.................. 47. 170
.
ProCarManuals.com

238
Top Strap ......................................... 27
Torn
.................................................. 35
Twisted
............................................. 20
Why
You Should Wear
Safety Belts
.................................... 14
Safety Defects. Reporting
................. 224
Scheduled Maintenance Services
.... 205
Seat Adjustment
................................. 12
Seat Belts (see
Safety Belts)
Seat Controls ...................................... 12
Lumbar Controls
.............................. 12
Manual Front Seat
........................... 13
Power Front Seat ............................. 12
Rear Seat. Folding
............................ 14
Reclining Seatback ........................... 13
Service Engine Soon Light
................. 89
Service Information
.......................... 162
Service Parts Identification Label
.... 195
Service Publications
......................... 225
Service Station Information
............. 240
Setting the Clock
................................ 95
Setting the Trip Odometer
........... 81. 82
Shifting Into Park
............................... 5 1
Single Belt Accessory Drive ............. 184
Skidding
............................................ 114
Snowstorm. If You’re Caught in a
... 131
Sockets. Accessory Power .................. 71
Shifting
the Automatic Transmission
.... 48
Sound Equipment. Adding
................. 95
Sound System (see
Audio Systems)
Spare Tire ................................... 43. 152
Inside-Mounted
.............................. 152
Tailgate-Mounted
........................... 154
Spare Tire Carrier
............................... 43
Spark Plugs
....................................... 200
Specifications
& Capacities ............. 199
Speed Control (see
Cruise Control )
Speedometer ................................. 80. 81
Stains. Removing .............................. 193
Stalling on an Incline
....................... 122
Starting Your Engine
.......................... 45
Starting Your Vehicle
if the Battery
Steering is
“Dead”
(see Jump Starting)
In Emergencies ............................... 112
Off-Road Recovery ......................... 112
Tips
................................................. 111
Steering Wheel. Tilt ............................ 55
Stereo Sound System
Storage (see
Audio
Systems )
Console ............................................. 71
Door Compartment/Coin Holder
.... 72
Garage Door Opener
....................... 65
Glove Box
......................................... 44
Luggage Carrier
................................ 74
Overhead
.......................................... 67
Sunglasses
........................................ 67
Storing Your Vehicle
........................ 180
Cup Holder ....................................... 71 Stuck.
If
You Are .............................. 158
Sun Visors ........................................... 69
T achometer ...................................... 83
Tailgate ......................................... 42. 43
Tape Player (see
Audio Systems)
Technical Facts & Specifications
Bulbs
............................................... 202
Electrical Equipment. Add-on
................................. 46. 95. 196
Fluid Capacities
& Types ...... 199. 201
Fuses
& Circuit Breakers .............. 196
Service Parts Identification
Label
............................................ 195
Vehicle Identification Number
(VIN)
........................................... 195
Temperature Warning
.................. 85. 88
Theft .................................................... 42
Thermostat
........................................ 176
Tilt Steering Wheel
............................. 55
Time. Setting the ................................ 95
Tires
.................................................. 185
Blow Out ........................................ 151
Buying New .................................... 188
Chains ............................................. 190
Flat. Changing
................................ 151
Inflation .......................................... 186
Inspection
& Rotation ................... 187
Loading
.......................................... 185
Pressure .......................................... 186
ProCarManuals.com
