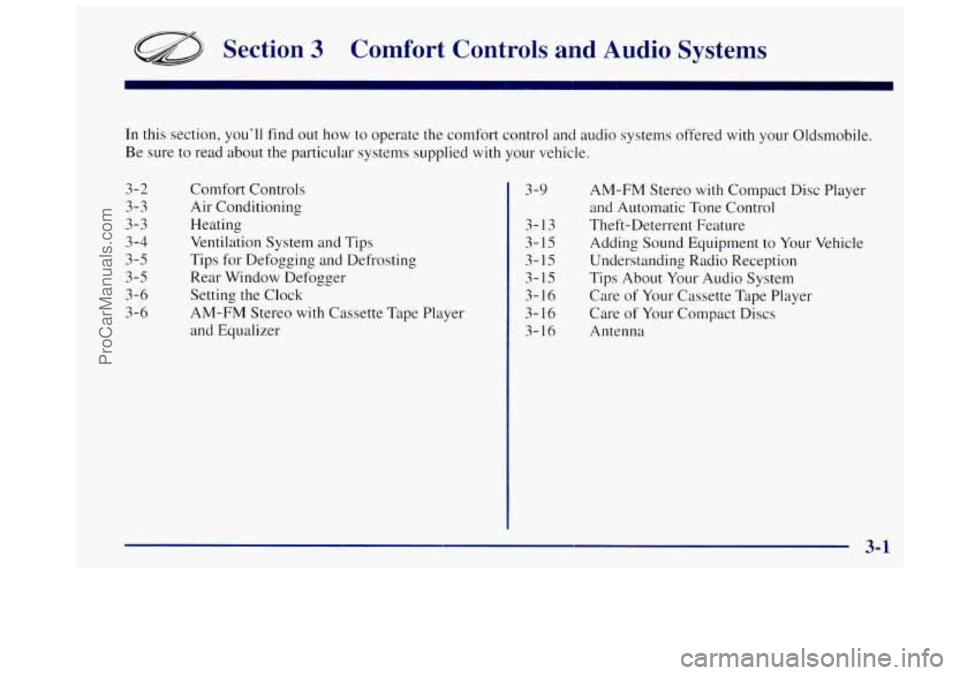

Section 3 Comfort Controls and Audio Systems
In this section, you’ll find out how to operate the comfort control and audio systems offered with your Oldsmobile.
Be sure to read about the particular systems supplied with your vehicle.
3-2
3-3
3-3
3-4 3-5
3-5
3-6
3-6 Comfort Controls
Air
Conditioning
Heating
Ventilation System and Tips
Tips for Defogging and Defrosting
Rear Window Defogger
Setting the Clock
AM-FM Stereo with Cassette Tape Player
and Equalizer 3-9
3- 13
3-15 3-15
3- 15
3-16
3-
16
3-16
AM-FM Stereo with Compact Disc Player
and Automatic Tone Control
Theft-Deterrent Feature
Adding Sound Equipment to Your Vehicle
Understanding Radio Reception
Tips About Your Audio System
Care of Your Cassette Tape Player
Care of Your Compact Discs
Antenna
ProCarManuals.com

Comfort Controls Temperature Knob
With this system, you can control the heating, cooling
and ventilation
in your vehicle.
Climate Control System
Fan Control
The switch with the fan symbol changes the fan speed.
To increase the fan speed, move the switch upward
toward
HI. To decrease the fan speed, move the switch
downward toward
LO.
The upper knob regulates the temperature of the air
coming through the system. Turn the
knob clockwise for
warmer air. Turn the knob counterclockwise for cooler air.
Mode Knob
The lower knob allows you to choose the direction of
air delivery.
OFF: This setting turns the system off. Some outside air
will still enter the vehicle whenever the vehicle is
moving forward.
MAX A/C: This setting provides maximum cooling
with the least amount of work. MAX A/C recirculates
much of the air inside your vehicle
so it cools quickly.
A/C: This setting cools the air entering your vehicle and
directs
it through the instrument panel outlets.
+’ BI-LEVEL A/C: Air is delivered through the
heater
floor outlets as well as the instrument panel outlets.
/J VENT This setting directs airflow through the
instrument panel outlets. The air conditioning
compressor is not working when
VENT is selected.
+*
+e
3-2
ProCarManuals.com

e
+# HEATER: This setting directs warmed air through
the heater floor outlets and windshield defroster outlets.
we
+# BLEND: Airtlow is divided equally between the
heater floor outlet and the windshield defroster outlets.
%? DEFROST This setting directs most air through
the windshield defroster outlets and some through the
heater outlets.
Air Conditioning
On hot days, open the windows long enough to let hot
inside air escape. This reduces the time
it takes for your
vehicle to cool down. Then keep your windows closed
for the air conditioner to work its best.
For quick cool-down on very hot days, use
MAX A/C
with the temperature knob turned counterclockwise.
This setting should be used to keep odors and/or dust
from entering the vehicle. For normal cooling on hot
days, use A/C with the temperature knob turned
counterclockwise.
On cool but sunny days, use BI-LEVEL A/C to deliver
warm air to the floor and cooler air to the instrument
panel outlets.
When the air conditioner is on,
you may sometimes
notice slight changes
in your vehicle‘s engine speed and
power. This is normal because the system is designed to
cycle the compressor on and off to keep the
desired temperature.
Heating
The heater works best if you keep your windows closed
while using
it. On cold days, use HEATER with the
temperature knob turned clockwise.
BLEND is useful in
cool weather when you have fog or ice on the
windshield or side windows.
If you use the optional engine coolant heater before
starting your engine, your heating system will produce
warmer
air faster to heat the passenger compartment in
cold weather. See “Engine Coolant Heater” in the Tndex.
3-3
ProCarManuals.com

Audio Systems
Your Delco@ audio system has been designed to operate
easily and give years of listening pleasure. You will get
the most enjoyment out of it if you acquaint yourself
with it first. Find out what your Delco system can do
and how to operate all its controls, to be sure you’re
getting the most out
of the advanced engineering that
went
into it.
Setting the Clock for AM-FM Stereo with
Cassette Tape Player
Press SET. Within five seconds, press and hold SEEK
until the correct minute appears on the display. Press and
hold SCAN until the correct hour appears on
the display.
Setting the Clock for AM-FM Stereo
with Compact Disc Player and Automatic
Tone Control
Press and hold HR until the correct hour appears on the
display. Press and hold MIN until the correct minute
appears on the display. To display the clock with the
ignition off, press RECALL and the time will be
displayed for
a few seconds. There is an initial
two-second delay before the clock goes into the
time-set mode.
AM-FM Stereo with Cassette Tape Plaver
and Equalizer
Playing the Radio
PWR-VOL: This knob turns the system on and off and
controls the volume. To increase volume, turn the knob
clockwise. Turn it counterclockwise to decrease volume.
RCL: Display the time with the ignition off by pressing
this knob. When the radio is playing, press this knob to
recall station frequency.
AM-ST Press this button to tune an AM station that
broadcasts in stereo. Your
STEREO light will come on
when you’re receiving AM stereo. If you press
AM-ST
and there is no more noise, it means the station is weak.
You’ll hear the station better if you do not use AM-ST.
Press the button again to turn
off stereo.
ProCarManuals.com

AM-FM Stereo with Compact Disc Player
and Automatic Tone Control
(If Equipped)
I
Playing the Radio
PWR-VOL:
Press this knob to turn the system on and
off. To increase volume, turn the knob clockwise. Turn
it counterclockwise to decrease volume. The knob is
capable of rotating continuously.
RECALL: Display the time with the ignition off by
pressing this button. When the radio is playing, press
this button to recall the station frequency.
SCV Your system has a feature called
Speed-Compensated-Volume (SCV). With SCV, your
audio system adjusts automatically to make up for road
and wind noise as you drive. Set the volume at the
desired level. Move the control ring behind the upper
knob clockwise to adjust the SCV. Then, as you drive,
SCV automatically increases the volume,
as necessary,
to overcome noise at any particular speed. The volume
level should always sound the same to you
as you drive.
If you don't want to use
SCV, turn the control all the
way down. Each detent
on the control ring allows for
more volume compensation at a faster rate
of speed.
Finding a Station
AM-FM: Press this button to switch between AM, FMI
and FM2. The display will show your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back into its stored
position when you're not using it.
SEEK: Press the right mow to tune to the next higher
station and the left carrow to tune to the next lower station
and stay there. The sound will mute while seeking.
3-9
-
ProCarManuals.com

SCAN: Press and hold SEEK for two seconds until
SCAN appears on the display. SCAN allows you to
listen to stations for
a few seconds. The receiver will
continue to scan and momentarily stop at each station
until
you press the button again. The sound will mute
while scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations.
You can set up to
18 stations (six AM, six FM 1 and six FM2). Just:
1.
2.
3.
4.
5.
6.
Turn the radio on.
Press AM-FM to select the band.
Tune in the desired station.
Press AUTO TONE
to select the setting you prefer.
Press and hold one of
the four pushbuttons. The
sound will mute. When
it returns, release the button.
Whenever you press that numbered button, the
station you set will return and the tone you selected
will be automatically selected for that button.
Repeat the steps for each pushbutton.
P.SCAN: The preset scan button lets you scan through
your favorite stations stored on your pushbuttons. Select
either the
AM, FM1 or FM2 mode and then press
PSCAN. It will scan through each station stored on your pushbuttons and stop for
a few seconds before continuing
to scan through all of the pushbuttons. Press P.SCAN
again or one of the pushbuttons to stop scanning to listen
to
a specific stored station. P.SCAN will light up on the
display while
in this mode. If one of the stations stored on
a pushbutton is too weak for the location you are in, the
rdio
will skip the preset station and the radio display will
show the channel number
(P1 through P6) for several
seconds before advancing to the next preset station.
Setting the Tone
BASS: Press lightly on this knob to release it from its
stored position. Turn the knob clockwise to increase
bass and counterclockwise to decrease bass. When the
BASS control is rotated, the AUTO TONE setting will
change to
MAN.
TREB: Press lightly on this knob to release it from its
stored position. Turn the knob clockwise to increase
treble and counterclockwise
to decrease treble. When
the TREB control is rotated, the
AUTO TONE setting
will change to MAN. If a station is weak or noisy, you
may want to decrease the treble.
Push these knobs back into their stored positions when
you’re not using them.
3-10
ProCarManuals.com

AUTO TONE: Press this button to select among the
five preset equalization settings and tailor the sound to
the music or voice being heard. Each time you press the
button, the selection will switch to one
of the preset
settings
of CLASSIC, NEWS, ROCK, POP or JAZZ.
The display will show which mode the receiver
is in. To
return to the manual mode, press and release
this button
until
MAN appears on the display. This will return the
tone adjustment to the BASS and TREB controls. If a
BASS
or TREB control is rotated, the AUTO TONE
setting will change to
MAN.
Adjusting the Speakers
BAL: Press lightly on this knob to release it from its
stored position. Turn the control clockwise to adjust
sound to the right speakers and counterclockwise to
adjust sound to the left speakers. The middle position
balances the sound between
the speakers.
FADE: Press lightly on this knob to release it from its
stored position. Turn the control clockwise to adjust the
sound to the front and counterclockwise for the rear
speakers. The middle position balances the sound
between the speakers.
Push these knobs back into their stored positions when
you’re not using them.
Playing a Compact Disc
PWR: Press this knob to turn the system on. (Please note
that you can also turn the system on when
you insert a
compact disc into the player with
the ignition on.)
Insert
a disc partway into the slot, label side up. The
player will pull it in. Wait a few seconds and the disc
should play. CD and
a CD symbol will also appear on
the display. Anytime you are playing
a CD, the letters
CD will be next to the CD symbol.
If
the disc comes back out and ERR appears on the
display,
it could be that:
You are driving on a very rough road. (The disc
should play when the road gets smoother.)
The disc is upside down.
It is dirty, scratched or wet.
It is very humid. (If so, wait about an hour and
try again.)
0 The disc player is very hot.
Press RECALL
to make ERR go off the display.
PREV (1): Press PREV or the SEEK left arrow to
search for the previous selection.
If you hold this button
or press
it more than once, the disc will advance further.
Sound is muted
in this mode.
3-11
ProCarManuals.com

0 As you are backing down the hill, put your left hand
on the steering wheel at the 12 o’clock position. This
way, you’ll be able to tell
if your wheels are straight
and maneuver as you back down. It’s best that you
back down
the hill with your wheels straight rather
than in the left or right direction. Turning the wheel
too far to the left or right will increase the possibility
of a rollover.
Here are
some things you mist not do if you stall,
or are about to stall, when going
up a hill.
0 Never attempt to prevent a stall by shifting into
NEUTRAL (N) to “rev-up” the engine and regain
forward momentum. This won’t work. Your vehicle
will roll backwards very quickly and you could go
out of control.
Instead, apply the regular brake to stop the vehicle.
Then apply the parking brake. Shift to REVERSE
(R),
release the parking brake, and slowly back straight down.
0 Never attempt to turn around if you are about to stall
when going up
a hill. If the hili is steep enough to
stall your vehicle, it’s steep enough to cause you to
roll over
if you turn around. If you can’t make it up
the
hill, you must back straight down the hill.
Q: Suppose, after stalling, I try to back down the
hill and decide
I just can’t do it. What should
I do?
A: Set the parking brake, put your transmission in
PARK (P) and turn off the engine. Leave the
vehicle and go get some help. Exit
on the uphill
side and stay clear of
the path the vehicle would
take
if it rolled downhill.
Driving Downhill
When off-roading takes you downhill, you’ll want to
consider
a number of things:
0
0
0
0
How steep is the downhill? Will I be able to maintain
vehicle control?
What’s the surfice like? Smooth? Rough? Slippery?
Hard-pac ked dirt‘? Gravel?
Are there. hidden surface obstacles‘? Ruts?
Logs? Boulders?
What’s at the bottom
of the hill‘? Is there a hidden
creek bank
or even a river bottom with large rocks‘?
4-22
ProCarManuals.com

Climate Control System ........................... 3-2
Clock.Setting
................................... 3-6
Comfort Controls
................................ 3- 1
Compact Disc Care ............................. 3- 16
Compass
...................................... 2-37
Control of a Vehicle
.............................. 4-6
Convenience Net
............................... 2-40
Convex Outside Mirror
.......................... 2-35
Coolant
....................................... 6-20
Coolant Heater. Engine .......................... 2- 14
Courtesy Transportation
........................... 8-6
Cruise Control
................................. 2-28
Customer Assistance Information
................... 8- 1
Customer Satisfaction Procedure .................... 8-2
Damage. Finish
............................... 6-51
Damage. Sheet Metal
............................ 6-50
Daytime Running Lamps
......................... 2-32
Indicator Light
............................... 2-60
Dead Battery ................................... 5-3
Defects. Reporting Safety
......................... 8-8
Defensive Driving
............................... 4-2
Defogging and Defrosting
......................... 3-5
Dimensions. Vehicle
............................ 6-6 1
Dome Lamps .................................. 2-34 Door
Locks ....................................... 2-4
Storage
..................................... 2-39
Driver Info~-mation System
....................... 2-37
Driver Position ................................. 1 . 12
Driving
........................................ 4-1
Cily ........................................ 4-33
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Foreign Countries
.............................. 6-4
Freeway .................................... 4-34
Guidelines
.................................. 4-15
Hill and Mountain Roads
....................... 4-36
In a Blizzard ................................. 4-40
Night ...................................... 4-28
On Curves
.......................... : ........ 4-9
Rainy Conditions
............................. 4-30
Snowy and Icy Conditions
...................... 4-38
Through Deep Standing Water
................... 4-32
WetRoads
.................................. 4-30
Winter
...................................... 4-38
With
a Trailer ................................ 4-49
Driving On Grades While Towing
a Trailer ........... 4-51
Drunken Driving
................................ 4-3
Off-Road
................................... 4-15
ProCarManuals.com
