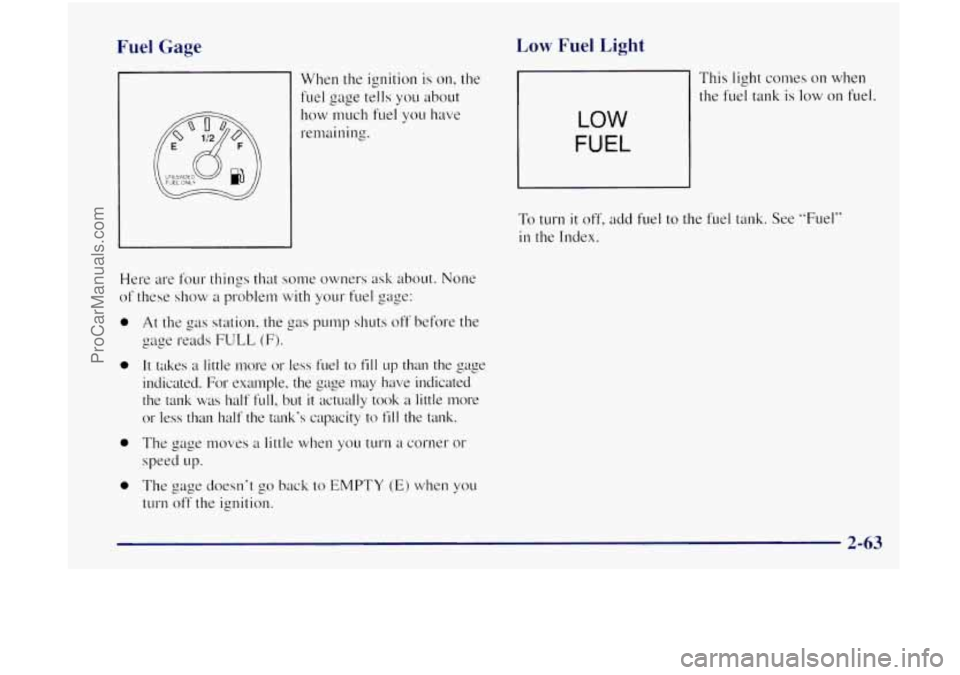

Fuel Gage
@ FUEL ONLY
When the ignition is on, the
fuel gage tells you about
how much fuel you have
remaining.
Here are four things
that some owners ask about. None
of these show
a problem with your fuel gage:
0
0
0
0
At the gas station, the gas pump shuts off before the
gage reads
FULL (F).
It takes a little more or less fuel to fill up than the gage
indicated. For example, the gage may have indicated
the tank was half
full, but it actually took a little more
or less than half the tank’s capacity to
fill the tank.
The gage moves
a little when you turn a corner or
speed up.
The gage doesn‘t
go back to EMPTY (E) when yo11
turn off the ignition.
LOW
FUEL
ow Fuel Light
This light comes on when
the fuel tank is low on fuel.
I I
To turn it off, add fuel to the fuel tank. See “Fuel”
in the Index.
24- -
ProCarManuals.com

Filling a Portable Fuel Container Checking Things
Under the Hood
Never fill a portable fuel container while it is in
your vehicle. Static electricity discharge from the
container can ignite the gasoline vapor. You can
be badly burned and your vehicle damaged if this
occurs. To help avoid injury to you and others:
Dispense gasoline only into approved
containers.
Do not fill a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed or
on any surface other than the ground.
inside of the fill opening before operating
the nozzle. Contact should be maintained
until the filling
is complete.
Bring the fill nozzle in contact with the
Don’t smoke while pumping gasoline. Things that burn can
get on hot engine parts and
start
a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or others
could be burned. Be careful not to drop or spill
things that
will burn onto a hot engine.
6-8
ProCarManuals.com

FUSE
PULLER
DL 1T
STARTER
FlPUMP
PRINTED IN USA
I Name
TRL TRN
TRR TRN
TRL BTU
VEH
B/U
RT TURN
Usage
Trailer Left Turn
Trailer Right Turn
Trailer Back-up Lamps
Vehicle Back-up Lamps
Right Turn Signal Front
4
1
1
1
Name
LT TURN
LT TRN
RT TRN
RR PRK
TRL PRK
LT HDLP
RT HDLP
FR PRK INT BAT
ENG
1
ECM B
ABS ECM
1
HORN
BTSI
Usage
Left Turn Signal Front
Left Turn Signal Rear
Right Turn Signal Rear Right Rear Parking Lamps
Trailer Parking Lamps Left Headlamp
Right Headlamp
Front Parking Lamps
I/P Fuse Block Feed
Engine Sensors/Solenoids, MAP,
CAM, PURGE, VENT
Engine Control Module, Fuel
Pump, Module, Oil Pressure
Anti-Lock Brake System
Engine Control Module Injectors
Horn
Brake-Transmission Shift
Interlock
6-58
