Oldsmobile Bravada 2002 s User Guide

ix
Vehicle Damage Warnings
Also in this book you will find these notices:
NOTICE:
These mean there is something that could damage
your vehicle.
In the notice area, we tell you about something that can
damage your vehicle. Many times, this damage would
not be covered by your warranty, and it could be costly.
But the notice will tell you what to do to help avoid
the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or in different words.
You'll also see warning labels on your vehicle.
They use the same words, CAUTION or NOTICE.
Vehicle Symbols
Your vehicle may be equipped with components and
labels that use symbols instead of text. Symbols, used on
your vehicle, are shown along with the text describing the
operation or information relating to a specific component,
control, message, gage or indicator.
If you need help figuring out a specific name of a
component, gage or indicator reference the following
topics in the index:

ªEngine Compartment Overviewº

ªInstrument Panelº

ªComfort Controlsº

ªAudio Systemsº
Also see ªWarning Lights and Gagesº in the Index.

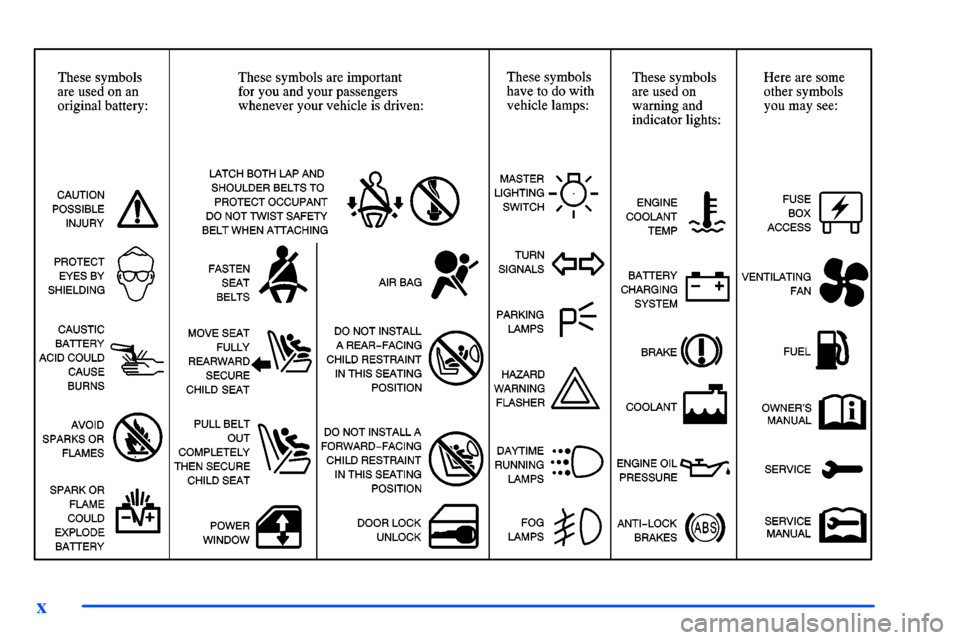

Here are some examples of symbols you may find on
your vehicle:

x

Service Station Guide
Oil Viscosity
Engine Oil
See Section 6
Engine Oil Dipstick
See Section 6Fuel
Use unleaded only.
See Section 6
for octane ratings.
Cooling System
See Section 5
Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6
Spare Tire Pressure
See Section 6
Battery
See Section 6
Tire Pressure
See Section 6
For
a More
Detailed Look at
What's Under the Hood
See Section 6

1-
1-1

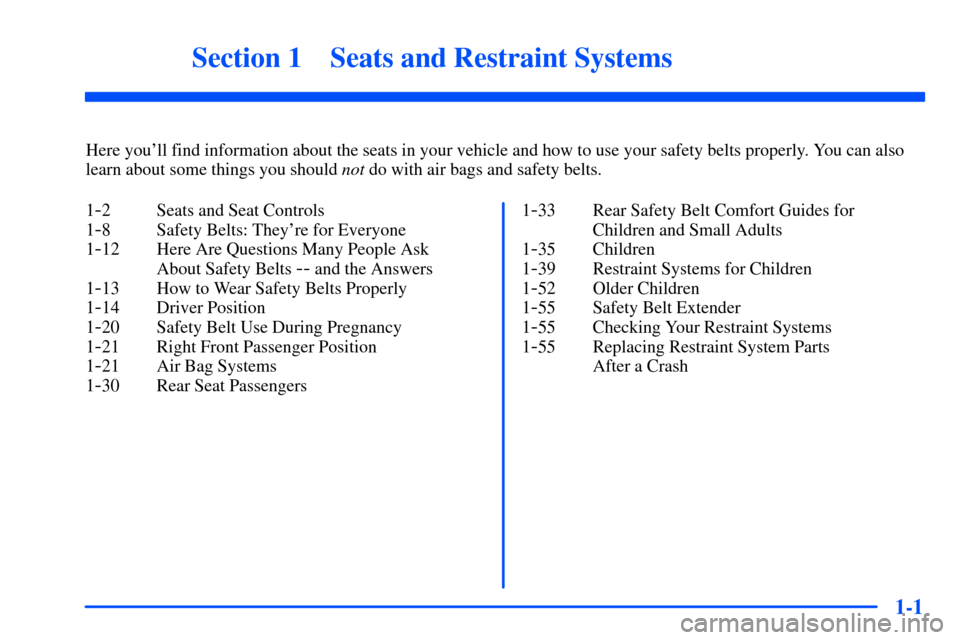

Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1
-2 Seats and Seat Controls
1
-8 Safety Belts: They're for Everyone
1
-12 Here Are Questions Many People Ask
About Safety Belts
-- and the Answers
1
-13 How to Wear Safety Belts Properly
1
-14 Driver Position
1
-20 Safety Belt Use During Pregnancy
1
-21 Right Front Passenger Position
1
-21 Air Bag Systems
1
-30 Rear Seat Passengers1
-33 Rear Safety Belt Comfort Guides for
Children and Small Adults
1
-35 Children
1
-39 Restraint Systems for Children
1
-52 Older Children
1
-55 Safety Belt Extender
1
-55 Checking Your Restraint Systems
1
-55 Replacing Restraint System Parts
After a Crash

1-2
Seats and Seat Controls
This section tells you about the power seats -- how to
adjust them, and also about the reclining front seatbacks,
memory seats, lumbar adjustments and heated seats.
Power Seats
The power seat controls are
located on the outboard side
of the front seat cushions.

Move the front of the seat control up or down to
adjust the front portion of the cushion.

Move the rear of the seat control up or down to
adjust the rear portion of the cushion.

Lift up or push down on the center of the seat
control to move the entire seat up or down.
To move the seat forward or rearward, slide the seat
control forward or rearward.

To recline the seatback, press the vertical control
rearward. To raise the seatback, press the vertical
control forward.Four-Way Power Lumbar Control
The driver's and
passenger's seatback
lumbar support can be
adjusted four ways by
moving a single control
located on the outboard
side of the seat cushions.
To increase or decrease support, hold the control
forward or rearward. To move the lumbar up or down,
hold the control up or down.
Keep in mind that as your seating position changes,
as it may during long trips, so should the position of
your lumbar support. Adjust the seat as needed.

1-3 Memory Seat (If Equipped)
If your vehicle has this
feature the controls are
located on the driver's door
armrest, and are used to
program and recall memory
settings for the driver's
seating and outside
mirror positions.
Adjust the driver's seat (including the seatback recliner
and lumbar) and both of the outside mirrors to the desired
position. Then press and hold button 1 (for driver 1) for
three seconds. A chime will sound to let you know that
the position has been stored.A second mirror and seating position can be programmed
by repeating the procedure with a second driver and
pressing button 2 for three seconds. Each time button
1 or 2 is pressed and released while the vehicle is in
PARK (P), the memory position will be recalled, if
programmed to do so through the Driver Information
Center (DIC). Each time a memory button is pressed,
a single chime will sound.
If you use the unlock button on the remote keyless entry
transmitter to enter your vehicle, the preset driver's seat
and mirror positions will be recalled. The numbers on
the back of the transmitters, 1 or 2, correspond to the
numbers on the memory controls.
The seat and mirror positions can also be recalled by
placing the key in the ignition, if programmed to do
so through the Driver Information Center (DIC).
To stop recall movement of the memory feature at
any time, press one of the power seat controls or
memory buttons.

1-4
Two personalized exit positions can be set by first
recalling the driver's position (by pressing 1 or 2), then
positioning the seat in the desired exit position for that
driver. Then press and hold the button with the exit
symbol for three seconds. A chime will sound to let you
know that the position has been stored. With the vehicle
in PARK (P), the exit position for that driver can be
recalled by pressing the exit button. The mirrors,
power lumbar and recline positions will not be stored
or recalled for the exit positions.
Programming for automatic seat and mirror movement
can be done through the Driver Information Center
(DIC). You can choose to either select or not select
automatic seat and mirror movement by using the
remote keyless entry transmitter, by placing your
key in the ignition, or when exiting the vehicle.
For programming information, see ªVehicle
Programming and Personalization Featuresº in
the Index.Heated Front Seats (Option)
Your vehicle may have
heated front seats.
The buttons used to
control this feature are
located on the front door
armrests. The engine must
be running for the heated
seat feature to work.
The horizontal button with the heated seat symbol is used
to control the temperature settings high, medium and low.
Press the button to cycle through the temperature settings
and to turn the heated seat off. An indicator light will glow
beside the temperature selected. The low setting warms the
seatback and cushion until the seat temperature is near
body temperature. The medium and high settings heat the
seatback and seat cushion to a slightly higher temperature.
You will be able to feel heat in about two minutes.
To heat only the seatback, press the vertical button with
the heated seatback symbol. Press the vertical button to
heat the whole seat.
The feature will shut off automatically when the ignition
is turned off.

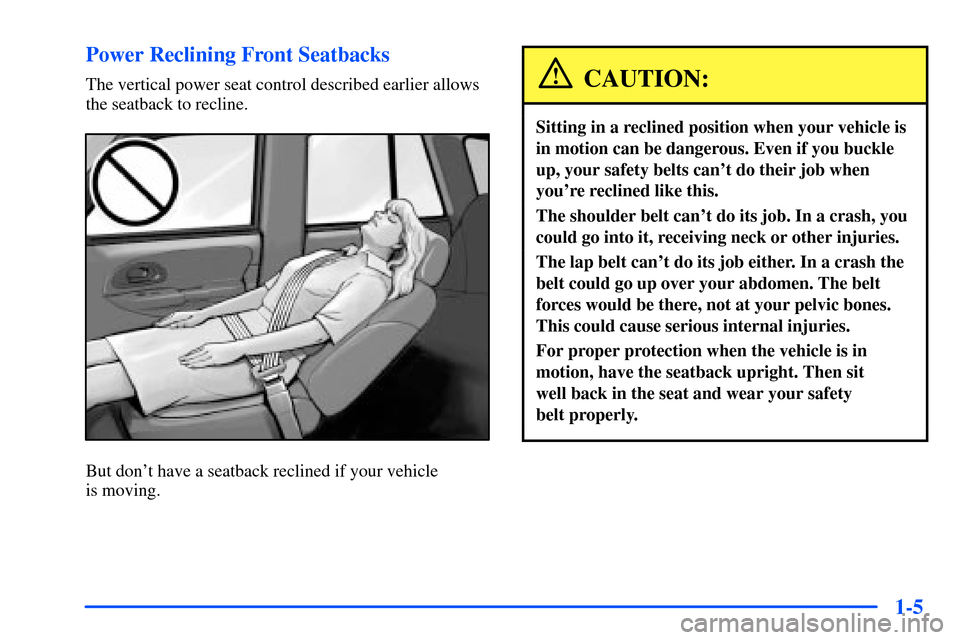

1-5 Power Reclining Front Seatbacks
The vertical power seat control described earlier allows
the seatback to recline.
But don't have a seatback reclined if your vehicle
is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job. In a crash, you
could go into it, receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.

1-6 Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
The head restraints tilt forward and rearward also.
The head restraints lock into place when raised.
To release the head restraint and lower it, press the
tab located on the top of the seatback.
Rear Seats
Your vehicle has a folding rear seat which lets you fold
the seatbacks down for more cargo space.
Pull up on the tab located where the seat cushion meets
the seatback to fold the seat cushion up and out of
the way. This will allow the seatback to fold flat and
increase the cargo area.

1-7
The rear seatback handles
are located on the outboard
side of the rear seatbacks.
Pull the seatback toward you as you lift up on the handle.
The head restraint will automatically fold out of the way
when the seatback is folded down.
To raise the seatbacks, lift up the seatbacks and push
on them until they lock into the upright position.
Push and pull on the seatbacks to make sure that they
are latched securely. Then fold the bottom seat cushion
back into place.
To return the head restraint to the upright position, reach
behind the seats and pull the restraint up until it locks
into place. Push and pull on the head restraints to make
sure that they are latched securely.
