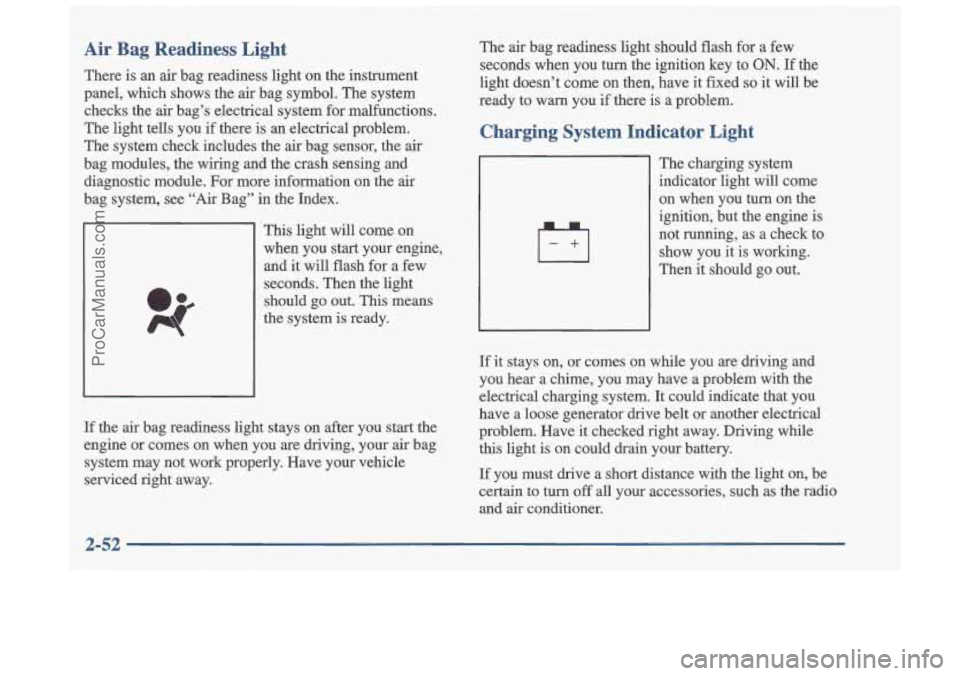

Air Bag Readiness Light
There is an air bag readiness light on the instrument
panel, which shows the air bag symbol. The system
checks the air bag’s electrical system for malfunctions.
The light tells you
if there is an electrical problem.
The system check includes the
air bag sensor, the air
bag modules, the wiring
and the crash sensing and
diagnostic module. For more information on the air
bag system, see “Air Bag” in the Index.
This light will come on
when you start your engine,
and it will flash for a few
seconds. Then the light
should
go out. This means
If the air bag readiness light stays on after you start the
engine
or comes on when you are driving, your air bag
system may not work properly. Have your vehicle
serviced right away. The
air bag readiness light should flash
for a few
seconds when you turn the ignition key to
ON. If the
light doesn’t come on then, have it fixed
so it will be
ready to
warn you if there is a problem.
Charging System Indicator Light
The charging system
indicator light will come
on when you turn
on the
ignition, but the engine is
not running, as a check to
show you it is worhg.
Then it should go out.
If it stays on, or comes on while you are driving and
you hear
a chime, you may have a problem with the
electrical charging system. It could indicate that you
have a loose generator drive belt or another electrical
problem. Have
it checked right away. Driving while
this light is on could drain your battery.
If you must drive a short distance with the light on, be
certain to turn
off all your accessories, such as the radio
and air conditioner.
2-52
ProCarManuals.com
Page 112 of 353

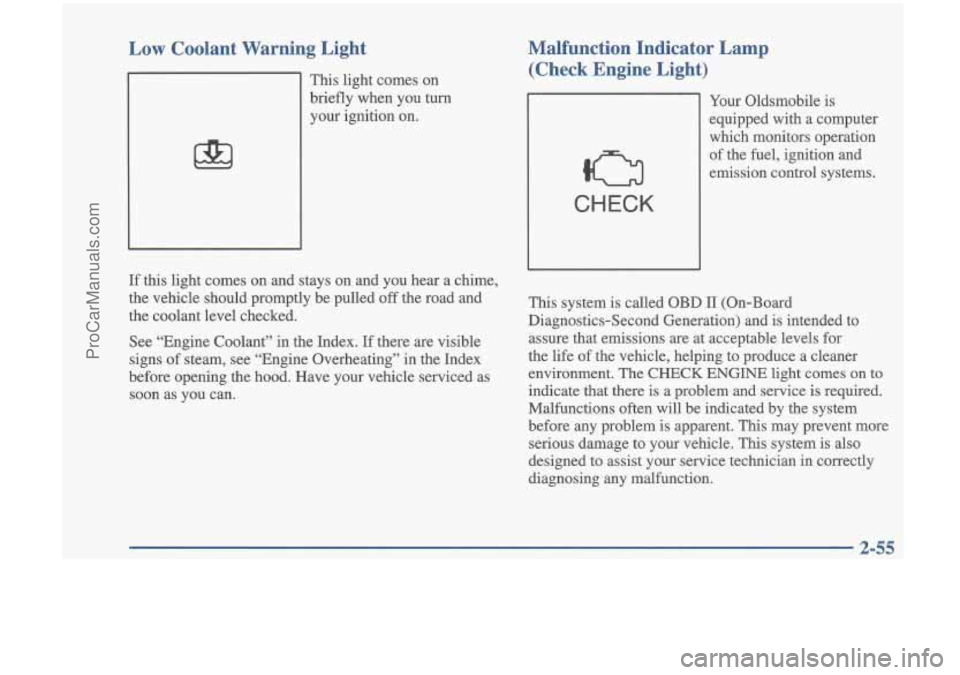

Low Coolant Warning Light
m J
This light comes on briefly when you turn your ignition on.
Malfunction Indicator Lamp (Check Engine Light)
CHECK
Your Oldsmobile is
equipped with a computer
which monitors operation of the fuel, ignition and
emission control systems.
If this light comes on and stays on and you hear a chime,
the vehicle should promptly be pulled
off the road and
the coolant level checked.
See “Engine Coolant” in the Index.
If there are visible
signs
of steam, see “Engine Overheating” in the Index
before opening the hood. Have your vehicle serviced as
soon as you can. This system is called OBD
I1 (On-Board
Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for
the life of the vehicle, helping to produce a cleaner
environment. The
CHECK ENGINE light comes on to
indicate that there is a problem and service is required.
Malfunctions often will be indicated by the system
before any problem is apparent. This may prevent more serious damage to your vehicle. This system is also
designed to assist your service technician in correctly
diagnosing any malfunction.
ProCarManuals.com
Page 119 of 353

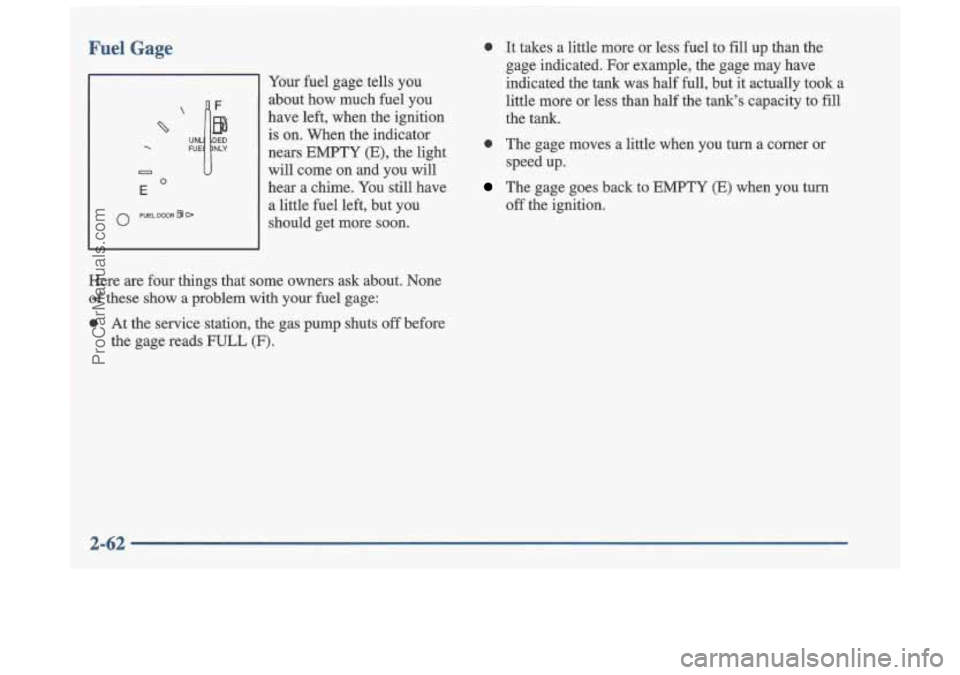

Fuel Gage
0
Your fuel gage tells you
about how much fuel you
have left, when the ignition is on. When the indicator
nears EMPTY (E), the light
will come on and you will
hear a chime. You still have
a little fuel left, but you should get more
soon.
0 It takes a little more or less fuel to fill up than the
gage indicated. For example, the gage may have
indicated the tank was half full, but it actually took a
little more or less than half the tank's capacity to
fill
the tank.
0 The gage moves a little when you turn a corner or
The gage goes back to EMPTY (E) when you turn speed up.
off the ignition.
Here
are four things that some owners ask about. None
of these show a problem with your fuel gage:
0 At the service station, the gas pump shuts off before
the gage reads
FULL (F).
2-62
ProCarManuals.com
Page 144 of 353

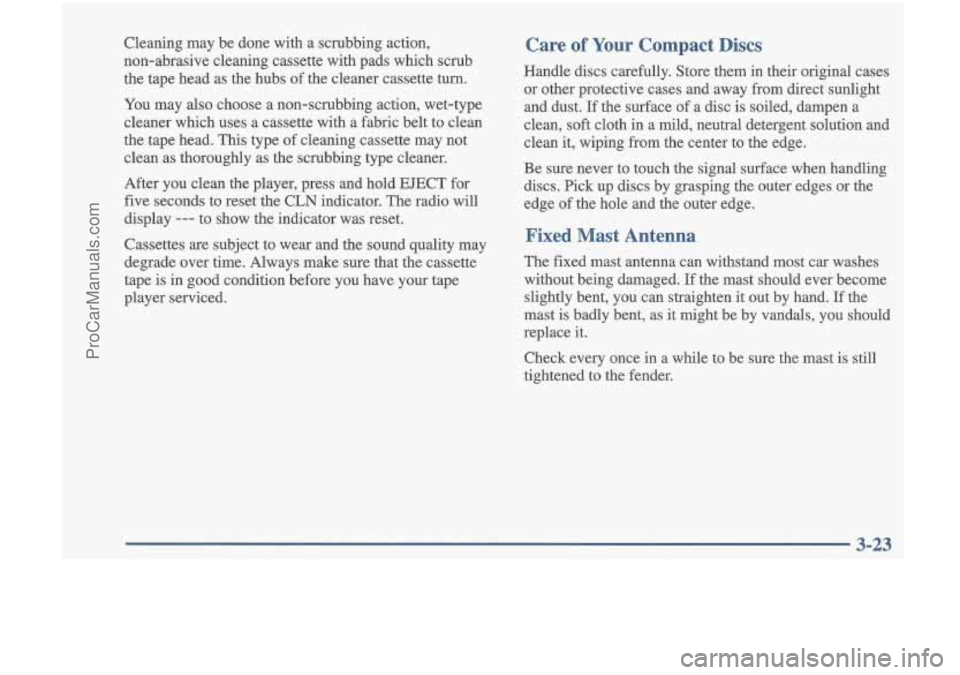

Cleaning may be done with a scrubbing action,
non-abrasive cleaning cassette with pads which scrub
the tape head as the hubs of the cleaner cassette turn.
You may also choose
a non-scrubbing action, wet-type
cleaner which uses a cassette with a fabric belt to clean
the tape head. This type of cleaning cassette may not
clean as thoroughly as the scrubbing type cleaner.
After you clean the player, press and hold EJECT for
five seconds to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
Cassettes
are subject to wear and the sound quality may
degrade over time. Always make sure that the cassette
tape is in good condition before you have your tape
player serviced.
Care of Your Compact Discs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a disc is soiled, dampen a
clean, soft cloth in a mild, neutral detergent solution and
clean it, wiping from the center to the edge.
Be sure never to touch the signal surface when handling
discs. Pick up &scs by grasping the outer edges or the
edge of the hole and the outer edge.
Fixed Mast Antenna
The fixed mast antenna can withstand most car washes
without being damaged. If the mast should ever become slightly bent, you can straighten it out by hand. If the
mast is badly bent, as it might be by vandals, you should
replace it.
Check every once in a while to be sure the mast is still
tightened to the fender.
3-23
ProCarManuals.com
Page 227 of 353

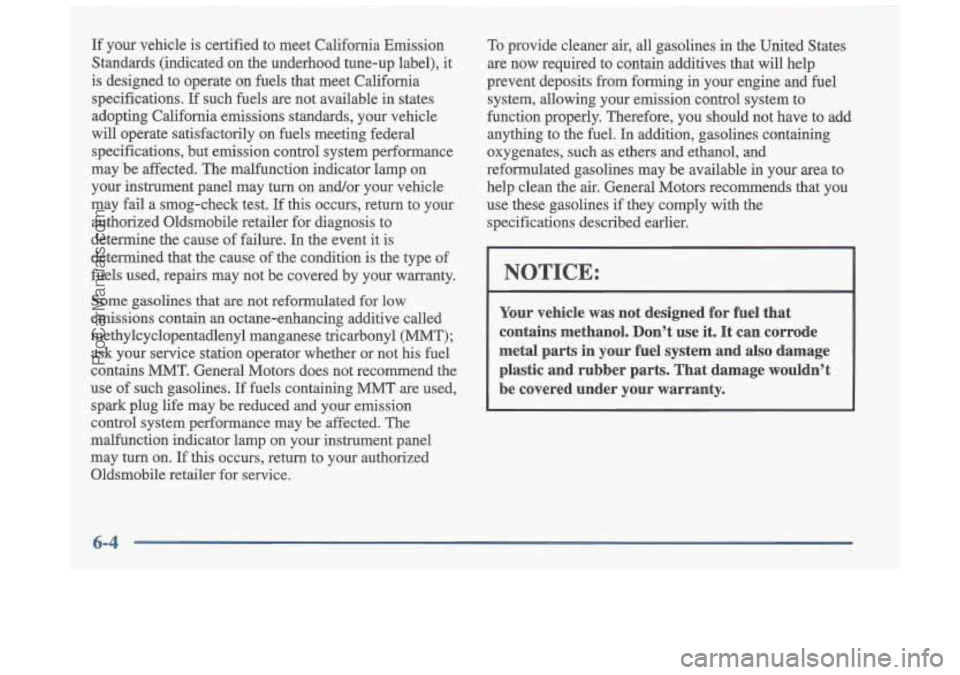

If your vehicle is certified to meet California Emission
Standards (indicated on the underhood tune-up label), it
is designed to operate on fuels that meet California
specifications.
If such fuels are not available in states
adopting California emissions standards, your vehicle
will operate satisfactorily on fuels meeting federal
specifications, but emission control system performance
may be affected. The malfunction indicator lamp on
your instrument panel may turn on andor your vehicle
may fail a smog-check test.
If this occurs, return to your
authorized Oldsmobile retailer for diagnosis to
determine the cause of failure.
In the event it is
determined that the cause of the condition is the type
of
fuels used, repairs may not be covered by your warranty.
Some gasolines that are not reformulated for low
emissions contain an octane-enhancing additive called
methylcyclopentadlenyl manganese tricarbonyl
("T);
ask your service station operator whether or not his fuel
contains MMT. General Motors does not recommend the
use of such gasolines. If fuels containing MMT are used,
spark plug life may be reduced and your emission
control system performance may be affected. The
malfunction indicator lamp on your instrument panel
may turn on.
If this occurs, return to your authorized
Oldsmobile retailer for service. To
provide cleaner
air, all gasolines in the United States
are now required to contain additives that will help
prevent deposits from forming in your engine and fuel
system, allowing your emission control system
to
function properly. Therefore, you should not have to add
anything to the fuel.
In addition, gasolines containing
oxygenates, such as ethers and ethanol, and
reformulated gasolines may be available in your area to help clean the air. General Motors recommends that you
use these gasolines if they comply with the specifications described earlier.
s
NOTICE:
Your vehicle was not designed for fuel that
contains methanol. Don't use it. It can corrode
metal parts in your fuel system and also damage
plastic and rubber parts. That damage wouldn't
be covered under your warranty.
6-4
ProCarManuals.com
Page 343 of 353

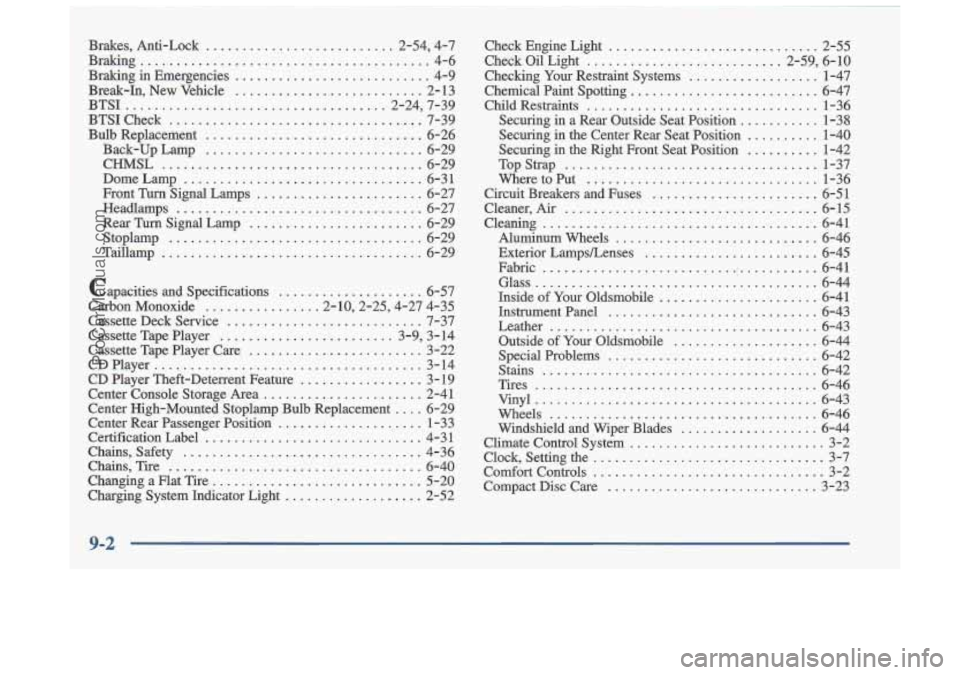

Brakes. Anti-Lock .......................... 2.54. 4.7
Braking
........................................ 4-6
Braking in Emergencies
........................... 4-9
Break.In. New Vehicle
.......................... 2-13
BTSICheck
................................... 7-39
Bulb Replacement
.............................. 6-26
Back-up Lamp
.............................. 6-29
CHMSL
.................................... 6-29
Dome Lamp
................................. 6-31
Front Turn Signal Lamps
....................... 6-27
Headlamps
.................................. 6-27
Rear Turn Signal Lamp
........................ 6-29
BTSI
.................................... 2.24. 7.39
Stoplamp
................................... 6-29
Taillamp
.................................... 6-29
.Capacities and Specifications
.................... 6-57
Carbon Monoxide
............... .2.10.2.25. 4.27 4-35
Cassette Deck Service
........................... 7-37
Cassette Tape Player
........................ 3.9. 3.14
Cassette Tape Player Care
........................ 3-22
CDPlayer
..................................... 3-14
CD Player Theft-Deterrent Feature
................. 3- 19
Center Console Storage Area
...................... 2-41
Center Rear Passenger Position
.................... 1-33
Certification Label
.............................. 4-3 1
Chains. Safety ................................. 4-36
Chains. Tire
................................... 6-40
Changing
a Flat Tire ............................. 5-20
Charging System Indicator Light
................... 2-52
Center High-Mounted Stoplamp Bulb Replacement
.... 6-29 Check Engine Light
............................. 2-55
Check Oil Light
........................... 2.59. 6. 10
Checking Your Restraint Systems
.................. 1-47
Chemical Paint Spotting
.......................... 6-47
Child Restraints
................................ 1-36
Securing in a Rear Outside Seat Position
........... 1-38
Securing in the Center Rear Seat Position
.......... 1-40
Securing in the Right Front Seat Position
.......... 1-42
TopStrap
................................... 1-37
WheretoPut
................................ 1-36
Circuit Breakers and Fuses
....................... 6-51
Cleaner.
Air ................................... 6-15
Cleaning
...................................... 6-41
Aluminum Wheels
............................ 6-46
Exterior LampsLenses
........................ 6-45
Fabric
........................... ' ........... 6-41
Glass
....................................... 6-44
Inside
of Your Oldsmobile ...................... 6-41
Instrument Panel
............................. 6-43
Leather
..................................... 6-43
Outside
of Your Oldsmobile .................... 6-44
Special Problems
............................. 6-42
Stains
...................................... 6-42
Tires
....................................... 6-46
Vinyl
....................................... 6-43
Wheels
..................................... 6-46
Windshield and Wiper Blades ................... 6-44
Climate Control System
........................... 3-2
Clock. Setting the
................................ 3-7
Comfort Controls
................................ 3-2
Compact Disc Care
............................. 3-23
ProCarManuals.com
Page 346 of 353

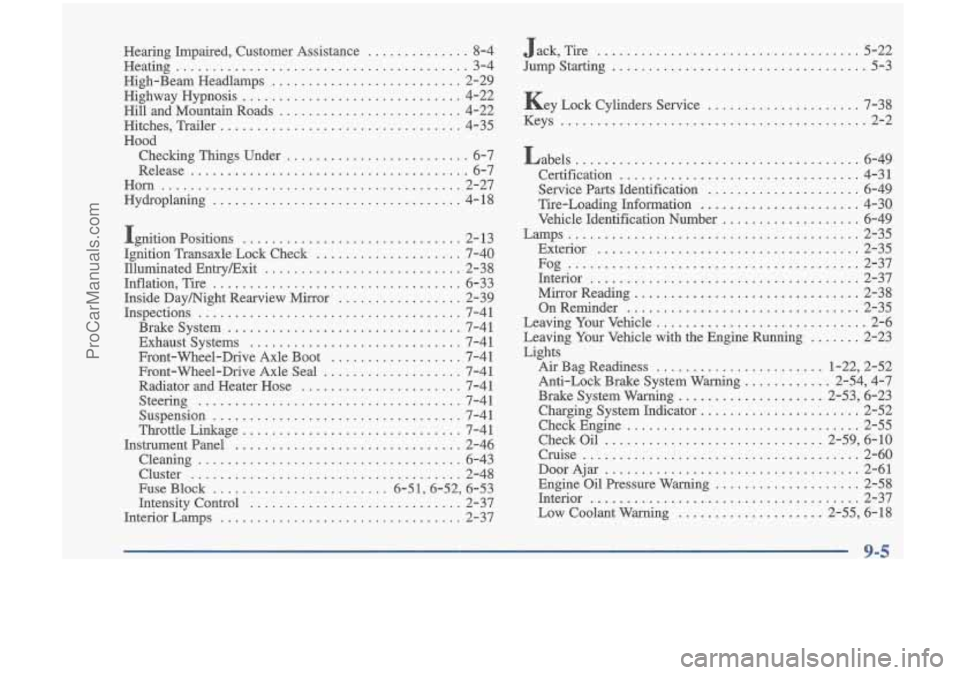

Hearing Impaired. Customer Assistance .............. 8-4
High-Beam Headlamps
.......................... 2-29
Highway Hypnosis
.............................. 4-22
Hill and Mountain Roads
......................... 4-22
Hitches. Trailer
................................. 4-35
Hood
Checking Things Under
......................... 6-7
Release
...................................... 6-7
Horn
......................................... 2-27
Hydroplaning
.................................. 4-18
Ignition Positions
.............................. 2- 13
Ignition Transaxle Lock Check
.................... 7-40
IlluminatedEntryExit
........................... 2-38
Inflation. Tire
.................................. 6-33
Inside Daymight Rearview Mirror
................. 2-39
Inspections
.................................... 7-41
Brake System
................................ 7-41
Exhaust Systems
............................. 7-41
Front-Wheel-Drive Axle Boot
.................. 7-41
Front-Wheel-Drive Axle Seal
................... 7-41
Radiator and Heater Hose
...................... 7-41
Steering
.................................... 7-41
Suspension
.................................. 7-41
Throttle Linkage
.............................. 7-41
Instrument Panel
............................... 2-46
Cleaning
.................................... 6-43
Cluster
............................ .. ........ 2-48
Fuse Block
........................ 6.51.6.52. 6.53
Intensity Control
............................. 2-37
Interior Lamps
................................. 2-37
Heating
........................................ 3-4
Jack. Tire
.................................... 5-22
Jump Starting
................................... 5-3
Key Lock Cylinders Service
..................... 7-38
Keys
.......................................... 2-2
Labels
....................................... 6-49
Certification
................................. 4-31
Service Parts Identification
..................... 6-49
Tire-Loading Information
...................... 4-30
Vehicle Identification Number
.................... 6-49
Lamps
........................................ 2-35
Exterior
.................................... 2-35
Fog
........................................ 2-37
Interior
..................................... 2-37
MirrorReading
............................... 2-38
OnReminder
................................ 2-35
Leaving
Your Vehicle ............................. 2-6
Leaving
Your Vehicle with the Engine Running ....... 2-23
Lights
Air Bag Readiness ....................... 1-22. 2-52
Anti-Lock Brake System Warning
............ 2.54. 4.7
Brake System Warning
.................... 2.53. 6.23
CheckEngine
................................ 2-55
CheckOil
.............................. 2.59. 6.10
Cruise
...................................... 2-60
DoorAjar
................................... 2-61
Engine Oil Pressure Warning
.................... 2-58
Interior ..................................... 2-37
Low Coolant Warning
.................... 2.55. 6.18
Charging System Indicator
...................... 2-52
ProCarManuals.com
Page 347 of 353

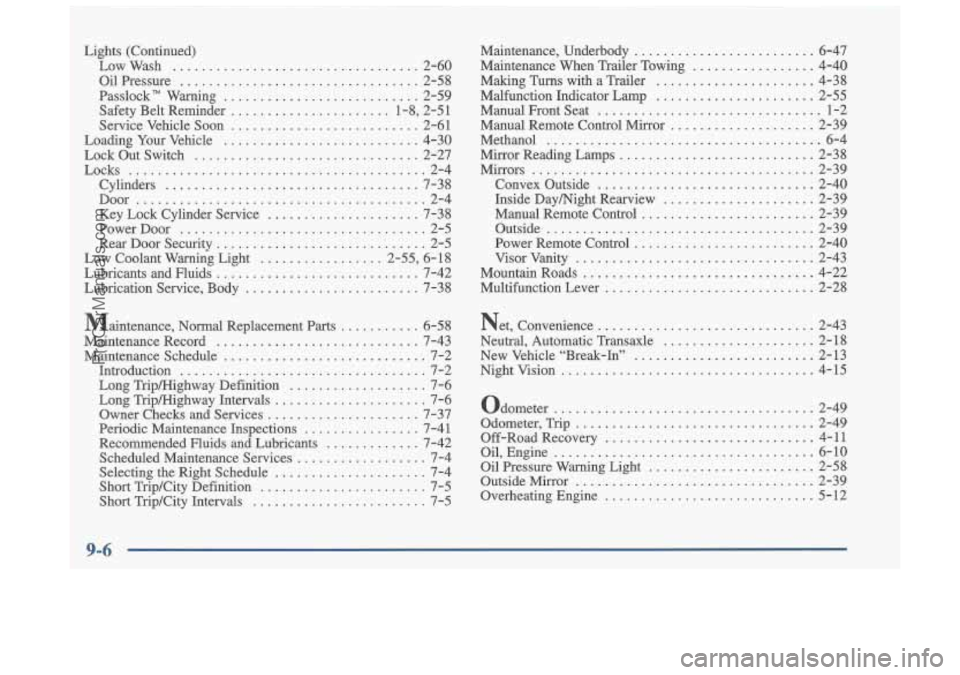

Lights (Continued) Low Wash
.................................. 2-60
Oil Pressure
................................. 2-58
Passlock Warning
........................... 2-59
Safety Belt Reminder
...................... 1.8. 2.5 1
Service Vehicle Soon
.......................... 2-61
Loading
Your Vehicle ........................... 4-30
Lock Out Switch
............................... 2-27
Locks
......................................... 2-4
Cylinders
................................... 7-38
Door
........................................ 2-4
Key Lock Cylinder Service
..................... 7-38
Power Door
.................................. 2-5
Low Coolant Warning Light
................. 2-55, 6- 18
Lubricants and Fluids ............................ 7-42
Lubrication Service, Body
........................ 7-38
Maintenance, Normal Replacement
Parts ........... 6-58
Maintenance Record
............................ 7-43
Maintenance Schedule
............................ 7-2
Introduction
.................................. 7-2
Long Tripmighway Definition
................... 7-6
Long Tripmighway Intervals
..................... 7-6
Owner Checks and Services
..................... 7-37
Periodic Maintenance Inspections
................ 7 -4 1
Recommended Fluids and Lubricants ............. 7-42
Scheduled Maintenance Services
.................. 7-4
Selecting the Right Schedule
..................... 7-4
Short Trip/City Definition
....................... 7-5
Short Trip/City Intervals
........................ 7-5
RearDoorSecu
rity
............................. 2-5 Maintenance. Underbody
......................... 6-47
Maintenance When Trailer Towing
................. 4-40
Making
Turns with a Trailer ...................... 4-38
ManualFrontSeat
............................... 1-2
Manual Remote Control Mirror
.................... 2-39
Methanol
...................................... 6-4
Mirror Reading Lamps ........................... 2-38
Mirrors
....................................... 2-39
Convex Outside
.............................. 2-40
Inside Daymight Rearview
..................... 2-39
Manual Remote Control
........................ 2-39
Outside
..................................... 2-39
Power Remote Control
......................... 2-40
Visor Vanity
................................. 2-43
MountainRoads
................................ 4-22
Multifunction Lever
............................. 2-28
Net, Convenience
.............................. 2-43
Neutral, Automatic Transaxle
..................... 2-18
New Vehicle “Break-In”
......................... 2-13
Nightvision
................................... 4-15
Odometer
.................................... 2-49
Odometer, Trip
................................. 2-49
Oil, Engine
.................................... 6-10
Outside Mirror
................................. 2-39
Overheating Engine
............................. 5-12
Malfunction Indicator Lamp
...................... 2-55
Off-Road Recovery
............................. 4-11
Oil Pressure Warning Light
....................... 2-58
9-6
ProCarManuals.com
Page 351 of 353
Tires (Continued) Loading
.................................... 4-30
Pressure
.................................... 6-33
Temperature
................................. 6-38
Traction
.................................... 6-37
Treadwear
................................... 6-37
Uniform Quality Grading
....................... 6-37
Used Replacement Wheel
...................... 6-39
Wear Indicators
.............................. 6-35
Wheel Replacement
........................... 6-38
When It’s Time for New
....................... 6-35
TopStrap
..................................... 1-37
TorqueLock
................................... 2-23
Torque. Wheel
Nut ......................... 5-29. 6-57
Towing
From the Front
................................ 4-28
FromtheRear
............................... 4-30
Recreational Vehicle
.......................... 4-28
Towing a Trailer
................................ 4-32
Towing
Your Vehicle ............................. 5-8
Towing Your Vehicle From the Front
............... 4-28
Towing Your Vehicle From the Rear
................ 4-30
Trailer
Backing Up with
............................. 4-37
Brakes
..................................... 4-36
Driving
on Grades ............................ 4-38
Drivingwitha
............................... 4-36
Following Distance
with ....................... 4-37
Hitches
..................................... 4-35
Maintenance When Towing
..................... 4-40
MakingTums
................................ 4-38
ParkingonHills
.............................. 4-39
Passingwith
................................. 4-37 SafetyChains
................................ 4-36
Tongueweight
............................... 4-34
Total Weight on Tires
.......................... 4-35
Towing
..................................... 4-32
Turnsignals
................................. 4-38
Weight ..................................... 4-34
Automatic
................................... 6-16
Ignition Lock Check
.......................... 7-40
Transmitters. Remote Lock Control
.................. 2-6
Transportation. Courtesy
.......................... 8-6
Trip Odometer
................................. 2-49
Transaxle
Trunk
........................................ 2-10
Lamp
...................................... 2-38
Release Lockout. Remote
...................... 2-10
Release. Remote
.............................. 2-10
TTYUsers
..................................... 8-4
Turn Signal and Lane Change Signals
............... 2-28
Turn Signal On Chime
........................... 2-28
Turn Signal/Multifunction Lever
................... 2-28
Turn Signals When Towing a Trailer
................ 4-38
Underbody Flushing Service
..................... 7-40
Underbody Maintenance
......................... 6-57
Vehicle Control
...................................... 4-6
Damagewarnings
.............................. iv
Dimensions
................................. 6-58
Identification Number
......................... 6-49
Loading
.................................... 4-30
Storage
..................................... 6-26
9-10 .
ProCarManuals.com
