torque OLDSMOBILE CUTLASS 1997 Owners Manual

Leaving Your Vehicle With the
Engine Running
It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P)
with the parking brake firmly set. And,
if you
leave the vehicle with the engine running, it could overheat and even catch fire. You or others could
be injured. Don’t leave your vehicle with the
engine running unless you have to.
If you have to leave your vehicle with the engine
running, be
sure your vehicle is in PARK (P) and your
parking brake is firmly set before you leave it. After
you’ve moved the shift lever into PARK (P), hold the
regular brake pedal down. Then, see if you can move
the shift lever-away from PARK (P) without
first
pushing the button.
If you can, it means that the shift lever wasn’t fully
locked into PARK (P).
Torque Lock
If you are parking on a hill and you don’t shift your
transaxle into
PARK (P) properly, the weight of the
vehicle may put too much force on the parking pawl in
the transaxle. You may find it difficult to pull the shift
lever out
of PARK (P). This is called “torque lock.” To
prevent torque lock, set the parking brake and then shift
into PARK (P) properly before you leave the driver’s
seat.
To find out how, see “Shifting Into PARK (P)” in
the Index.
When you are ready to drive, move the shift lever out
of PARK (P) before you release the parking brake.
If torque lock does occur, you may need to have
z ~- -bther
vehicle push yours a little uphill to take some of tne
pressure from the parking pawl
in the transaxle, so you
can pull the shift lever out of PARK
(P).
2-23
~~
ProCarManuals.com

-

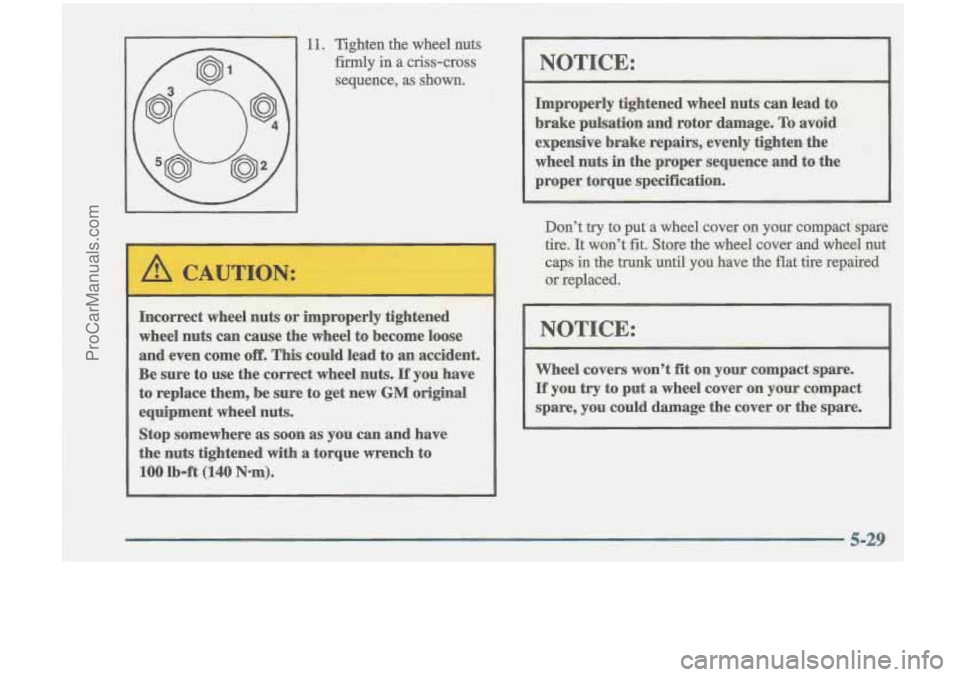

11. Tighten the wheel nuts
firmly in a criss-cross
sequence, as shown. I NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation .and rotor damage. To avoid
expensive brake repair.., evenly tighten the
wheel nuts in the proper sequenee~ and to the
proper torque specification.
Don’t try to put a wheel cover on YQU~ comp:act spare
tire.
It won’t fit. Store the wheel cover and wheel^ nut
caps in the trunk until you have the flat tire repaired
or replaced.
I NOTICE:
Wheel covers won’t fit on your compact spare.
If you try to put a wheel cover on your compact
spare, you could damage the cover or the spare.
ProCarManuals.com

When to Check
Check your tires once a month or more.
Don’t forget your compact spare tire. It should be at
60 psi (420 Ea).
How to Check
Use a good quality pocket-type gage to check tire
pressure.
You can’t tell if your tires are properly inflated
simply by looking at them. Radial tires may look
properly inflated even when they’re underinflated.
Be sure to put the valve caps back on the valve
stems. They help prevent leaks by keeping out dirt
and moisture.

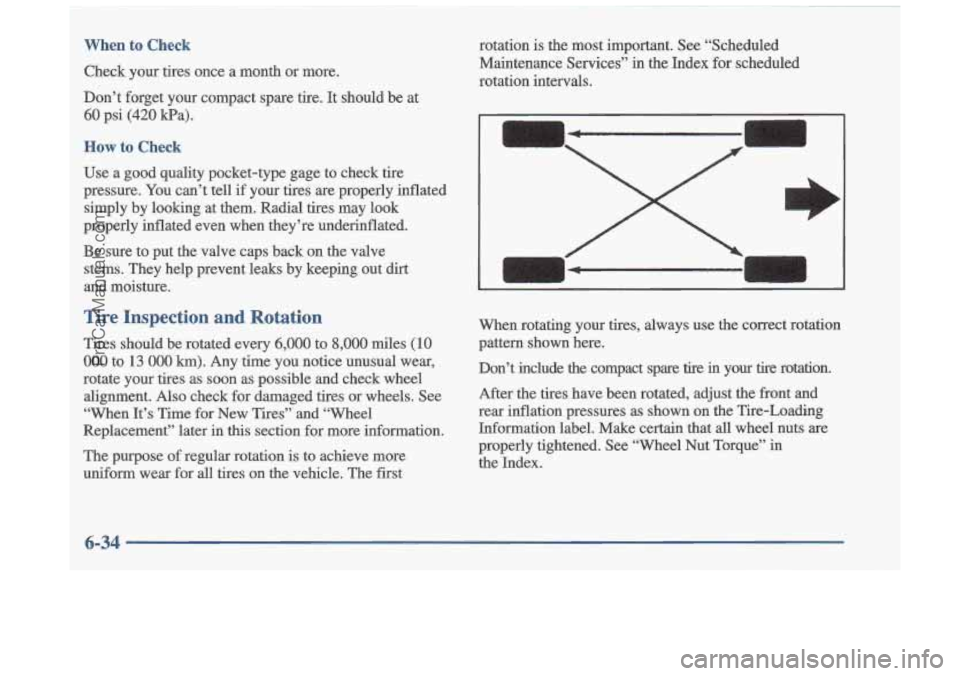

Tire Inspection and Rotation
Tires should be rotated every 6,000 to 8,000 miles (10
000 to 13 000 km). Any time you notice unusual wear,
rotate your tires
as soon as possible and check wheel
alignment.
Also check for darnaged tires or wheels. See
“When It’s Time for New Tires” and “Wheel
Replacement” later
in this section for more information.
The purpose of regular rotation is to achieve more
uniform wear for
dl tires on the vehicle. The first rotation is the most important.
See “Scheduled
Maintenance Services” in the Index for scheduled
rotation intervals.
When rotating your tires, always use the correct rotation
pattern shown here.
Don’t include the compact spare
tire in your tire rotation.
After the tires have been rotated, adjust the front and
rear inflation pressures as shown on the Tire-Loading
Information label. Make certain that all wheel nuts are
properly tightened. See “Wheel Nut Torque” in
the Index.
6-34
ProCarManuals.com

Replacement Bulbs
High-Beam Headlamp .................... 9005
Outside Lamps Bulb
Low-Beam Headlamp .................... 9006
Front
Park/Turn ...................... 3 157 NA
Back-up
............................... 3057
Rear Turn Signal
........................ 3357
Center High Mounted Stop Lamp
(CHMSL) ... 921
TaiUStoplarnp
........................... 3057
Inside Lamps Bulb
Dome .................................. 561
Capacities and Specificatio,ns
Cooling System ............. 13.6 quarts (12.9 L)
Engine Crankcase ............ 4.5 quarts (4.3 L)
Refrigerant, Air Conditioning ..... See refrigerant
charge label under the hood.
Fuel Tank ................ ._ 15.2 gallons (57.5 L)
Tire Pressures, Sizes ........... See Tire-Loading
Information label on the driver’s
side rear passenger door.
Wheel Nut Torque .......... 100 lb-ft (140 N-m)
NOTE: All capacities are approximate. When adding, be
sure to fill to the appropriate level or as recommended
in
this manual.
See “Recommended Fluids and Lubricants”
in
the Index.
6-57
ProCarManuals.com

Tires (Continued) Loading
.................................... 4-30
Pressure
.................................... 6-33
Temperature
................................. 6-38
Traction
.................................... 6-37
Treadwear
................................... 6-37
Uniform Quality Grading
....................... 6-37
Used Replacement Wheel
...................... 6-39
Wear Indicators
.............................. 6-35
Wheel Replacement
........................... 6-38
When It’s Time for New
....................... 6-35
TopStrap
..................................... 1-37
TorqueLock
................................... 2-23
Torque. Wheel
Nut ......................... 5-29. 6-57
Towing
From the Front
................................ 4-28
FromtheRear
............................... 4-30
Recreational Vehicle
.......................... 4-28
Towing a Trailer
................................ 4-32
Towing
Your Vehicle ............................. 5-8
Towing Your Vehicle From the Front
............... 4-28
Towing Your Vehicle From the Rear
................ 4-30
Trailer
Backing Up with
............................. 4-37
Brakes
..................................... 4-36
Driving
on Grades ............................ 4-38
Drivingwitha
............................... 4-36
Following Distance
with ....................... 4-37
Hitches
..................................... 4-35
Maintenance When Towing
..................... 4-40
MakingTums
................................ 4-38
ParkingonHills
.............................. 4-39
Passingwith
................................. 4-37 SafetyChains
................................ 4-36
Tongueweight
............................... 4-34
Total Weight on Tires
.......................... 4-35
Towing
..................................... 4-32
Turnsignals
................................. 4-38
Weight ..................................... 4-34
Automatic
................................... 6-16
Ignition Lock Check
.......................... 7-40
Transmitters. Remote Lock Control
.................. 2-6
Transportation. Courtesy
.......................... 8-6
Trip Odometer
................................. 2-49
Transaxle
Trunk
........................................ 2-10
Lamp
...................................... 2-38
Release Lockout. Remote
...................... 2-10
Release. Remote
.............................. 2-10
TTYUsers
..................................... 8-4
Turn Signal and Lane Change Signals
............... 2-28
Turn Signal On Chime
........................... 2-28
Turn Signal/Multifunction Lever
................... 2-28
Turn Signals When Towing a Trailer
................ 4-38
Underbody Flushing Service
..................... 7-40
Underbody Maintenance
......................... 6-57
Vehicle Control
...................................... 4-6
Damagewarnings
.............................. iv
Dimensions
................................. 6-58
Identification Number
......................... 6-49
Loading
.................................... 4-30
Storage
..................................... 6-26
9-10 .
ProCarManuals.com

.
Ventilation System ............................... 3-6
Visor Vanity Mirrors
............................ 2-43
Visors. Sun
..................................... 2-43
warning Devices
............................... 5-3
Warning Lights. Gages and Indicators
............... 2-50
Warranty Information
............................... 8-8
Washer Fluid. Windshield
........................ 6-21
Washing Your Vehicle
........................... 6-45
Weatherstrips
.................................. 6-44
Wheel Alignment
.................................. 6-38
Nut Torque
.............................. 5-29. 6-57
Replacement
................ ................ 6-38
Used Replacement
............................ 6-39
Wrench
..................................... 5-22 Windows
..................................... 2-26
Auto-Down
................................. 2-27
Lock Out Switch
............................. 2-27
Power
...................................... 2-26
Windshield Washer
............................. 2-31
Fluid .................................. 2-31, 6-21
Fluid Level Check
............................ 7-37
Windshield Wipers
......................... 2-30, 6-50
Bladecheck
................................. 7-38
Blade Replacement
........................... 6-32
Winter Driving.
................................. 4-24
Wiring, Headlamp
.............................. 6-50
WreckerTowing
................................. 5-8
Wrench, Wheel
................................. 5-22
ProCarManuals.com
