windshield wipers OLDSMOBILE CUTLASS 1997 Owners Manual

Section 2 Features and Controls
2-3
2-4
2-5
2-6
2-8
2-11
2-13
2-13
2- 14
2-
15
2- 17
2-2
1
2-21
2-25
2-26
Here
you can learn about the many standard and optional features on your Oldsmobile, and infomation on starting,
shifting and braking.
Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
Important Information About Keys
Door Locks Operation of Child Security Locks
Remote Lock Control
Battery Replacement for Remote
Lock Control
Preventing Theft of Your Vehicle
New Vehicle “Break-In”
Ignition Positions
Tips on Starting Your Engine
Using the Engine Coolant Heater
Automatic Transaxle Operation
Second-Gear Start
Parking Brake Guidelines Important Information on Engine Exhaust
Operation of Your Windows 2-27
2-28
2-29
2-30
2-32
2-35
2-36
2- 37
2-39
2-41
2-45
2-46
2-50 Adjusting
the Tilt Steering Wheel
Functions of the Multifunction Lever
How to Use the High/Low-Beam
Headlamp Changer
Windshield Wipers and Fluid Using Cruise Control
Exterior Lamps
Daytime Running Lamps (Dm) and
Automatic Light Control
(ALC)
Interior Lamps
Rearview Mirrors Storage Compartments
Sunroof
Instrument Panel Overview
All About Your Warning Lights and Gages
2-1
~
ProCarManuals.com

ACC (Accessory) (B): This position unlocks the
transaxle. It
also lets you use things like the radio and
windshield wipers when the engine is not running.
To
use ACC, push in the key and turn it to the right. Use
this position if your vehicle must be pushed or towed,
but never
try to push-start your vehicle.
ON (C): This position unlocks the ignition and
transaxle.
This position is also where the key returns
after you start your engine and release the switch. The
switch stays in ON when the engine is running. But even
when the engine
is not running, you can use ON to
operate your electrical power accessories, and to display some instrument panel warning lights.
START (D): This position starts the engine. When the
engine starts, release the key. The ignition switch will
return to
ON for normal driving.
Starting Your Engine
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won’t start in any other position
-- that’s a
safety feature. To restart when you’re already moving,
use NEUTRAL
(N) only.
NOTICE:
Don’t try to shift to PARK (P) if your Oldsmobile
is moving. If you do, you could damage the
transaxle. Shift to PARK
(P) only when your
vehicle is stopped.
Starting Your 3100 Engine
1. Without pushing the accelerator pedal, turn your
ignition key to
START. When the engine starts, let
go of the key. The idle speed will go down as your
engine gets warm.
NOTICE:
Holding your key in START for longer than
15 seconds at a time will cause your battery to
be drained much sooner. And the excessive heat
can damage your starter motor.
ProCarManuals.com

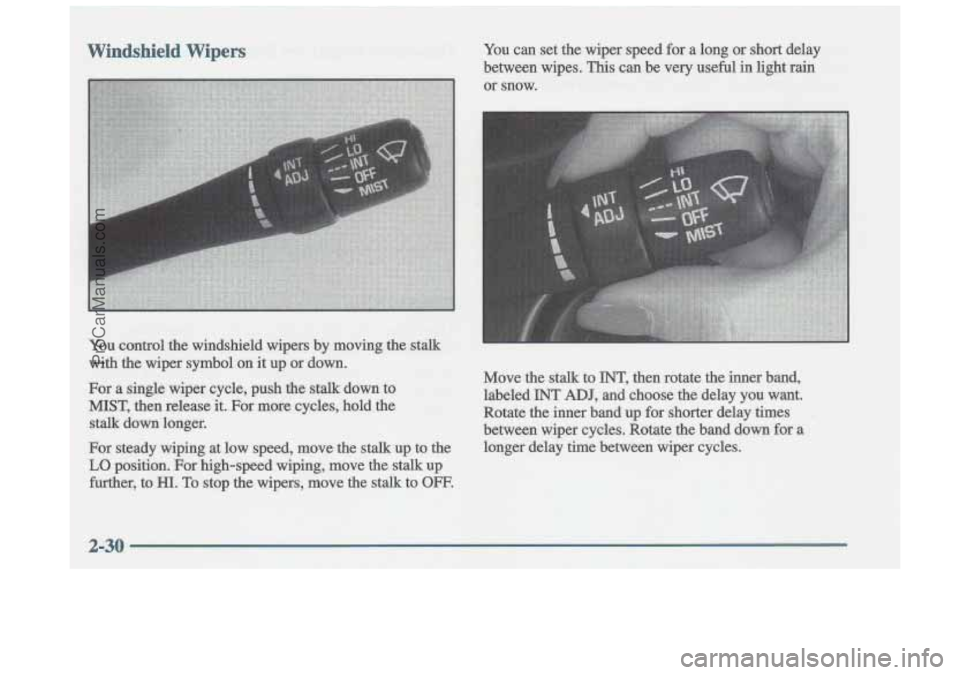

You control the windshield wipers by moving the stalk
ProCarManuals.com

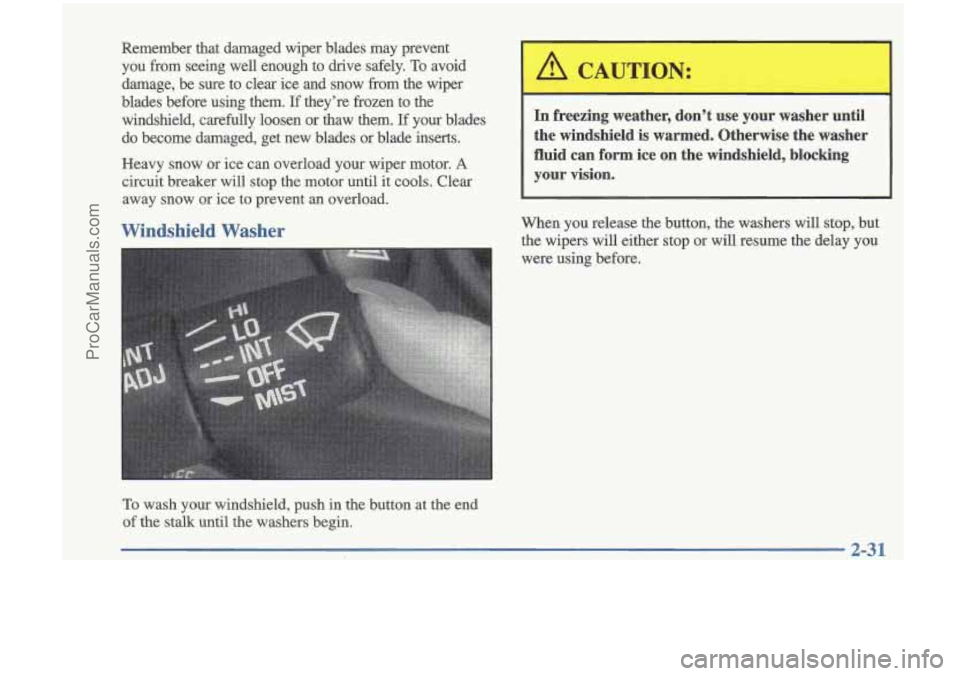

Remember that damaged wiper blades may prevent
you from seeing well enough
to drive safely. To avoid
damage, be sure to clear ice and snow from the wiper
blades before using them.
If they’re frozen to the
windshield, carefully loosen or thaw them.
If your blades
do become damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wiper motor.
A
circuit breaker will stop the motor until it cools. Clear
away snow or ice to prevent an overload.
Windshield Washer
In freezing weather, don’t use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
When you release the button, the washers will stop, but
the wipers will either stop or will resume the delay you
were using before.
To wash your windshield, push in the button at the end
of the stalk until the washers begin.
2-31
ProCarManuals.com

Electrical System
Add-on Electrical Equipment
I NOTICE:
Don’t add anything electrical to your Oldsmobile
unless you check with your retailer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment can
keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to add anything electrical to your Oldsmobile, see
“Servicing Your Air Bag-Equipped Oldsmobile”
in the Index.
Headlamp Wiring
The headlamp wiring is protected by fuses, one for each
headlamp, in the fuse block. An electrical overload will
cause the lamps to
turn off. If this happens. have your
headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker and a fuse.
If the motor overheats due to
heavy snow, etc., the wiper
will stop until the motor
cools.
If the overload is caused by some electrical
problem and not snow, etc., be sure to get it .fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse block protect the power
windows and other power accessories. When the current
load is too
heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed or
goes away.
6-50
..
ProCarManuals.com

.
Ventilation System ............................... 3-6
Visor Vanity Mirrors
............................ 2-43
Visors. Sun
..................................... 2-43
warning Devices
............................... 5-3
Warning Lights. Gages and Indicators
............... 2-50
Warranty Information
............................... 8-8
Washer Fluid. Windshield
........................ 6-21
Washing Your Vehicle
........................... 6-45
Weatherstrips
.................................. 6-44
Wheel Alignment
.................................. 6-38
Nut Torque
.............................. 5-29. 6-57
Replacement
................ ................ 6-38
Used Replacement
............................ 6-39
Wrench
..................................... 5-22 Windows
..................................... 2-26
Auto-Down
................................. 2-27
Lock Out Switch
............................. 2-27
Power
...................................... 2-26
Windshield Washer
............................. 2-31
Fluid .................................. 2-31, 6-21
Fluid Level Check
............................ 7-37
Windshield Wipers
......................... 2-30, 6-50
Bladecheck
................................. 7-38
Blade Replacement
........................... 6-32
Winter Driving.
................................. 4-24
Wiring, Headlamp
.............................. 6-50
WreckerTowing
................................. 5-8
Wrench, Wheel
................................. 5-22
