Replacement Bulbs
Outiide Lamps Bulb
High-Beam Headlamp .................... 9005
Low-Beam Headlamp
.................... 9006
Front Park/Turn
...................... 3 157 NA
Back-up
............................... 3057
Rear Turn Signal
........................ 3357
HighLevelStop
.......................... 912
TaiUStop Lamp
.......................... 3057
Inside Lamps Bulb
Dome .................................. 561
Capacities and Specifications
Engine Crankcase
Cooling System
Refrigerant,
3 100 Engine ................ .4.5 quarts (4.3 L)
3100 Engine
.............. 13.6 quarts (12.9 L)
Air Conditioning ........ See refrigerant charge
label under the hood.
Fuel Tank ................. 15.0 gallons (56.8 L)
Tire Pressures, Sizes . See Tire-Loading Information
label on the driver’s side rear passenger door.
Wheel Nut Torque 100 lb-ft (140 Nom)
NOTE: All capacities are approximate. When adding, be
sure to
fill to the appropriate level or as recommended in
this manual.
See “Fluids and Lubricants” in the Index.
6-59

. , ,, ";& 5;:
::i:' ''"irIN Engine Coae .........................
-:?"""!!@ype . ,I ie . .I .,,- ~ . ................... .......,. .......... , I. I, . , ijll
M
76
.... ....
r: .. -

Maintenance Schedule
I Short TripKity Definition I
Follow the Short TripKity Maintenance Schedule if any
one of these conditions
is true for your vehicle:
0 Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as fiequent
driving in stop-and-go traffic).
0 Most trips are through dusty areas.
0 You frequently tow a trailer or use a carrier on top of
your vehicle.
If the vehicle is used for delivery service, police, taxi
One of the reasons you should follow this schedule if
you operate your vehicle under any of these conditions
is that these conditions cause engine oil to break
down soonex
or other commercial application.
Short TripKity Intervals
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Change
(or 3 months, whichever occurs first).
Every 6,000 Miles (10 000 km): Tire Rotation.
Every 15,000 Miles (25 000 km): Air Cleaner Filter
Inspection, if driving in dusty conditions.
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel Tank, Cap and Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic Transaxle
Service (severe conditions only).
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection.
Every 100,000 Miles (166 000 km): Spark Plug Wire
Inspection. Spark Plug Replacement.
Every 150,000 Miles (240 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
These intervals only summarize maintenance services.
Be sure to follow the complete maintenance schedule
on
the following pages.
7-5

Maintenance Schedule
Long Trip/Hig;hway Definition I 1 i
Follow this maintenance schedule only if none of the
conditions from the
Short TripKity Maintenance
Schedule is true. Do not use this schedule
if the vehicle
is used
for trailer towing, driven in a dusty area or used
off paved roads. Use the Short Trip/City schedule for
these conditions.
Driving a vehicle with a fully warmed engine under
highway conditions causes engirae oil
to break
down slower:
--
Every 7,500 Miles (12 500 km): Engine Oil and Filter
Change (or every
12 months, whichever occurs first).
Tire Rotation.
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel
Tank, Cap and Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic Transaxle
Service (severe conditions only).
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection.
Every 100,000 Miles (166 000 km): Spark Plug Wire
Inspection. Spark Plug Replacement.
Every 150,000 Miles (240 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
These intervals only summarize maintenance services.
Be sure to
follow the complete maintenance schedule on
the following pages.
7-6

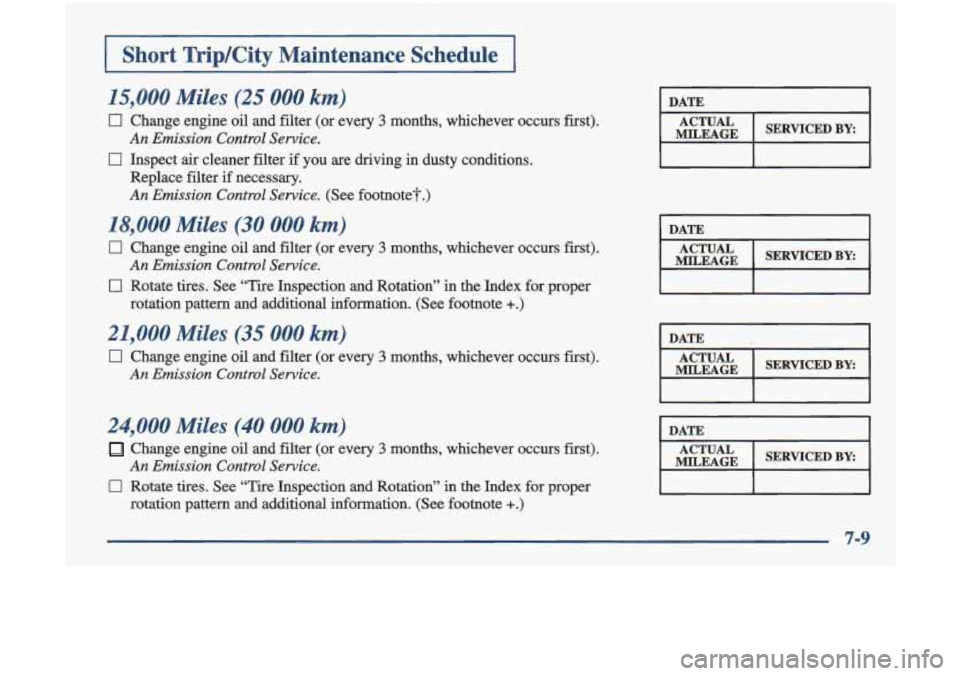

I Short TripKity Maintenance Schedule I
15,000 Miles (25 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
CI Inspect air cleaner filter if you are driving in dusty conditions.
An Emission Control Service.
Replace filter if necessary.
An Emission Control Service. (See footnotef.)
18,000 Miles (30 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
rotation pattern and additional information. (See footnote +.)
21,000 Miles (35 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
24,000 Miles (40 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
17 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
rotation pattern and additional information. (See footnote
+.)
I DATE I
DATE
DATE
I
1 MILEAGE ACTUAL I SERVICmBP.1
d
I
DATE
MILEAGE
7-9

30,000 Miles (50 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
Cl Replace air cleaner filter.
0 Inspect~fuel tank, cap and lines for darnage or leaks. Inspect fuel cap gasket
An Emission Control Service.
An Emission
Control Service.
for any damage. Replace parts as needed.
An-Emission Control Service. (See footnote?.)
rotation pattern and additional information. (See footnote
+.)
0 Rotate tires. See “Tire kspection and Rotation” in the Index for proper
33,000 Miles (55 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
MILEAGE
DATE
I
MILEAGE
DATE
I
7-10

I Short TripKity Maintenance Schedule I
36,000 Miles (60 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
rotation pattern and additional information. (See footnote +.)
39,000 Miles (65 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
42,000 Miles (70 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation’’ in the Index for proper
An Emission Control Service.
rotation pattern and additional information. (See footnote +.)
45,000 Miles (75 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs firstj.
[7 Inspect air cleaner filter if you are driving in dusty conditions.
An Emission Control Service.
Replace filter if necessary.
An Emission Control Service. (See footnote”f)
DATE I
DATE
DATE I
I MILEAGE ACTUAL I SERVICEDBY: I
DATE I
7-11

I Short Trip/City Maintenance Schedule I
54,000 Miles (90 000 km)
0 Change engine oil and filter (or every 3 months, whichever o ~ ~ ~ ~ __ .
0 Rotate tires. See “Tire Inspection and Rotation” in the Index lV+. proper
..
An Emission Control Service.
rotation pattern and additional information. (See footnote +.)
57,000 Miles (95 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
60,000 Miles (100 000 km)
17 Change engine oil and filter (or every 3 months, whichever occurs first).
0 Inspect engine accessory drive belt.
0 Replace air cleaner filter.
0 Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel cap gasket
An Emission Control Service.
An Emission Control Service.
An Emission Control Service.
for any damage. Replace parts as needed.
An Emission Control Service. (See footnoteT.)
rotation pattern and additional information. (See footnote
+.)
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
DATE I
I MILEAGE ACTUAL I SERVICEDBY: I
I DATE I
MILEAGE
DATE
I
7-13
! I I
i

66,000 Miles (110 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
rotation pattern and additional information. (See footnote +.)
69,000 Miles (115 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
72,000 Miles (120 000 km)
17 Change engine oil and filter (or every 3 months, whichever occurs fist).
Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
rotation pattern and additional information. (See footnote +.)
DATE‘:
MILEAGE SERVICED BY:
:
DATE I
MILEAGE
ACTUAL SERVICED BY:
DATE I
MILEAGE
I I I
DATE I
MILEAGE
ACTUAL SERVICED BY:
7-14

I Short Trip/City Maintenance Schedule I
75,000 Miles (125 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
0 Inspect air cleaner filter if you are driving in dusty conditions.
An Emission Control Service.
Replace filter if necessary.
An Emission Control Service. (See footnote?.)
78,000 Miles (130 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
rotation pattern and additional information. (See footnote +.)
81,000 Miles (135 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs first).
An Emission Control Service.
84,000 Miles (140 000 km)
Change engine oil and filter (or every 3 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
rotation pattern and additional information. (See footnote +.)
DATE I
I MILEAGE ACTUAL I SERVICEDBY: I
b
I DATE I
MILEAGE
DATE
DATE
7-15
